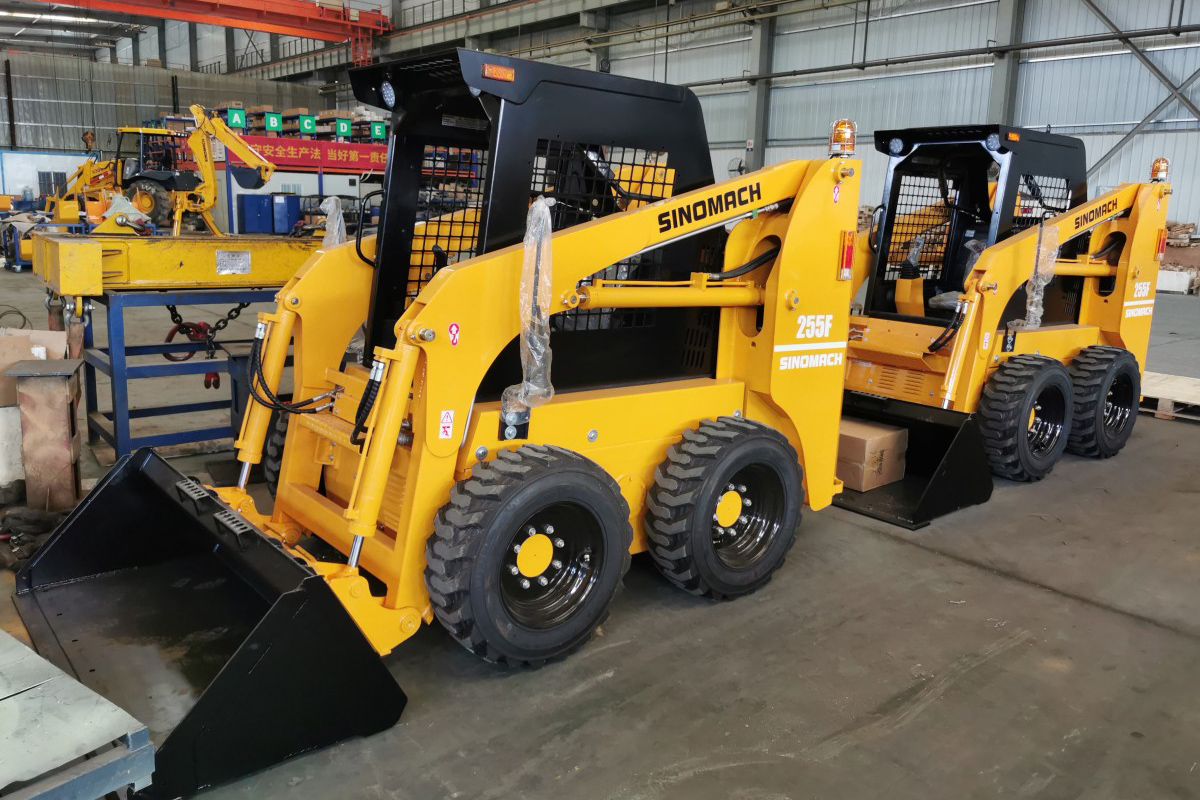

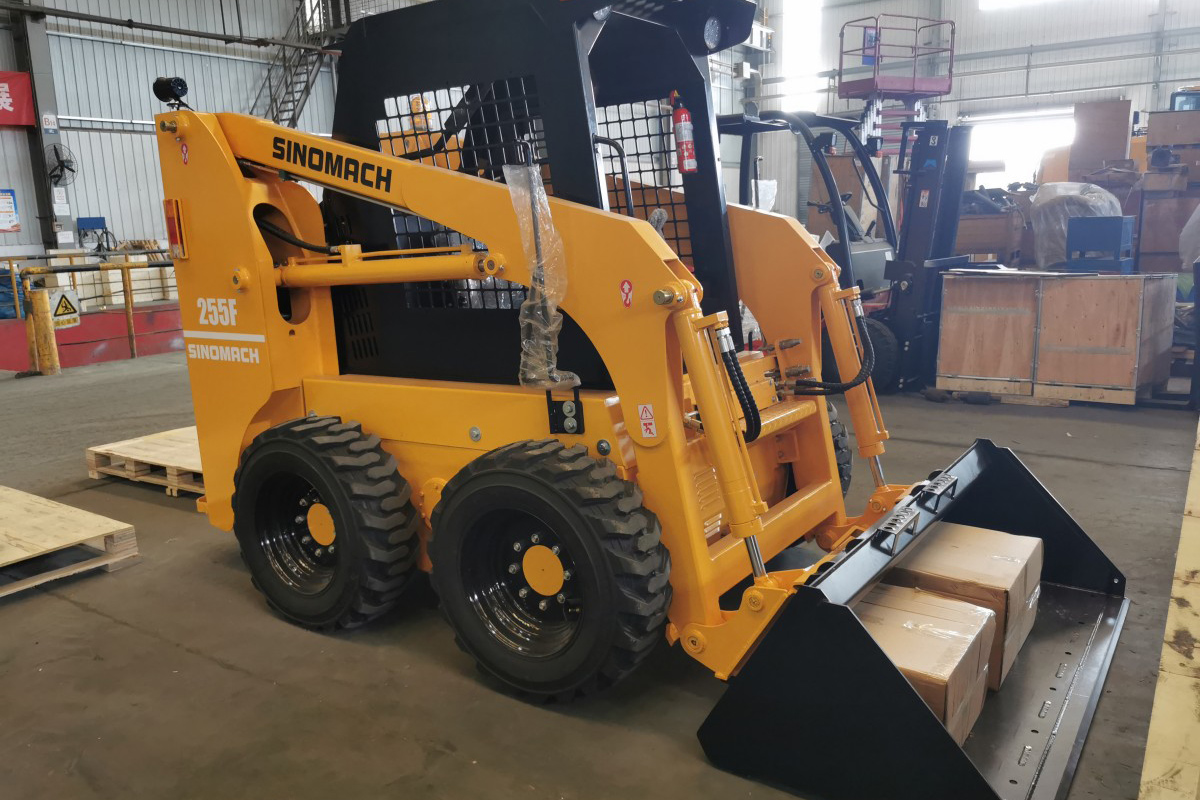

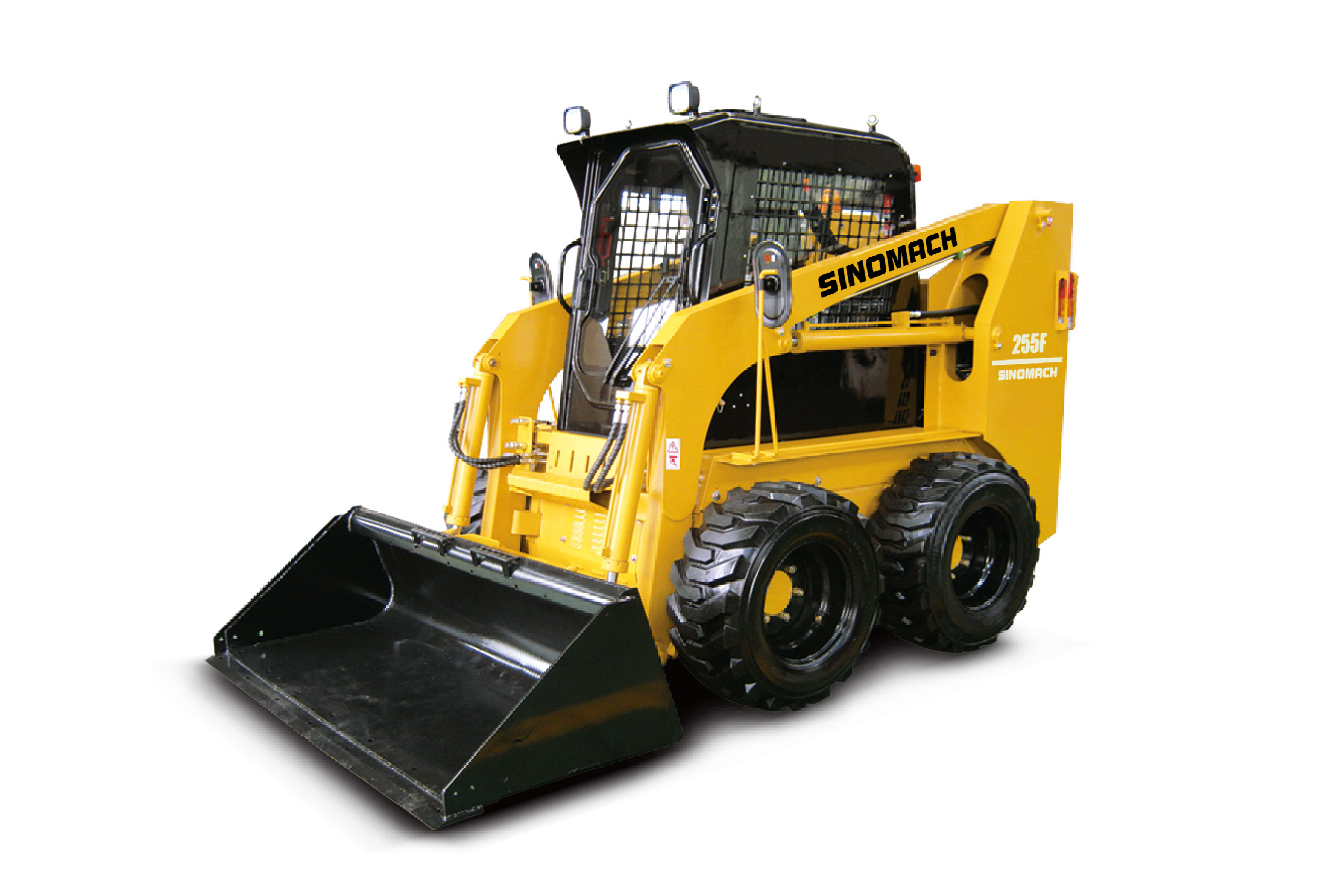

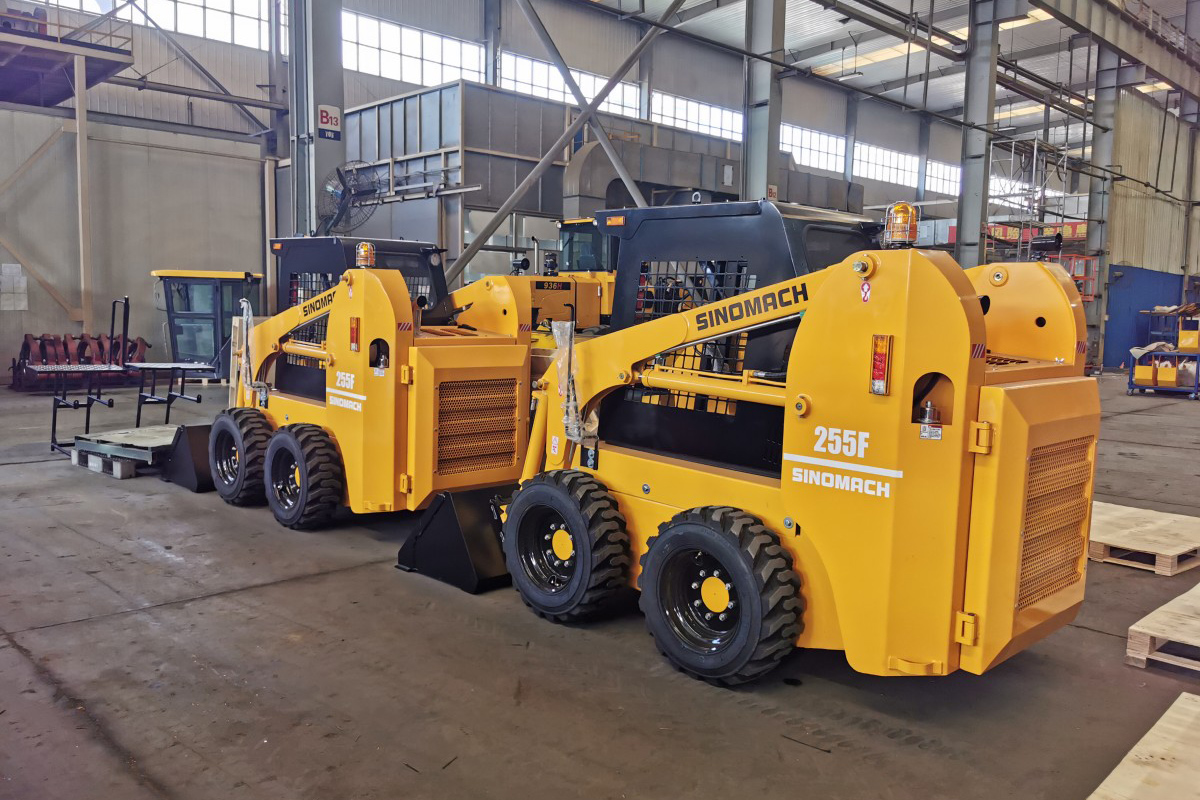

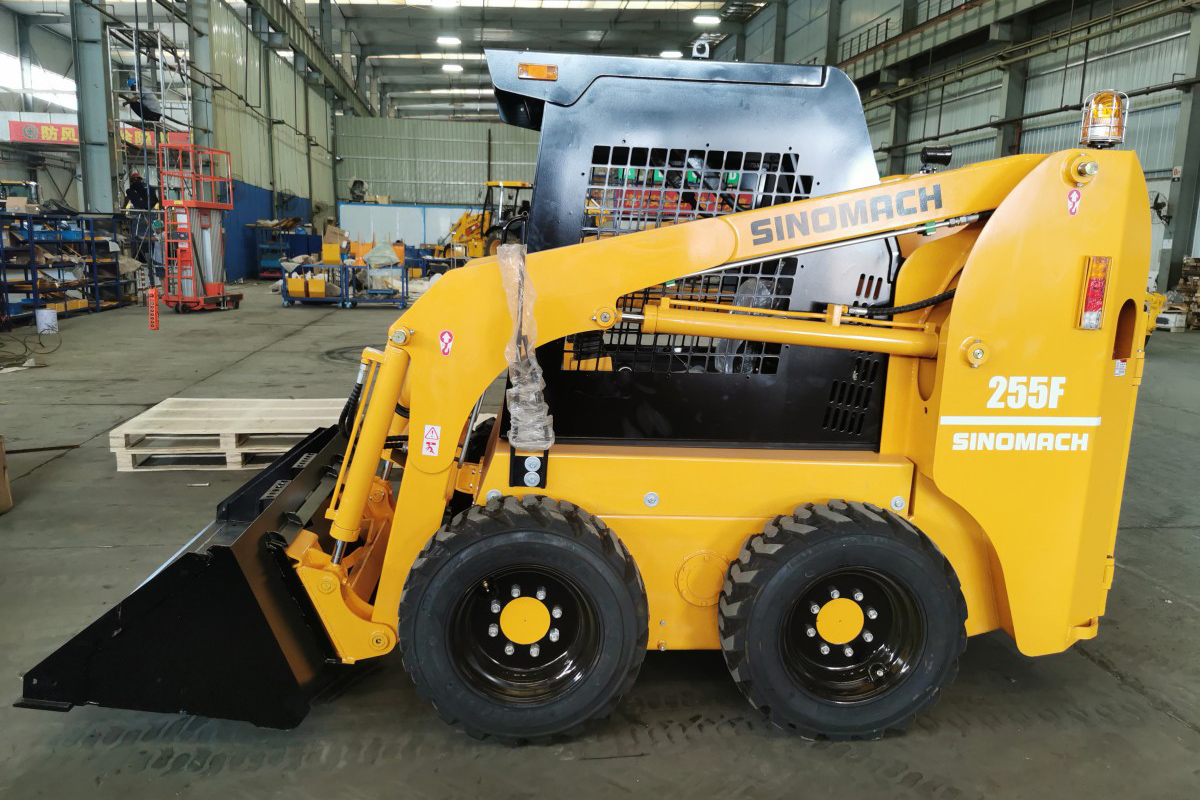

255F Wheeled skid steer loader
description1
01

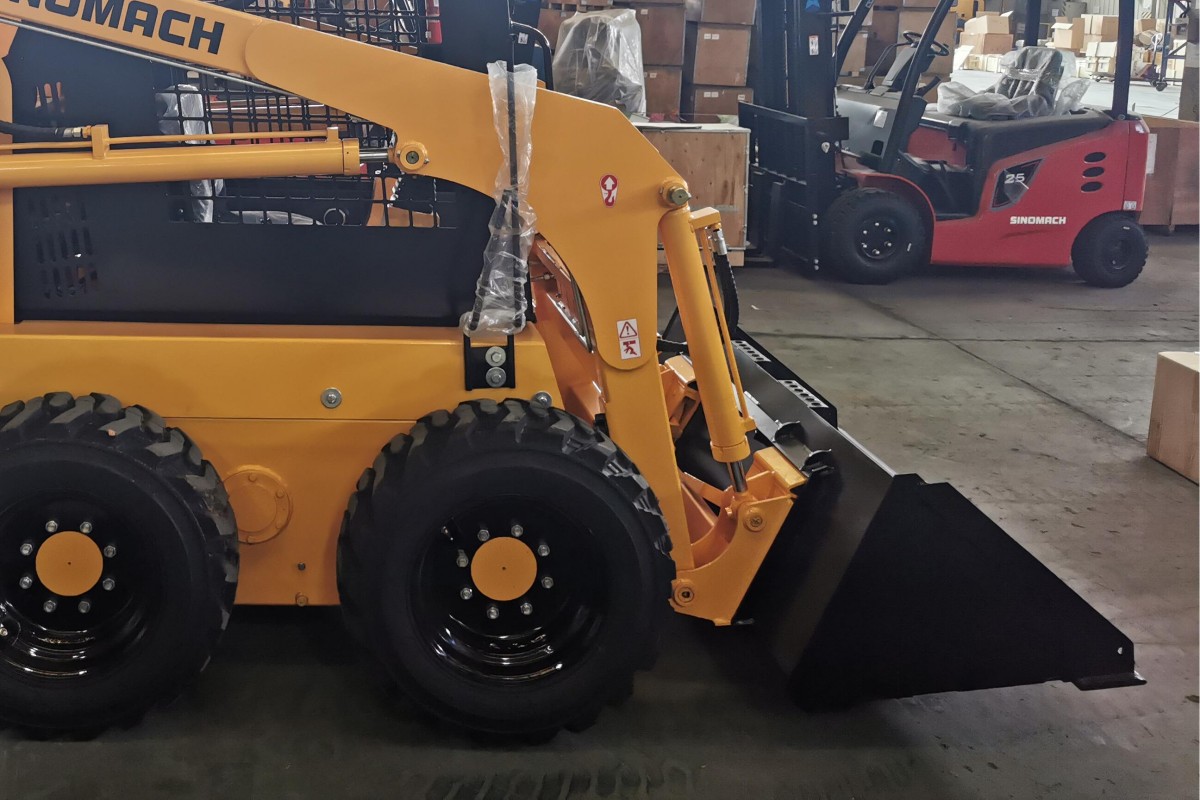

Integrates a standard quick-attach system with auxiliary hydraulic circuits
This innovative skid-steer loader features a universal quick-coupler system with auxiliary hydraulics, supporting instant switching among 15+ attachments (including buckets, pallet forks, brush sweepers, and drilling augers) to meet diverse job site challenges. Its modular architecture delivers unmatched functional adaptability, transforming between material handling, surface cleaning, and specialized tasks within minutes—maximizing productivity across ever-changing operational scenarios.
The skid steer loader cab enhances operational safety through a panoramic visibility design that minimizes blind spots, ensures year-round comfort with an integrated heating and cooling system, reduces noise via a fully sealed cabin structure, and optimizes stability by centrally positioning the cab to balance weight distribution, providing comprehensive protection for operators.
Products pecifications
| Overall Dimension | ||||
| 1 | Length(with bucket on ground) | 3420(mm) | ||
| 2 | Width(to outside of wheels) | 1680(mm) | ||
| 3 | Bucket width | 1730(mm) | ||
| 4 | Height(To the top of the cab） | 2150(mm) | ||
| 5 | Wheel base | 991(mm) | ||
| 6 | Tread | 1500(mm) | ||
| 7 | Min. ground clearance | 200(mm) | ||
| Main Technical Specification | ||||
| 1 | Rated load | 700(Kg) | ||
| 2 | Operating weight | 2800KG | ||
| 3 | Rated bucket capacity | 0.35(m3) | ||
| 4 | Max. breakout force | 22kN | ||
| 5 | Static tipping loads | ≥17kN | ||
| 6 | Max. dump clearance | 2430(mm) | ||
| 7 | Dump reach | 700(mm) | ||
| 8 | Dump angle at any position | ≥400 | ||
| 9 | Angle of departure | 300 | ||
| 10 | Min. turning radius | |||
| (1) Outside of bucket | 2190(mm) | |||
| (2) Outside of front wheel | 1168(mm) | |||
| (3) outside of frame tail | 1630 (mm) | |||
| 11 | Lifting time of bucket | ≤4.2(sec.) | ||
| 12 | Lowering time of bucket | ≤2.5(sec.) | ||
| 13 | Dumping time | ≤2.6(sec.) | ||
| 14 | Traveling speed(Km/h)，1forward and 1 reverse | |||
| (1) forward gear | 0～12 | |||
| (2) reverse gear | 0～12 | |||
| Diesel engine | ||||
| 1 | Model | Xinchai A490BPG | ||
| 2 | Rated output | 40 (kW) | ||
| 3 | Total exhaust of cylinder | 2.67 (L) | ||
| 4 | Rated speed | 2650(r/min) | ||
| 5 | Max. Torque | 160(N.M)/1800rpm | ||
| 6 | Starting type | Electric | ||
| Brake System | ||||
| 1 | Type of traveling brake | Traveling brake depend on static hydraulic tow of close-circuit hydraulic system | ||
| 2 | Type of parking brake | Traveling motors within brake actuated via operating solenoid valve | ||
| Oil Capacity | ||||
| 1 | Fuel(diesel) | 80(L) | ||
| 2 | Engine lubricating oil | 10(L) | ||
| 3 | Oil for chain box（one side） | 5.7(L) | ||
| 4 | Oil for hydraulic system | 65(L) | ||
