Skid Steer Loaders

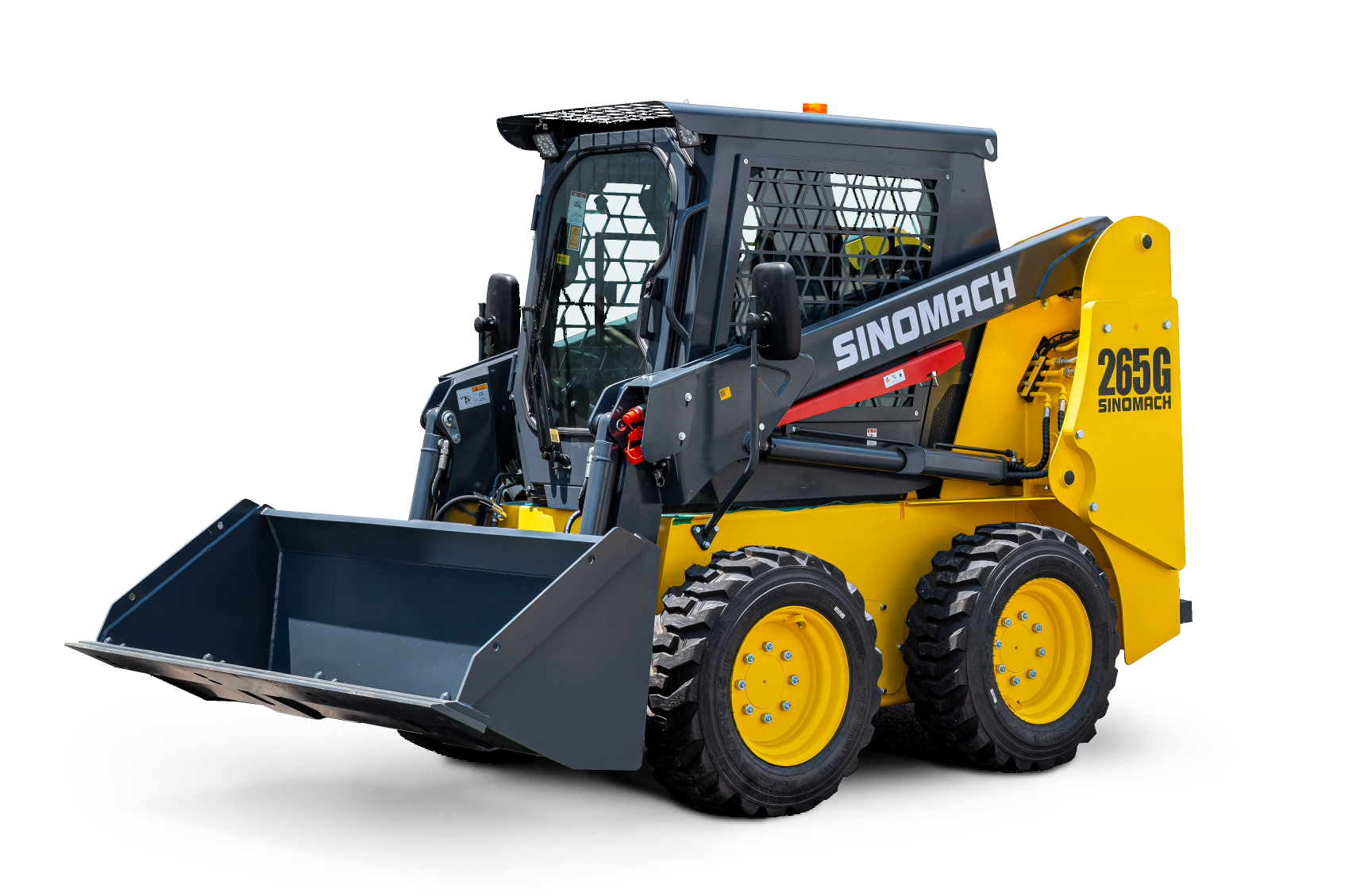

265G Wheeled skid steer loader

This high-performance skid-steer loader utilizes intelligent differential wheel speed control through its advanced all-wheel-drive system, ensuring superior maneuverability and stable operation. Its compact design with zero-radius turning capability makes it ideal for confined spaces in industrial facilities, storage areas, and marine applications. As a cutting-edge solution in compact construction equipment, it demonstrates exceptional versatility across multiple sectors including urban construction, agricultural operations, logistics handling, and emergency services, setting new benchmarks for operational efficiency in space-limited environments.

product details

description1

A variety of engine configuration options, strong power, energy saving and environmental protection.

● Xinchai (Tier 2)

● Kobuta (Tier 3)

● Xinchai (Euro v)

Integrates a standard quick-attach system with auxiliary hydraulic circuits

Equipped with a universal quick-coupling interface and high-flow auxiliary hydraulics, this skid-steer loader supports instant tool-free attachment changes among 15+ implements (including material buckets, pallet forks, road sweepers, and earth augers). This innovative modular system delivers unprecedented job site adaptability, transforming the machine from excavation equipment to material handler to specialized tool carrier in minutes - dramatically improving productivity across construction, landscaping, and industrial maintenance applications.

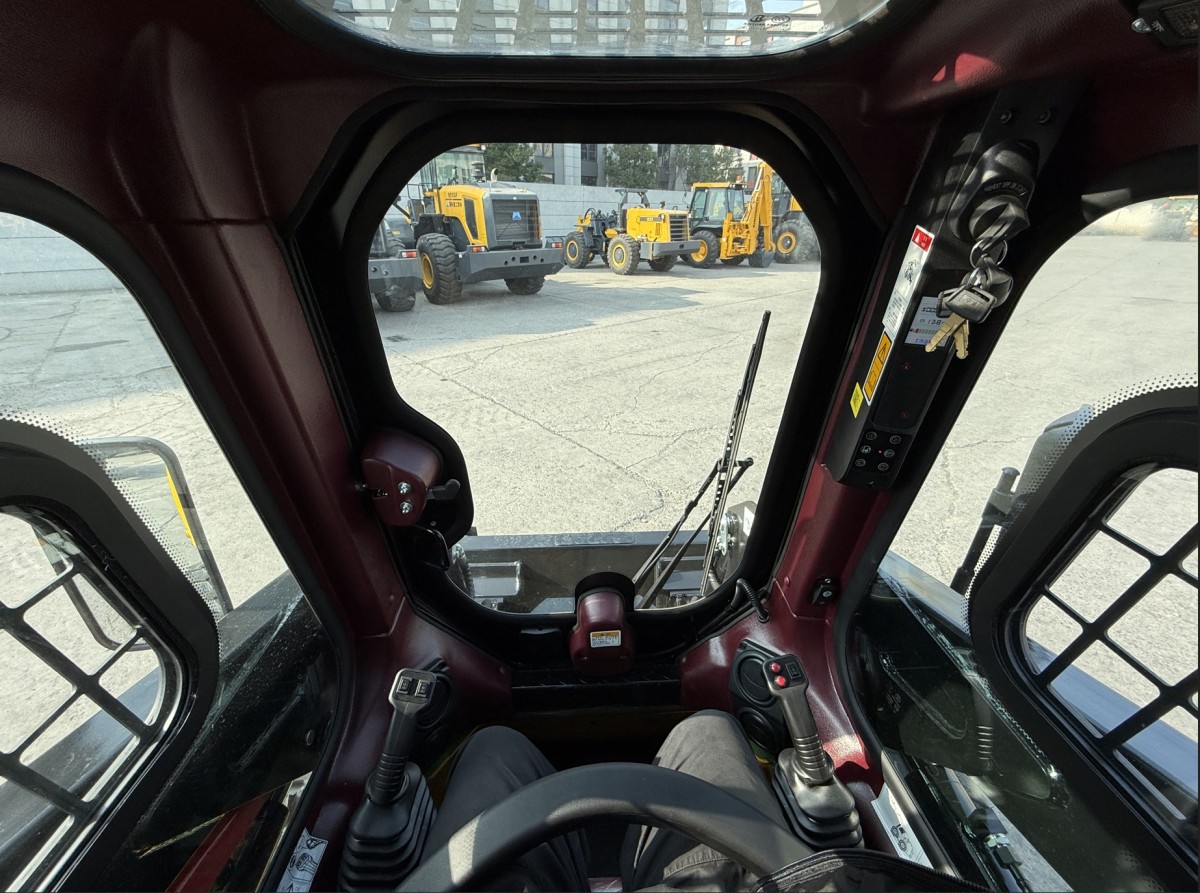

FOPS/ROPS of high intensity cab

It complies with international safety standard FOPS/ROPS of high intensity cab, which has bigger space and is more comfortable.

Products pecifications

Main parameter
Operating Mass	2900kg
Rated Load	899kg
Bucket Capacity	0.48m³
L×W×H	3220×1820×2000
Engine system
Engine Model	V2403-M-D-FET04
Rated Power	36kW/2500rpm
Displacement	3.168L
Emission	ⅢA
Hydraulic system
Hydraulic Flow	74L/min·2500rpm
Type	Mechanical Servo
Hydraulic Pressure	21MPa
Drive train
Travel Speed -F&R	11.5km/h
Tyre	12-16.5 NHS
Accumulators
Voltage(V)	12 V
Capacity(Ah)	120 Ah
Tank capacity
Chain Box	2×9L
Cooling System	12L
Engine Crankcase	8L
Fuel Tank	83L
Hydraulic Tank	65L

A	Max.Operation Height	3750
B	Bucket Pin Height	2920
C	Cab Roof Height	2000
D	Max.Height At Bucket Leveled	2730
E	Length Without Attachment	2420
F	Length With Standard Bucket	3220
H	Max. dump clearance	2260
J	Dump reach	640
M	Wheelbase	1050
P	Ground Clearance	210
R	Front Turning Radius Without Attachment	1200
S	Front Turning Radius	2010
T	Rear Turning Radius	1520
U	Tail Length	960
V	Tread	1240
W	Bucket Width	1820
G	Dumping Angle At Max.Height	40
K	Bucket Angle On Ground	28
L	Bucket Rollback Angle At Max.Height	94
Q	Departure angle	27
