Skid Steer Loaders

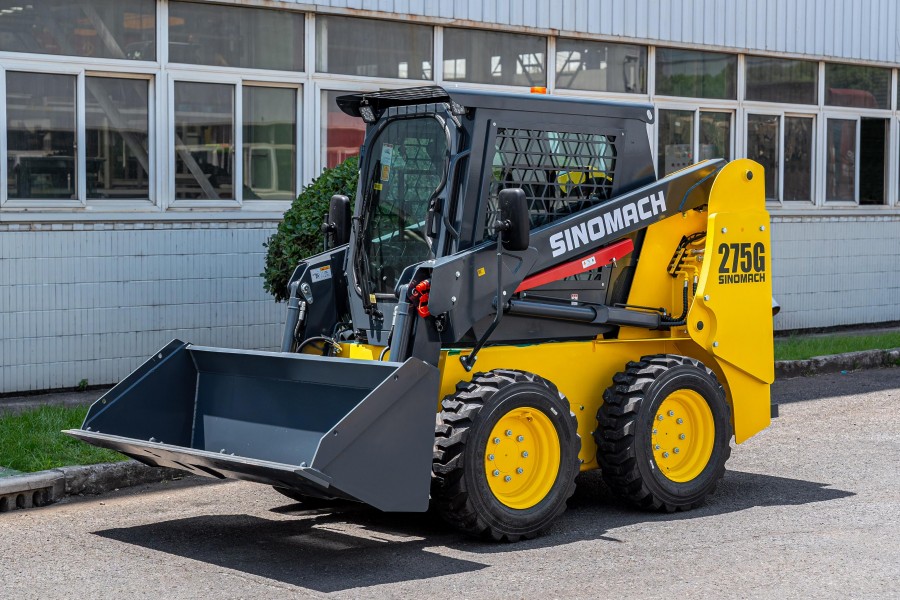

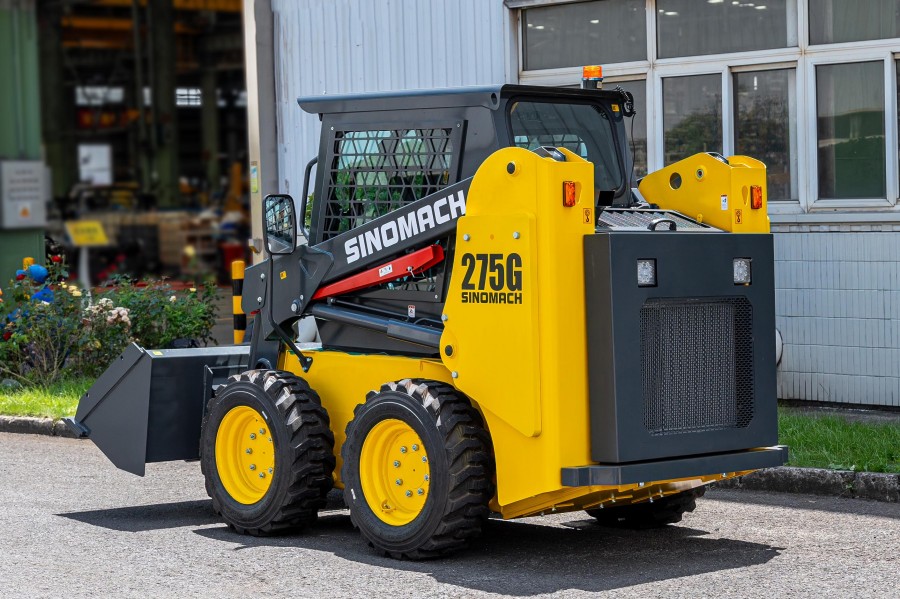

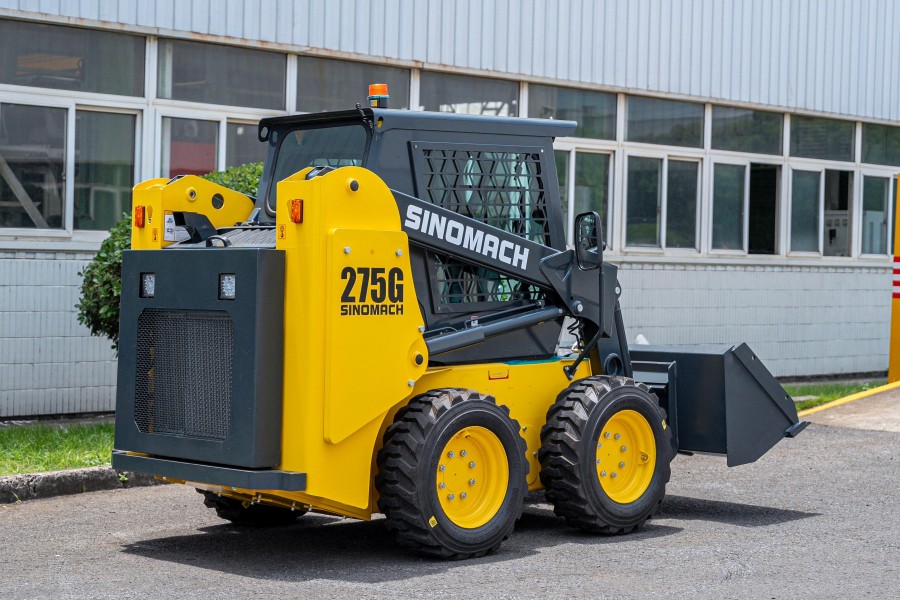

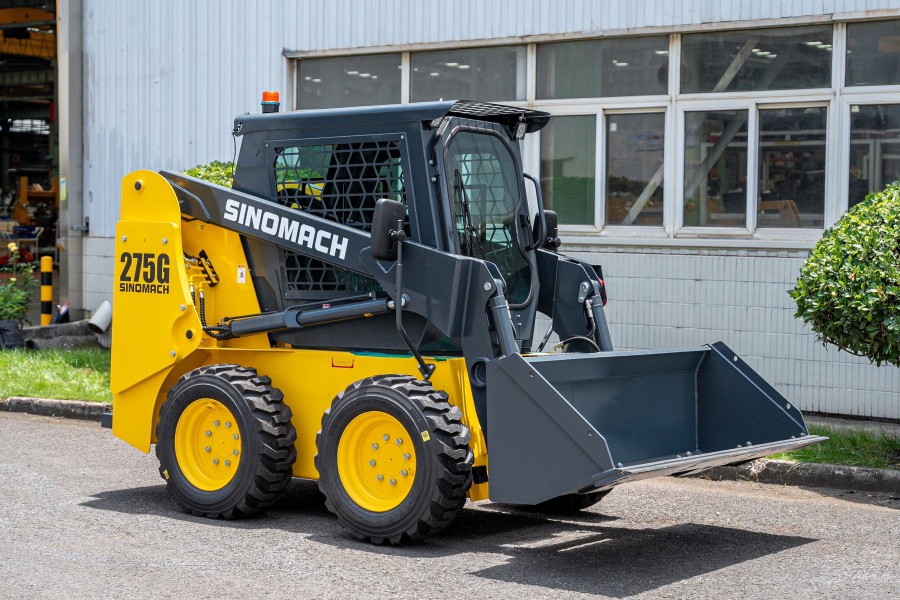

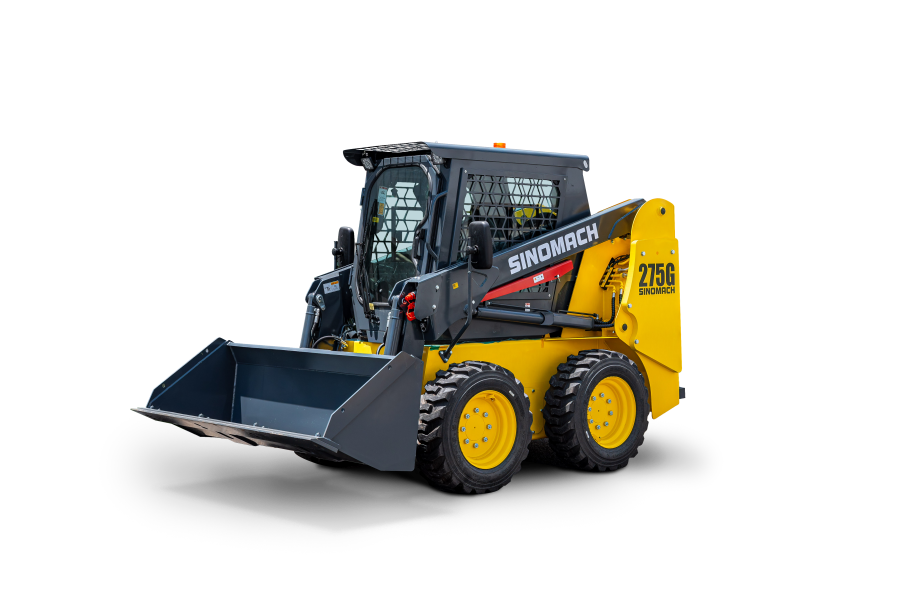

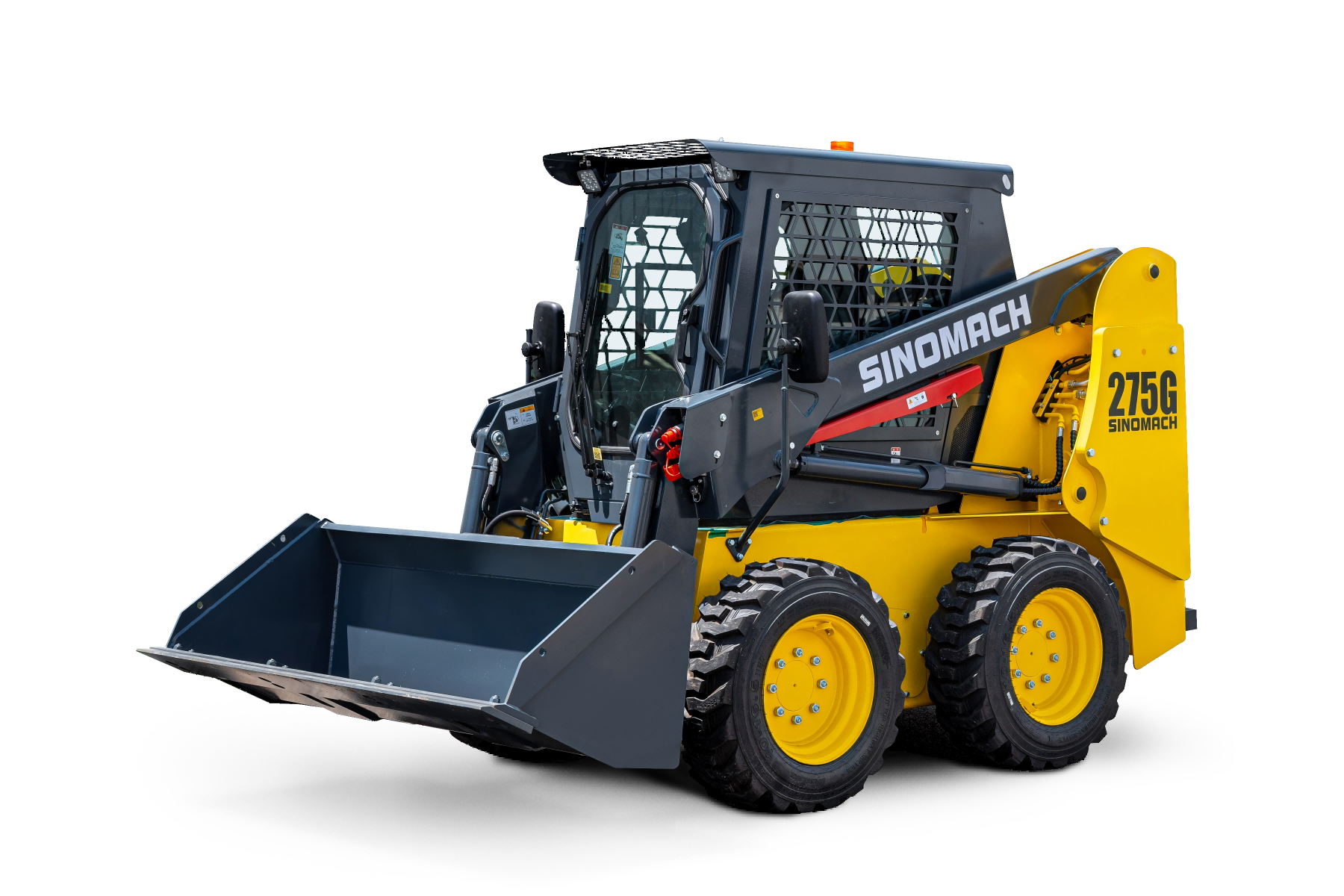

275G Wheeled skid steer loader

This wheel loader features skid-steer maneuverability via differential linear wheel speeds across its all-wheel-drive system, delivering enhanced traction and operational stability. With a compact footprint and pivot-turn capability, it excels in confined workspaces like workshops, warehouses, and vessel decks.

As a signature model in modern construction machinery, its multi-scenario adaptability spans urban development and municipal maintenance, agricultural operations, industrial/port logistics, and emergency response scenarios. The design redefines efficiency for spatially constrained environments and versatile task execution.

product details

description1

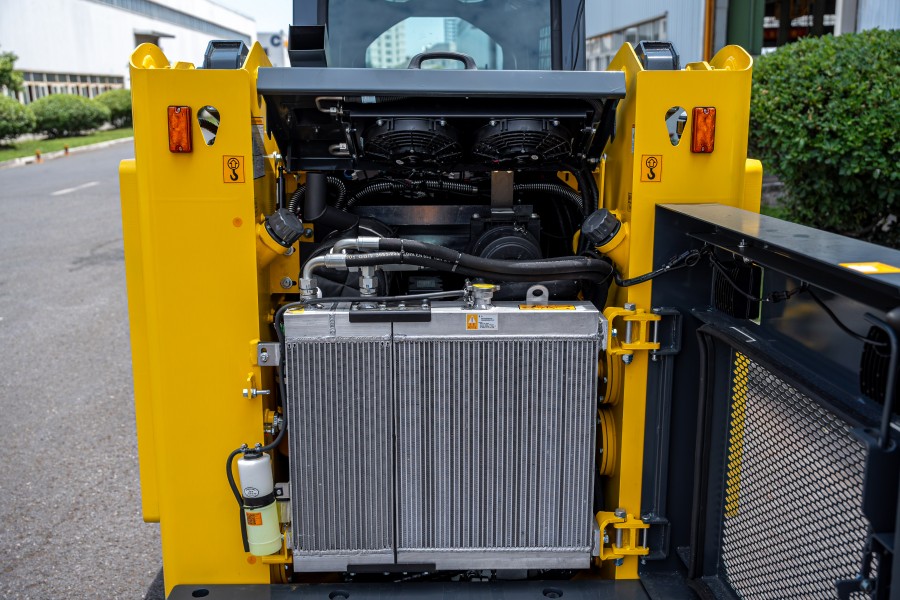

A variety of engine configuration options, strong power, energy saving and environmental protection.

● Xinchai (Tier 2)

● Kobuta (Tier 3)

● Xinchai (Euro v)

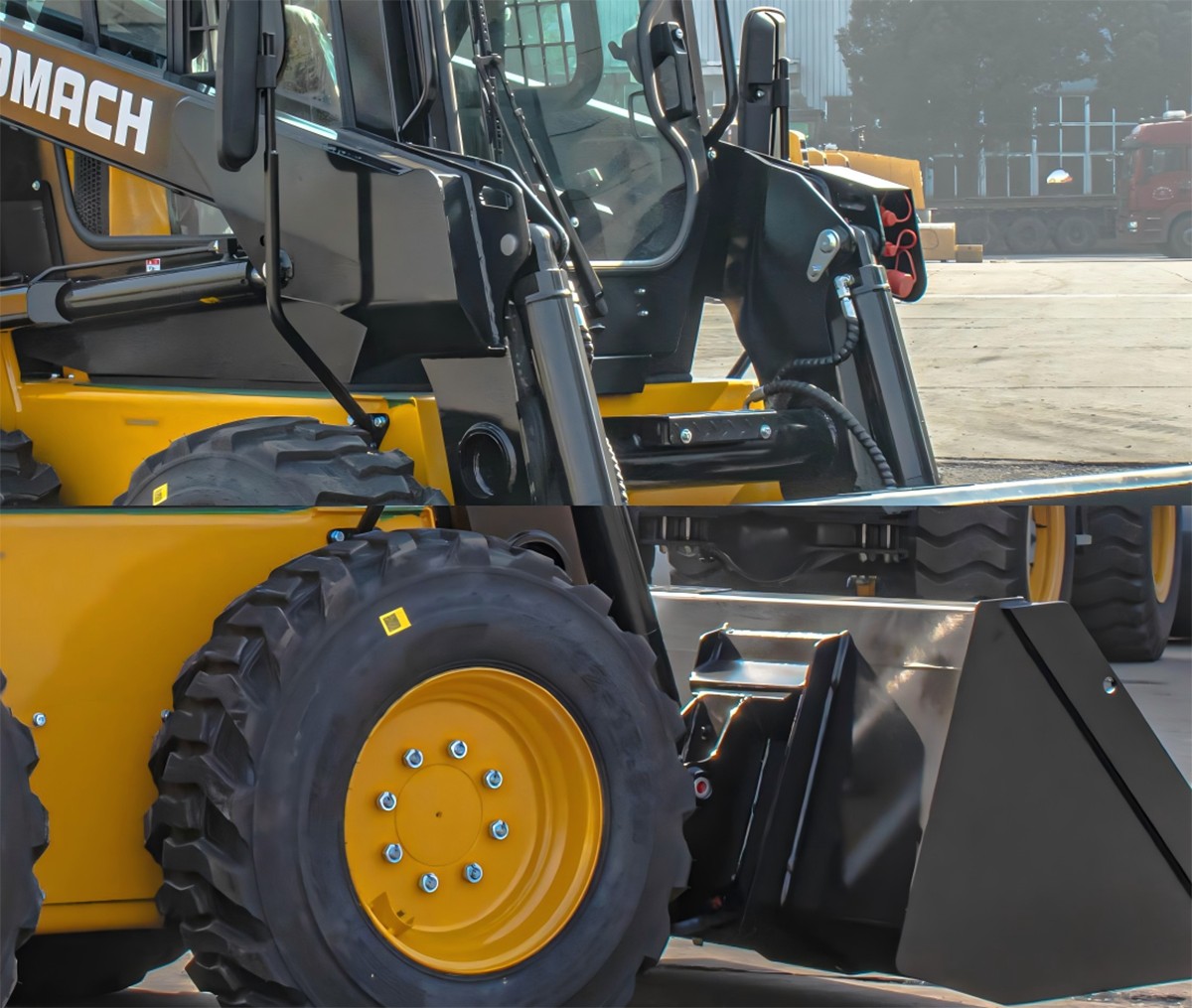

Integrates a standard quick-attach system with auxiliary hydraulic circuits

The machine integrates a standard quick-attach system with auxiliary hydraulic circuits, enabling rapid interchange of over a dozen attachments (e.g., buckets, forks, sweepers, augers), thereby achieving multi-functional versatility for dynamic task requirements. This modular design optimizes operational flexibility, allowing seamless transitions between diverse worksite demands.

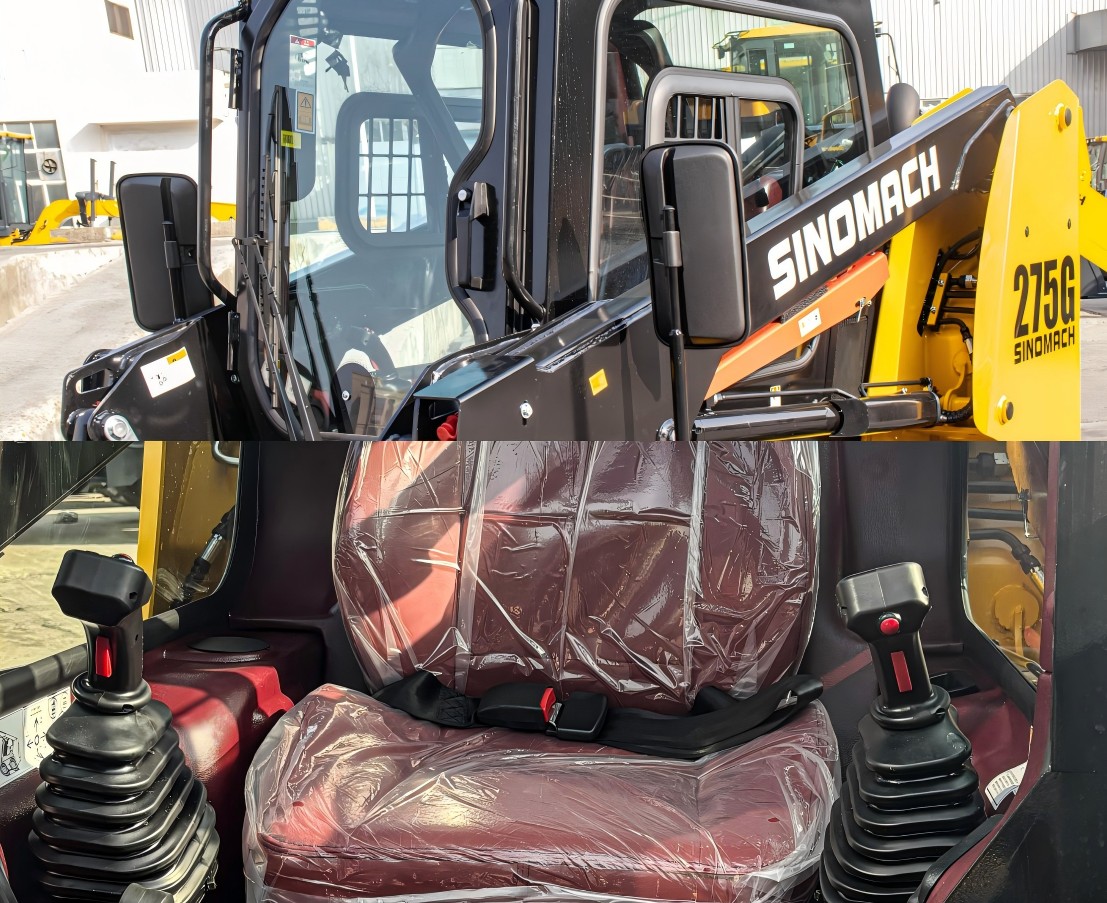

FOPS/ROPS of high intensity cab

It complies with international safety standard FOPS/ROPS of high intensity cab, which has bigger space and is more comfortable.

Products pecifications

Main parameter
Operating Mass	3500kg
Rated Load	1200kg
Bucket Capacity	0.54m³
Traction Force	25.9kN
L×W×H	3460×1820×2000mm
Engine system
Engine Model	Kubota V3600-T-E3B
Rated Power	63kW/2600rpm
Displacement	3.62L
Emission	EPA Tier IV /Euro ⅢA
Hydraulic system
Hydraulic Flow	91L/min·2600rpm
Type	Pilot operation
Hydraulic Pressure	21MPa
Hydraulic Flow-High	135L/min·2600rpm
Drive train
Travel Speed -F&R	11.5km/h
Tyre	10-16.5NHS
Accumulators
Voltage(V)	12 V
Capacity(Ah)	120 Ah
Tank capacity
Chain Box	2×9L
Cooling System	12L
Engine Crankcase	9L
Fuel Tank	91L
Hydraulic Tank	65L

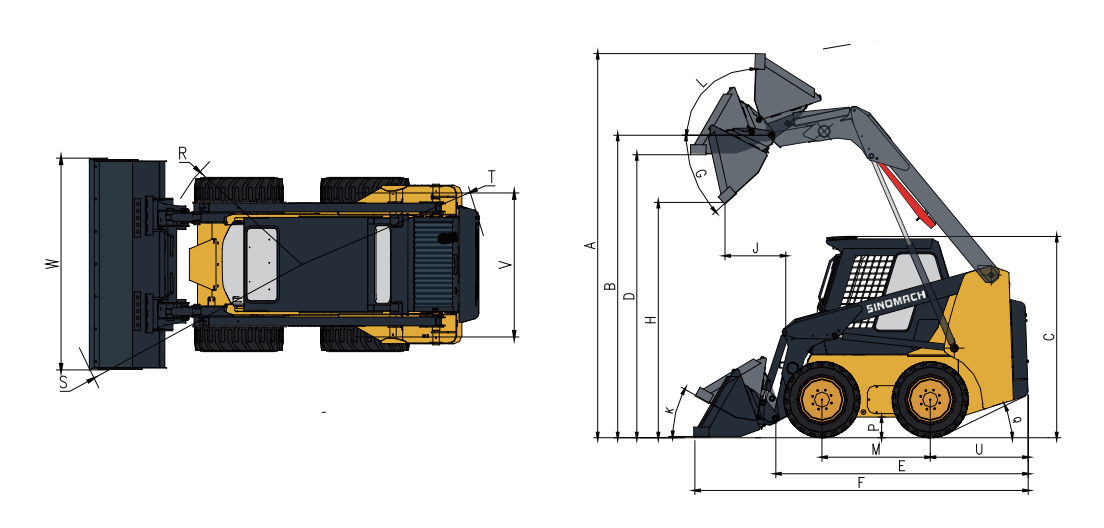

A	Max.Operation Height	3880mm
B	Bucket Pin Height	3060mm
C	Cab Roof Height	2000mm
D	Max.Height At Bucket Leveled	2870mm
E	Length Without Attachment	2530mm
F	Length With Standard Bucket	3460mm
H	Max. dump clearance	2440mm
J	Dump reach	610mm
M	Wheelbase	1080mm
P	Ground Clearance	180mm
R	Front Turning Radius Without Attachment	1180mm
S	Front Turning Radius	2050mm
T	Rear Turning Radius	1580mm
U	Tail Length	980mm
V	Tread	1320mm
W	Bucket Width	1820mm
G	Dumping Angle At Max.Height	40°
K	Bucket Angle On Ground	29°
L	Bucket Rollback Angle At Max.Height	96°
Q	Departure angle	28°
