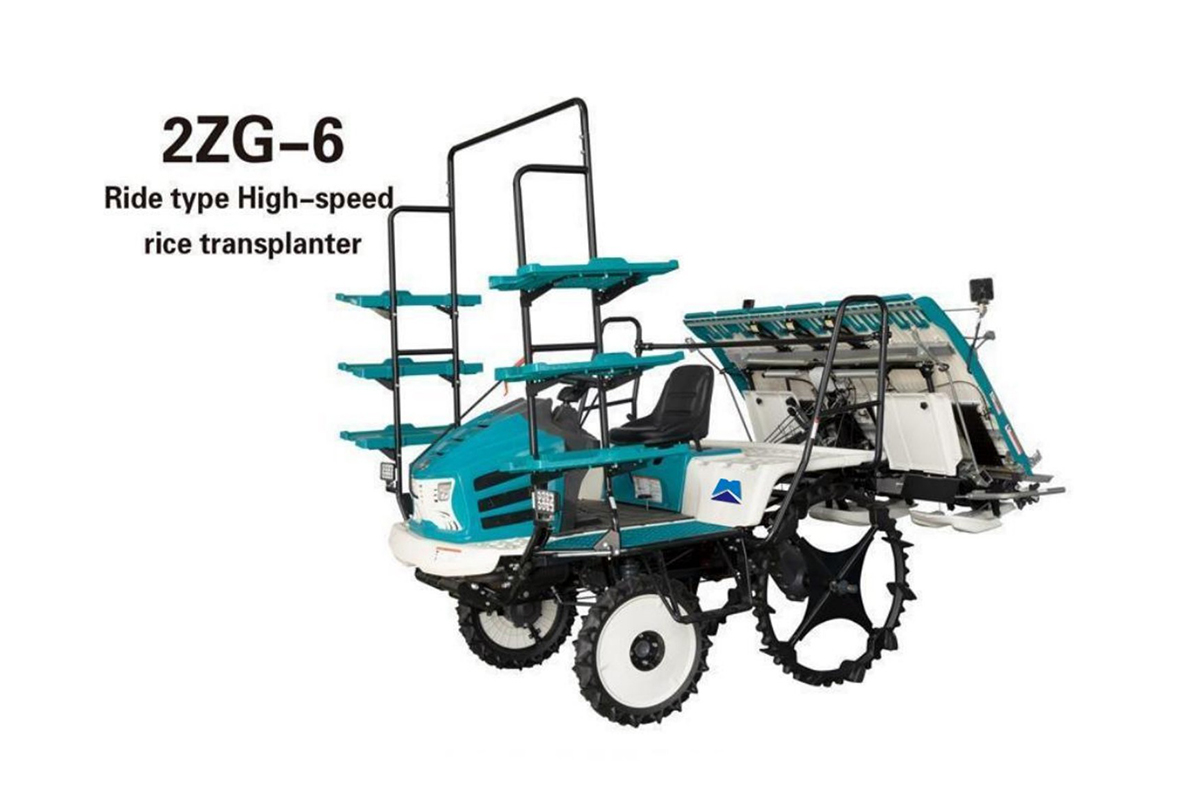

2ZG-6 Ride type High-speed rice transplanter
description1
01
product description
The intelligent variable-rate fertilization system dynamically adjusts nutrient delivery based on real-time soil fertility, sink depth, and speed monitoring. The advanced assisted driving system enables path planning, straight-line guidance, auto-turning, and unmanned operation, featuring an intuitive interface with flexible human-machine interaction for emergency intervention in complex environments. Additionally, the optional precision spraying/direct seeding module allows simultaneous planting and targeted agrochemical application, or seamless switching to high-efficiency direct seeding, expanding multifunctional utility for modern farming.
Products Specifications
Structure Type |
Ride Type High Speed |
Engine Producer |
Chongqing Runtong Technology Co., Ltd |
Engine Type |
R670 |
Fuel Type |
Gasoline |
Rate Power |
13.5Kw |
Rate Rpm |
3600 |
Dimension (mm) |
3090*2220*2580 |
Working Speed(Km/H) |
0-1.65 |
Productivity Per Hour (Hm²/H) |
0.2-0.42 |
Fuel Consumption(Kg/Hm²) |
3.0-6.5 |
Working Lines |
6 |
Line Spacing (mm) |
300 |
Hole Distance Adjustment Mode |
Handle Adjustment |
Hole Distance To Adjust The Number Of Gears |
7 |
Hole Distance(mm) |
100, 120, 140, 160, 180, 210, 240 |
Planting Depth(mm) |
10-55 |
Shift(mm) |
20,17.5,15.6,14 |
Seedling Depth (mm) |
8-18 |
Transplanting Frequency(Singal-Line)(Hole/Min) |
0-600 |
Transmission Type |
HST |
Front Tire Dimension |
Φ650 Explosion-Proof Tyre |
Rear Tire Dimension |
Φ950 Rubber Tires With Thick Wheels |
Balance Systme Type |
Electronic |
Planting Arm Type |
Rotary Transplanting |
