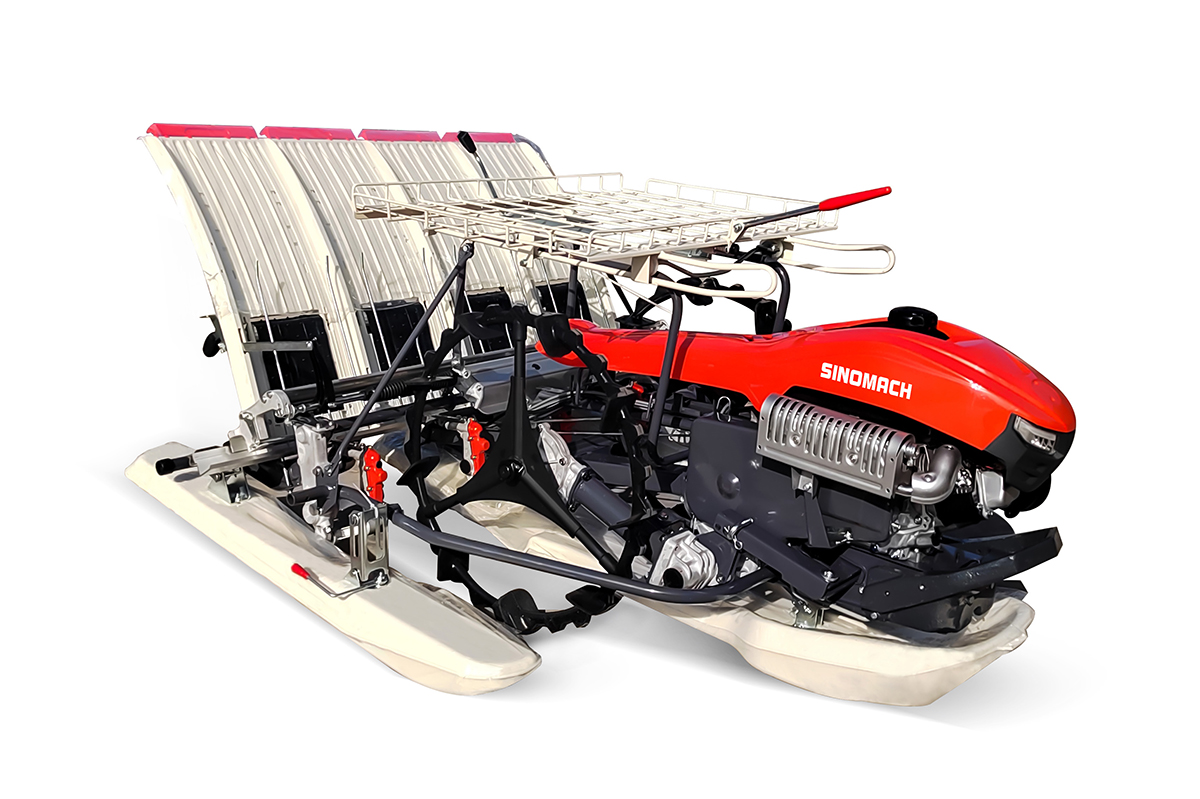

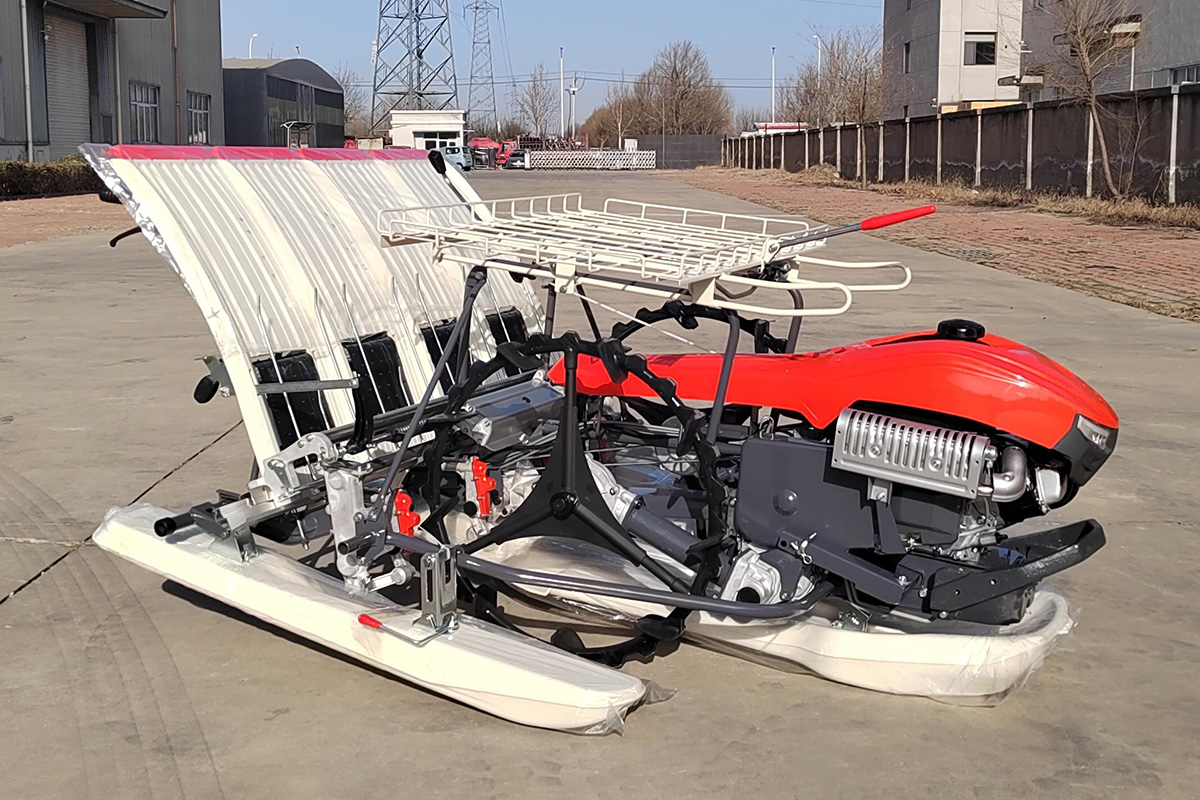

2ZS-4A Walking Rice Transplanter
description1
01
product description
The modular design incorporates interchangeable wide/narrow seedling needles, allowing rapid adaptation to regional agronomic requirements for precise planting and diverse cultivation needs. Enhanced by an intelligently optimized profiling mechanism, the machine ensures uniform planting depth, eliminates seedling damage, and accelerates post-transplant recovery, significantly boosting crop growth efficiency. Designed with user-centric priorities, it harmonizes operational precision and productivity, offering a dependable solution for modern rice farming.
Products Specifications
Structure Type |
Handheld |
Engine Producer |
Jiangsu Yamaha / Jiangsu Linhai Power Machinery Group Co.,Ltd |
Engine Type |
MZ175/SPE175 |
Fuel Type |
Gasoline |
Rate Power |
3.3Kw |
Rate Rpm |
3000 |
Dimension (mm) |
2067*1608*1070 |
Working Speed(Km/H) |
0.34-0.77 |
Productivity Per Hour （Hm²/H） |
0.09-0.21 |
Fuel Consumption(Kg/Hm²) |
2.0-4.7 |
Working Lines |
4 |
Line Spacing (mm) |
300 |
Hole Distance Adjustment Mode |
Change Gears + Fork Adjustment |
Hole Distance To Adjust The Number Of Gears |
5 |
Hole Distance(mm) |
120, 140, 160, 180, 210 |
Planting Depth(mm) |
7-37(5 Section) |
Shift(mm) |
21.4/14, 16.7/18, 15.0/20, 11.5/26 |
Seedling Depth (mm) |
7-17(9 Section) |
Transplanting Frequency(Hole/Min) |
350-1000 |
Transmission Type |
Gear |
Front Tire Dimension |
Rubber Tires With Thick Wheels |
