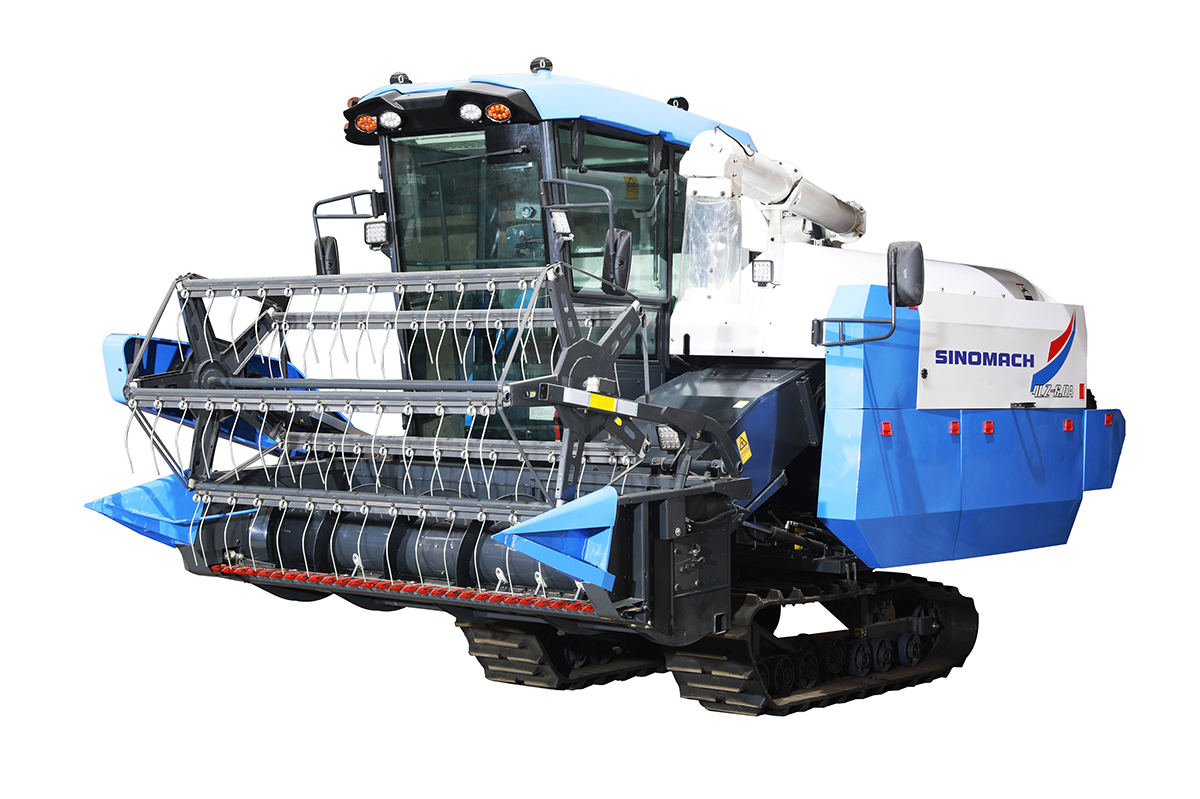

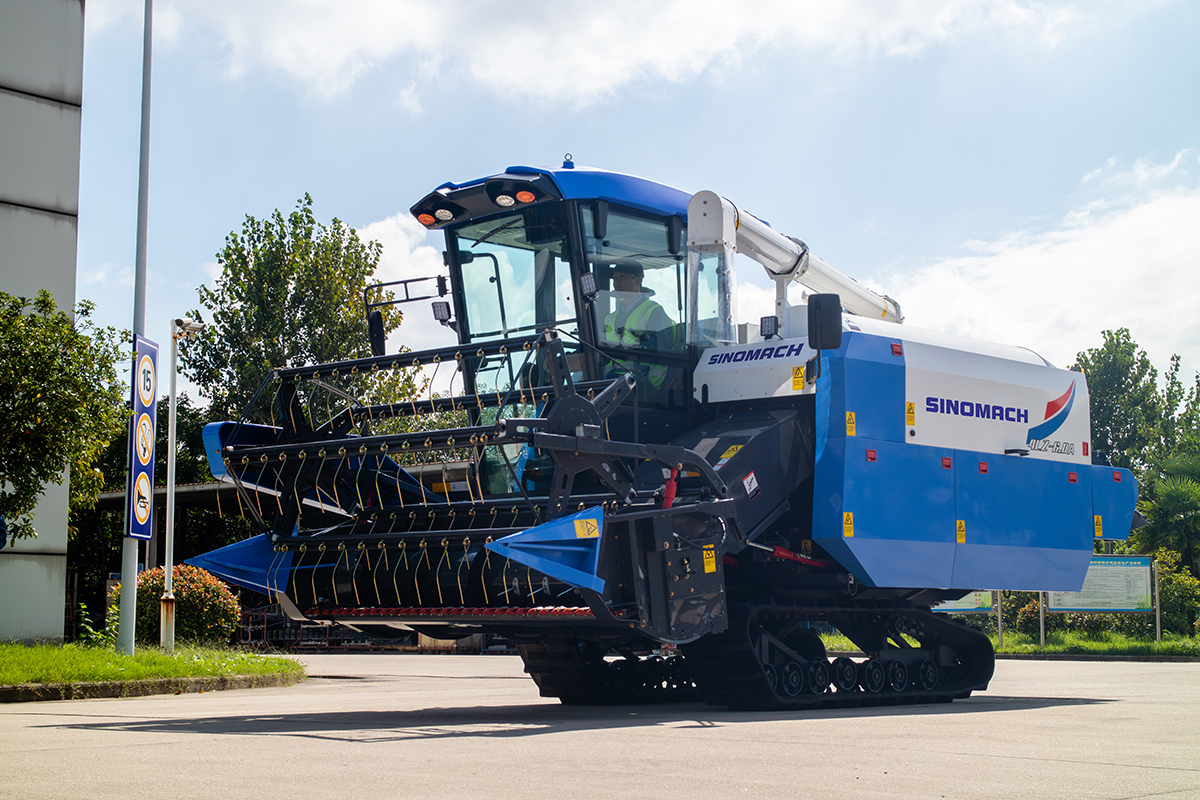

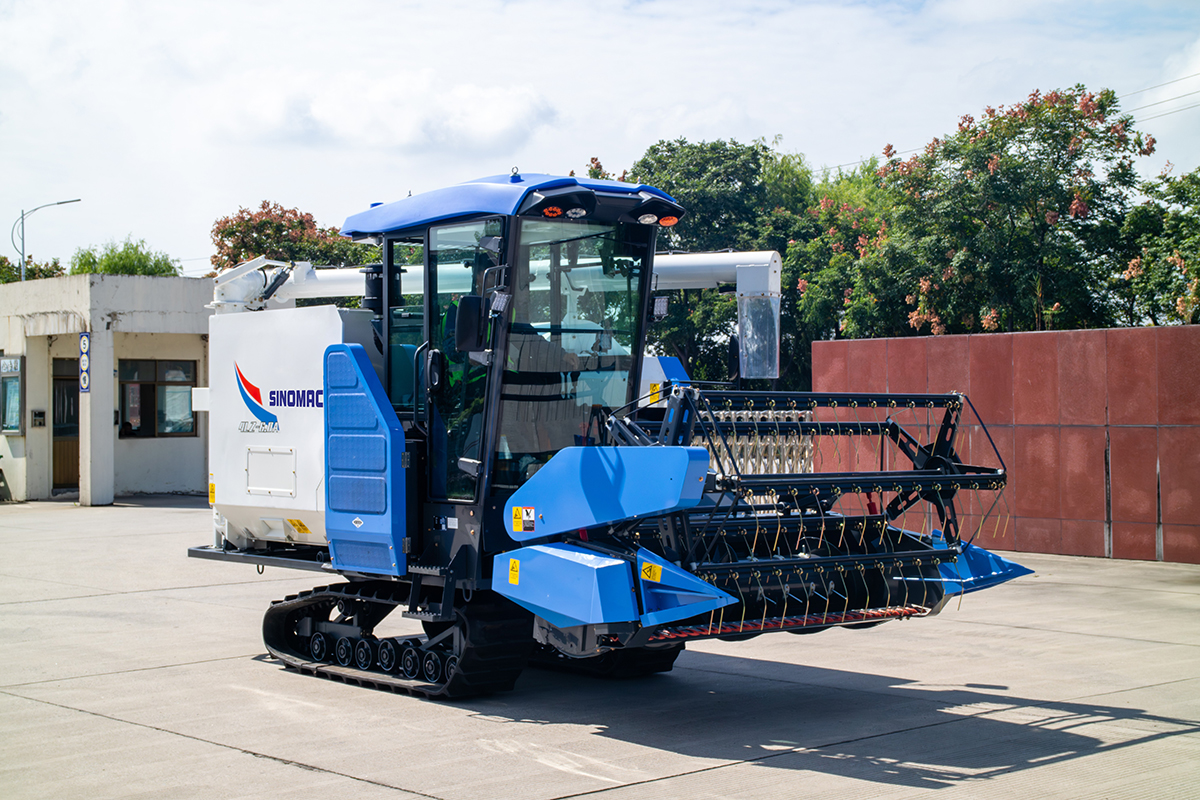

4LZ-6.0A Self-propelled full feed grain combine harvester
description1
01
product description
The 1600L grain tank supports 360° unloading and one-touch reset, while the 220L fuel tank minimizes refueling downtime. The fully enclosed cabin, equipped with air conditioning and bright LED work lights, ensures operator comfort and night-time visibility. Standard 90mm × 56-link × 500mm tracks (550mm optional) and a 320mm ground clearance provide superior traction and mud-field adaptability, making it ideal for challenging terrains.
Products Specifications
type |
4LZ-6.0A |
dimension（mm) |
5900*2500*2900 |
weight |
3980kg |
engine type |
4G33V16-147G412E |
engine model |
In-line water-cooled four-stroke direct injection,supercharged and mid-cooling |
engine producer |
Changchai Co,Ltd. |
cylinder quantity |
4 |
rate rpm |
2400r/min |
rate power |
99.5KW |
cutter type |
II type |
feed quantity |
6 Kg/s |
swath |
2.2M |
min. ground clearance |
320MM |
threshing method |
longitudinal axis Flow-rod tooth type |
traesher dimension |
Φ620 × 2210 |
trach type(pitch*number*width) |
90mm*56*500mm |
gauge |
1250mm |
task hour productivity |
0.2-0.85 （hm²/h） |
structure style |
crawler-type self-propelled full feed |
working gear |
low, medium |
working speed |
0.9-6.5 km/h |
fuel consumption |
20-35kg/hm² |
Cutting table auger type |
Spiral toothed type |
Crawler grounding pressure |
22.8kpa |
Winder reel type |
Eccentric tooth extraction |
Winder wheel diameter |
900mm |
Number of Winder wheels |
5 |
Arrangement of threshing mechanism |
Longitudinal axial flow drum type |
traesher quantity |
1 |
Main threshing cylinder type |
Longitudinal axial flow rod gear type |
Gravure screen type |
Grid type |
Retraction method |
Plate-tooth type |
fan type |
centrifugal |
fan dimension |
Φ398mm |
fan quantity |
1 |
brake type(front, rear) |
Friction plate type |
transmission type |
HST+gear box |
cabin type |
plain type |
Stalk shredder |
Rotary blade type |
discharging grain model |
Mechanical automatic |
