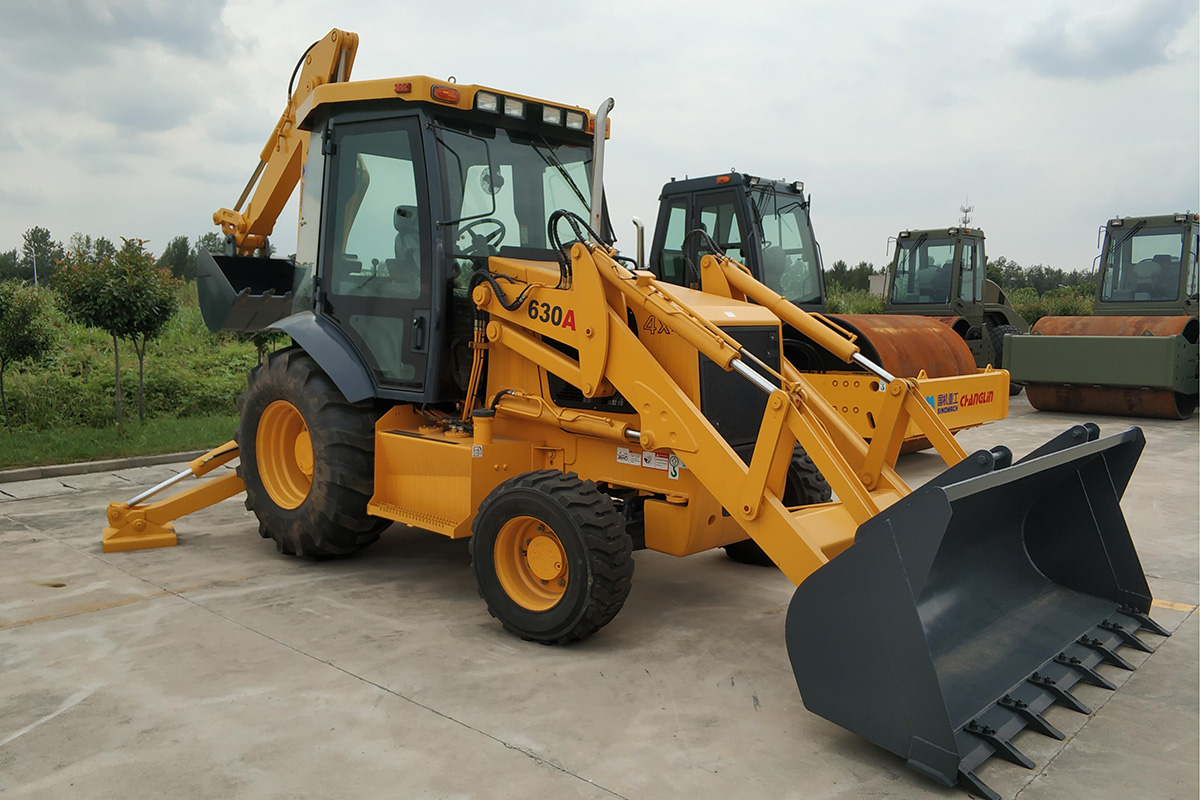

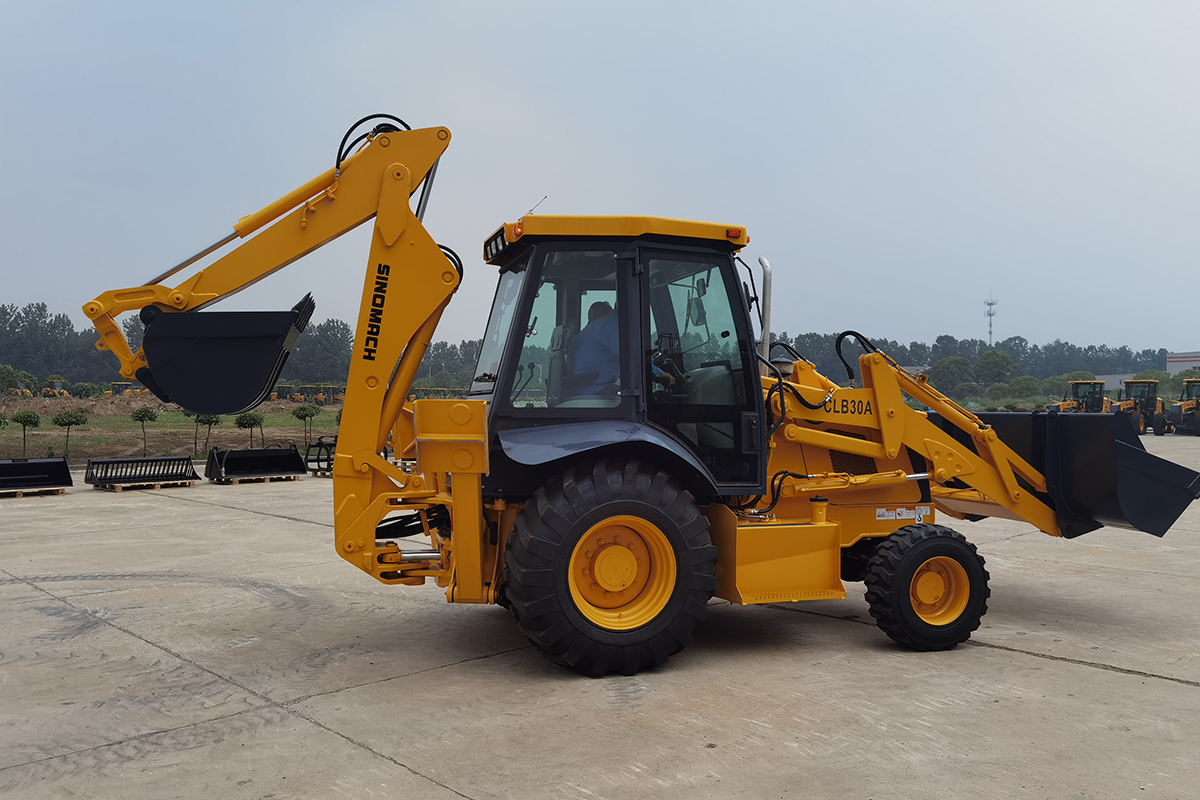

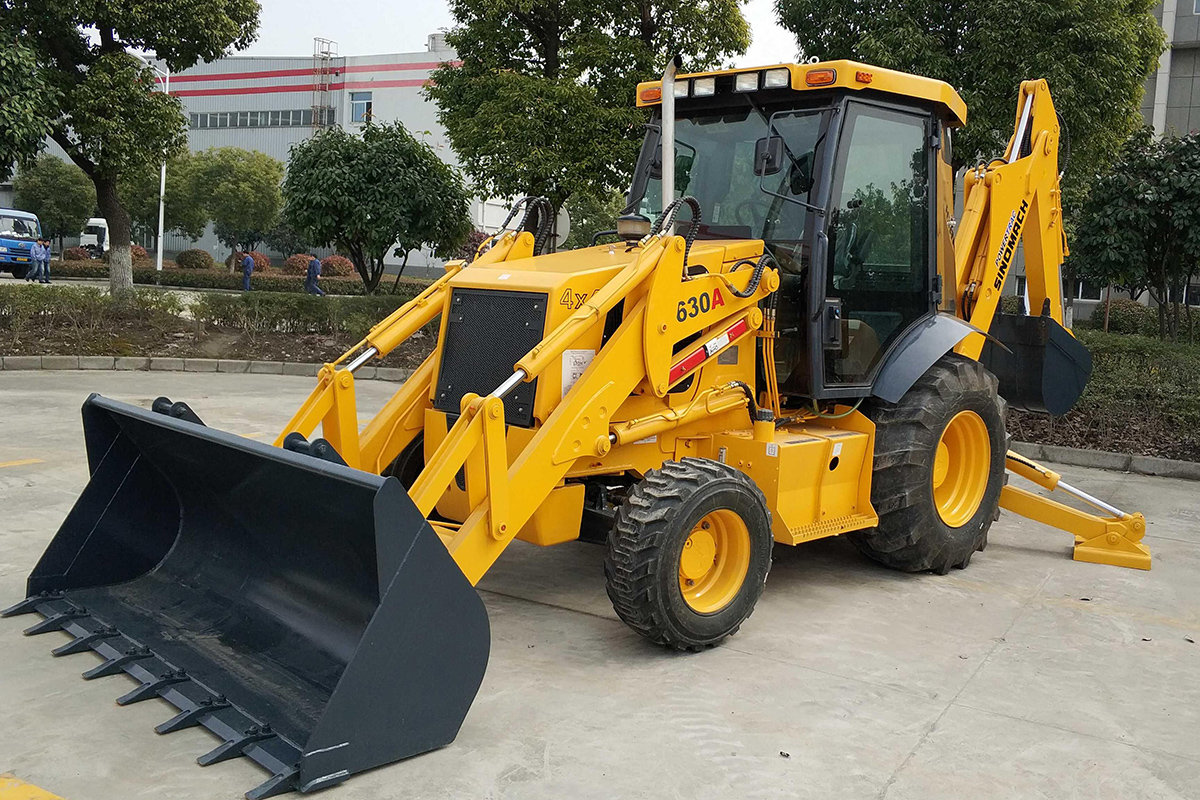

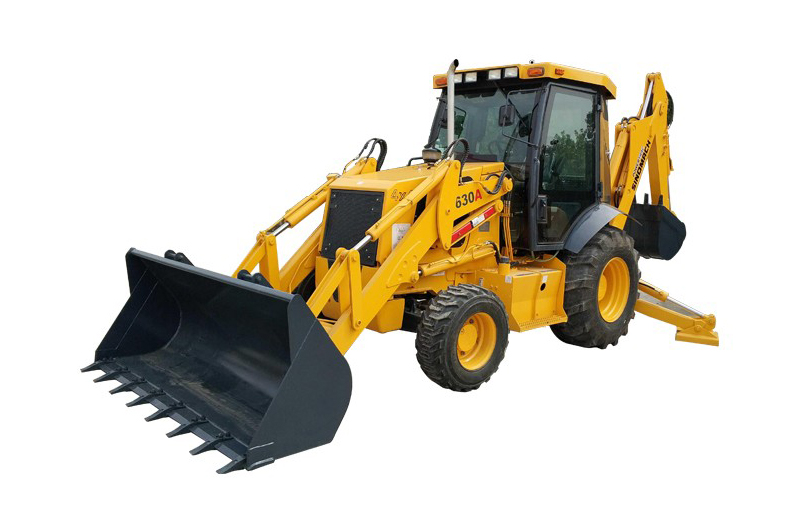

630A Wheeled Backhoe Loader

This integrated machinery combines the functionalities of an excavator and a loader into a single versatile unit, delivering multi-operational capabilities. Fully retaining all features of compact excavators and loaders, it excels in confined workspaces with enhanced maneuverability and agility, while achieving significantly improved operational efficiency for diverse tasks.

Multiple attachment configurations are available to accommodate diverse construction tasks. Suitable for municipal services, civil engineering, water conservancy projects, road maintenance, as well as utilities including water supply and power distribution systems, this versatile machinery can be deployed for agricultural construction, pipeline installation, cable laying, landscaping operations, and various infrastructure development projects across multiple sectors.

product details

description1

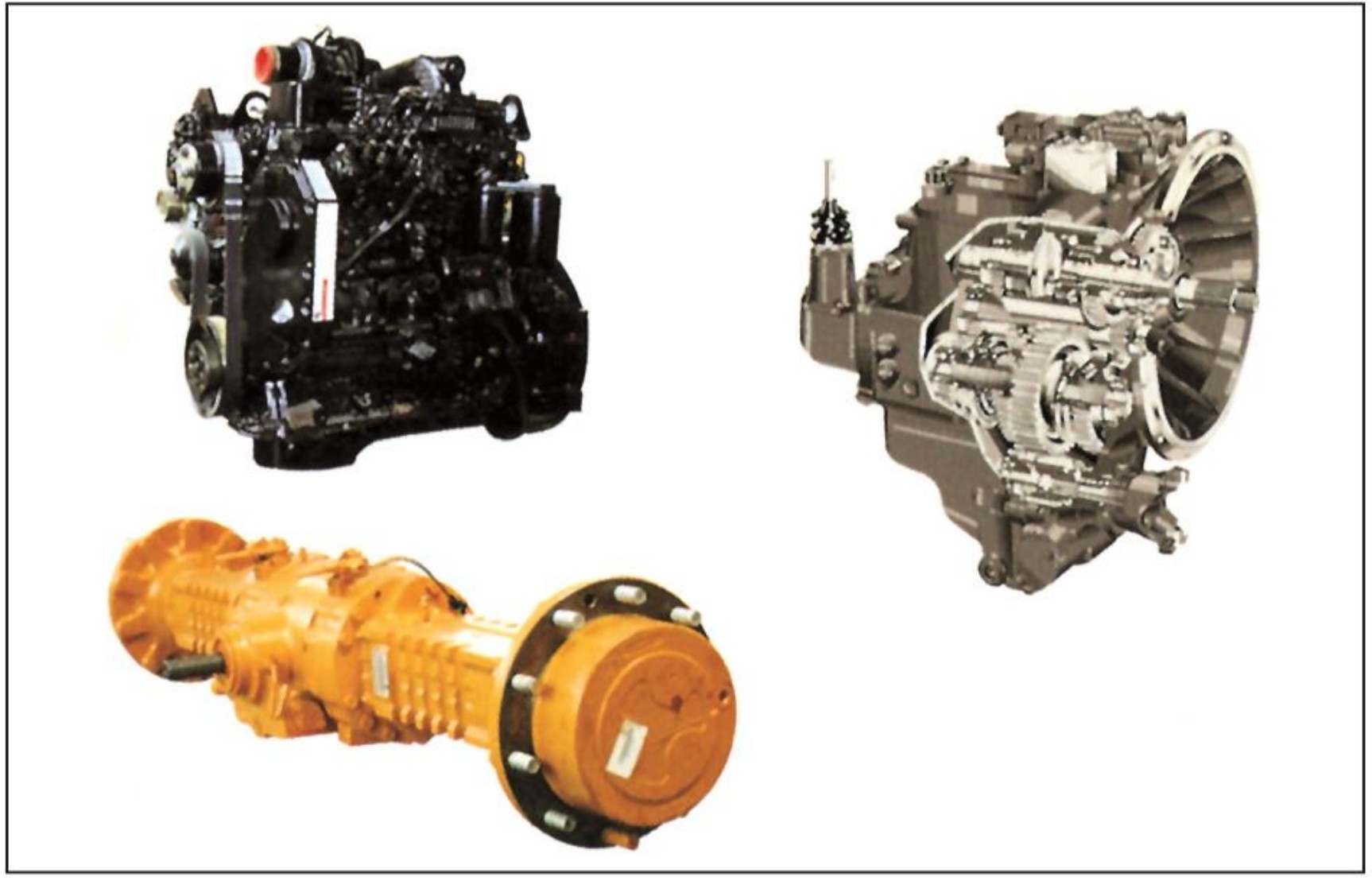

Best Matched Power Train

Adopting Cummins or Weichai engines with strong power, low fuel consumption and large power reserve, the perfect configuration of F4/R4 synchronized mechanical shift transmission and maintenance-free axles ensures excellent productivity and durability.

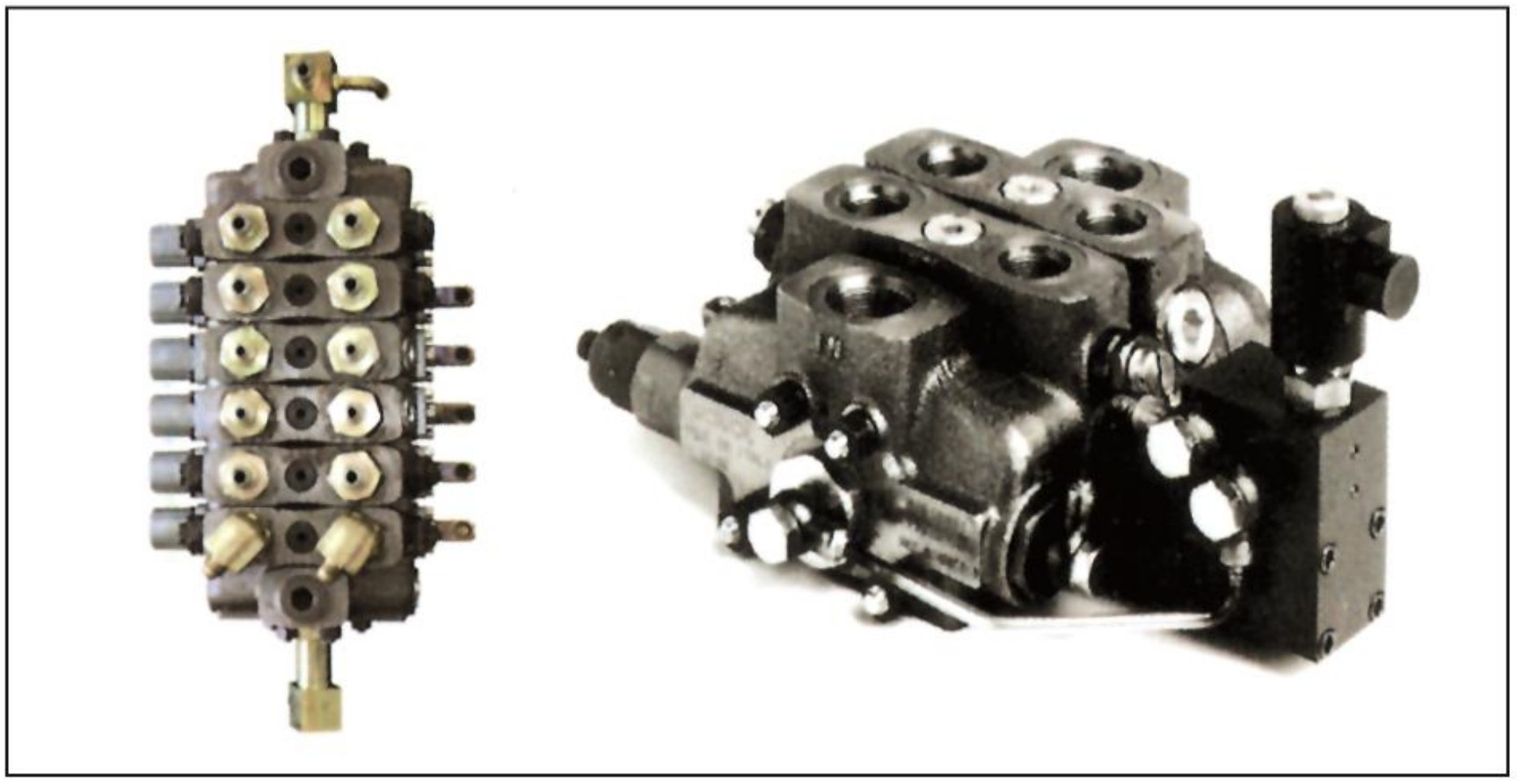

High Efficiency Hydraulic System

Adopt famous brand multi-way valve and other hydraulic components, more stable operation, more rapid and precise action.

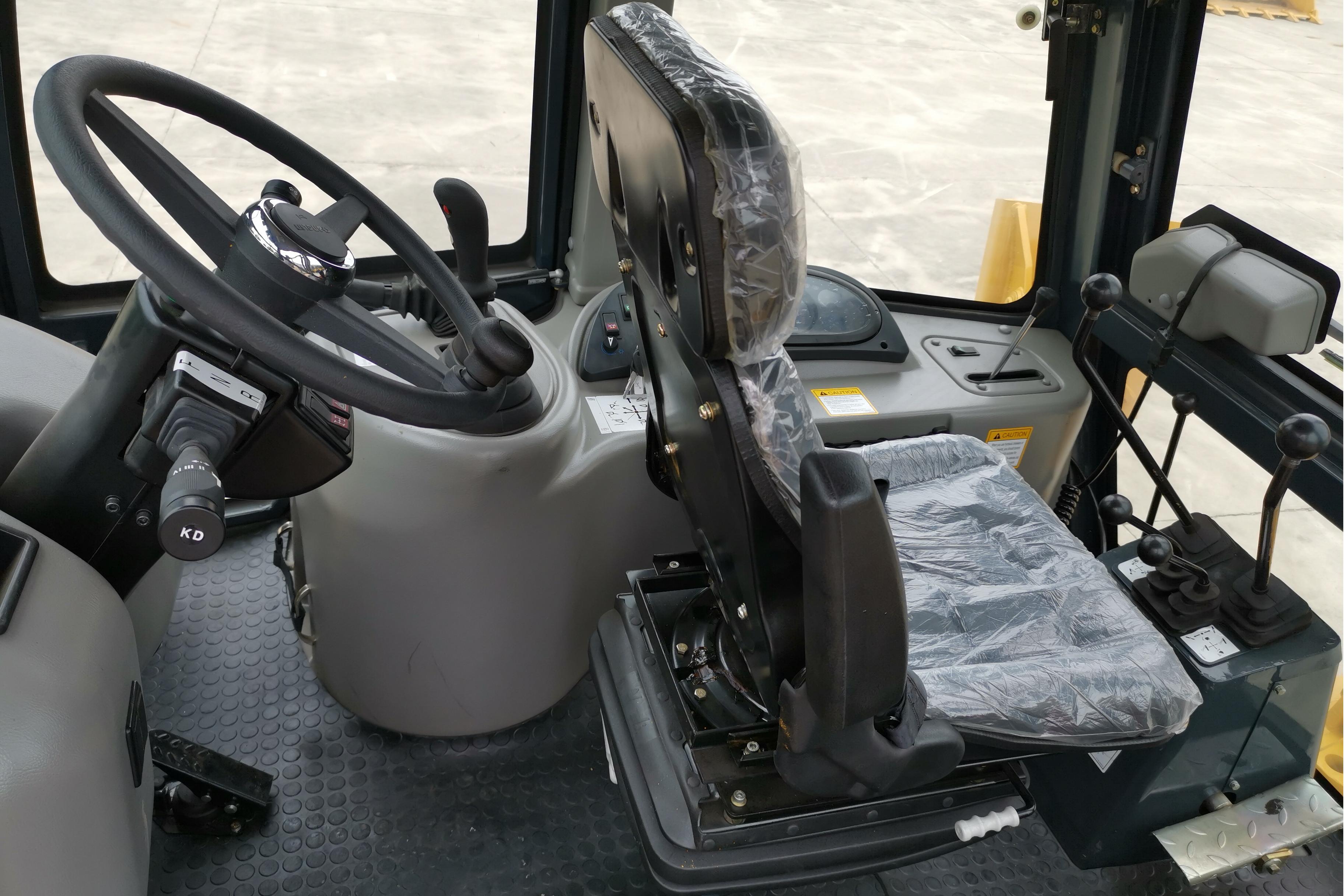

Comfortable cab

The spacious and comfortable operator's console offers a 360° field of view, and the adjustable seat can be steered towards the loading and digging controls for easy machine operation.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)		Standard			Telescopic arm
			7085(mm)			7272(mm)
2	Width		2313(mm)
3	Load Bucket width		2313(mm)
4	Height(To the top of the cab)		2710 (mm)
5	Height(To the top of the digging pole)		Standard			Telescopic arm
			3424 (mm)			3457(mm)
6	Wheel base		2155.5(mm)
7	Min. ground clearance		355(mm) for 2WD 275(mm) for 4WD
Main Loading Technical Specification
1	Rated load		1700(Kg)
2	Operating weight		7600（KG）
3	Rated bucket capacity		1.0(m³)
4	Max. dump clearance		2714(mm)
5	Dump reach		845(mm)
6	Min. turning radius
	(1) Outside of bucket		5280(mm) for 2WD 5670(mm) for 4WD
	(2) Center of front wheel		3795 (mm) for 2WD 4380(mm) for 4WD
7	Max lifting capability		3400KG
8	Max. load breakout force		>60kN
Main Digging Technical Specification
1	Rated digging bucket capacity		0.3(m³)
2	Arm and Boom		Standard			Telescopic
2.1	Max. digging depth(mm)		4405			4550-5550
2.2	Max. digging radius(mm)		5481			5695-6685
2.3	Max. dumping height (mm)		3737			4008-4950
3	Max. digging force		>50+10％kN(）
Diesel engine
1	Model	WEICHAI WP4G95E221		Cummins 4BTA3.9-C110			WEICHAI WP4.1G100E311
2	Rated output	70 (kW)		82 (kW)			74 (kW)
3	Total exhaust of cylinder	4.5(L)		3.9(L)			4.088(L)
4	Rated speed	2200(r/min)		2200(r/min)			2200(r/min)
5	Max. Torque	380(N.M)		460(N.M)			420(N.M)
Transmission System
1	Torque Converter	Model			CARRARO
2	Transmission case	Model			CARRARO
3	Axle and Tire	Model			CARRARO
4	Gear shift position				4 F、 4 R
5	Speed （F/R）				6/6，9.6/9.6，20.5/20.5，38/38
6	Max. drawing force				70kN（4WD）
7	Size of tire	front wheel			12-16.5TL-12PR RG400
		rear wheel			19.5L-24TL-12PR R-4
Working Hydraulic System
1	System pressure				230(kgf/cm²)
2	Priority（Optional） pressure				3 Mpa
3	Steering System pressure				140(kgf/cm²)
Brake System
1	Type of traveling brake		Full hydraulic maintenance-free wet brakes, two-pedal control
2	Type of parking brake		Flexible shaft control, wet type braking
Oil Capacity
1	Fuel(diesel)		151(L)
2	Engine lubricating oil		11(L)（312.5L）
3	Oil for converter and gear box		18.5(L)
4	Oil for hydraulic system		110(L)
5	Oil for driving axles（F/R）		7.6＋17(L)

630A Wheeled Backhoe Loader

Best Matched Power Train

Products pecifications

Leave Us A Message

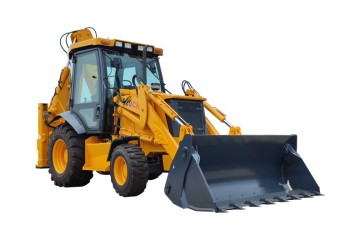

620CH Wheeled Backhoe Loader

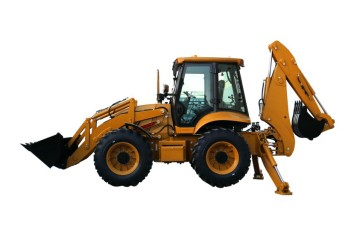

638XW Wheeled Backhoe Loader

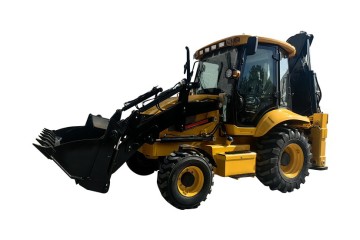

638W-II Wheeled Backhoe Loader
