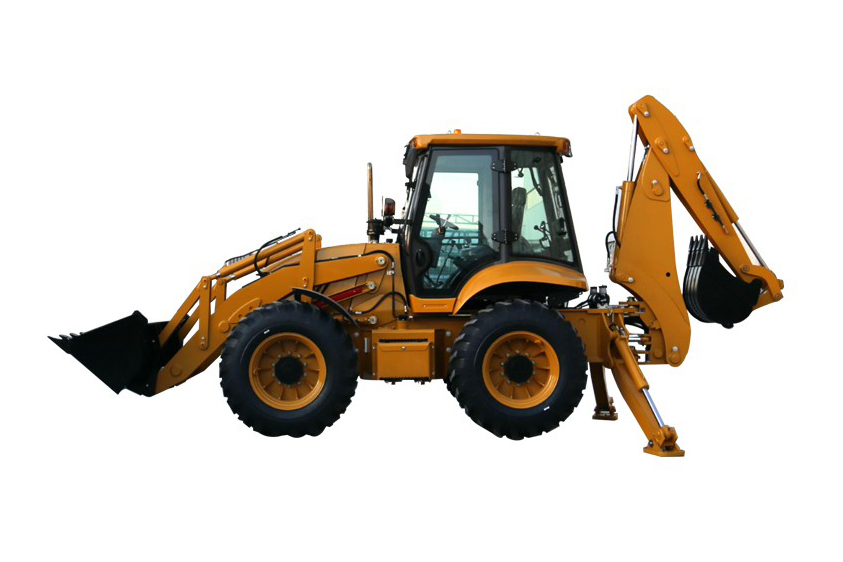

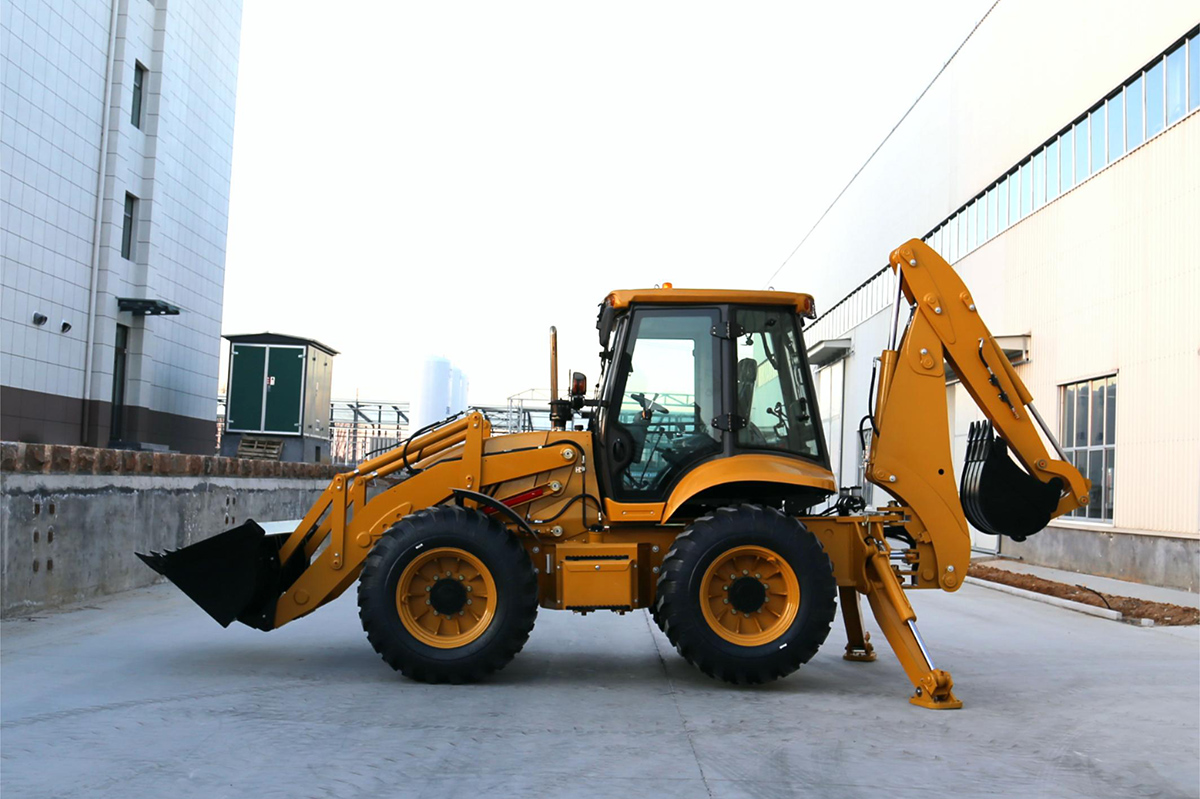

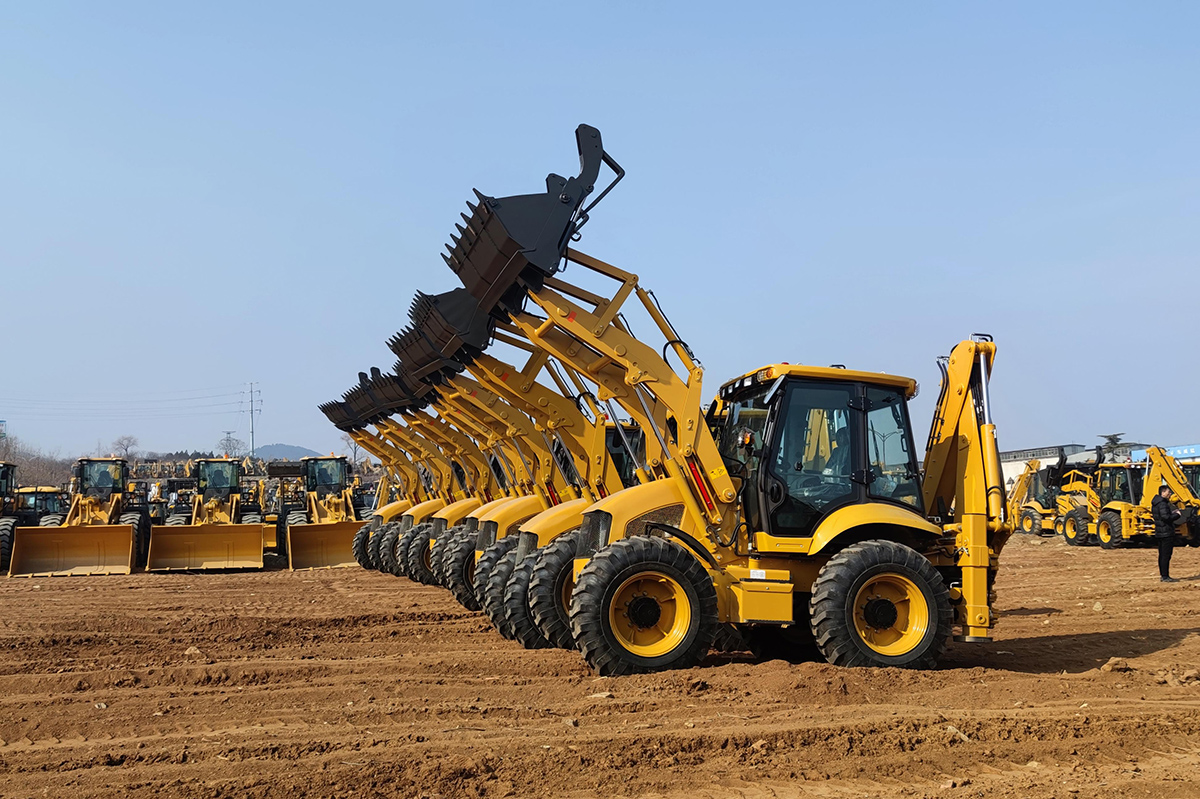

638XW Wheeled Backhoe Loader
description1
01
Product Description
This integrated digger-loader is powered by a self-developed, enhanced-reliability torque converter and transmission system, delivering robust power output. Its reinforced engineering-grade chassis ensures stable mobility and heightened durability. The equipment offers three steering modes (crab steering, front-wheel steering, and four-wheel steering) to adapt to diverse operational environments, complemented by 16.9-28 tires featuring elevated ground clearance for superior off-road traversal capabilities.

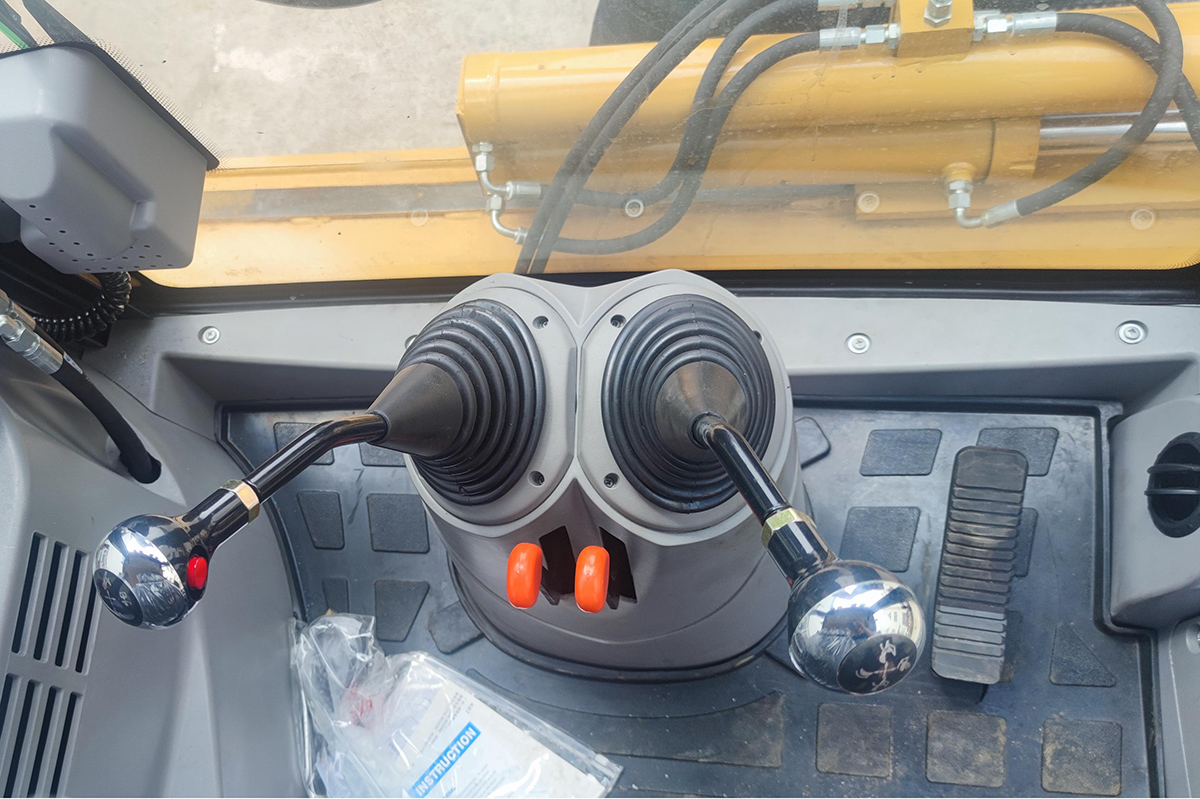

The equipment employs full pilot control for both digging and loading functions, delivering lightweight operation and superior working efficiency.

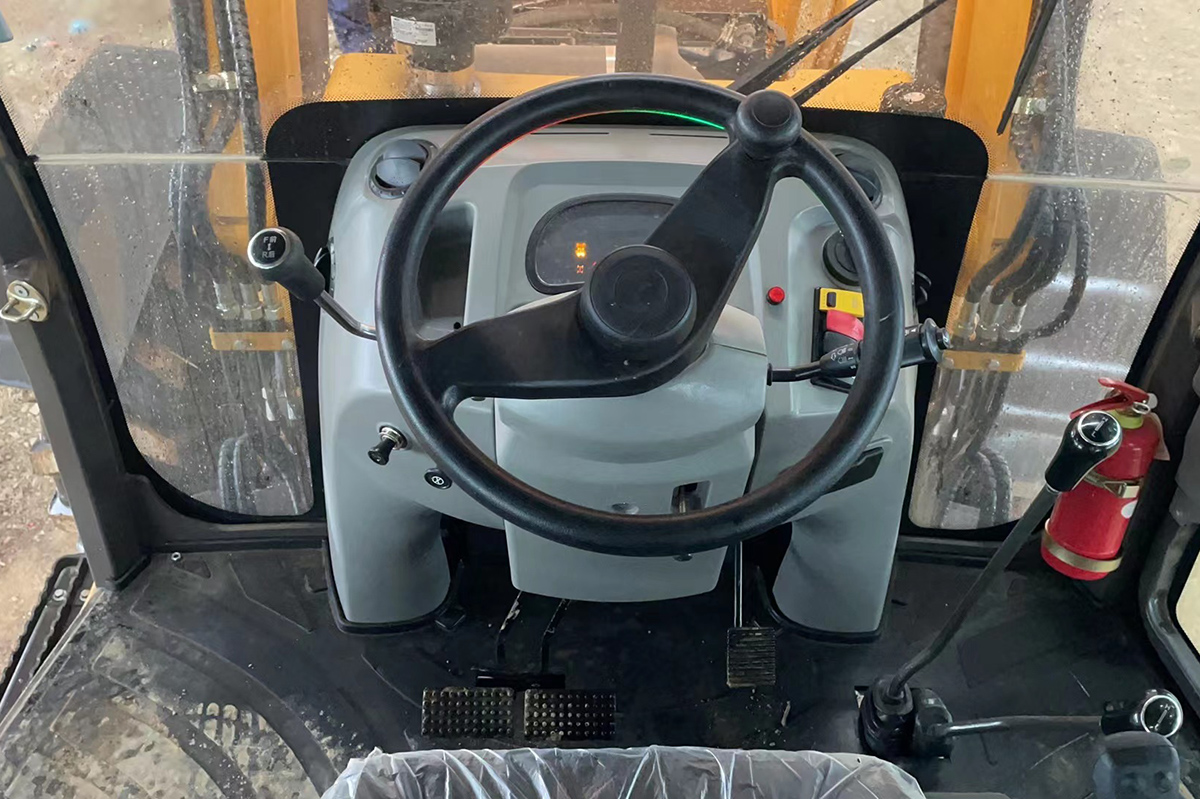

The premium FOPS & ROPS-certified cabin integrates a humanized rotating shock-absorbing seat and fully tempered glass construction, ensuring panoramic visibility and optimized operator comfort.
Excavation operations are enhanced by a fully hydraulic lateral sliding mechanism, which expands the working range while reducing labor intensity, achieving both time-saving performance and heightened excavation efficiency.

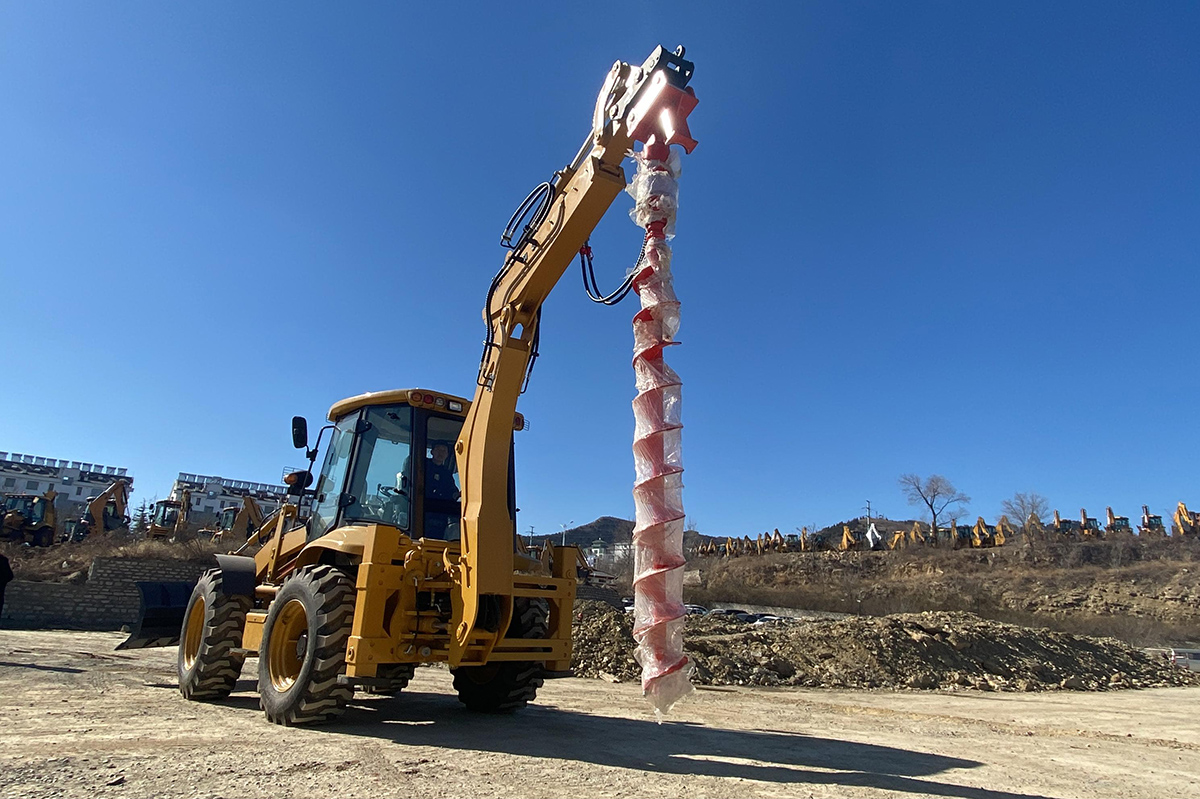

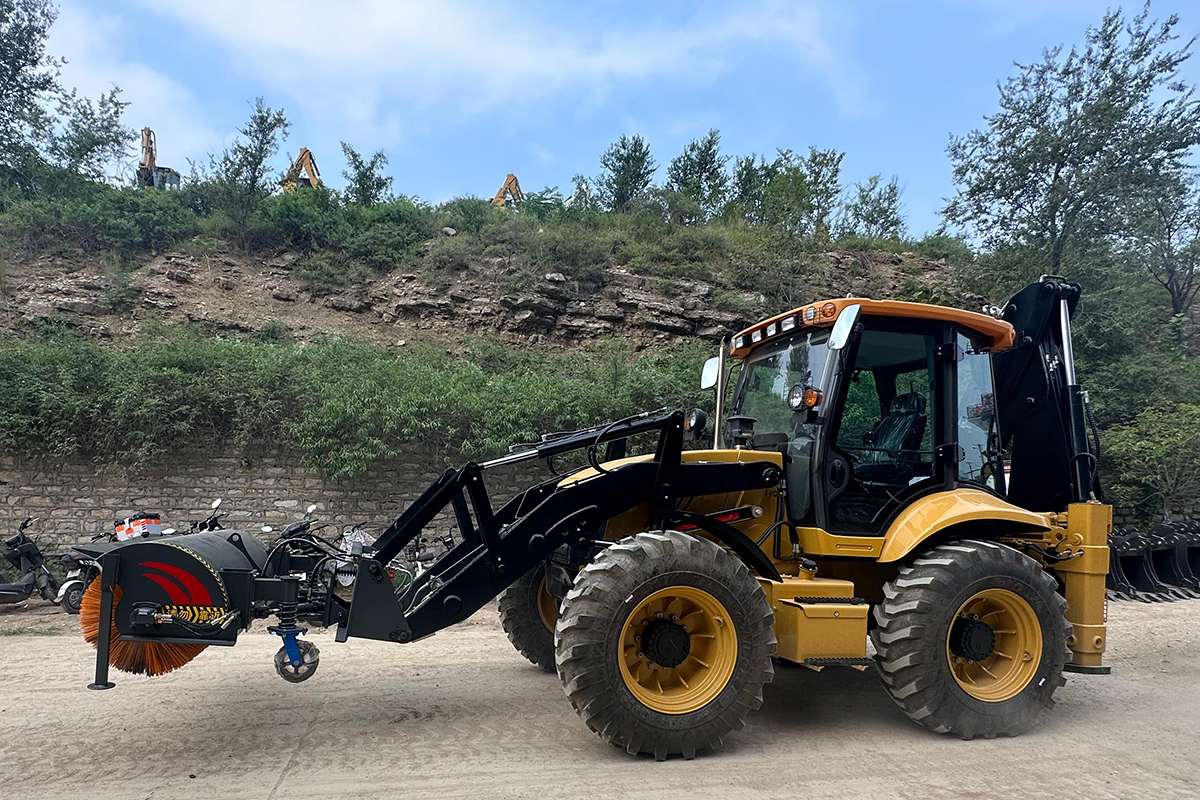

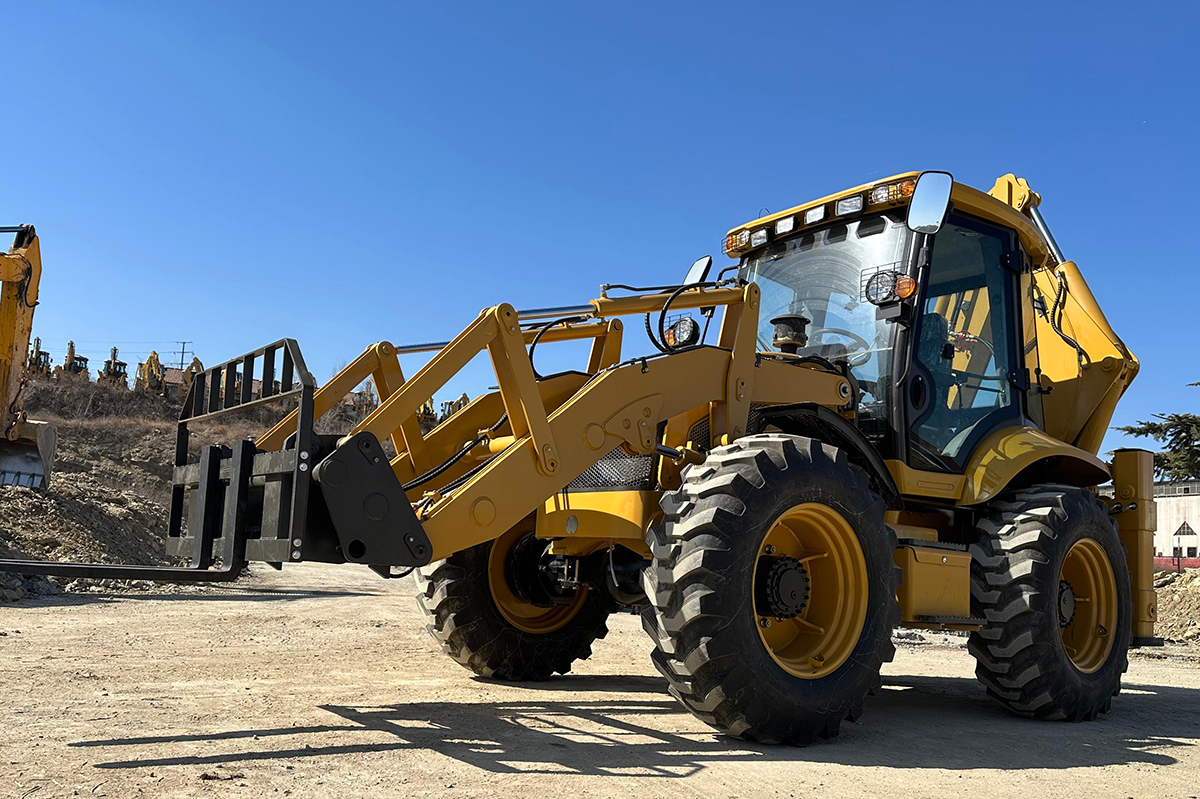

A variety of accessories can be selected to complete a variety of construction operations. Used in municipal, construction, water conservancy, highway, water supply, power supply, garden and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations.
Products pecifications
Overall Dimension | ||
1 |
Length(with bucket on ground) |
6450±80mm |
2 |
Overall width（at stabilizer ） |
2490±10mm |
3 |
Load Bucket width |
2490±10mm |
4 |
Height(To the top of the cab) |
3120±10mm |
5 |
Height(To the top of the digging pole） |
3602 ±20mm |
6 |
Wheel base |
2335±10 mm |
7 |
Back wheel Tread |
2139 ±10mm |
Main Loading Technical Specification | ||
1 |
Rated load |
2500KG |
2 |
Operating weight |
9120kg |
3 |
Rated bucket capacity |
1.2m³ |
4 |
Max. dump clearance |
3050±50 mm |
5 |
Dump reach |
870±20 mm |
6 |
Outside of bucket |
6420±100mm |
Main Digging Technical Specification | ||
1 |
Rated digging bucket capacity |
0.3m³ |
2 |
Max. digging depth |
3820±20 mm |
3 |
Max. digging radius |
5940±20mm |
4 |
Max.Load height |
4014±20mm |
5 |
Maximum digging depth (telescopic boom) |
4970±20 mm |
6 |
Maximum loading height (telescopic boom) |
4923±20mm |
Diesel engine | ||
1 |
Model |
YC4A105Z-T20 |
2 |
Type |
water cooling |
3 |
Rated output |
75 (kW) |
4 |
Total exhaust of cylinder |
4.8(L) |
5 |
Rated speed |
2200(r/min) |
6 |
Max. Torque |
400(N.M) |
Transmission System | ||
1 |
Torque ConverterCooling type |
Pressure oil circulating |
2 |
Transmission case Type |
Synchromesh mechanical shift |
3 |
Axle and Tire Model |
WZL100 |
4 |
Gear shift position |
4 F、 4 R |
5 |
Speed（F/R）km/h |
F1, 5km/h; F2, 10km/h; F3, 18km/h; F4, 38km/h; R1, 5km/h; R2, 10km/h; R3, 18km/h; R4, 38km/h; |
6 |
Size of tire |
16.9-28 |
The hydraulic system | ||
1 |
Working pump discharge |
63ml/r |
2 |
Working pump pressure |
20Mpa |
