Motor Grader

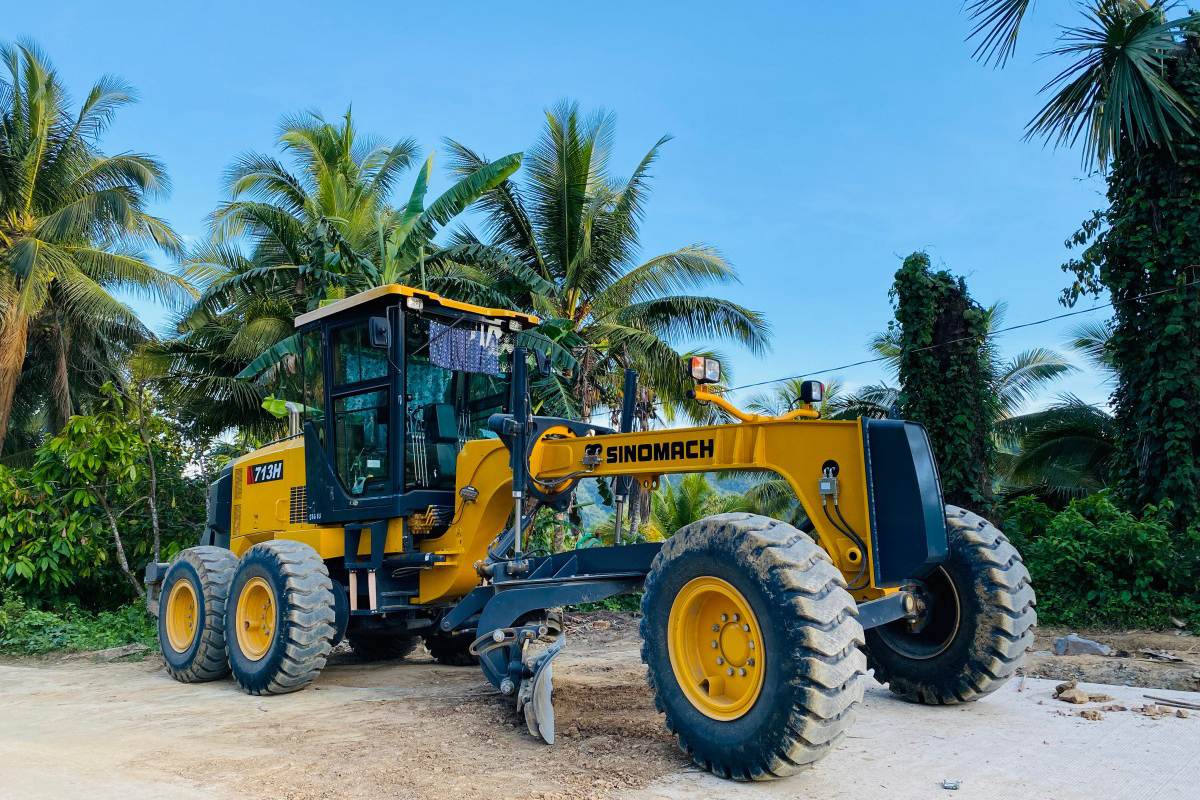

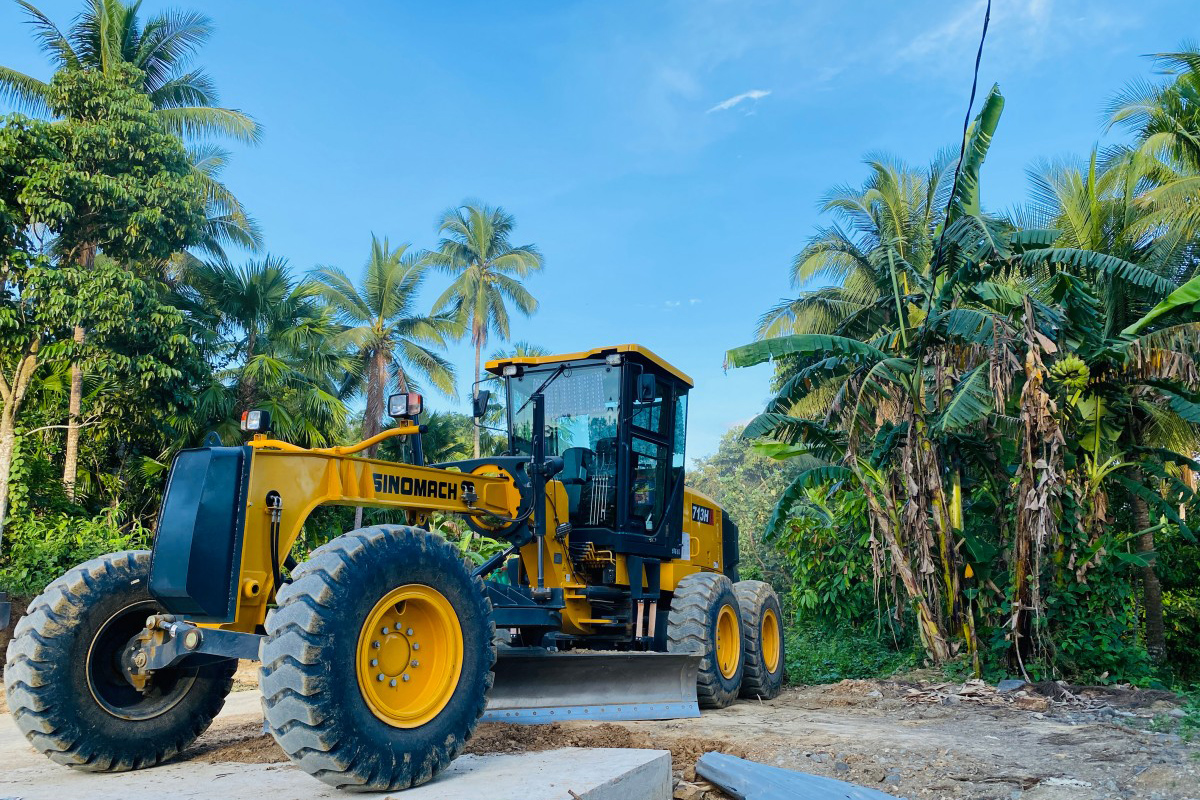

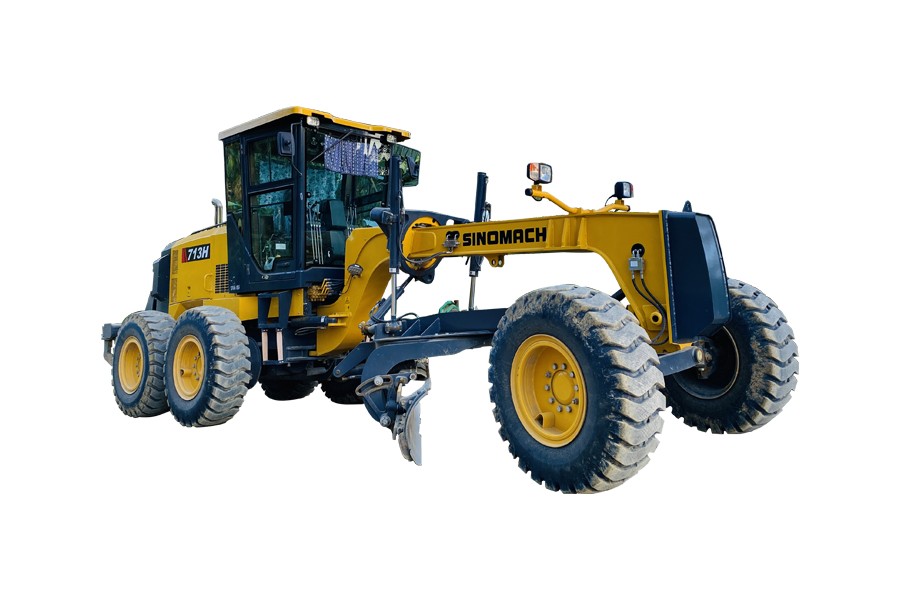

713H Road Motor Grader

‌•Rated power 130HP (97kw/2200rpm)

‌•Operating weight 12000kg

130-horsepower Motor Grader‌ is a medium-sized road construction machine engineered for precision grading, leveling, and surface finishing across diverse terrains. Equipped with a robust engine, hydraulic control system, and 3.6-meter moldboard, it efficiently executes road construction tasks (subbase grading, shoulder shaping) and land development projects (site leveling, farmland preparation). Its compact structure ensures maneuverability in confined spaces, while optional rippers or scarifiers extend functionality for loosening compacted soils. As an ideal solution for municipal engineering, road maintenance, and rural infrastructure projects, this model delivers exceptional power, agility, and versatility, providing cost-effective performance for small-to-medium-scale operations.

product details

description1

Inheritance, Reliability and Efficiency

With 70 years of industry expertise, we proudly present our fourth-generation product line. Engineered through rigorous real-world condition simulations and iterative optimizations, these machines deliver unmatched reliability backed by precision manufacturing. Every component is designed for serviceability, with full aftermarket support ensuring lifelong availability of maintenance parts.

First-class structural component manufacturing

Ability to manufacture structural components for international brands.

Structural components designed with the "equal strength concept" have better torsional performance.

Advanced industry welding process and craft.

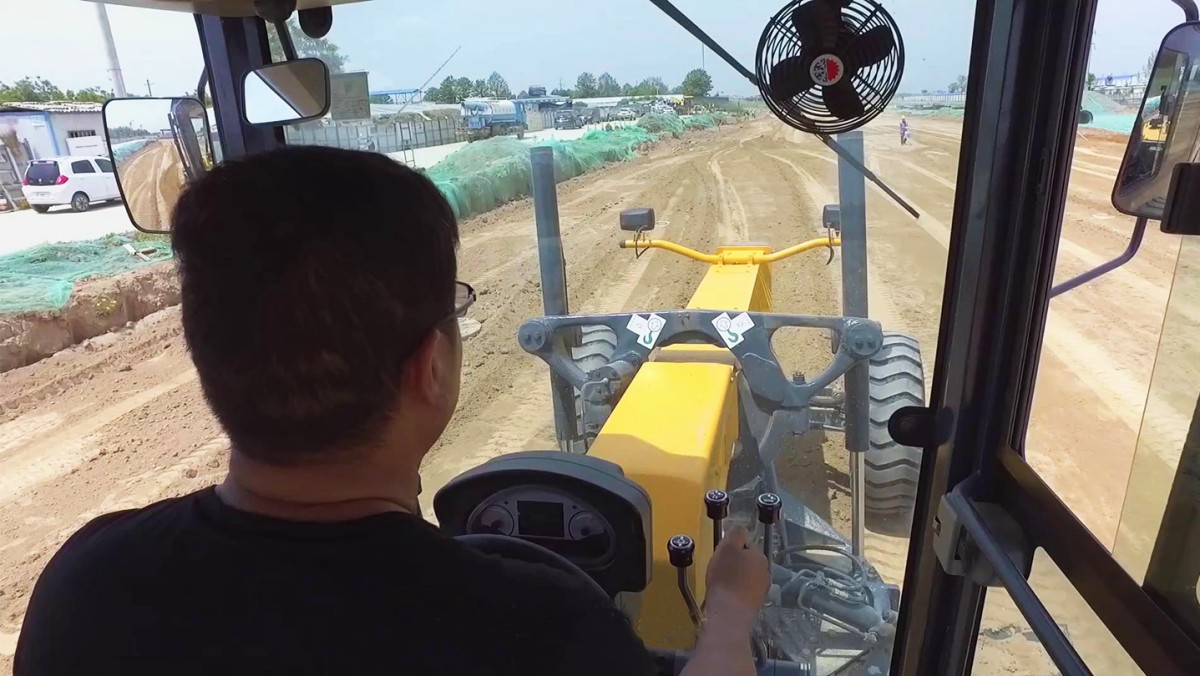

Outstanding Perspective

Safety cab, integral front windshield, mechanical suspension seat with headrest.

KOMATSU Technical Drive System

Integral forged axle housing with stronger load-bearing capacity.

The imported No-pin differential is more suitable for harsh working conditions.

Exclusive double row roller chain design, with a carrying capacity of 26 tons, much higher than required standards.

ZF Technology Gearbox

Large speed ratio and optimized power partner

Easy and convenient Joystick speed shift

Reinforced working device

The tow-bar consists of sturdy A- and U-shaped frames for strength and durability.

Proper Blade Curvature design, effectively scrape all kinds of earth.

29-77° large range of cutting angles for more specialized construction techniques.

Overload protection or heavy duty worm case secures the safety.

Products pecifications

Overall Dimension
1		Length		8290mm
2		Width		2600mm
3		Height(To the top of the cab)		3465mm
4		Wheel base		5780mm
5		Tread		2120mm
6		Min. turning radius		6.6m
Main Technical Specification
1		Operating weight		12000kg
2		Blade length		3658mm
3		Blade height		580mm
4		Shovel Blade thickness		20mm
5		Max. lift above ground		410mm
6		Max. grading depth		560mm
7		Max. shoulder reach outside rear tire		2000mm
8		Traveling speed(Km/h)，6 forward and 3 reverse，
Forward			6.9/10.7/17.3/26/37.8/53.4
Reverse			6.9/17.3/37.8
Diesel engine
1		Model	CUMMINS 6BT5.9-C130
2		Type	Direct injection. Turbocharged. Water cooling
3		Rated output	97kW
4		Rated speed	2200(r/min)
5		Max. Torque	560(N.M)/1500rpm
Transmission case
1		Model	YD13
2		Type	power shift, single-shift lever, natural-shift lock device
3		Gear shift position	6 Forward and 3 reverse gears
Axle and Tire
1		Max. drawing force	61.7KN（f=0.75）
2		Size of tire	17.5-25-12PR(standard) 13.00-24-12PR(optional)
Working Device Hydraulic System
1	Model of main pump		HP51B678-07-07-7N
2	System pressure		17.5MPa
3	Model of distribution valve		5000-E187 5000-E186
4	Model of oil motor		EATON, 604-0663
Steering System
1		Type	Fore Tires deflexion
2		Model of redirector	BZZ5-E160B+FKB-3022
3		System pressure	16MPa
Brake System
1		Type of service brake	Full hydraulic and inner-expanding brake
2		Oil pressure	10Mpa
3		Type of parking brake	Mechanical and inner expand hoof brake
