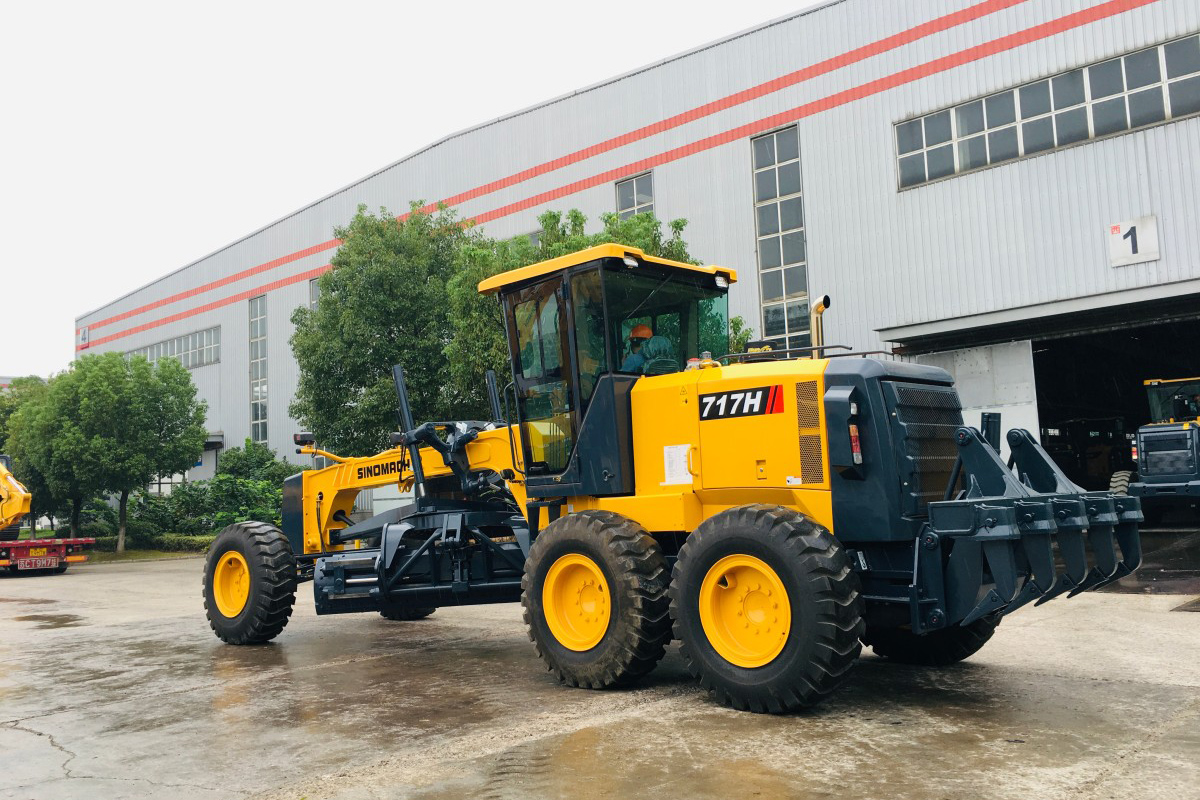

717H Road Motor Grader
description1
01
Inheritance, Reliability and Efficiency
70 years of experience, latest fourth generation products.
Based on the design concept of actual working conditions and continuous optimization, excellent manufacturing capabilities ensure excellent overall reliability.
All repair and maintenance components are available in the market.
02
First-class structural component manufacturing
As a certified supplier for global brands, we specialize in manufacturing high-performance structural components. Our products employ the innovative "equal strength concept" design to achieve superior torsional resistance. Combined with cutting-edge welding technologies and craftsmanship, we deliver components that meet the most demanding international standards.
Safety cab, integral front windshield, mechanical suspension seat with headrest.
Integral forged axle housing with stronger load-bearing capacity.
The imported No-pin differential is more suitable for harsh working conditions.
Exclusive double row roller chain design, with a carrying capacity of 26 tons, much higher than required standards.
Large speed ratio and optimized power partner
Easy and convenient Joystick speed shift
The tow-bar features a robust A-frame structure with U-shaped cross-section for exceptional strength and durability. Its optimally designed blade curvature ensures efficient scraping of all soil types, while the 29°-77° ultra-wide cutting angle range accommodates specialized construction techniques. Integrated overload protection provides critical operational safeguards.
Products pecifications
| Overall Dimension | ||
| 1 | Length | 8820mm |
| 2 | Width | 2600mm |
| 3 | Height(To the top of the cab) | 3420mm |
| 4 | Wheel base | 6100mm |
| 5 | Tread | 2120mm |
| 6 | Min. turning radius | 7.3m |
| Main Technical Specification | ||
| 1 | Operating weight | 14500kg |
| 2 | Blade length | 3658mm |
| 3 | Blade height | 580mm |
| 4 | Blade width | 20mm |
| 5 | Max. lift above ground | 450mm |
| 6 | Max. grading depth | 535mm |
| 7 | Max. shoulder reach outside rear tire | 2000mm |
| 8 | Traveling speed(km/h)，6 forward and 3 reverse | |
| (1) forward | 6.5/11.4/14.6/24.8/30/49.2 | |
| (2) reverse | 6.5/14.6/30 | |
| Diesel engine | ||
| 1 | Model |
CUMMINS 6BTA5.9-C180 |
| 6BTA5.9-C180 | ||
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 132 kW |
| 4 | Rated speed | 2200(r/min) |
| 5 | Max. Torque | 750(N.m) at 1300r/min |
| Transmission case | ||
| 1 | Model | 6WG180 （ZF technology） |
| 2 | Type | power shift, single-shift lever, natural-shift lock device |
| 3 | Gear shift position | 6 Forward and 3 reverse gears |
| Axle and Tire | ||
| 1 | Max. drawing force | 74.6kN（f=0.75） |
| 2 | Size of tire | 17.5-25-12PR(standard) |
| 13.00-24-12PR(optional) | ||
| Working Device Hydraulic System | ||
| 1 | Model of oil pump(include steering pump) | CBGj2045/1025 |
| 2 | System pressure | 17.5MPa |
| 3 | Model of distribution valve | HUSCO 5000 |
| 4 | Model of oil motor | EATON, JS-130 |
| Steering System | ||
| 1 | Type | Fore Tiredeflexion |
| 2 | Model of steering gear | BZZ1-E160B/ FKA-163022 |
| 3 | System pressure | 16MPa |
| Brake System | ||
| 1 | Type of traveling brake | Hydraulic and inner-expanding brake |
| 2 | Model of brake pump | CBGj1016-XF |
| 3 | Oil pressure | 10MPa |
| 4 | Type of parking brake | Mechanical and inner-expanding brake type |
