Motor Grader

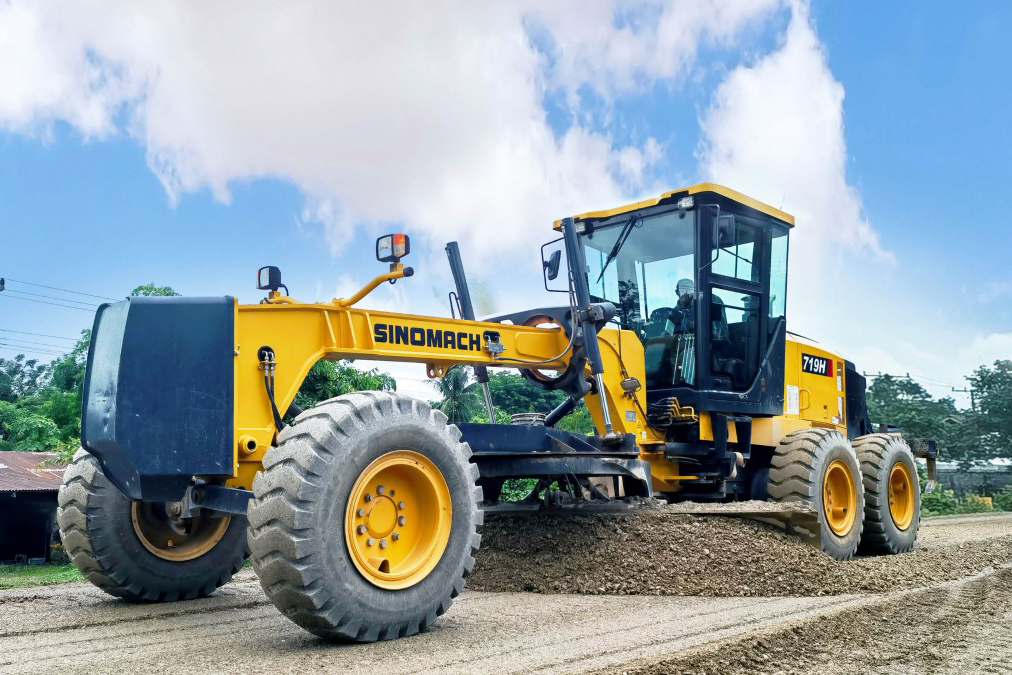

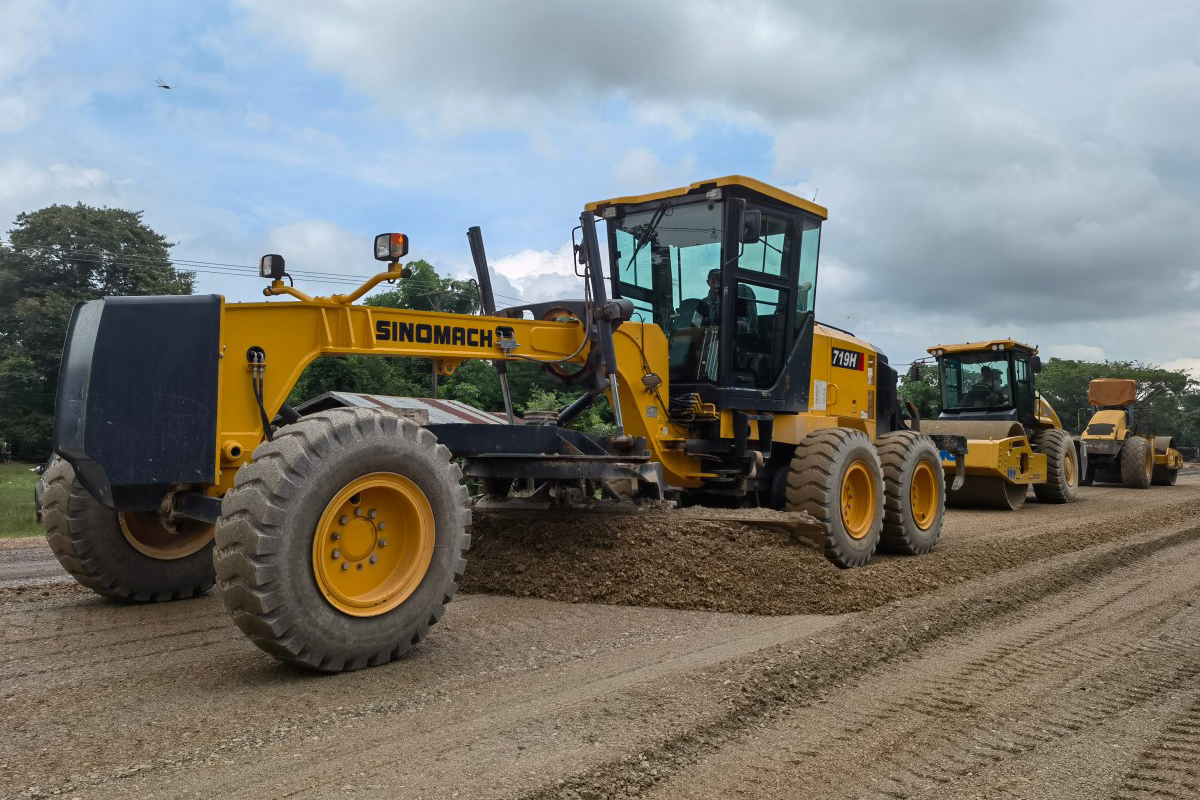

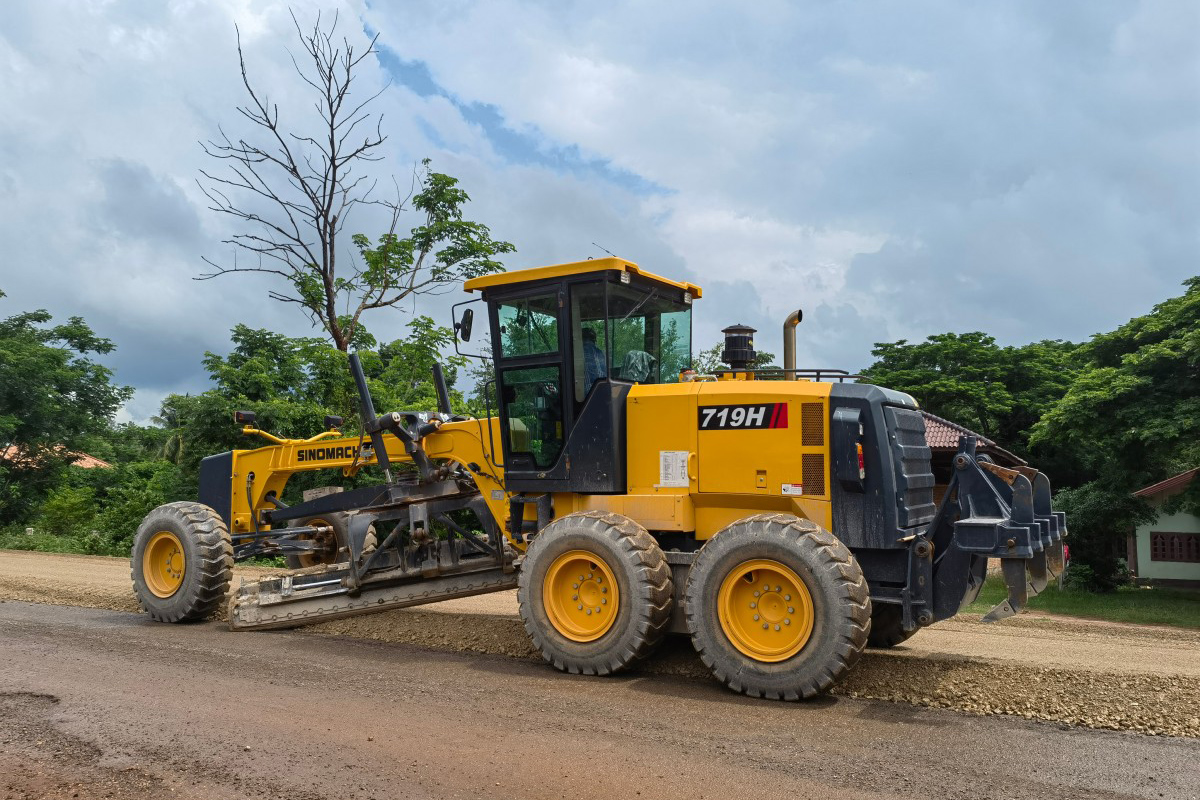

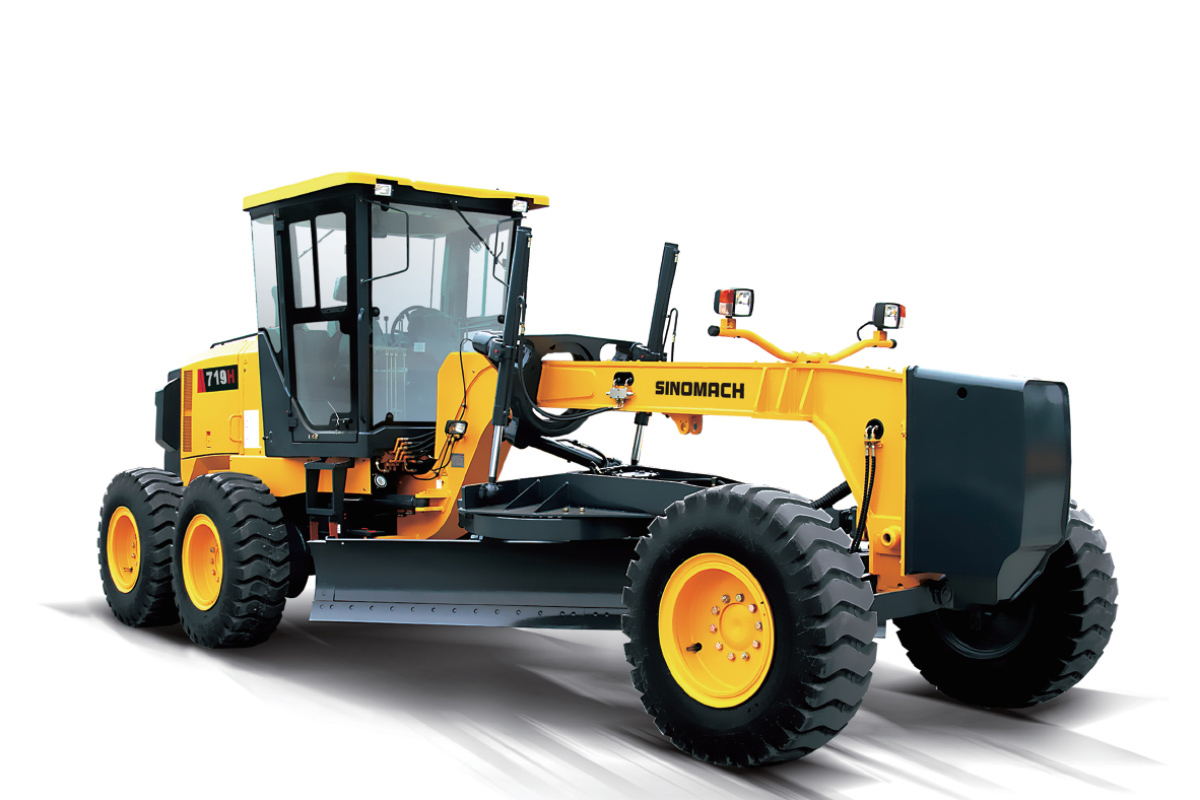

719H Road Motor Grader

‌•Rated power：190HP (142kw/2200rpm)

‌•Operating weight：15600kg

The 719H motor grader is a robust and versatile road construction machine designed for high-performance earthmoving tasks. Built with a heavy-duty steel chassis, it integrates a powerful engine and advanced hydraulic systems to ensure exceptional traction and operational stability. Equipped with a multifunctional blade capable of both horizontal rotation and vertical adjustment, the machine achieves precise control over slope gradients and surface contours. Key applications include roadbed preparation, slope shaping, ditch excavation, and material distribution, seamlessly combining grading, leveling, and compaction in a single workflow. Ideal for large-scale infrastructure projects such as highway construction, urban road upgrades, airport runway maintenance, and agricultural water management, the 719H significantly enhances productivity, operating at speeds over 20 times faster than traditional manual methods while maintaining superior precision.

product details

description1

Inheritance, Reliability and Efficiency

70 years of experience, latest fourth generation products.

Based on the design concept of actual working conditions and continuous optimization, excellent manufacturing capabilities ensure excellent overall reliability.

All repair and maintenance components are available in the market.

First-class structural component manufacturing

Ability to manufacture structural components for international brands.

Structural components designed with the "equal strength concept" have better torsional performance.

Advanced industry welding process and craft.

Outstanding Perspective

Safety cab, integral front windshield, mechanical suspension seat with headrest.

KOMATSU Technical Drive System

Integral forged axle housing with stronger load-bearing capacity.

The imported No-pin differential is more suitable for harsh working conditions.

Exclusive double row roller chain design, with a carrying capacity of 26 tons, much higher than required standards.

ZF Technology Gearbox

Large speed ratio and optimized power partner

Easy and convenient Joystick speed shift

Reinforced working device

The tow-bar consists of sturdy A- and U-shaped frames for strength and durability.

Proper Blade Curvature design, effectively scrape all kinds of earth.

29-77° large range of cutting angles for more specialized construction techniques.

Overload protection or heavy duty worm case secures the safety.

Products pecifications

Overall Dimension
1	Length	8950mm
2	Width	2600mm
3	Height(To the top of the cab)	3420mm
4	Wheel base	6100mm
5	Tread	2120mm
6	Min. turning radius	7.3m
Main Technical Specification
1	Operating weight	15600kg
2	Blade length	4268mm
3	Blade height	545mm
4	Blade width	20mm
5	Max. lift above ground	450mm
6	Max. grading depth	535mm
7	Max. shoulder reach outside rear tire	2400mm
8	Traveling speed(Km/h)，6 forward and 3 reverse，
	(1) forward	6.5/11.4/14.6/24.8/30/49.2
	(2) reverse	6.5/14.6/30
Diesel engine
1	Model	Cummins 6CTA8.3-C190
1	Model	6CTA8.3-C190
2	Type	Direct injection. Turbocharged. Air to air cooling
3	Rated output	142(kW)
4	Rated speed	2200(r/min.)
5	Max. Torque	860(N.m)/(1400r/min)
Transmission case
1	Model	6WG180 （ZF technology）
2	Type	power shift, single-shift lever, netural-shift lock device
3	Gear shift position	6 Forward and 3 reverse gears
Axle and Tire
1	Max. drawing force	80.2kN（f=0.75）
2	Size of tire	17.5-25-12PR(standard)
2	Size of tire	13.00-24-12PR(optional)
Working Device Hydraulic System
1	Model of oil pump	CBGj2045/1025
2	System pressure	17.5MPa
3	Model of distribution valve	HUSCO 5000
4	Model of oil motor	EATON, 604-0663
Steering System
1	Type	Fore Tiredeflexion
2	Model of steering gear	BZZ1-E160B/ FKA-163022
3	System pressure	16MPa
Brake System
1	Type of traveling brake	Hydraulic and inner-expanding brake
2	Model of brake pump	CBGj1016-XF
3	System pressure	10MPa
4	Type of parking brake	Mechanical and inner-expanding brake
