Motor Grader

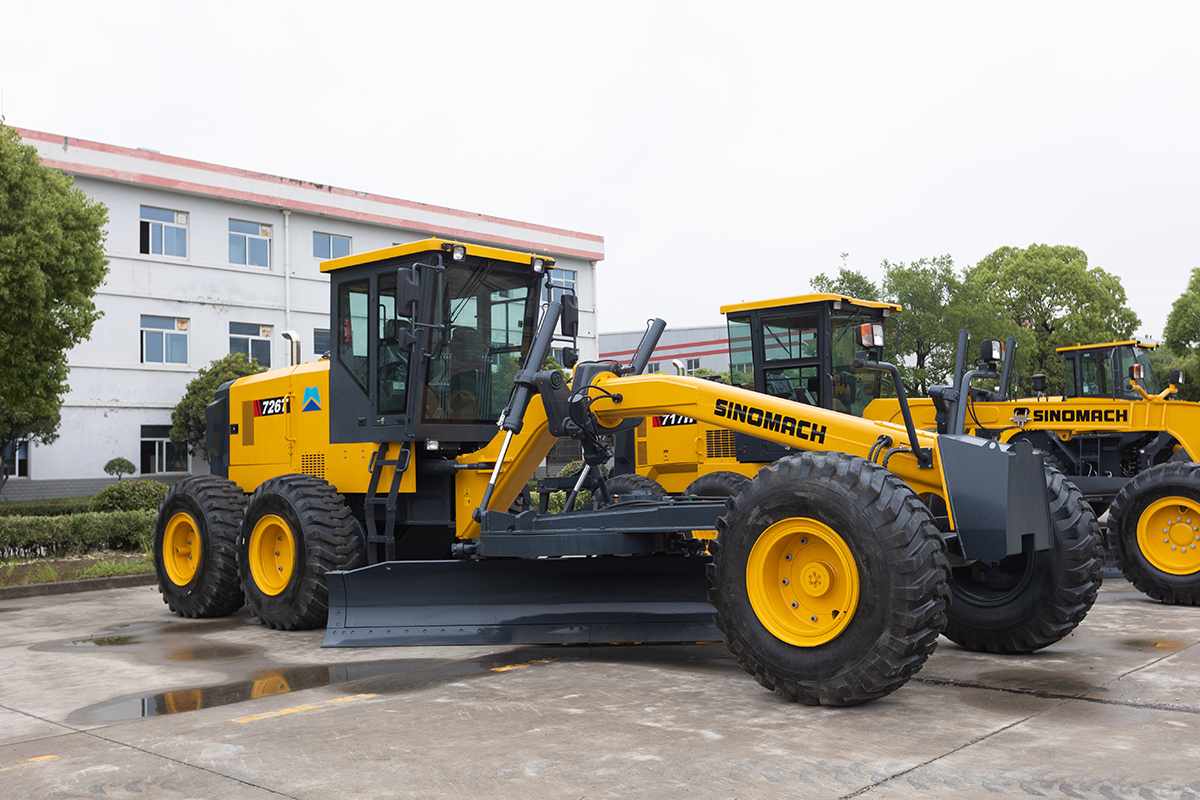

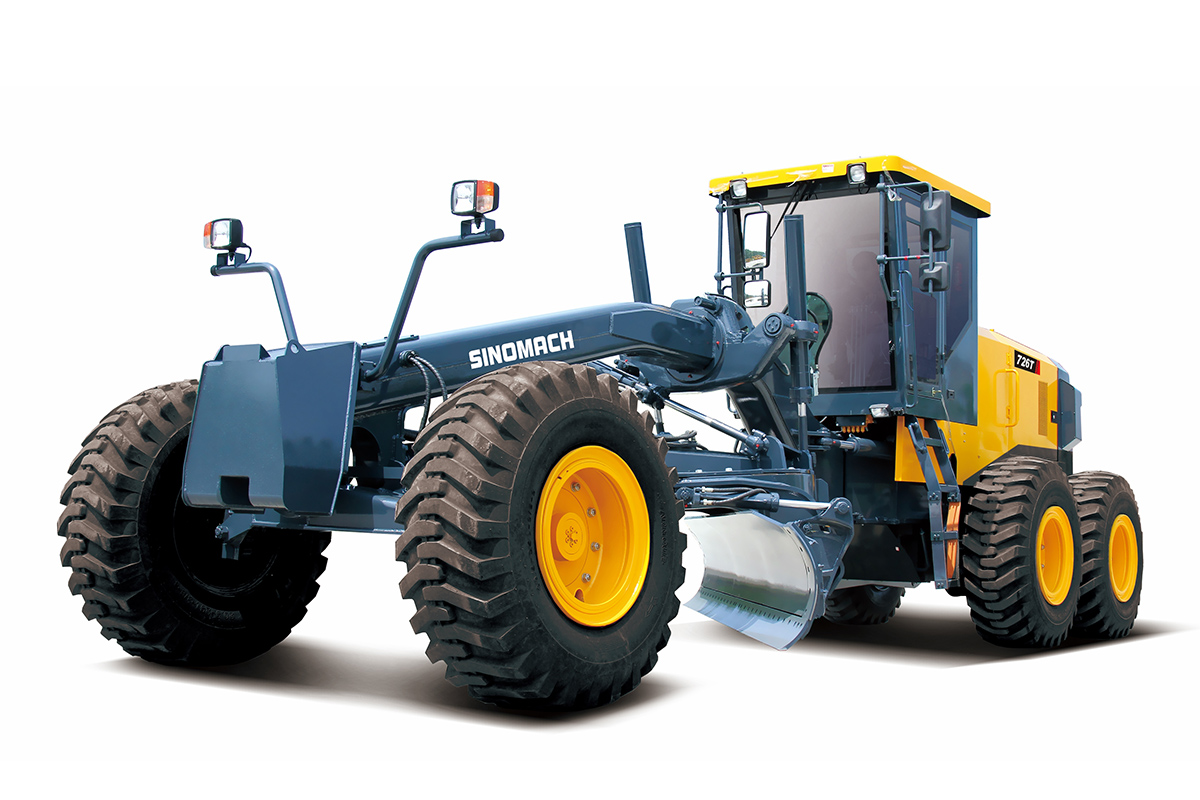

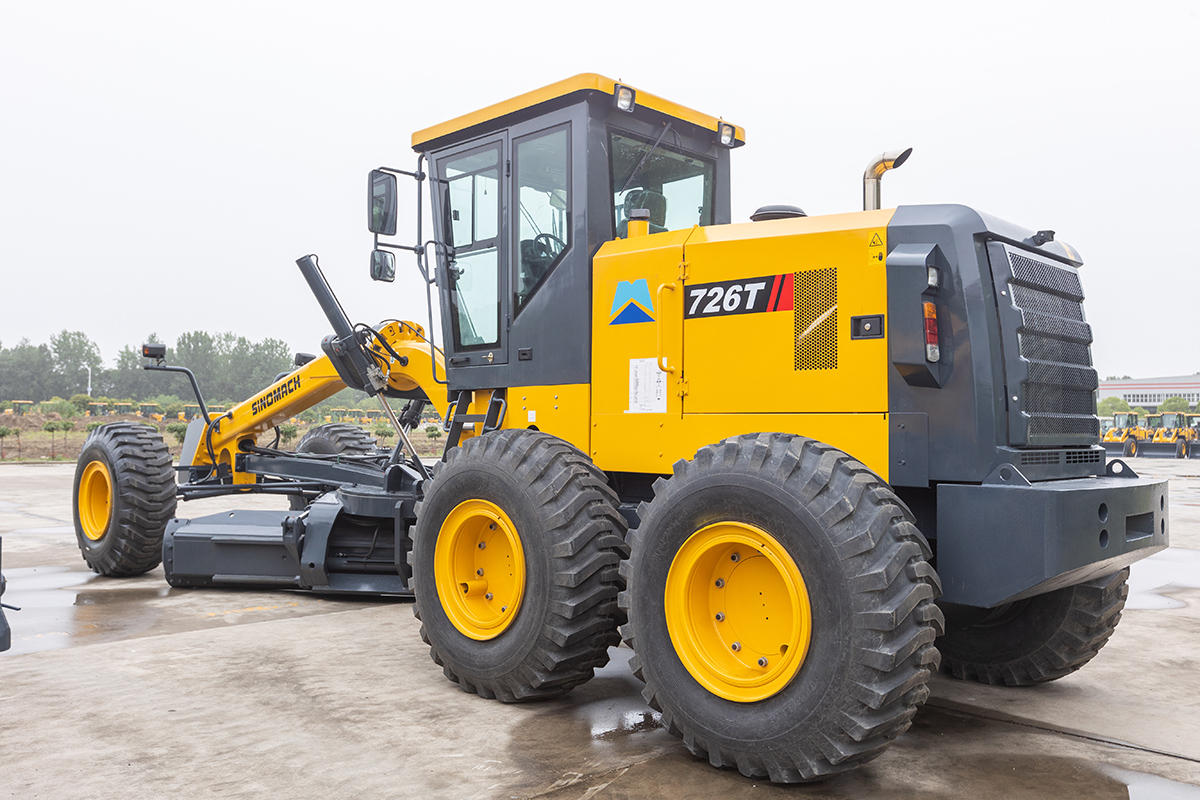

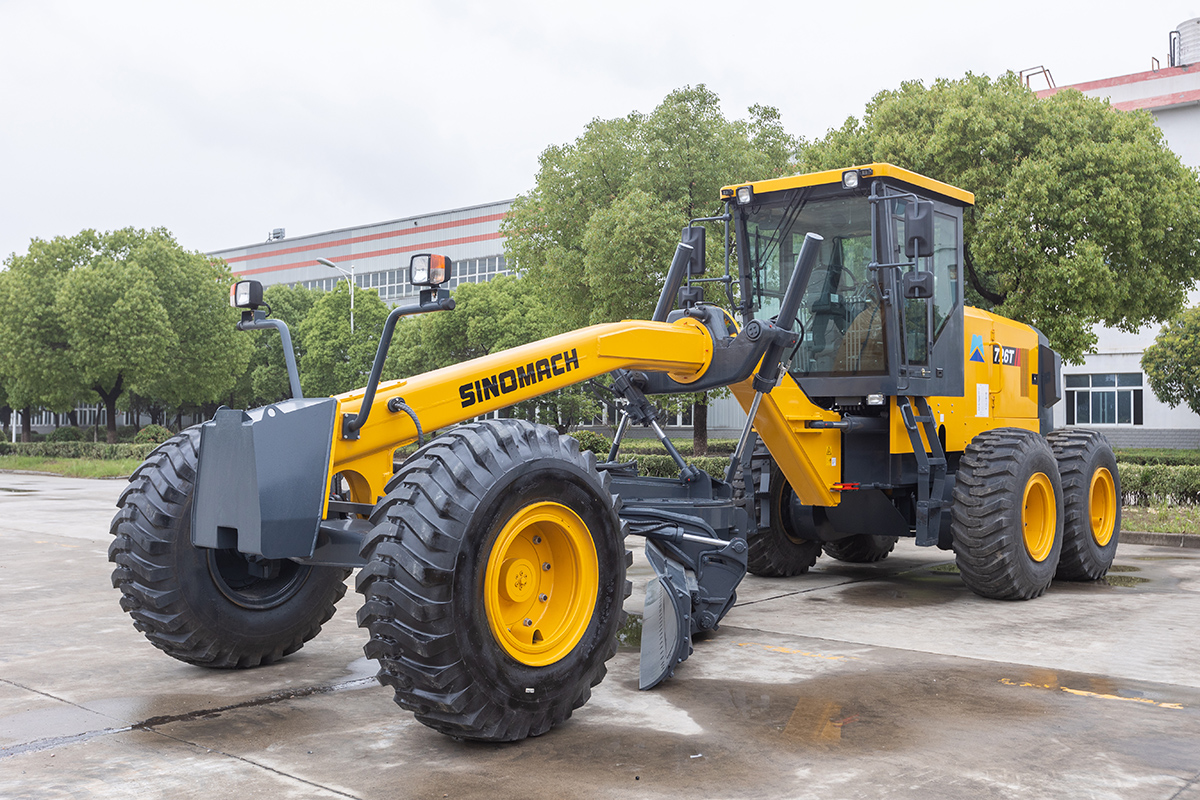

726T Mining Motor Grader

‌•Rated power：260HP (194kw/2200rpm)

‌•Operating weight：19500kg

726T Motor grader is a multifunctional and efficient construction machinery.It can perform operations such as ground leveling, paving, trenching, slope scraping, back-filling, soil pushing, surface stripping, soil loosening, and snow removal.

product details

description1

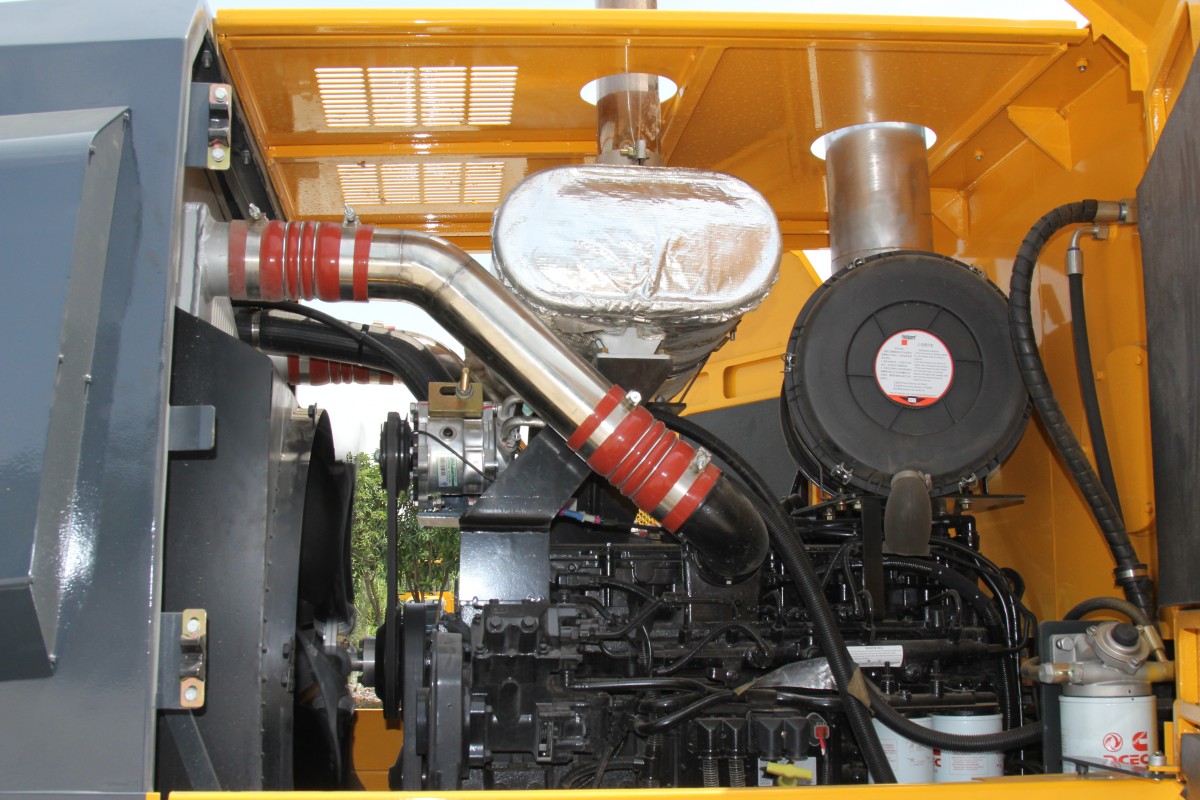

Inheritance, Reliability and Efficiency

70 years of experience, latest fourth generation products.

Based on the design concept of actual working conditions and continuous optimization, excellent manufacturing capabilities ensure excellent overall reliability.

All repair and maintenance components are available in the market.

First-class structural component manufacturing

Ability to manufacture structural components for international brands.

Structural components designed with the "equal strength concept" have better torsional performance.

Advanced industry welding process and craft.

Outstanding Perspective

Safety cab, integral front windshield, mechanical suspension seat with headrest.

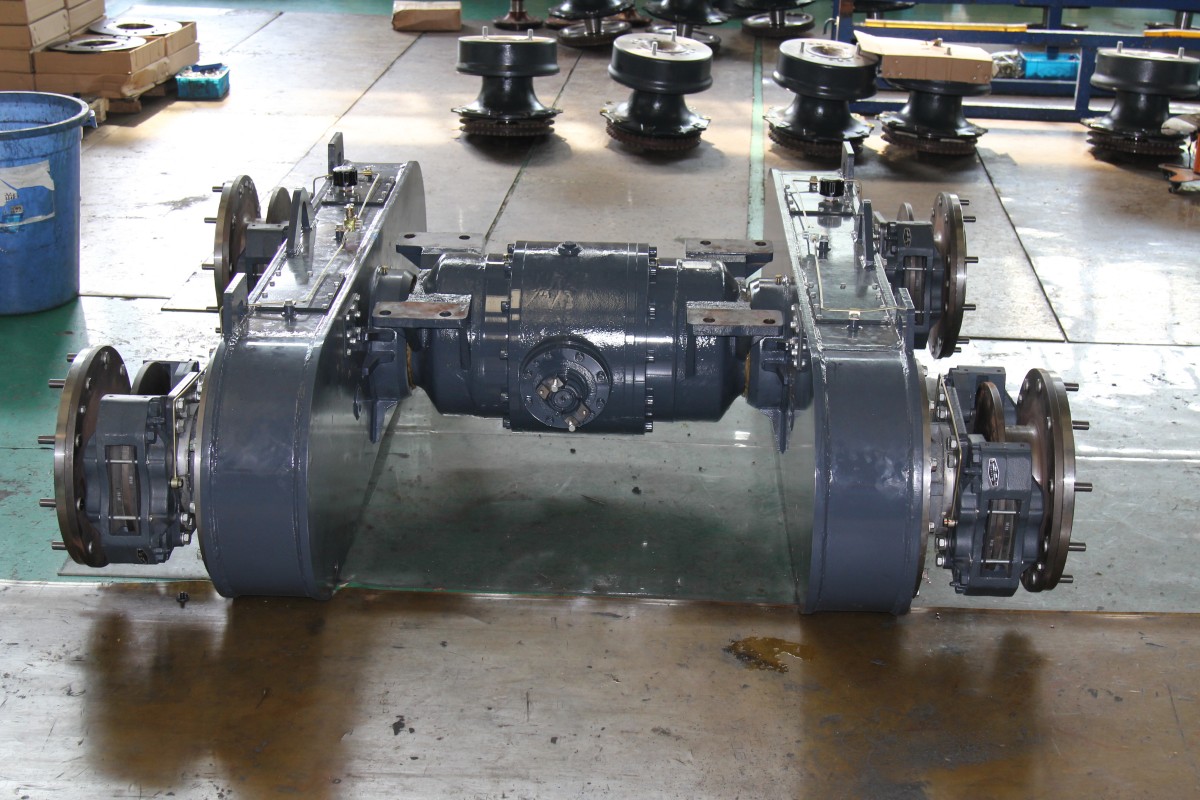

MERITOR Drive System

Integral welding axle shell, strong bearing capacity.

Imported No-spin differential, more suitable for harsh working conditions.

International famous brand.

ZF Technology Gearbox

Large speed ratio and optimized power partner

Easy and convenient Joystick speed shift

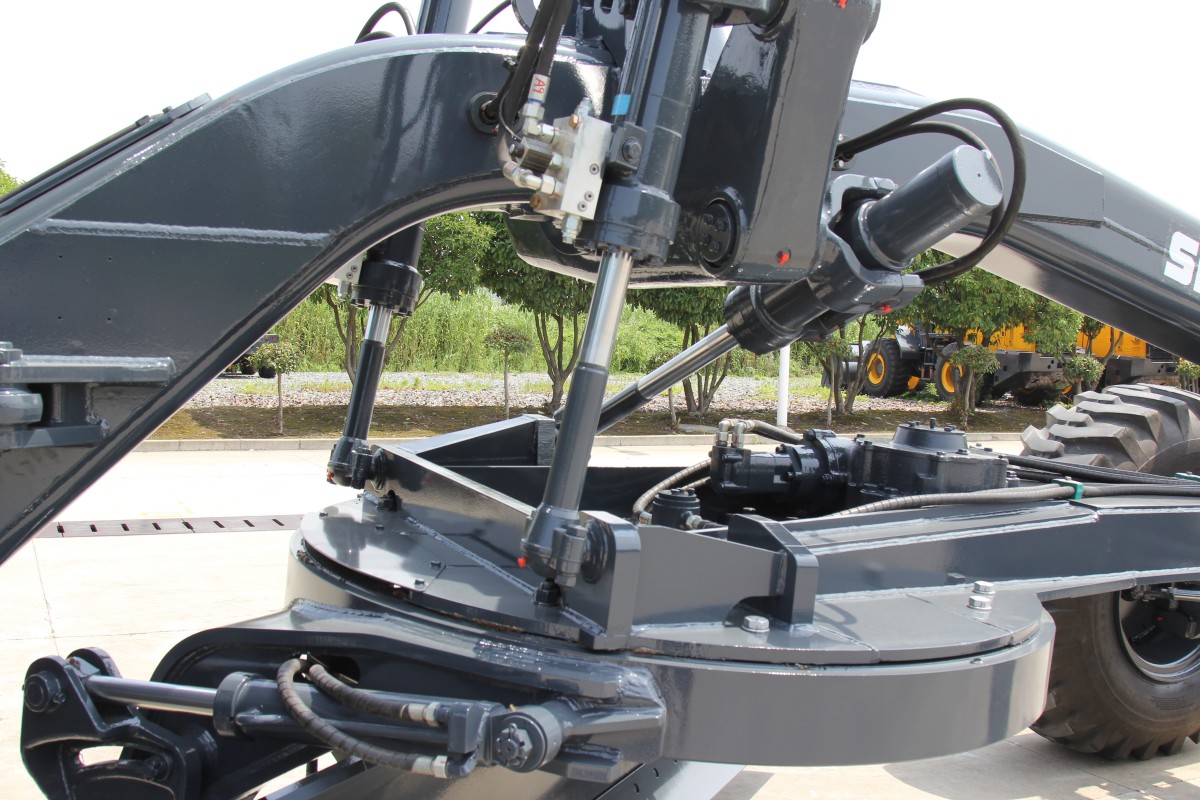

Reinforced working device

The tow-bar consists of sturdy A- and U-shaped frames for strength and durability.

Proper Blade Curvature design, effectively scrape all kinds of earth.

29-77° large range of cutting angles for more specialized construction techniques.

Overload protection or heavy duty worm case secures the safety.

Products pecifications

Engine model		Cummins QSL8.9-C260
Engine type	-	EFI, turbocharger, air-to-air cooling; temperature control independent cooling system
Rated power	kW/rpm	194/2200
Mass of the whole machine	t	19.5
Outline dimension	mm	9550x2800x3650
Transmission	-	ZF 6BP230;
Rear axle & Tandem	-	Meritor
Tyre	-	20.5-25-16PR L-2
Speed of advance	km/h	5.8, 8.9, 14.2, 21.6, 33.2, 48.9
Backward speed	km/h	6.1, 15, 34.9
Hydraulic system	-	Dual-handle electronically controlled load-sensing system
Steering system	-	Full hydraulic front wheel steering, articulated steering, emergency steering
Service brake	-	Full Hydraulic Wet Brakes
Parking brake	-	Hydraulically Operated Disc Brake
Blade length／height	mm	4422/688
Max.lift above ground	mm	425
Max.grading depth	mm	470
Max.wheel lean angle	-	90
Blade tip angle	-	36-66
Maximum swing angle of front axle	-	15
Maximum tilt angle of front wheel	-	17
Maximum steering angle of front wheel	-	45
Maximum steering angle of articulation	-	25
Min.Turning radius	mm	8600
