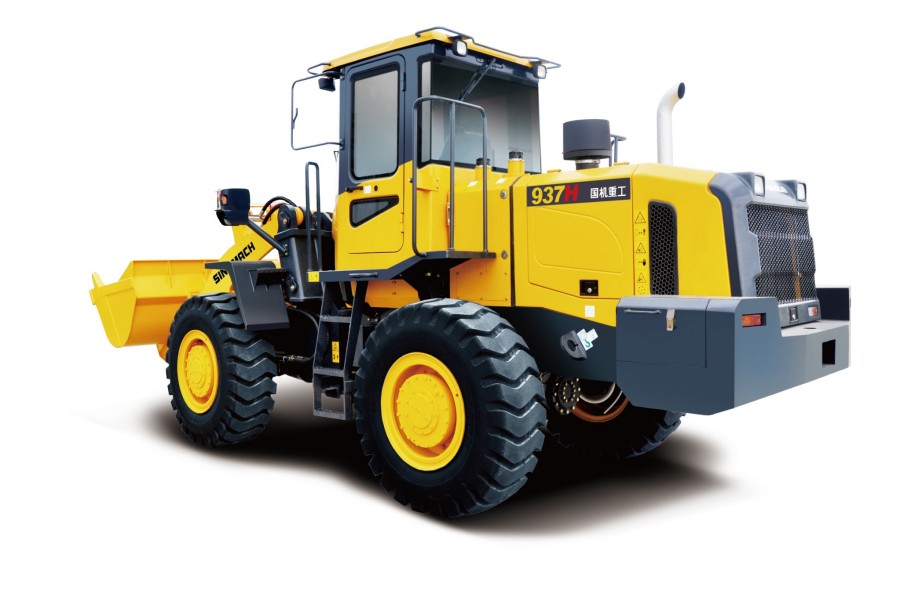

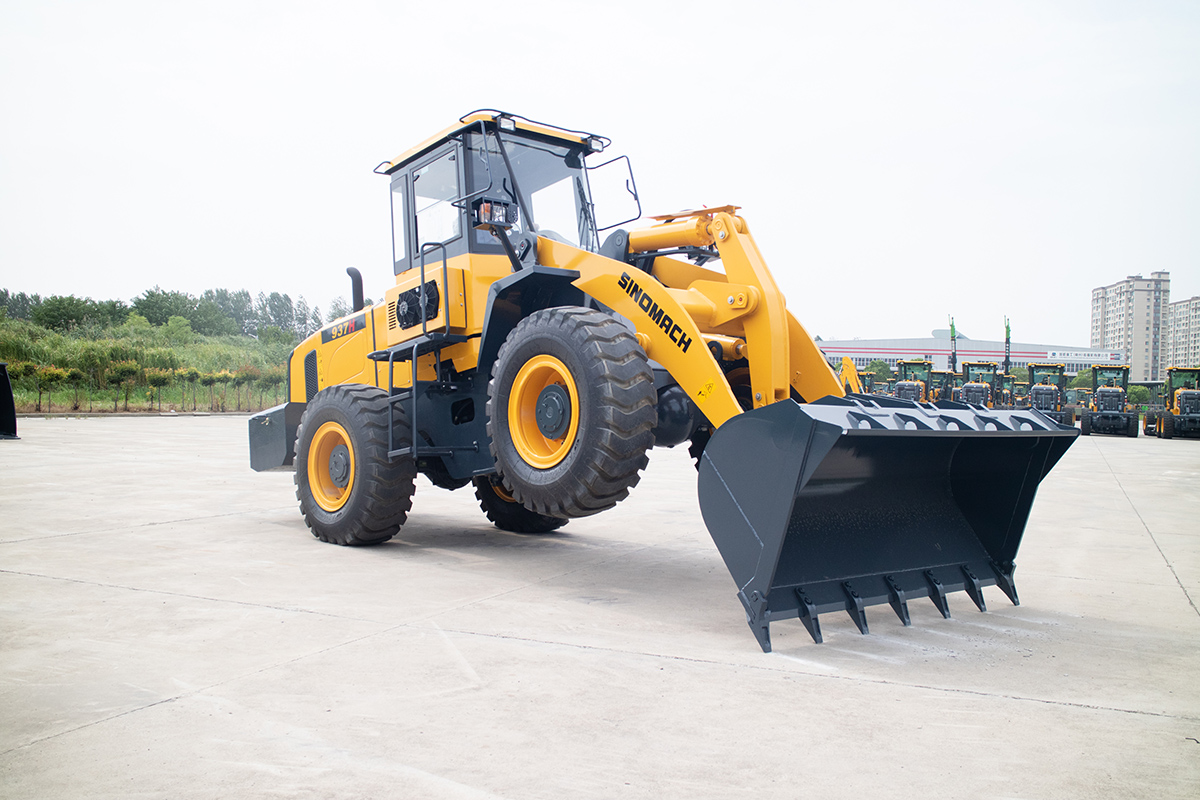

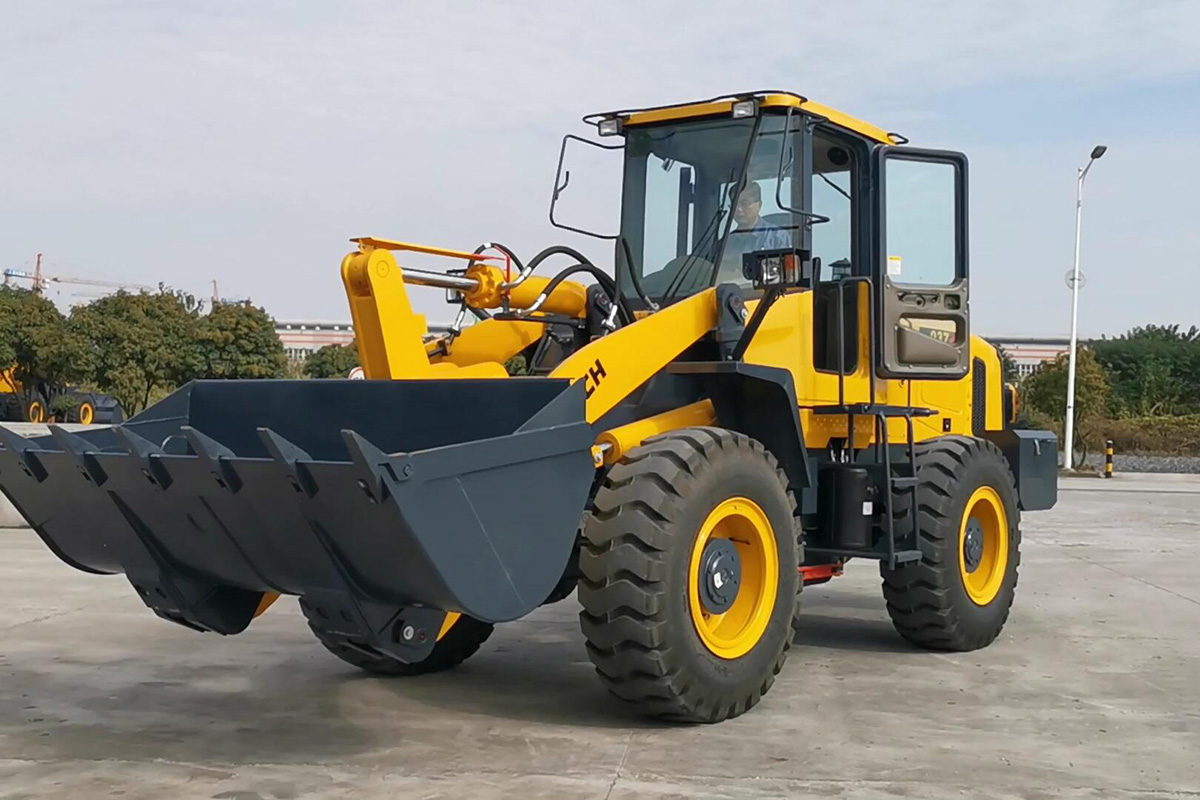

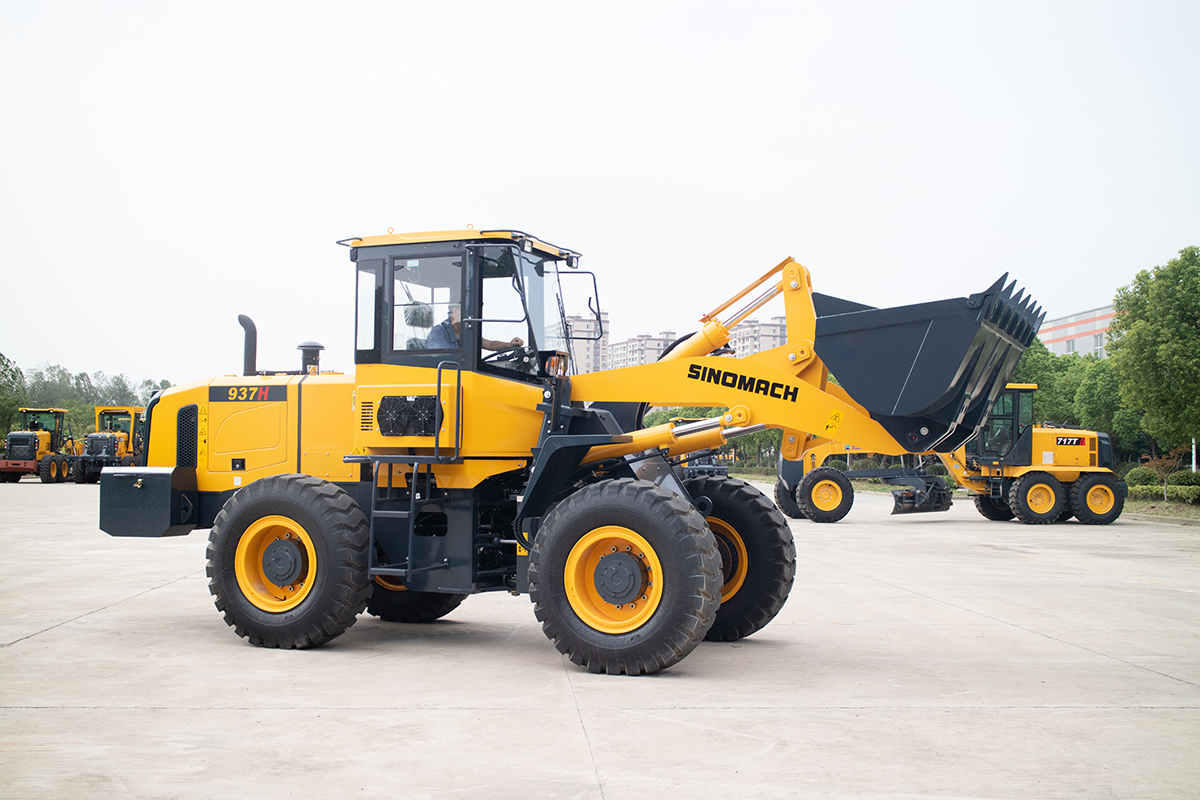

937H Multi-Terrain Wheel Loader

The SINOMACH 937H wheel loader is engineered for heavy-duty operations, featuring a 3-ton power-shift fixed-axis transmission and a reinforced heavy-duty frame, ensuring both durability and operational efficiency. With a compact turning radius of 5185mm and agile steering system, it excels in confined workspaces. Renowned as a classic 3-ton model, this loader combines premium quality with cost-effectiveness, delivering superior traction force (96±5KN) and optimized digging capabilities for high-performance tasks and streamlined.

product details

description1

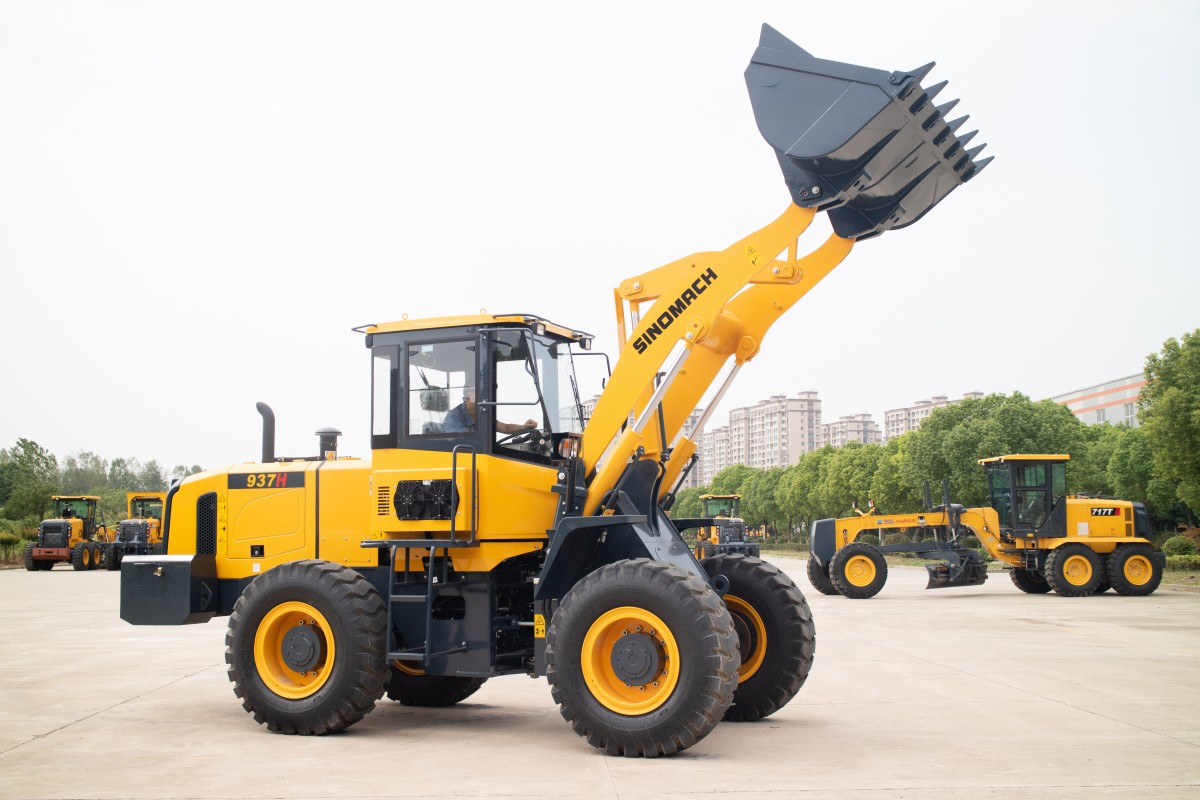

Appearance

Hunan University Industrial Appearance Styling Design

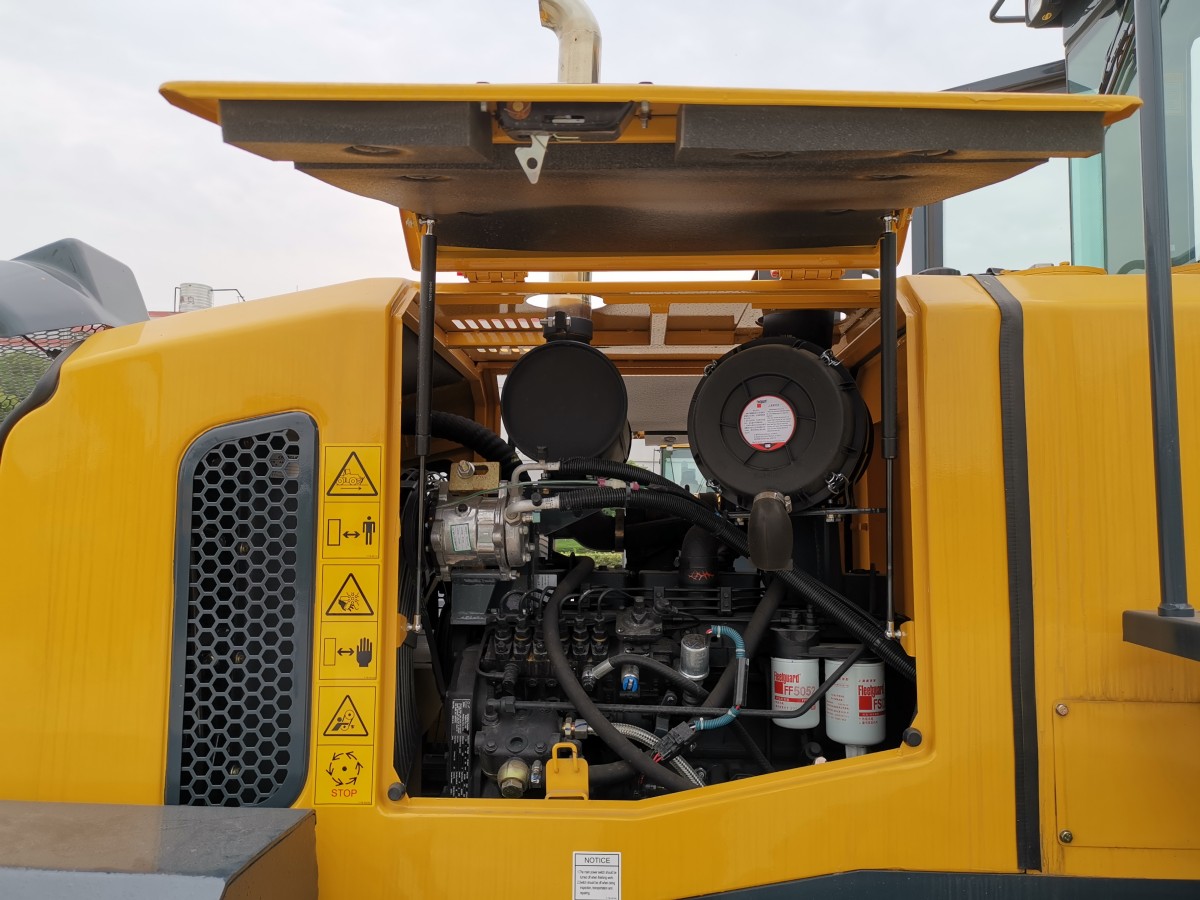

Engine

Equipped with mainstream engine

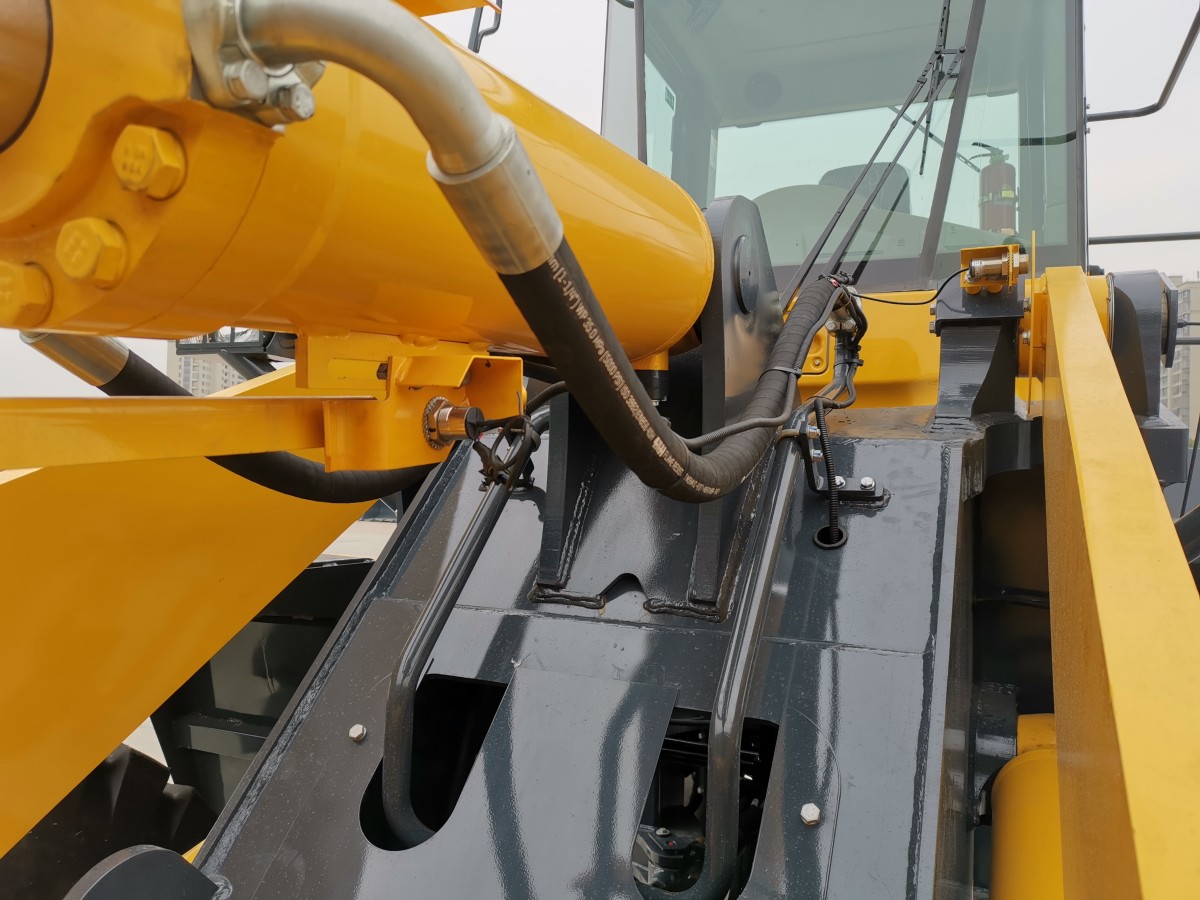

Third generation chassis design

First-class welding of structural components

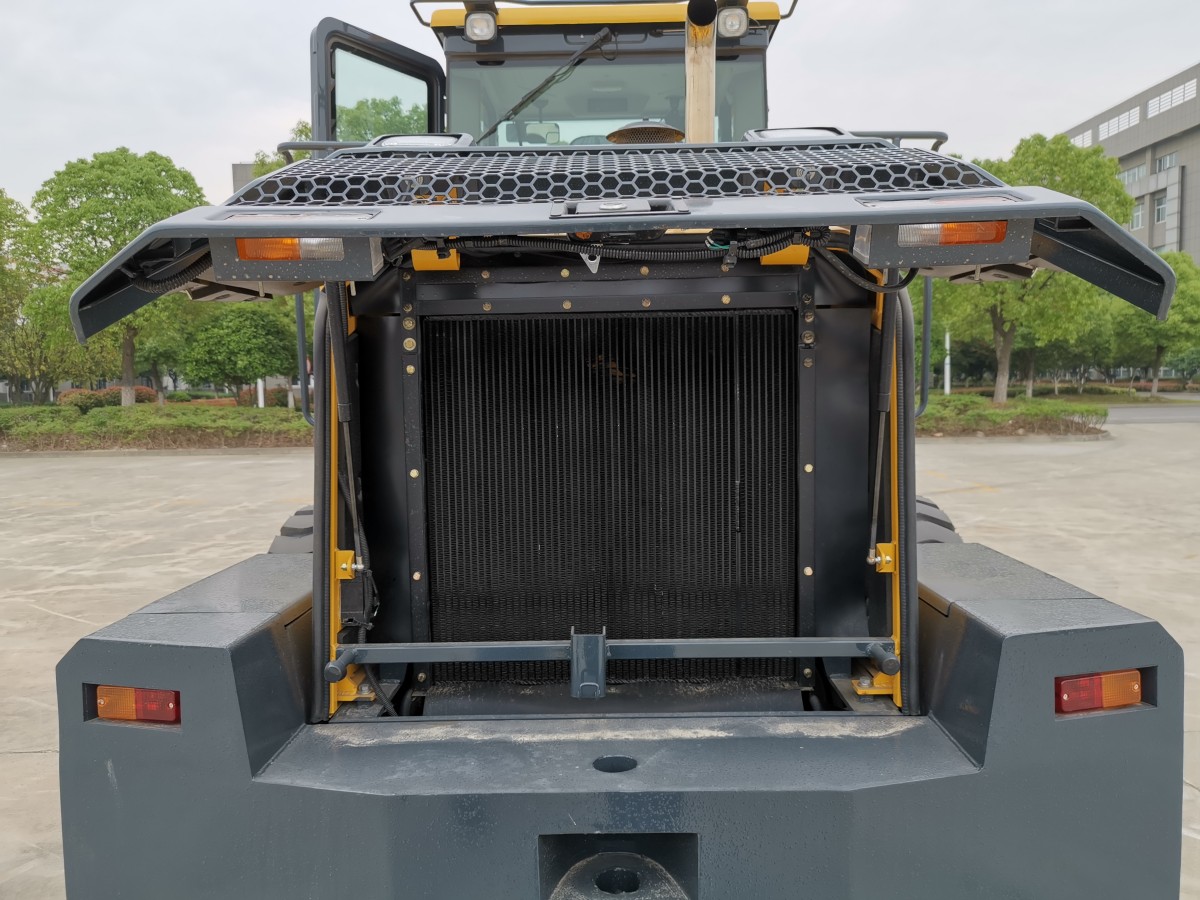

Serviceability

Fully openable engine hood

Easy filter replacement

Wide core & fin radiator

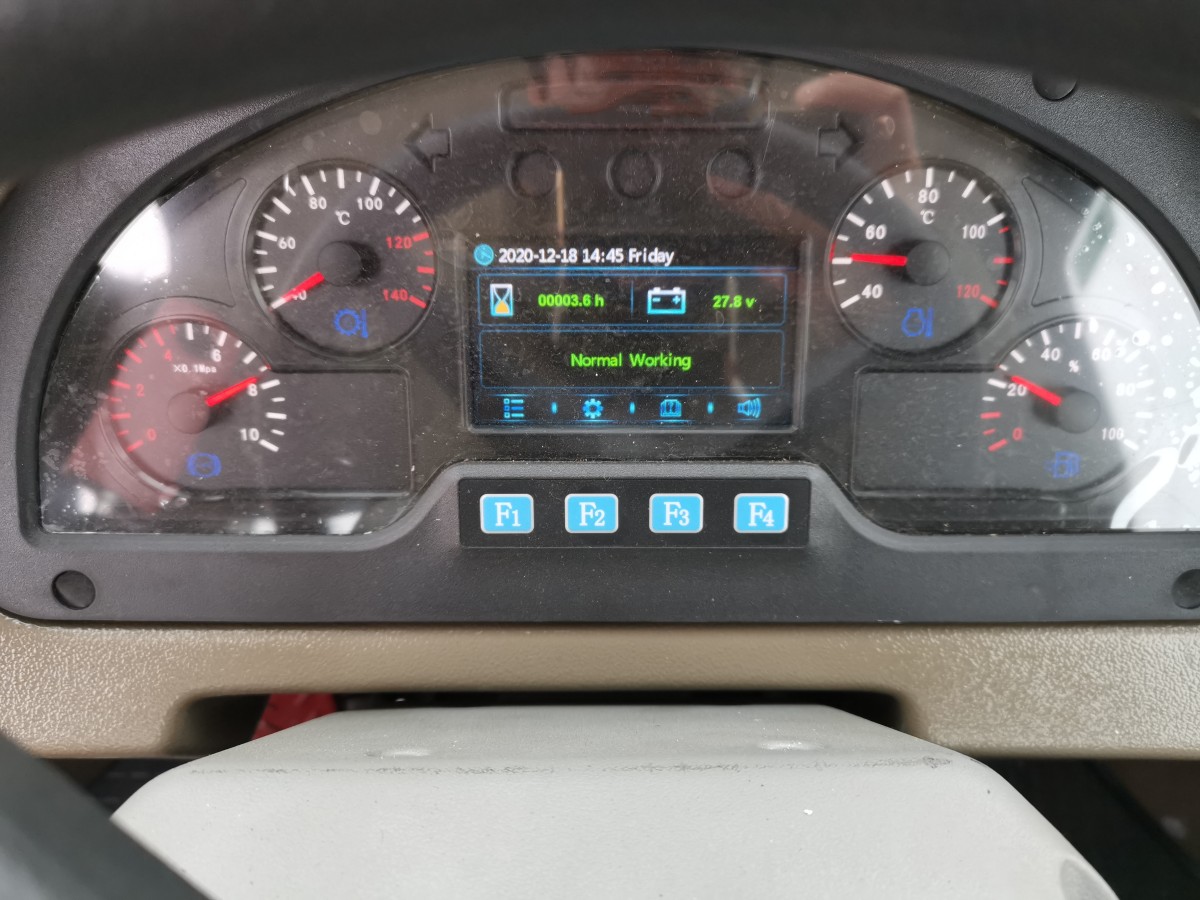

Integrated operation

All the indicators displaying machine status are centralised in one pannel to enable easy,efficient control.

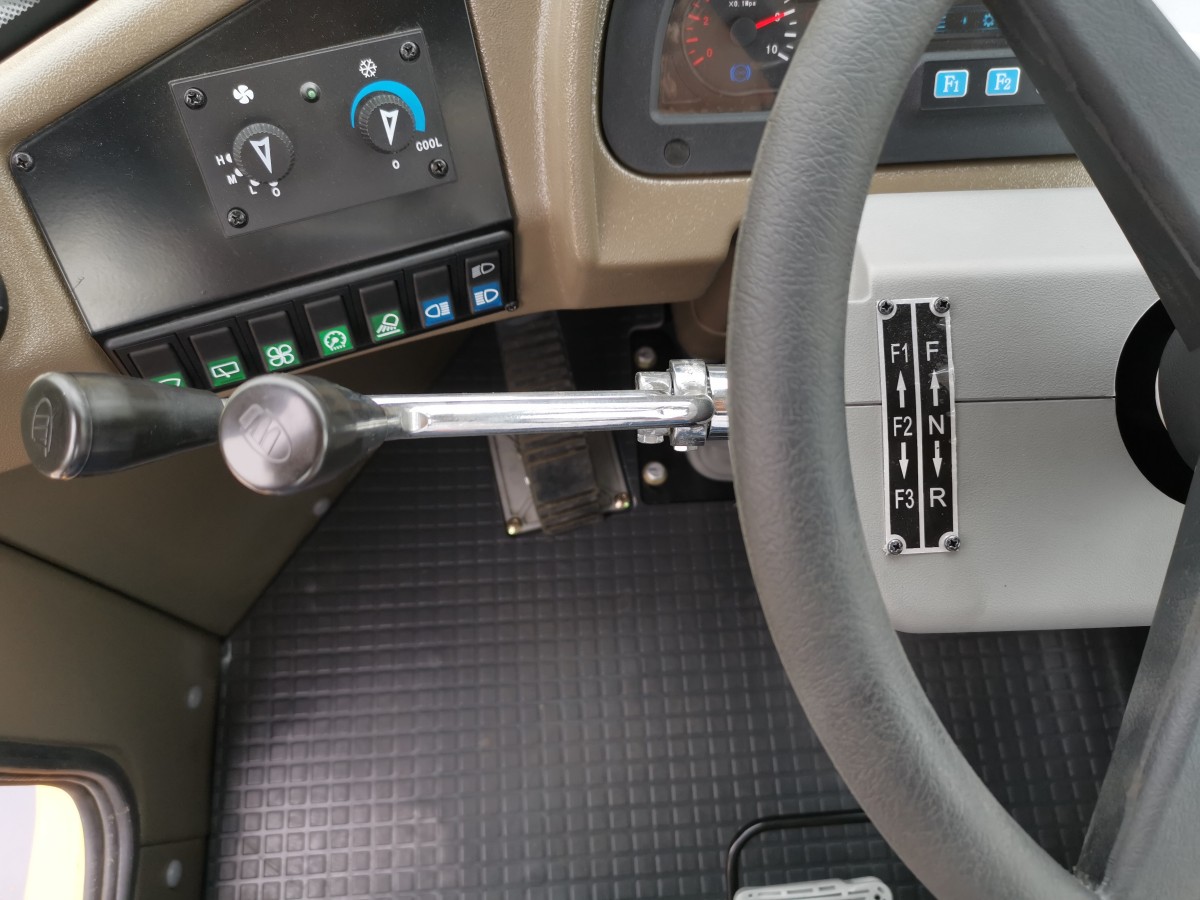

Comfort

Large and fully adjustable seat with armrest to help operators working longer and more productively.Forextra comfort,there is an air suspension seat as option.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)	6983(mm)
2	Width(to outside of wheels)	2305(mm)
3	Bucket width	2430(mm)
4	Height(To the top of the cab)	3136(mm)
5	Wheel base	2750(mm)
6	Min. ground clearance	360(mm)
Technical Specification
1	Rated load	3000(Kg)
2	Operating weight	10200KG
3	Rated bucket capacity	1.7(m³)，1.4-3.2 (m³)
4	Max. dump clearance	2934(mm)
5	Dump reach	1043(mm)
6	Min. turning radius(wheel)	5185(mm)
Diesel engine
1	Model	Dongfeng Cummins 6BT5.9-C130		WeiChai WP6G125E22
2	Type	Direct injection.
3	Rated output	97 (kW)	92 (kW)
5	Displacement	5.9 (L)	6.75 (L)
9	Rated speed	2200(r/min)
10	Max. Torque	440(N.M)@1500 rpm	500(N.M)@1500 rpm
Transmission System
1	Model	BS428DX2+YJ315GZ-6F3	BS428DX2+YJ315GZ-6F2
2	Type	Power shift
3	Gear shift position	4 F、 2 R
4	Speed （F/R）	F:7.8/14.7/23.5/41.2 R：10.8/31.6
5	Max. drawing force	96kN
6	Size of tire	17.5-25-12PR
Working Hydraulic System
1	Model of oil pump	CBGj2100(SAE) 100ml/r
2	System pressure	16MPa
3	Model of Muti-way directional valve	GDF25-16/ YGDF-25-YL16（for pilot valve）
5	Pilot valve （optional）	DXS-00（for pilot valve）
Steering System
1	Model of steering pump	CBGj2100(SAE)
2	Model of redirector	TLF2J-500-20-A
3	Model of priority valve	YXL-F250F-14N7-A
4	System pressure	14MPa
Brake System
1	Type of traveling brake	Caliper disc brake
2	Air pressure	0.7~0.8 MPa
3	Type of parking brake	clamp brake
