Wheel loader

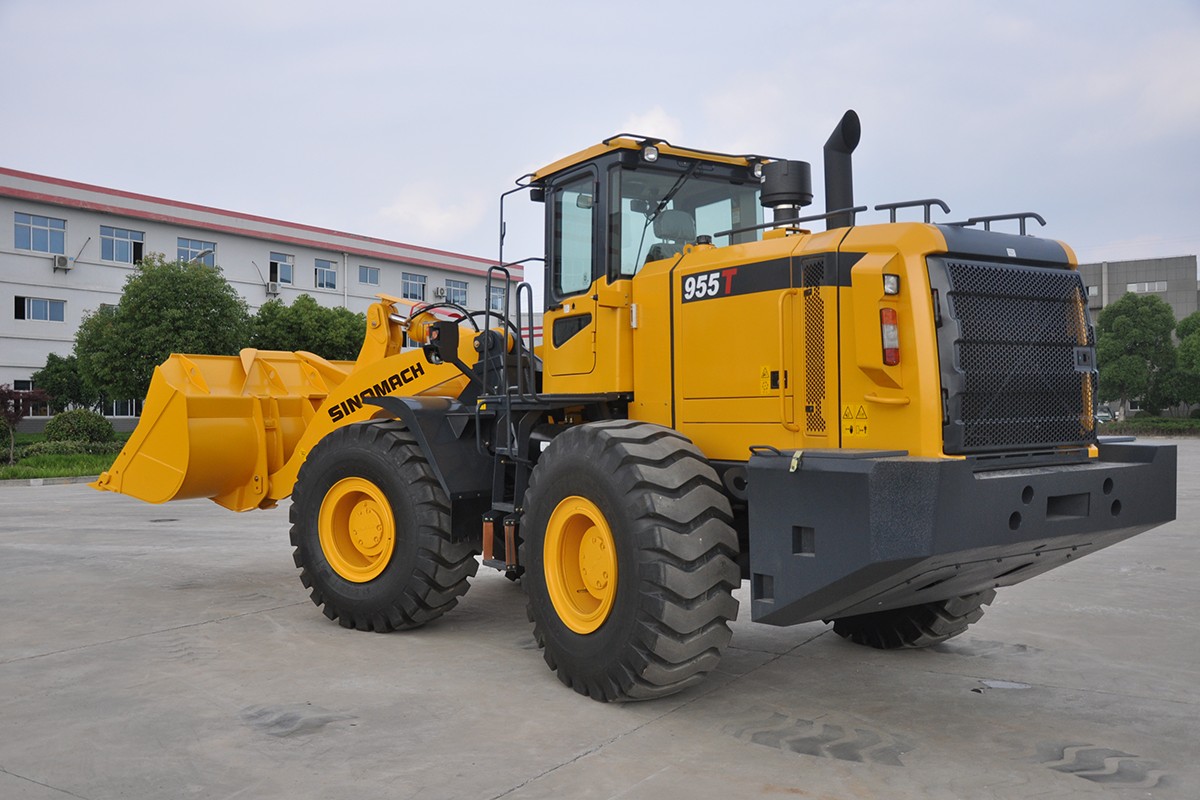

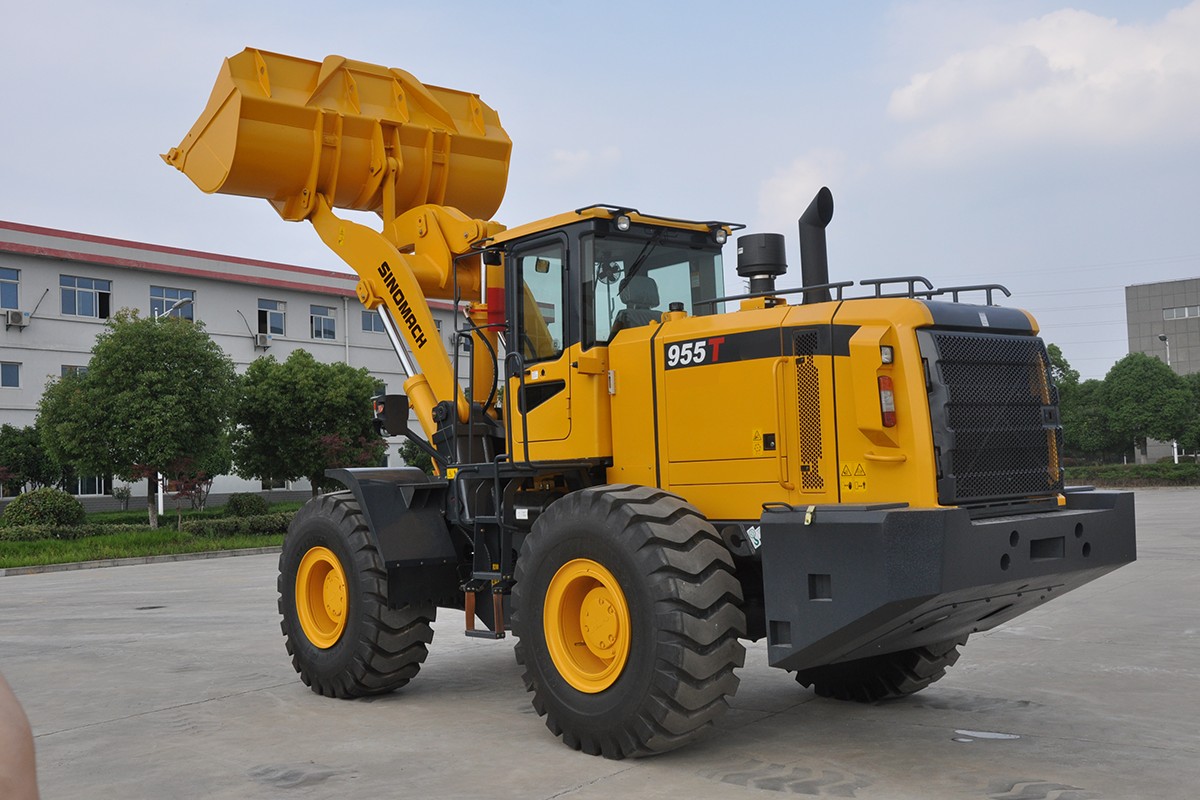

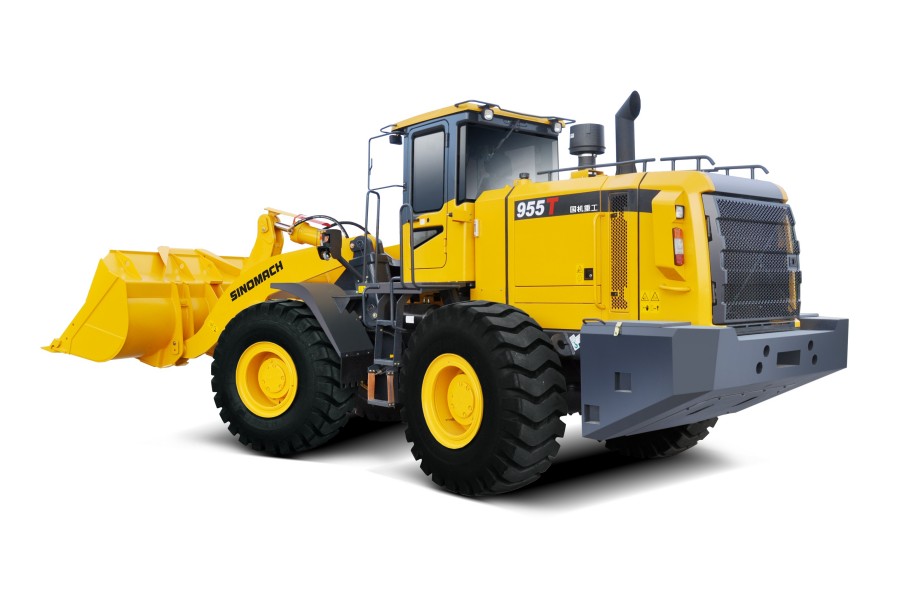

955T Multi-Terrain Wheel Loader

The SINOMACH 955T wheel loader is engineered with a 3100mm wheelbase to balance energy efficiency and operational stability, specifically optimized for loose material handling. Its frame integrates tapered roller bearing articulation technology, dramatically enhancing impact resistance and durability. The hydraulic system combines dual-pump convergence with a split-flow cooling mechanism, maintaining precise oil temperature control below 85°C for sustained high-performance operation. The T-series design features fully accessible hoods and dual cooling channels (front intake/rear exhaust), while its upgraded sealed cab reduces noise levels below national standards. User-centric innovations include centralized electrical components, side-mounted grease fittings, and front-accessible hydraulic test ports, streamlining maintenance workflows.

product details

description1

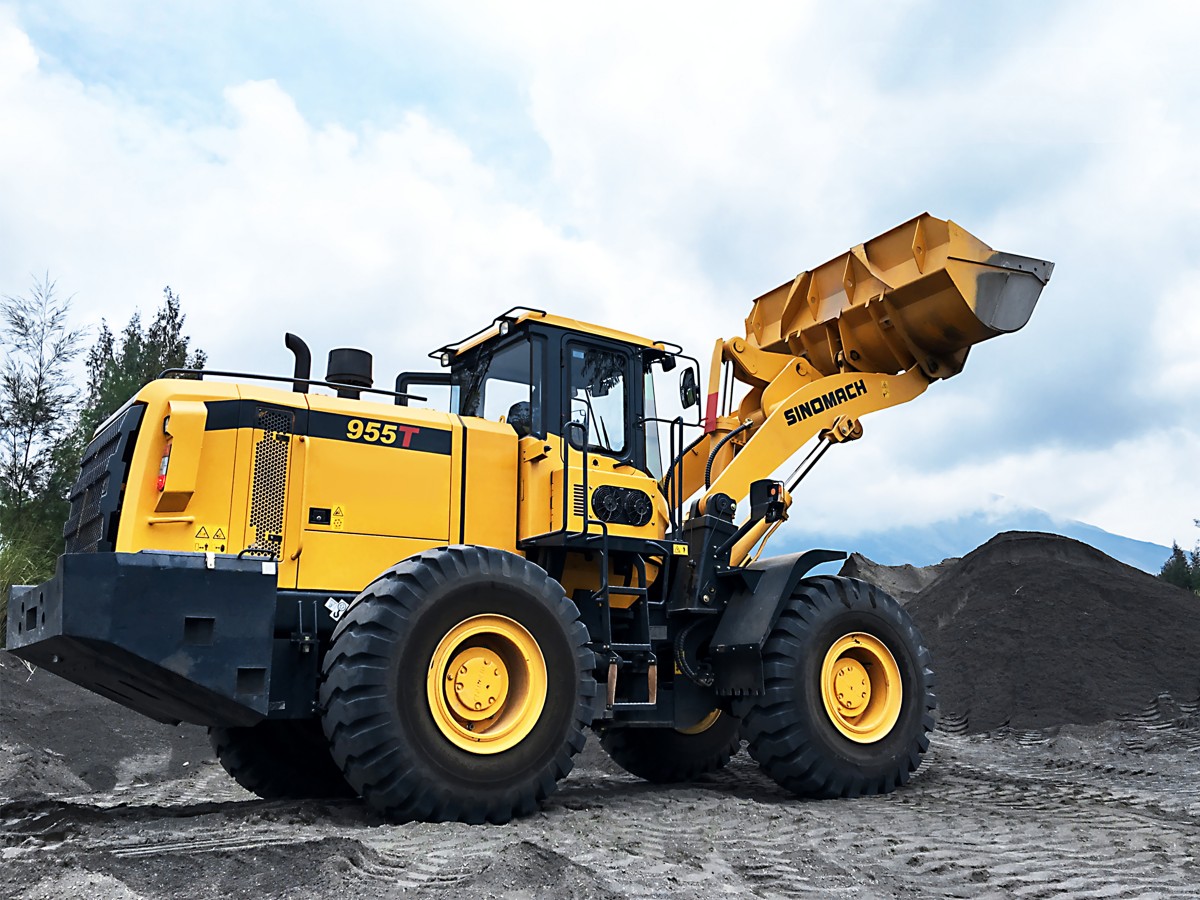

Appearance

Hunan University Industrial Appearance Styling Design

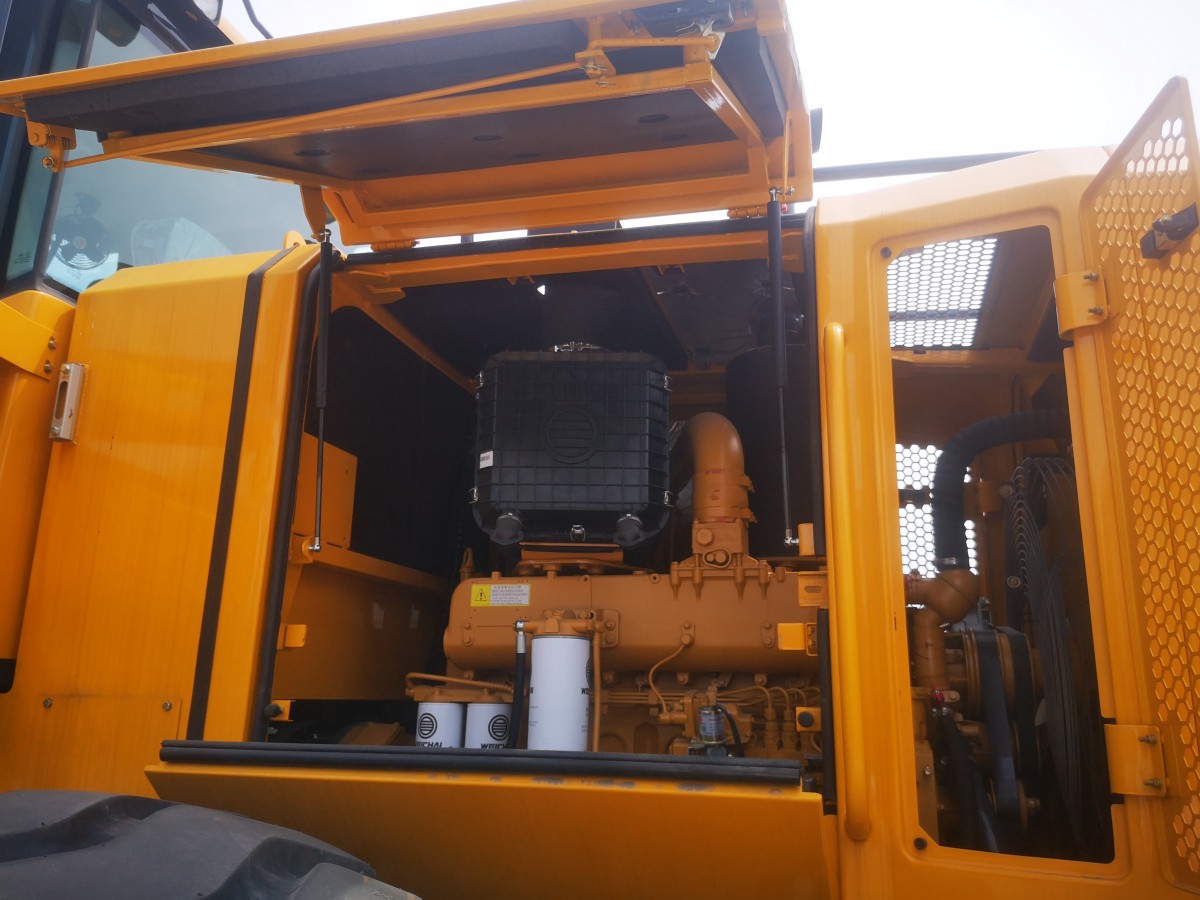

Engine

Equipped with mainstream engine

Third generation chassis design

First-class welding of structural components

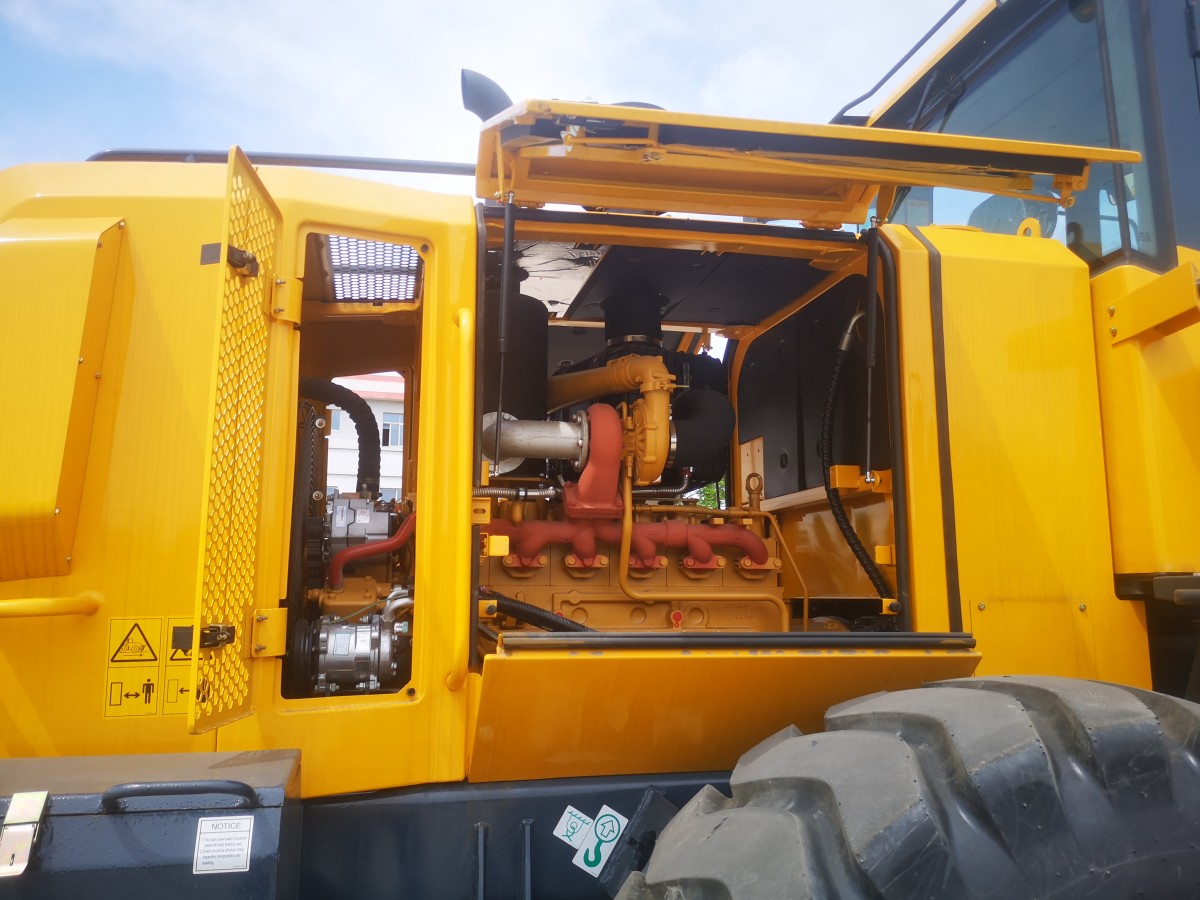

Serviceability

Fully openable engine hood

Easy filter replacement

Wide core & fin radiator

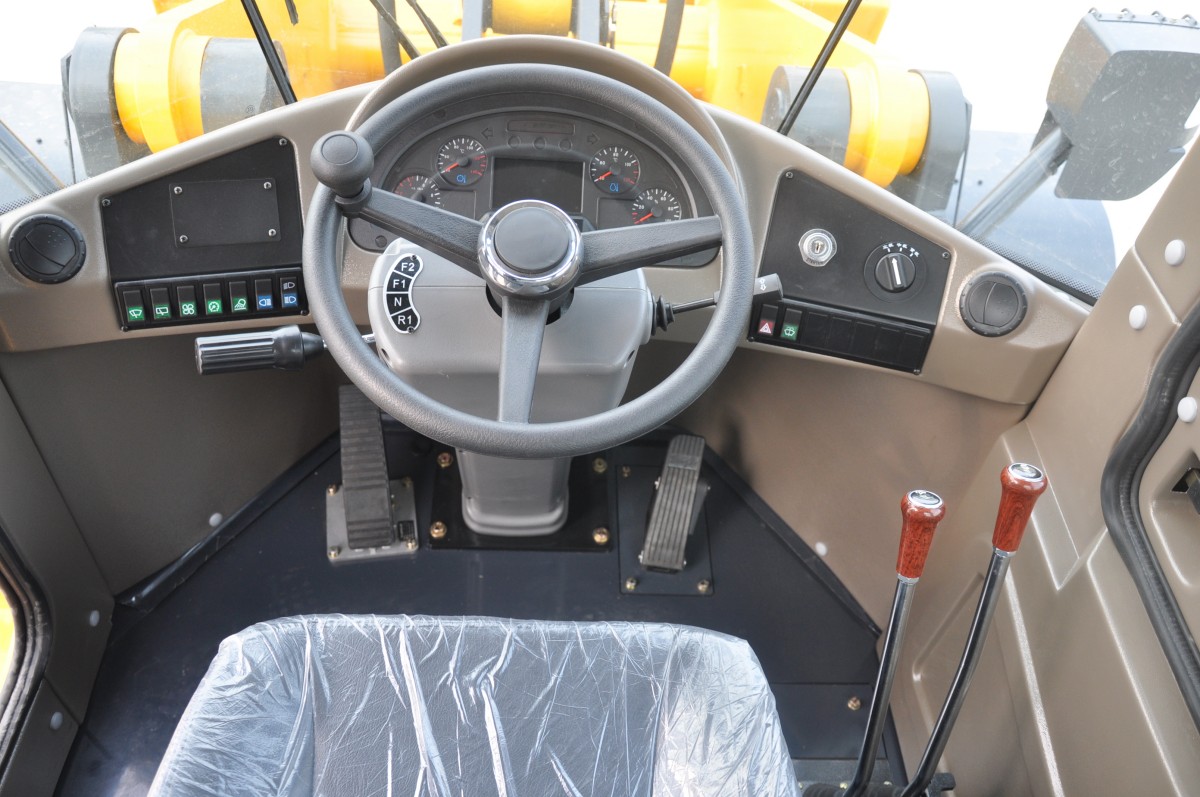

Integrated operation

All the indicators displaying machine status are centralised in one pannel to enable easy,efficient control.

Comfort

Large and fully adjustable seat with armrest to help operators working longer and more productively.Forextra comfort,there is an air suspension seat as option.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)		8015(mm)
2	Width(to outside of wheels)		2800(mm)
3	Bucket width		2928(mm)
4	Height(To the top of the cab)		3450(mm)
5	Wheel base		3100(mm)
6	Min. ground clearance		450(mm)
Technical Specification
1	Rated load		5000(Kg)
2	Operating weight		16200KG
3	Rated bucket capacity		3.1(m³)，2.2-4.5 (m³)
4	Max. dump clearance		3136(mm)
5	Dump reach		1121(mm)
6	Min. turning radius(wheel)		5970(mm)
Diesel engine
1	Model	WeiChai WP10G220E343	WeiChai WD10G220E23
2	Type	Electronic fuel injection	Direct injection.
3	Emission level	Ⅲ	Ⅱ
4	Rated output	162KW	162 (kW)
5	Displacement	9.726	9.726(L)
6	Rated speed	2000	2000(r/min)
7	Max. Torque	980(N.M)	900(N.M)@1400 r/min
Transmission System
1	Model		HANGCHIZL50D-038
2	Type		4-elements.single stage
3	Gear shift position		2F, 1R
4	Speed（F/R）		F：15.9/40.3 R：11.7
5	Max. drawing force		170kN
6	Size of tire		23.5-25-16PR L-3
Working Hydraulic System
1	Model of oil pump		JHP3100
2	System pressure		18MPa
3	Model of Muti-way directional valve		GDF-32-YL18
5	Pilot valve		Optional
Steering System
1	Model of steering pump		JHP2080L01
2	Model of redirector		TLF2J-800-22-A
3	Model of priority valve		YXL-F250F-N7
4	System pressure		16MPa
Brake System
1	Type of traveling brake		Caliper disc brake
2	Air pressure		6-7.5(kgf/cm²)
3	Type of parking brake		Clamp brake
