Wheel loader

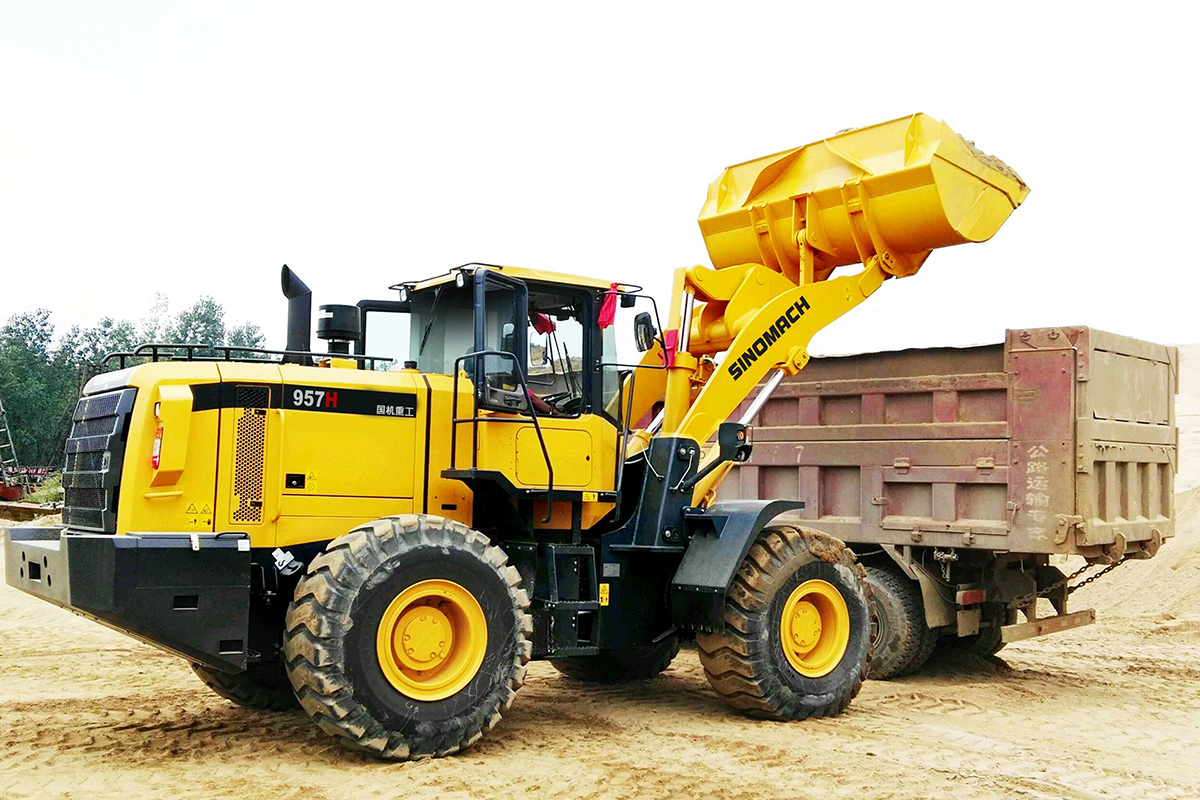

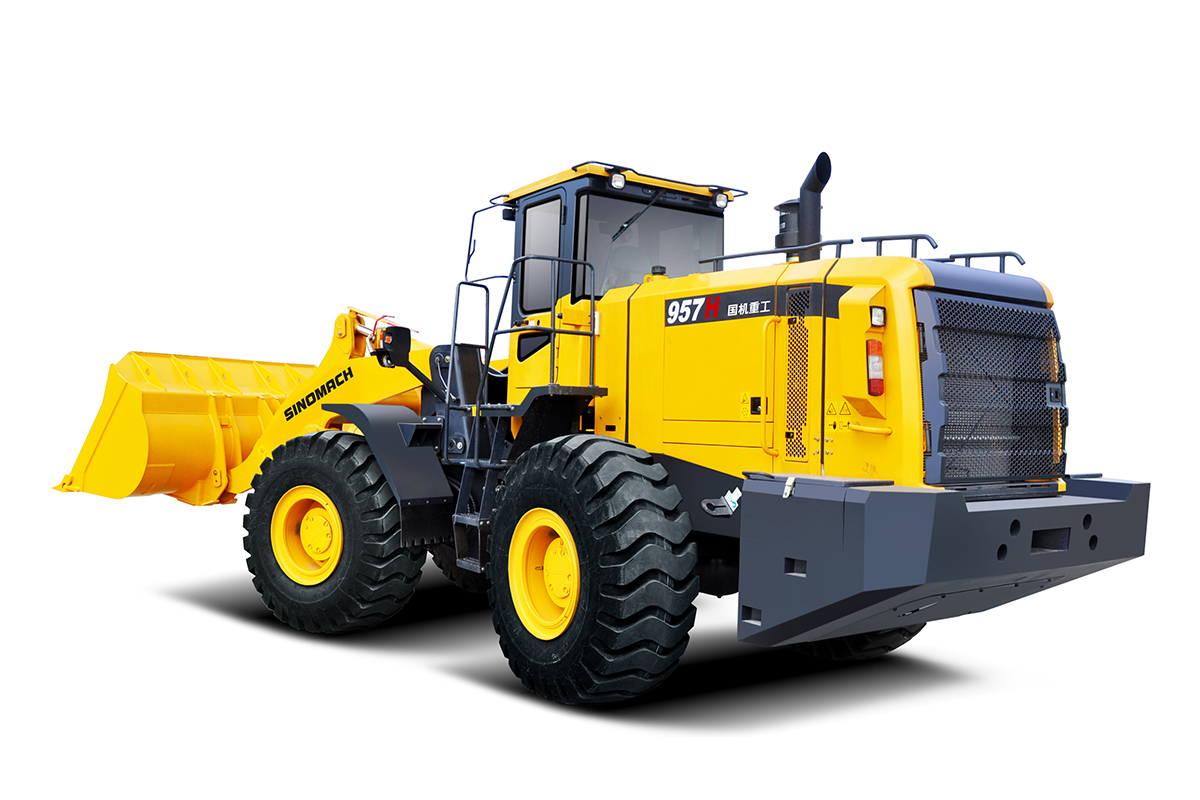

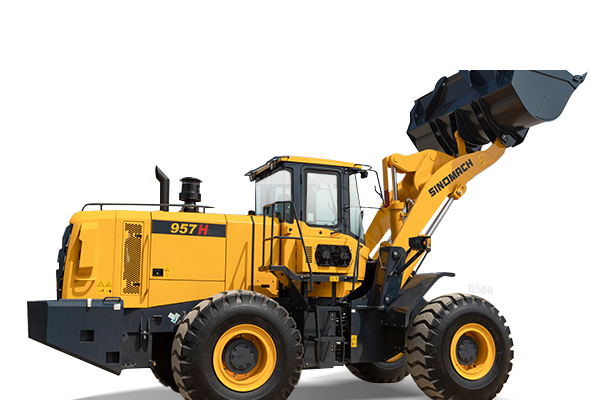

957H Multi-Terrain Wheel Loader

The SINOMACH 957H wheel loader features an extended 3300mm wheelbase, positioning it in the mid-to-high-end market segment with outstanding capability for heavy-duty operations and harsh working conditions. It incorporates the innovative third-generation mono-frame structure that significantly enhances overall strength, combined with tapered roller bearing articulation for superior reliability. The hydraulic system utilizes dual-pump convergence technology with an advanced split-flow cooling system to maintain hydraulic oil temperature below 85°C. User-friendly designs include fully accessible hoods with openable front/rear cooling channels, an upgraded cab with excellent sealing performance (noise levels well below national standards), as well as optimized electrical component layout with centralized relays/fuses, externally accessible grease fittings on the frame side, and front-mounted test ports for convenient maintenance.

product details

description1

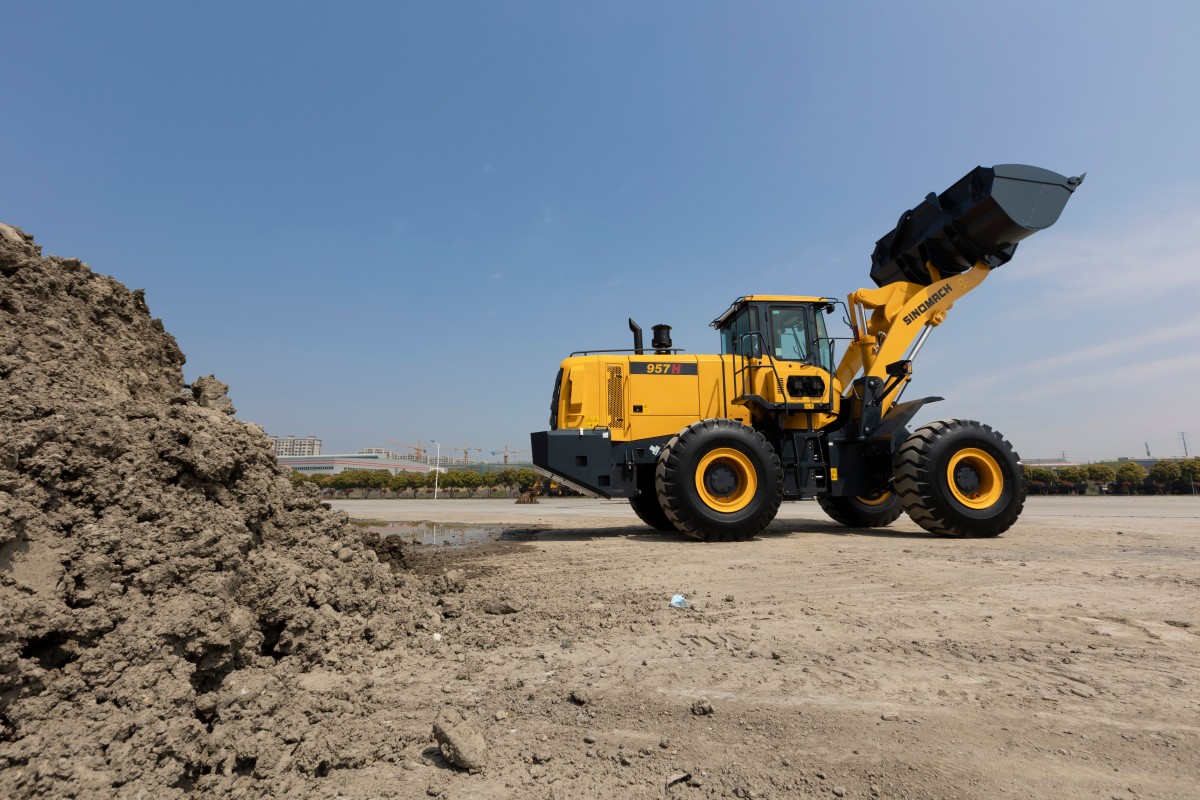

Appearance

Hunan University Industrial Appearance Styling Design

Engine

Equipped with mainstream engine

Third generation chassis design

First-class welding of structural components

Serviceability

Fully openable engine hood

Easy filter replacement

Wide core & fin radiator

Integrated operation

All the indicators displaying machine status are centralised in one pannel to enable easy,efficient control.

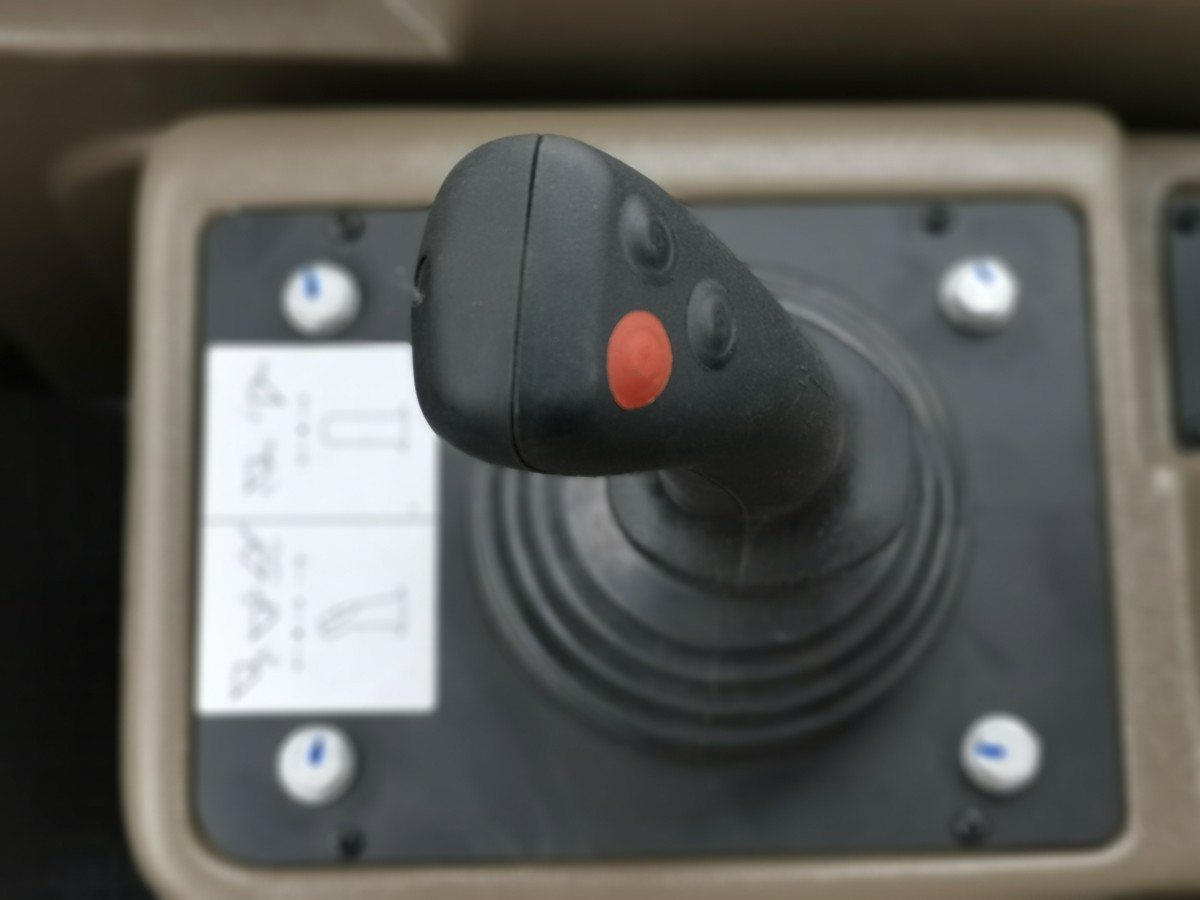

Comfort

Large and fully adjustable seat with armrest to help operators working longer and more productively.Forextra comfort,there is an air suspension seat as option.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)	8390(mm)
2	Width(to outside of wheels)	2800(mm)
3	Bucket width	2928(mm)
4	Height(To the top of the cab)	3450(mm)
5	Wheel base	3300(mm)
6	Min. ground clearance	450(mm)
Technical Specification
1	Rated load	5000(Kg)
2	Operating weight	17300KG
3	Rated bucket capacity	3.1(m³)，2.2-4.5 (m³)
4	Max. dump clearance	3136(mm)
5	Dump reach	1121(mm)
6	Min. turning radius(wheel)	6192(mm)
Diesel engine
1	Model	Cummins 6LTAA 9.3		ShangChaiSC11CB220G2B1
2	Type	Direct injection.
3	Rated output	162 (kW)
5	Total exhaust of cylinder	9.3 (L)	10.45（L）
9	Rated speed	2200(r/min)
10	Max. Torque	940(N.M)@1400 rpm	920(N.M)@1400 rpm
Transmission System
1	Model	CHANGLIN 957H.4C
2	Type	Power shift
3	Gear shift position	3 F, 3 R
4	Speed（F/R）	6.8/8，10.8/14.3，32/34.1
5	Max. drawing force	160kN
6	Size of tire	23.5-25-16PR
Working Hydraulic System
1	Model of oil pump	JHP3100A
2	System pressure	18MPa
3	Model of Muti-way directional valve	YGDF32Ⅱ-YL18
5	Pilot valve	DXS-00
Steering System
1	Model of steering pump	JHP2080S
2	Model of redirector	TLF1-E1000B+FKB6020
3	Model of priority valve	YXL-F250F-N7
4	System pressure	16MPa
Brake System
1	Type of traveling brake	Caliper disc brake
2	Air pressure	6-7.5(kgf/cm²)
3	Type of parking brake	Caliper disc brake
