Wheel loader

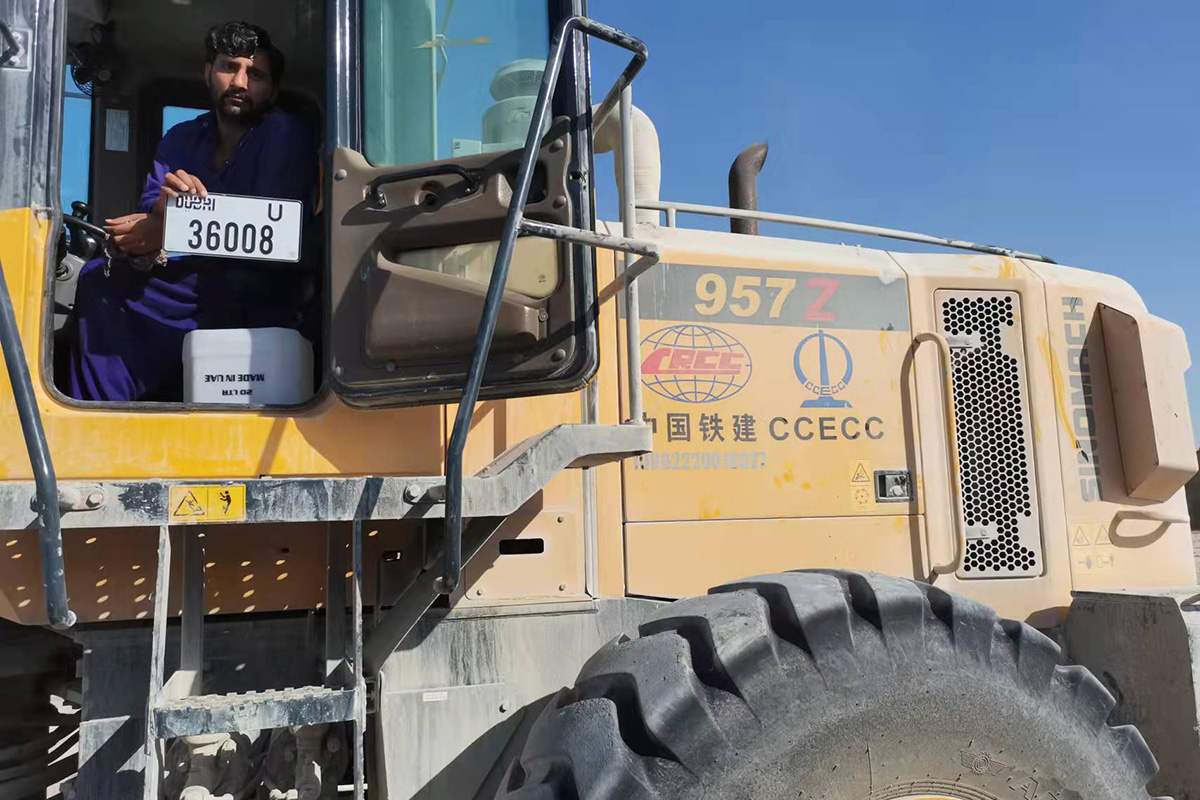

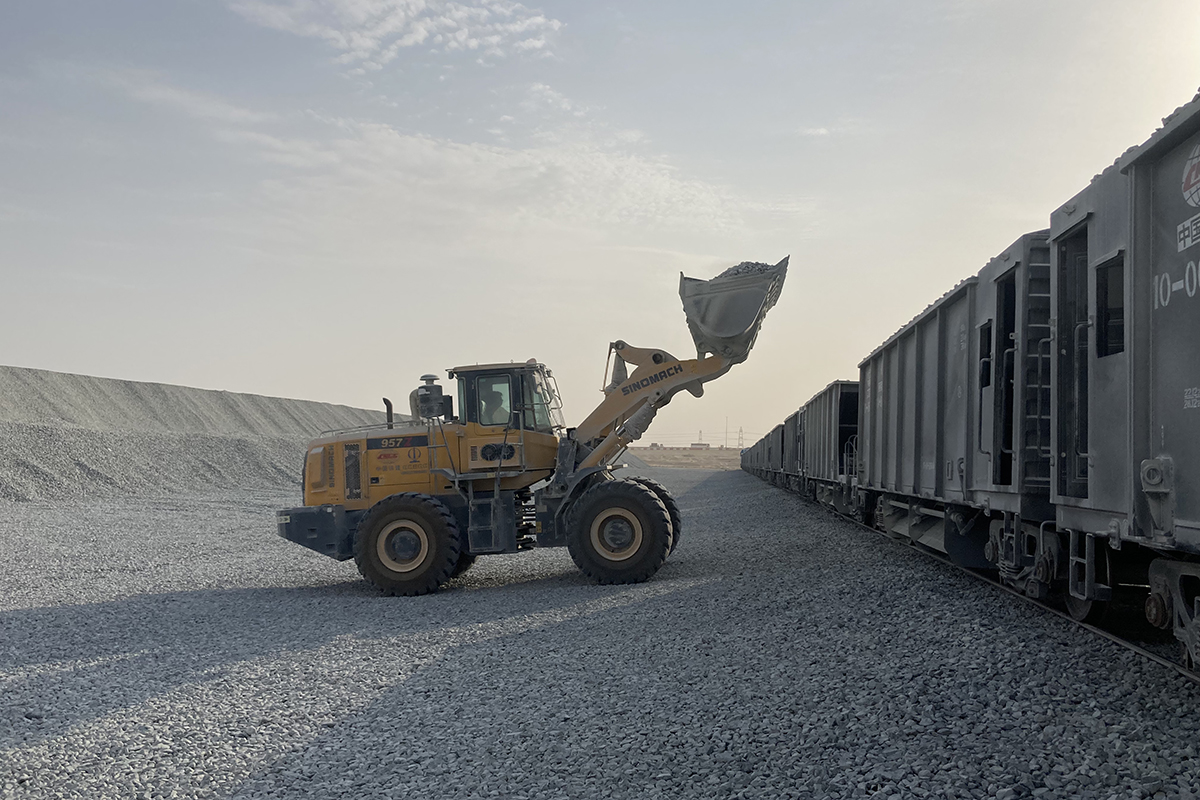

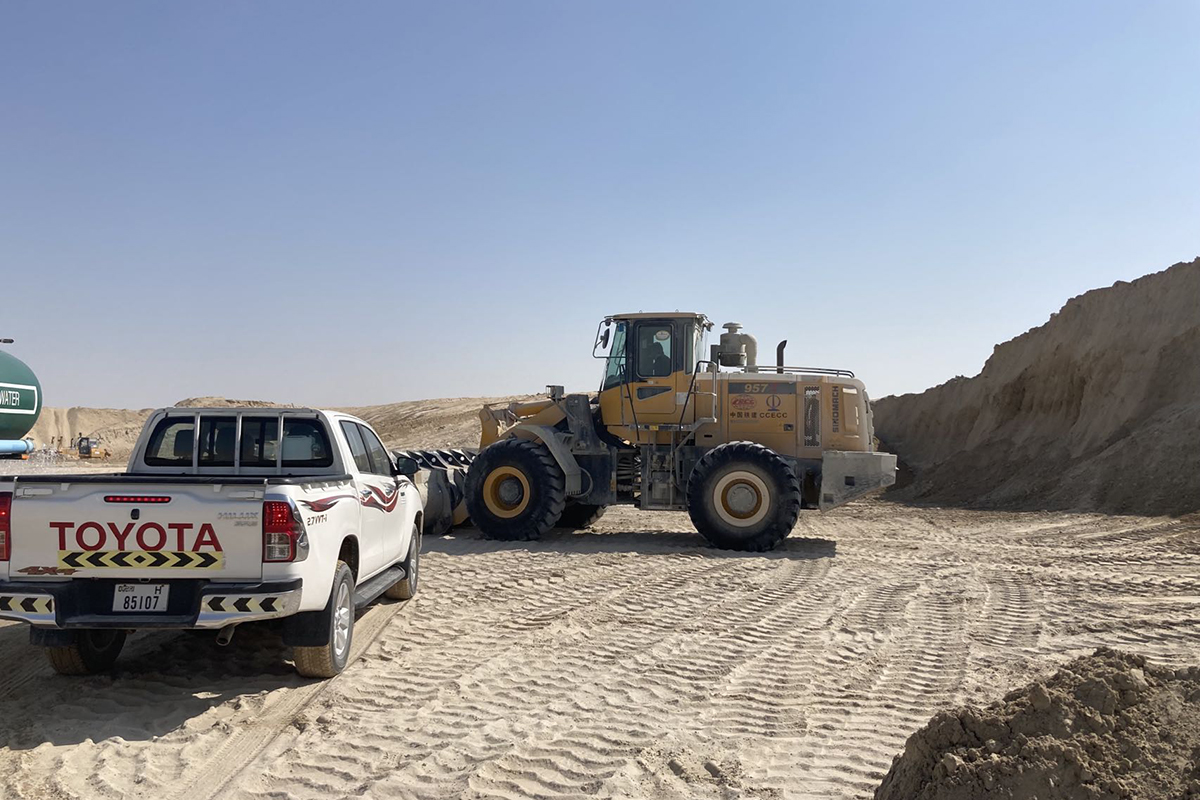

957Z Multi-Terrain Wheel Loader

The SINOMACH 957Z wheel loader is powered by high-performance Cummins 6LTAA9.3 or SHANG CHAI SC11CB220G2B1 engines, delivering robust power for demanding operations. Its drivetrain features the proven ZF fixed-axis transmission with triple-element torque converter, ensuring mature reliability. The imported single-lever joystick control system enables fast, precise, and flexible operation, complemented by an automatic bucket leveling device for enhanced efficiency. The intuitive KD switch further optimizes operational simplicity. Operator comfort is prioritized through a luxury cab with climate control and adjustable steering wheel, while globally-sourced key components guarantee superior machine reliability.

product details

description1

Appearance

Hunan University Industrial Appearance Styling Design

Engine

Equipped with mainstream engine

Third generation chassis design

First-class welding of structural components

ZF Transmission

ZF transmissions are renowned for their high efficiency, reliability, and advanced technology

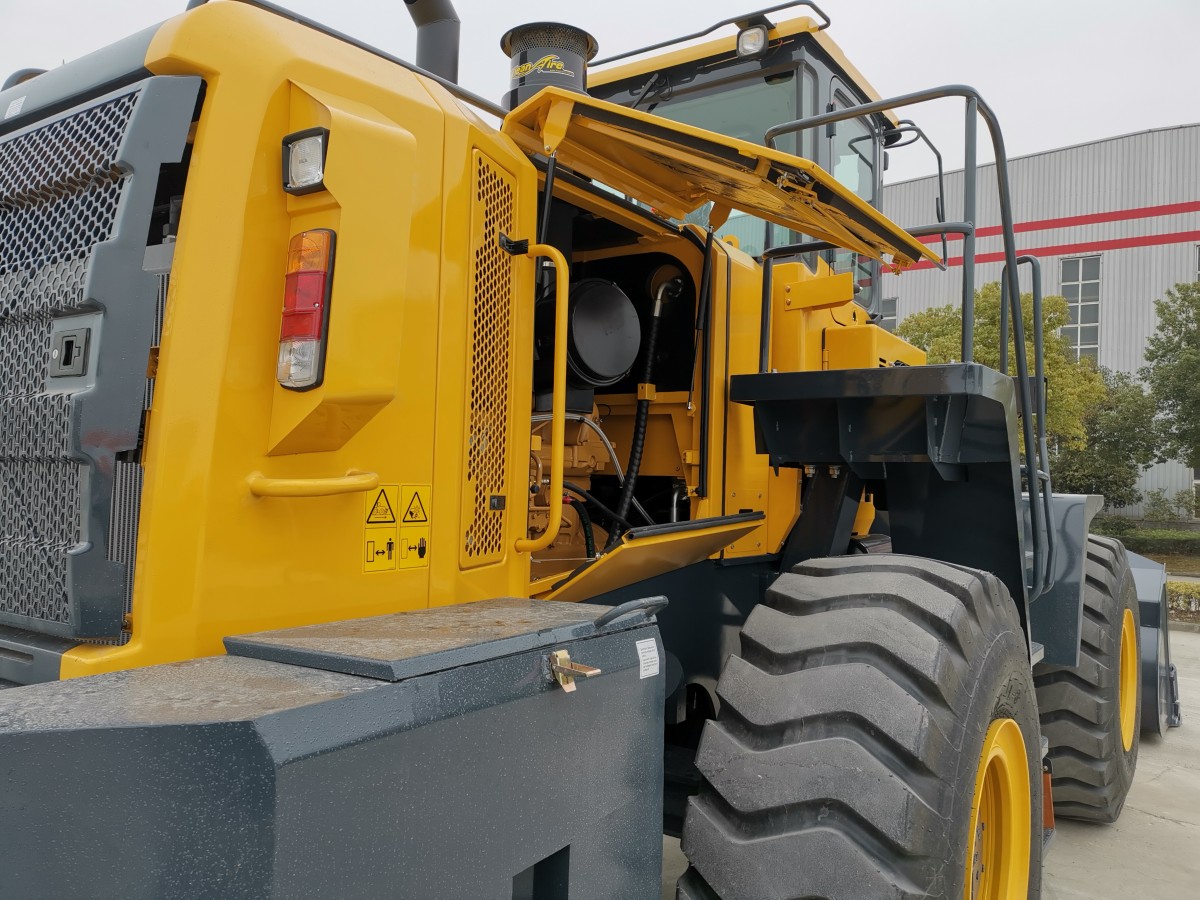

Serviceability

Fully openable engine hood

Easy filter replacement

Wide core & fin radiator

Integrated operation

All the indicators displaying machine status are centralised in one pannel to enable easy,efficient control.

Comfort

Large and fully adjustable seat with armrest to help operators working longer and more productively.Forextra comfort,there is an air suspension seat as option.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)	8120(mm)
2	Width(to outside of wheels)	2800(mm)
3	Bucket width	2928(mm)
4	Height(To the top of the cab)	3450(mm)
5	Wheel base	3300(mm)
6	Min. ground clearance	450(mm)
Technical Specification
1	Rated load	5000(Kg)
2	Operating weight	17300KG
3	Rated bucket capacity	3.1(m³)，optional 2.2-4.5 (m³)
4	Max. dump clearance	3136(mm)
5	Dump reach	1121(mm)
6	Min. turning radius(wheel)	6192(mm)
Diesel engine
1	Model	Cummins 6LTAA9.3-C220	ShangChai SC11CB220G2B1
2	Type	Direct injection.
3	Rated output	162kW
5	Total exhaust of cylinder	9.3L	10.45L
9	Rated speed	2200rpm
10	Max. Torque	940N.m/1400rpm	920N.M/1400 rpm
Transmission System
1	Model	ZF4BP210
2	Type	3-elements single stage
3	Gear shift position	4F、3 R
4	Speed（F/R）	6.8/7.1，13.3/14.0，25.2/26.5，39.6
5	Max. drawing force	170kN
6	Size of tire	23.5-25-16PR
Working Hydraulic System
1	Model of oil pump	SGP2100/2080R01
2	System pressure	18MPa
3	Model of Muti-way directional valve	YGDF32Ⅱ-YL18
5	Pilot valve	DXS-00
Steering System
1	Model of steering pump	SGP2100/2080R01
2	Model of redirector	TLF2J-800-22-A
3	Model of priority valve	YXL-F250F-N7
4	System pressure	16MPa
Brake System
1	Type of traveling brake	Caliper disc brake Multi-disc wet type brake optional
2	Air pressure	6-7.5(kgf/cm²)
3	Type of parking brake	Manual control cutting-off air brake
