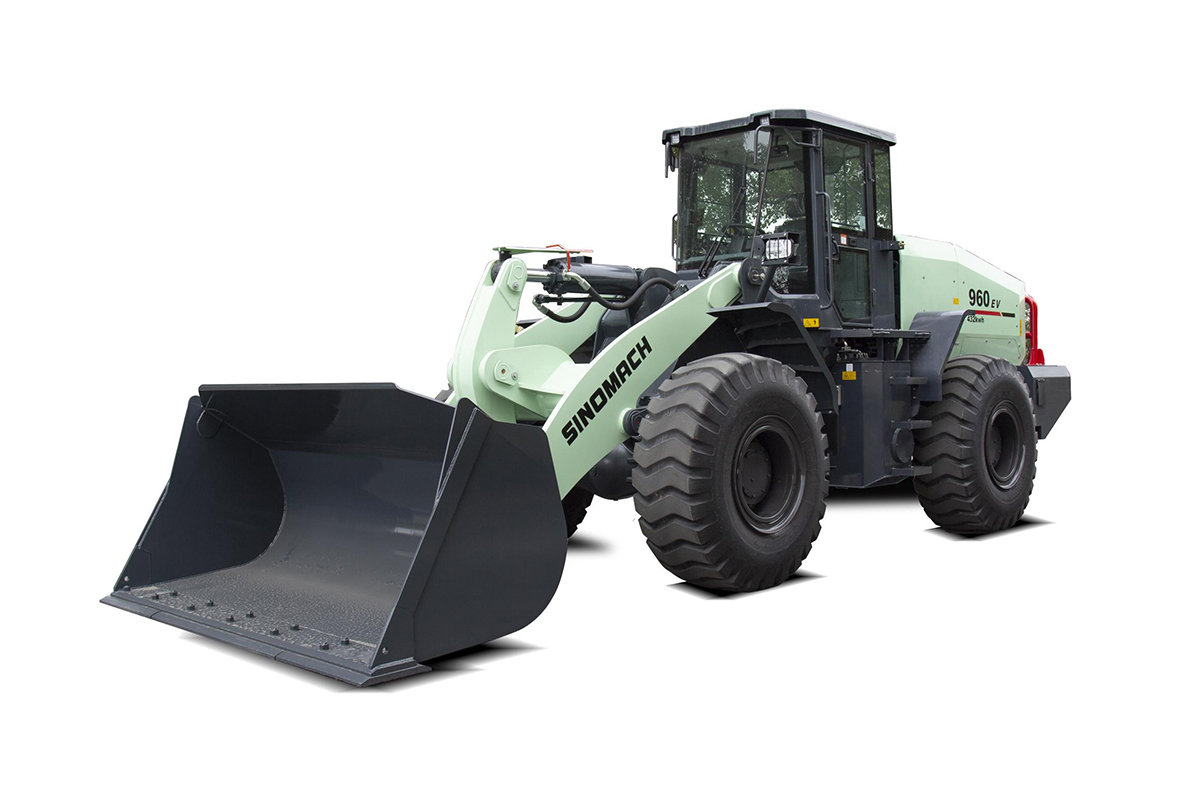

960Ev Pure Electric Wheel Loader

960Ev is a 6-ton pure electric loader built on the mature platform of 9 series. It selects high-quality resources in the industry and independently researches and develops the electric control system, realizing three major improvements in efficiency, economy and reliability. It is upgraded in all aspects of appearance design, hydraulic control, electrical system, machine safety, maintenance and operation, etc. The overall performance is characterized by high configuration, high efficiency, high reliability and low consumption, and has been widely recognized by the market.

product details

description1

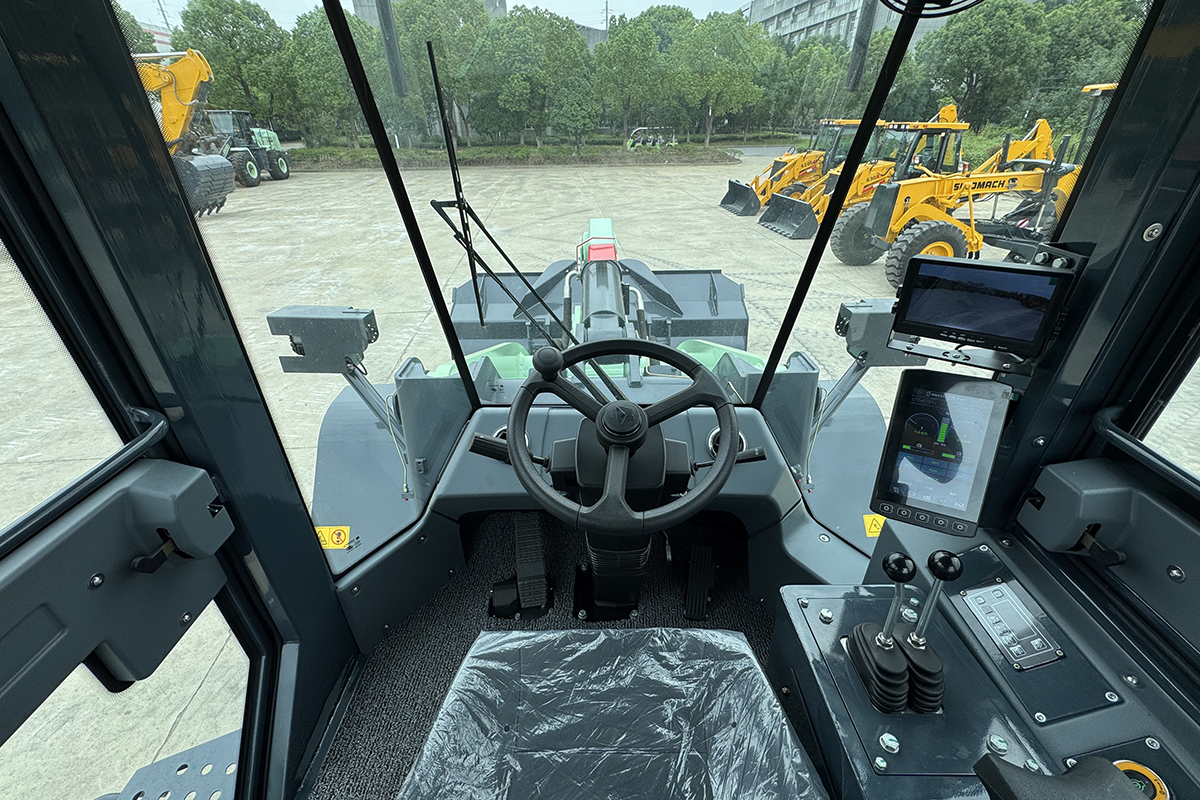

New Appearance To Upgrade,Humanized Design

The cab integrates ergonomic design from various angles, with air-suspension vibration-damping seats, tactile pilot maneuvers, and angle-adjustable steering columns.

The right column is equipped with on-board intelligent display terminal, multi-channel intelligent fault diagnosis system and various intelligent reminding functions, which makes human-machine interaction more convenient and efficient.

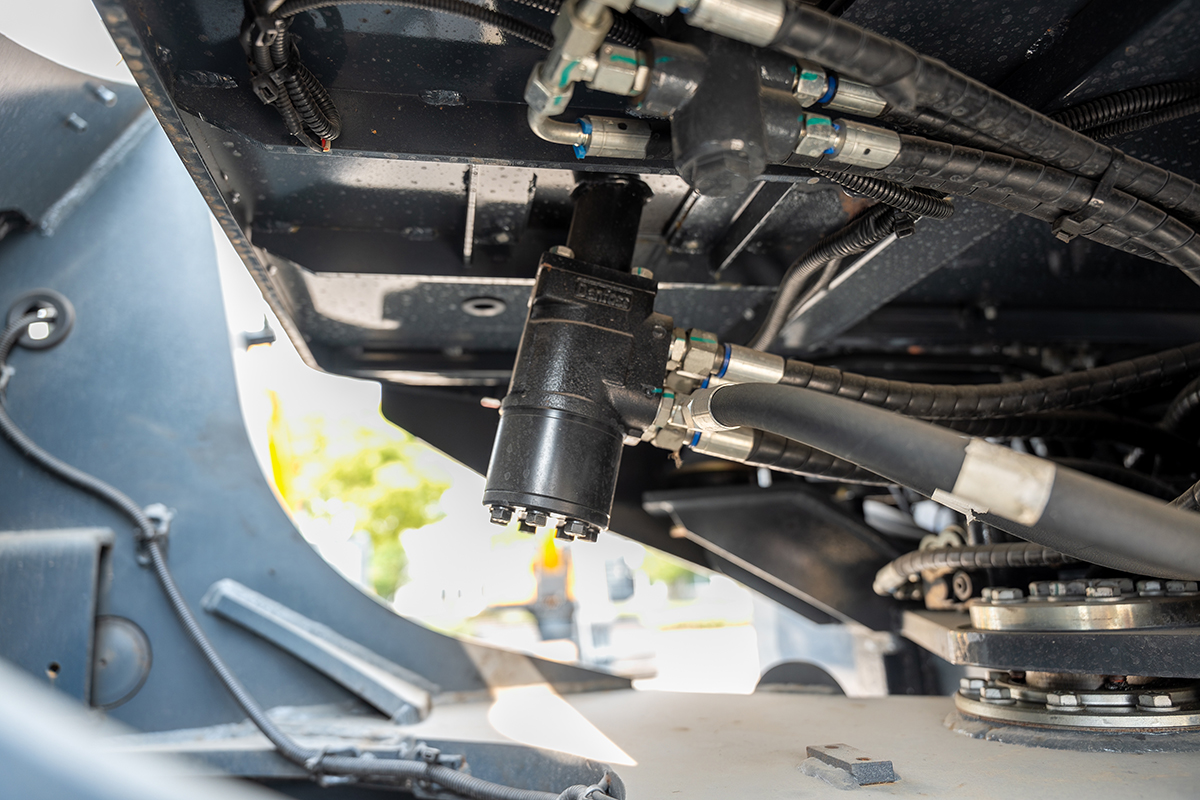

Reliable Hydraulic System

Hydraulic system adopts double pumps combined flow, with inlet and return oil filters, standard with pilot operation.

Newly designed articulated piping, dumping cylinder piping, more reasonable direction.

High versatility with the company's fuel loader hydraulic components, more convenient maintenance.

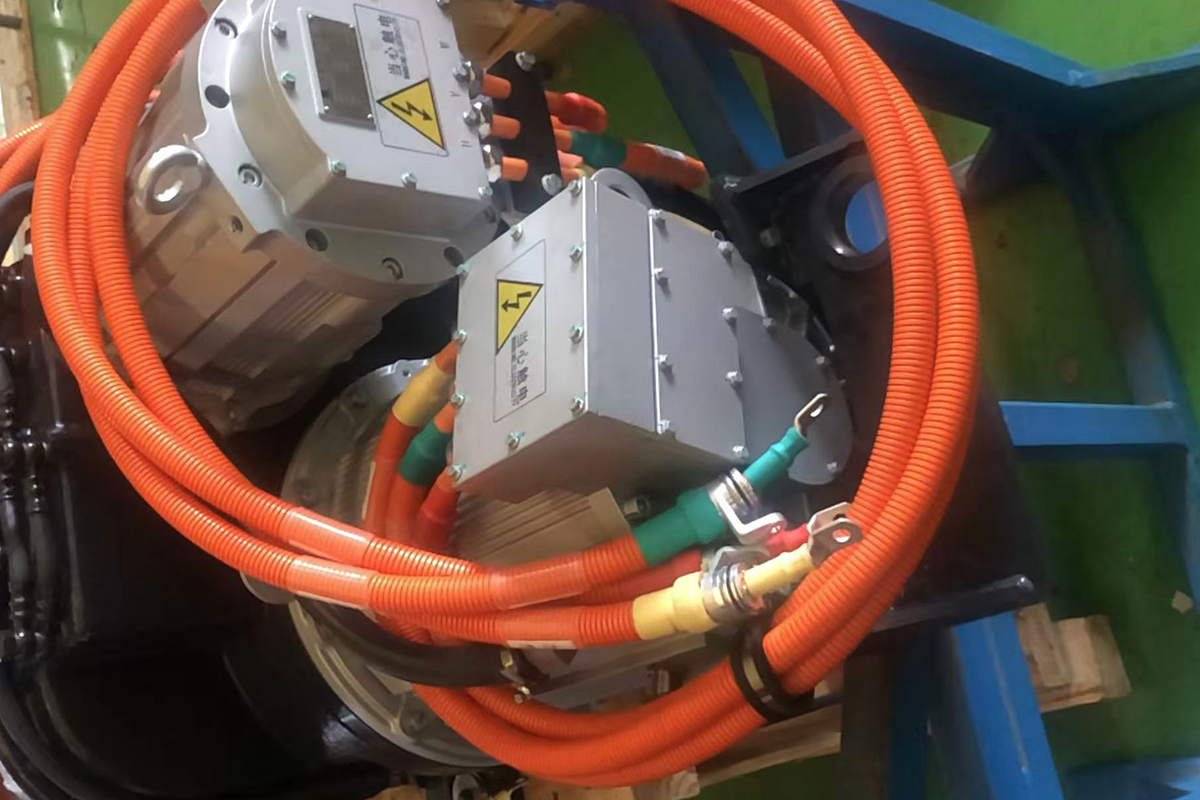

Best Match Drive System

The traveling system and hydraulic system are driven by permanent magnet synchronous dual motors with high power.

Products pecifications

Technical Specification
Rated load (kg)	6000
Operating mass (kg)	19200(1±5%)
Bucket capacity (m³)	3.5-4.5
Max. dump clearance (mm)	3138-3663
Lifting time (s)	5.1
Descent time (s)	3.6
Unloading time (s)	1.3
Min. turning radius (over tire) (mm)	6371
Gradeability (°)	30
Max. traction force (kN)	171
Max. lifting force (kN)	175
Battery life（H）	4-8H
Length（bucket on the ground）(mm)	8710
Width (outside of wheels) (mm)	2821
Height（to the top of cab）	3537
Width of bucket (mm)	3048
Wheelbase (mm)	3420
Tread (mm)	2226
Min. ground clearance (mm)	450
Motor Systems
Torque (N.m)	Traveling motor1200/Service motor350
Output (kW)	Traveling motor200/Service motor140
Speed (rpm)	0-6000
Transmission System
F Ⅰ	0-13
F Ⅱ	0-39
R Ⅰ	0-13
R Ⅱ	0-39
Type	Planetary Electric Shift
Cooling method	oil-cooled pressure cycle
Main drive type	Spiral Bevel Gear Primary Reduction
Type of axle	Cylindrical spur gear planetary drives
Reduction Ratio	22.85
Tire specification	23.5-25-20PR L-3
Tire pressure (Mpa)	0.31±0.02MPa
Type	Fully hydraulic, caliper disc brakes
Brake Disc Diameter (mm)	φ470
Brake oil pressure (Mpa)	≥12.4
Type	drum brake
Brake drum diameter (mm)	φ305mm
Steering system
Type	Coaxial flow amplification
Hydraulic steering displacement	800ml/r
Cylinder number-diameter×stroke	2-φ90×435mm
Max. working pressure (Mpa)	18
Articulation angle	38°
Working Hydraulic System
Type	Twin pumps combined flow
Lifting cylinder number-diameter×stroke	2-φ160×810mm
Unloading cylinder number-diameter×stroke	1-φ180×563mm
Max. working pressure (Mpa)	18MPa
Battery system
Battle type	LFP
Battle optional	400Kwh-Qiyuan Green Power
Battle optional	Battery replaceable
Air conditioning system
System	A/C
Refrigeration capacity	≥4kW
Heating Capacity	≥3kW
