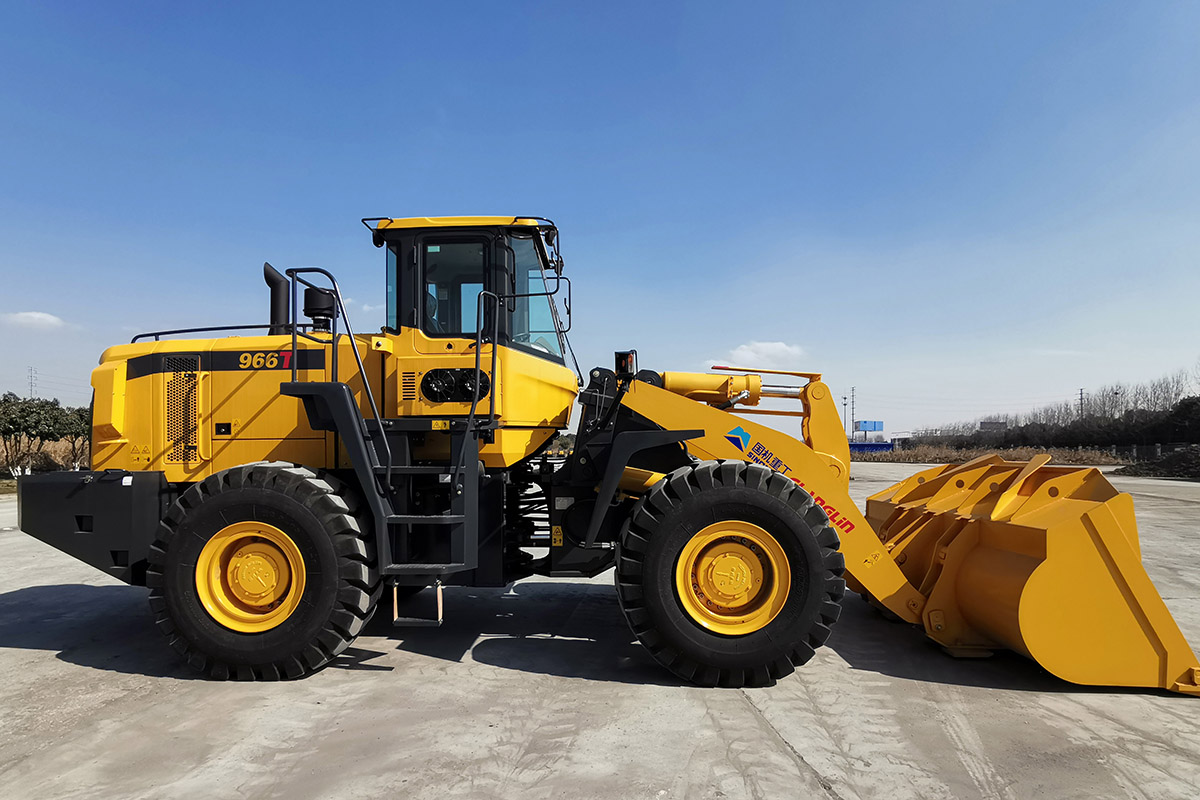

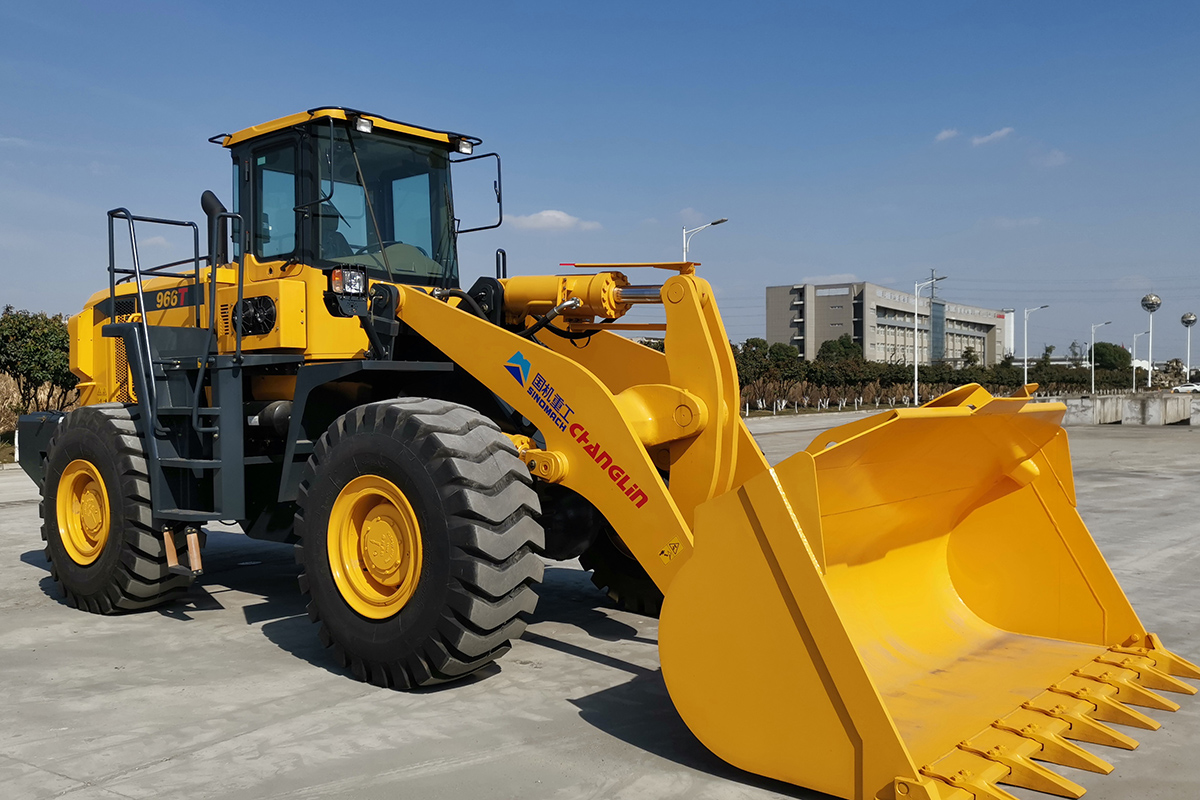

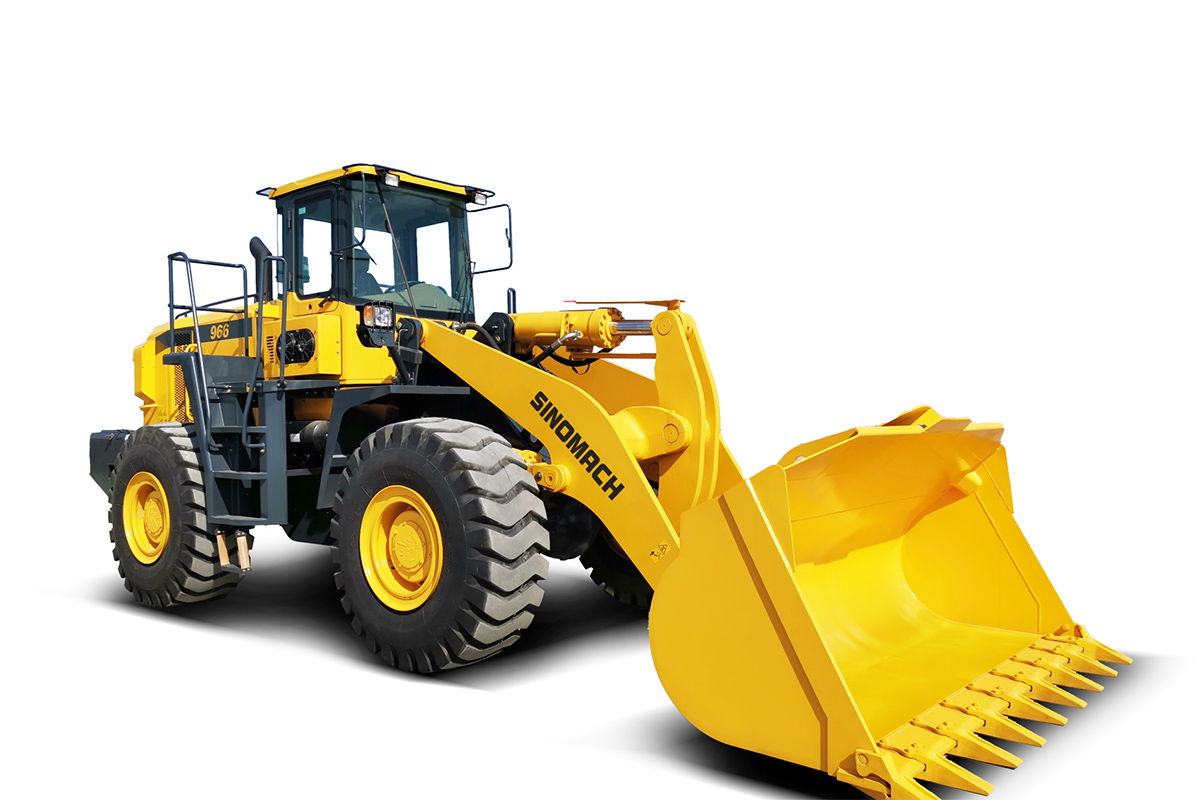

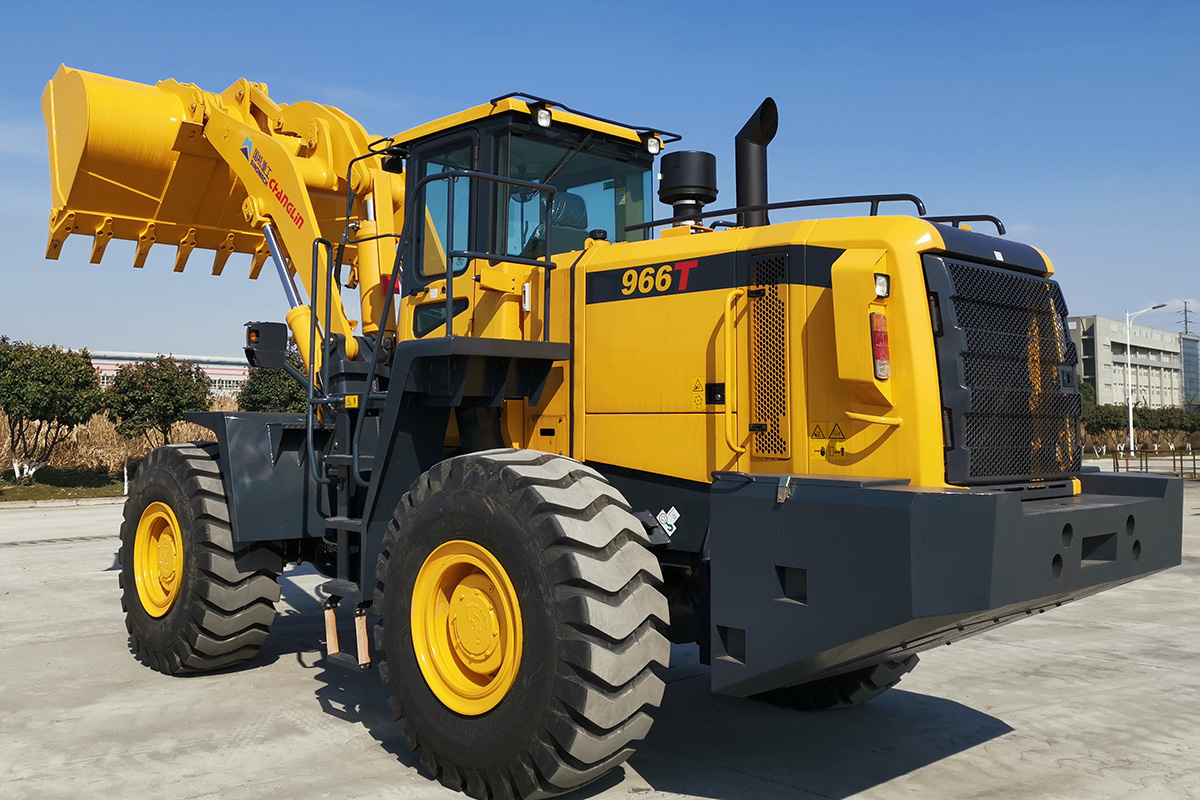

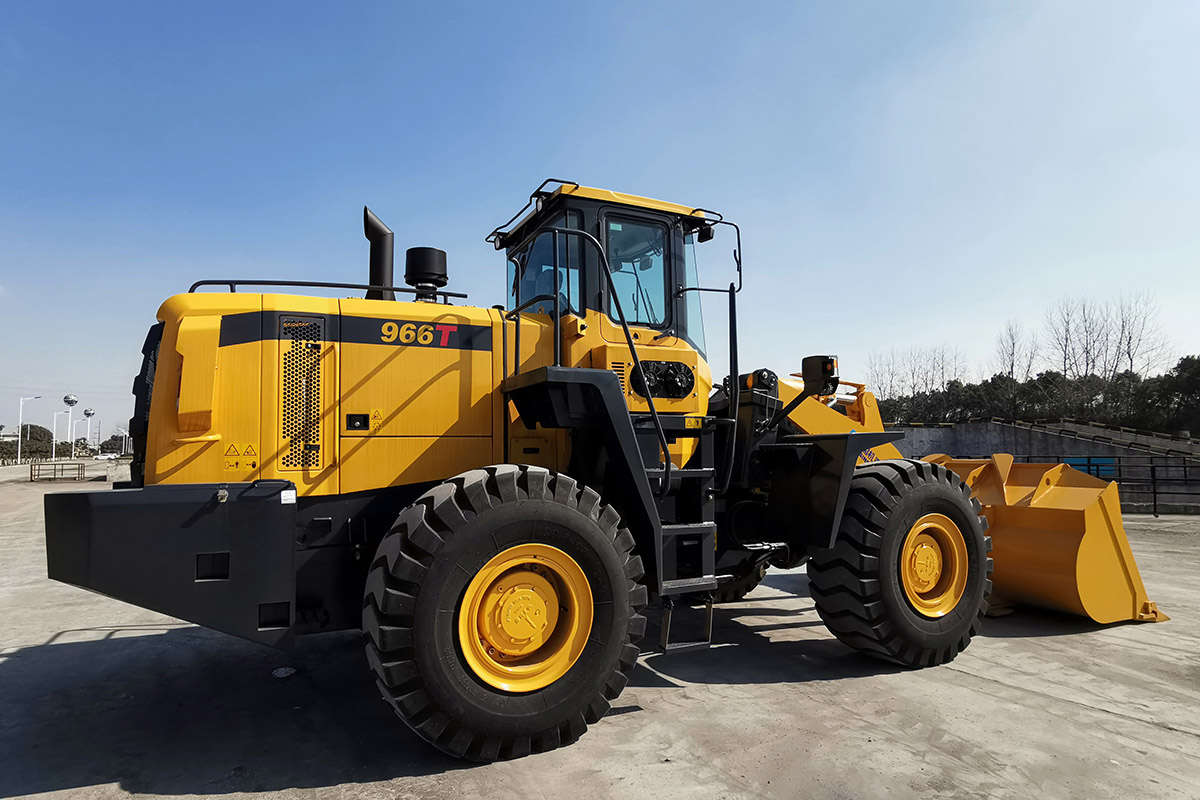

966 Multi-Terrain Wheel Loader
description1
01
Appearance

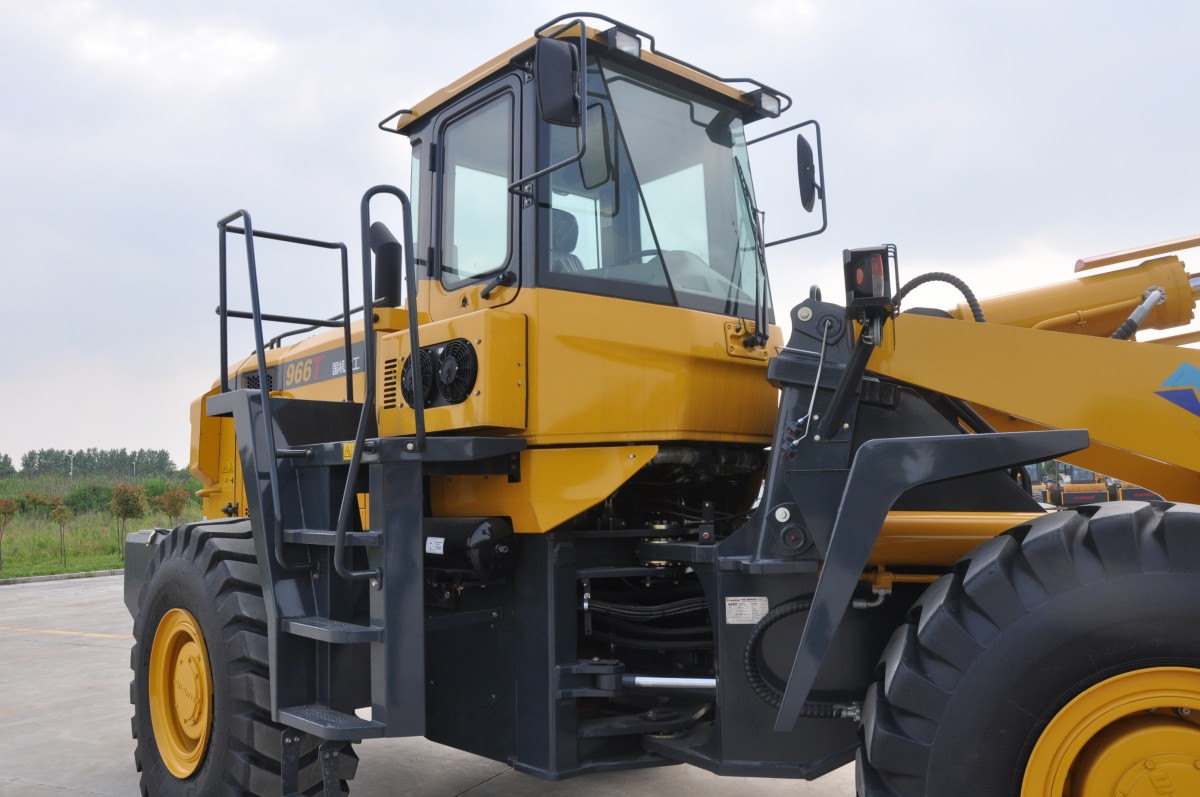

Hunan University Industrial Appearance Styling Design

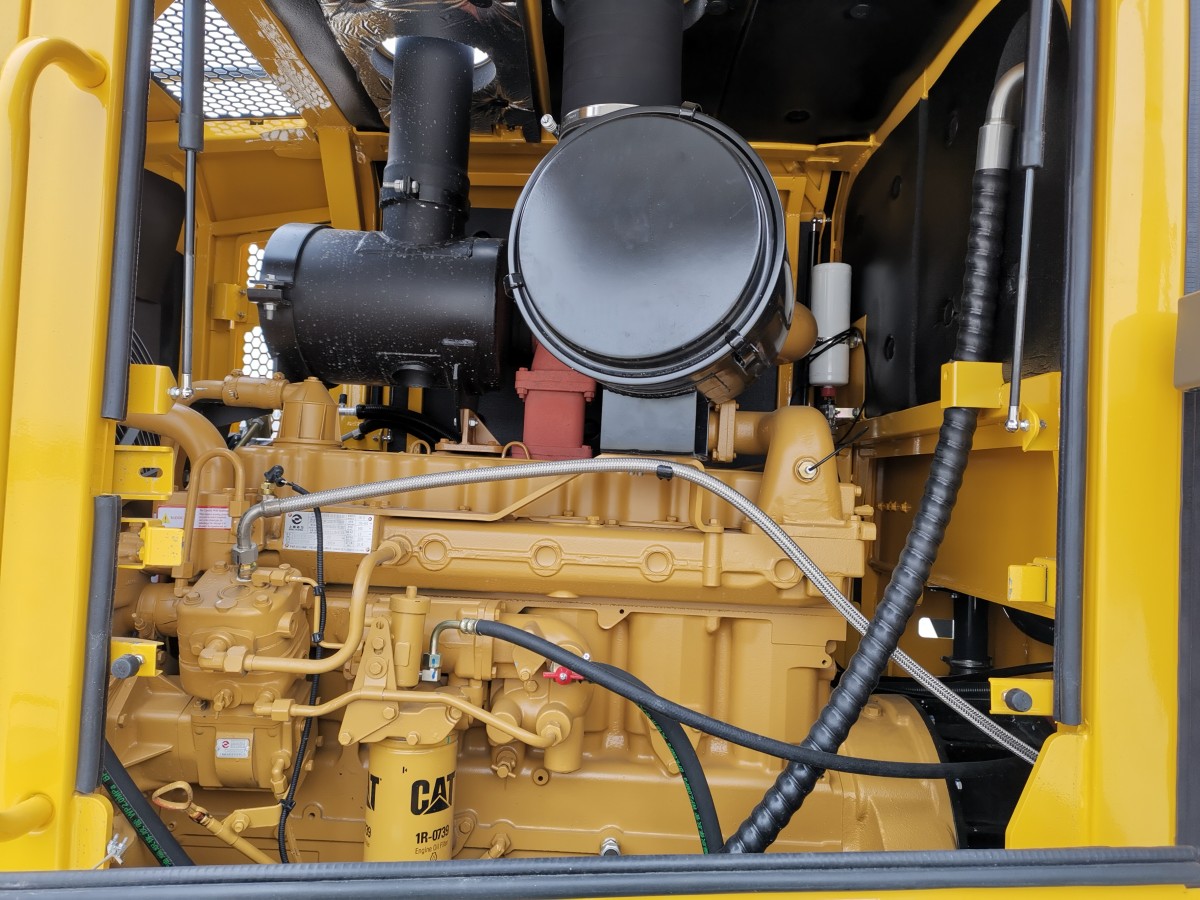

Equipped with mainstream engine
First-class welding of structural components

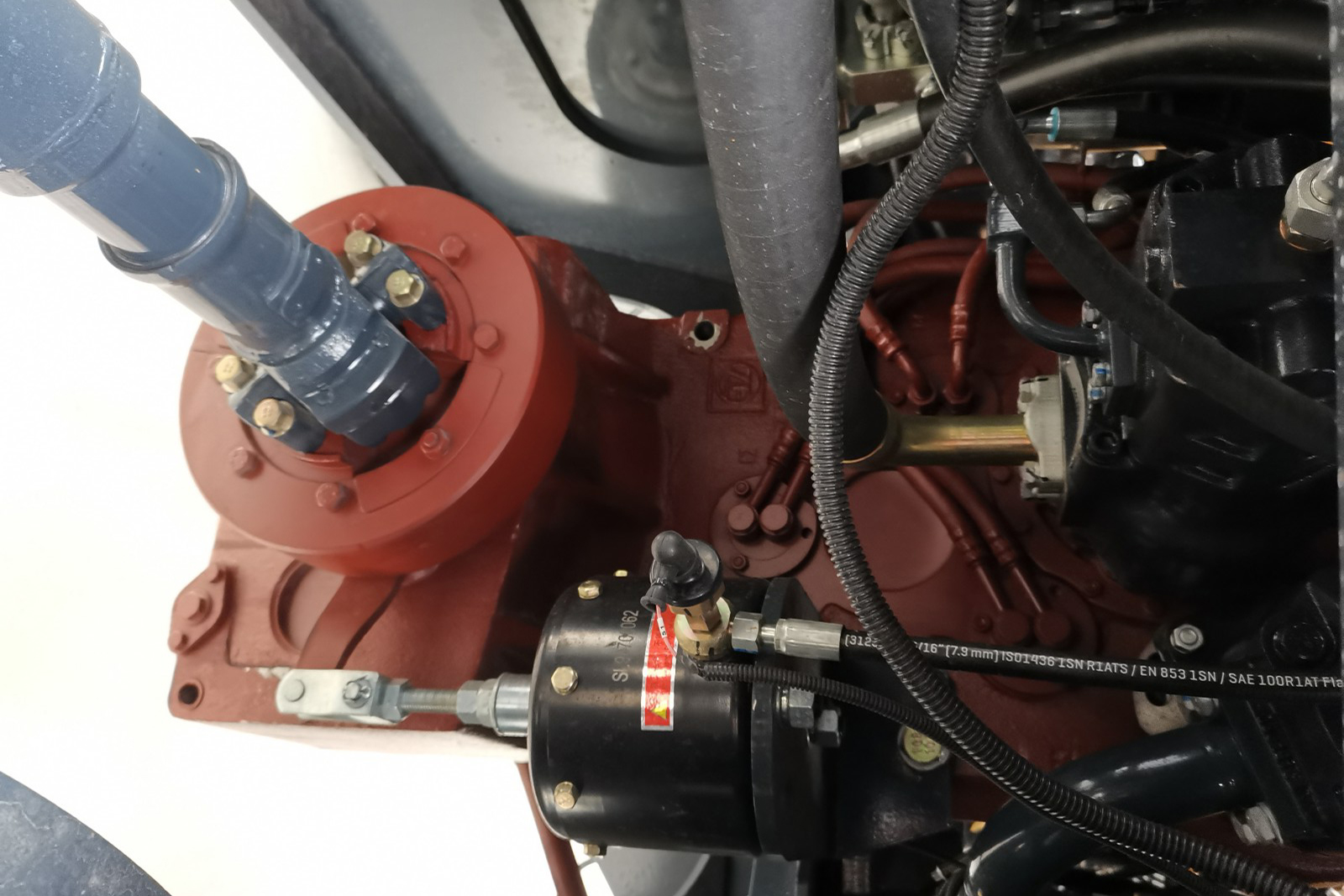

ZF transmissions are renowned for their high efficiency, reliability, and advanced technology
Fully openable engine hood
Easy filter replacement
Wide core & fin radiator

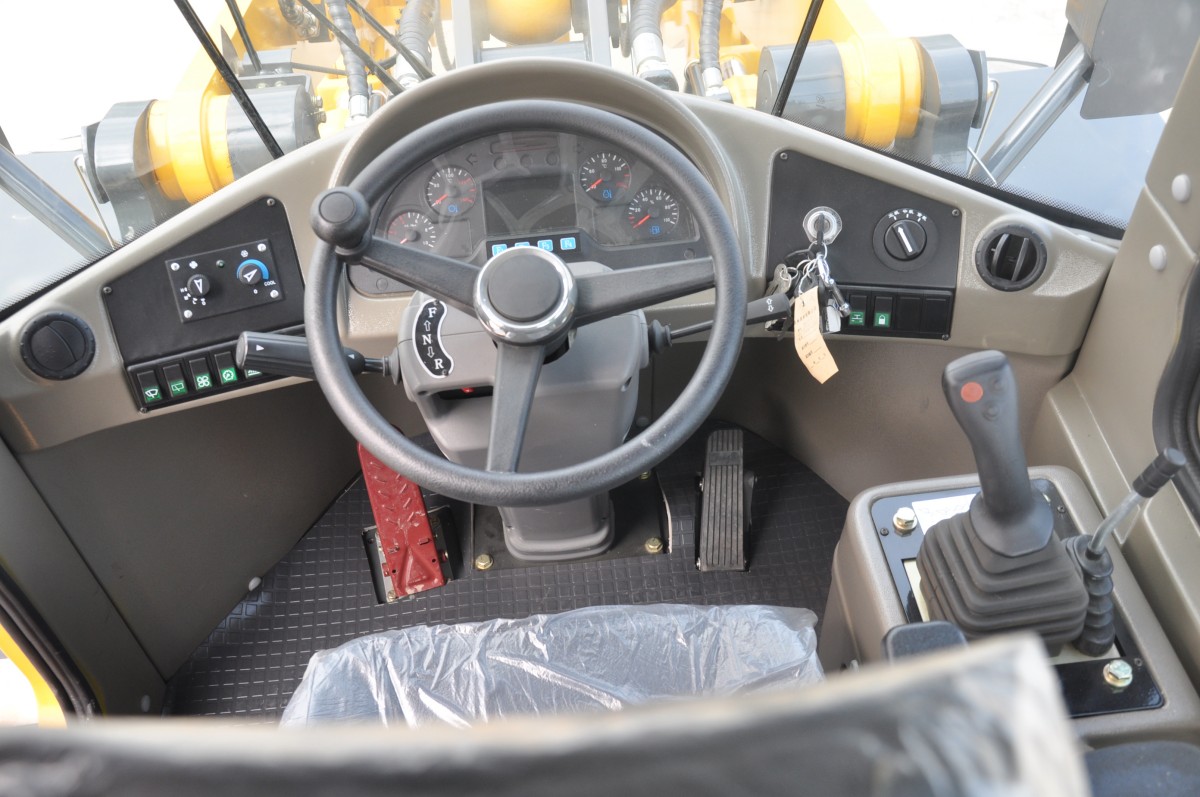

All the indicators displaying machine status are centralised in one pannel to enable easy,efficient control.
Large and fully adjustable seat with armrest to help operators working longer and more productively.Forextra comfort,there is an air suspension seat as option.
Products pecifications
Overall Dimsion | ||
1 |
Length(with bucket on ground) |
8714(mm) |
2en |
Width(to outside of wheels) |
2965(mm) |
3 |
Bucket width |
3048(mm) |
4 |
Height(To the top of the cab) |
3550(mm) |
5 |
Wheel base |
3300(mm) |
6 |
Min. ground clearance |
498(mm) |
Technical Specification | ||
1 |
Rated load |
6000(Kg) |
2 |
Operating weight |
19500KG |
3 |
Rated bucket capacity |
3.7(m3)，2.6-5.0 (m3) |
4 |
Max. dump clearance |
3393(mm) |
5 |
Dump reach |
1365(mm) |
6 |
Min. turning radius(wheel) |
6350(mm) |
Diesel engine | ||
1 |
Model |
ShangChai SC11CB240.1G2B1 |
2 |
Type |
Direct injection. |
3 |
Rated output |
175 (kW) |
5 |
Total exhaust of cylinder |
10.5(L) |
9 |
Rated speed |
2200(r/min) |
10 |
Max. Torque |
912(N.M)@1400 r/min |
Transmission System | ||
1 |
Model |
ZF 4BP210 |
2 |
Type |
3-elements single stage |
3 |
Gear shift position |
4F、 3 R |
4 |
Speed （F/R） |
Forward: 6.78/13.24/24.38/37.45km/h Reverse: 7.15/13.93/25.48km/h |
5 |
Max. drawing force |
180kN |
6 |
Size of tire |
23.5-25-20PR |
Working Hydraulic System | ||
1 |
Model of oil pump |
SGP2100-2080-02020R01 |
2 |
System pressure |
20MPa |
3 |
Model of Muti-way directional valve |
D32Ⅱ-YL20 |
5 |
Pilot valve |
DXS-00 |
Steering System | ||
1 |
Model of steering pump |
SGP2100-2080-02020R01 |
2 |
Model of redirector |
BZZ3-E100B |
3 |
Model of flow magnifying valve |
ZLF25A11 |
4 |
System pressure |
16MPa |
Brake System | ||
1 |
Type of traveling brake |
Caliper disc brake |
2 |
Air pressure |
6-7.5(kgf/cm2) |
3 |
Type of parking brake |
Manual drum Brake |
