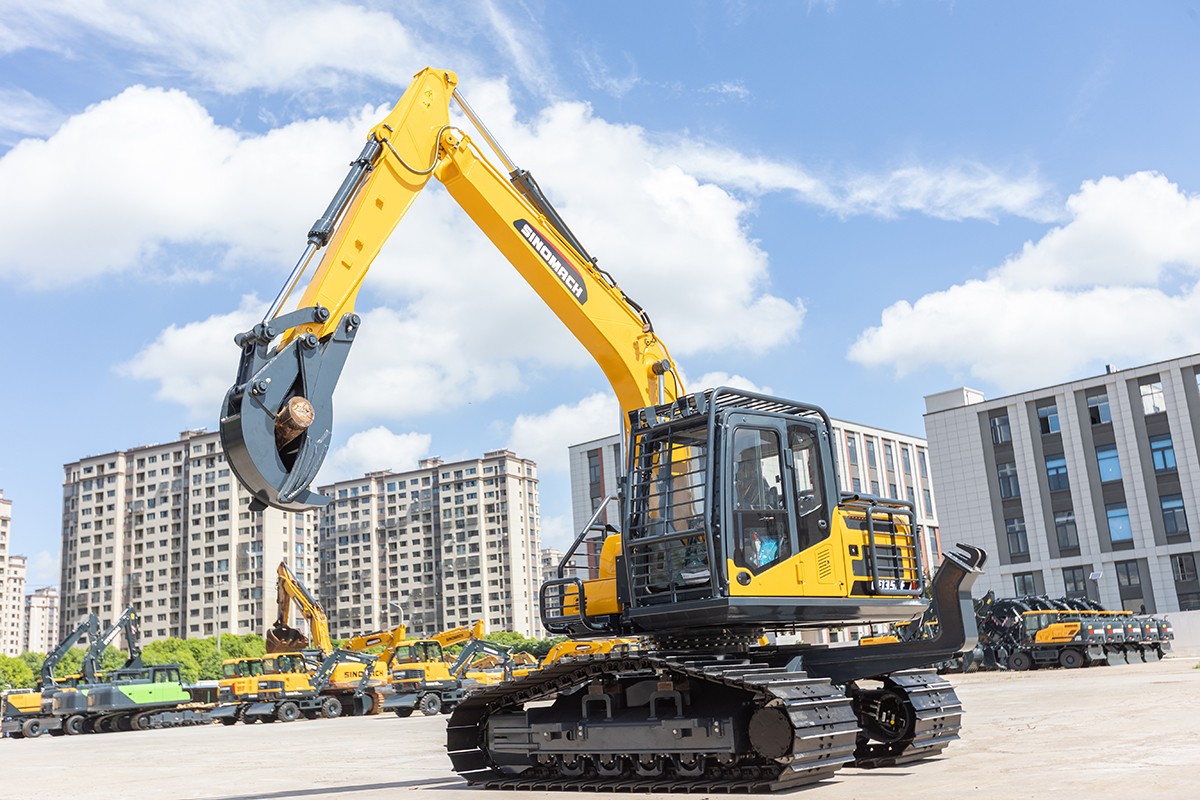

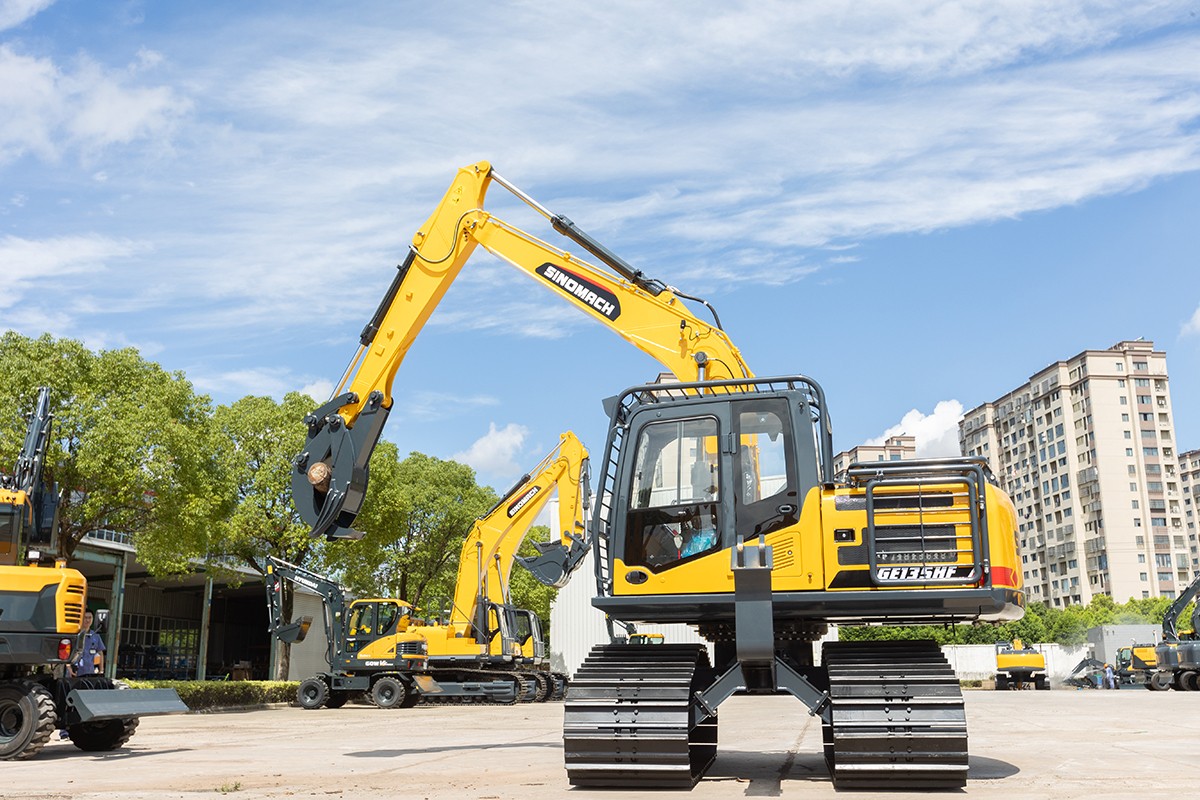

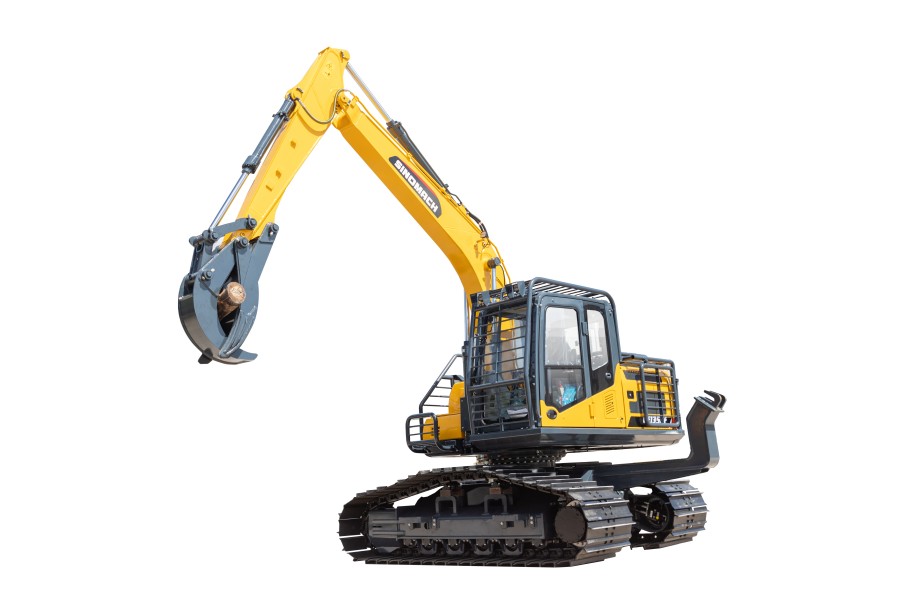

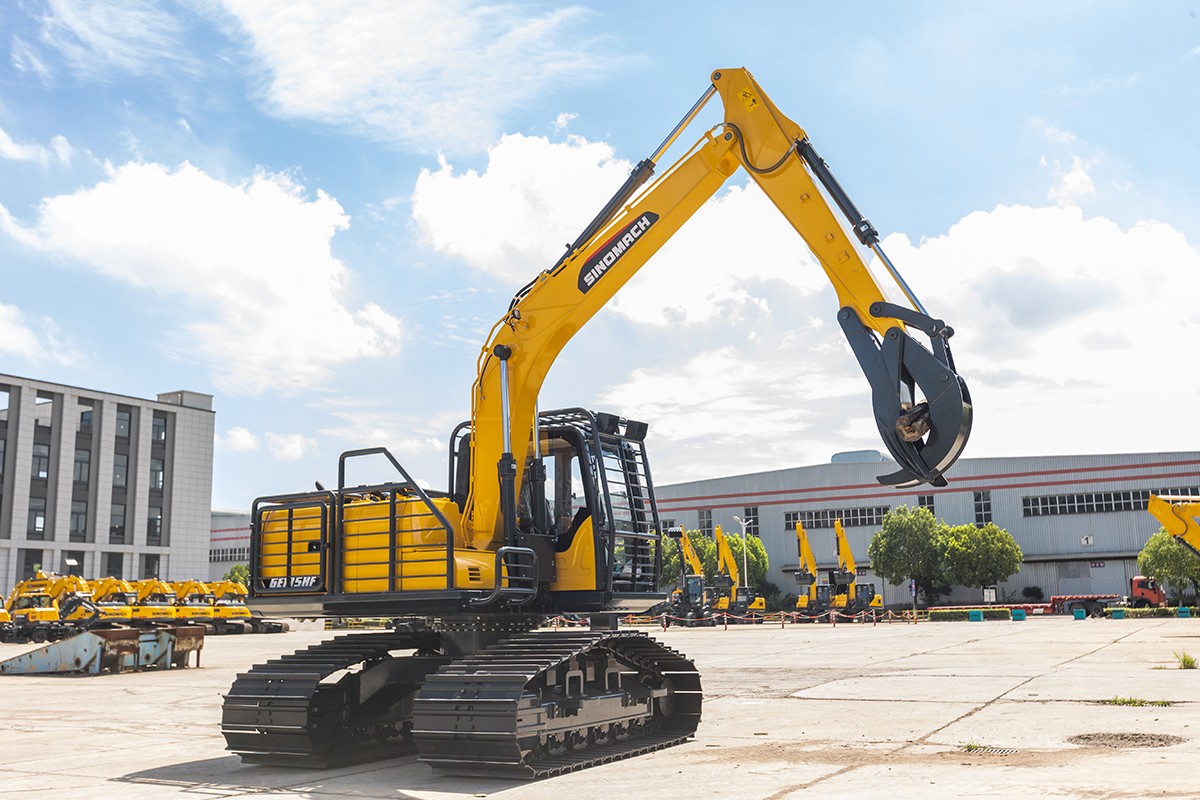

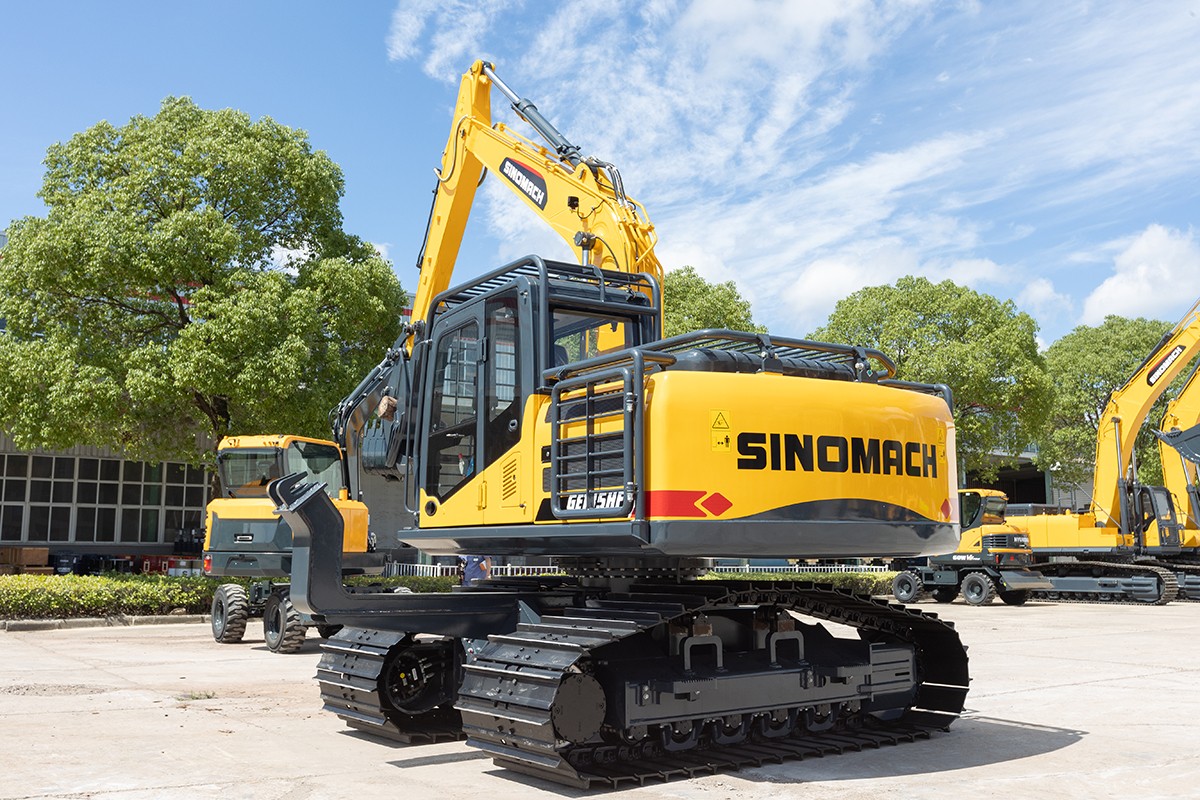

GE135CF Crawler Forestry Excavator
description1
01
Exclusive Guards for Cab and Body
The cab is protected with a cab guard at front,top and rear for surrounding obstacles.The guard at the top can be opened for emergency evacuation.

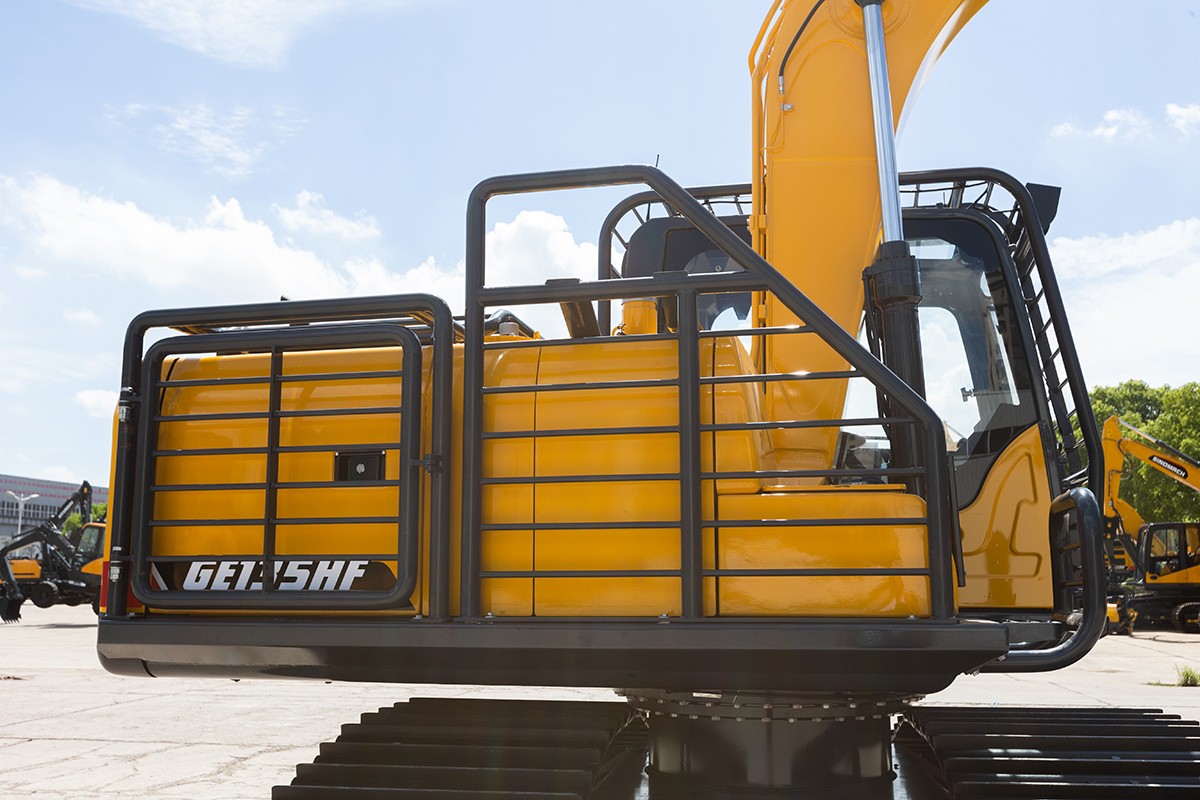

The body is protected with bodyguards on the top and both sides.The top guard serves to protect the engine;and side body guards to protect the radiator and hydraulic pumps.
02

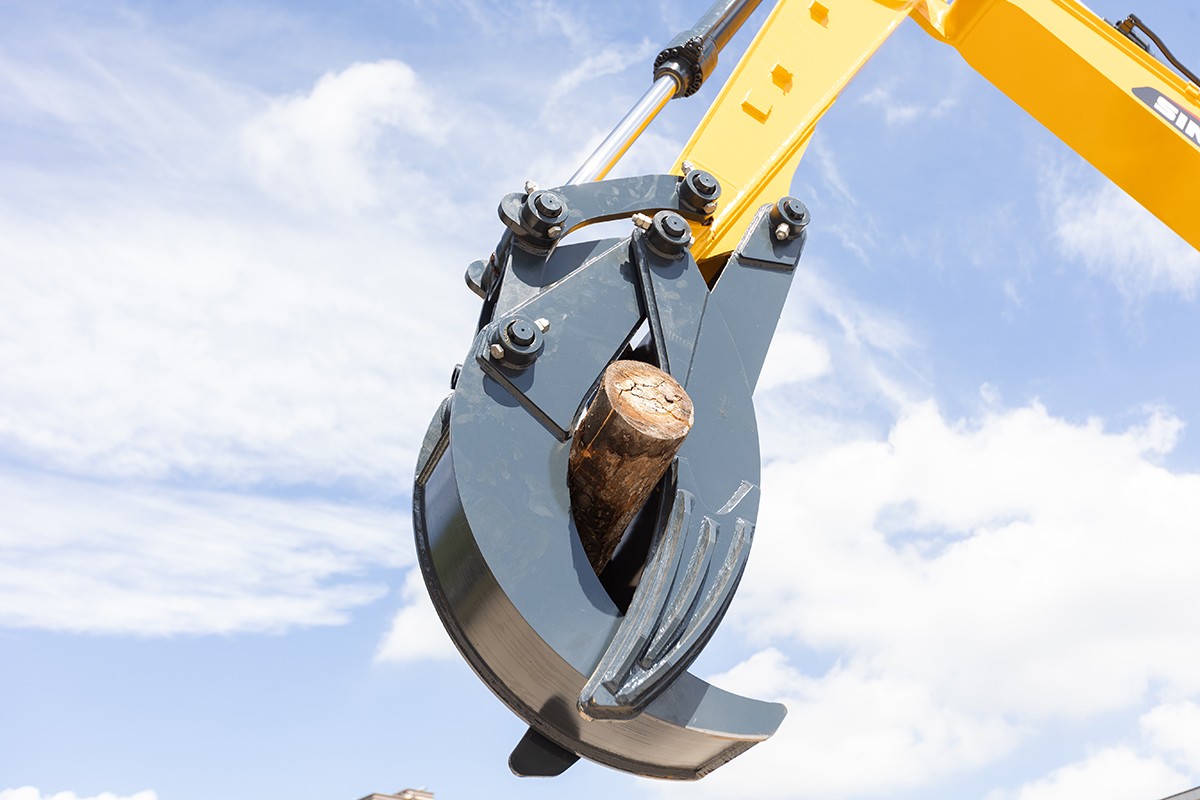

Upgraded Gripper
Optimize and strengthen the towing hook of the special clamp to grab materials faster and drag and transfer materials more efficiently.

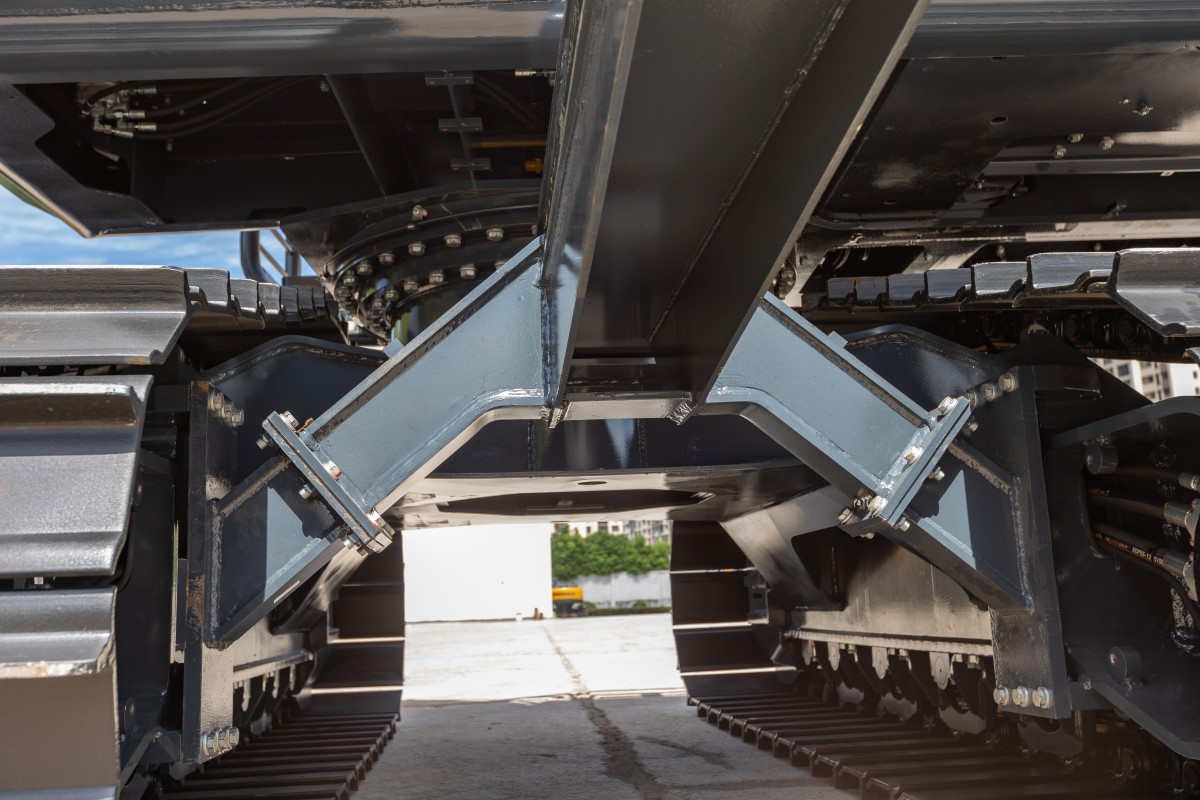

SINOMACH GE135CF is equipped with a 20-tontraveling motor,which has greater traction and can better adapt to the operating environment in forest areas.

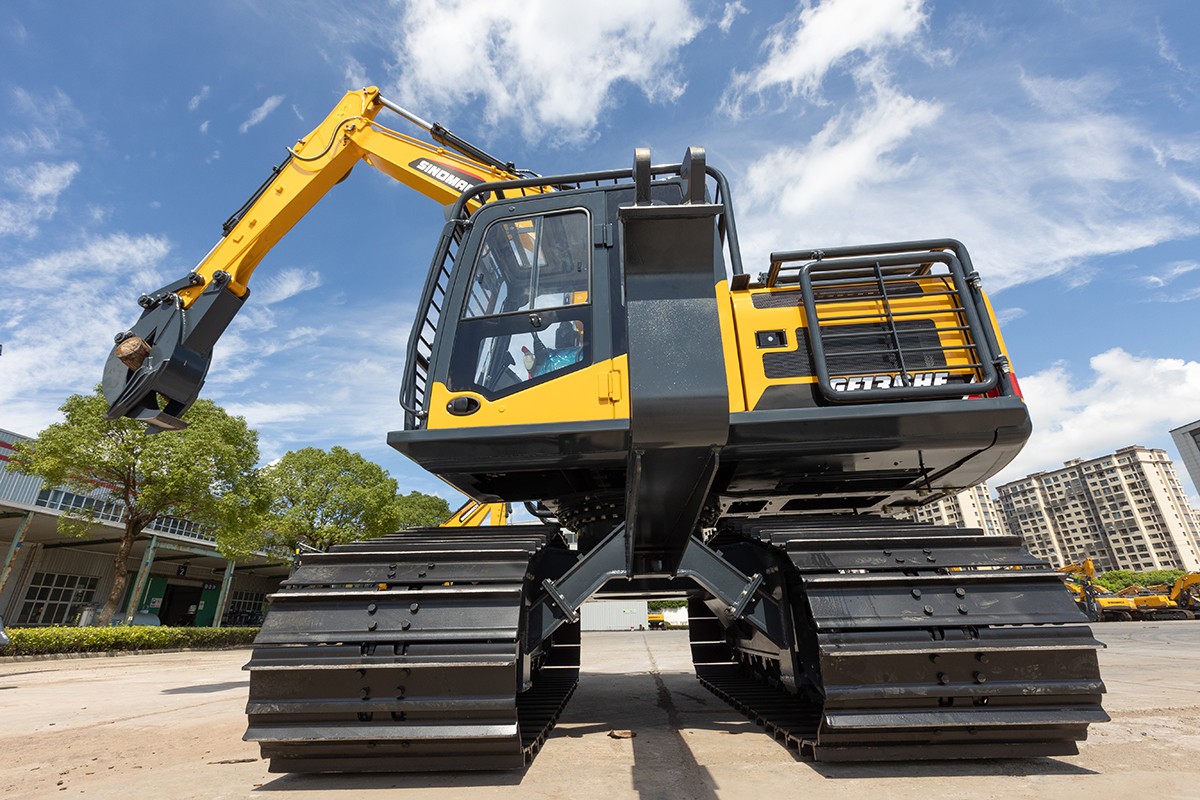

It has a 960mm widened single-rib track shoe,which has greater grip and greatly improves the overall stability of the entire machine.
Products pecifications
UNIT |
Technical specifications |
|
GE135HF | ||
kg |
16000 |
|
Length |
mm |
8375.5 |
Width (960mm track) |
mm |
3010 |
Height |
mm |
3297 |
Turntable width |
mm |
2739 |
Height of cabin |
mm |
3297 |
Ground clearance of counterweight |
mm |
1247.5 |
Engine cover height |
mm |
2590 |
Min. ground clearance |
mm |
636.5 |
Tail length |
mm |
2306 |
Turning radius of turntable |
mm |
2365 |
Wheel base of track shoe |
mm |
3010 |
Length of chassis |
mm |
3888 |
Width of chassis |
mm |
3010 |
Track shoe gauge |
mm |
2050 |
Standard track width |
mm |
960 |
Max. traction |
kN |
182 |
Traveling speed (H/L) |
km/hr |
4.4/2.6 |
Swing speed |
rpm |
12 |
Gradeability |
Degree(%) |
35（70%） |
Ground pressure |
kgf/cm2 |
0.282 |
4.6m Boom，2.491m Stick | |
GE135HF | |
Maximum working radius |
8210 |
Max. ground working radius |
7813 |
Maximum working depth |
4962 |
Maximum working height |
8995 |
Max. height at small device radius |
6853 |
Maximum dumping height |
5836 |
Min. front turning radius |
2437 |
Clamp width |
532 |
Clamp length |
1165 |
Min. Gripping Diameter |
50 |
Max. clamp opening |
1749 |
