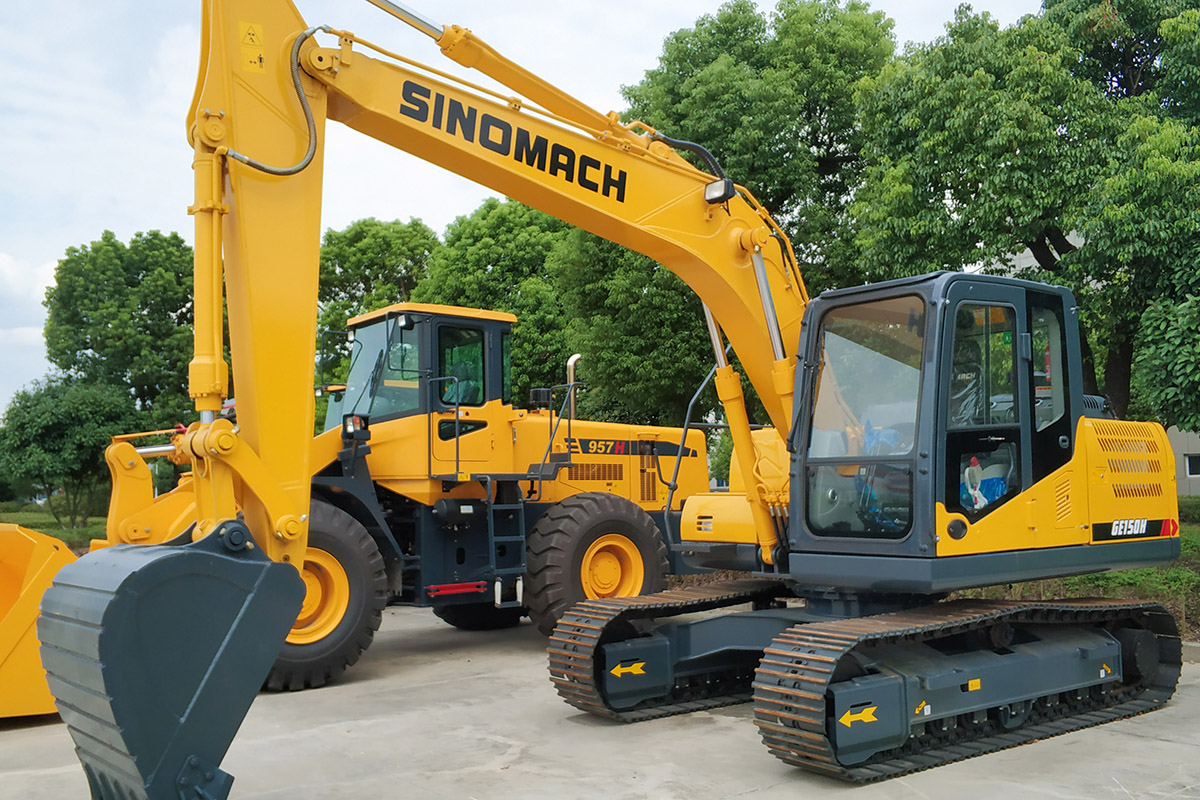

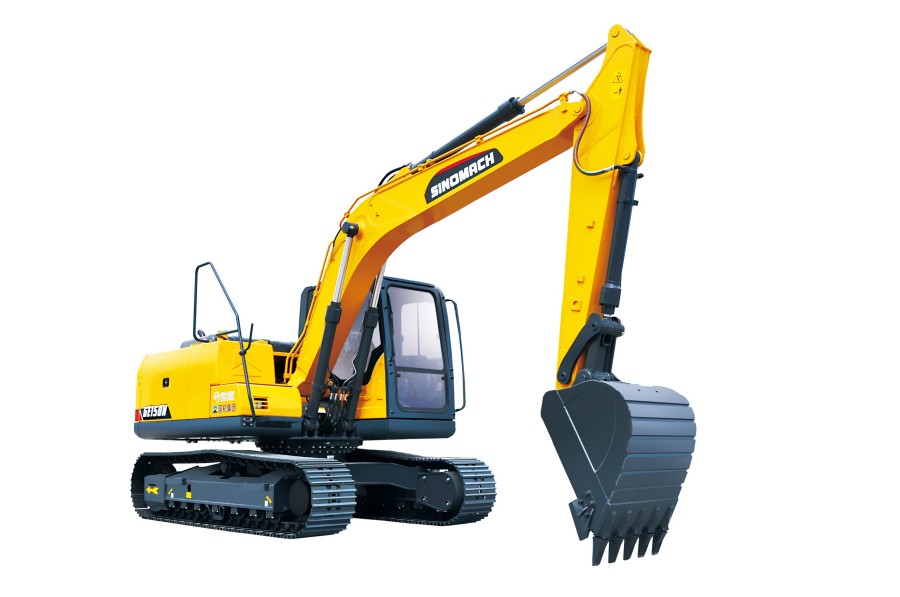

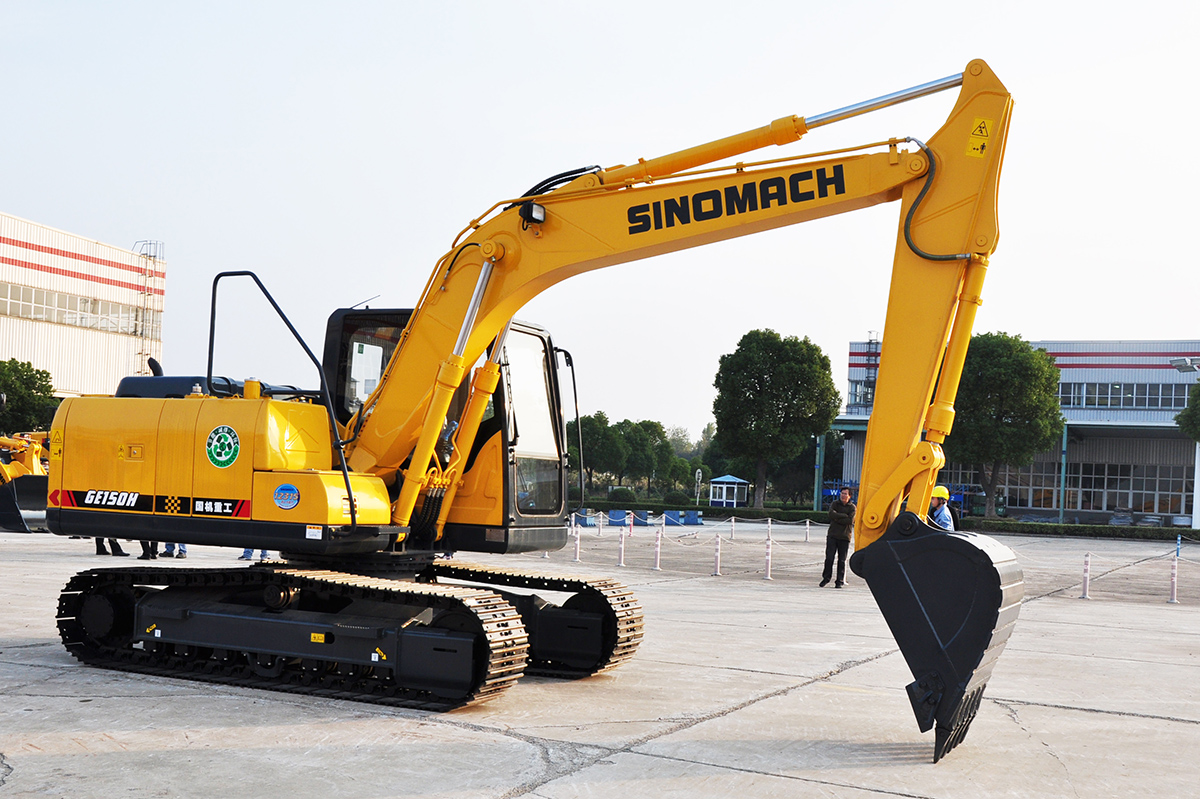

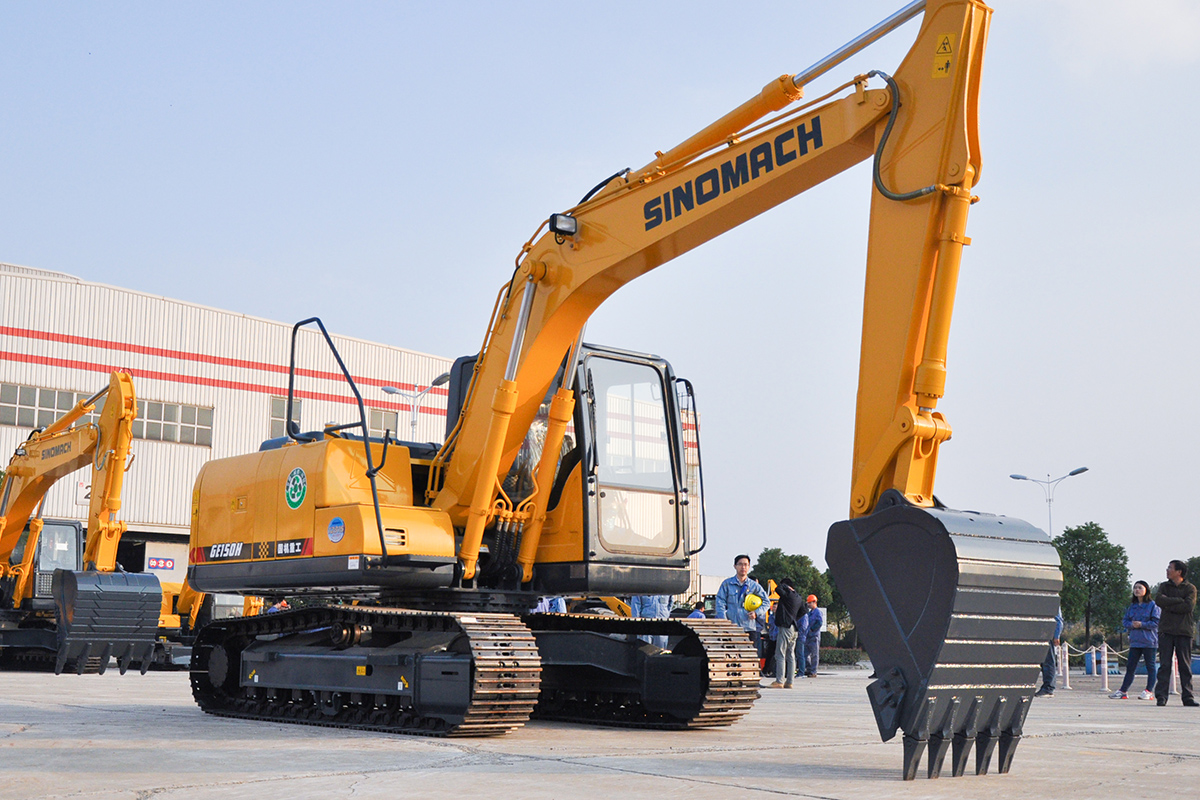

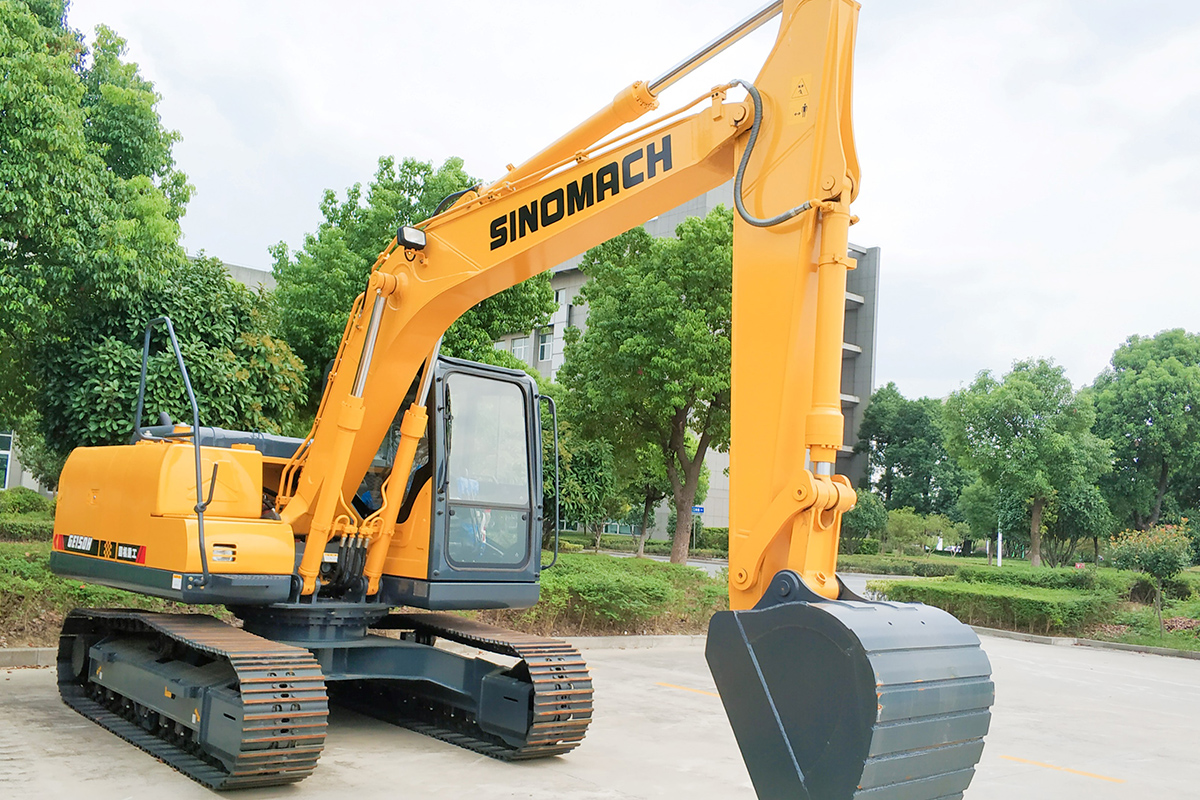

GE150H Hydraulic crawler excavator
description1
01
cummins
CUMMINS high-power engine with strong power, low fuel consumption and high reliability.
The system integrates a large-bore hydraulic cylinder and optimizes critical hinge point configurations to enhance overall digging performance. Its intelligent automatic pressure-boosting function dynamically adjusts digging force in response to load variations, ensuring consistent power output under demanding conditions.
Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.
The system features an 8-inch high-resolution, anti-glare color display with exceptional brightness, paired with an intelligent electronic monitoring platform. This advanced setup provides real-time vehicle maintenance alerts, automated fault diagnosis, and instant warning notifications for comprehensive operational oversight.
Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

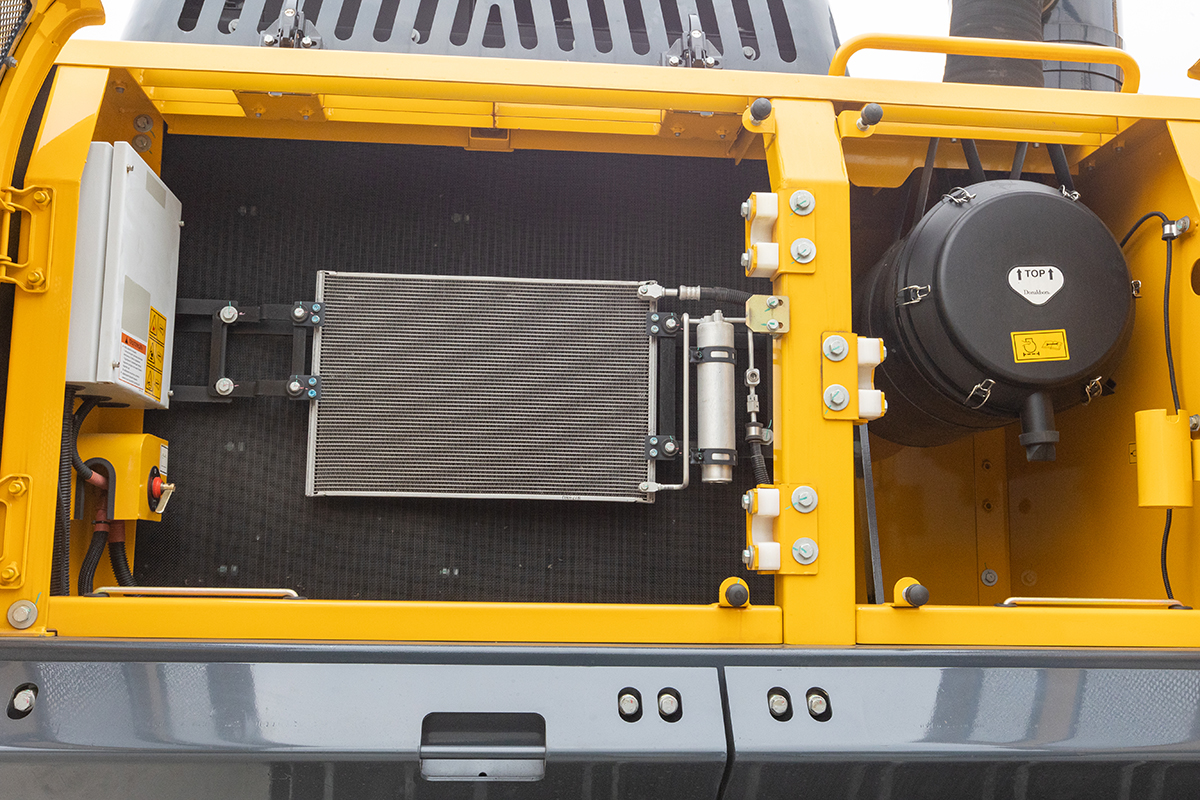

Humanized centralized and remote ground maintenance design, lighter maintenance.
Products pecifications
ITEM |
UNIT |
Technical specifications |
|
GE150H | |||
Operating weight |
kg |
13890 |
|
Power |
kW/rpm |
86/2200 |
|
Rated bucket capacity |
|
m3 |
0.6 |
Length |
A |
mm |
7762 |
Width（500mm track） |
B |
mm |
2510 |
Height |
C |
mm |
2983 |
Turntable width |
D |
mm |
2510 |
Height of cabin |
E |
mm |
2825 |
Ground clearance of counterweight |
F |
mm |
915 |
Engine cover height |
G |
mm |
2243 |
Min. ground clearance |
H |
mm |
416 |
Tail length |
I |
mm |
2306 |
Turning radius of turntable |
I’ |
mm |
2387 |
Wheel base of track shoe |
J |
mm |
3010 |
Length of chassis |
K |
mm |
3751 |
Width of chassis |
L |
mm |
2490 |
Track shoe gauge |
M |
mm |
1990 |
Standard track width |
N |
mm |
500 |
Max. traction |
|
kN |
122 |
Traveling speed （H/L） |
|
km/hr |
5.9/3.4 |
Swing speed |
|
rpm |
13 |
Gradeability |
|
Degree(%) |
35（70%） |
Ground pressure |
|
Kgf/cm2 |
0.46 |
ITEM |
4.6m Boom, 2.491m Stick, 0.6m³Bucket |
|
GE150H | ||
Max. digging radius |
A |
8335 mm |
Ground maximum digging radius |
A’ |
8203 mm |
Max. digging depth |
B |
5491 mm |
Ground maximum digging depth |
B’ |
5288 mm |
Maximum vertical digging depth |
C |
4826 mm |
Maximum digging height |
D |
8679 mm |
Maximum dumping height |
E |
6174 mm |
Min. front turning radius |
F |
2605 mm |
Bucket digging force |
ISO |
100 kN |
Stick digging force |
ISO |
68 kN |
