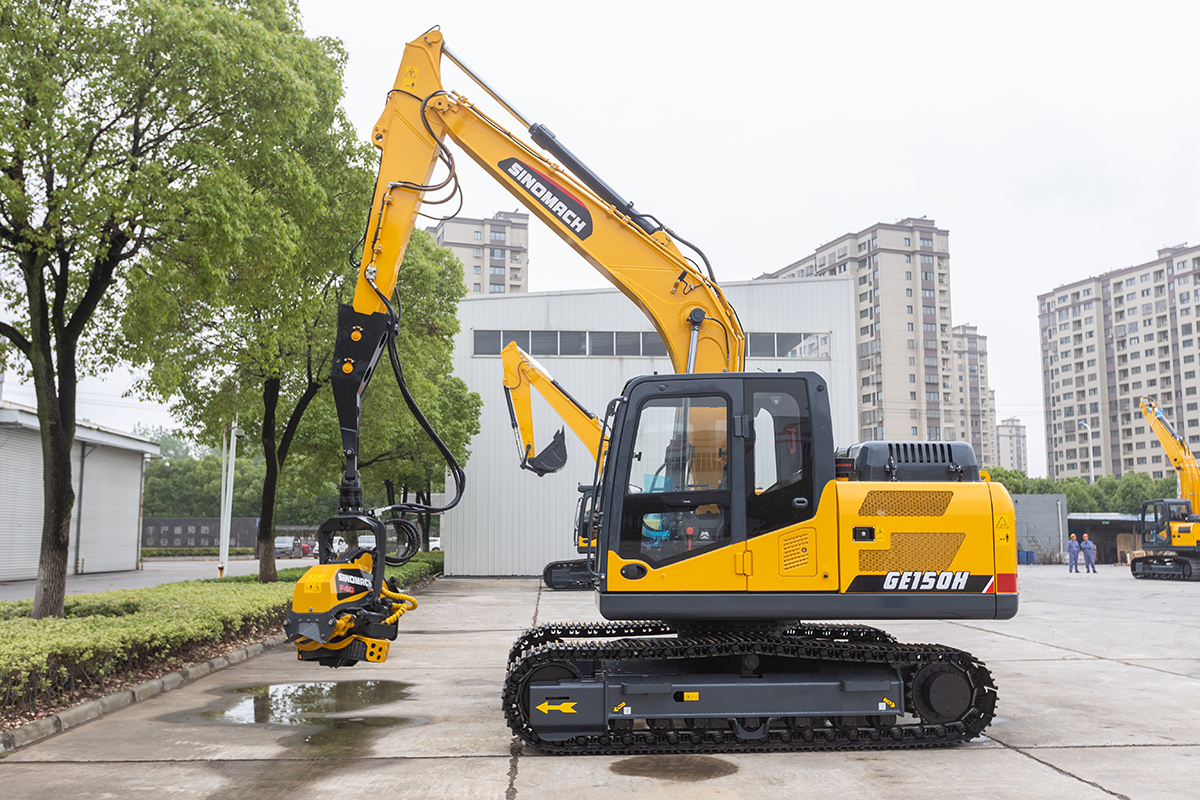

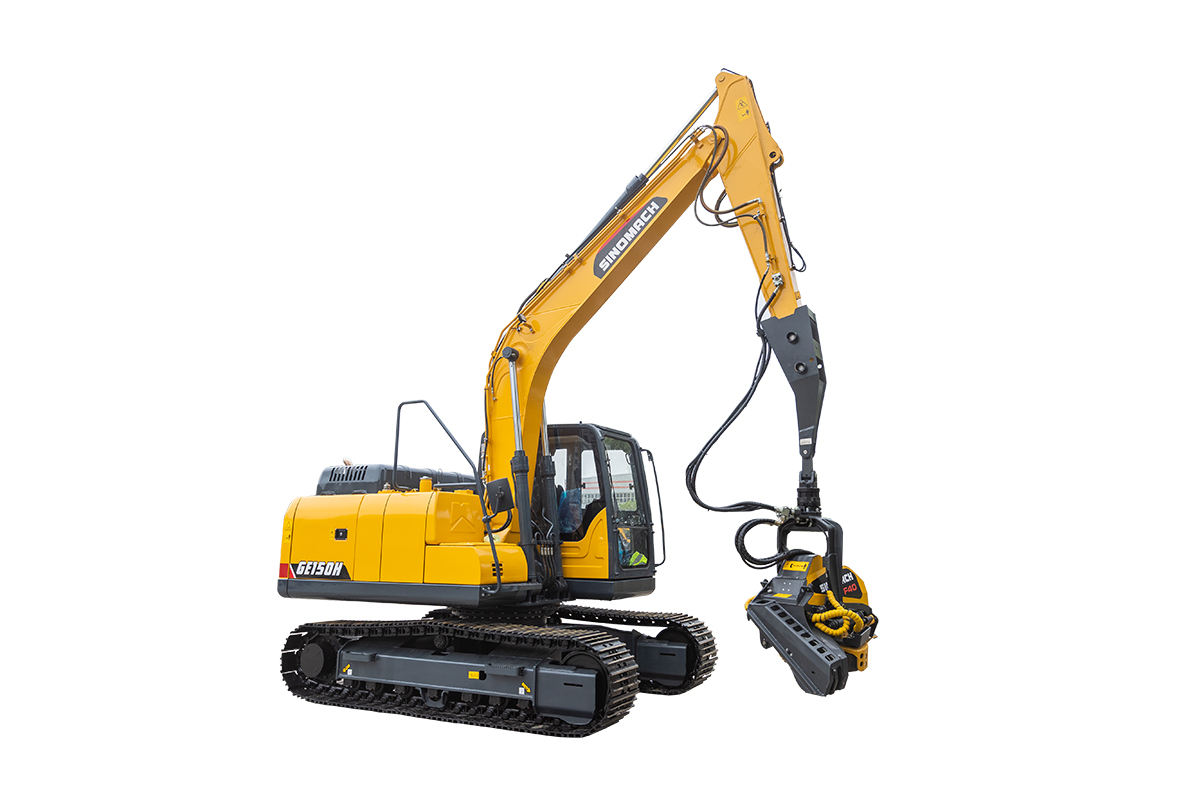

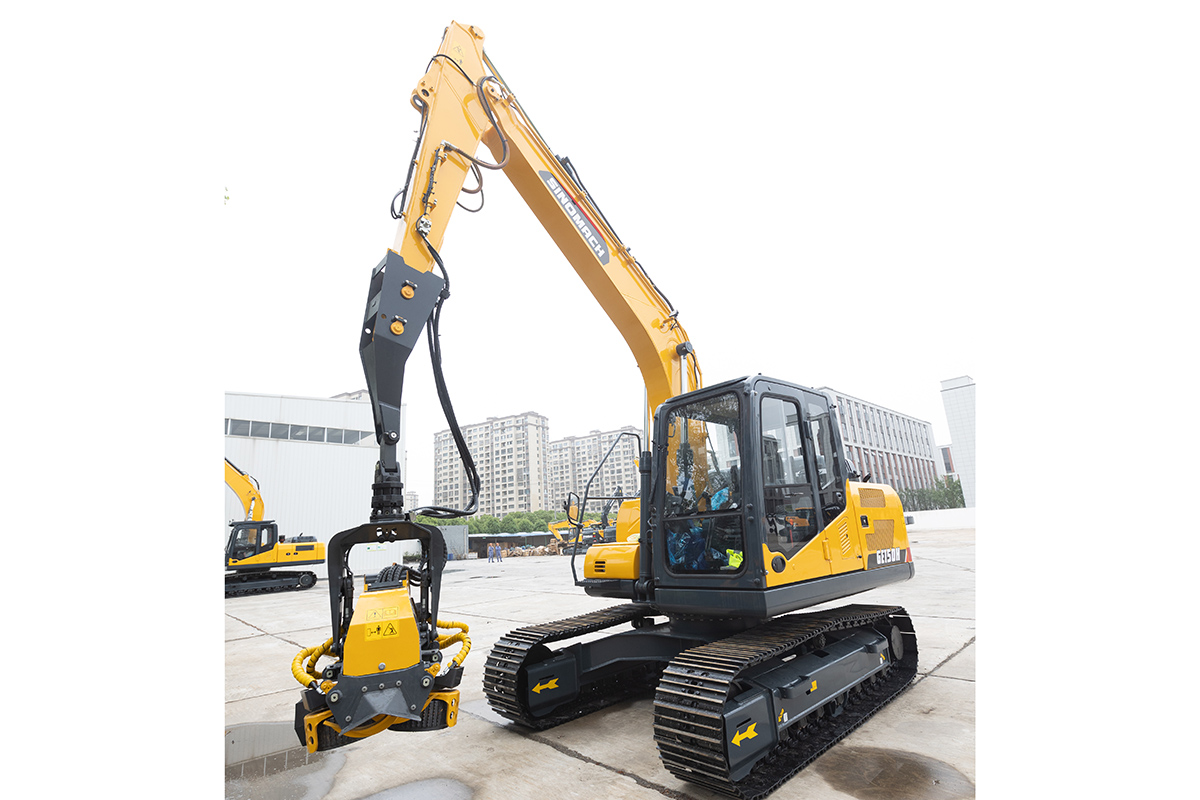

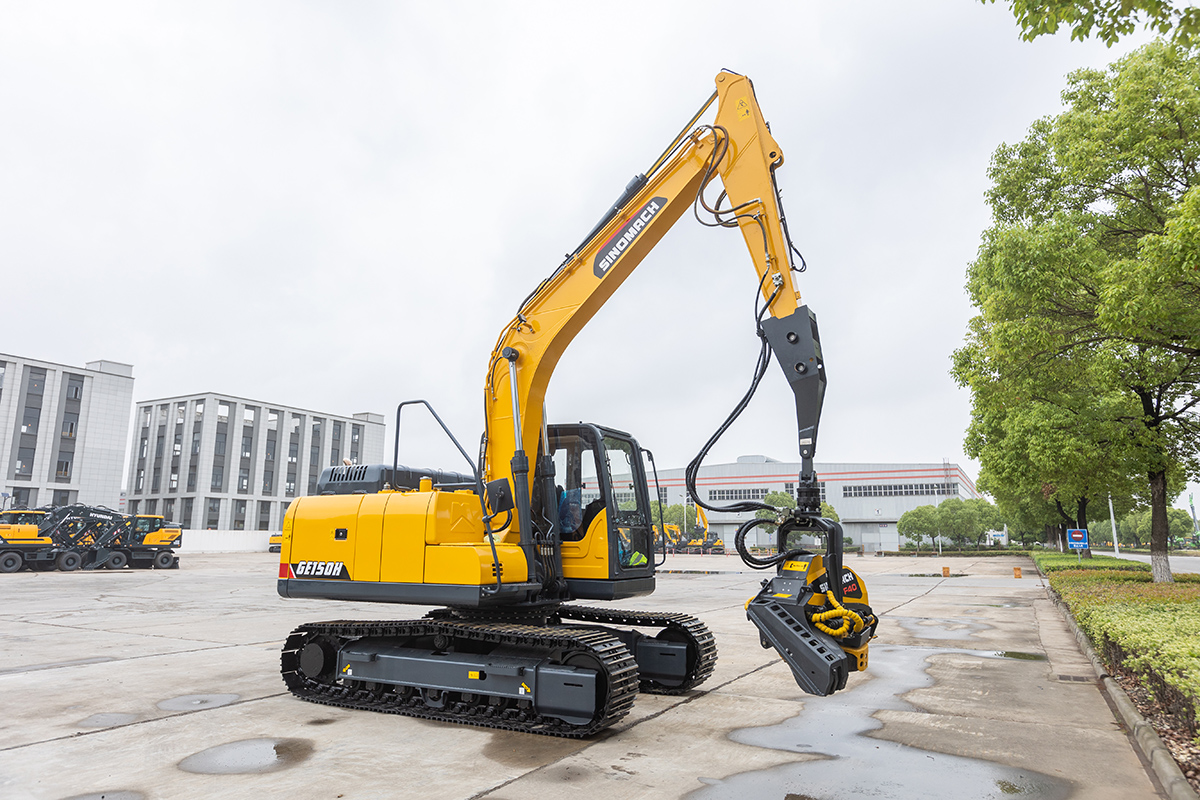

GE150H Tracked Logging Excavator
description1
01
cummins

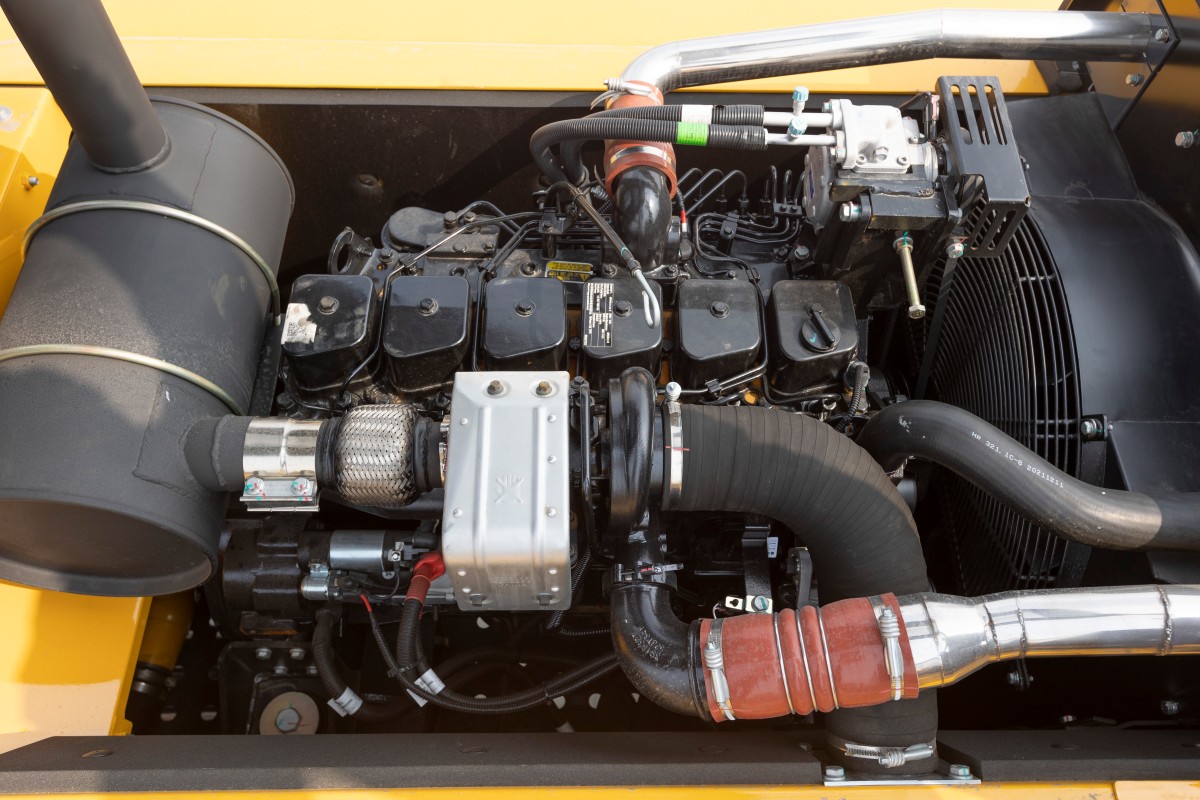

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

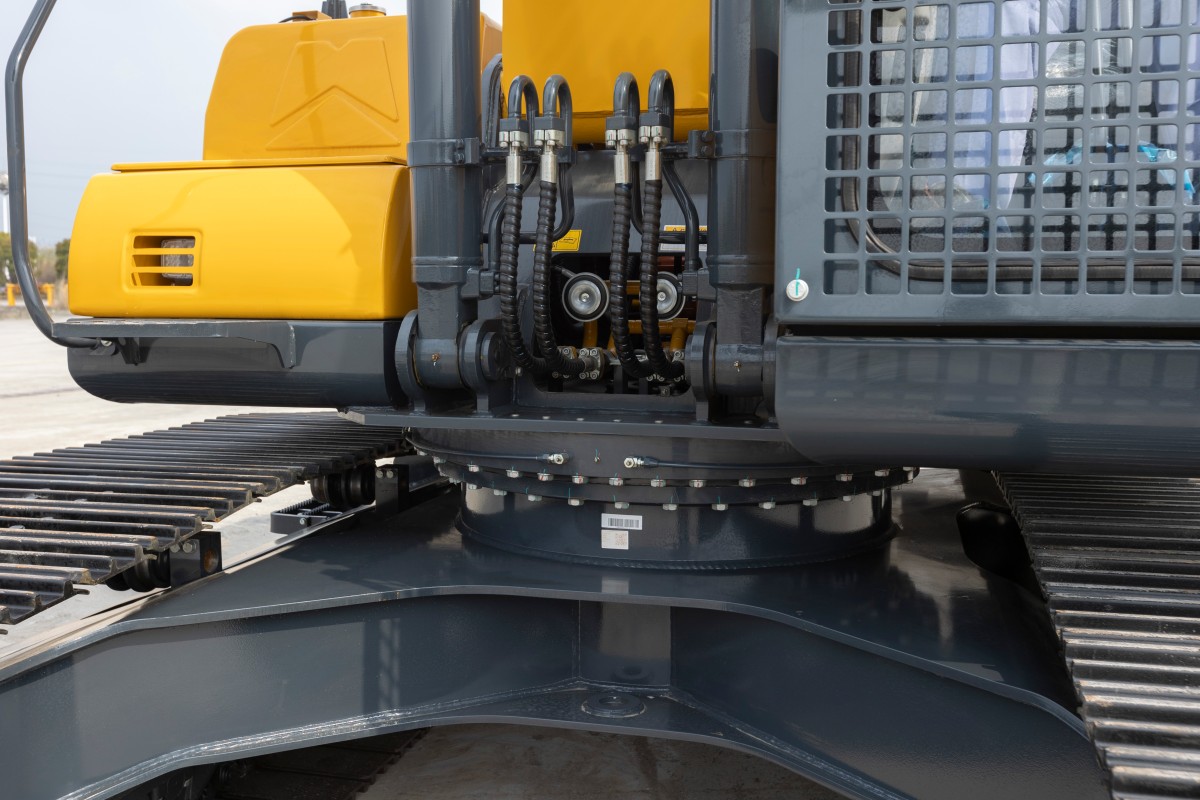

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

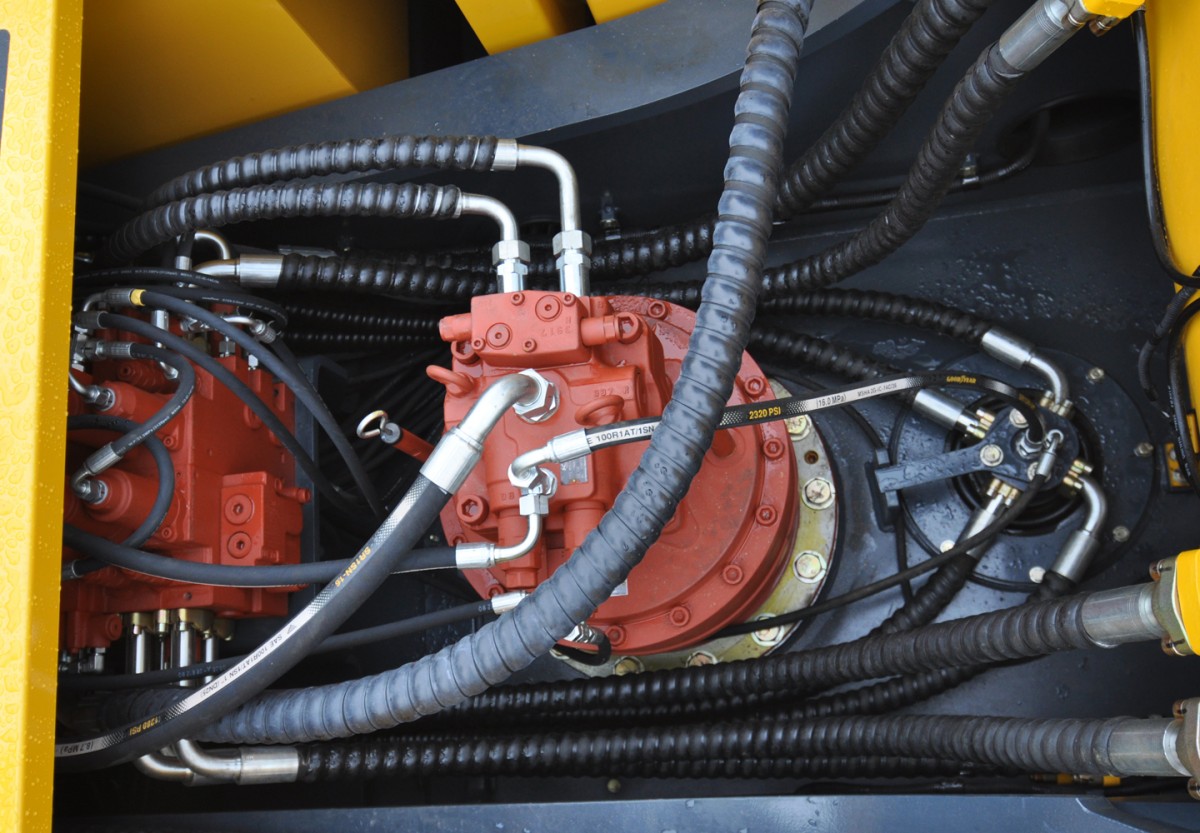

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

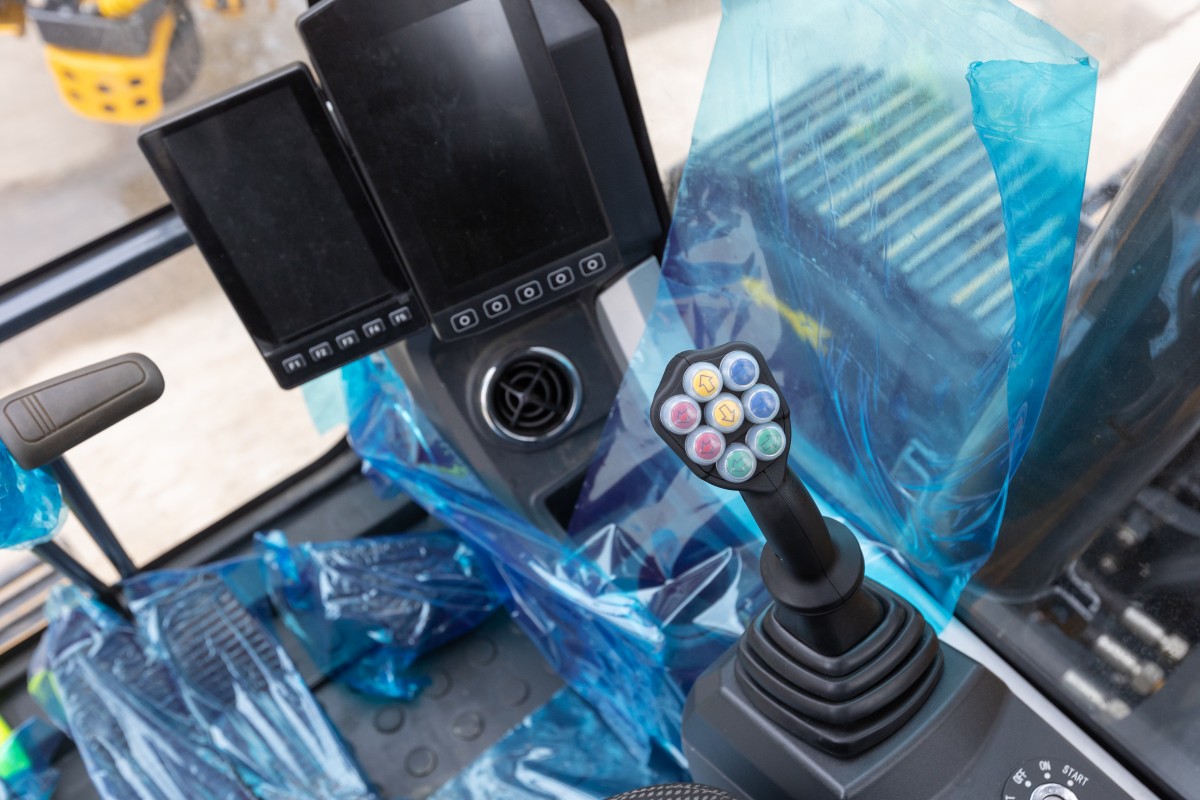

Intelligent electronic control system
Self set cutting length, intelligent fault reminder and judgment

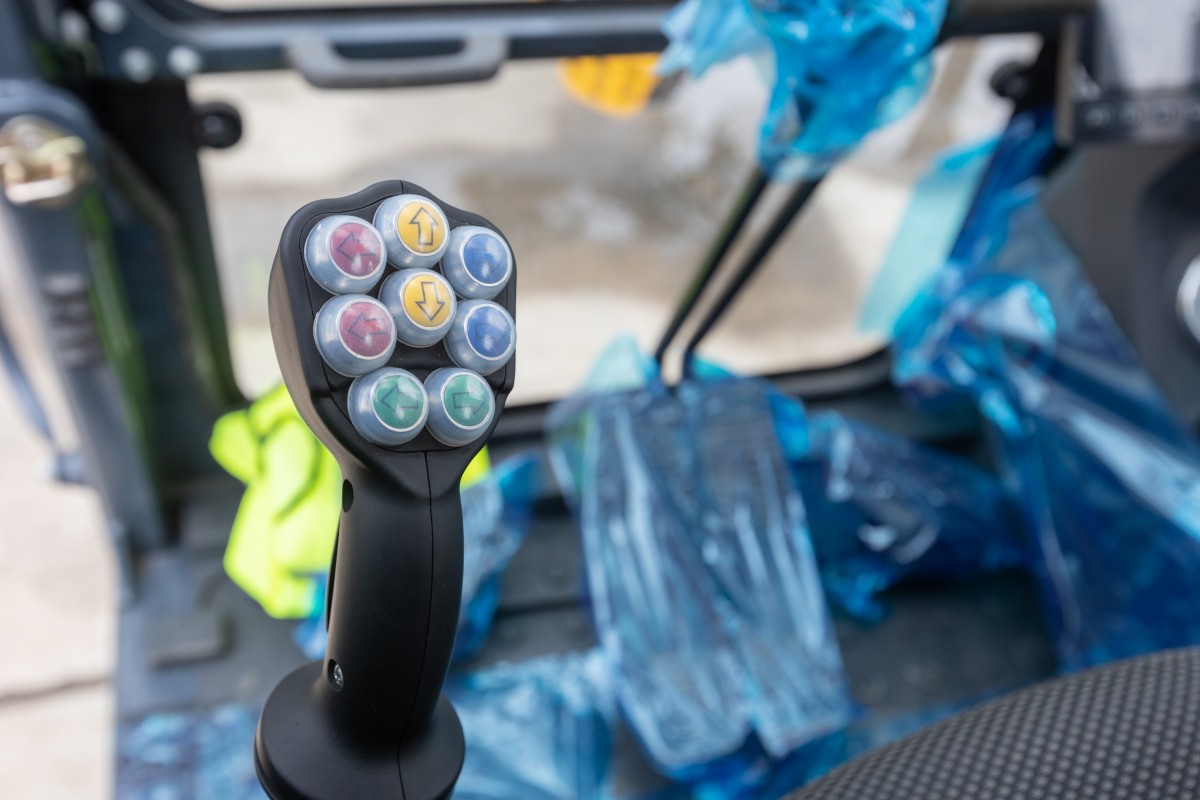

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

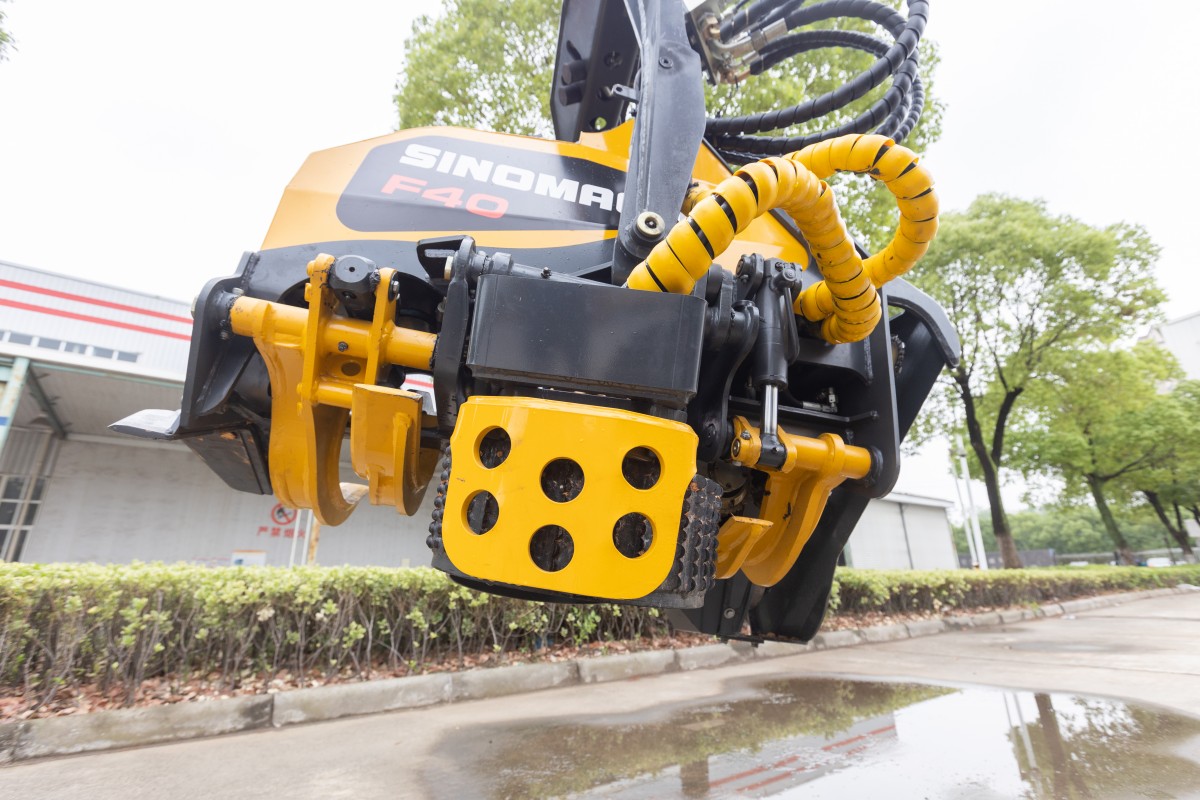

The F40 logging head has the characteristics of small size, fast speed, and flexible operation. The design of four movable pruning knives has stronger tree clamping ability and better pruning effect; Intermediate auxiliary roller reduces feeding resistance and minimizes tree damage. Non contact encoder ensures more reliable measurement; A brand new software system with customizable operation buttons, quick switching of cutting length, and real-time recording of cutting quantity; The high displacement chain saw motor has stronger cutting ability and faster cutting speed. Satisfy all working conditions such as thinning, selective cutting, clear cutting, and timber production of fast-growing tree species during short rotation periods.
Products pecifications
UNIT |
Technical specifications |
|
GE150H logging excavator | ||
kg |
14100 |
|
kW/rpm |
89/2200 |
|
Length |
mm |
7788 |
Width |
mm |
2510 |
Height |
mm |
2905 |
Turntable width |
mm |
2510 |
Height of cabin |
mm |
2825 |
Ground clearance of counterweight |
mm |
915 |
Engine cover height |
mm |
2243 |
Min. ground clearance |
mm |
415 |
Tail length |
mm |
2306 |
Turning radius of turntable |
mm |
2387 |
Wheel base of track shoe |
mm |
3010 |
Length of chassis |
mm |
3751 |
Width of chassis |
mm |
2490 |
Track shoe gauge |
mm |
1990 |
Standard track width |
mm |
500 |
Max. traction |
kN |
122 |
Traveling speed (H/L) |
km/hr |
5.4/3.2 |
Swing speed |
rpm |
11.9 |
Gradeability |
Degree(%) |
35（70%） |
4.6m Boom，2.491m Stick，0.6m³Bucket | |
GE150H logging excavator | |
Max. working radius |
7645 mm |
Max. ground working radius |
7500 mm |
Max. working depth |
4905 mm |
Max. working height |
7727 mm |
Max. Logging diameter |
400 mm |
Number of transmission wheels |
3 |
Number of cutting tools |
2+2+1 |
Maxi. feed force |
16 kN |
