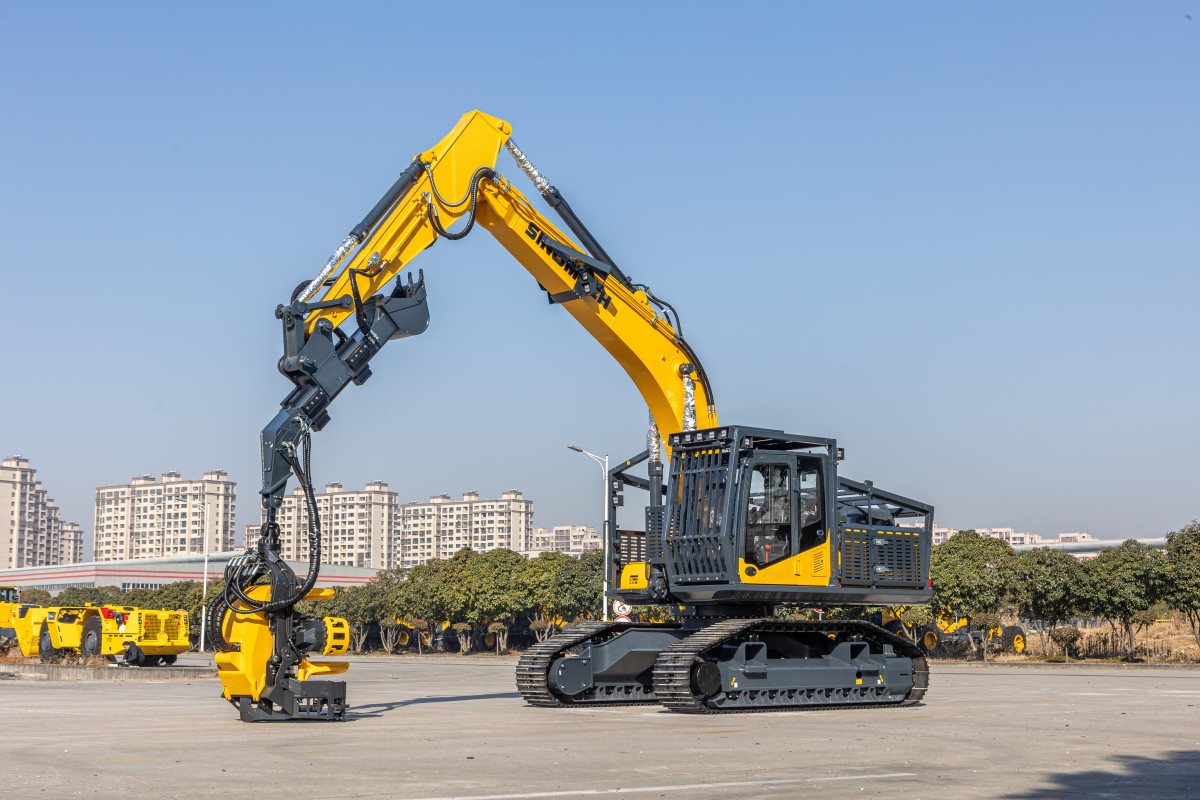

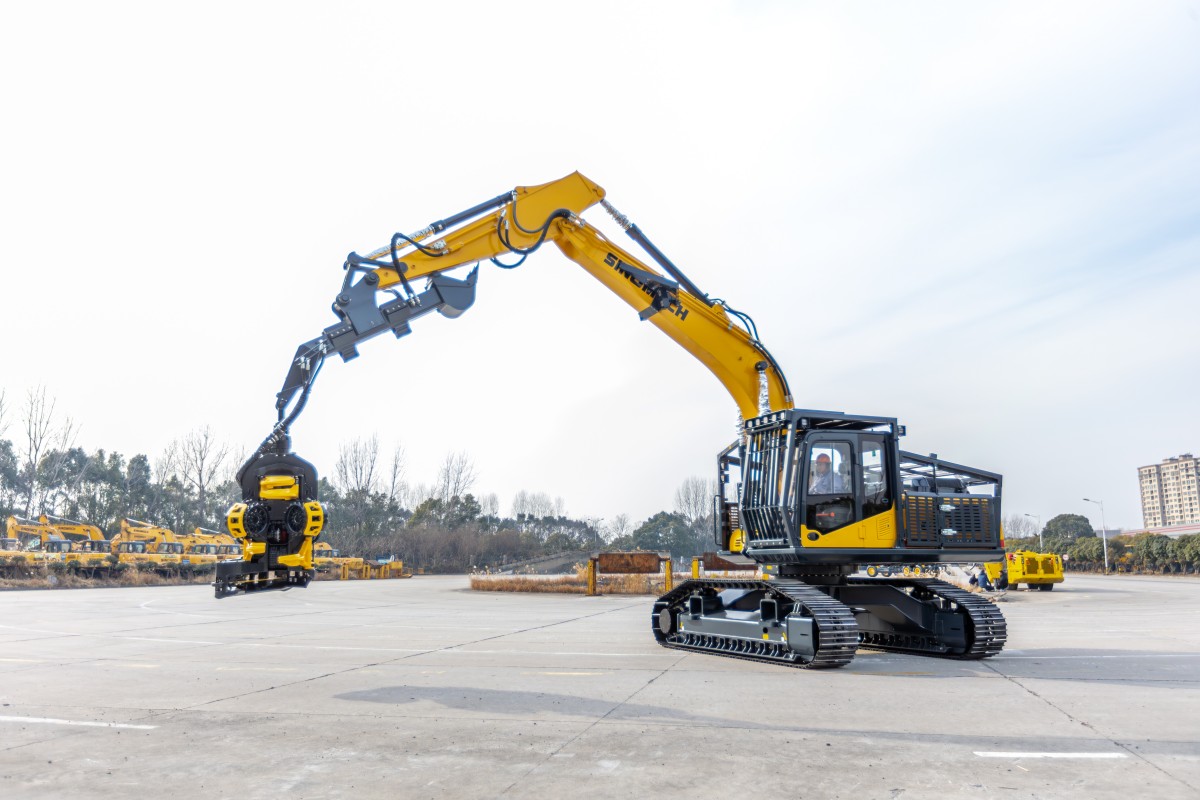

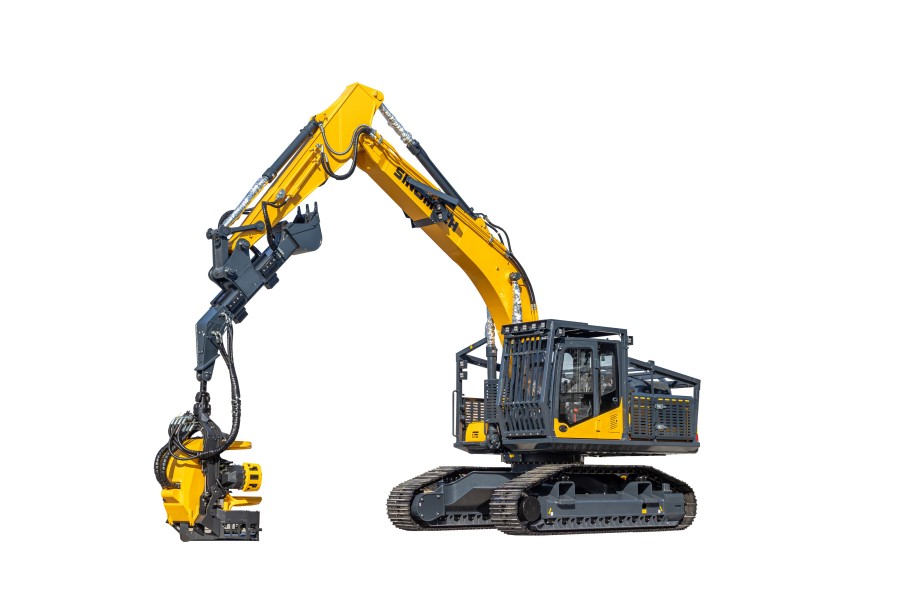

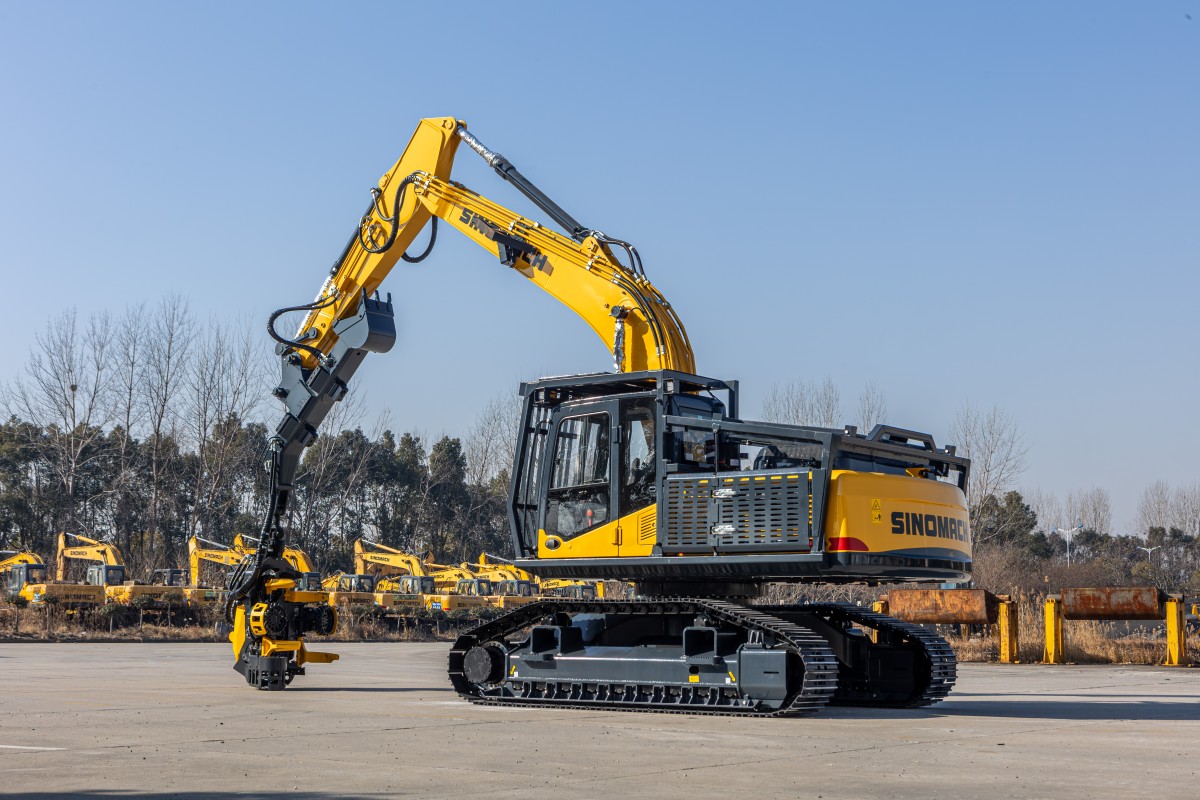

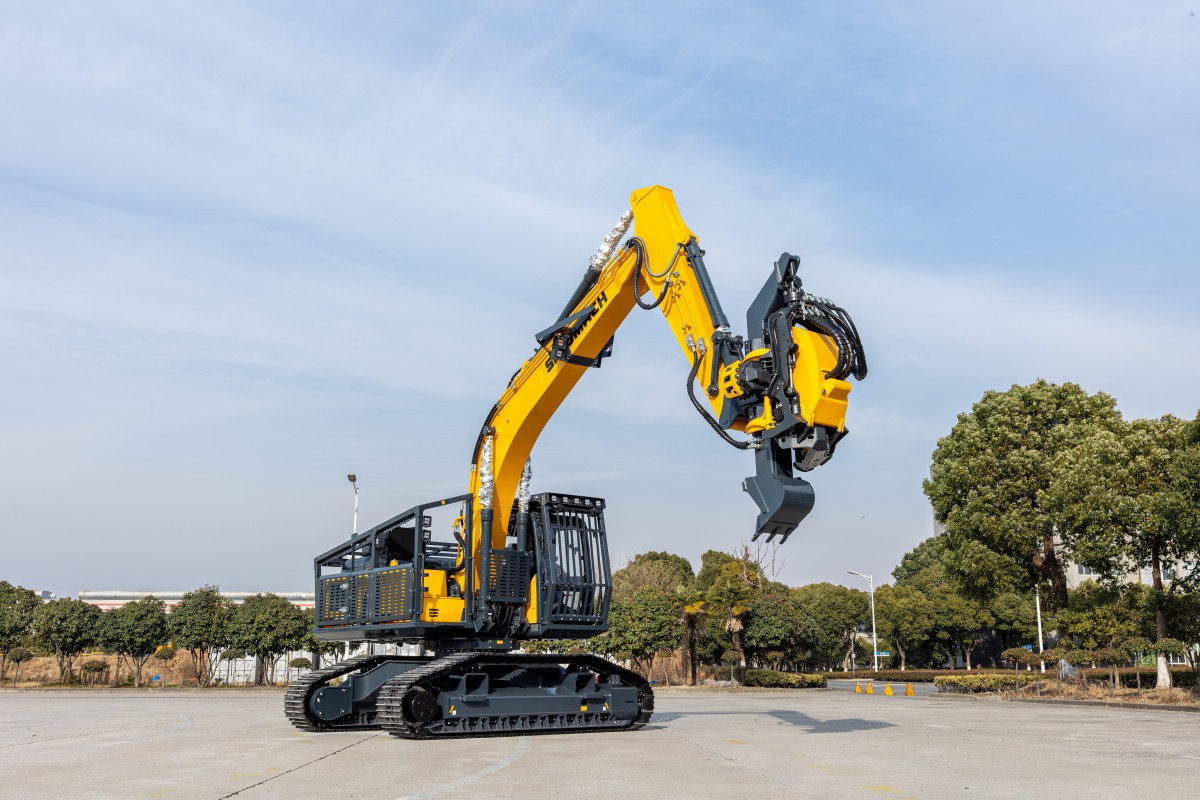

GE210CF Tracked Logging Excavator
description1
01
Enhanced reliability protection solution
High-strength forest machine special cab, can be equipped with thickened bulletproof glass, improve the safety of the cab.
High-strength body, slewing support guards and covers, effectively resisting wood impacts.
02
Chassis for forest areas
Equipped with a large chassis ground clearance, easy to cross a variety of terrain obstacles to effectively enhance the versatility of woodland.
Equipped with widened and strengthened forestry machine special undercarriage, effectively enhancing the reliability and stability of the forest floor.
Equipped with ski type track protection bracket and anti-dislodgement support, all-round protection for the traveling system.

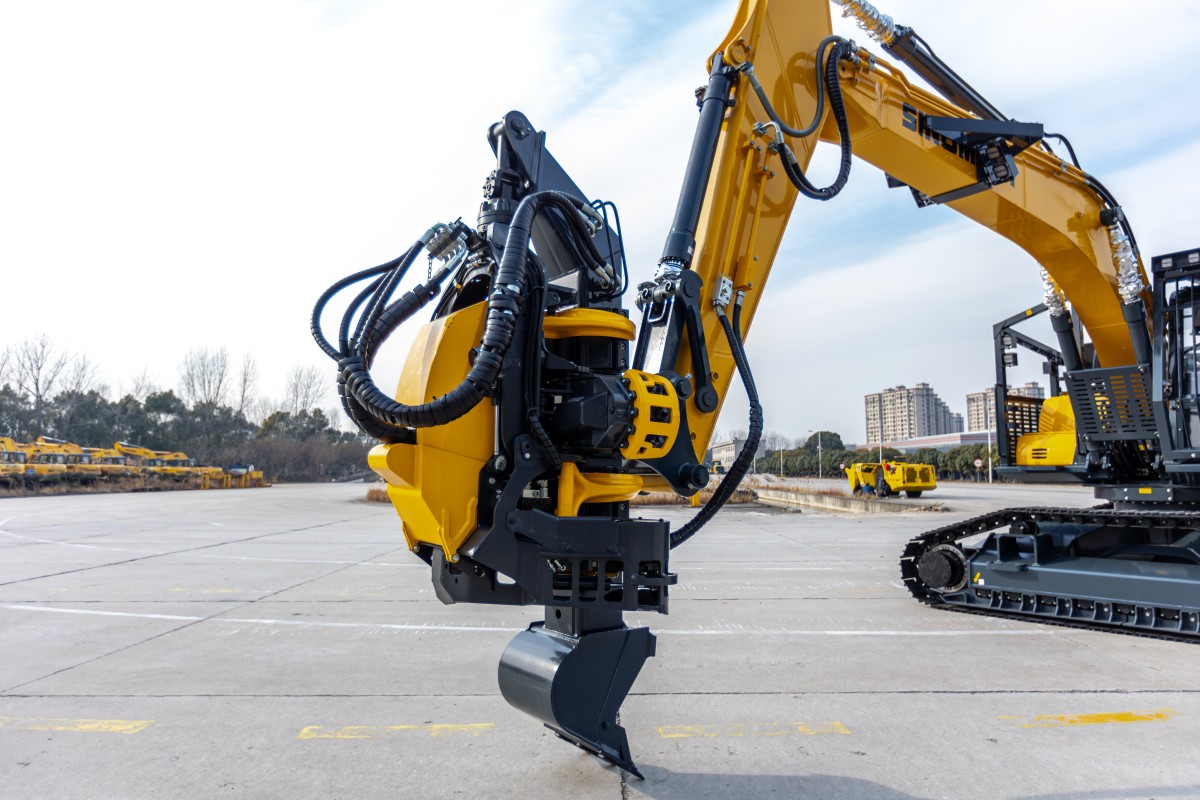

Equipped with an auxiliary arm, it can seamlessly switch between “logging” and “digging” functions, dramatically improving operational efficiency and flexibility.
Configuration of the boom cylinder support significantly reduces the slewing radius of the whole machine to meet the “narrow” area of the forest through.
Equipped with a specialized air intake protection structure, which effectively improves the protection against leaves, weeds, insects and other foreign objects.
Configuration of full parallel with radiator, fin gap increased, more conducive to the passage of foreign objects.

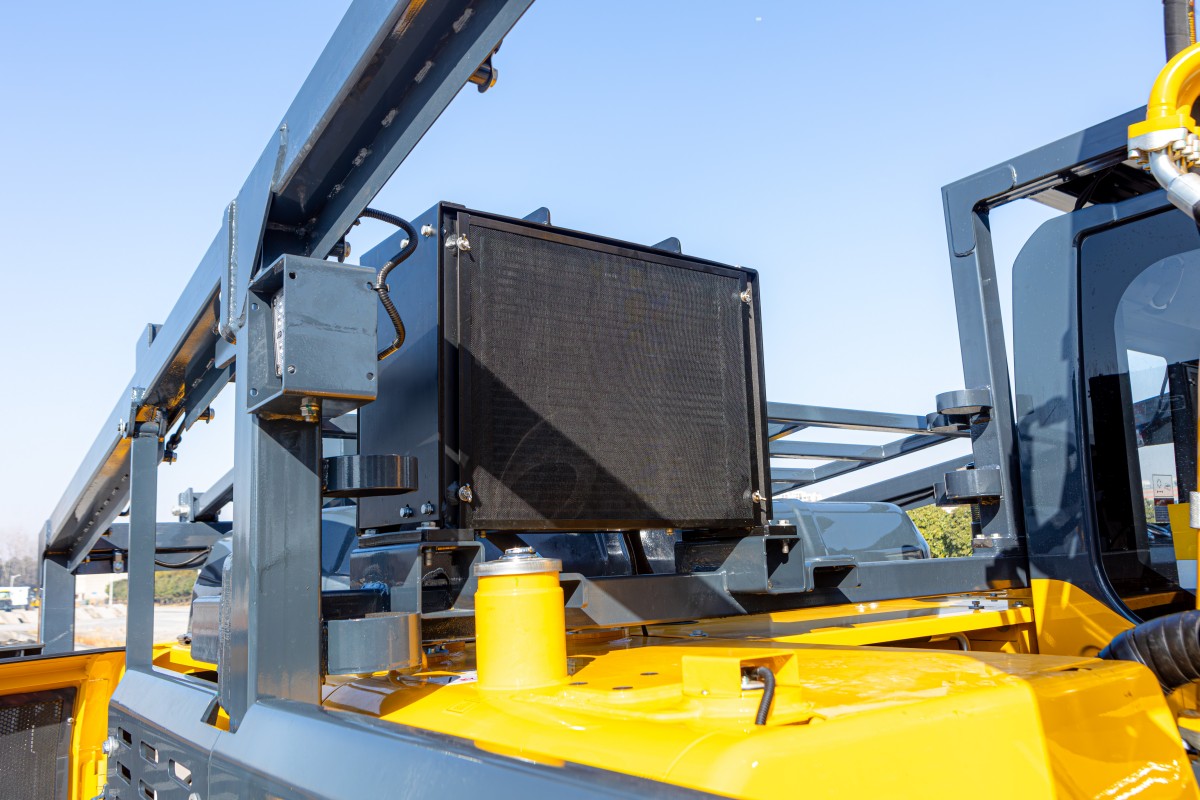

Equipped with an additional heat sink to further enhance the cooling performance.

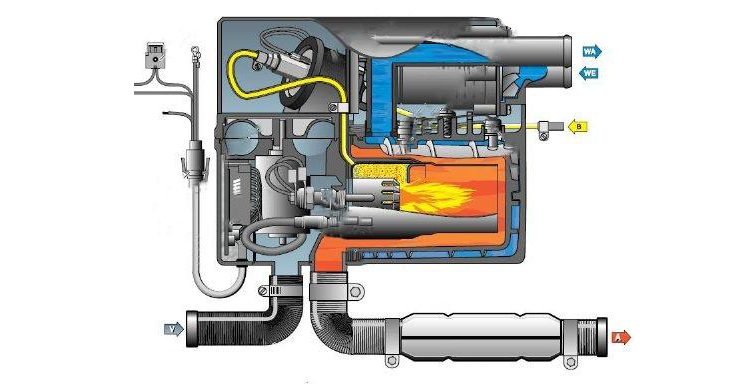

Equipped with international famous brand hydraulic, diesel, engine automatic heating system, to meet the needs of extreme cold working conditions.
Equipped with electronically controlled silicone oil clutch, the fan speed increases step by step as the temperature rises until the full speed rotation, effectively reducing the noise and energy consumption of the whole machine.
Equipped with hydraulic oil temperature control bypass valve, which can control the opening and closing of heat dissipation according to the oil temperature.

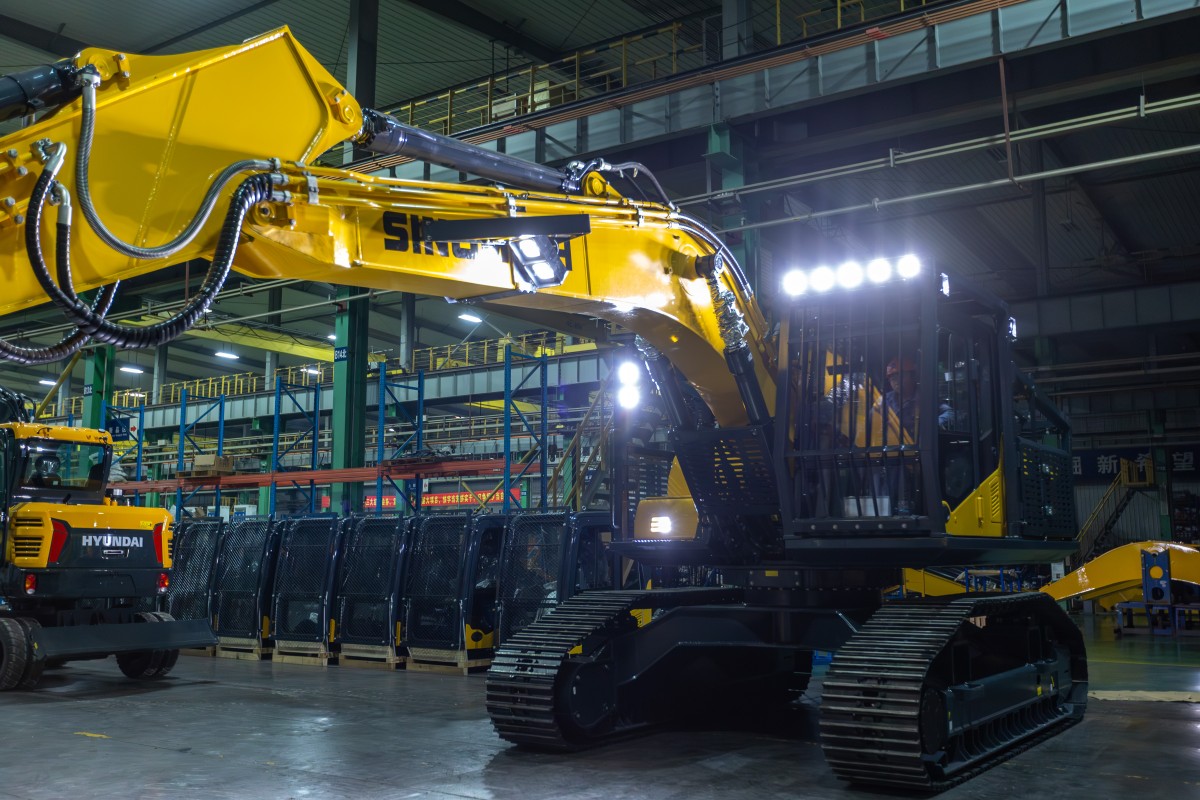

Configuration of multi-point LED lighting, fully meet the needs of forest lighting.

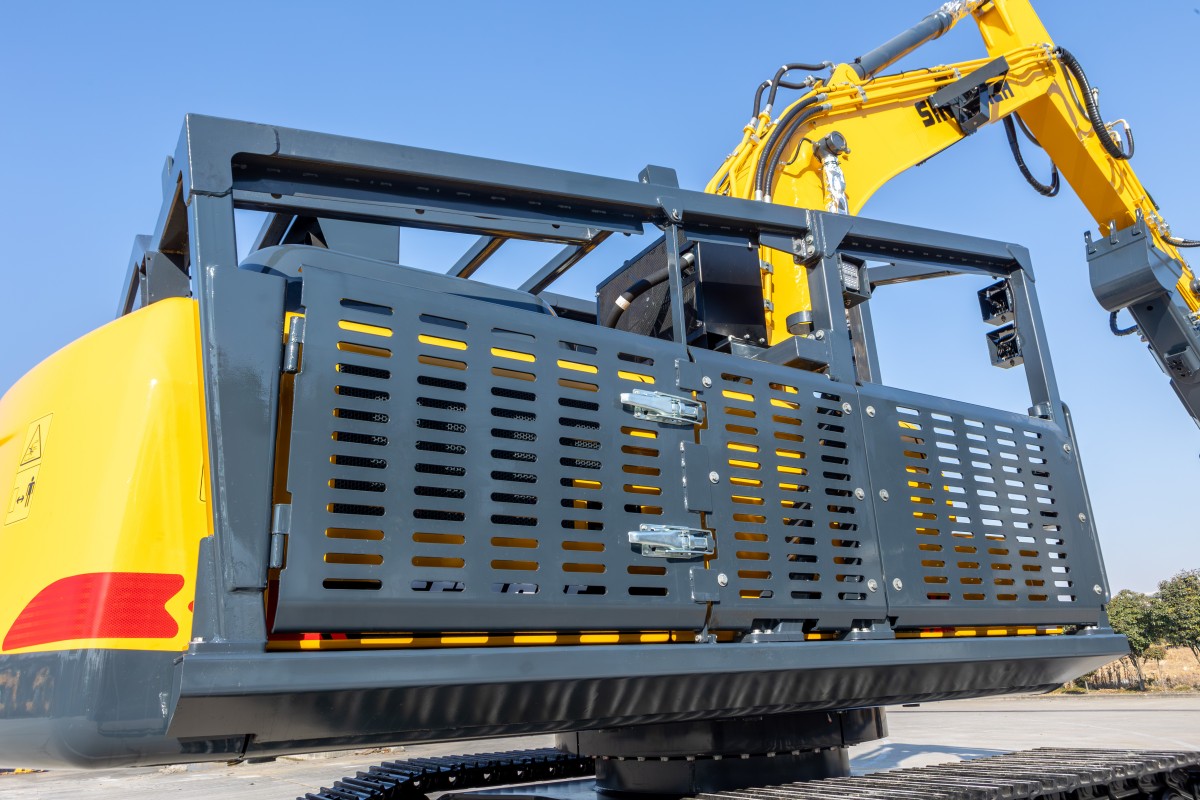

Equipped with sturdy protection bracket, effectively resisting the complex and changing environmental factors in the forest.

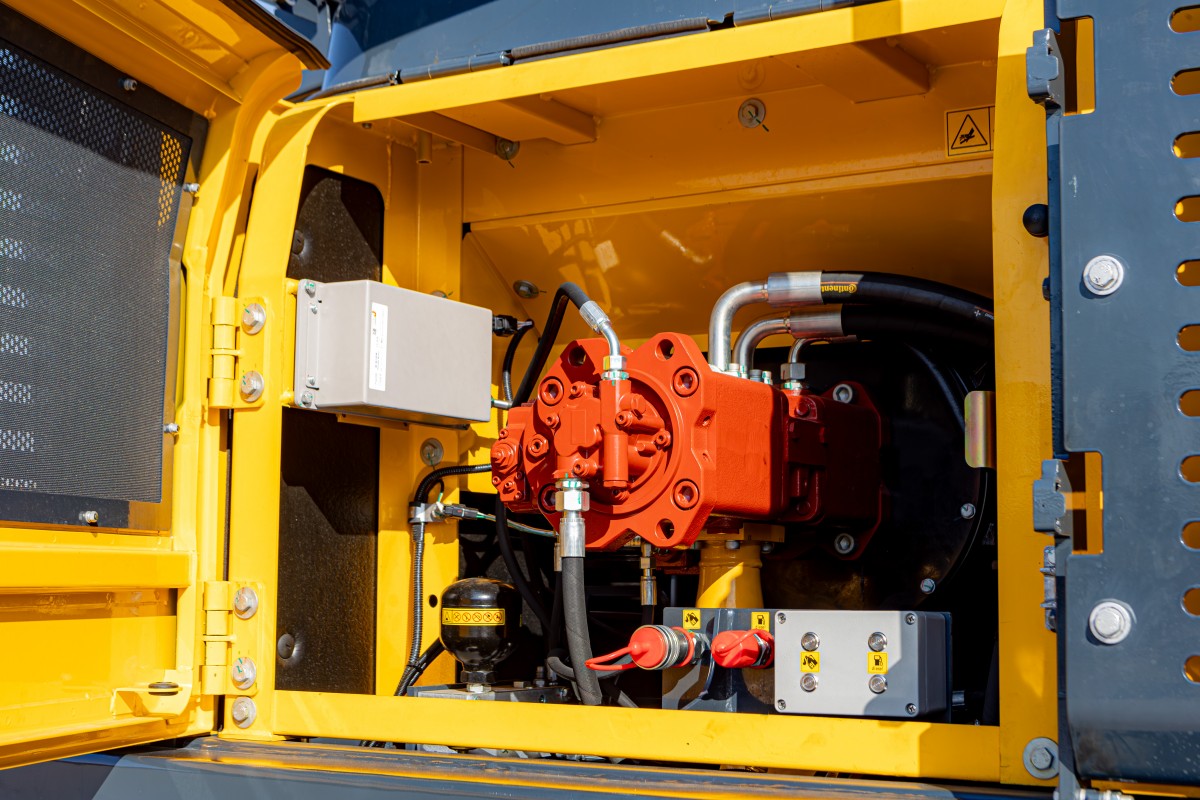

Equipped with hydraulic oil and diesel oil automatic filling system, oil filling is more convenient.

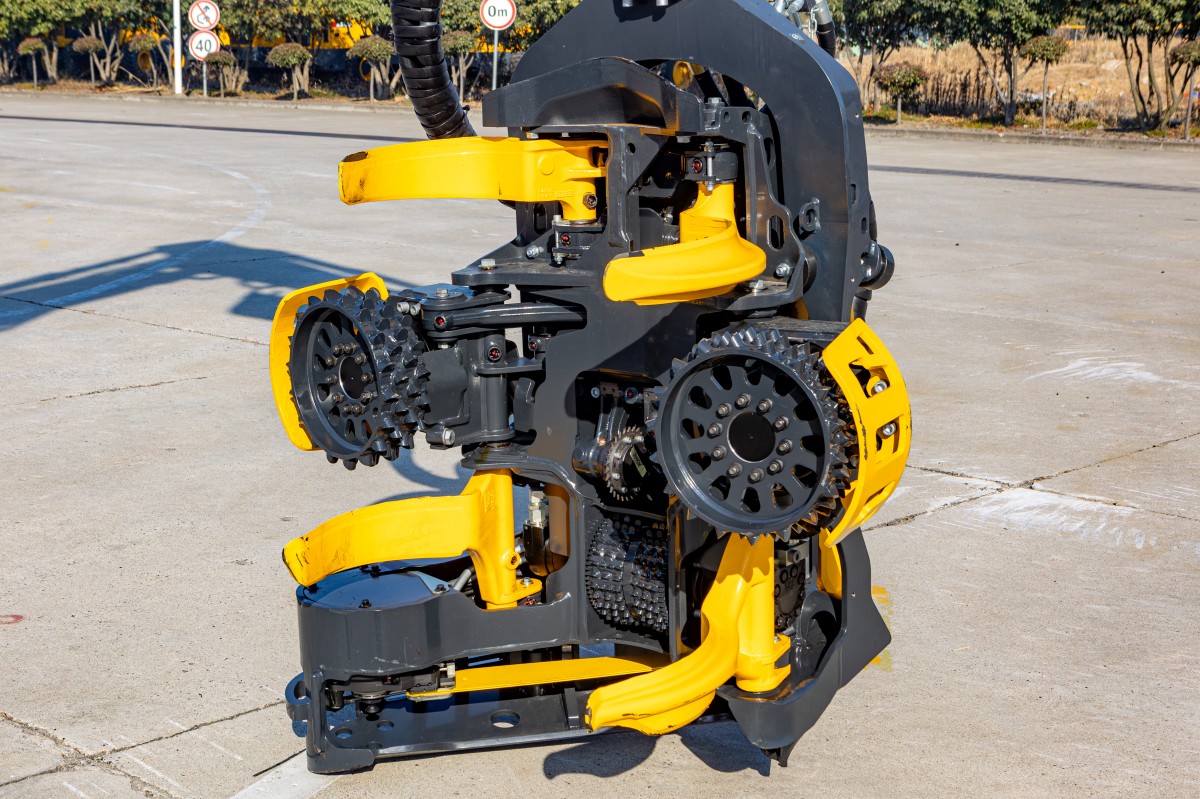

A globally renowned forestry machinery manufacturer, known for its efficient and reliable products.
Fully automatic control of sawing length and peeling process, with a processing time of only 10-15 seconds for a single tree, and a daily harvesting volume of thousands of trees.
Suitable for large-scale industrial logging of forests, especially adept at handling thick branches or low-quality wood.
Suitable for 12-22 ton excavators or heavy-duty wheel harvesters, achieving full process automation of "harvesting processing stacking".
Products pecifications
ITEM |
UNIT |
Technical specifications |
|
GE210CF | |||
Operating weight |
kg |
26400 |
|
Power |
kW/rpm |
112/1950 |
|
Length |
mm |
9630 |
|
Width |
mm |
3440 |
|
Height |
mm |
3404 |
|
Turntable width |
mm |
2816 |
|
Height of cabin |
mm |
3404 |
|
Min. ground clearance |
mm |
720 |
|
Tail length |
mm |
2816 |
|
Turning radius of turntable |
mm |
2816 |
|
Wheel base of track shoe |
mm |
3650 |
|
Track shoe gauge |
mm |
2620 |
|
Standard track width |
mm |
600 |
|
ITEM |
Working range |
|
|
GE210CF |
|
Max. harvesting height |
7976mm |
|
Max.harvesting distance |
9910 mm |
|
Mini.Operating Range |
1960 mm |
|
