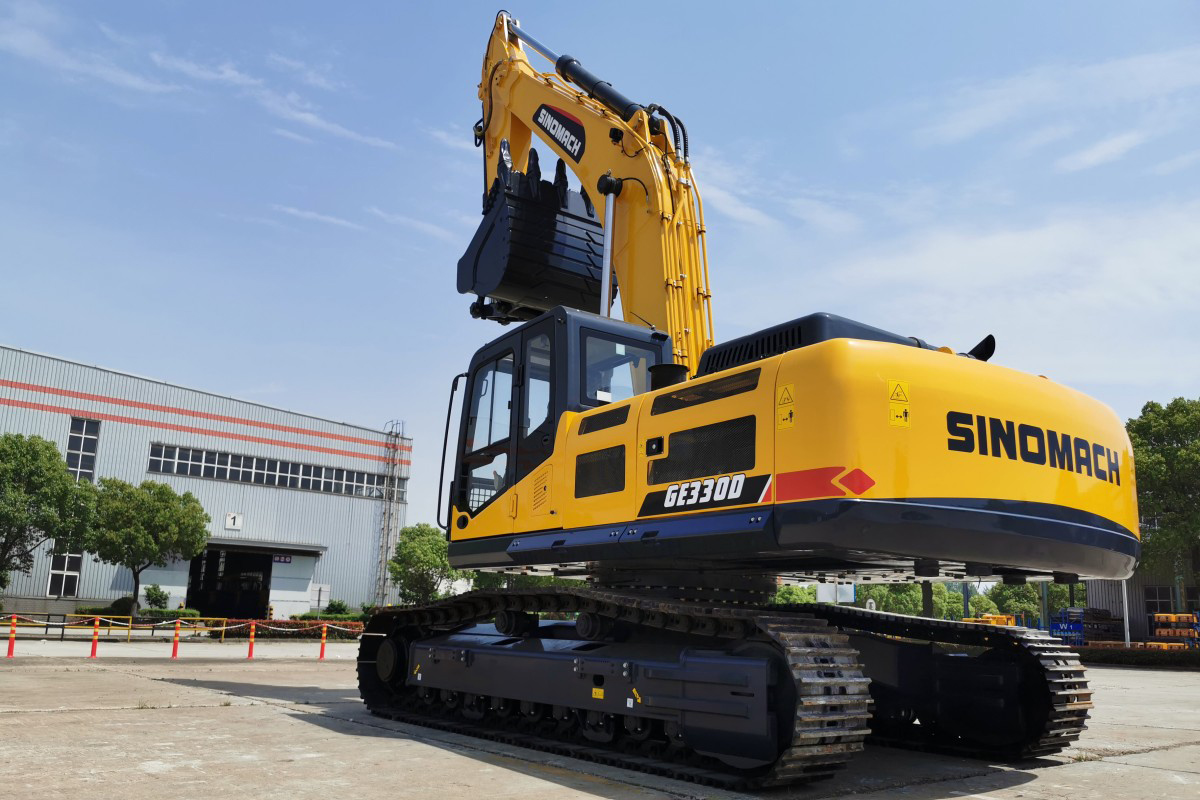

GE330D Hydraulic crawler excavator (1).jpg

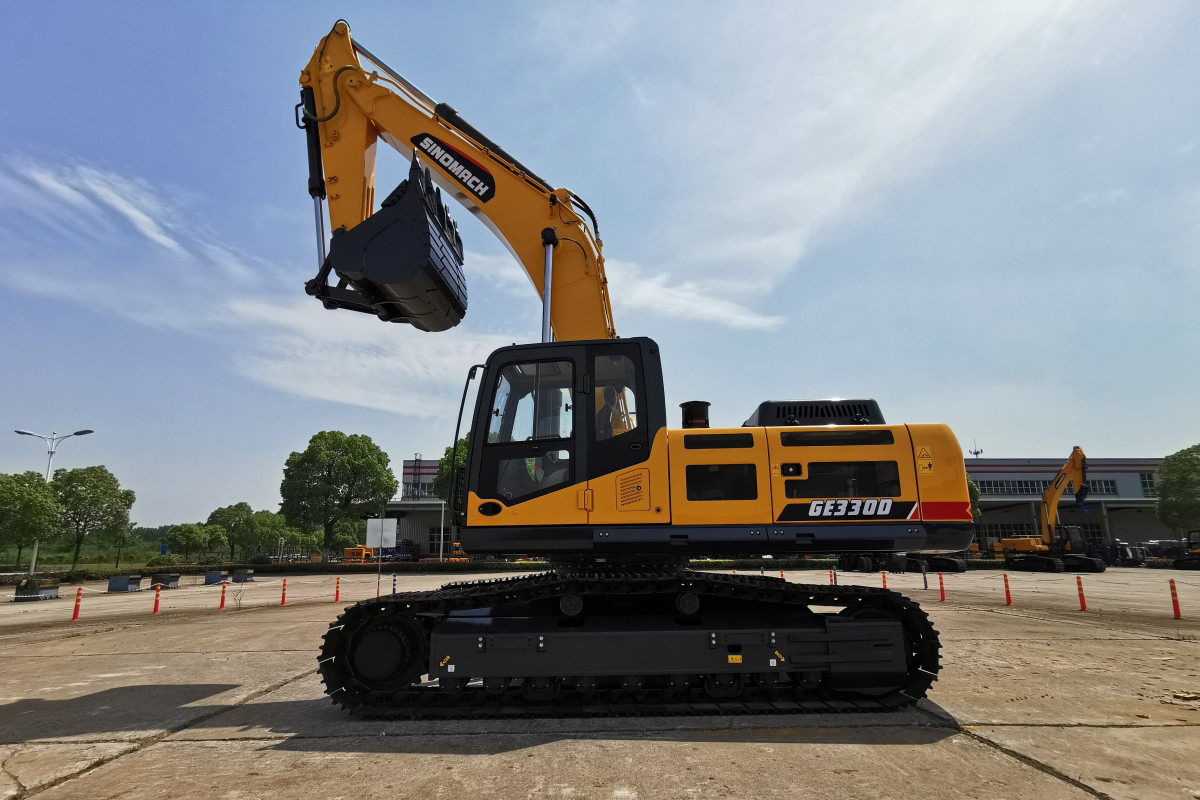

GE330D Hydraulic crawler excavator (3).jpg

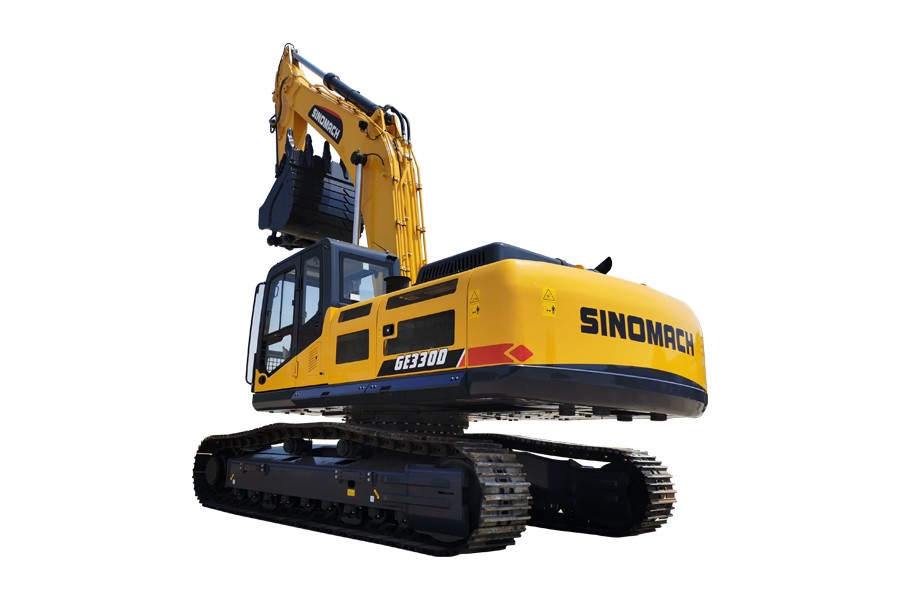

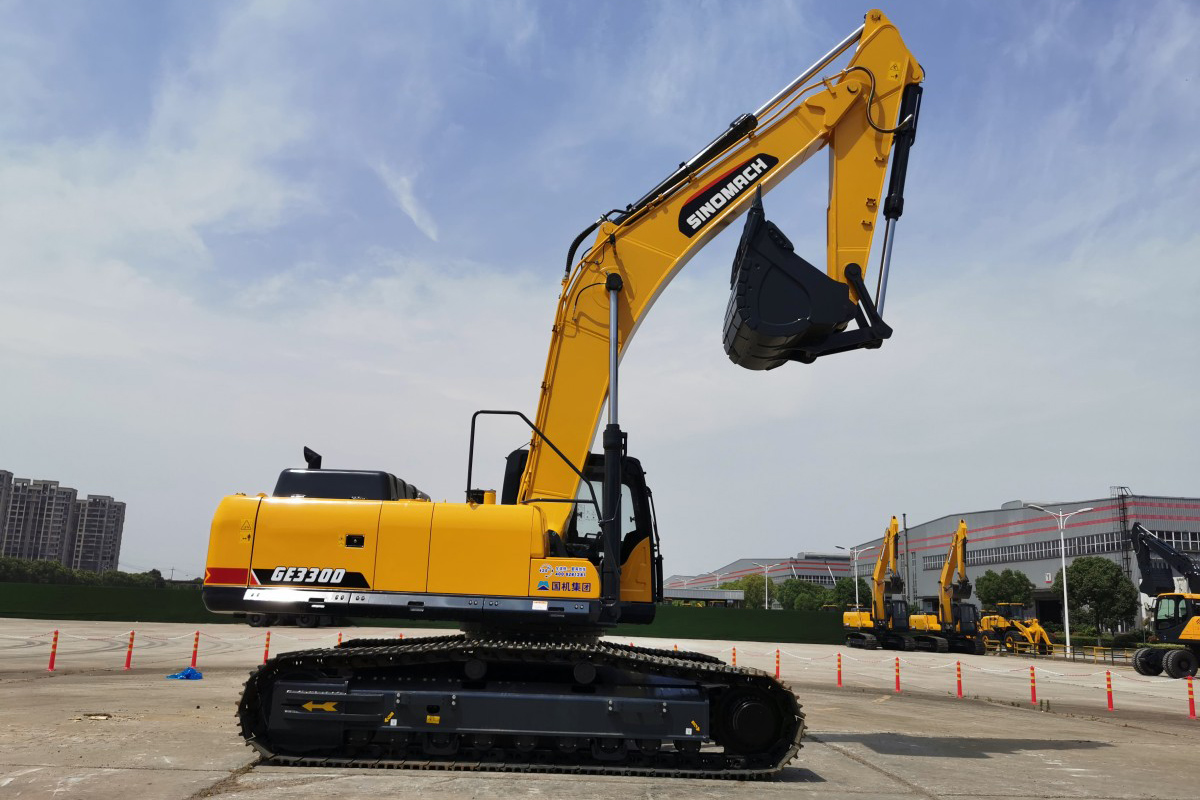

GE330D Hydraulic crawler excavator

•Engine Power：241kw/2000rpm

•Operating Weight：31880kg

CUMMINS engine (conforming to Ⅱ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.

product details

description1

cummins

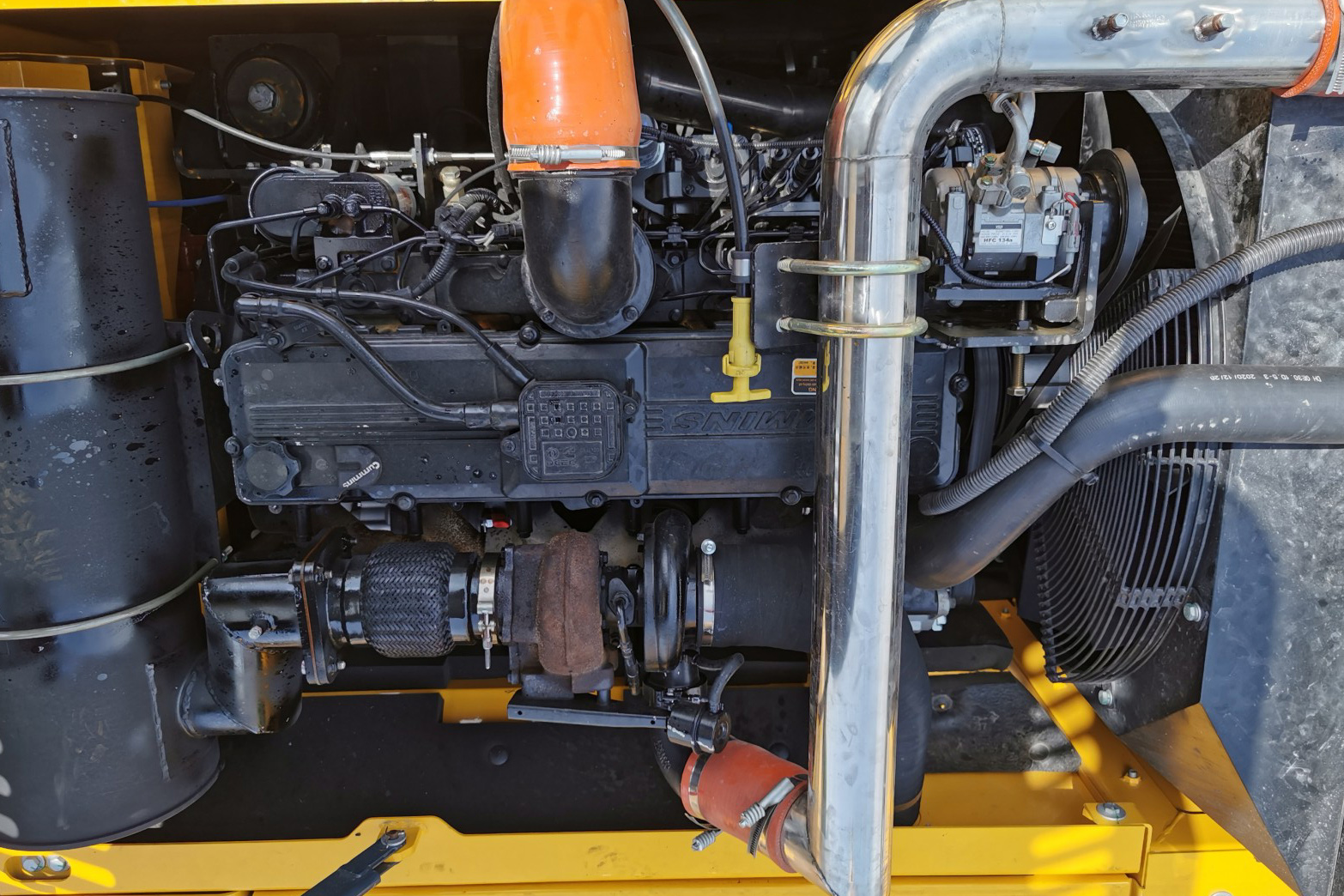

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

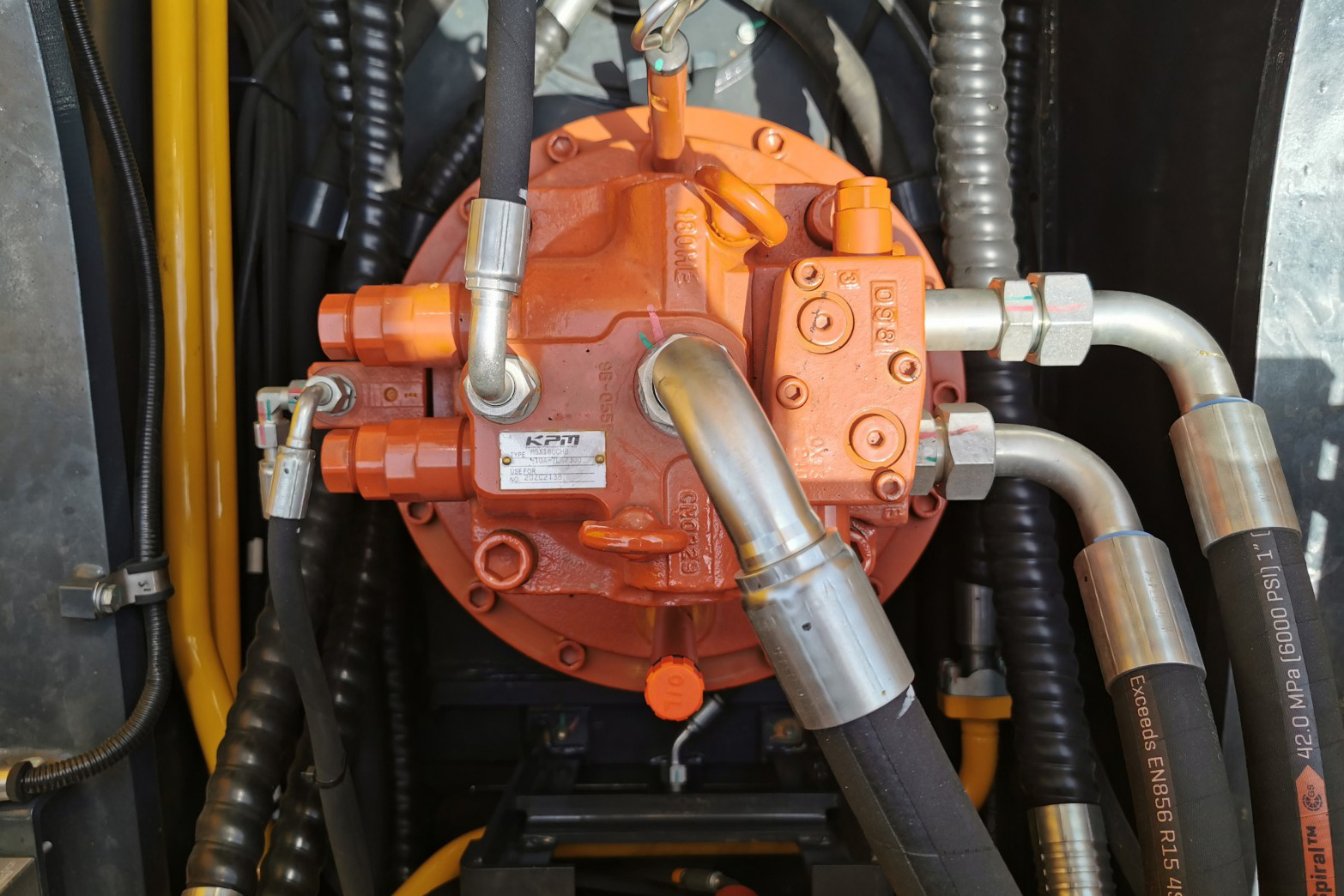

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

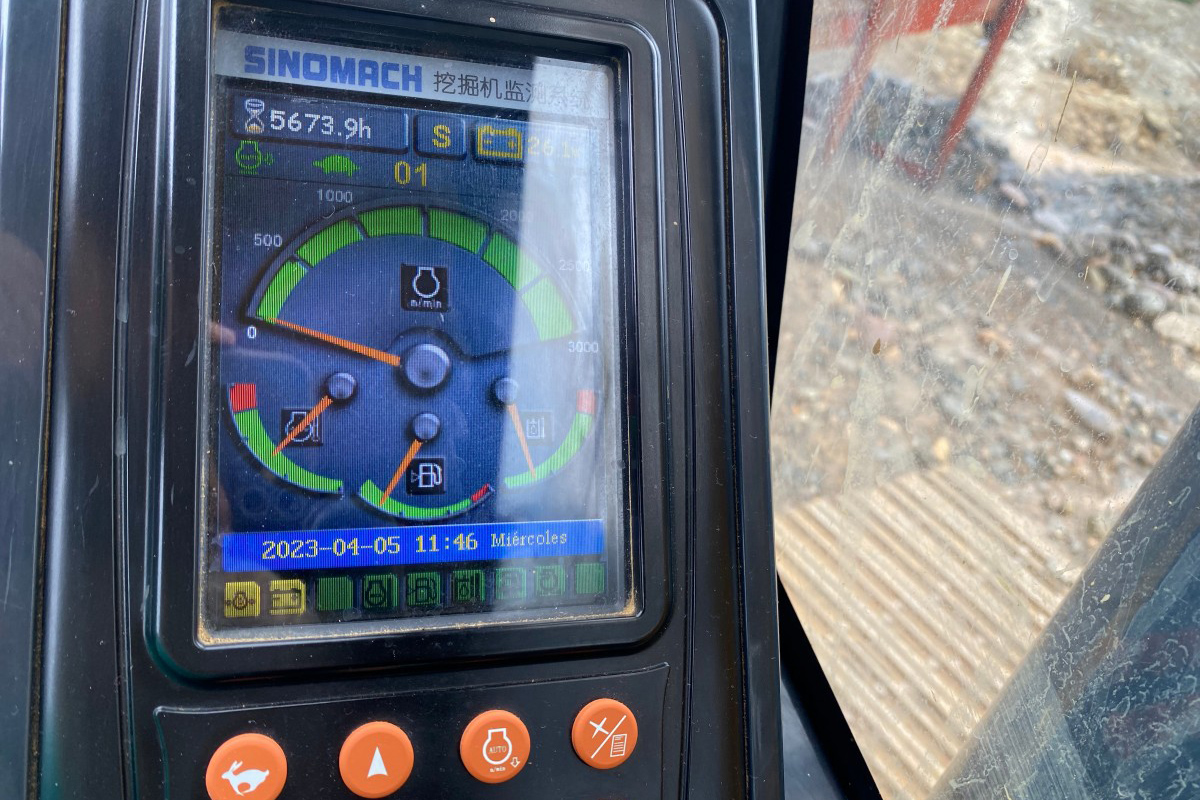

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.

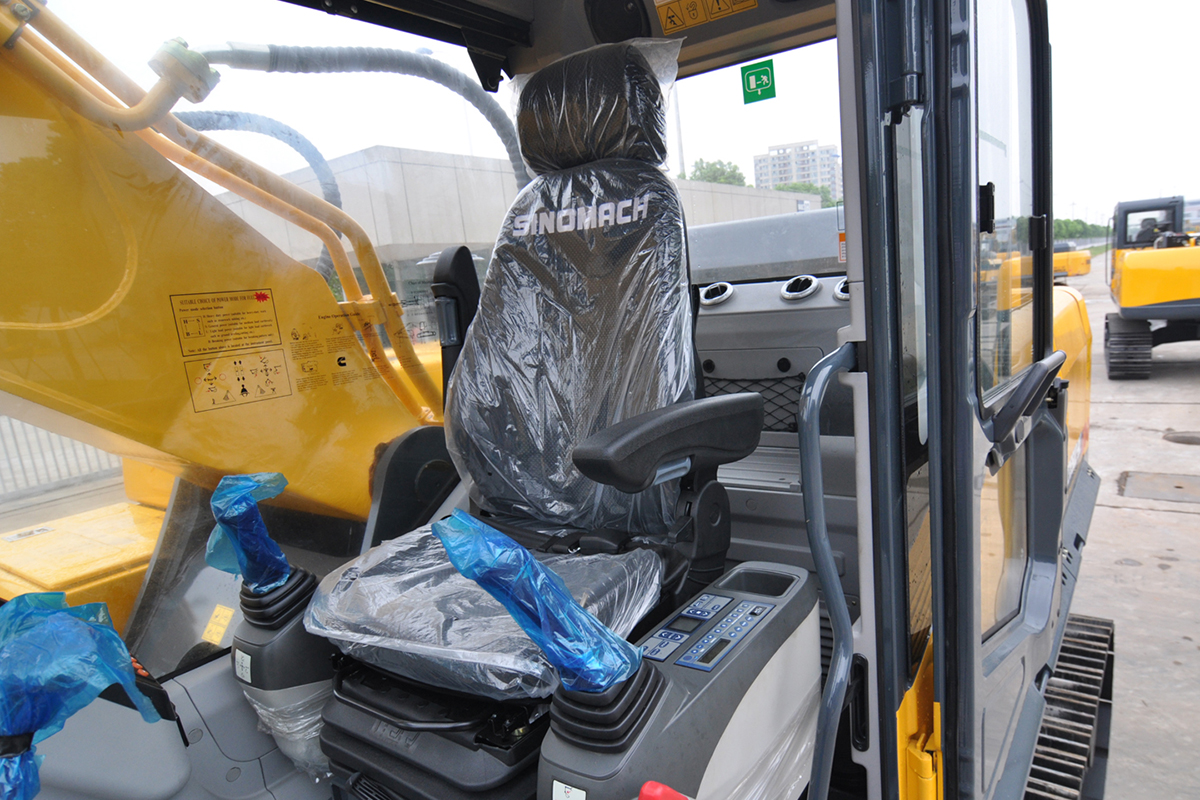

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

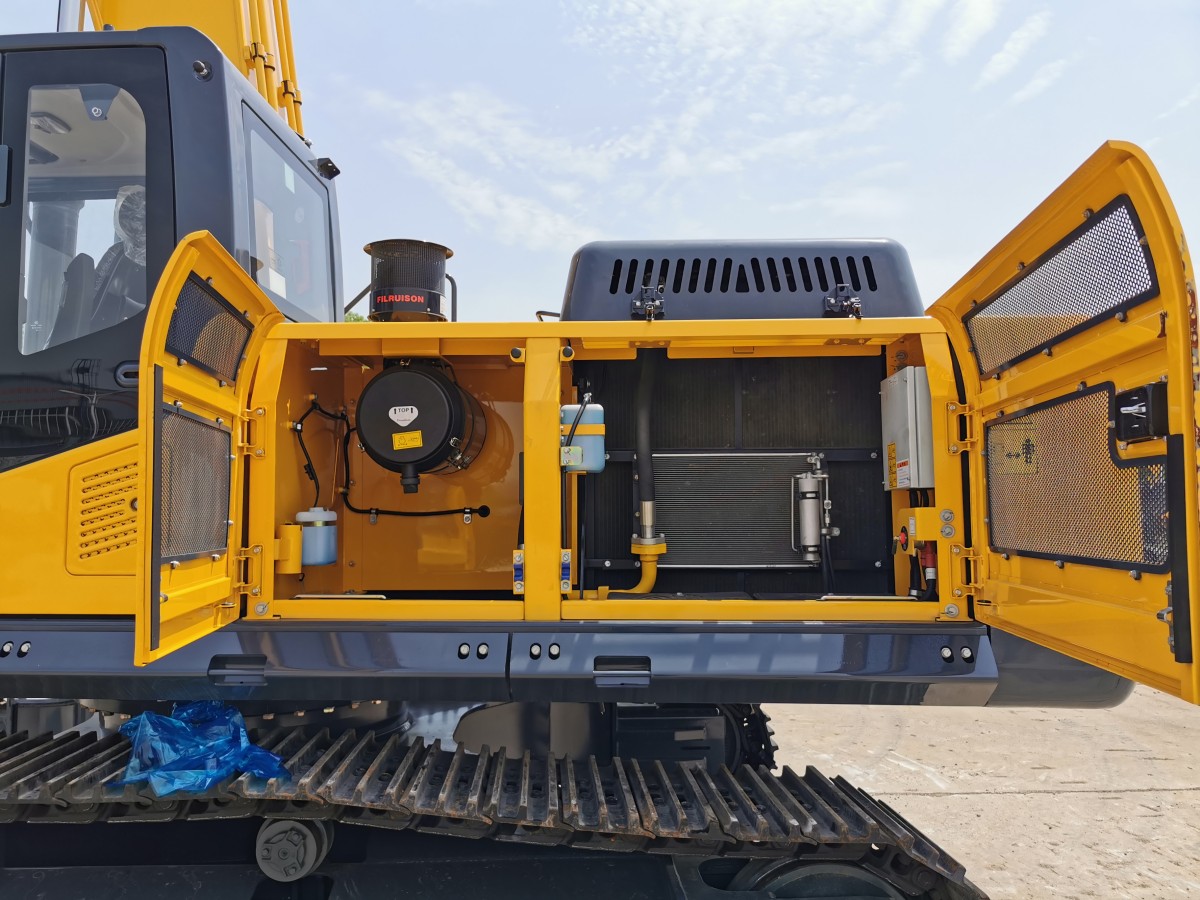

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Technical specifications
ITEM		UNIT	GE330D
Operating weight		Kg	31880
Rated power		KW/rpm	241/2000
Rated bucket capacity		m³	1.6
Overall length	A	mm	10700
Overall width（600mm track）	B	mm	3280
Overall height	C	mm	3546
Platform width	D	mm	3060
Height of cabin	E	mm	3145
Ground clearance of counterweight	F	mm	1193
Engine cover height	G	mm	2563
Min. ground clearance	H	mm	471
Tail length	I	mm	3205
Turning radius of turntable	I’	mm	3250
Wheel base of track shoe	J	mm	4030
Length of chassis	K	mm	4950
Width of chassis	L	mm	3280
Track shoe gauge	M	mm	2680
Standard track width	N	mm	600
Max. traction		m³	273
Traveling speed （H/L）		Km/hr	5.1/3.1
Swing speed		rpm	10.0
Gradeability		Degree(%)	35（70%）
Ground pressure		Kgf/cm²	0.594

ITEM		6.2m arm，2.65m Stick，1.6m³bucket
ITEM		GE330D
Maximum digging radius	A	10233 mm
Ground maximum digging radius	A’	10028 mm
Maximum digging depth	B	6536 mm
Ground maximum digging depth	B’	6331 mm
Maximum vertical digging depth	C	4758 mm
Maximum digging height	D	9617 mm
Maximum dumping height	E	6666 mm
Min. front turning radius	F	4256 mm
Bucket digging force	ISO	225 KN
Stick digging force	ISO	182 KN
