Hydraulic Crawler Excavator

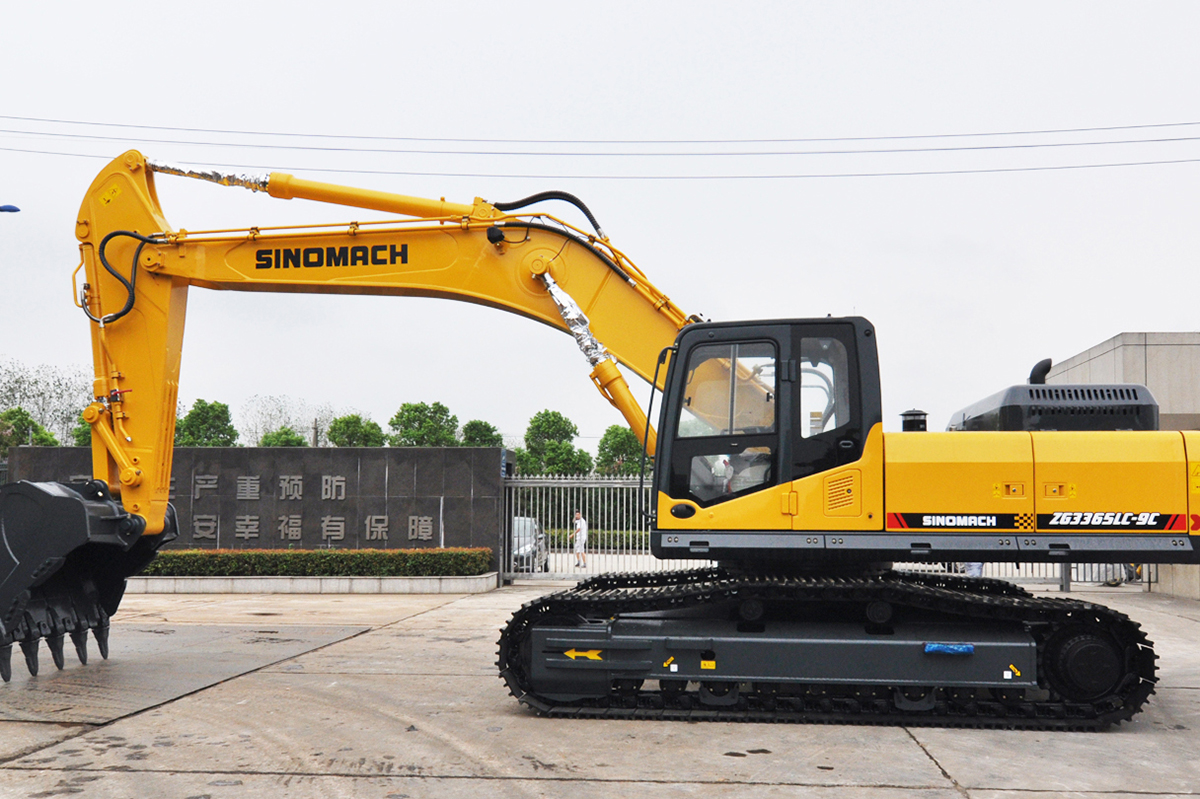

GE365D Hydraulic crawler excavator (3).jpg

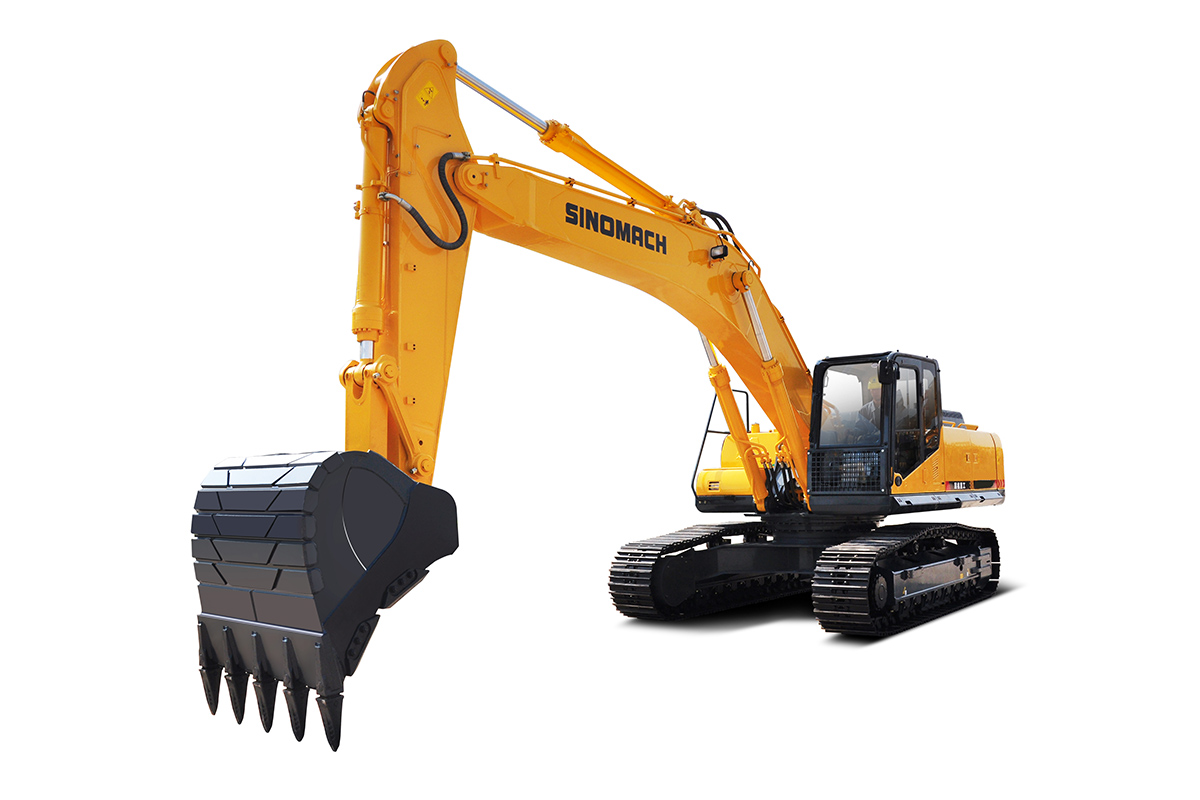

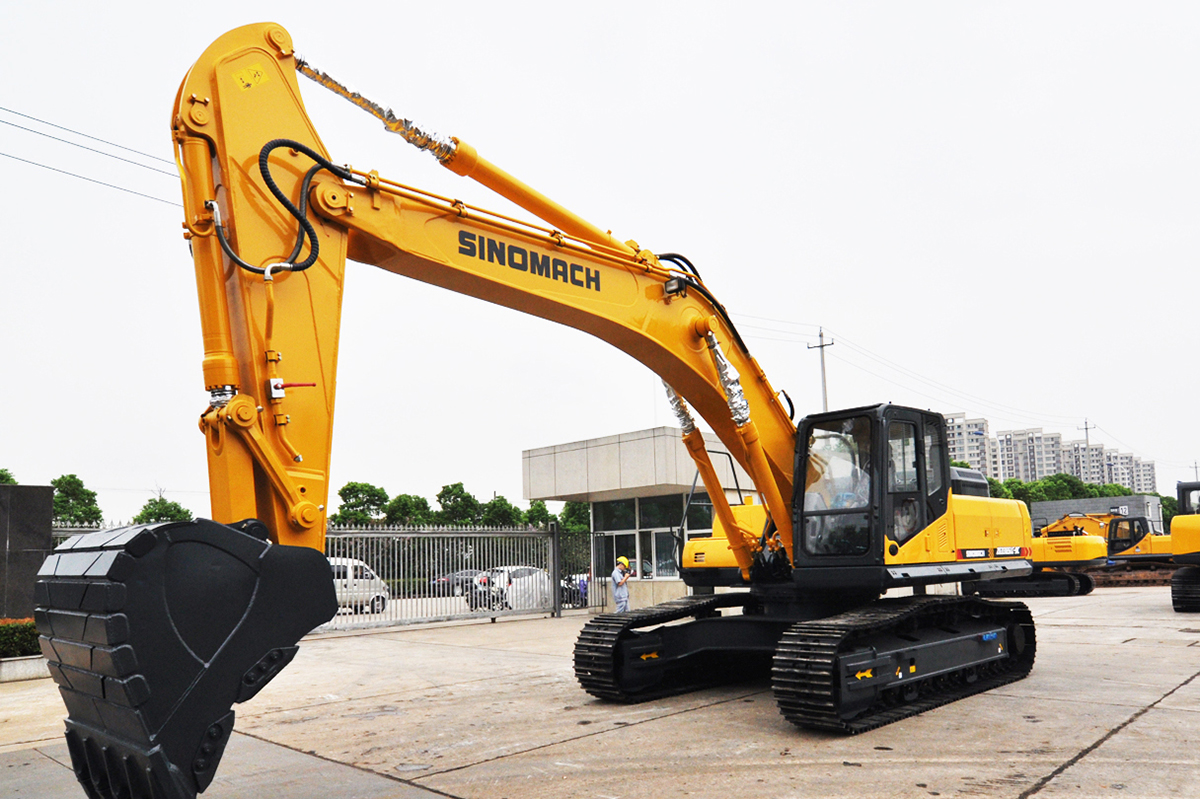

GE365D Hydraulic crawler excavator

•Engine Power：241kw/2000rpm

•Operating Weight：35000kg

Powered by a high-performance Dongfeng Cummins engine, this heavy-duty excavator delivers exceptional power with low fuel consumption and outstanding reliability. The advanced hydraulic system features high-capacity pumps and valves for minimized pressure loss and optimized flow distribution, ensuring smooth operation. With large-bore cylinders and optimized hinge points, it provides enhanced digging force with auto-boost functionality that adapts to load conditions. Specifically designed for extreme mining conditions, it comes standard with reinforced booms, short mining arms, and large-capacity rock buckets, along with an extended heavy-duty undercarriage for superior stability. The intelligent control system dynamically adjusts hydraulic power for optimal performance. An 8-inch anti-glare display offers real-time diagnostics, while the ROPS-certified cab ensures operator comfort with climate control. Comprehensive safety features include anti-slip, overheating protection, and component guards.

product details

description1

cummins

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Technical specifications
ITEM		UNIT	GE365D
Operating weight		kg	35000
Rated power		kW/rpm	241/2000
Rated bucket capacity		m³	1.7
Overall length	A	mm	10921
Overall width（600mm track）	B	mm	3280
Overall height	C	mm	3546
Platform width	D	mm	3060
Height of cabin	E	mm	3145
Ground clearance of counterweight	F	mm	1193
Engine cover height	G	mm	2640
Min. ground clearance	H	mm	471
Tail length	I	mm	3440
Turning radius of turntable	I’	mm	3512
Wheel base of track shoe	J	mm	4030
Length of chassis	K	mm	4950
Width of chassis	L	mm	3280
Track shoe gauge	M	mm	2680
Standard track width	N	mm	600
Max. traction		kN	345
Traveling speed （H/L）		km/hr	4.7/2.5
Swing speed		rpm	9.2
Gradeability		Degree(%)	35（70%）
Ground pressure		Kgf/cm²	0.724

ITEM		6.2m Boom, 2.65m Stick, 1.7m³ Bucket
ITEM		GE365D
Maximum digging radius	A	10233 mm
Ground maximum digging radius	A’	10028 mm
Maximum digging depth	B	6536 mm
Ground maximum digging depth	B’	6331 mm
Maximum vertical digging depth	C	4758 mm
Maximum digging height	D	9617 mm
Maximum dumping height	E	6666 mm
Min. front turning radius	F	4256 mm
Bucket digging force	ISO	225 kN
Stick digging force	ISO	182 kN
