Hydraulic Crawler Excavator

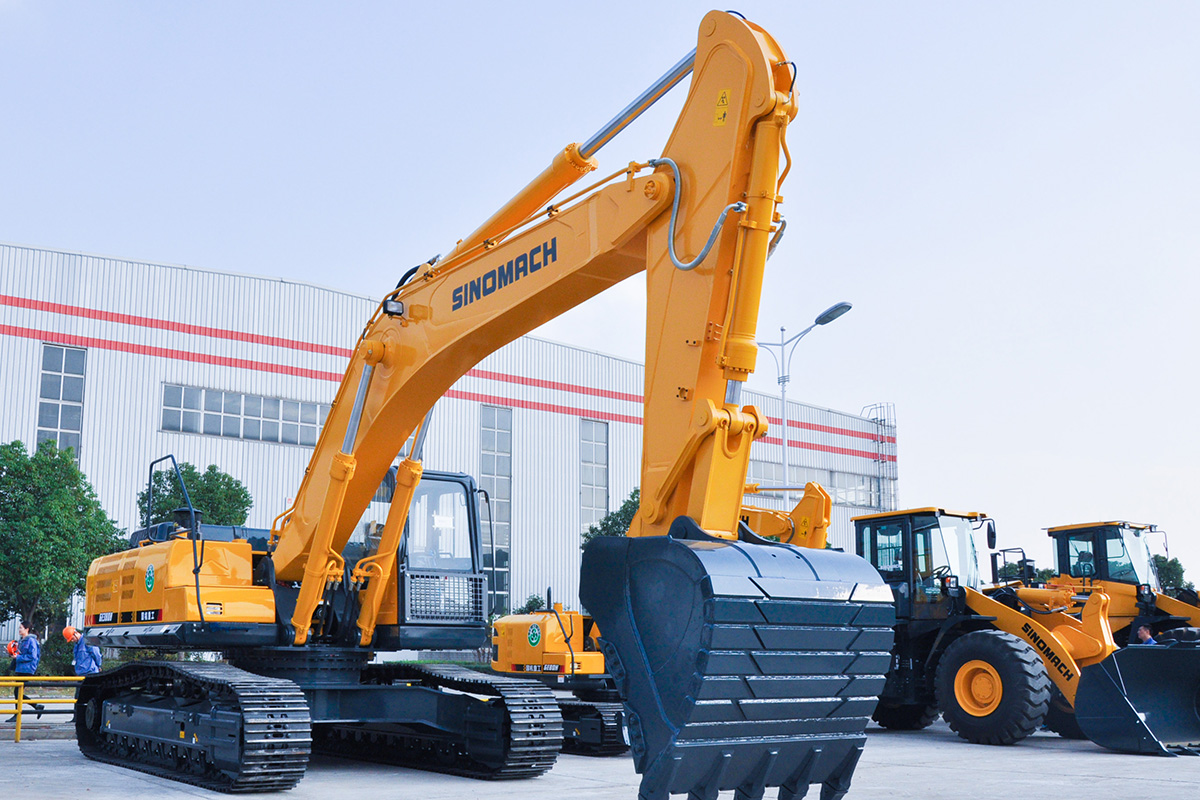

GE385D Hydraulic crawler excavator (2).JPG

GE385D Hydraulic crawler excavator

•Engine Power：241kw/2000rpm

•Operating Weight：37560kg

This mining-grade excavator is equipped with Cummins' latest high-power engine, delivering superior performance with optimized fuel efficiency and proven durability. The innovative hydraulic system incorporates high-flow pumps and valves to minimize energy loss while ensuring precise control. Key features include: auto-pressure-boost cylinders that enhance digging force under heavy loads; high-torque swing system with reinforced gears for reliable rotation; and a reinforced frame structure with mining-specific attachments for extreme conditions. Intelligent power management and an 8-inch diagnostic display maximize operational efficiency. Operator safety and comfort are ensured through ROPS-certified cab design with climate control, complemented by comprehensive protective features.

product details

description1

cummins

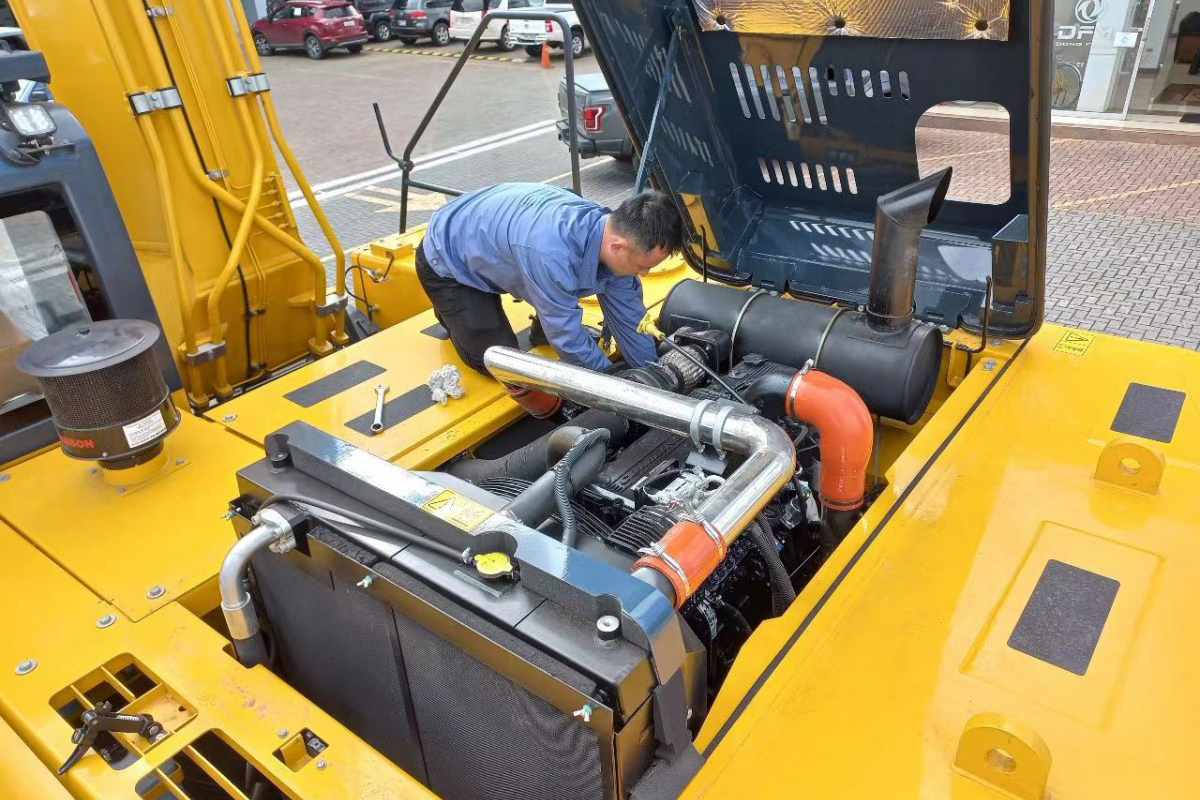

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

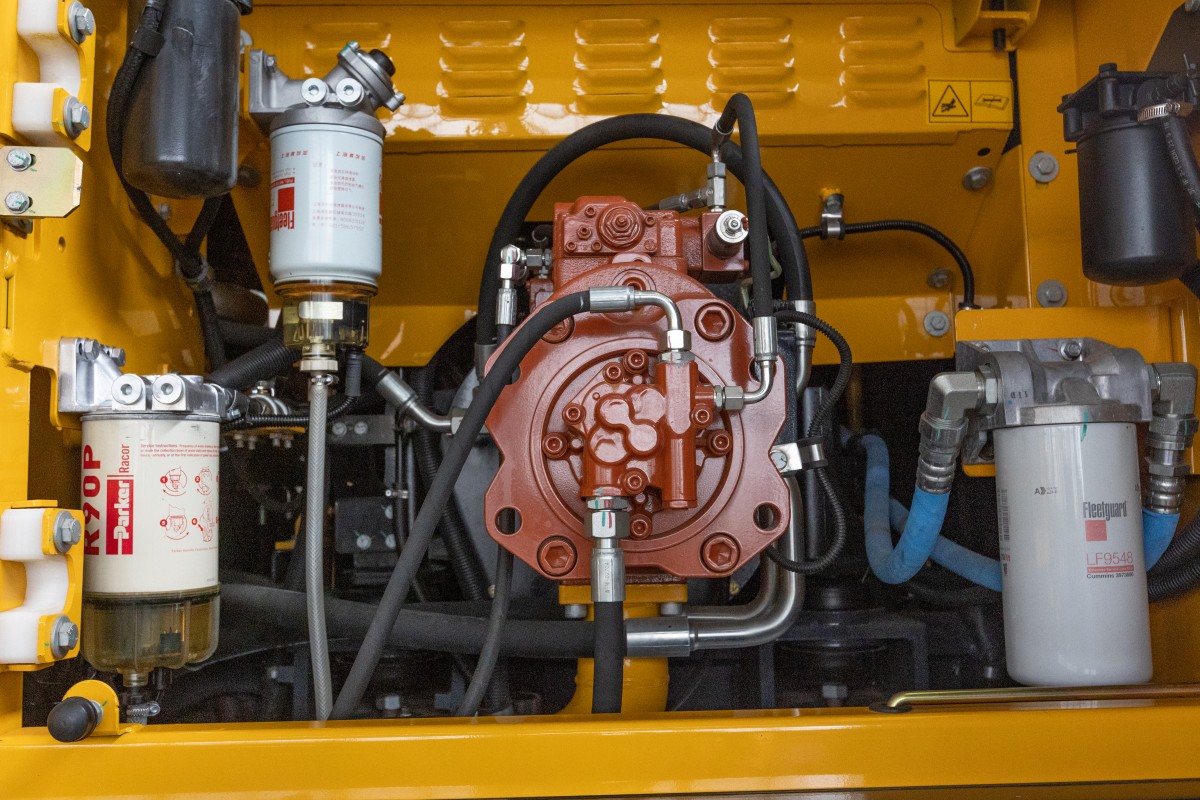

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.

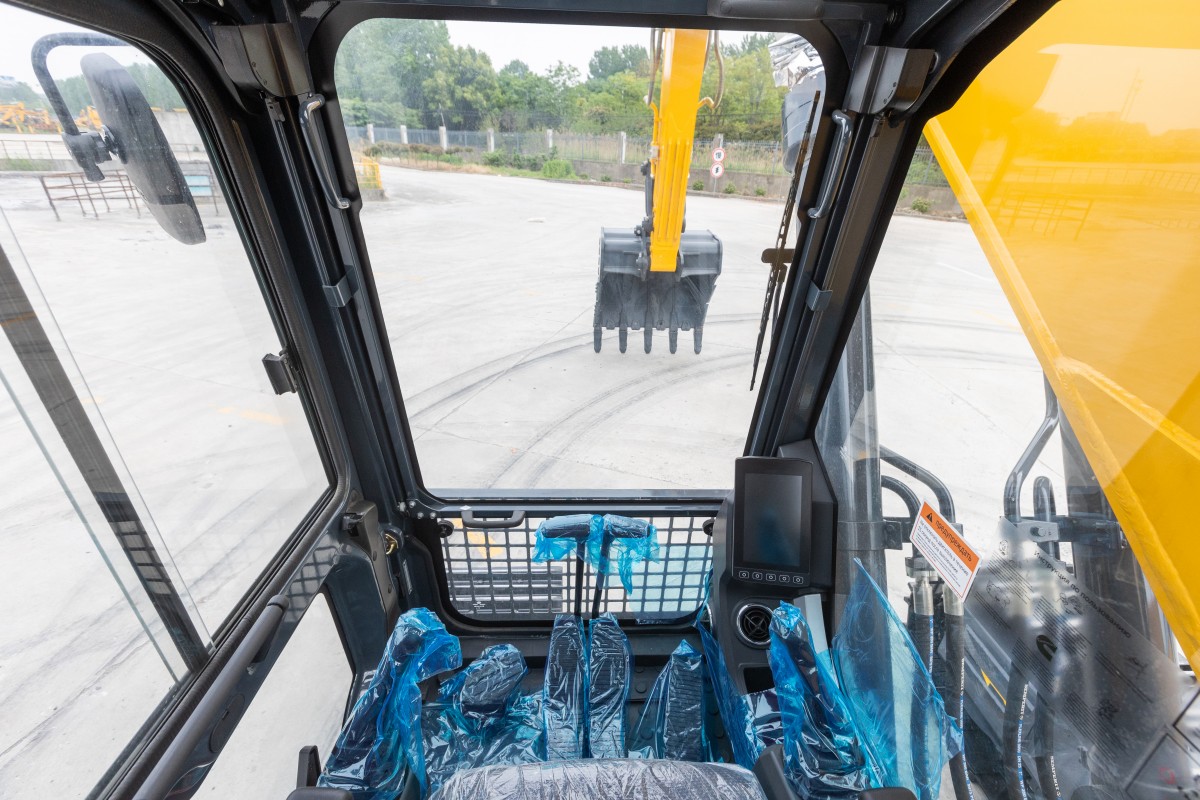

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Specifications
ITEM		UNIT	GE385D
Operating weight		kg	37560
Rated bucket capacity		m³	1.8
Length	A	mm	11280
Width（600mm track）	B	mm	3280
Height	C	mm	3560
Turntable width	D	mm	3155
Height of cabin	E	mm	3172
Ground clearance of counterweight	F	mm	1183
Engine cover height	G	mm	2628
Min. ground clearance	H	mm	471
Tail length	I	mm	3451
Turning radius of turntable	I’	mm	3505
Wheel base of track shoe	J	mm	4050
Length of chassis	K	mm	4962
Width of chassis	L	mm	3280
Track shoe gauge	M	mm	2680
Standard track width	N	mm	600
Max. traction		kN	340
Traveling speed （H/L）		km/hr	5.5/2.9
Swing speed		rpm	10.5
Gradeability		Degree(%)	35（70%）
Ground pressure		kgf/cm²	0.77

ITEM		6.47m Arm 2.6m Stick 1.8m³ Bucket
ITEM		GE385D
Maximum digging radius	A	10546 mm
Ground maximum digging radius	A’	10349 mm
Maximum digging depth	B	5884 mm
Ground maximum digging depth	B’	5707 mm
Maximum vertical digging depth	C	4021 mm
Maximum digging height	D	11110 mm
Maximum dumping height	E	7900 mm
Min. front turning radius	F	3514 mm
Bucket digging force	ISO	240 kN
Stick digging force	ISO	214 kN
