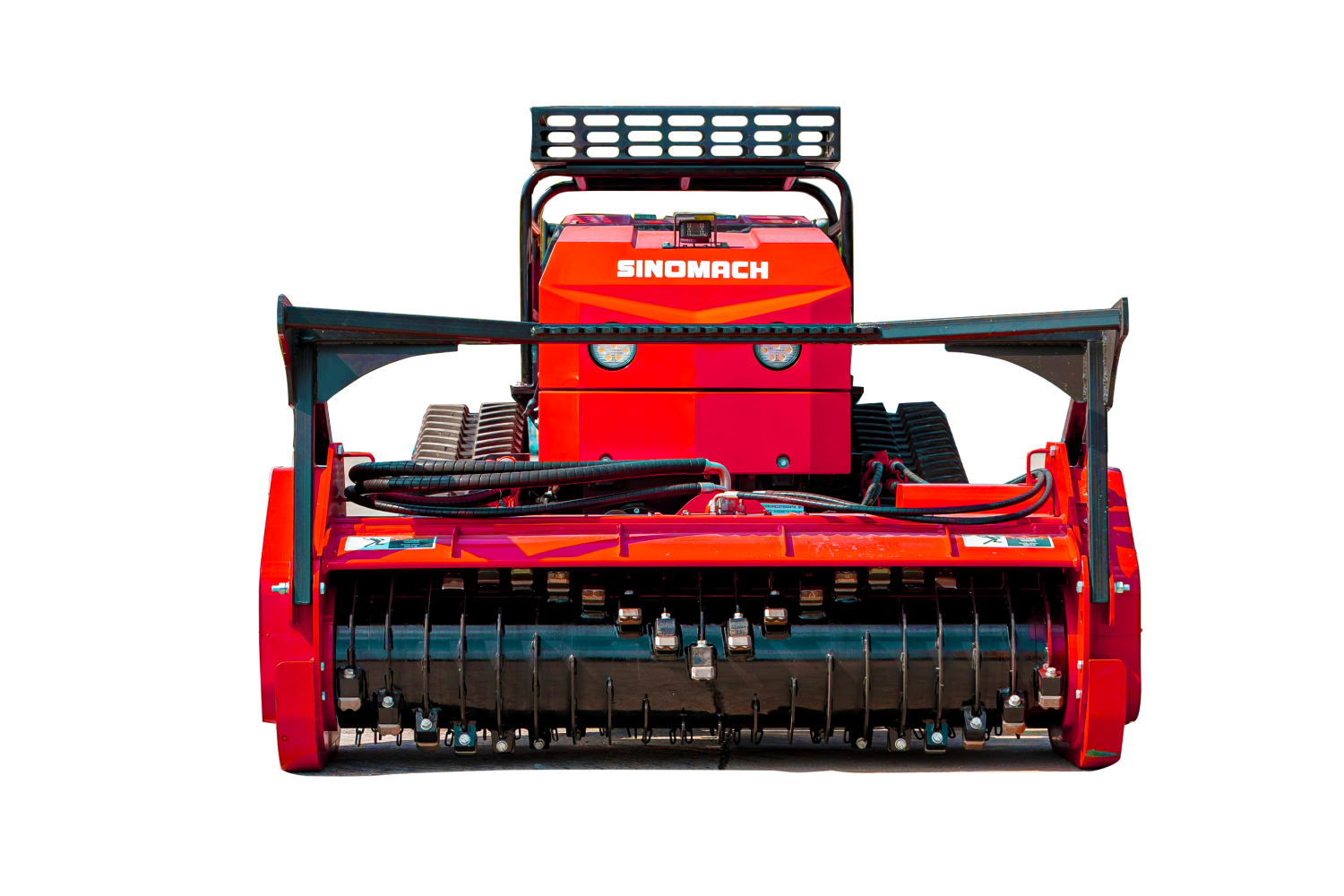

GFS75K-C Small scale forest clearing quipment (2).png

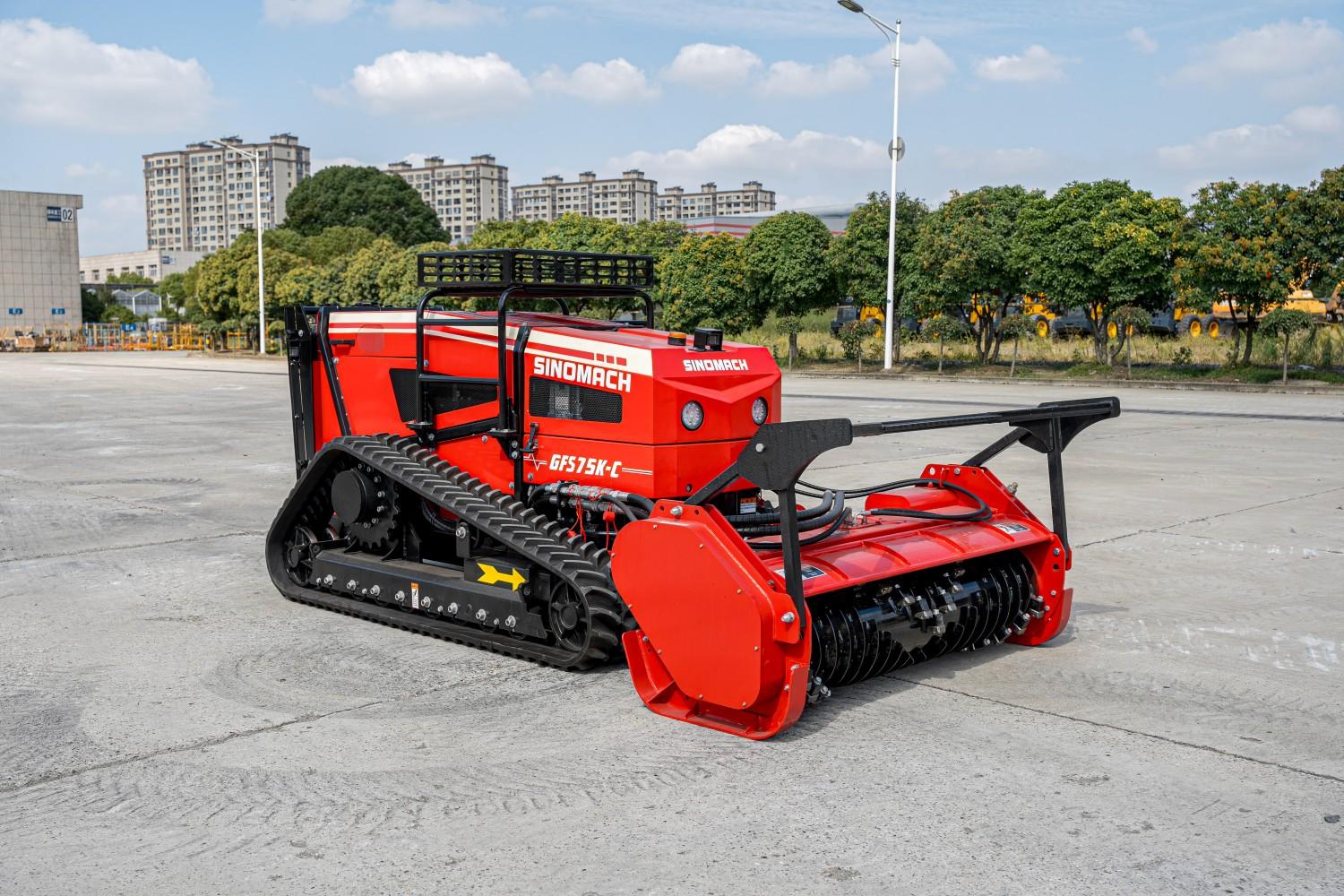

GFS75K-C Small scale forest clearing quipment (1).jpg

GFS75K-C Small scale forest clearing quipment (1).png

GFS75K-C Small scale forest clearing quipment (2).jpg

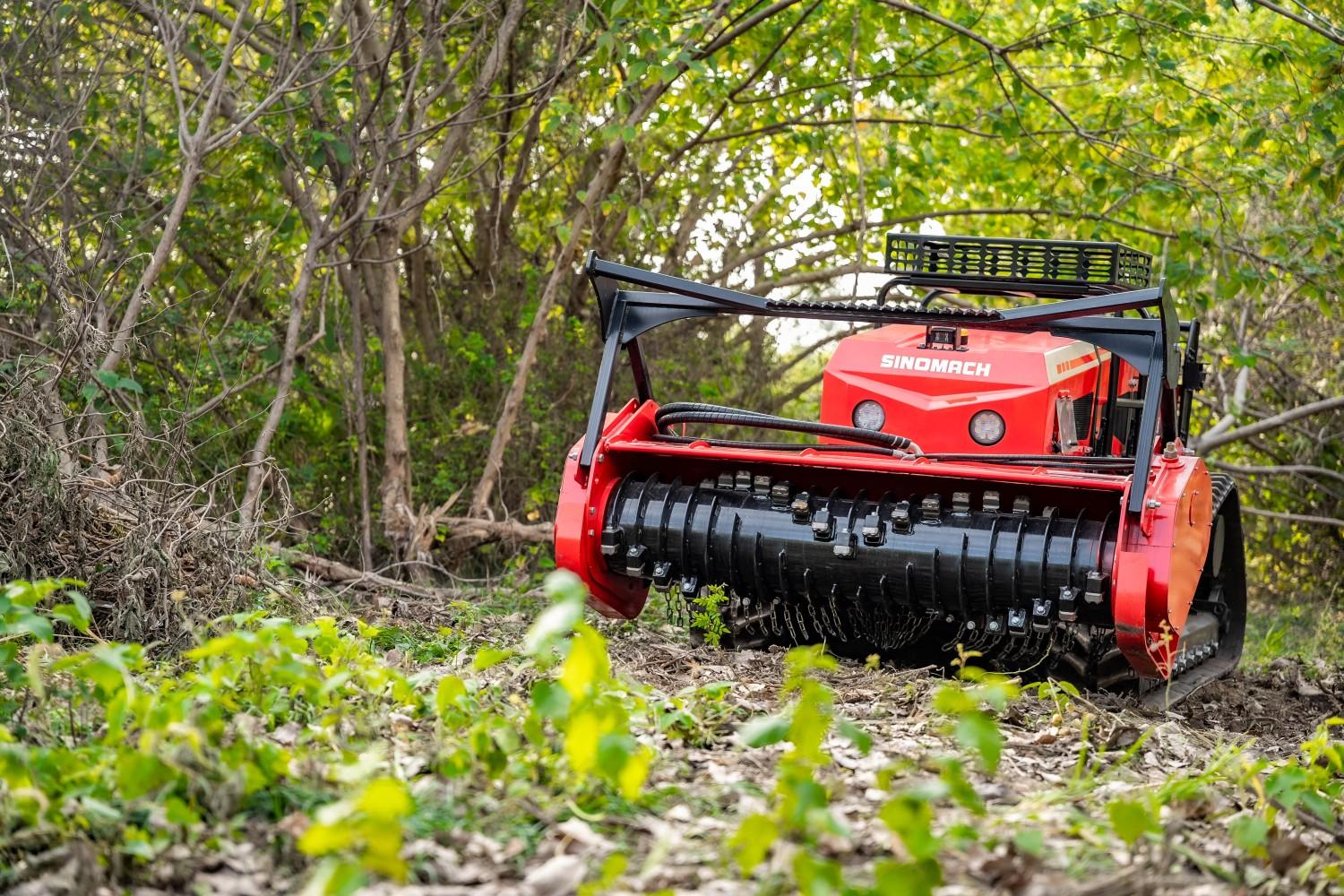

GFS75K-C Small scale forest clearing quipment (3).jpg

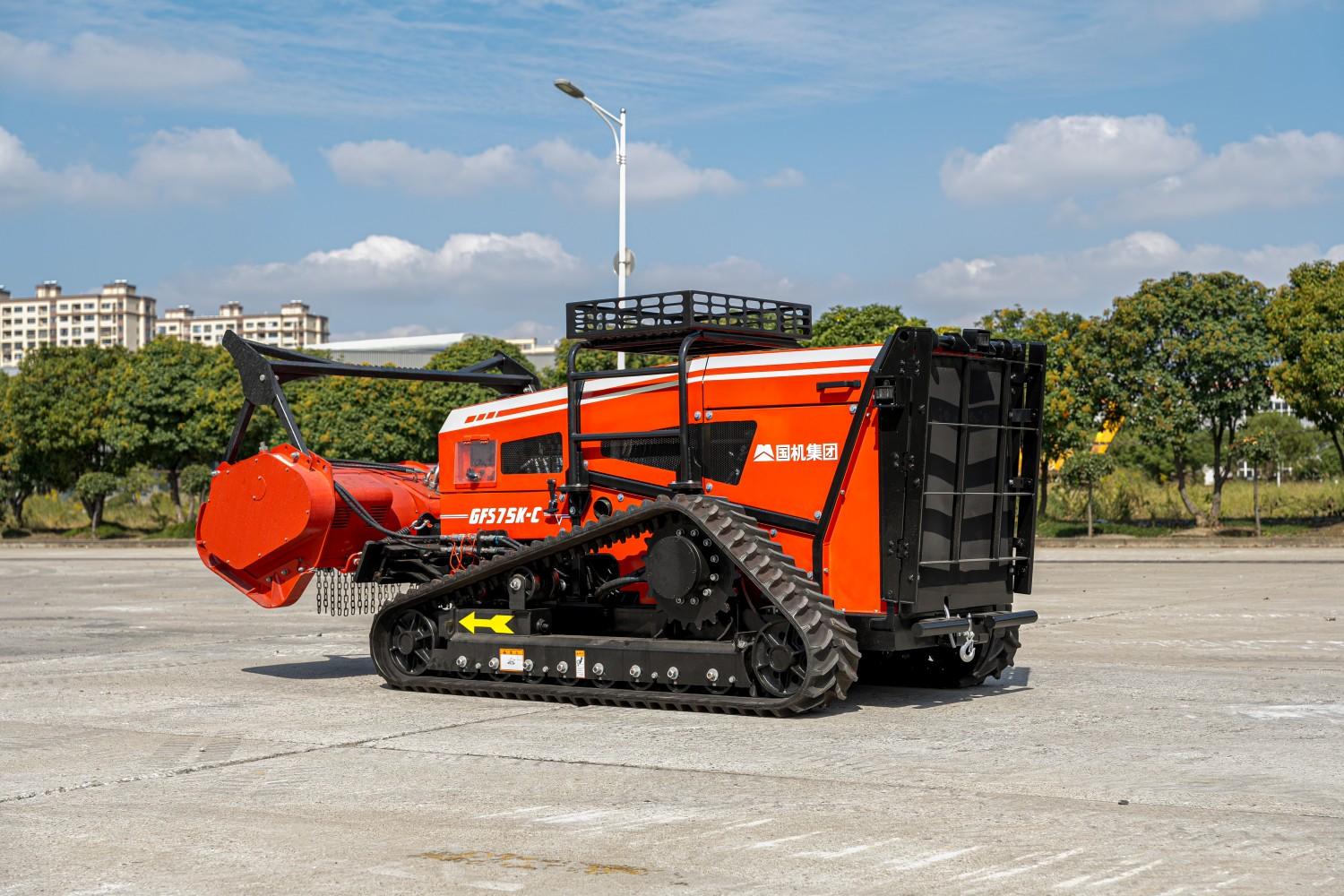

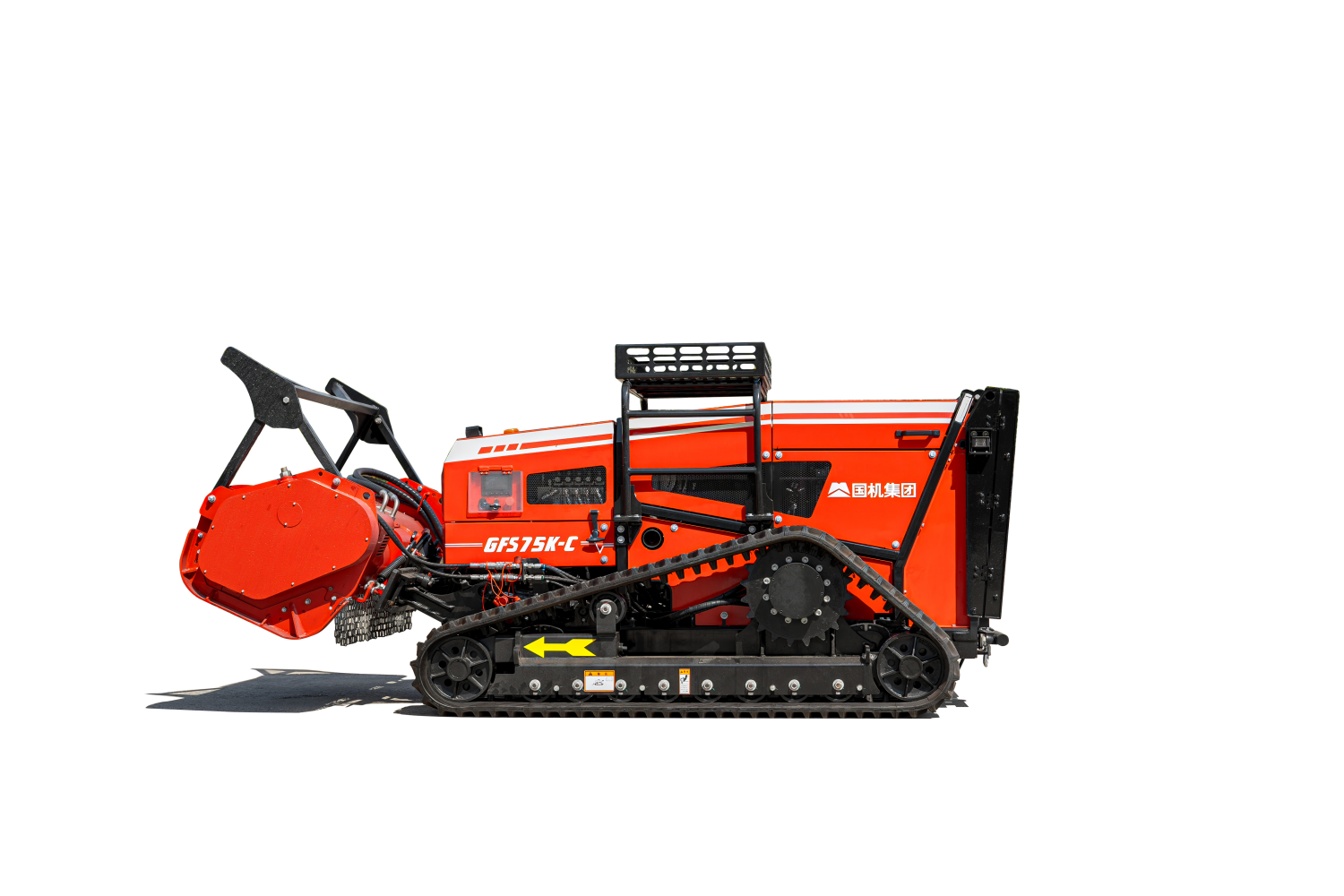

GFS75K-C Small scale forest clearing quipment

This product features an innovative lubrication system and all-terrain adaptive operation technology. It delivers stable, continuous operation for 8 hours on 45° inclines and achieves a maximum obstacle clearance angle of 60°. The intelligent information system fully integrates with multiple remote monitoring and dispatch platforms. Combined with smart power distribution and precise oil temperature control, it achieves high efficiency and energy savings, significantly boosting overall operational performance. The equipment utilizes a modular quick-change attachment system, enabling rapid switching between over twenty operational modes—including land clearing, trenching, and firefighting—making it widely applicable for forestry management, grassland ecological restoration, emergency firefighting, and other scenarios. This truly delivers multi-purpose functionality and high-efficiency operation in a single machine.

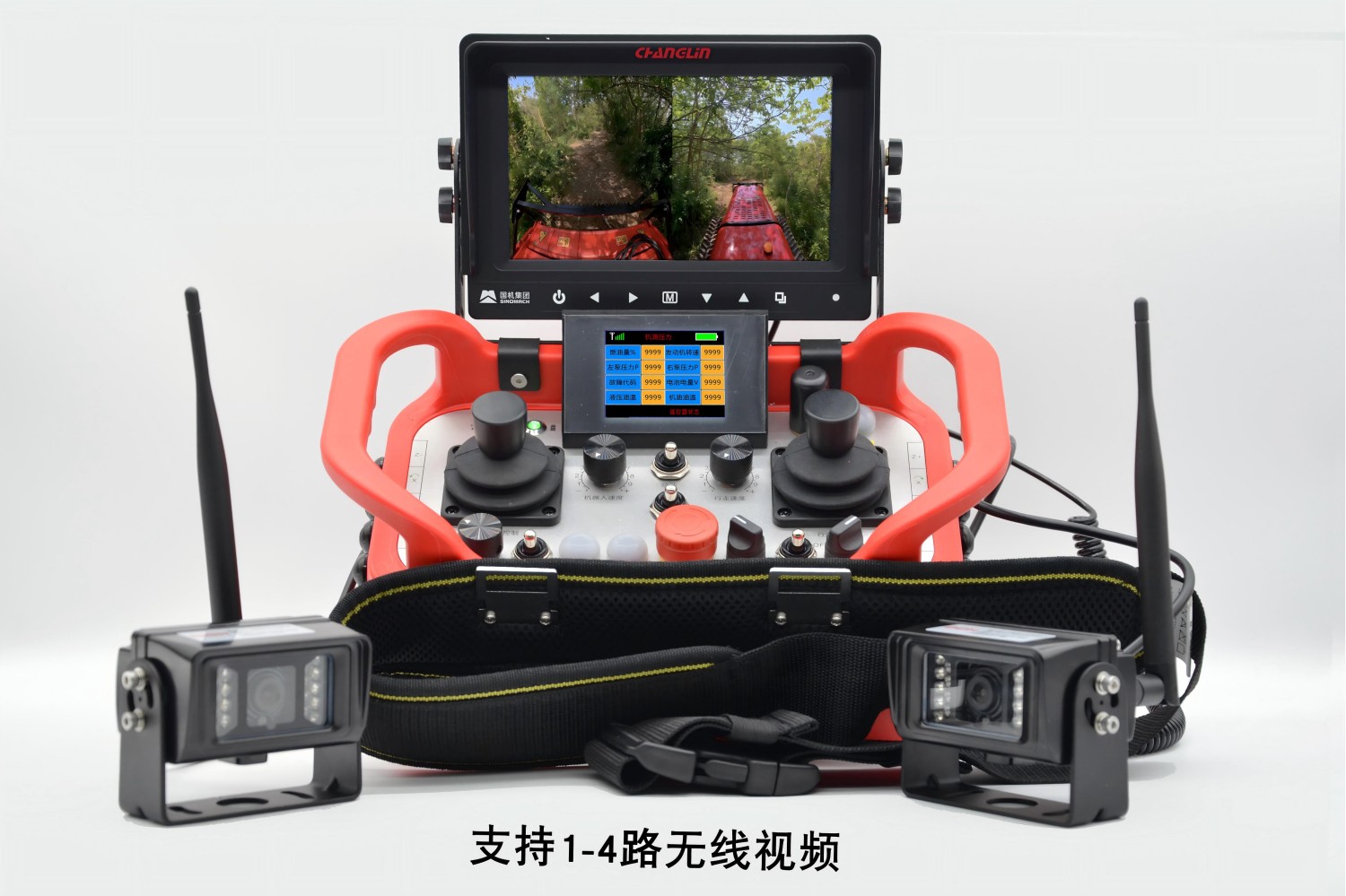

Equipped with a remote control solution.

Optional 200m+ over-the-horizon remote control operating system. Supports 1-4 video transmission channels Flexible and safe operation.

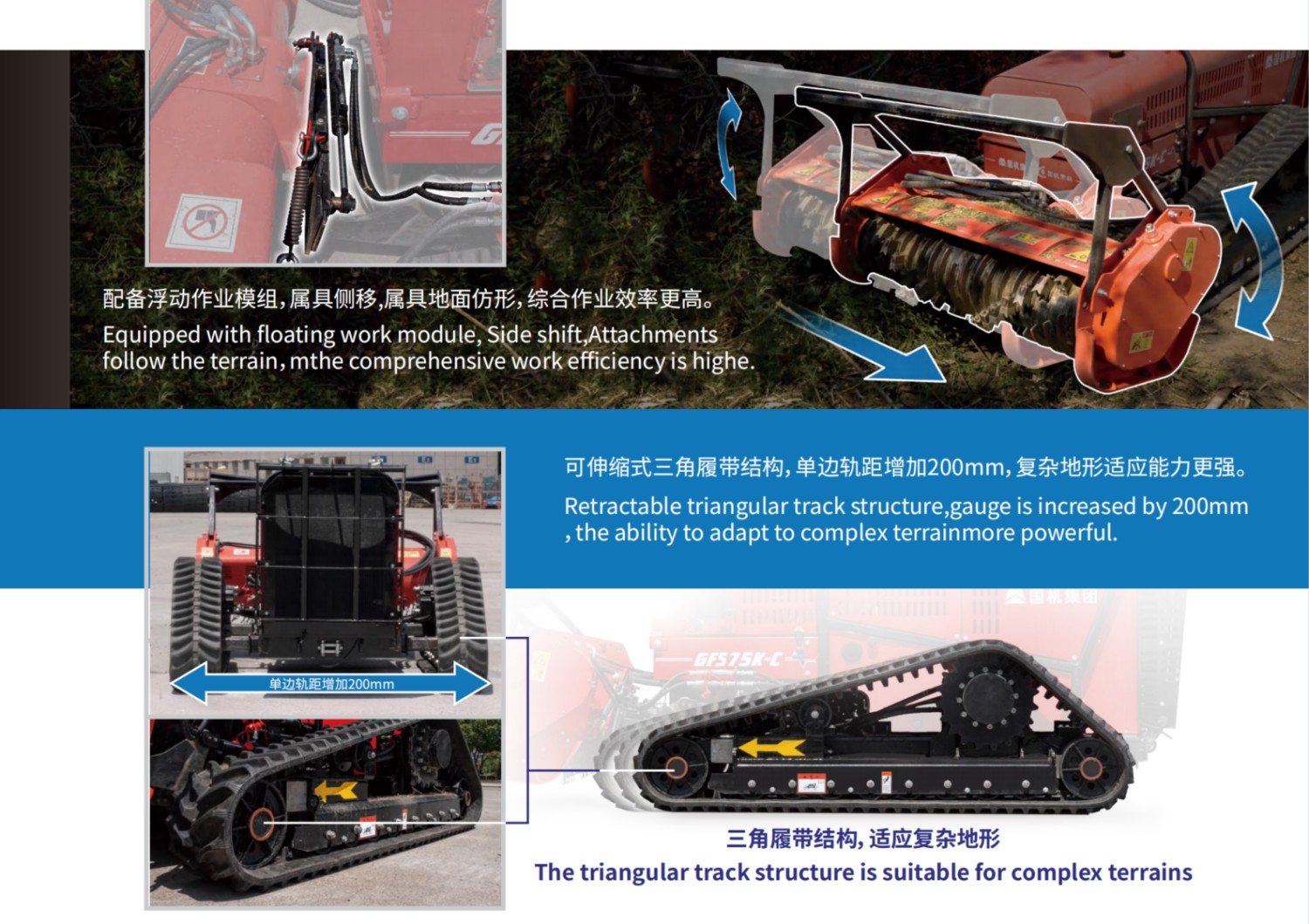

The telescopic triangular track structure

Telescopic track structure for navigating complex terrain

Scalable track structure, with each side extending by 200mm,offers enhanced adaptability to complex terrains.

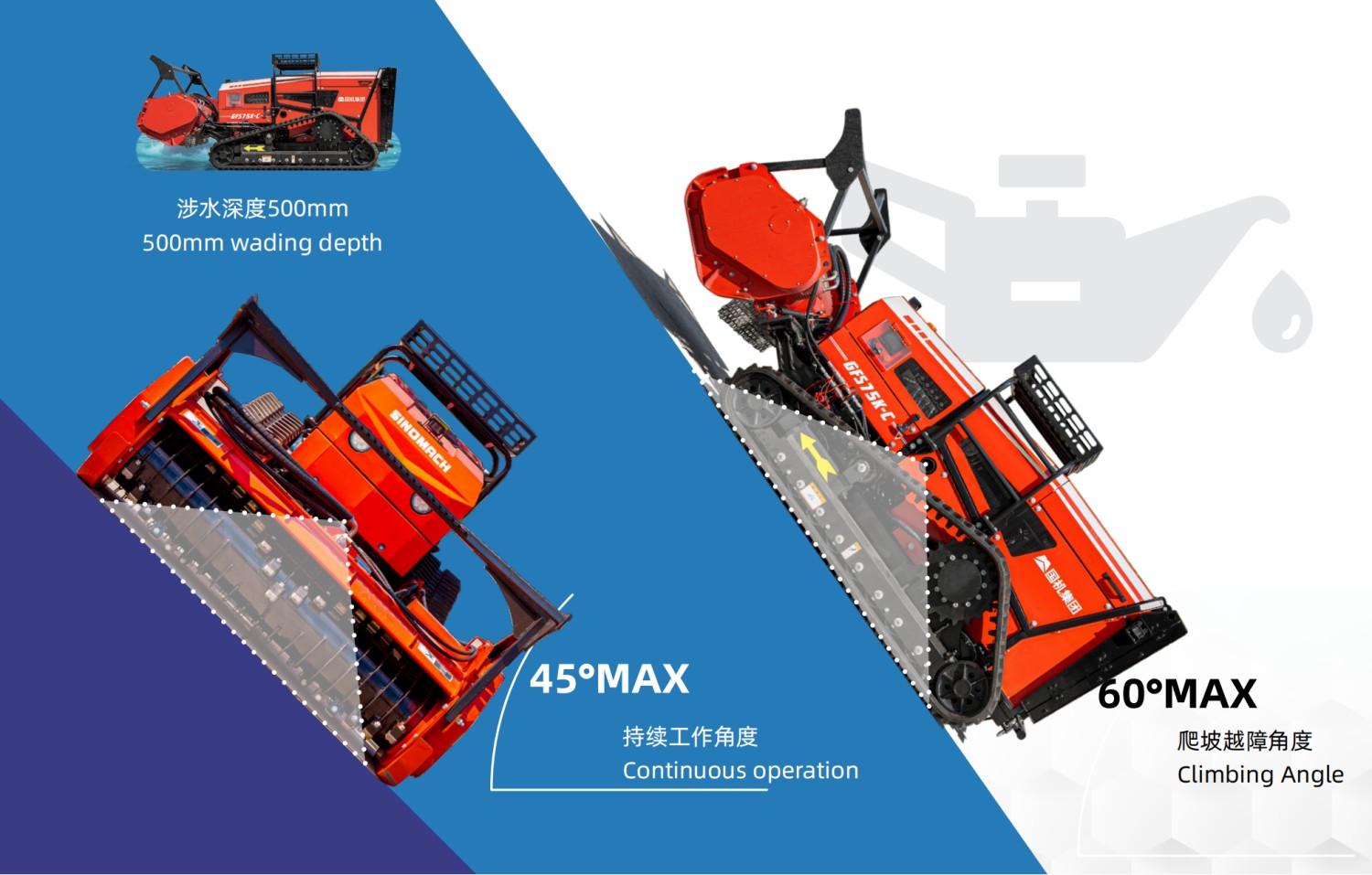

Innovative oil lubrication system

An innovative lubrication system specifically designed for extreme conditions provides robust support, enabling the equipment to operate calmly and steadily on 45° steep slopes with sustained performance.With powerful traction capabilities, it conquers diverse terrains and overcomes obstacles up to 60°, fearlessly tackling the most demanding challenges.

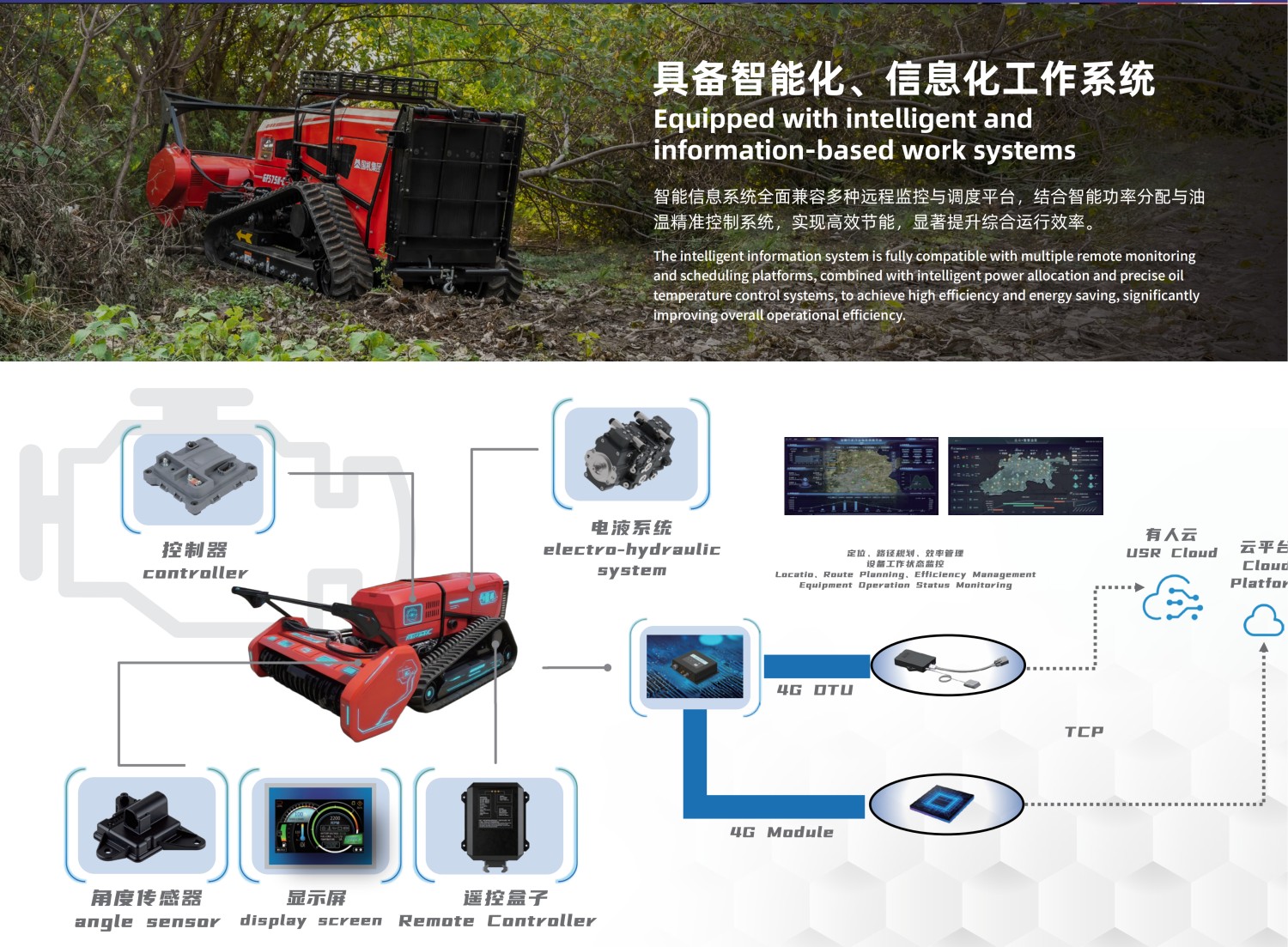

Equipped with intelligent and information-based work systems

The intelligent information system is fully compatible with multiple remote monitoring and scheduling platforms, combined with intelligent power allocation and precise oil temperature control systems, to achieve high efficiency and energy saving, significantly improving overall operational efficiency

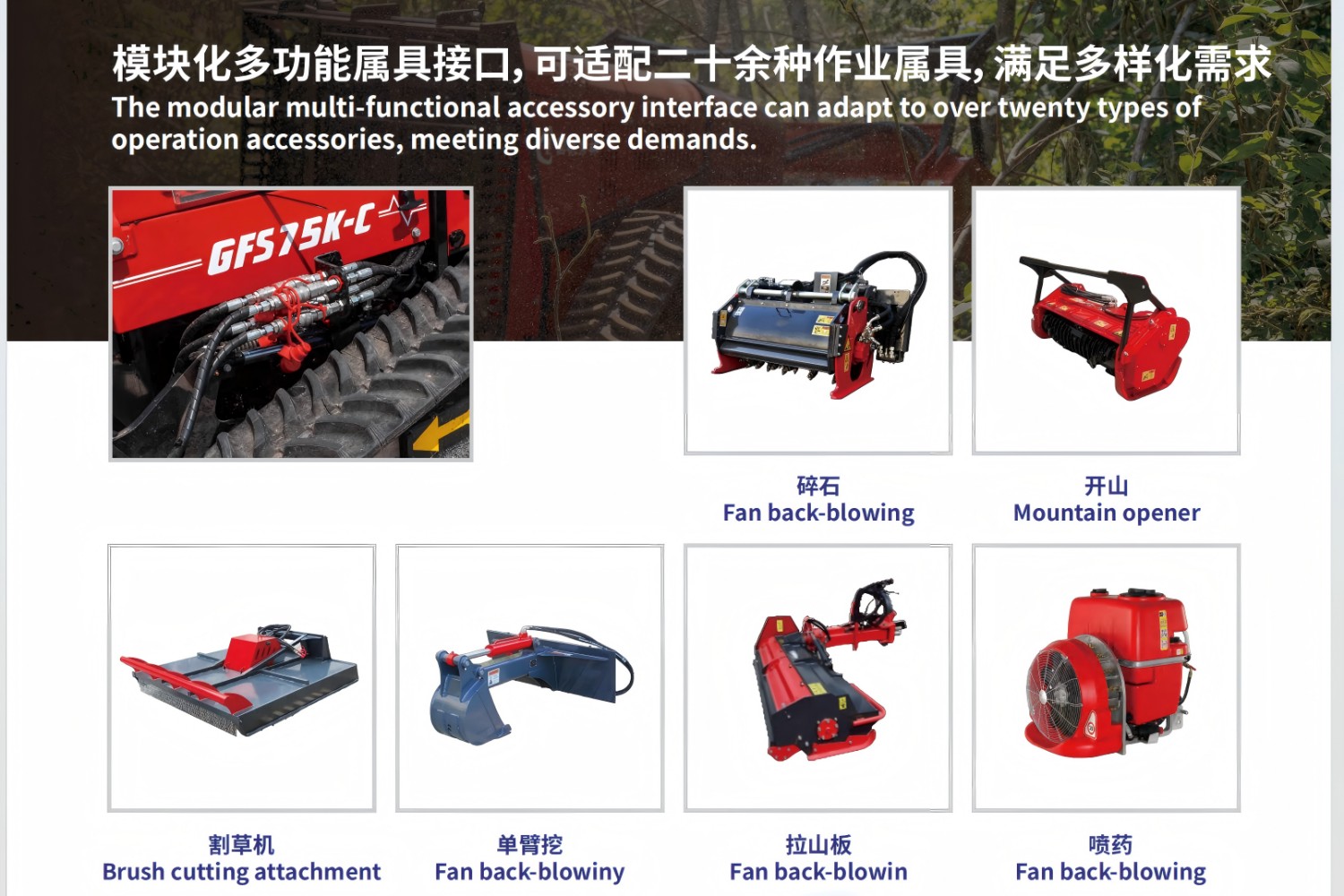

modular multi-functional accessory interface

Equipped with intelligent and information-based work systems

Products pecifications

	GFS75K-C	GFS50K-C
Length(with clearing head)	3750	3135
Length(bare machine)	2725	2325
Width	1510	1300
Height	1390	1190
Engine Power	55	35.5
Max.Engine Torque	320	140
Max.Engine Speed	2400	3000
Max.Remote Control Distance	200 (Std. Equip. )	200 (Std. Equip.)
Travel Speed	8.3	6/13
Track Width	300	250
Track Extension Range	200 per side	200 per side
Net Weight	3280	2100
Fuel Tank Capacity	65	40
Hydraulic Oil Tank Capacity	37	41
Max.Gradability	60	60
Stable Operating Angle	45	45
Continuous Operating Time	≥8	≥8
Tool Side Shift Distance	150 per side, extendable to 500mm per side by adjusting the hitch points	150 per side, extendable to 500mm per side by adjusting the hitch points
Wading Depth	500	500
Winch Pulling Force	2000 (Std. Equip.)	2000 (Std. Equip.)
Clearing Head Cutting Width	1500	1200
Clearing Head Cutting Speed	2200	2400
Clearing Head Max.Tree Diameter	≥250	≥150
Clearing Head Drum Diameter	440	350
Clearing Head Number of Teeth	39	33
Clearing Head Max.Tilling Depth	30	20
