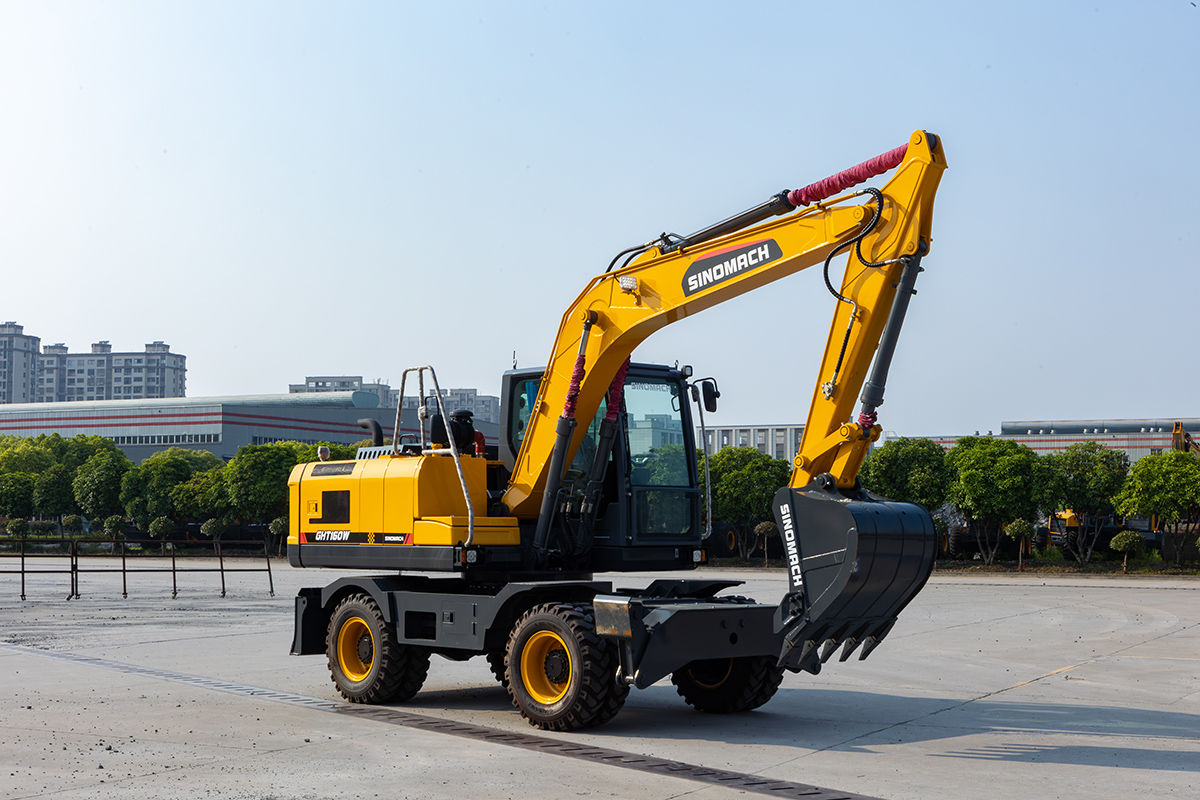

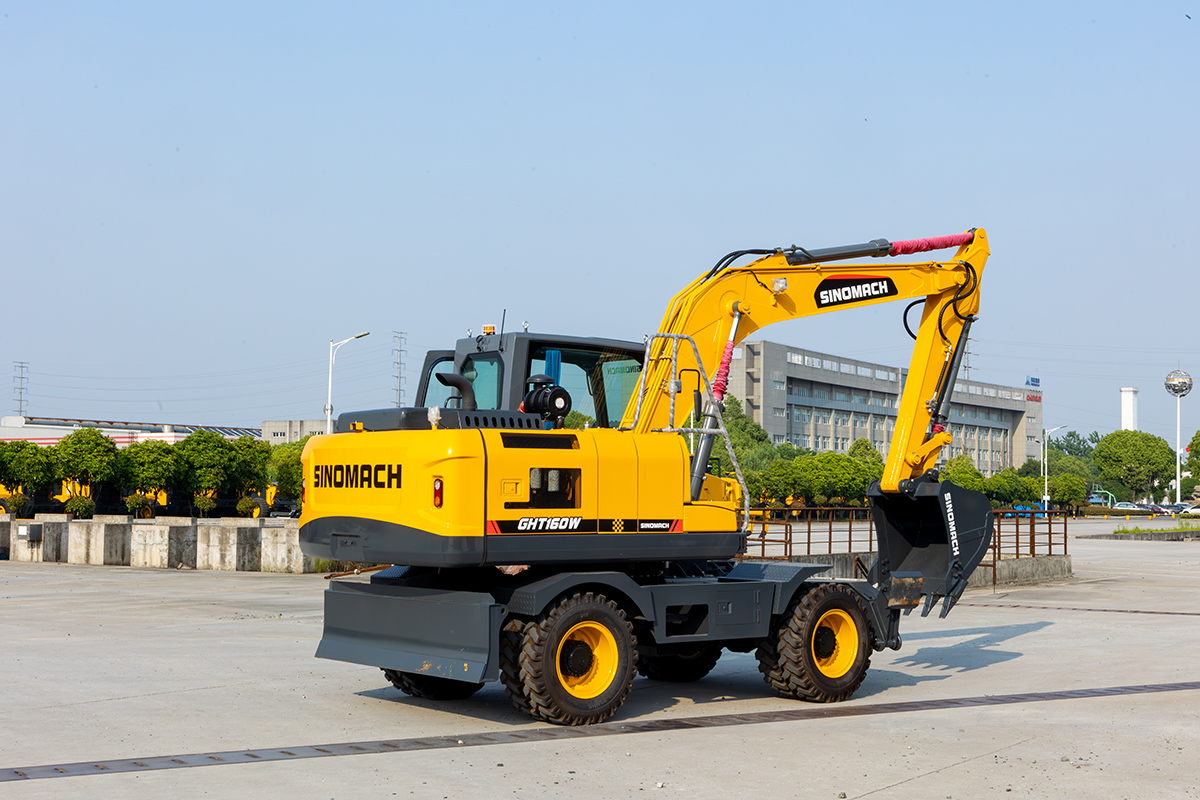

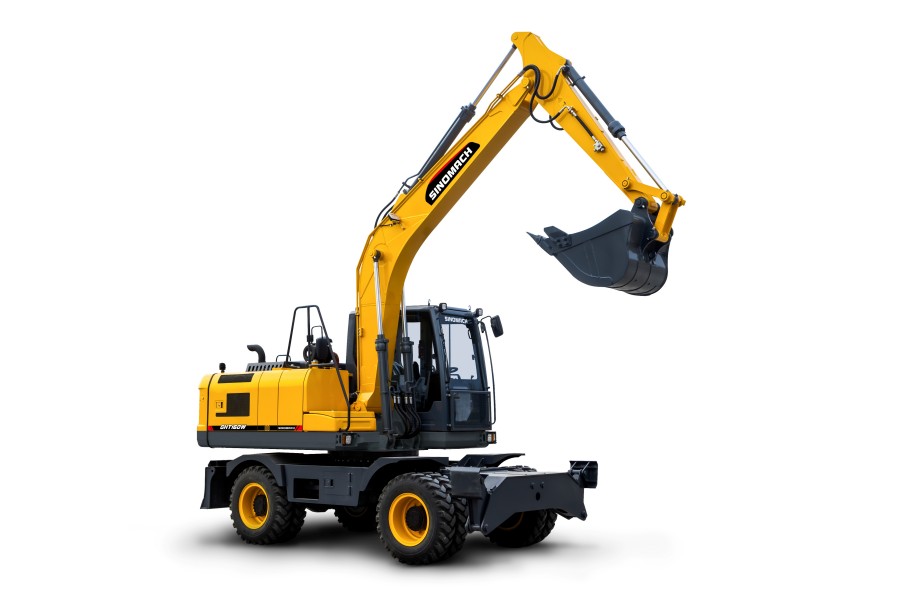

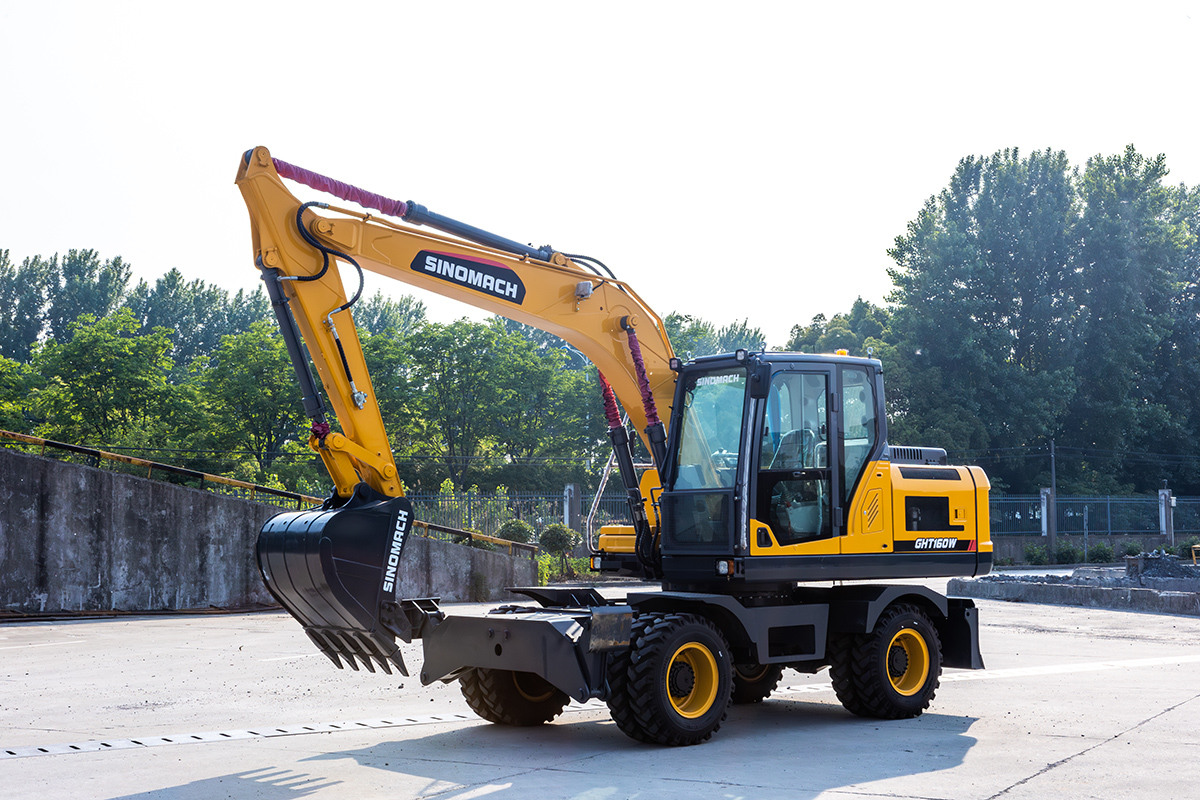

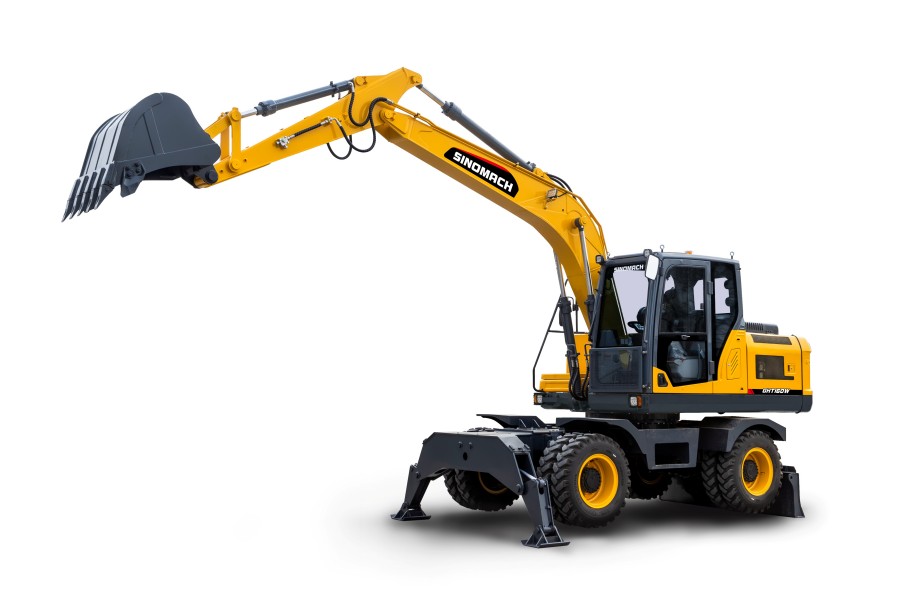

GHT160W Wheeled Hydraulic Excavator
description1
01
cummins

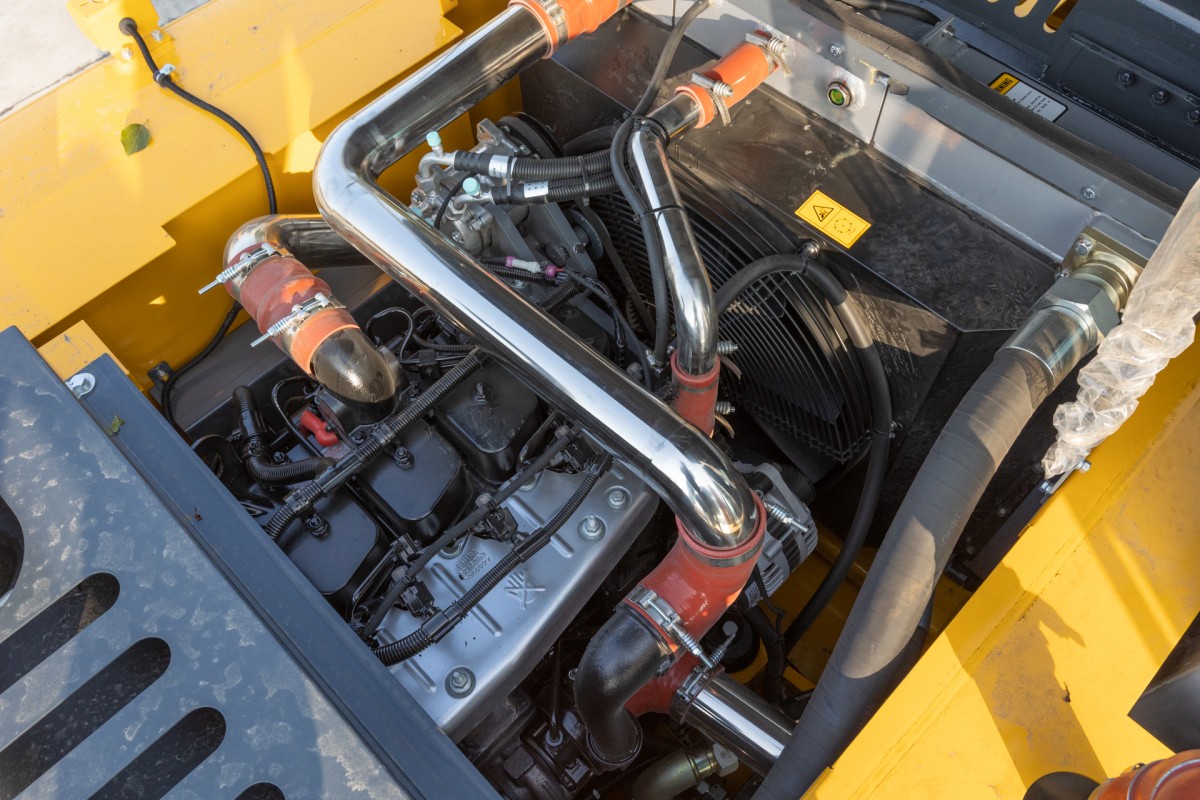

The CUMMINS high-power engine delivers exceptional performance with robust power output, optimized fuel efficiency, and industry-leading reliability. Engineered for demanding applications, it combines advanced combustion technology with durable components to ensure consistent operation under extreme conditions while minimizing operational costs.

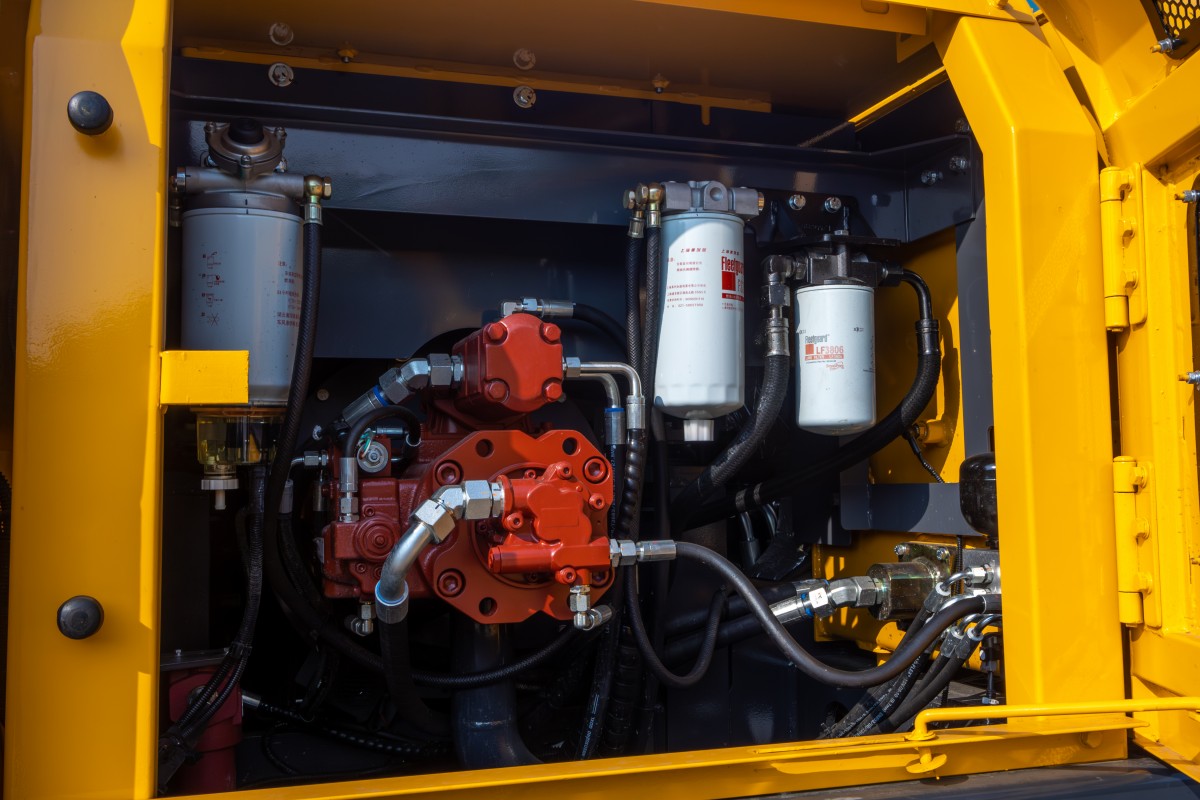

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

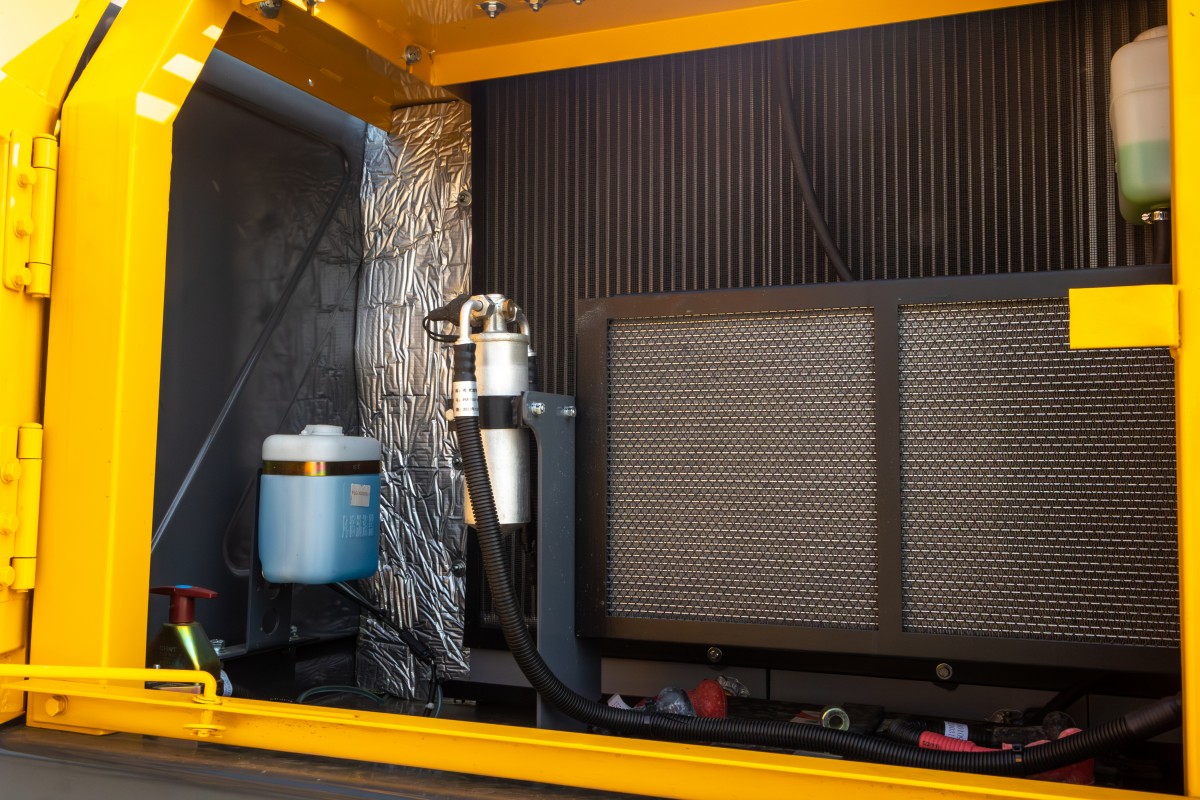

This innovative maintenance system adopts a humanized centralized and remote ground maintenance design, significantly reducing operational complexity. By integrating intelligent monitoring and ergonomic interfaces, it achieves lighter maintenance workloads while ensuring high accessibility for technicians across all service scenarios.

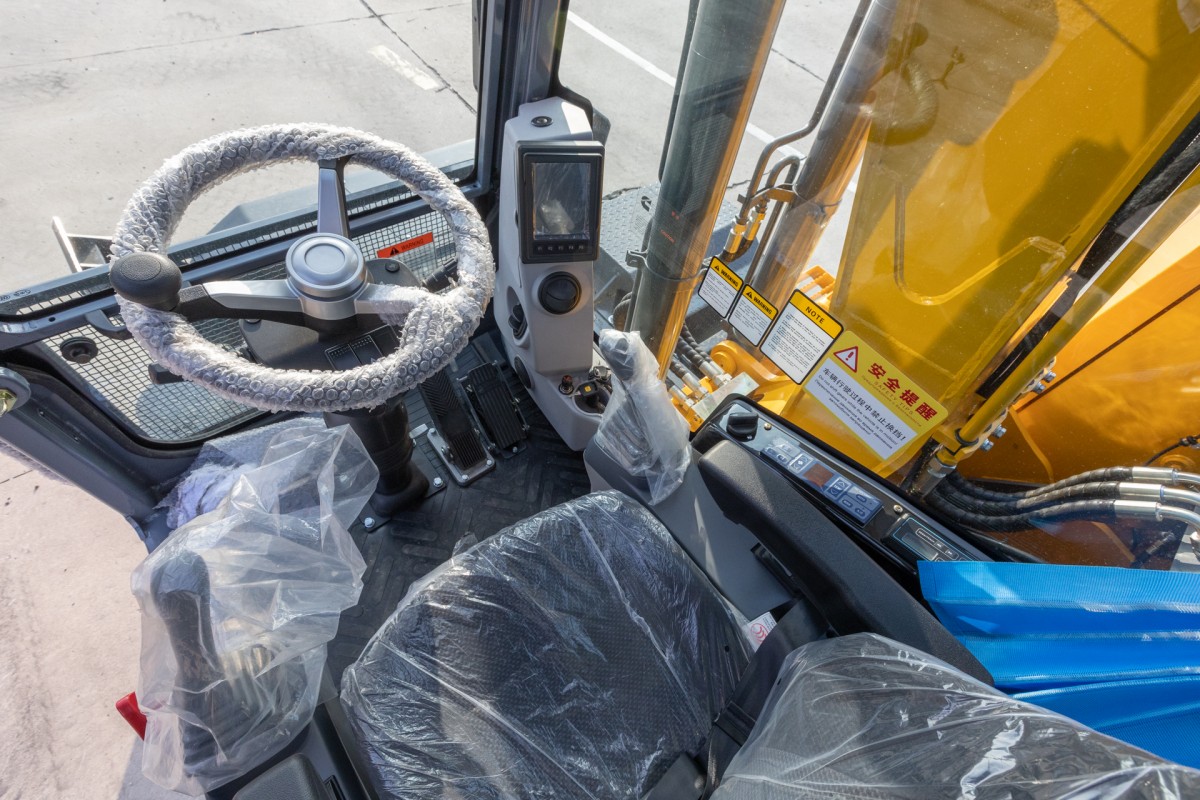

The newly designed cab features enhanced safety and reliability, complemented by brand-new injection-molded interior components for a stylish yet functional aesthetic. Its spacious layout ensures optimal comfort, while the integrated fully automatic climate control system delivers year-round temperature regulation with precision.
Products pecifications
Engine model |
QSB3.9-C125-30 |
Power |
93kw/2200rpm |
Operating Weight (kg) |
14500 |
Bucket capacity (m ³) |
0.6 |
Dimensions | |
Transportation length (mm) |
7900 |
Transportation height (mm) |
3255 |
Overall width (mm) |
2580 |
Tail turning radius (mm) |
2395 |
Track width (mm) |
1900 |
Wheelbase (mm) |
2645 |
Scope of work | |
Max excavation height (mm) |
8720 |
Max unloading height (mm) |
6300 |
Max excavation depth (mm) |
4865 |
Max excavation radius (mm) |
8060 |
Working parameters | |
Hydraulic system pressure (Mpa) |
32 |
Hydraulic system flow (L/min) |
2*130 |
Boom length (mm) |
4600 |
Stick length (mm) |
2200 |
Bucket digging force (kN) |
85 |
Stick digging force (kN) |
53 |
Fuel tank capacity (L) |
220 |
Hydraulic oil tank capacity (L) |
180 |
Climbing slope (%) |
≥60 |
Rotation speed (r/min) |
11-14 |
Max traveling speed (km/h) |
30 |
Bulldozer plate size (mm) |
2500*640 |
Plate lifting height (mm) |
450 |
Plate support height (mm) |
110 |
