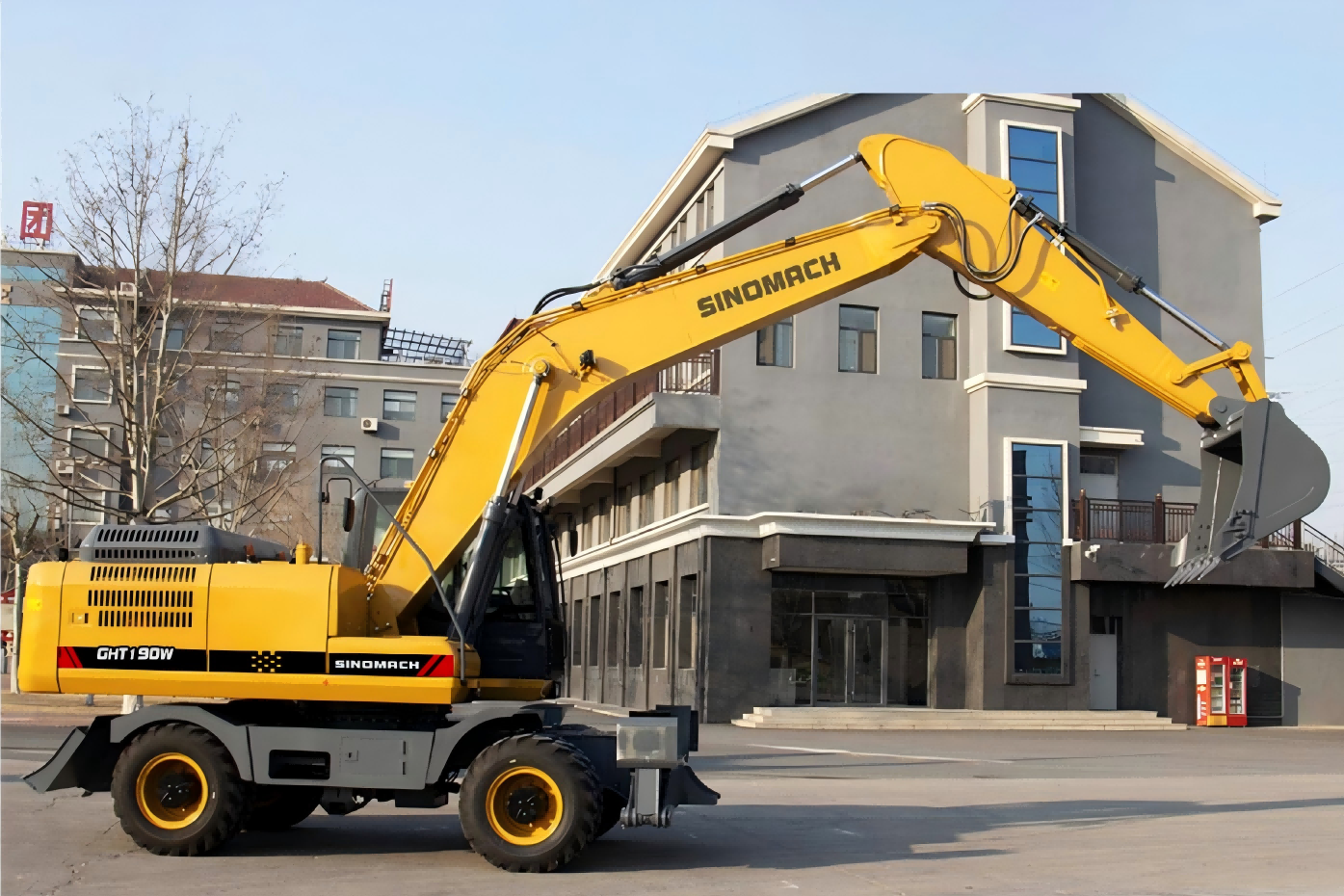

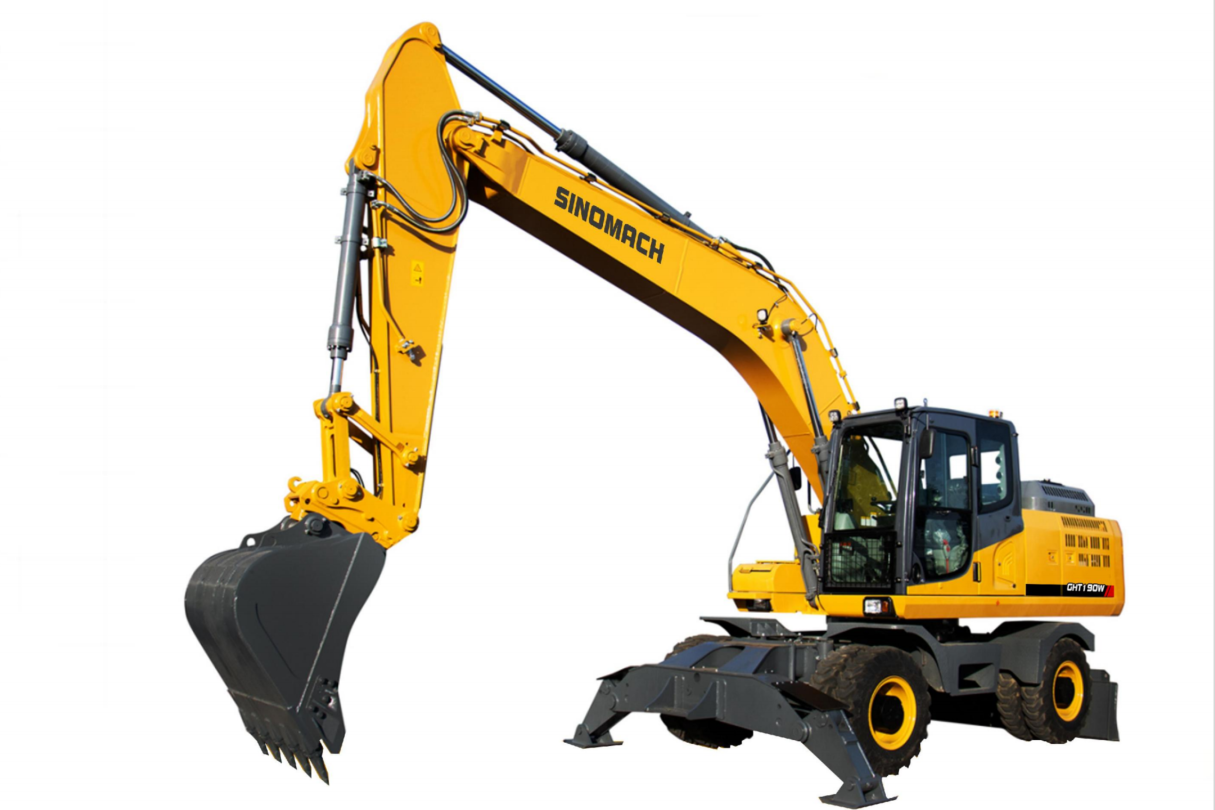

GHT190W Wheeled Hydraulic Excavator
01

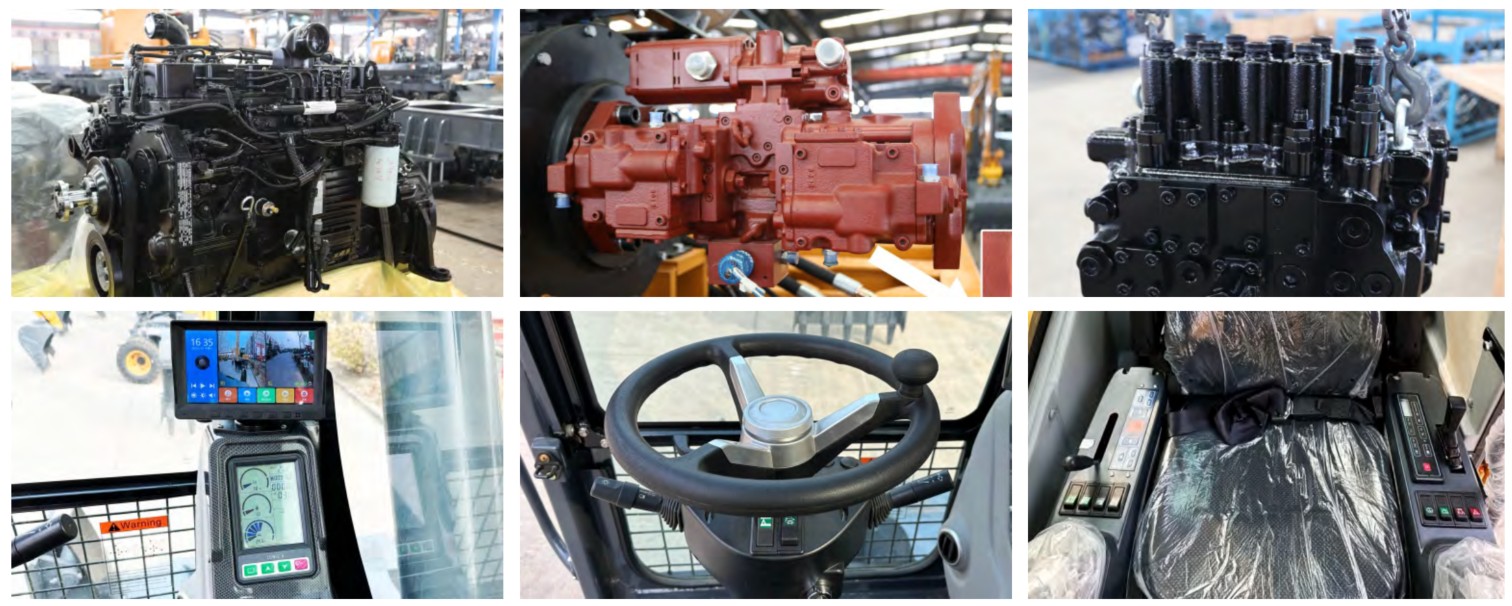

Comfortable cab + high-performance configuration
Spacious and comfortable cab providing an expansive all-round view
Intelligent onboard computer with clearly displayed operating parameters and integrated timely warning system

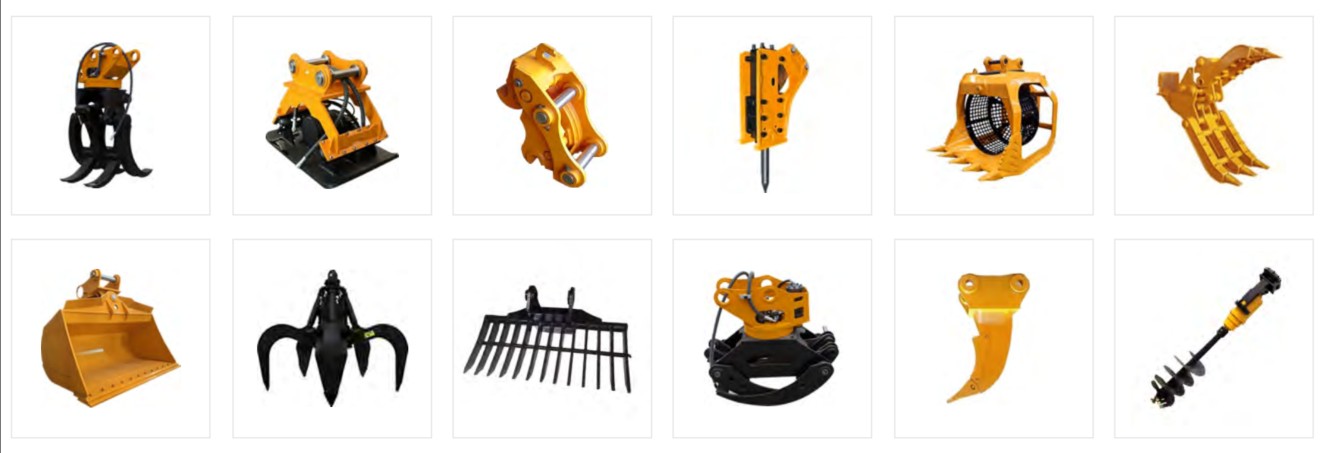

Can be equipped with various working devices to meet diverse operational requirements
Products pecifications
Engine |
Cummins 6BTA5.9-C180 |
Engine power |
132KW |
Weight of whole machine (kg) |
18770 |
Bucket capacity (m³) |
0.9 |
Shipping length (mm) |
9200 |
Total height during transportation (mm) |
3320 |
Overall width (mm) |
2490 |
Tail turning radius (mm) |
2750 |
Turntable height (mm) |
2500 |
Track width (mm) |
1980 |
wheelbase (mm) |
2850 |
Maximum excavation height (mm) |
9800 |
Maximum unloading height (mm) |
6700 |
Maximum excavation depth (mm) |
5700 |
Maximum excavation radius (mm) |
9100 |
Hydraulic system pressure (Mpa) |
350 |
Hydraulic system flow (L/min) |
2*220 |
Boom length (mm) |
5200 |
Stick length (mm) |
2600 |
Bucket digging force (kN) |
122 |
Stick digging force (kN) |
81 |
Fuel tank capacity (L) |
350 |
Hydraulic tank capacity (L) |
215 |
Gradient (%) |
≥37.5 |
Slewing speed (r/min) |
11 |
Maximum walking speed (km/h) |
35 |
