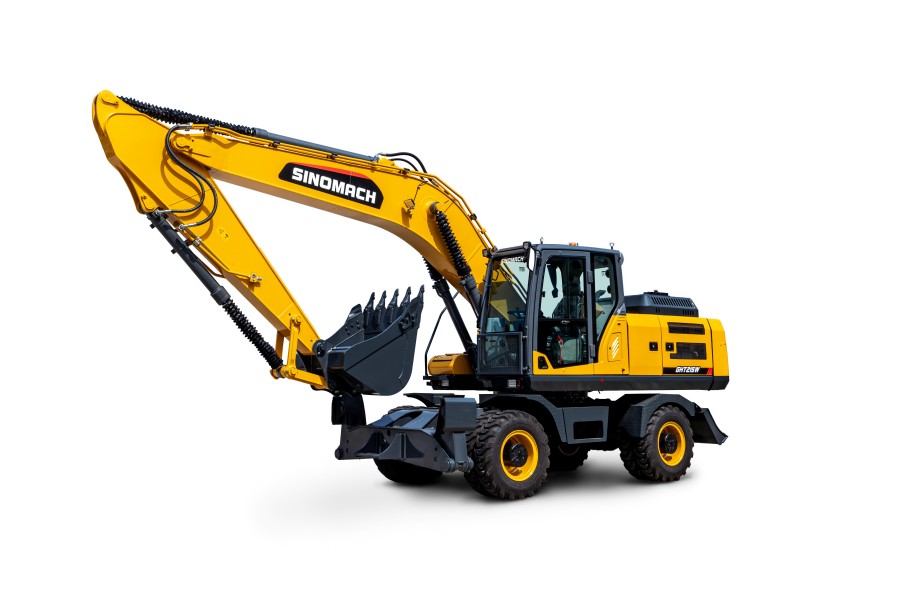

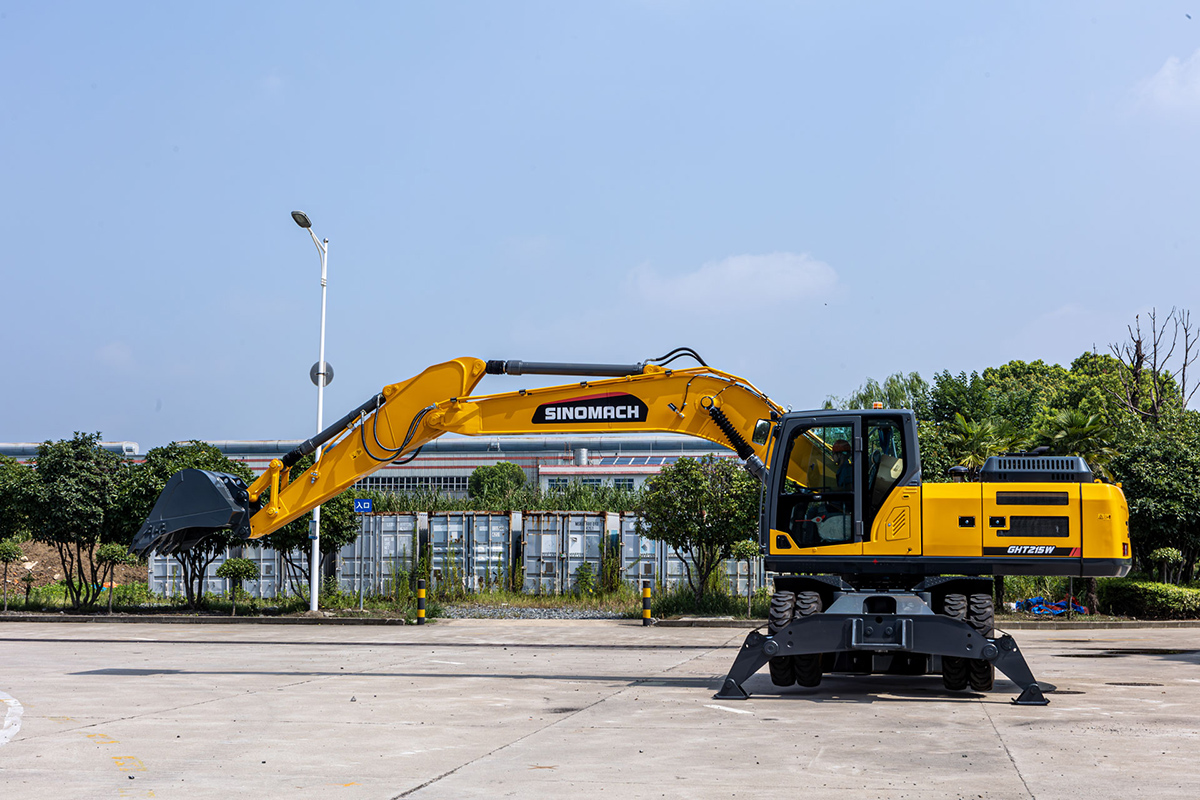

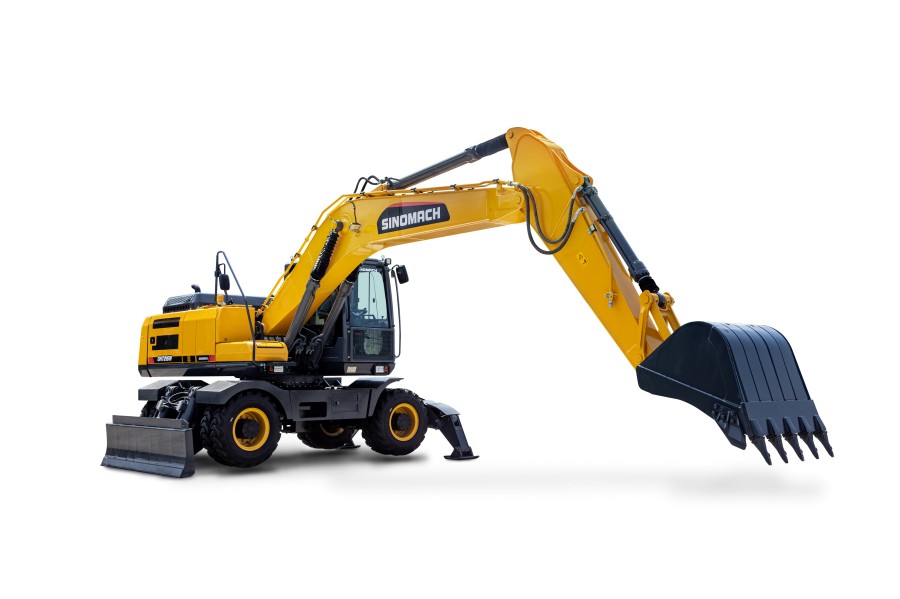

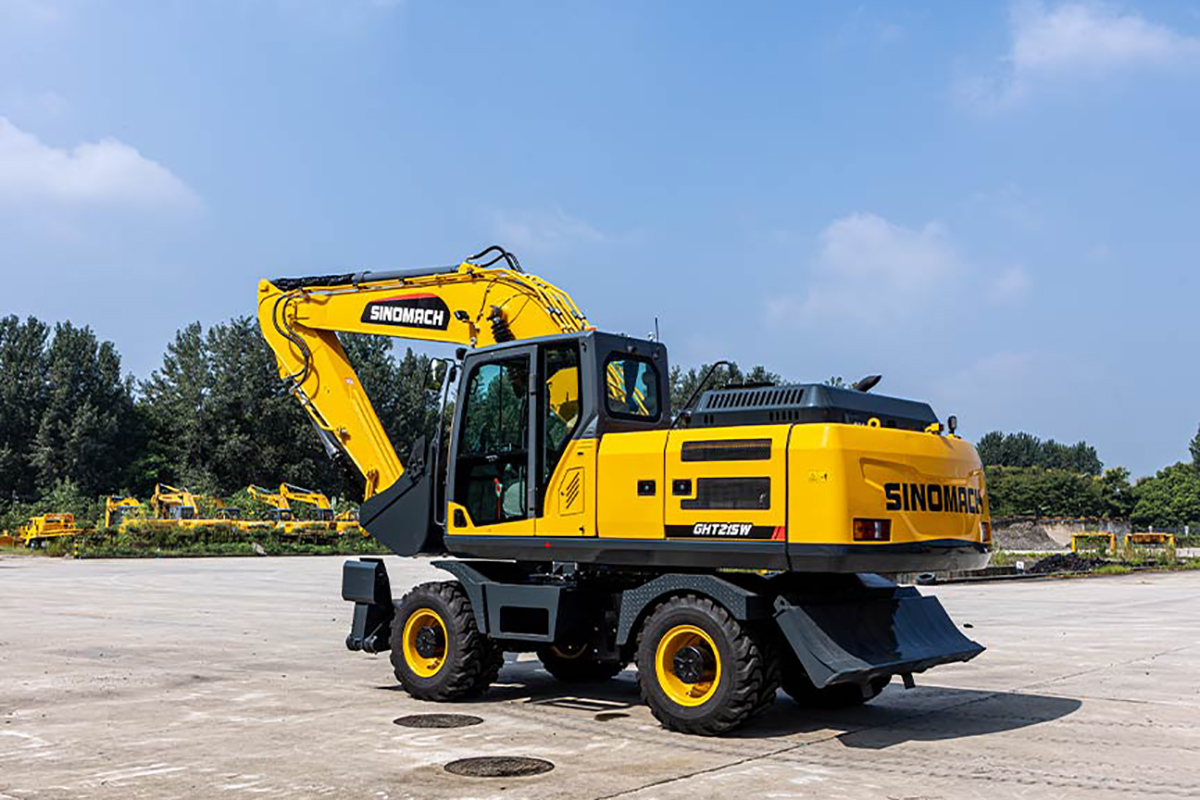

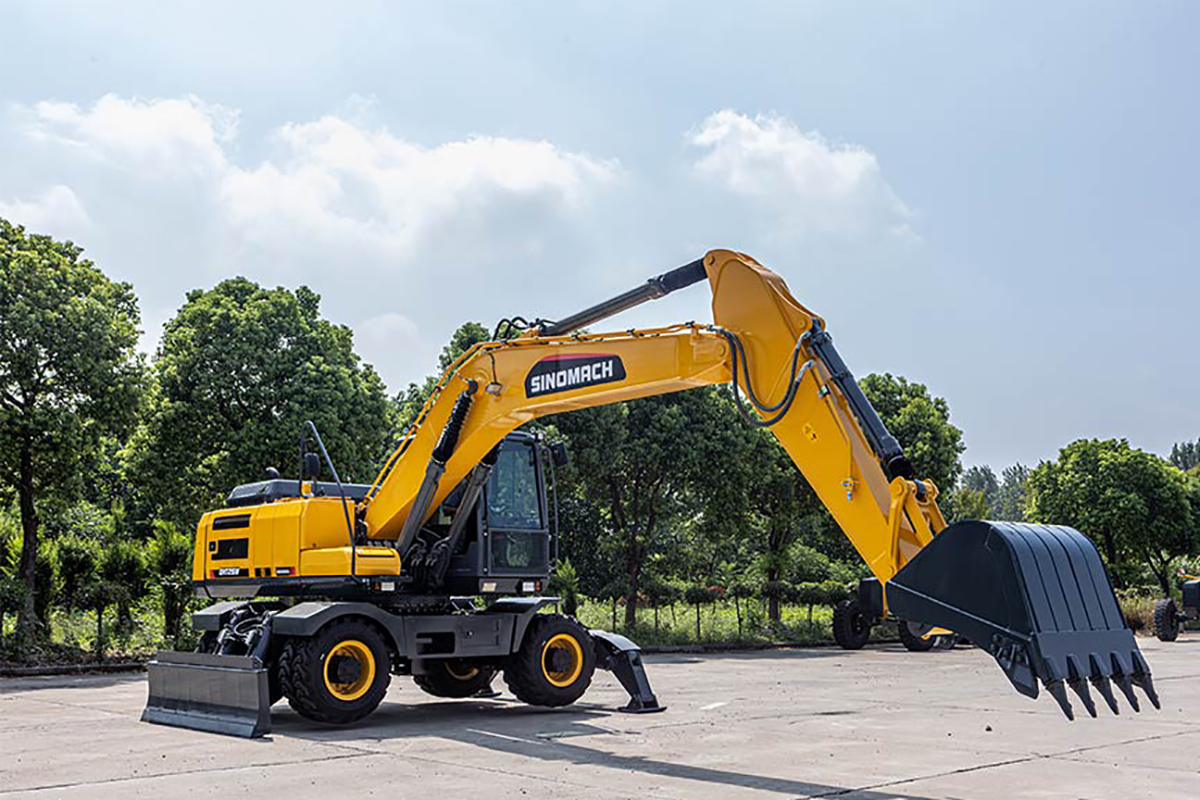

GHT215W Wheeled Hydraulic Excavator
description1
01
cummins

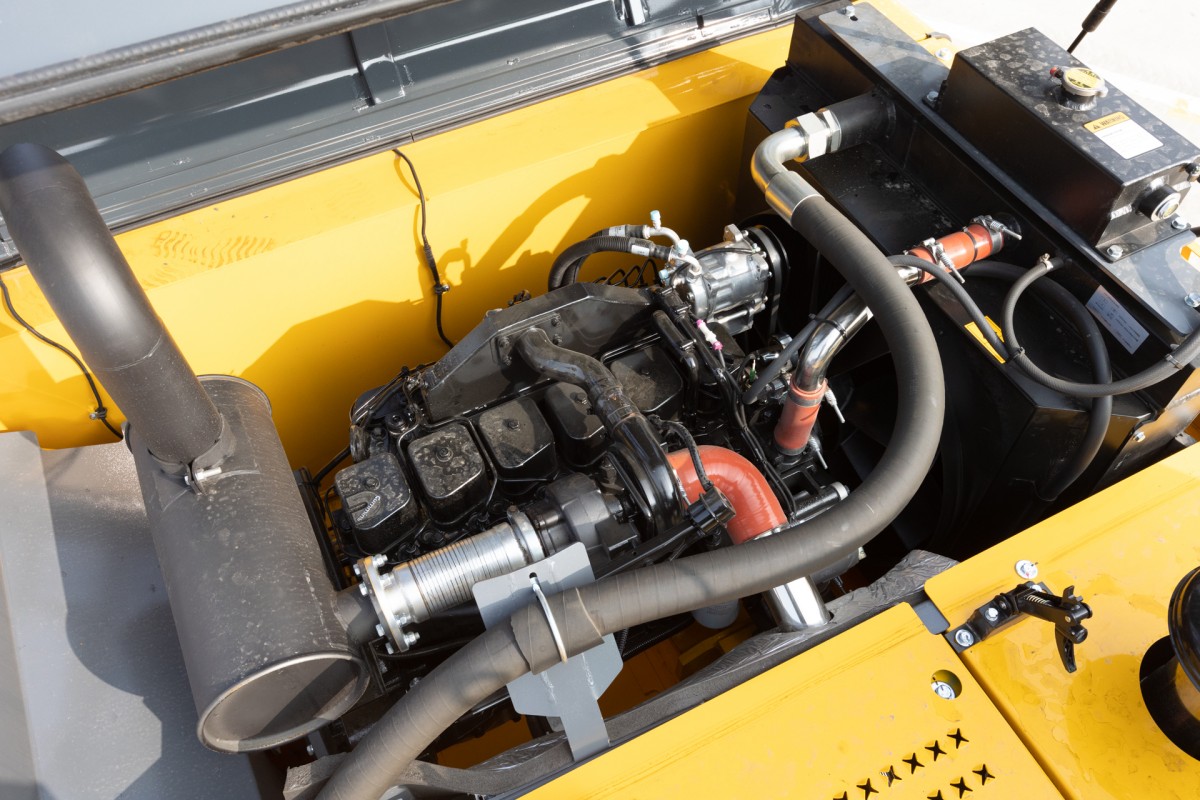

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

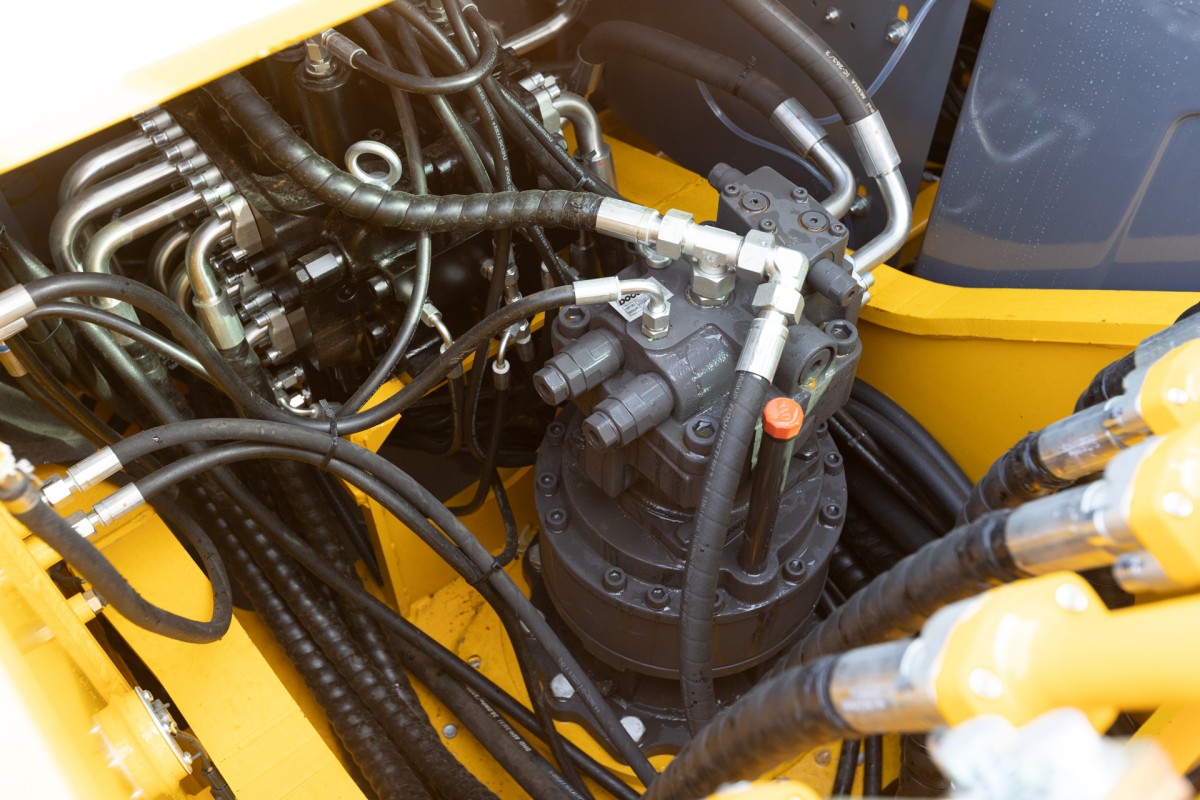

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

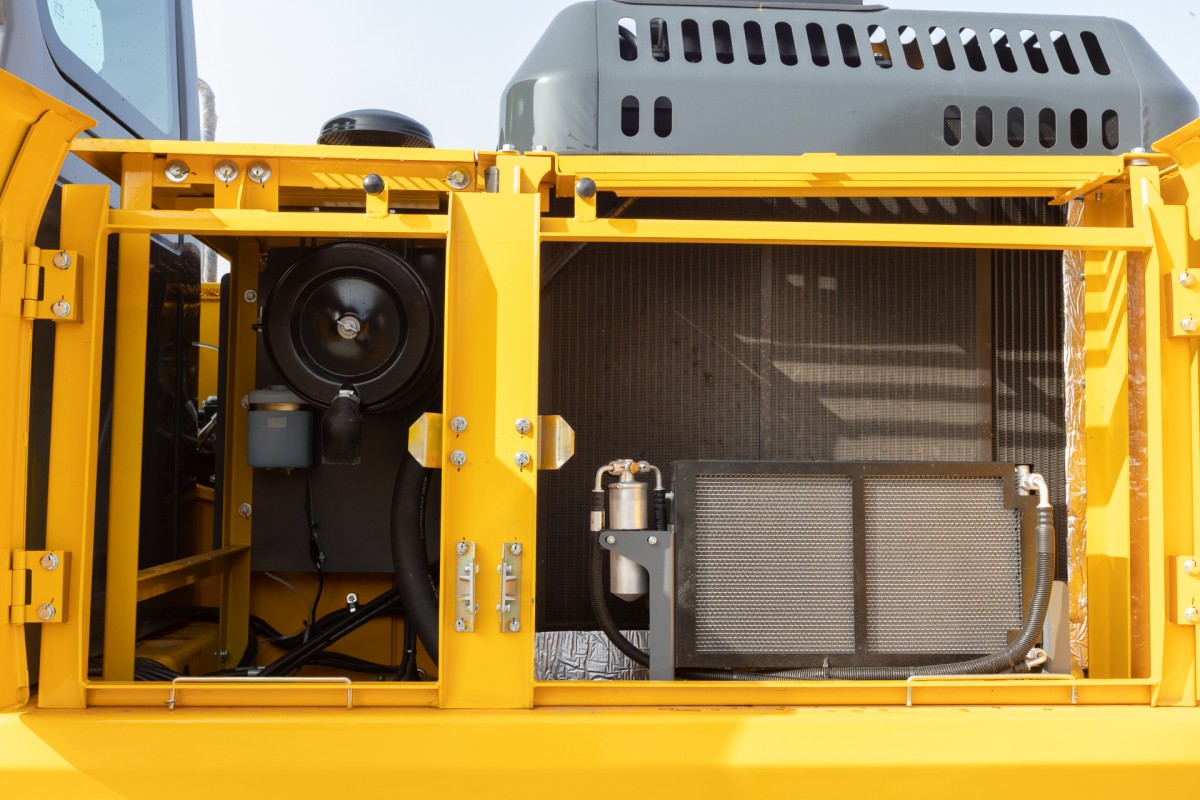

Humanized centralized and remote ground maintenance design, lighter maintenance.

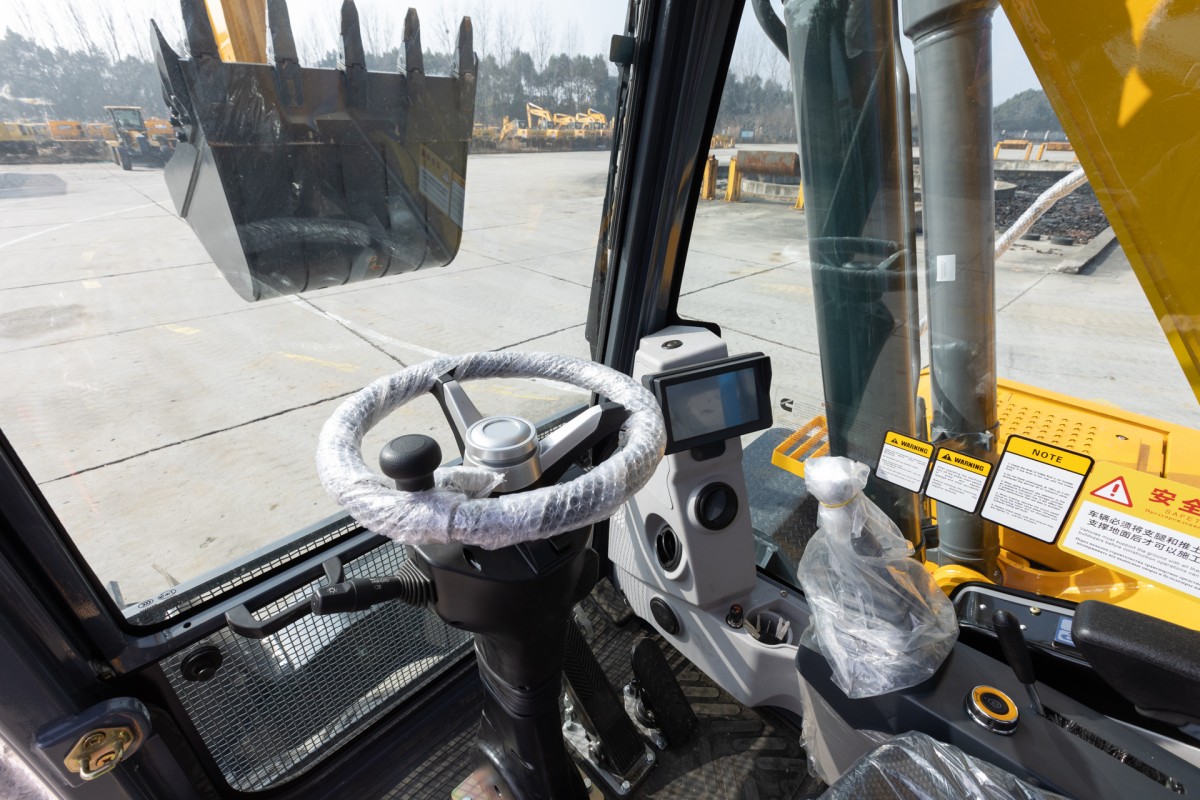

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.
Products pecifications
Engine model |
6BTA5.9-C180-II |
Power |
132kw/2200rpm |
Operating Weight (kg) |
21500 |
Bucket capacity (m ³) |
1.0 |
Dimensions | |
Transportation length (mm) |
9700 |
Transportation height (mm) |
3300 |
Overall width (mm) |
2490 |
Tail turning radius (mm) |
2750 |
Track width (mm) |
1975 |
Wheelbase (mm) |
2855 |
Scope of work | |
Max excavation height (mm) |
11000 |
Max unloading height (mm) |
8020 |
Max excavation depth (mm) |
6437 |
Max excavation radius (mm) |
10050 |
Working parameters | |
Hydraulic system pressure (Mpa) |
32 |
Hydraulic system flow (L/min) |
2*239 |
Boom length (mm) |
5700 |
Stick length (mm) |
2900 |
Bucket digging force (kN) |
152.1 |
Stick digging force (kN) |
119.5 |
Fuel tank capacity (L) |
350 |
Hydraulic oil tank capacity (L) |
215 |
Climbing slope (%) |
≥60 |
Rotation speed (r/min) |
11 |
Max traveling speed (km/h) |
30 |
Bulldozer plate size (mm) |
2470*740 |
Plate lifting height (mm) |
430 |
Plate support height (mm) |
180 |
