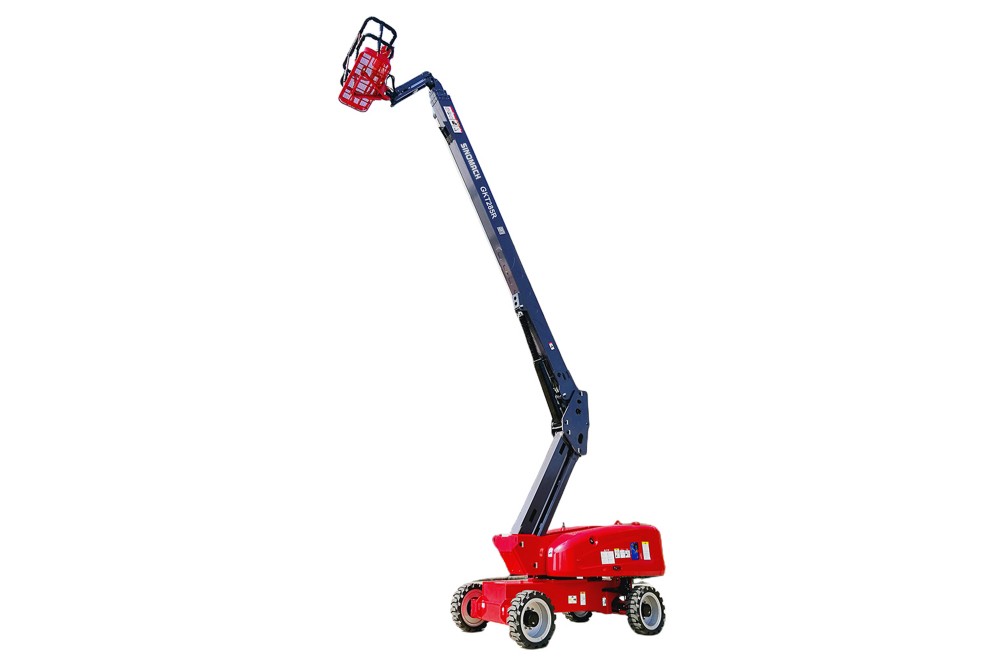

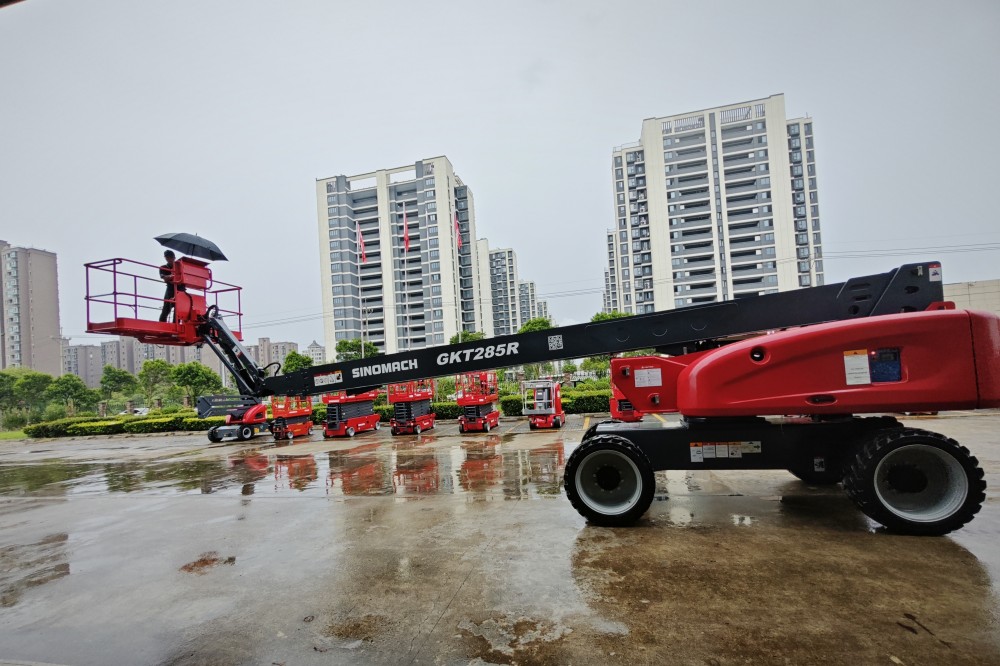

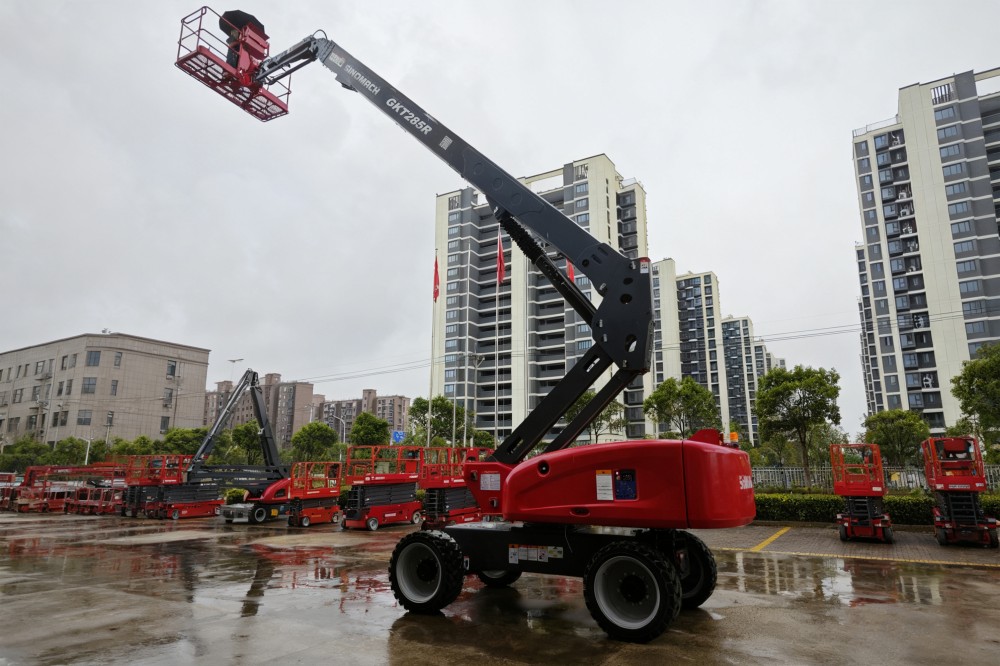

GKT285R Aerial Work Platform
01
Safe and reliable
*Lithium power safe and reliable, equipped with BMS system, environmentally friendly, zero emission
* Large capacity battery with strong endurance* Tilt protection system, overload protection system, long angle sensing system.anti extrusion device,real-time monitoring of platform load and equipment posture.safer
* The product comes standard with an lOT system, paired with an intelligent largescreen, allowing users to easily control device status anytime, anywhere, and achieveeasy device management.
02
Good Passability Performance
*Equipped with a load sensitive system, the action response is stable, accurate, fast,safe, reliable, and more energy-efficient*Hydrostatic leveling system for smoother operation
*40% Gradeability、floating bridge、 high torque drive, stronger off-road capability strong power, equipped with efficient driving system, control smoother
* Max. 5° tilt angle, equipped with floating bridge, easily cope with complex conditions
Products pecifications
Dimension | |
Max. Working Height |
28.5m |
Max. Platform Height |
26.5m |
Max. Outreach |
21m |
Maximum horizontal work amplitude |
21.6m |
A Length (stowed) |
12.05m |
B Width (stowed) |
2.5m |
C Height (stowed) |
2.8m |
D Wheelbase |
3m |
Ground Clearance |
0.44m |
Platform Size |
2.44*0.9m*1.1m |
Performance | |
Lift Capacity(Restricted/Unrestricted) |
454kg/300kg |
Max. Load number(Restricted/Unrestricted) |
3 pers/2 pers |
Drive Speed（Stowed） |
5.1km/h |
Drive Speed（Raised） |
1.1km/h |
Gradeability (4WD) |
45% |
Turntable Rotation (Angle/Continuity) |
360°continuous |
Platform Rotation |
180° |
Max. Tilt Angle(front to back/side to side) |
5°/ 3° |
Turing Radius (Inside/Outside) |
3.6/6.88m |
Turntable Tailswing |
1.8m |
Max. Lateral Force (Restricted/Unrestricted) |
400N |
Max. Wind Speed |
12.5m/s |
Tire Specification/ Type |
355/55D625(foam filled tire) |
Power | |
Drive wheels number x Steering wheels number |
4x2 |
Engine (power/speed/specification/brand) |
Deutz TD2.9L4, 55.4KW Euro 5 emission standard, |
Hydraulic Tank Capacity |
180L |
Diesel Fuel Tank Capacity |
130L |
Weight | |
Total Weight |
17110kg |
