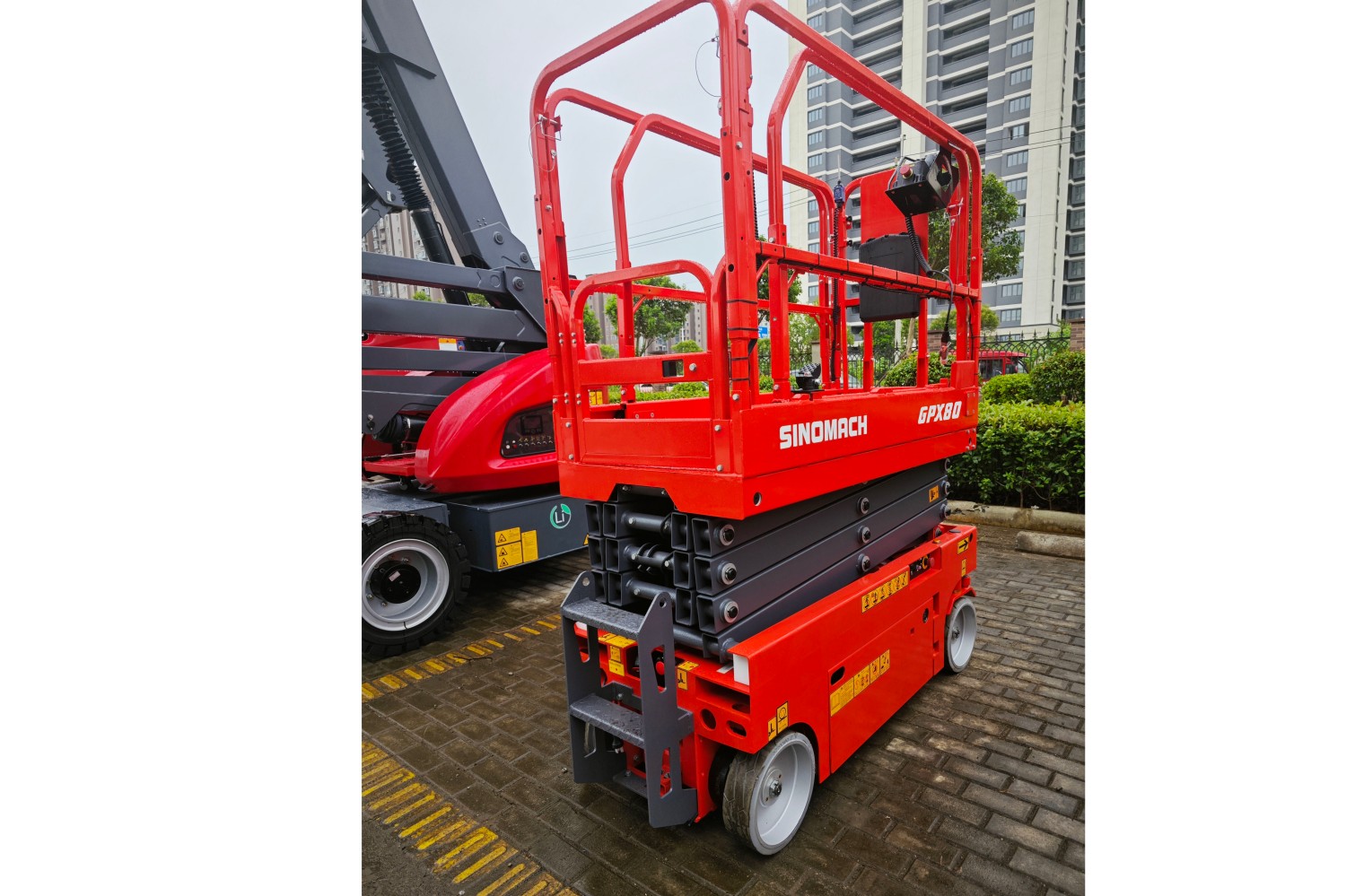

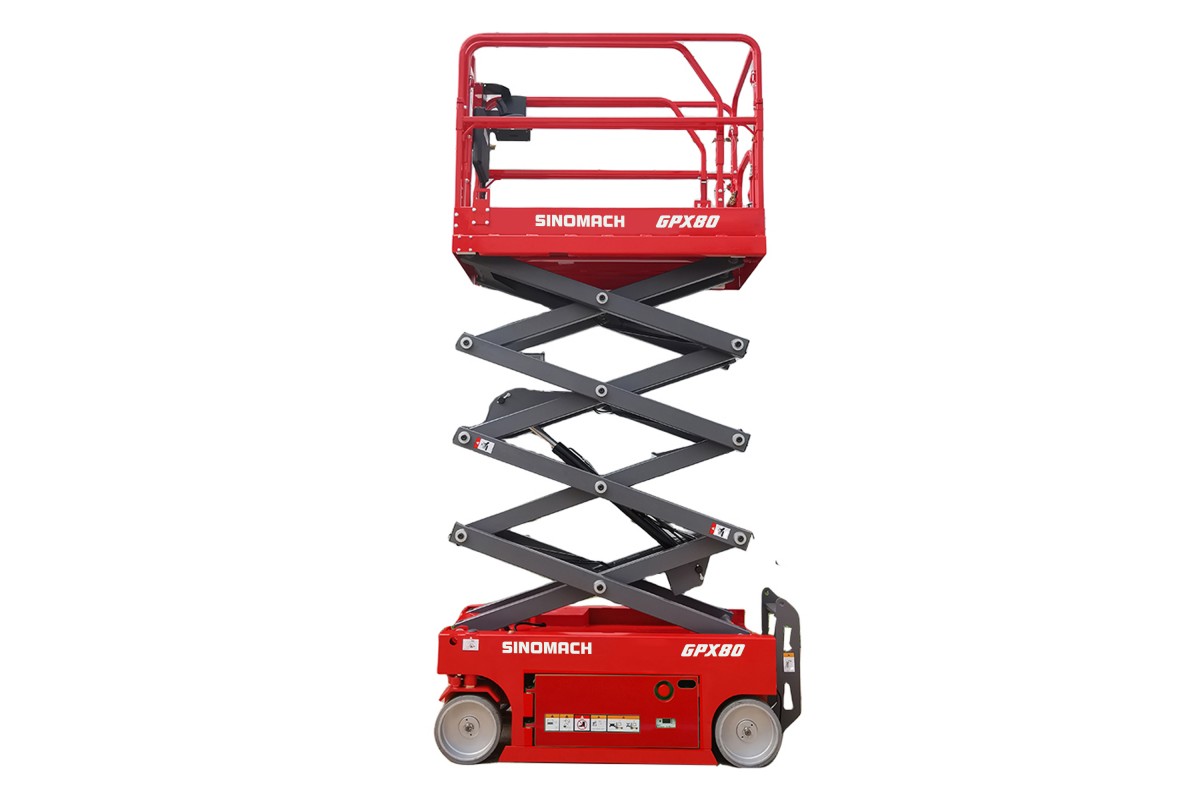

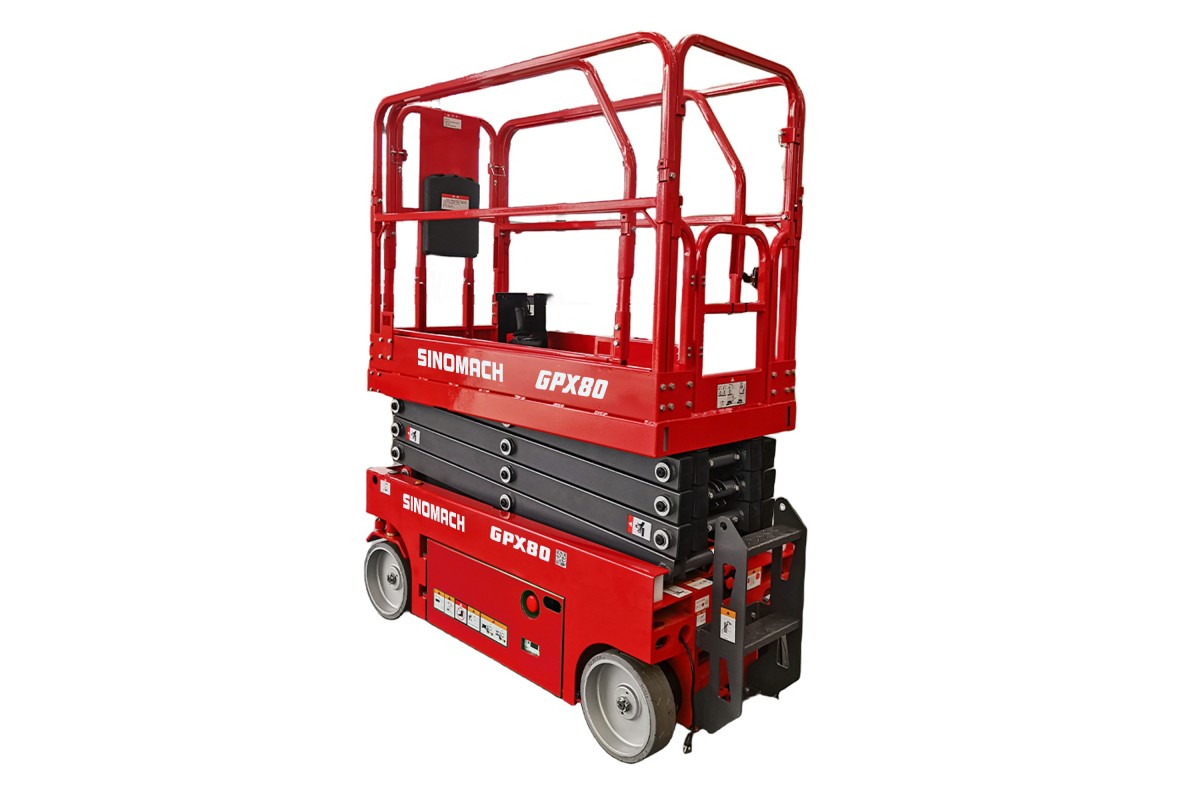

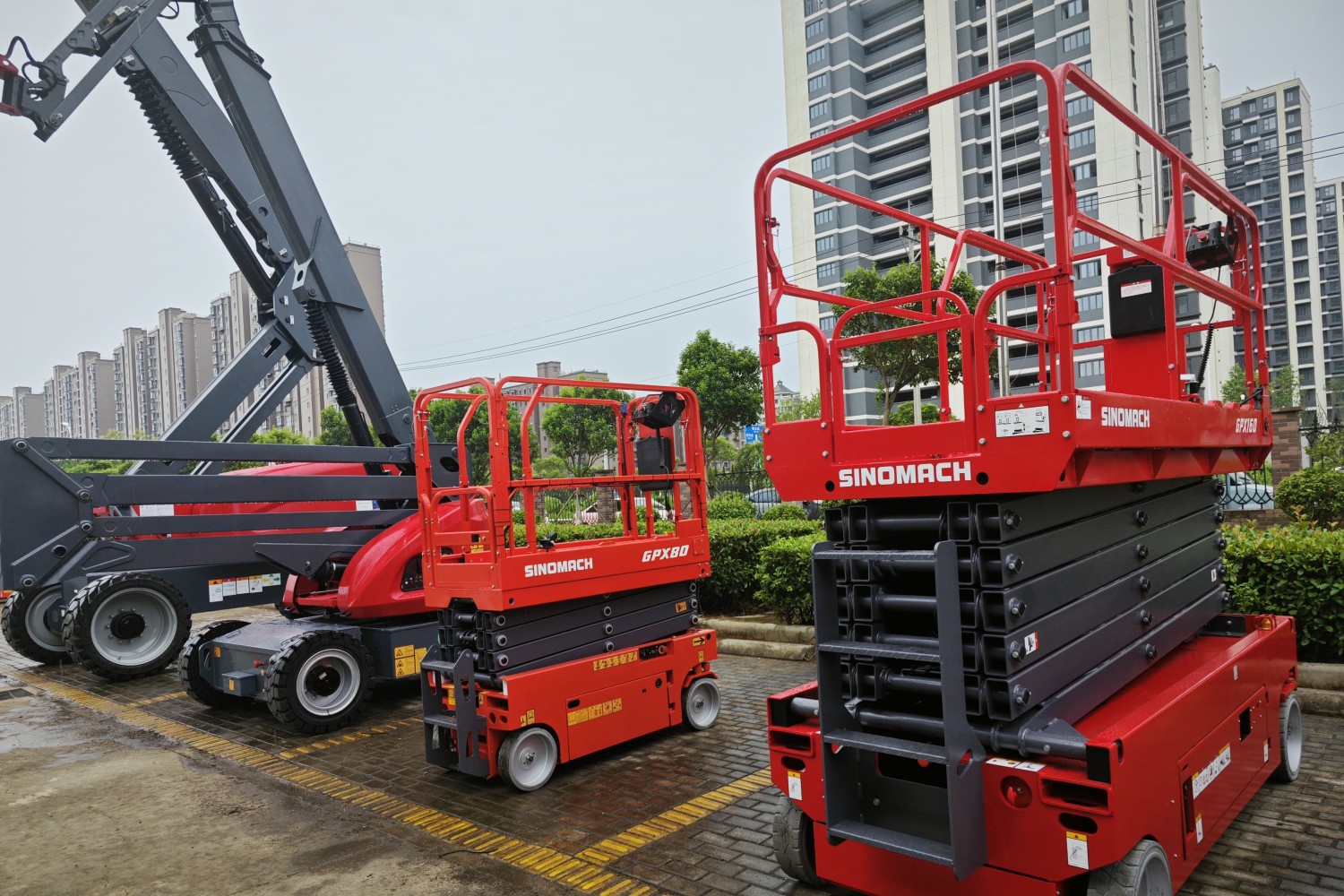

GKX80E Aerial Work Platform
01
Flexible operation and handling
*Ultra stable design greatly improves safety factor. Featuring compact body, and wide operating area
*Standard forklift hole, high efficiency for equipment transportation
*Folding guardrail for convenient transportation
02
Reduce maintenance costs
*High universality of components and no pressure on spare parts
*Double door design,convenient maintenance

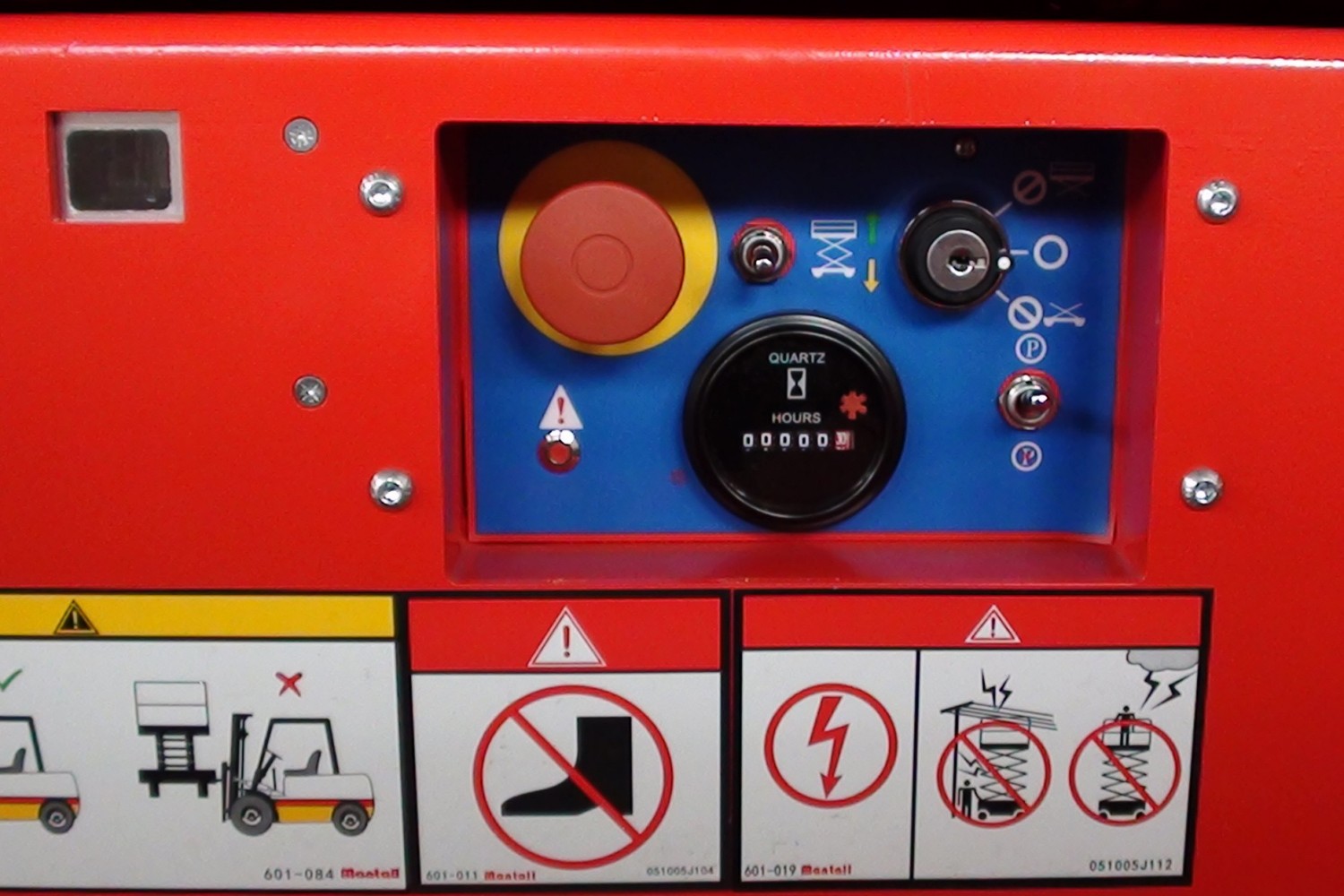

*Faults diagnosis system, displaying fault information for rapid trouble shooting
03
More reliable performance
*Multiple protection for lifting circuit, safe and reliable
*Anti collision strip protection, more effective in preventing scratches and collisions
*Automatic pothole protection and tilt protection to ensure safe operation
Products pecifications
Dimension | |
A Max. Platform Height |
5.8m |
Max. Working Height |
7.8m |
B Max. Outreach |
0.9m |
C Overall Length |
1.83m |
D Overall Width |
0.77m |
Overall Height (guardrails folded) |
1.86m |
E Overall Height (guardrails unfolded) |
2.18m |
F Wheelbase |
1.36m |
Ground Clearance |
0.08m |
Pothole protection board ground Clearance(down) |
0.02m |
Platform Size(L×W×H) |
1.64m*0.75m*1.1m |
Length - Platform Extended |
2.55m |
Skirting Board Height |
0.15m |
Performance | |
Lifting Capacity |
230kg |
Lifting Capacity (extended platform) |
115kg |
Max. Load number (indoor) |
2 pers |
Drive Speed（Stowed） |
3.8km/h |
Drive Speed（Raised） |
0.7km/h |
Rising Time (empty load) |
14s |
Lowering Time(empty load) |
11s |
Gradeability (2WD) |
25% |
Tilt Sensor - Front to Back/ Side to Side |
3°/1.5° |
Turing Radius - inside/ outside |
0.8m/1.56m |
Max. Lateral Force (indoor) |
400N |
Max. Wind Speed |
0 |
Tire Specification/ Type |
323×100mm/solid tire |
Power | |
Drive Model |
Hydraulic/ Electric Drive, 2WD×2WS |
Power Unit Motor (voltage/power) |
24V/3.3kW |
Hydraulic Tank Capacity |
8L |
Hydraulic system pressure |
21Mpa |
Battery specifications (lead-acid battery/lithium battery) |
235Ah |
System Voltage |
24V |
Control Voltage |
24V |
Charger (Input Voltage/Output Current) |
90-264V/30A |
Weight | |
Weight |
1542kg |
Standard |
GB/CE |
