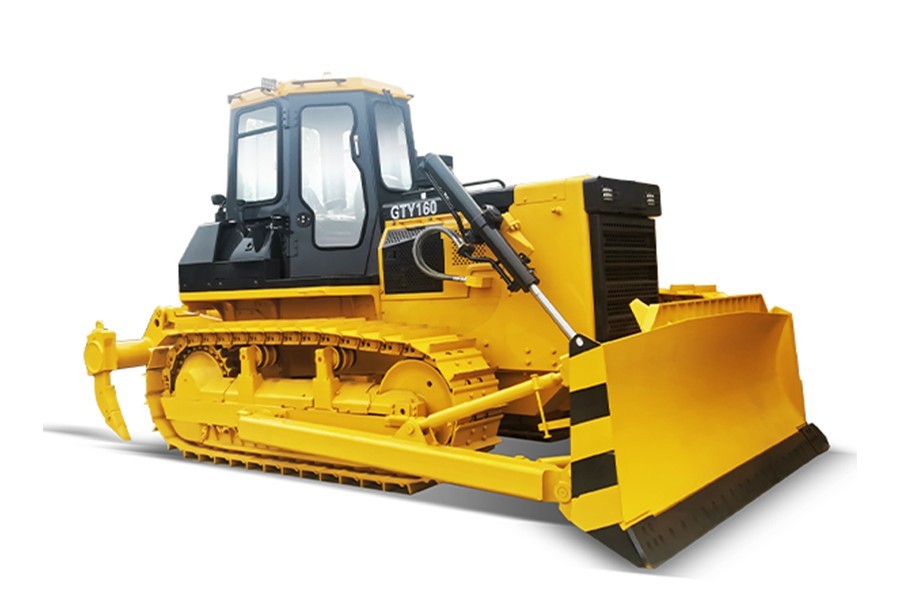

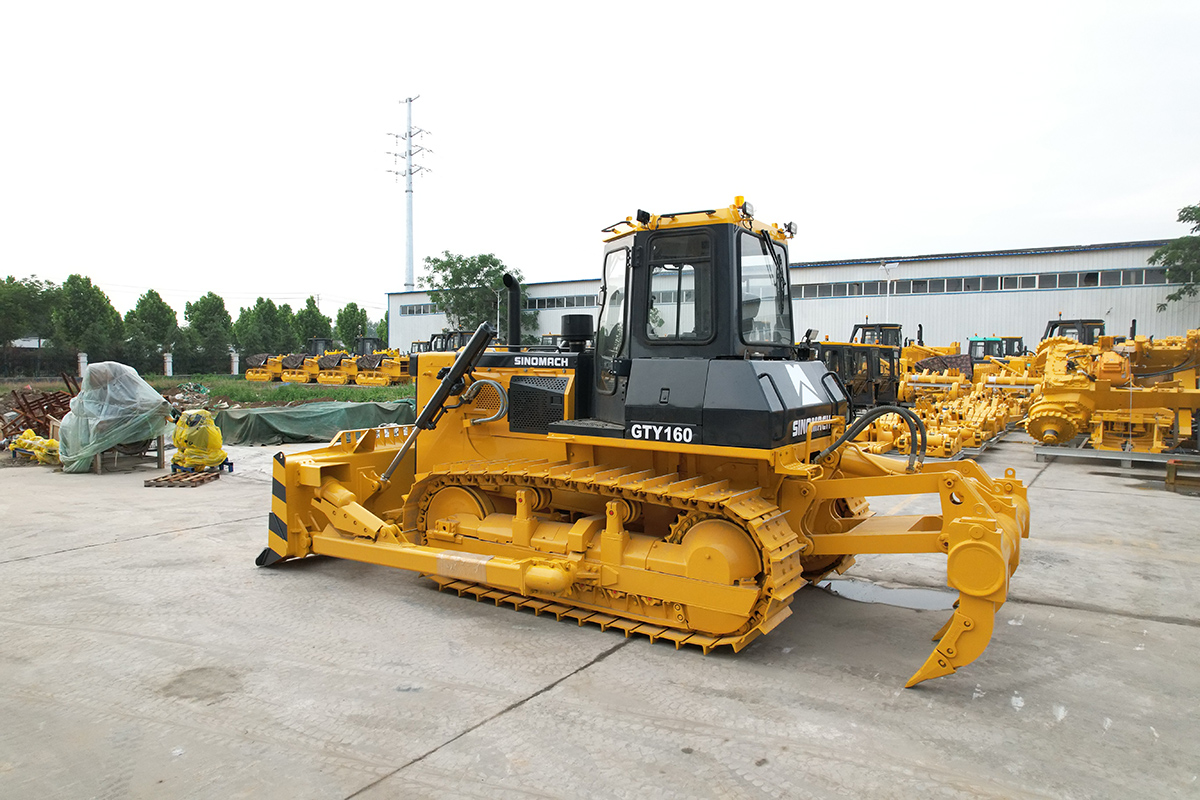

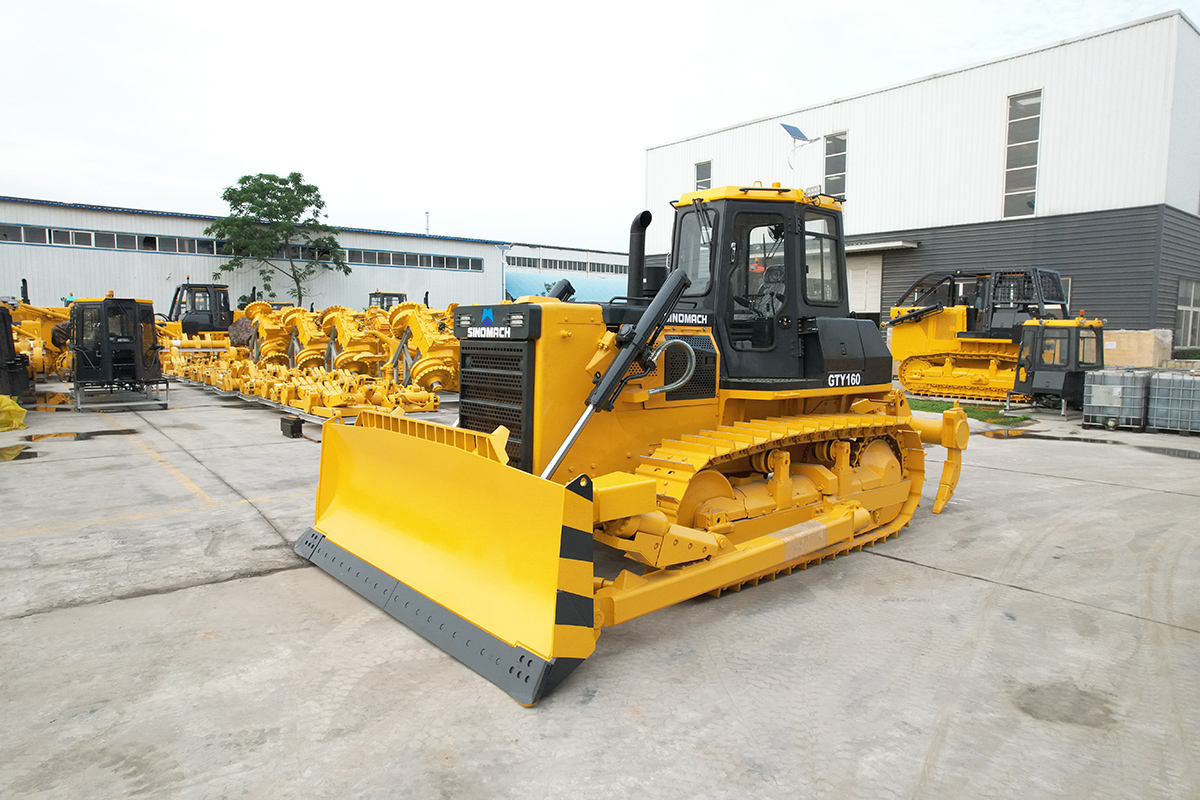

GTY160 Hydraulic Standard Type Bulldozer
description1
01

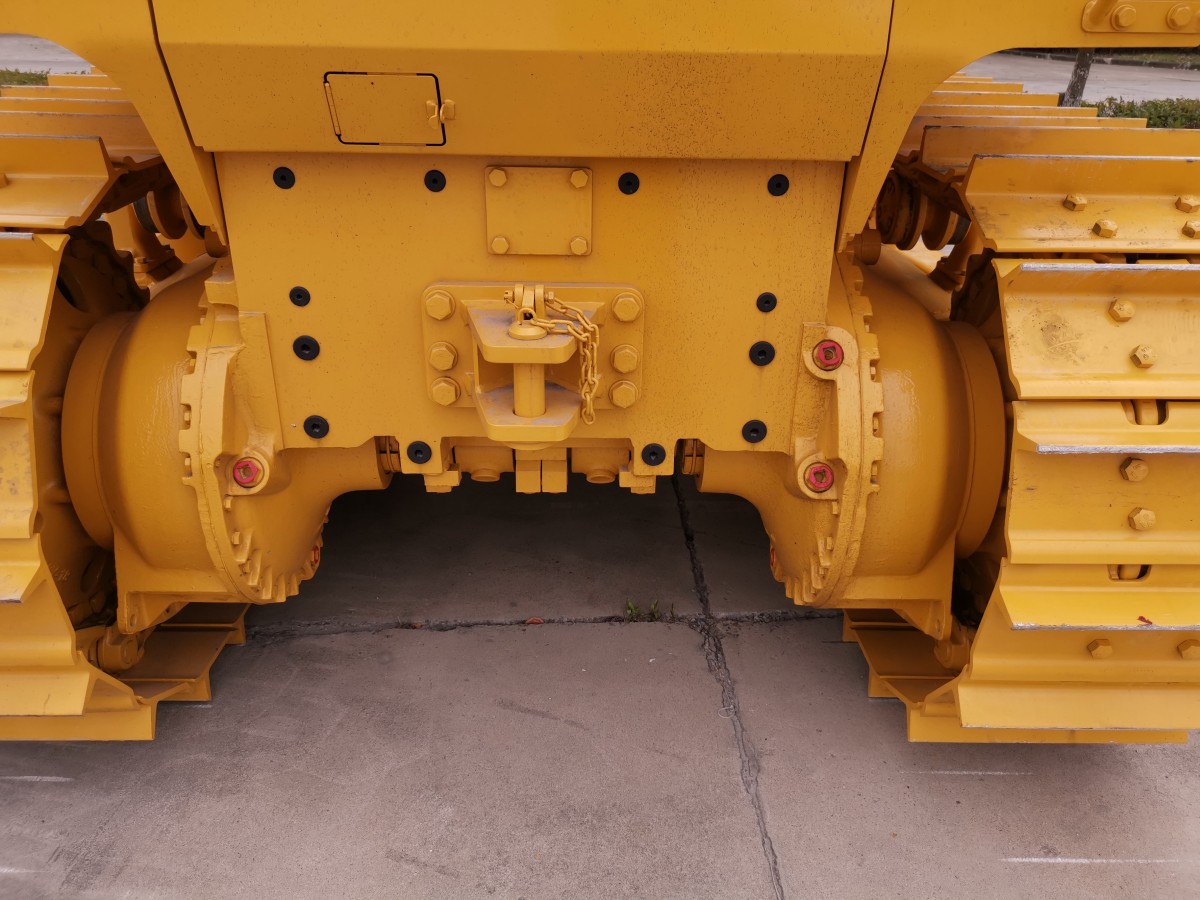

Steel Plate Full Box Structure
The bulldozer's main frame utilizes a fully welded box-type steel construction integrated with the rear axle housing. This robust design delivers exceptional resistance to impact loads, bending, and torsional stresses. Precision welding techniques guarantee structural integrity throughout the machine's operational lifespan.

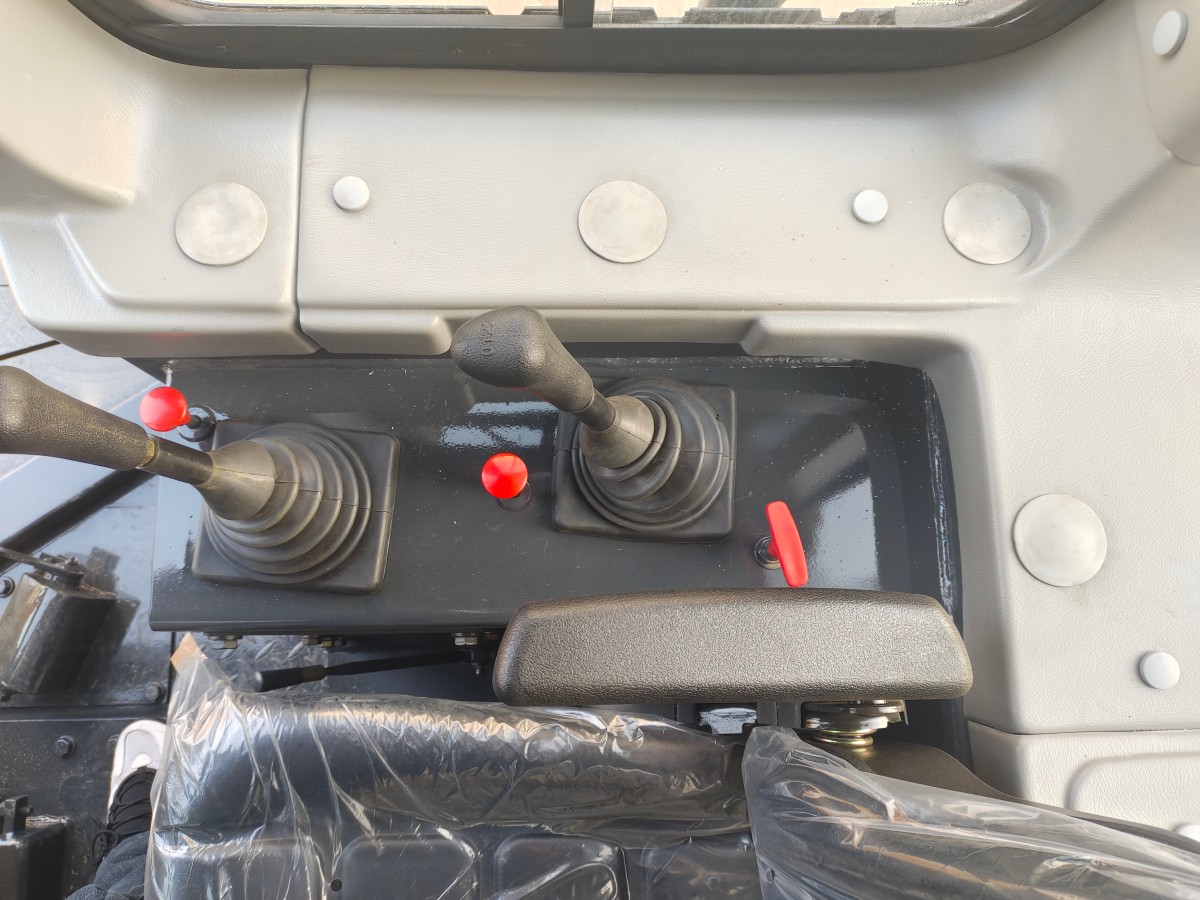

The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability
Products pecifications
Model |
GTY160 |
Type |
Standard Hydraulic Crawler Type |
Engine Model |

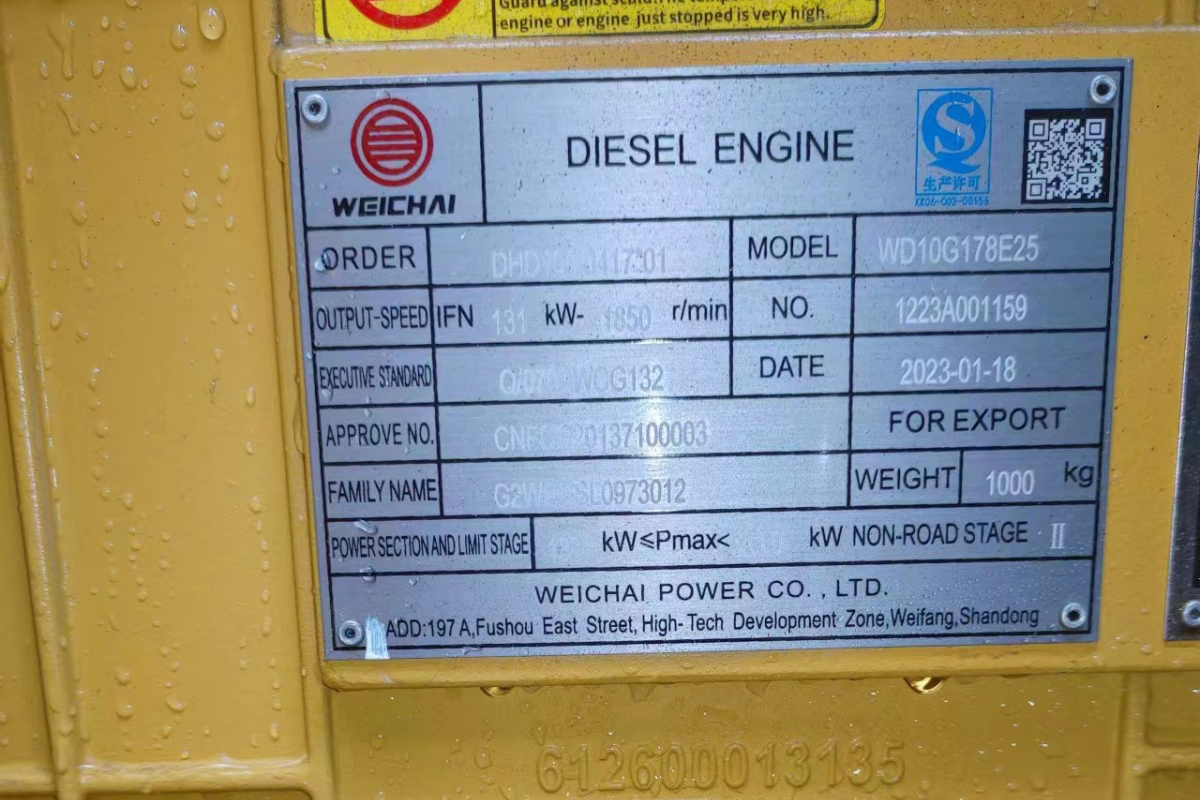

WEICHAI WD10G178E25 |
Displacement(L) |
9.726 |
Rated power(kw/rpm) |
131/1850 |
Max.torque(N.m/rpm) |
830/1000-1200 |
Operating weight (without ripper) |
16.4T |
Dimension (without ripper)(mm) |
4990×3440×3110 |
Min ground clearance(mm) |
405 |
Ground pressure(MPa) |
0.066 |
Track gauge(mm) |
1880 |
Dozing capacity(m³) |
4.5 |
Blade width(mm) |
3440 |
Blade height(mm) |
1135 |
Blade lifting height(mm) |
1095 |
Height of blade tilt(mm) |
400 |
Max drop below ground(mm) |
540 |
Track shoe width(mm) |
510 |
Pitch(mm) |
203.2 |
Quantity of track link |
37 |
Quantity of Carrier rollers |
4 |
Quantity of Track rollers |
12(8 Double+4 Single) |
Max pressure(MPa) |
14 |
Discharge(L/min) |
227 |
Max tractor force(kN) |
144 |
Grade ability |
30° |
Forward Speed(Km/h) |
F1:0-3.29 |
F2:0-5.82 | |
F3:0-9.63 | |
Rear Speed(Km/h) |
R1:0-4.28 |
R2:0-7.59 | |
R3:0-12.53 |
