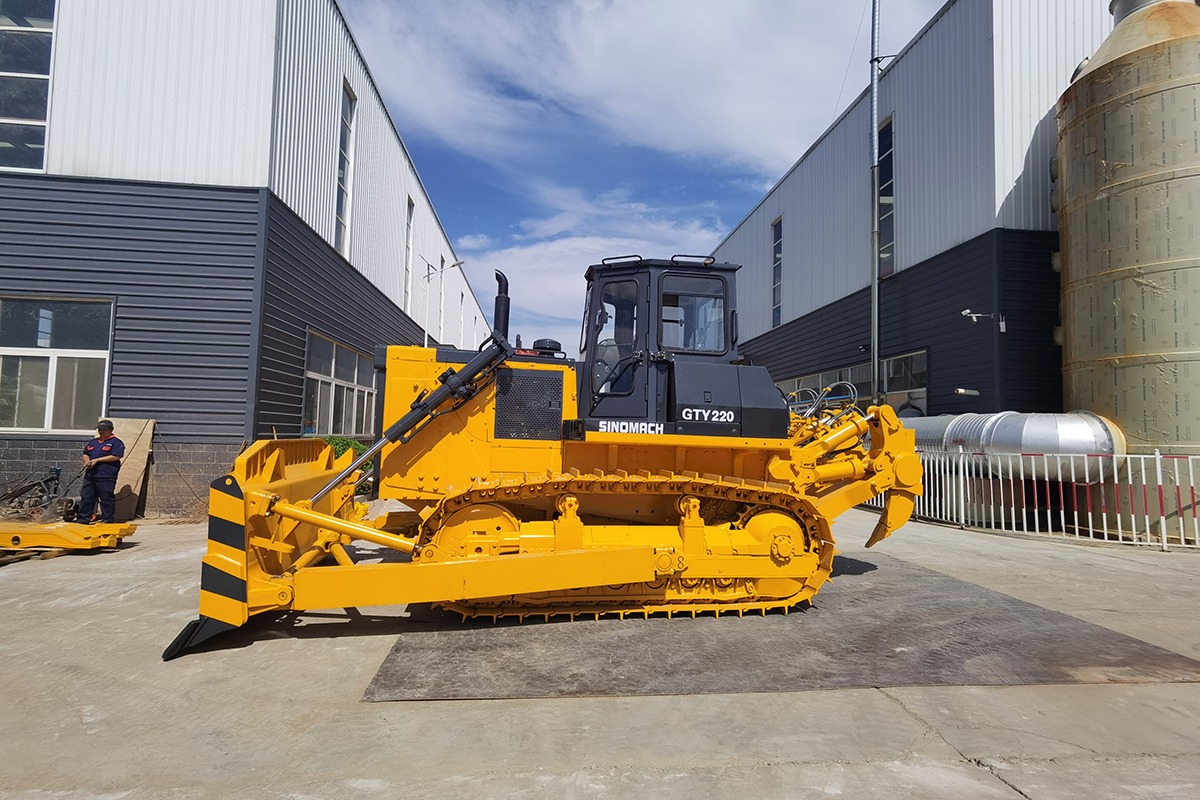

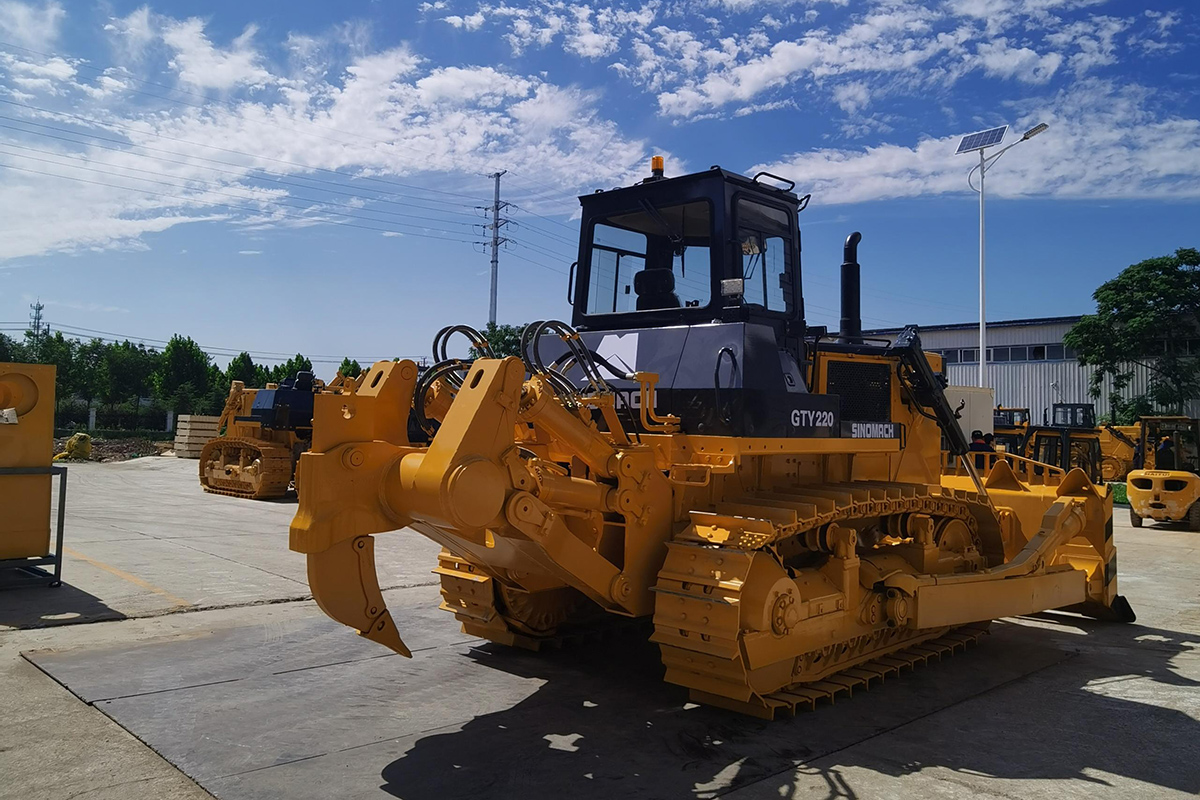

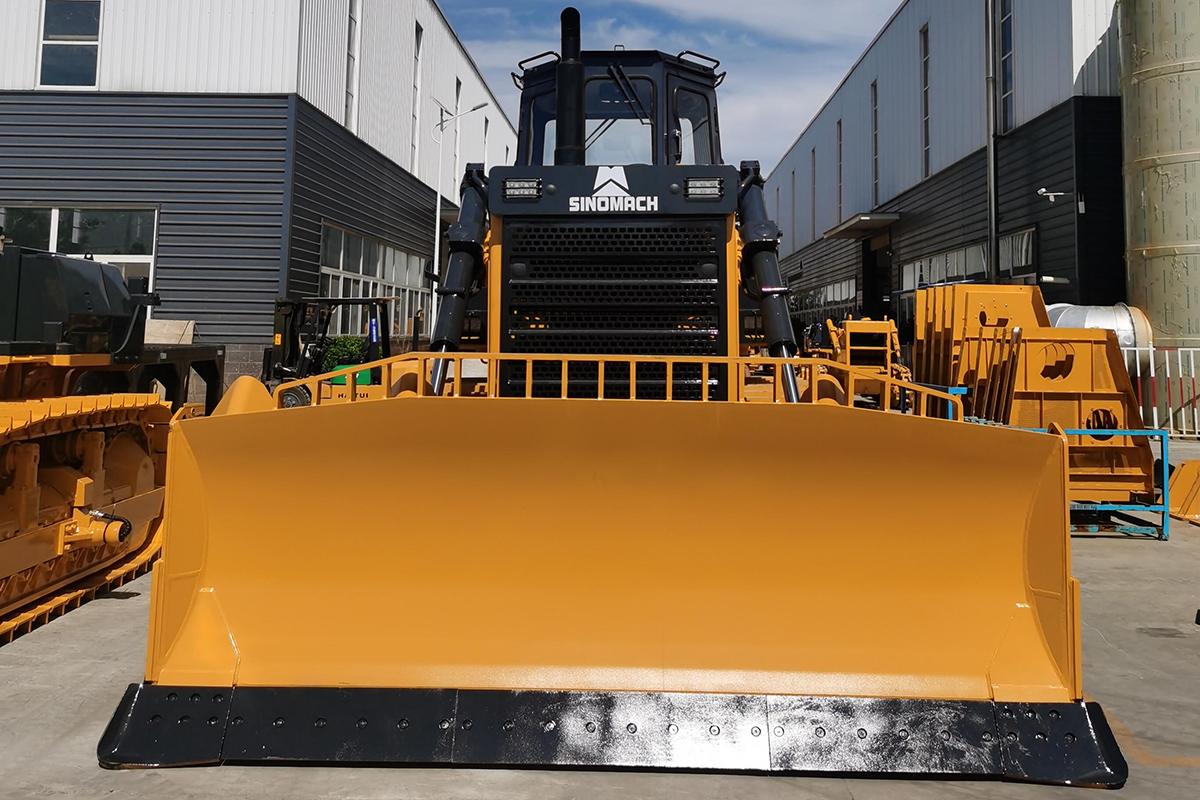

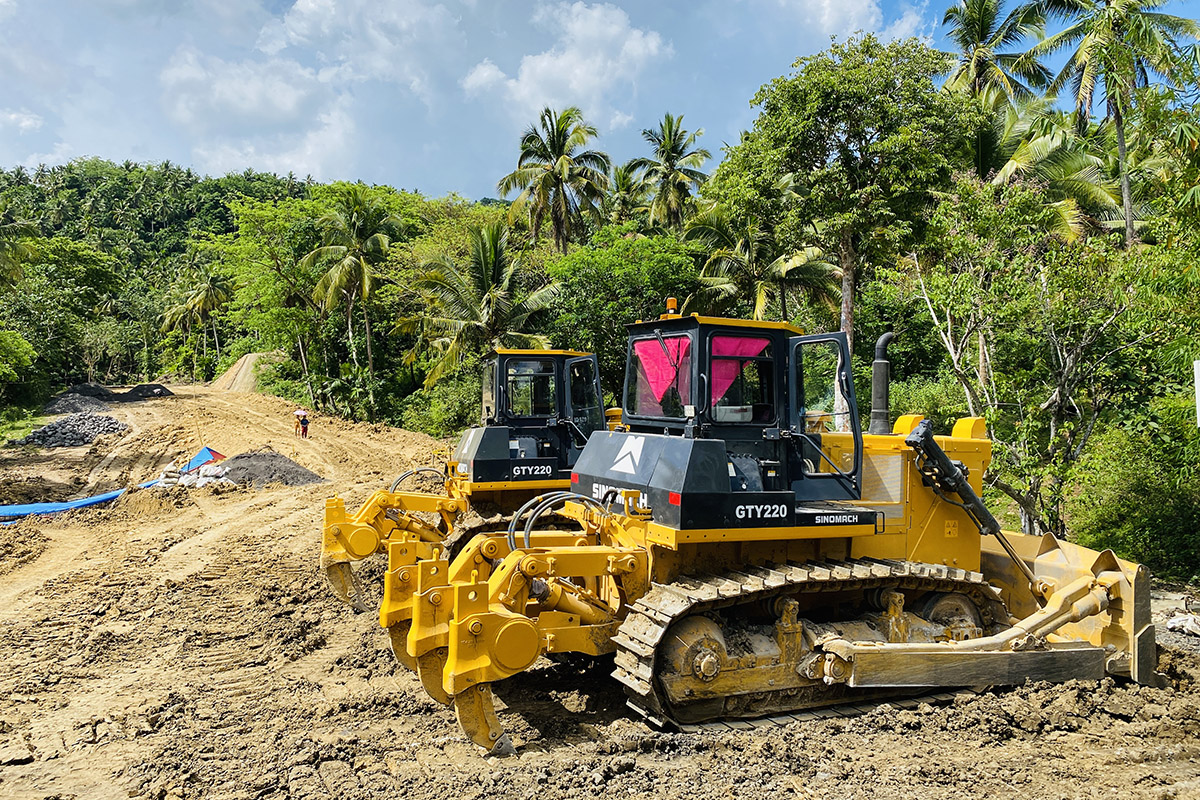

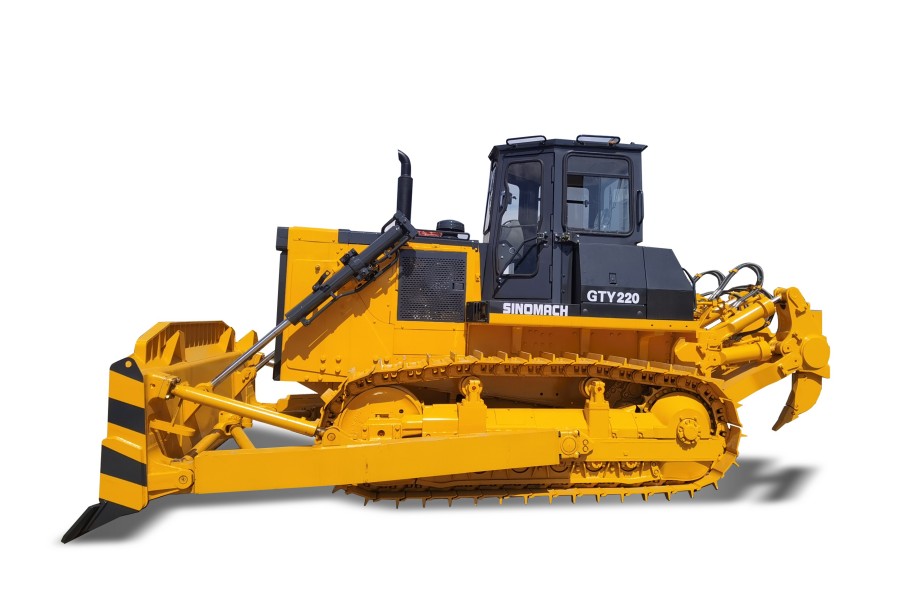

GTY220 Hydraulic Standard Type Bulldozer
description1
01
Steel Plate Full Box Structure
The bulldozer's main frame features a fully enclosed box-type structure constructed with high-strength steel plates. This integral welded design incorporates the rear axle housing, providing exceptional resistance to impact loads, bending and torsional stresses. Precision welding techniques guarantee structural integrity throughout the machine's operational lifespan.
The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.

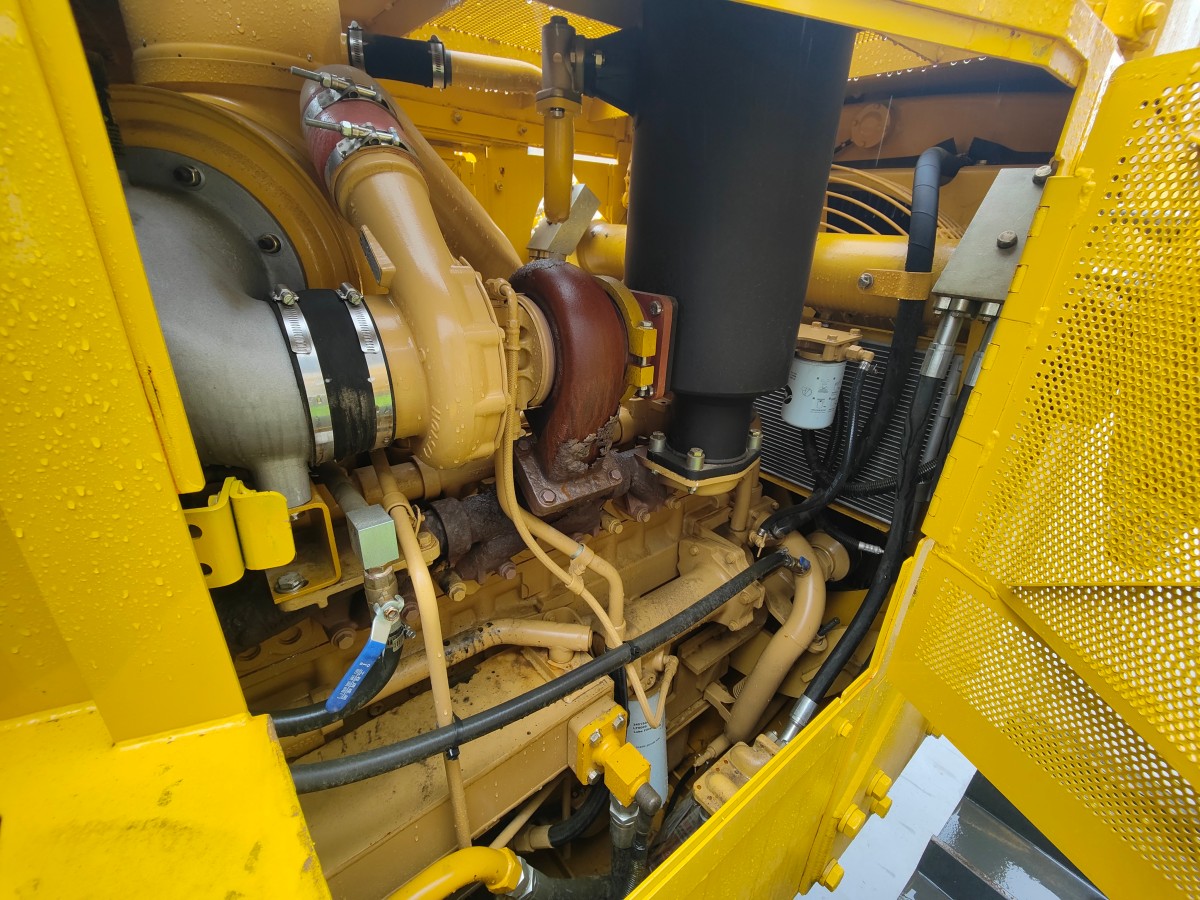

Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability
Products pecifications
Model |
GTY220 |
Type |
Standard Hydraulic Crawler Type |
Engine Model |
CUMMINS NT855-C280S10 |
Displacement(L) |
14.01 |
Rated power(kw/rpm) |
175/1800 |
Max.torque(N.m/rpm) |
1085/1300 |
Operating weight (without ripper) |
23.5 Ton |
Dimension (without ripper)(mm) |
5390×3735×3350 |
Grounding length(mm) |
2730 |
Ground pressure(MPa) |
0.077 |
Track gauge(mm) |
2000 |
Dozing capacity(m³) |
6.4 |
Blade width(mm) |
3735 |
Blade height(mm) |
1317 |
Blade lifting height(mm) |
1210 |
Max drop below ground(mm) |
540 |
Height of blade tilt(mm) |
735 |
Track shoe width(mm) |
560 |
Pitch(mm) |
216 |
Quantity of track link |
38 |
Quantity of Carrier rollers |
4 |
Quantity of Track rollers |
12 |
Max pressure(MPa) |
14 |
Discharge(L/min) |
262 |
Max tractor force(kN) |
203 |
Forward Speed(Km/h) |
F1:0-3.6 |
F2:0-6.5 | |
F3:0-11.2 | |
Rear Speed(Km/h) |
R1:0-4.3 |
R2:0-7.7 | |
R3:0-13.2 |
