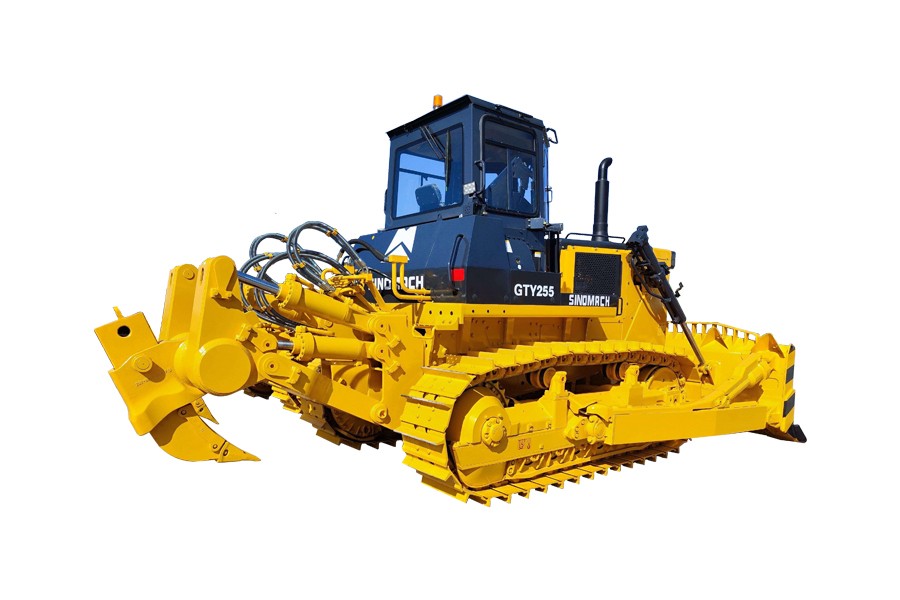

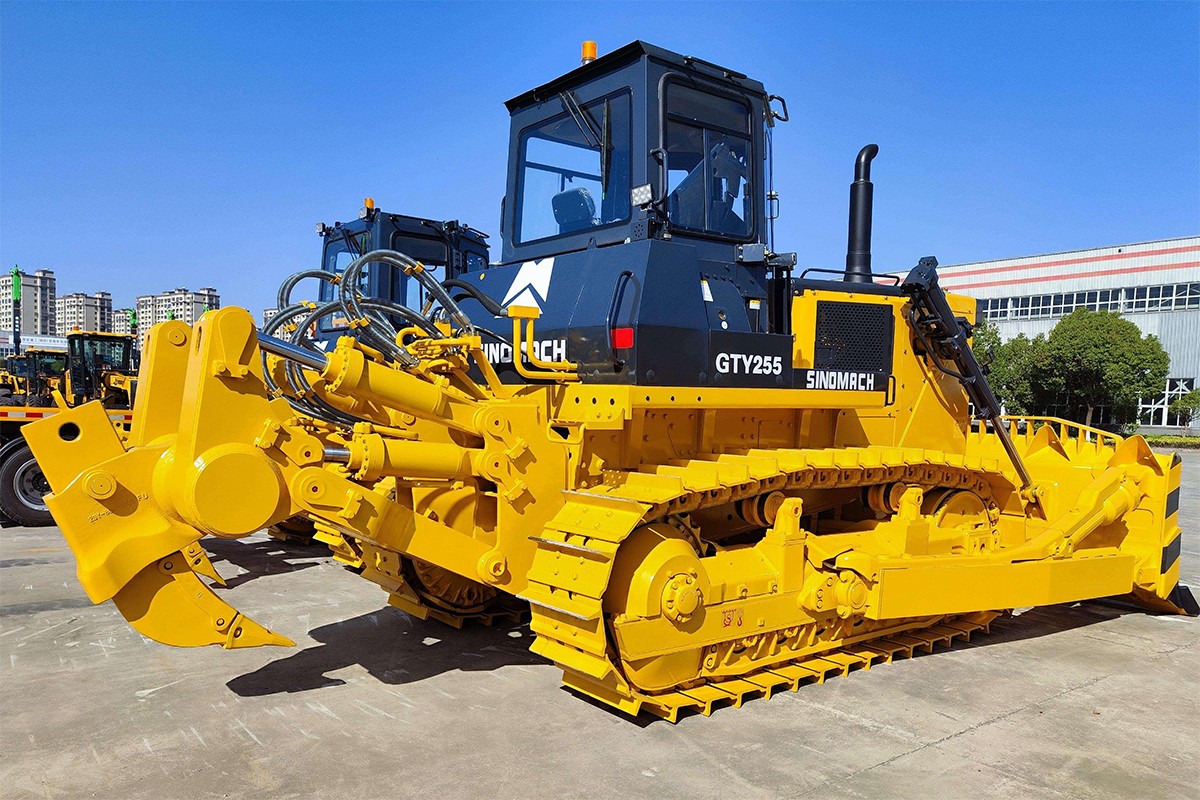

GTY255 Hydraulic Standard Type Bulldozer
description1
01
Steel Plate Full Box Structure
The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

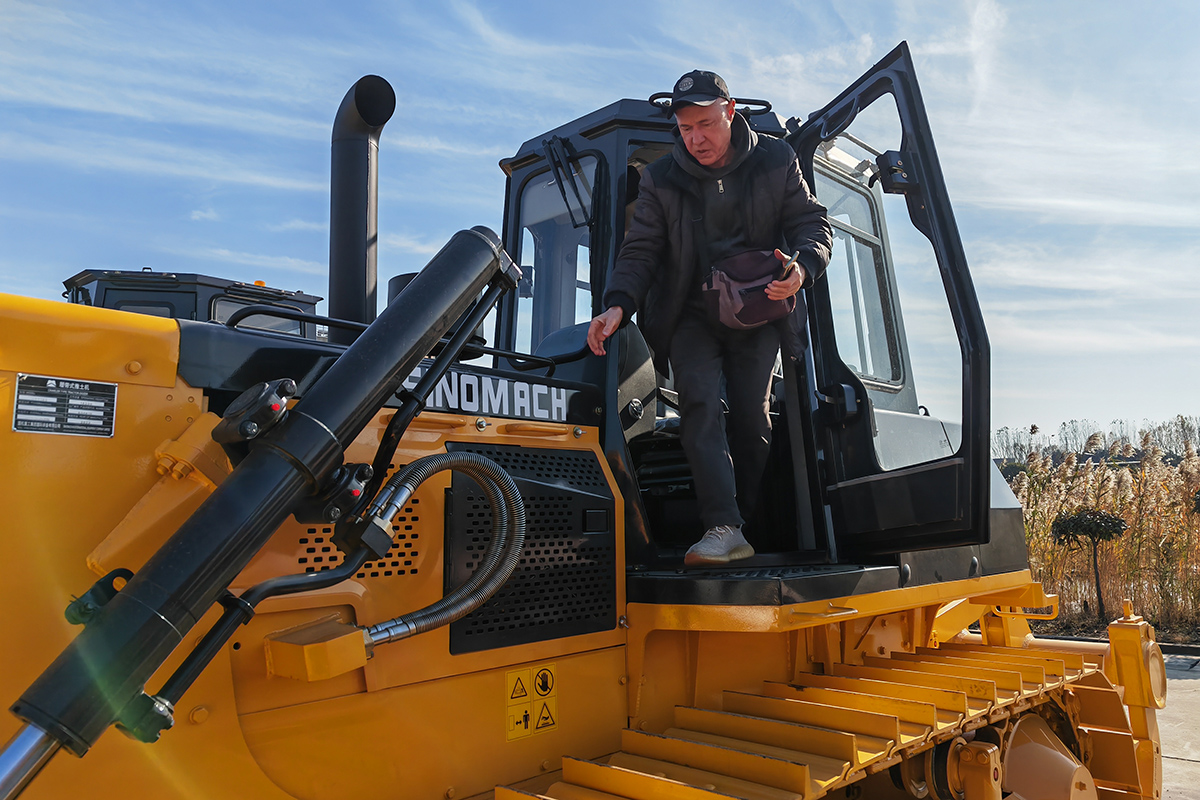

The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability
Products pecifications
Model |
GTY255 |
Type |
Standard Hydraulic Crawler Type |
Engine |
CUMMINS NT855-C280 |
Displacement(L) |
14.01 |
Rated power(kw/rpm) |
187/1850 |
Max.torque(N.m/rpm) |
1131/1200 |
Operating weight (without ripper) |
23.5 Ton |
Dimension(without ripper) |
5390*3735*3350 |
Grounding length |
2730 |
Ground pressure(MPa) |
0.077 |
Track gauge(mm) |
2000 |
Dozing capacity(m³) |
6.4 |
Blade width(mm) |
3735 |
Blade height(mm) |
1310 |
Blade lifting height(mm) |
1210 |
Max drop below ground(mm) |
540 |
Height of blade tilt(mm) |
735 |
Track shoe width(mm) |
560 |
Pitch(mm) |
216 |
Quantity of track link |
38 |
Quantity of Carrier rollers |
4 |
Quantity of Track rollers |
12 |
Max pressure(MPa) |
14 |
Discharge(L/min) |
262 |
Max tractor force(kN) |
203 |
Forward Speed(Km/h) |
F1:0-3.6 |
F2:0-6.5 | |
F3:0-11.2 | |
Rear Speed(Km/h) |
R1:0-4.3 |
R2:0-7.7 | |
R3:0-13.2 |
