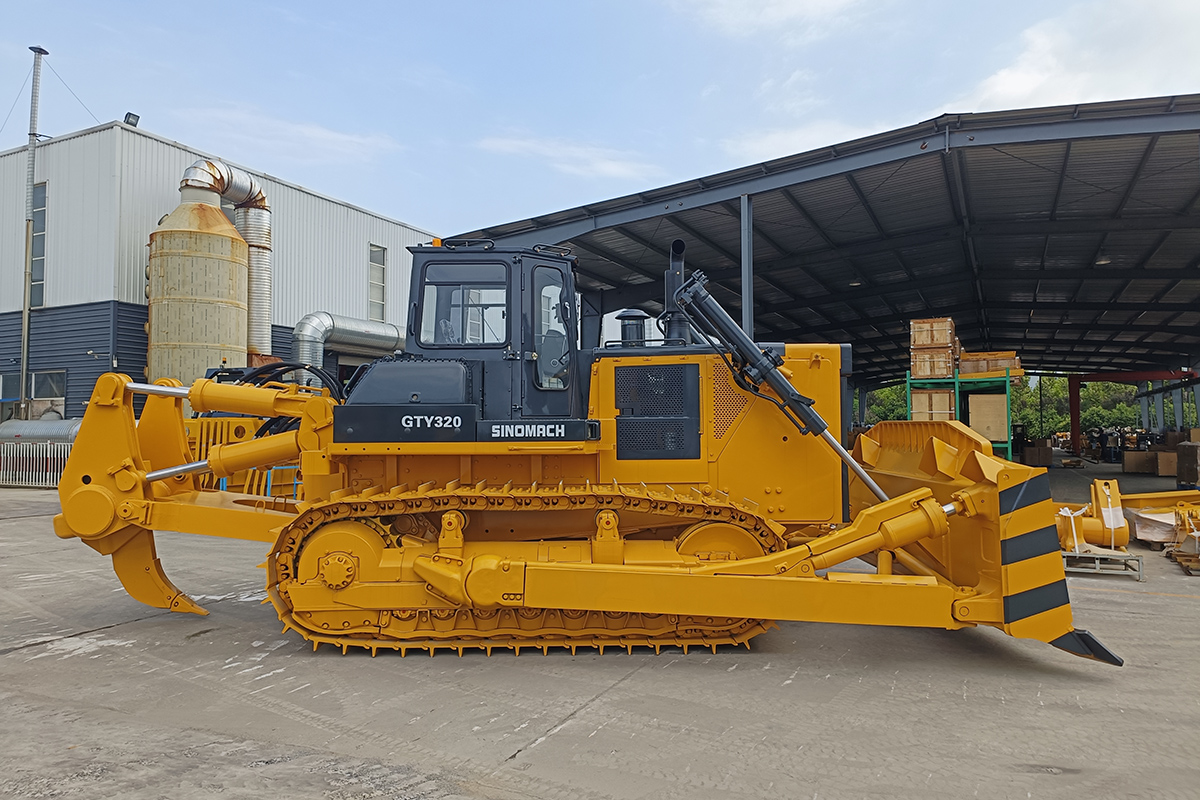

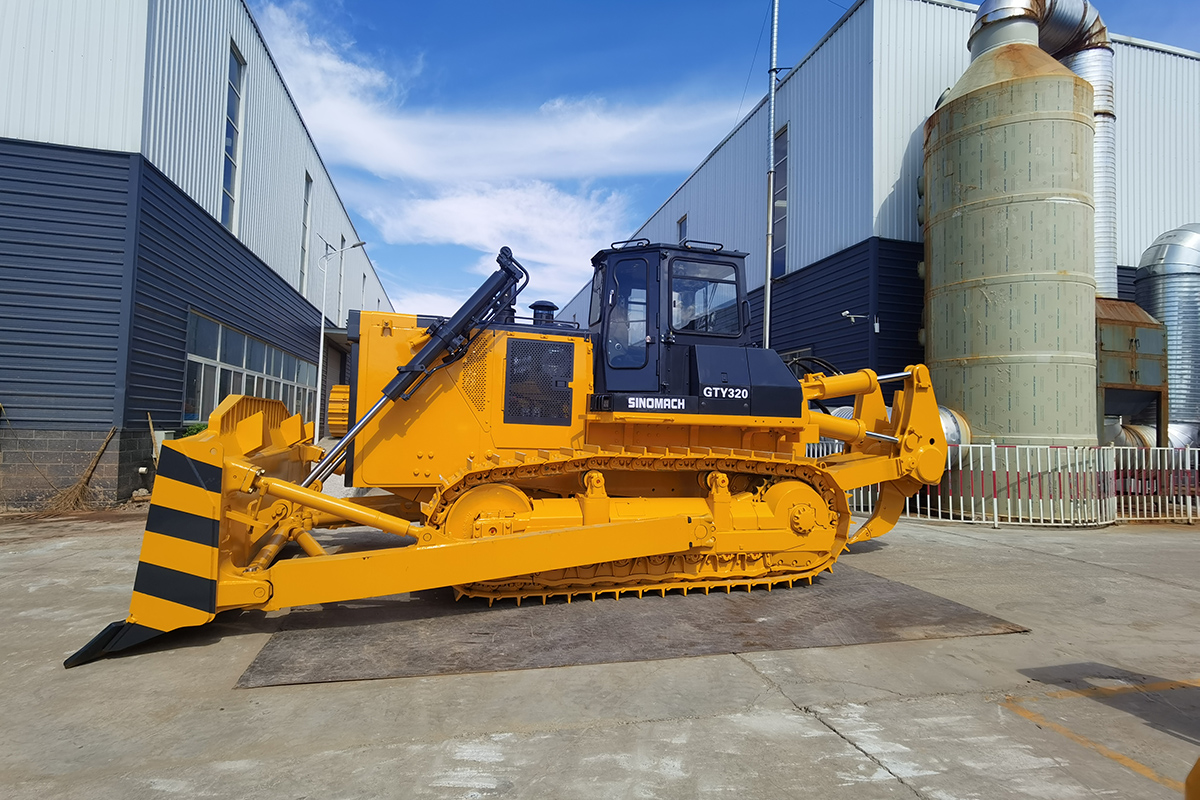

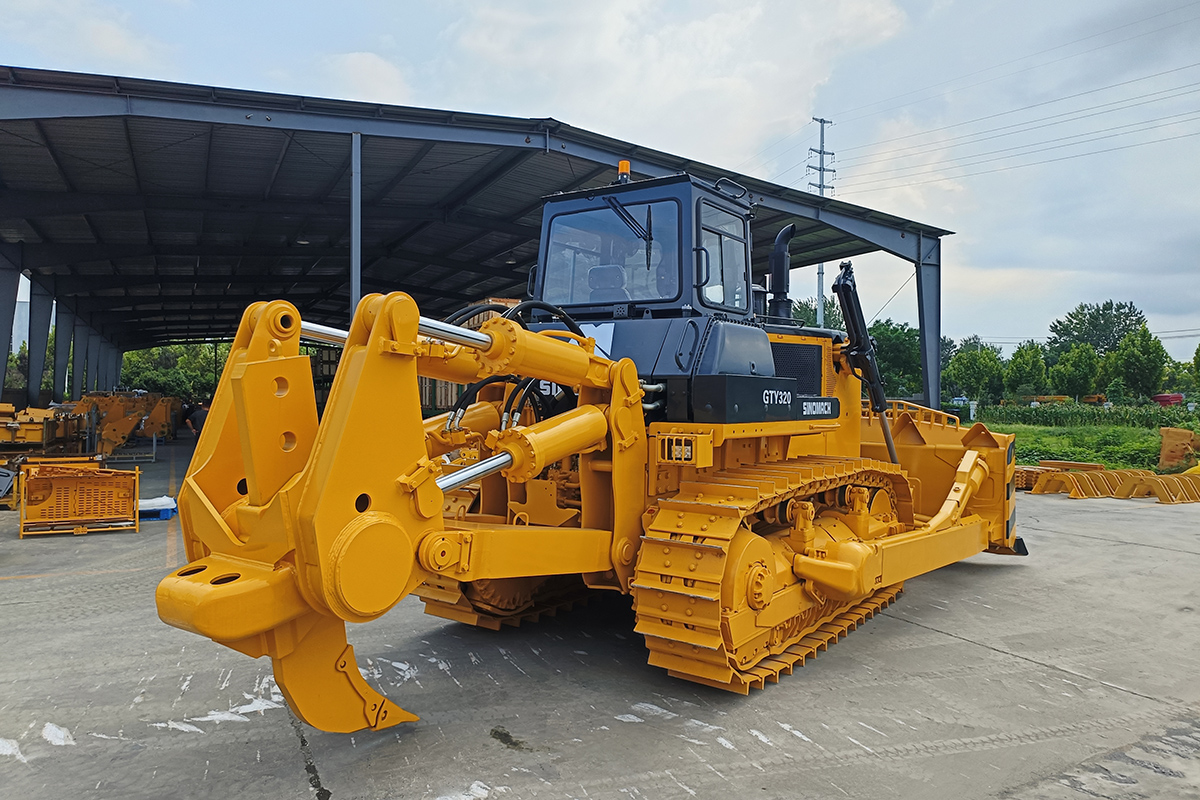

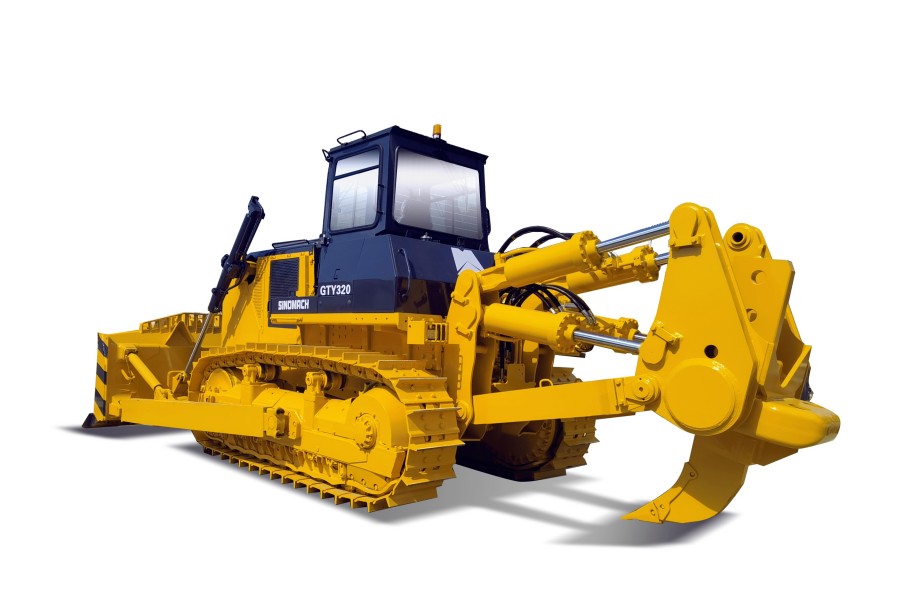

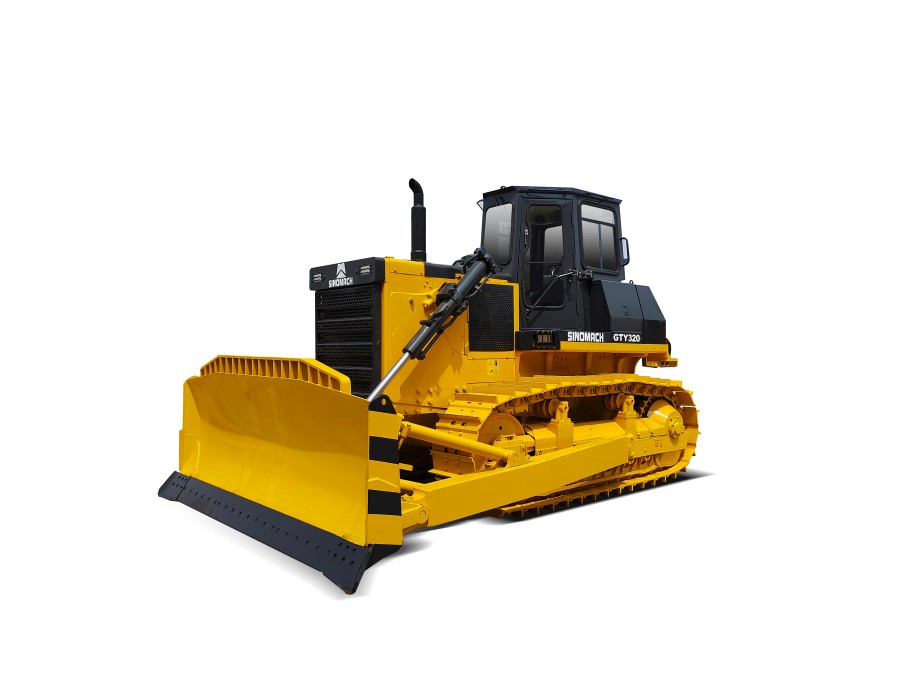

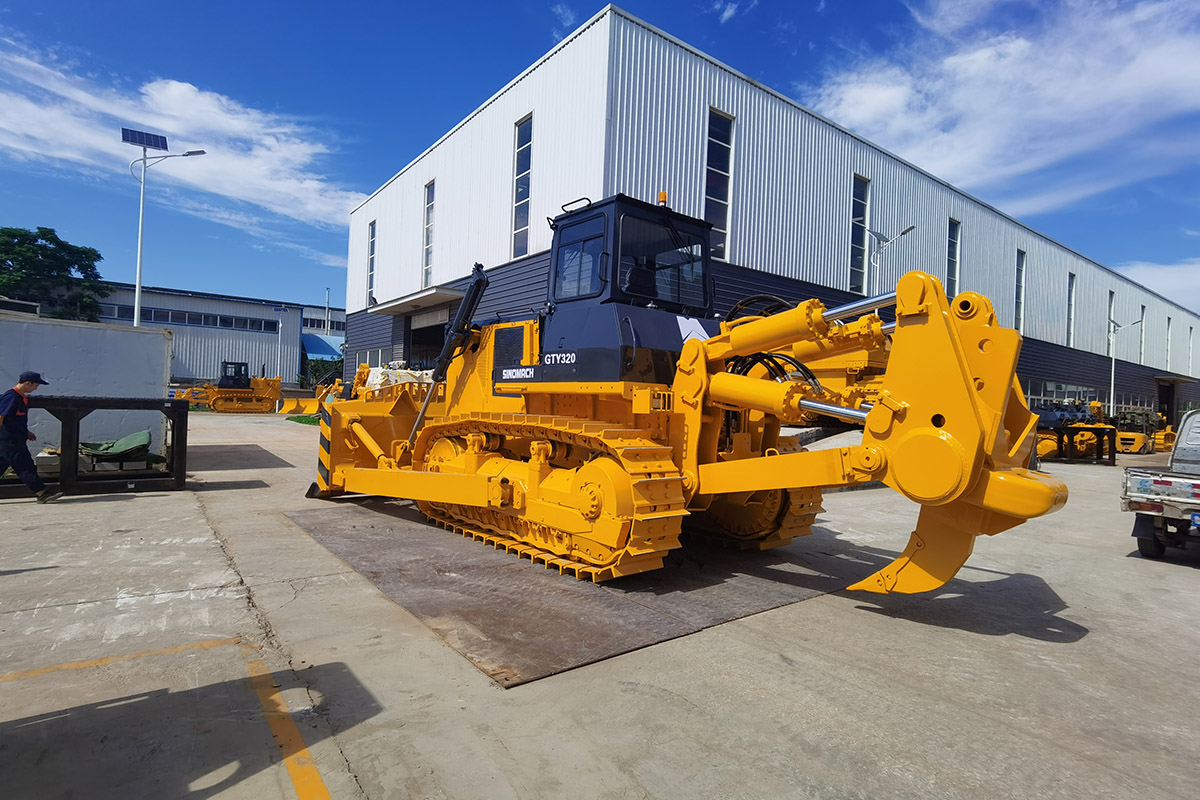

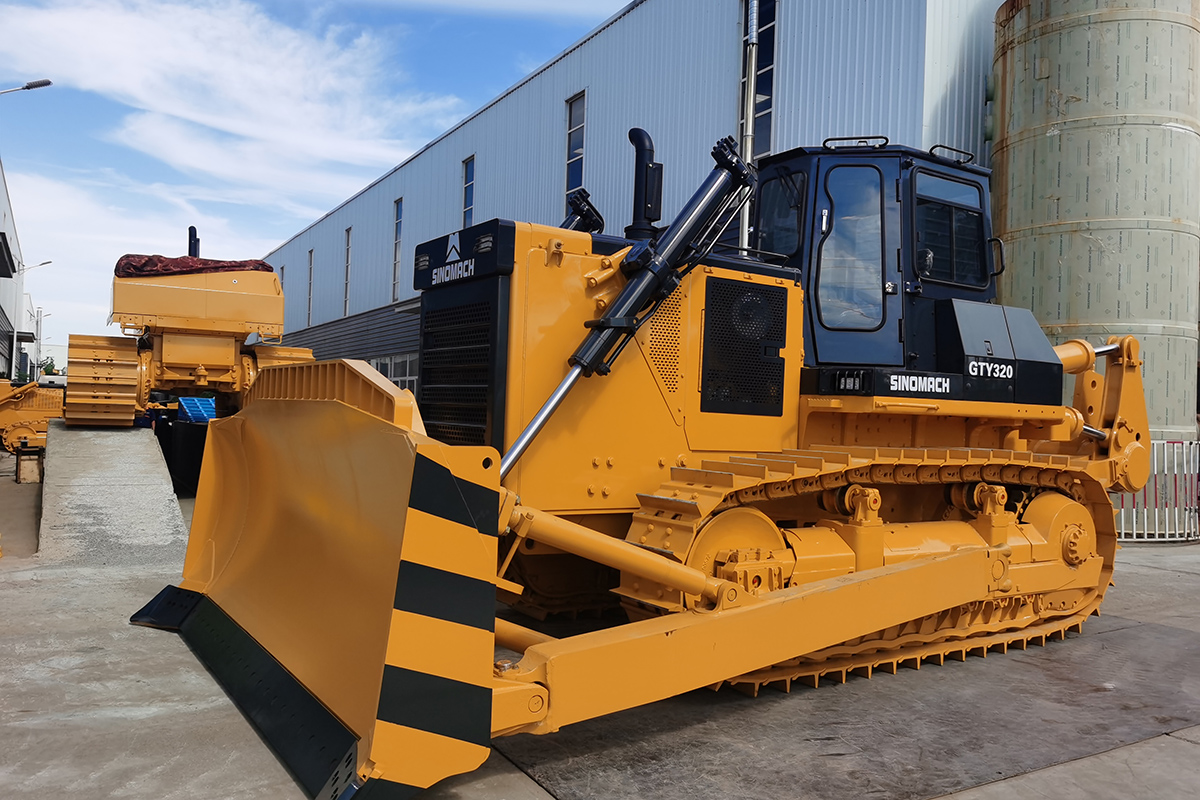

GTY320 Crawler hydraulic dozer
description1
01

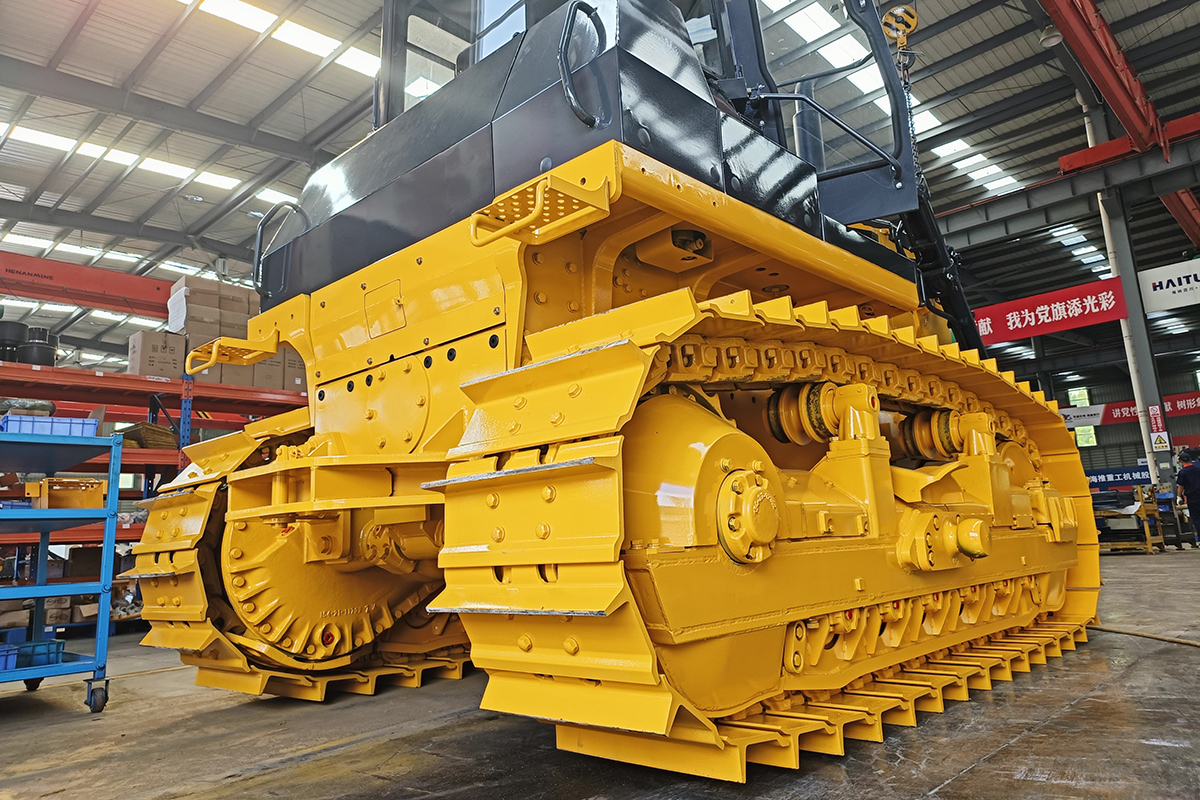

Steel Plate Full Box Structure
The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

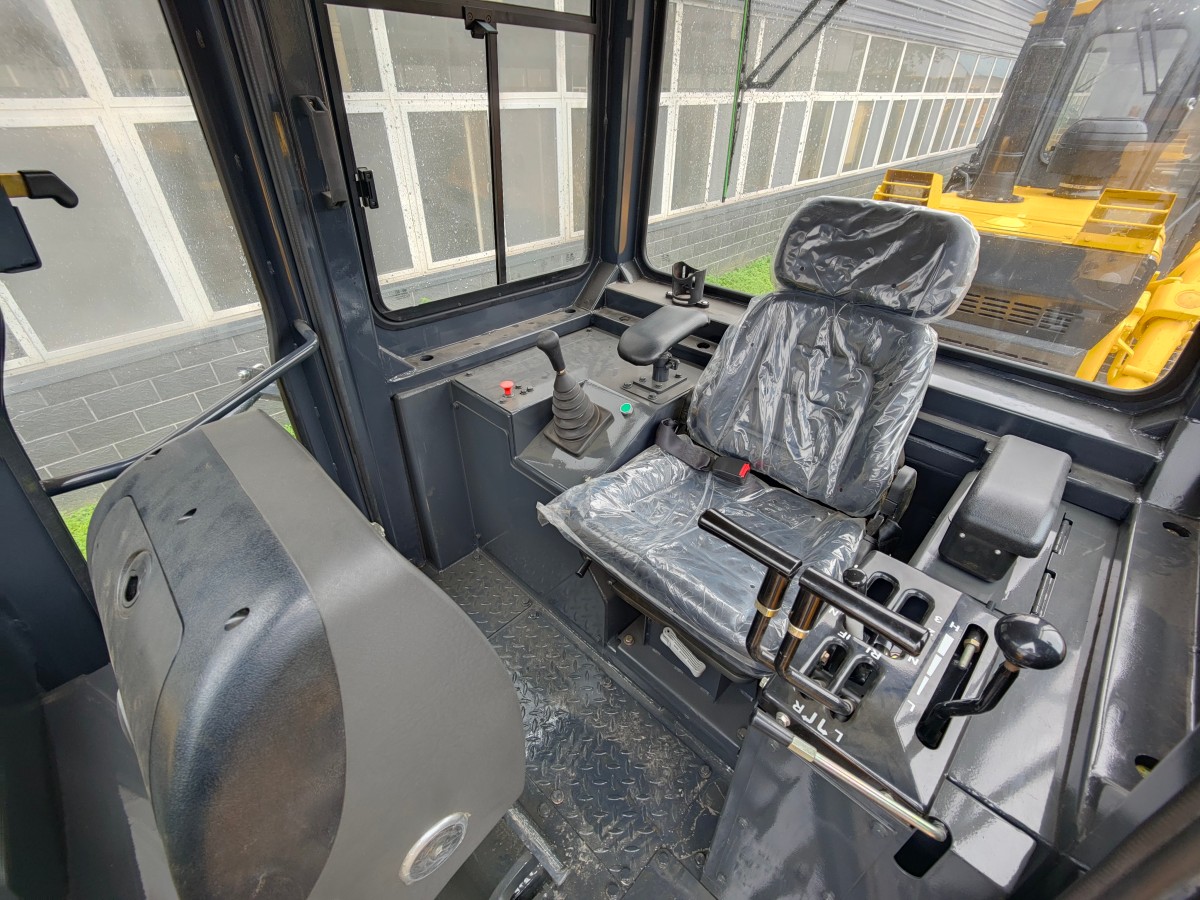

The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
Products pecifications
Model |
GTY320 |
Type |
Standard Hydraulic Crawler Type |
Engine type |
CUMMINS NTA855-C360S10 |
Displacement(L) |
14.01 |
Rated power(kw/rpm) |
257/2000 |
Max.torque(N.m/rpm) |
1440@1400 |
Operating weight |
37.2 Ton |
Dimension(no ripper) |
6535×4150×3515 |
Grounding length (mm) |
3150 |
Ground pressure(MPa) |
0.105 |
Track gauge(mm) |
2140 |
Dozing capacity(m³) |
10 |
Blade width(mm) |
4150 |
Blade height(mm) |
1610 |
Max drop below ground(mm) |
560 |
Track shoe width(mm) |
560 |
Pitch(mm) |
228.6 |
Quantity of track link |
41 |
Quantity of Carrier rollers |
4 |
Quantity of Track rollers |
14 |
Max pressure(MPa) |
14 |
Discharge(L/min ) |
355 |
Max tractor force(KN) |
280 |
Forward Speed(Km/h) |
F1:0-3.6 |
F2:0-6.6 | |
F3:0-11.5 | |
Rear Speed (Km/h) |
R1:0-4.4 |
R2:0-7.8 | |
R3:0-13.5 |
