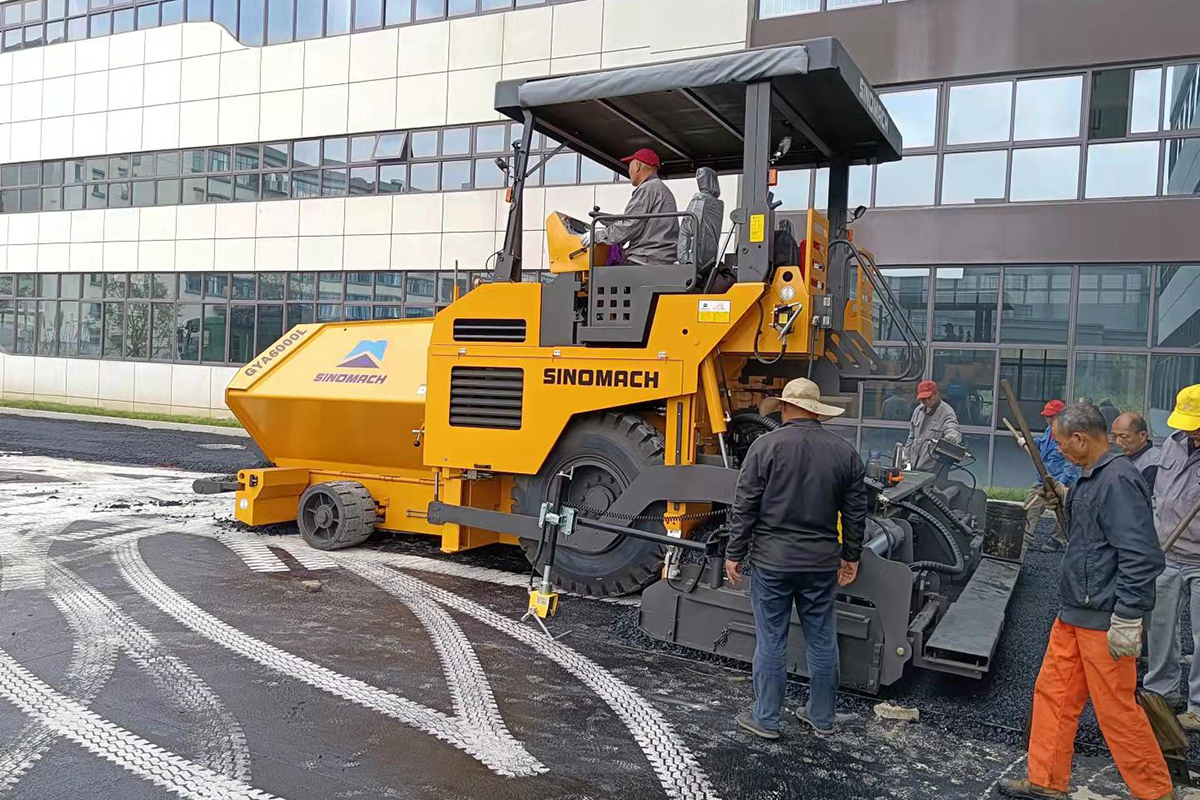

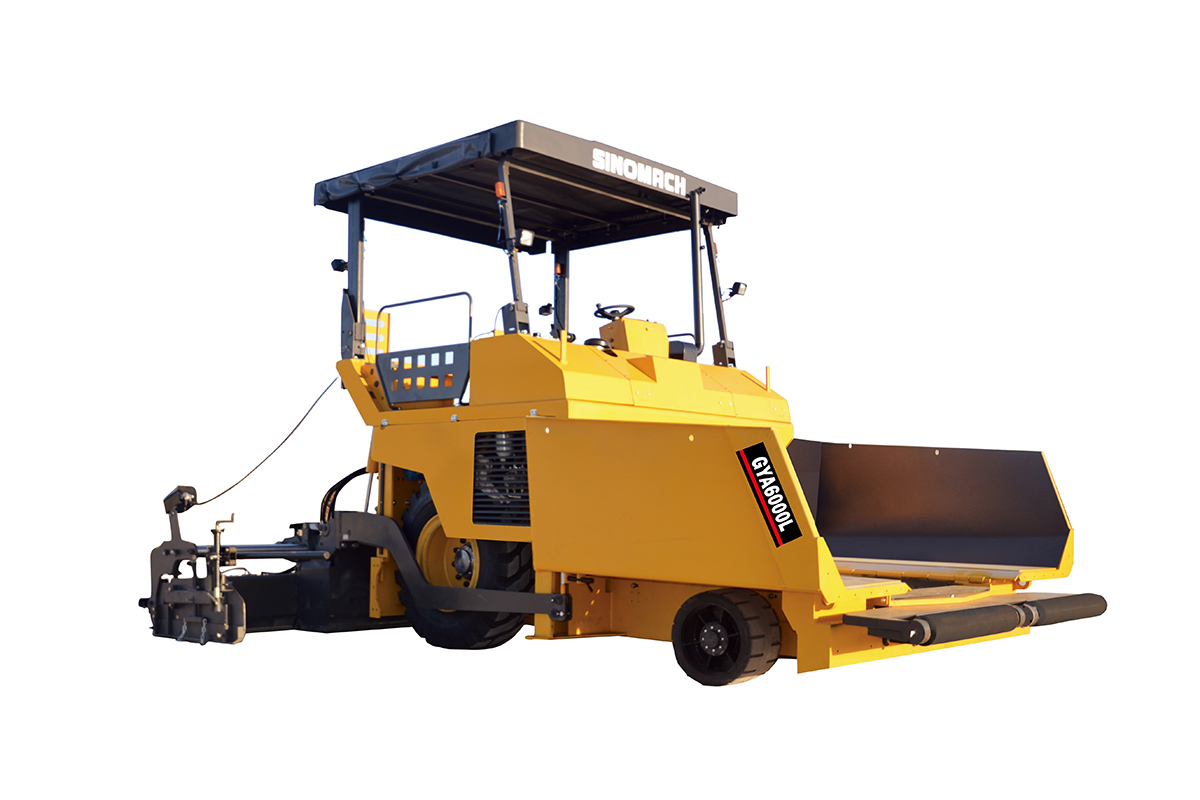

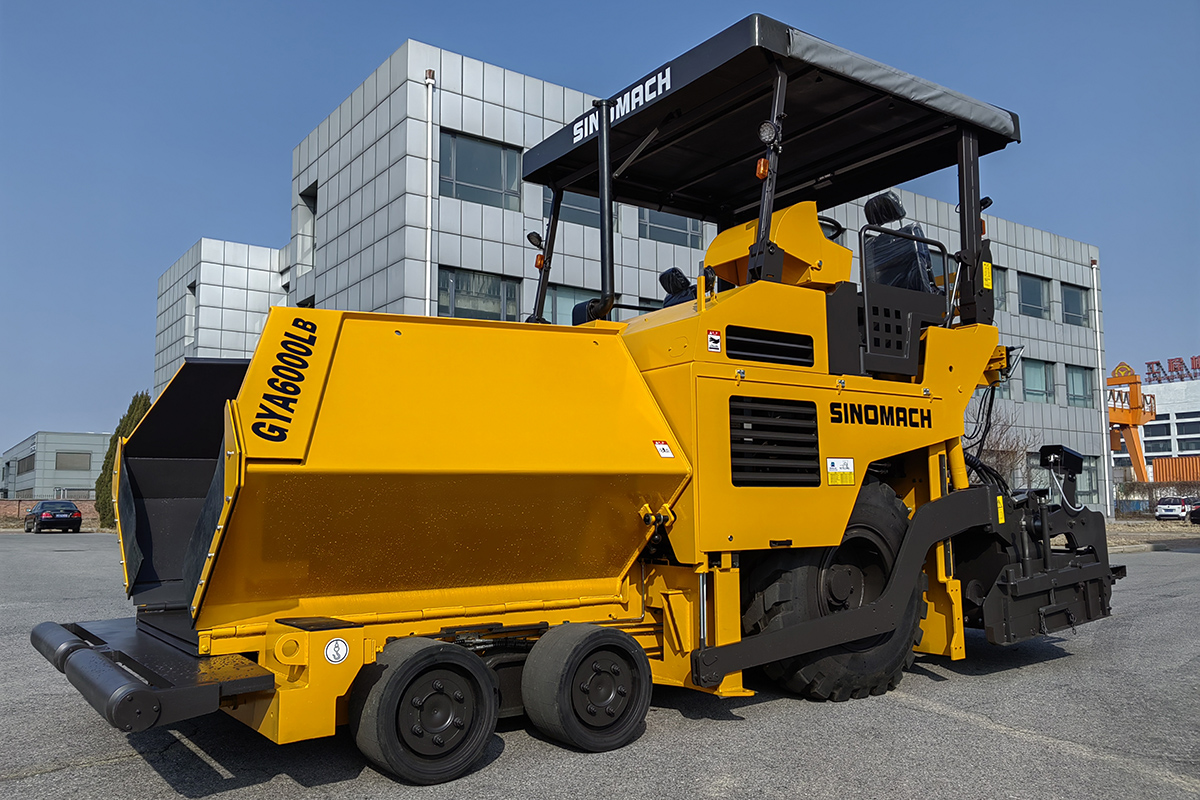

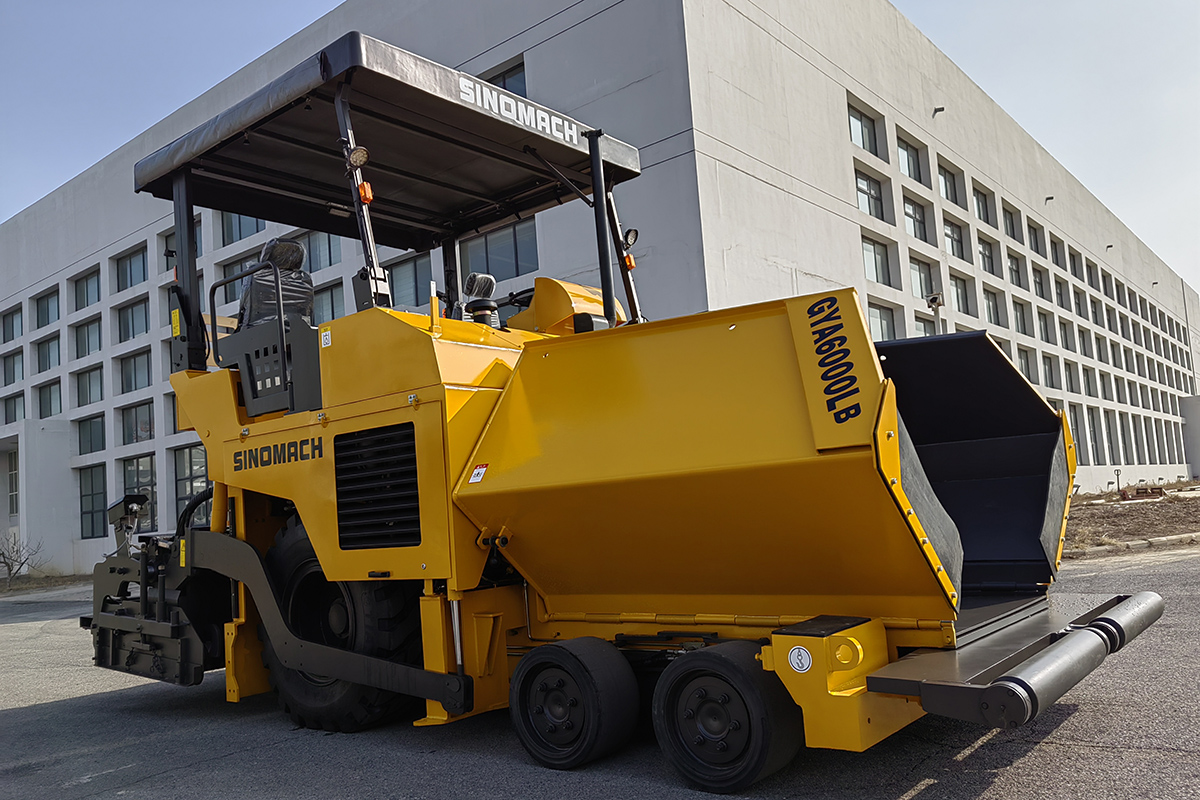

GYA6000L Wheeled Asphalt Paver
description1
01
The independently driven spiral distribution and scraper feeding systems, paired with imported hydraulic components (pumps, motors, joints), guarantee precise material handling for both stabilized soil and asphalt mixtures. The spiral distributor incorporates an ultrasonic material level sensor and stepless speed adjustment, enabling adaptability to varied paving requirements. Featuring tire-based constant-speed drive technology, the paver offers an optional all-wheel-drive configuration for enhanced traction in heavy-load or soft subgrade scenarios.
02
Critical components are reinforced: the spiral scraper drive chain strength is increased by 30%, while wear-resistant alloy blades (aligned with global premium brands) and German-imported abrasion-resistant steel plates optimize durability. Safety innovations include a patented dual-brake protection system for redundant safety during main brake failures, and an auto-folding canopy for hassle-free transportation. With a sleek design and simplified maintenance, the machine exemplifies the synergy of functional excellence and aesthetic sophistication.
Products pecifications
Item |
Unit |
GYA6000L |
|
Main |
Traveling type |
|
Wheeled |
Basic paving width |
m |
2.5 |
|
Max.paving width |
m |
6 |
|
Max.paving thickness |
mm |
200 |
|
Paving speed |
m/min |
0-15 |
|
Traveling speed |
km/h |
0-15 |
|
Theoretical productivity |
t/h |
400 |
|
Hopper capacity |
t |
13 |
|
Gradeability |
% |
≥20 |
|
Flatness deviation (longitudinal wave) |
mm/m³ |
2 |
|
Transverse wave deviation |
% |
±0.02 |
|
Degree of adjustment |
% |
-1～+3 |
|
Engine |
Manufacturer |
|
Cummins |
Model |
|
QSB3.9-C125 |
|
Fuel tank capacity |
L |
200 |
|
Rated power |
kW |
93 |
|
Rated speed |
rpm |
2200 |
|
Electric system |
V |
24 |
|
Emission |
|
Stage Ⅲ |
|
Ironing System |
Screed type |
|
Hydraulic telescopic |
Telescopic range |
m |
2.5～4.5 |
|
Compaction type |
|
Compaction Hammer |
|
Compaction frequency |
HZ |
25 |
|
Compaction amplitude |
mm |
5 |
|
Heating type |
mm |
Diesel\Electric Heating |
|
Dimension & weight |
Length |
mm |
6290 |
Width(main) |
mm |
2690 |
|
Height (Cabin) |
mm |
3650 |
|
Transport height |
mm |
3000 |
|
Total weight |
T |
16（1±5%） |
