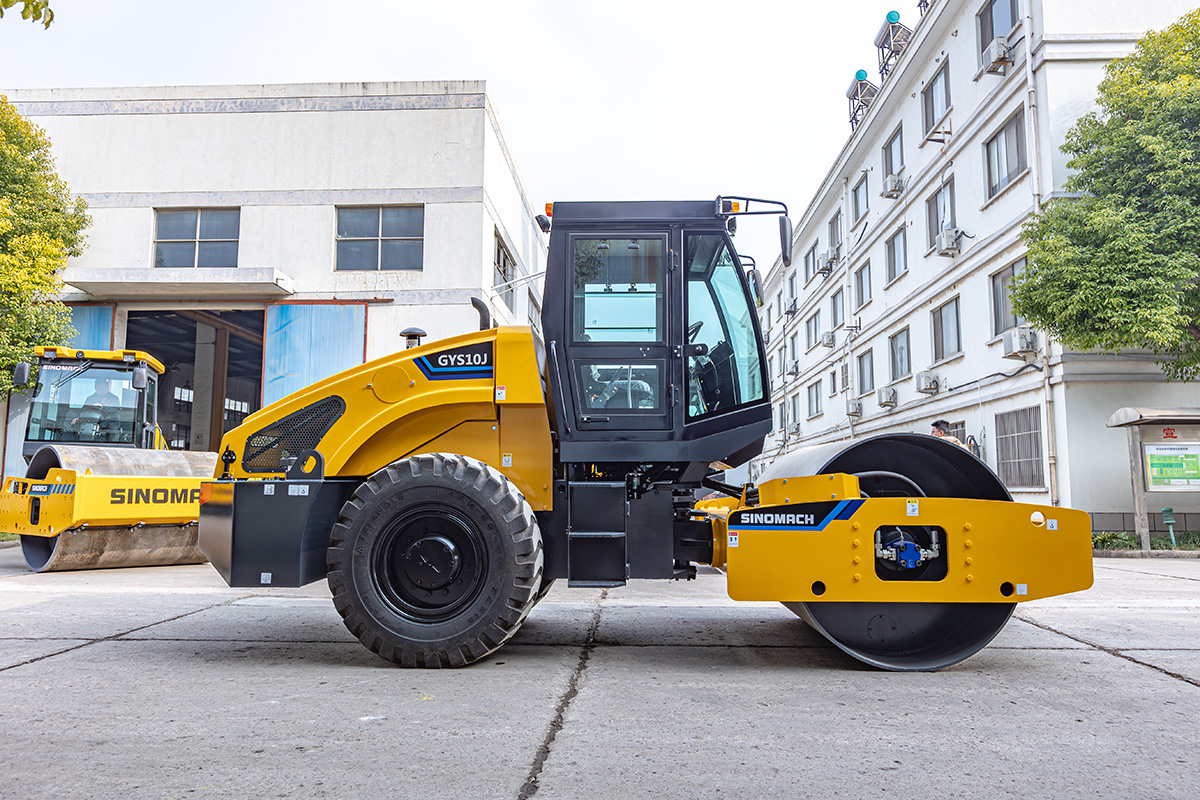

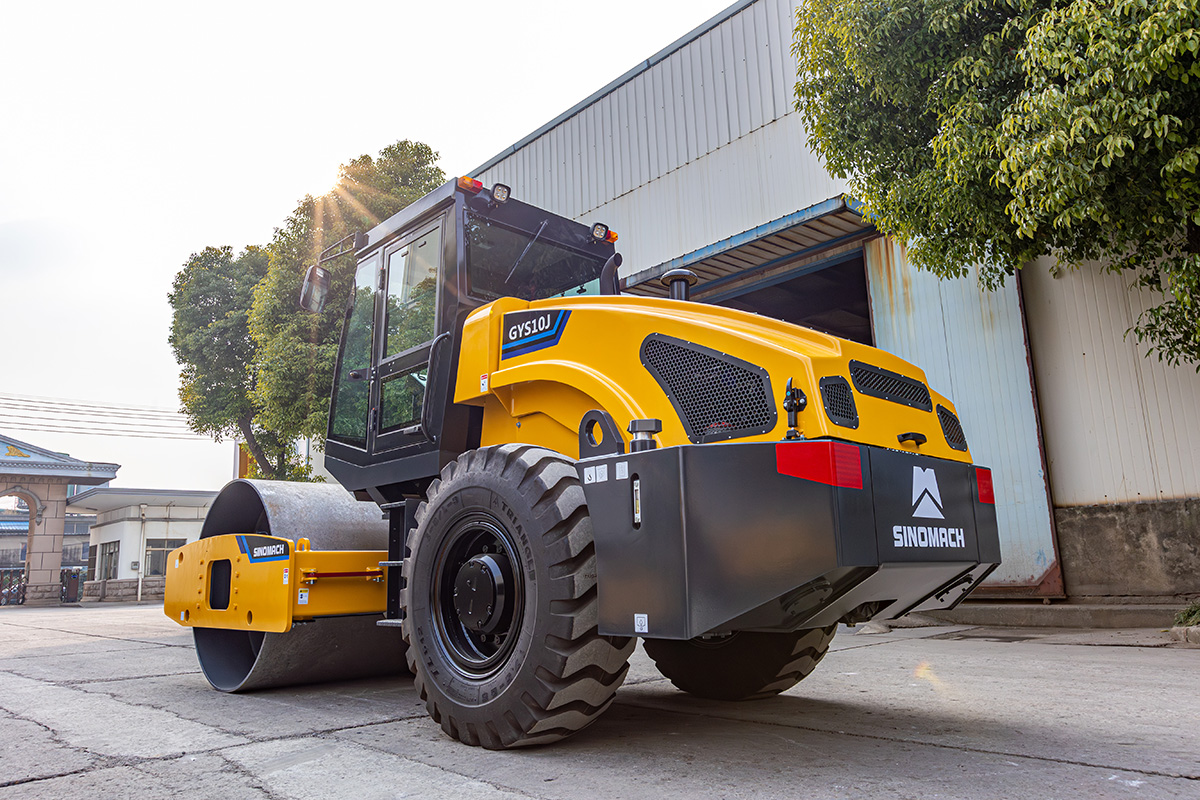

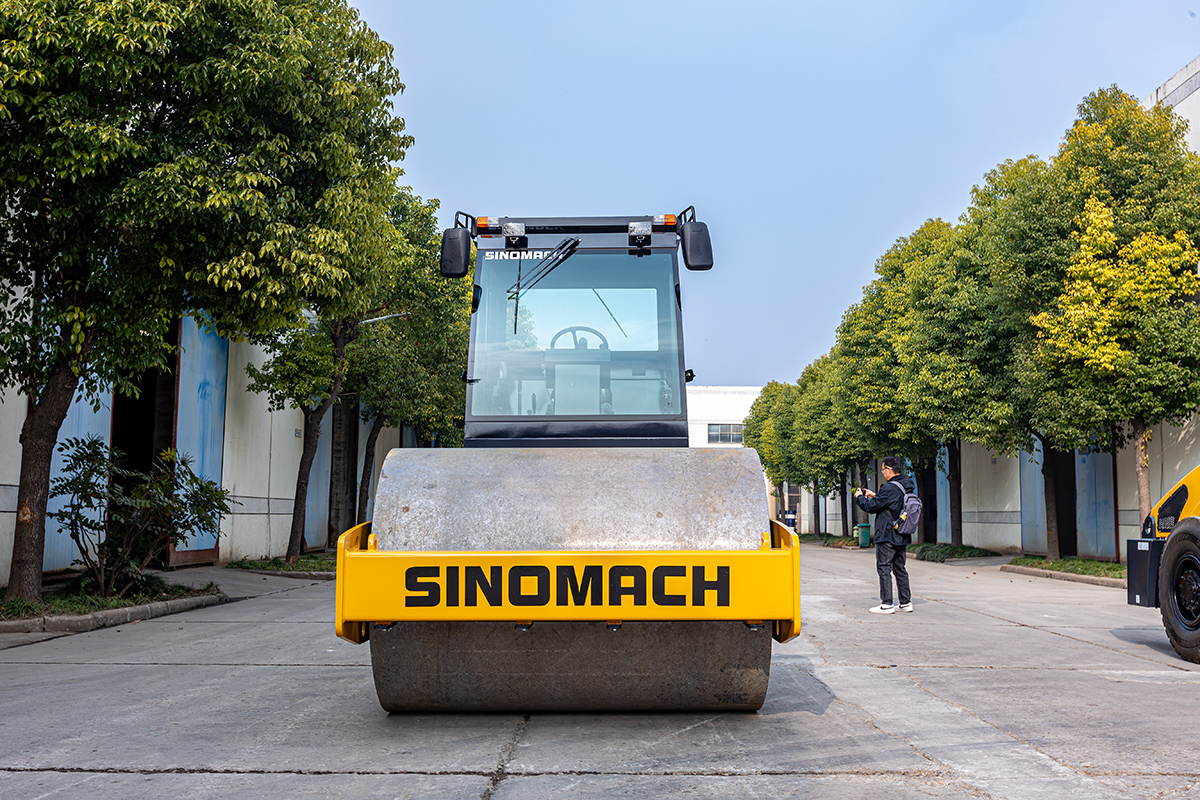

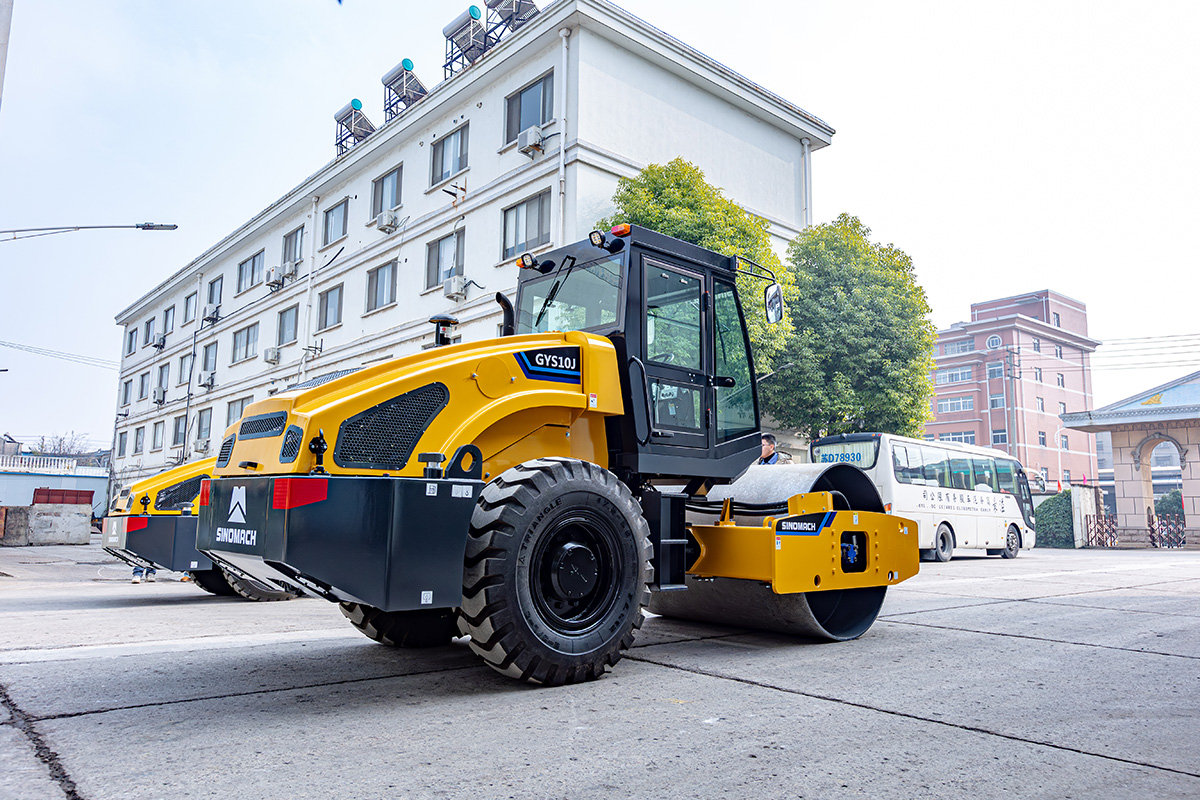

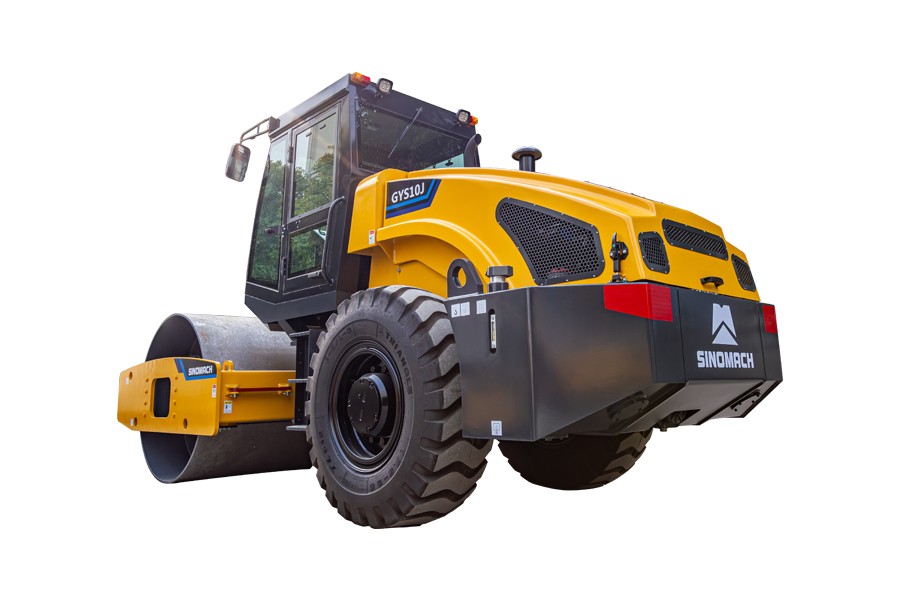

GYS10J Single Drum Vibratory Compactor
description1
01

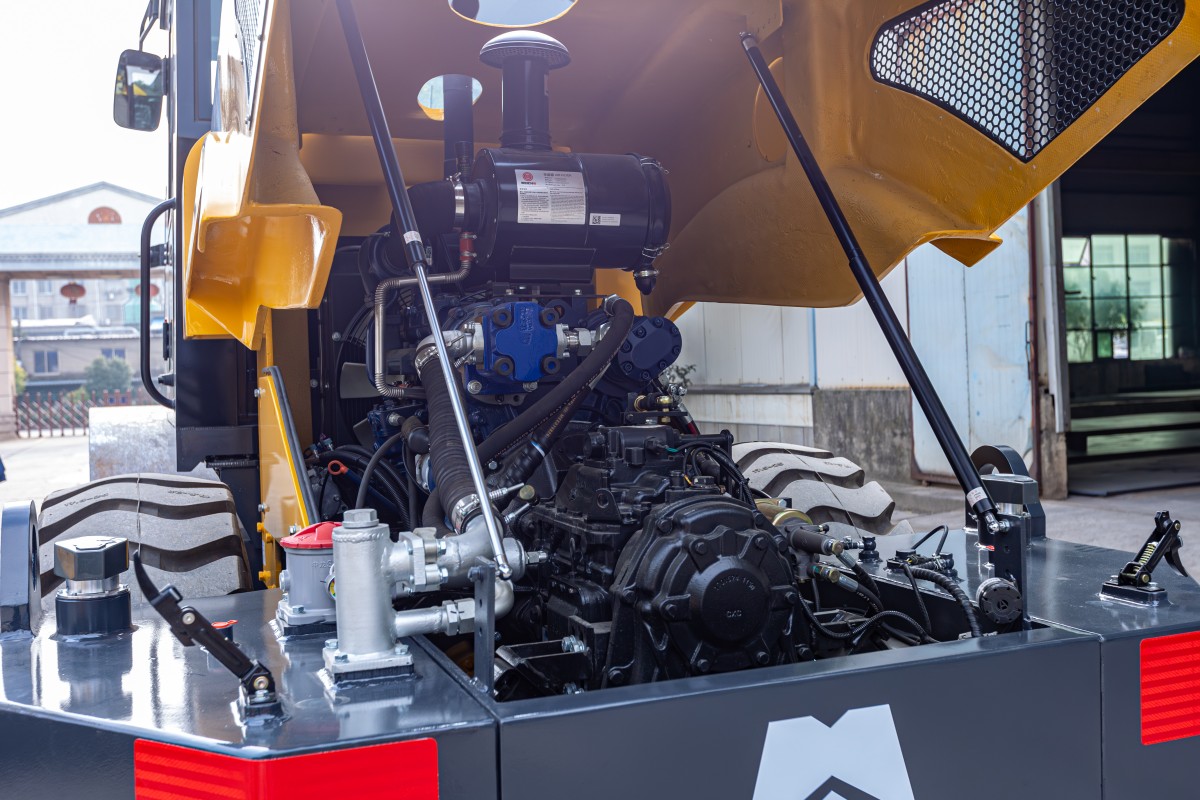

Easy maintenance
Rear hood can be flipped up at a wide angle for easy maintenance.Hydraulic components adopt famous brand, reliable performance.
02

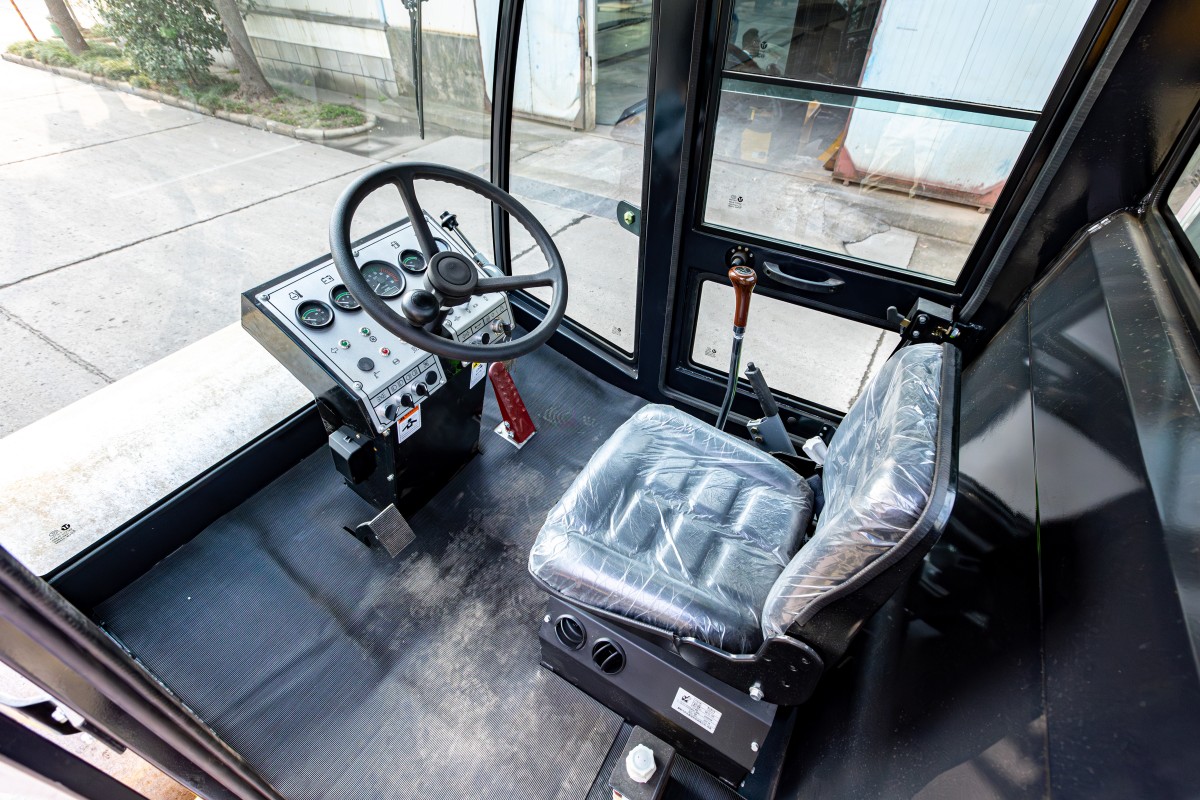

Upgraded cab
Comprehensively upgraded cab interior functional layout, interior color scheme and air conditioning duct structure, with optional sunshade to enhance driving comfort and improve the cooling effect inside the cab.

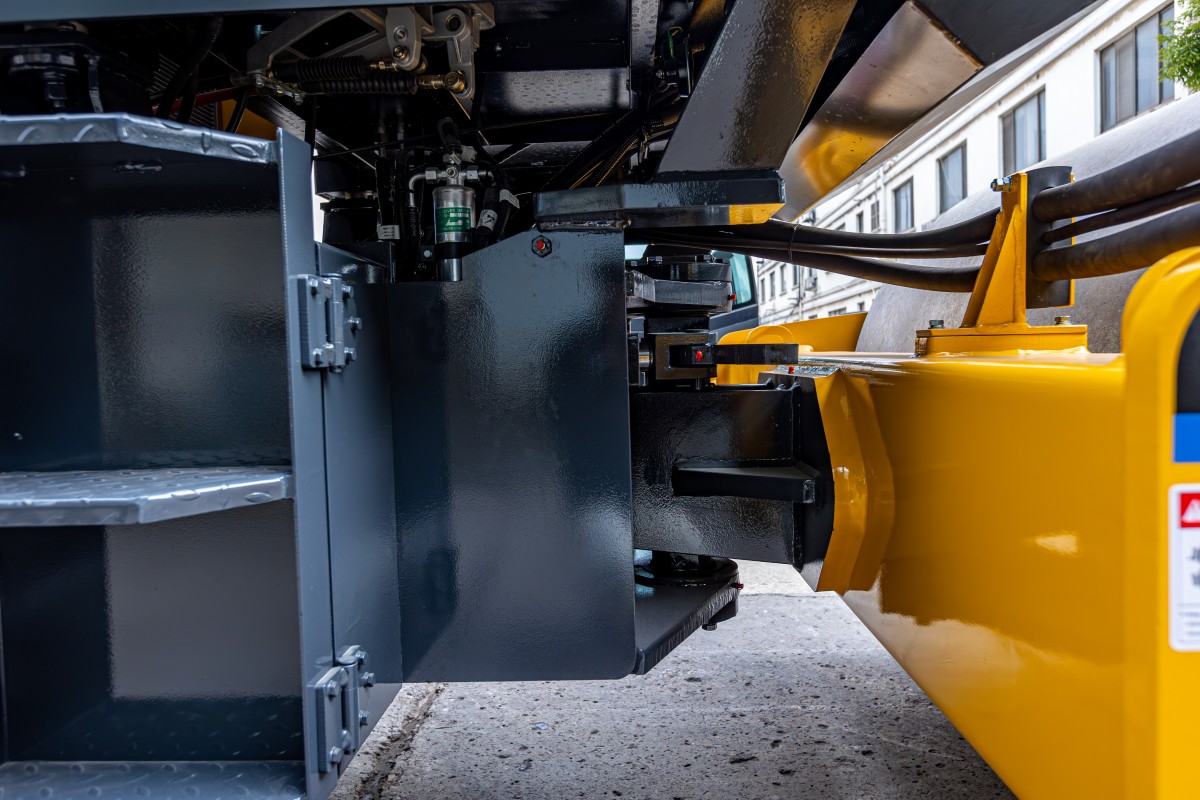

Hydraulic steering, articulated frame, light and flexible operation.

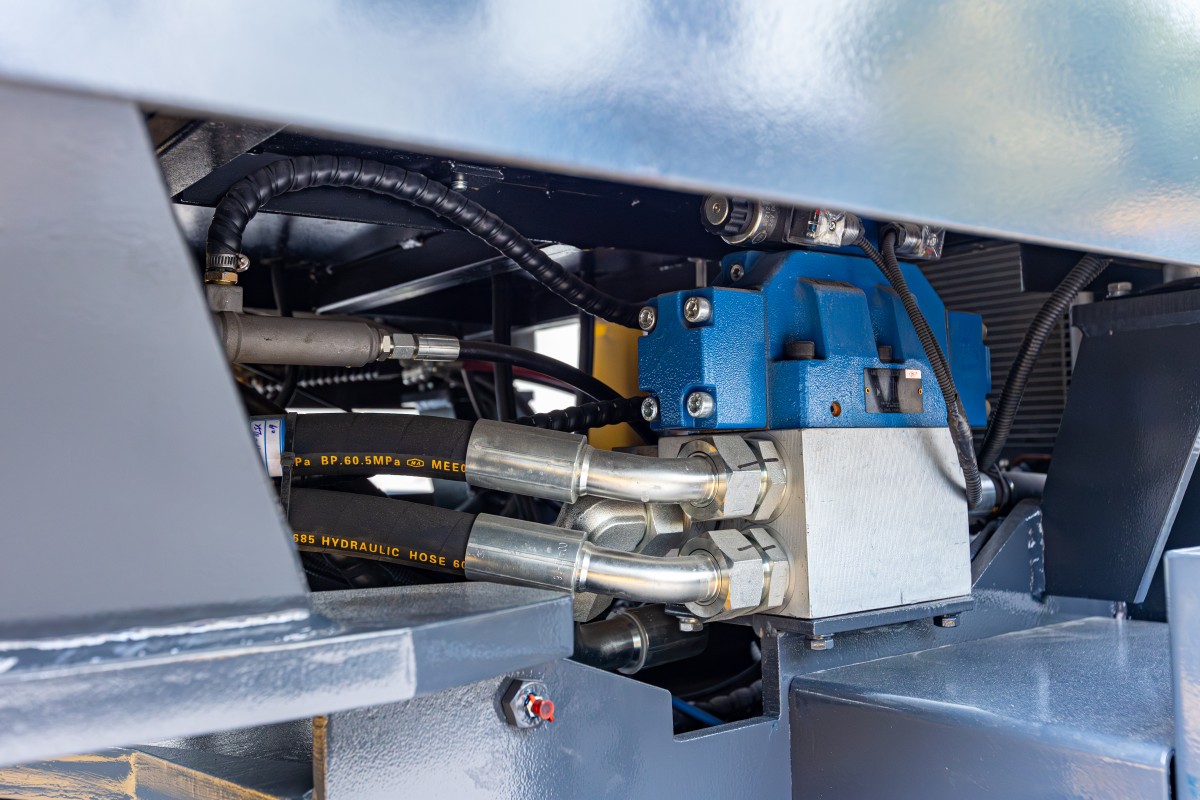

Hydraulic components adopt famous brand, reliable performance.
Products pecifications
Main Parameters: |
GYS10J |
|
1, Operating weight |
10000 kg |
|
2, Vibratory drum diameter |
1430 mm |
|
3, Vibratory drum width |
1980 mm |
|
4, Vibratory frequency |
30 Hz(theoretical) |
|
5, Vibratory amplitude |
1.6/0.8 mm |
|
6, Centrifugal force |
225/105 kN |
|
7, Traveling speed | ||
Forward |
2.0/4.2/8.7 km/h |
|
Reverse |
2.0/4.2 km/h |
|
8, Min. ground clearance |
380 mm |
|
9, Wheel base |
2900 mm |
|
10, Static line pressure |
240 N/cm |
|
11, Min. turning radius |
5800 mm |
|
14, Gradeability |
30% |
|
15、(L×W×H)Dimensions |
5570×2180×3010 mm |
|
16, Engine model |
WP4G110E221 |
WP4.1G102E301 |
Type |
4 cylinder inline，4 stroke, water cooled |
|
Power |
82 kW |
74.9 kW |
Rated speed |
2000 r/min |
2400 r/min |
17, Fuel tank capacity |
240 L |
|
18, Hydraulic oil tank |
240 L |
|
19, Tire type |
17.5-25 |
|
