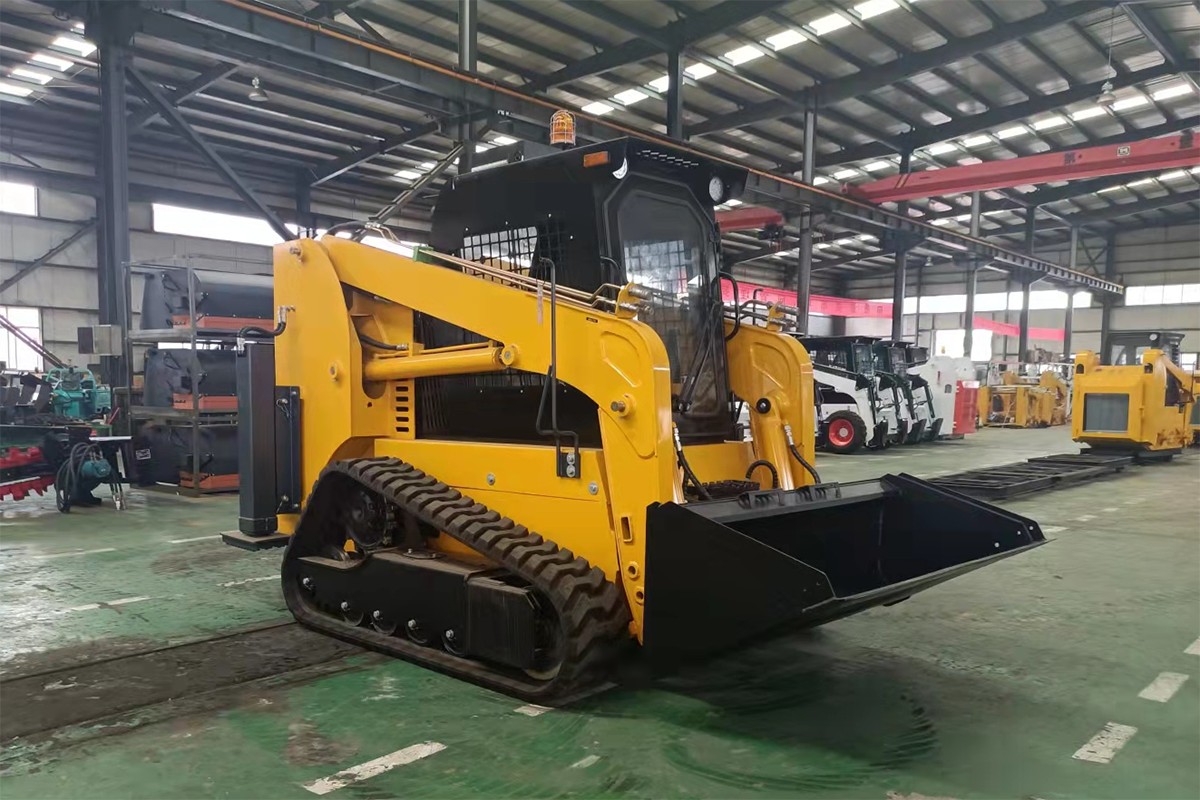

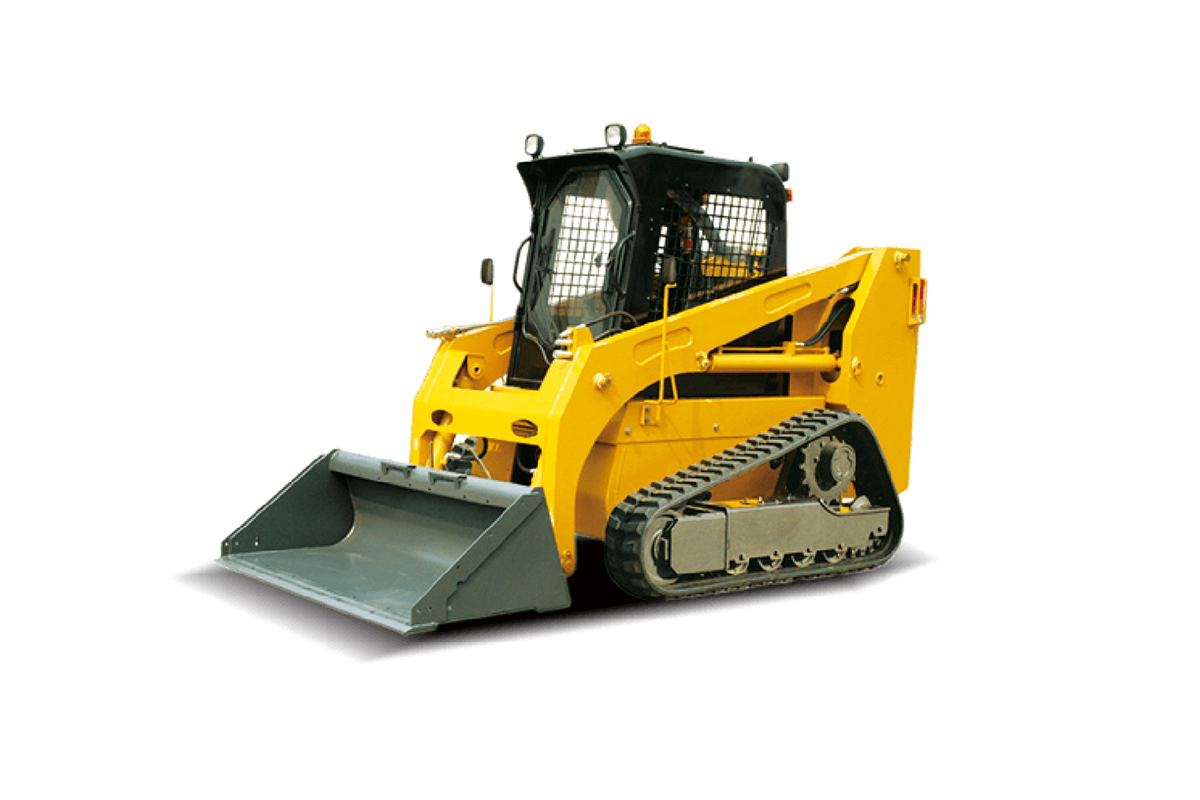

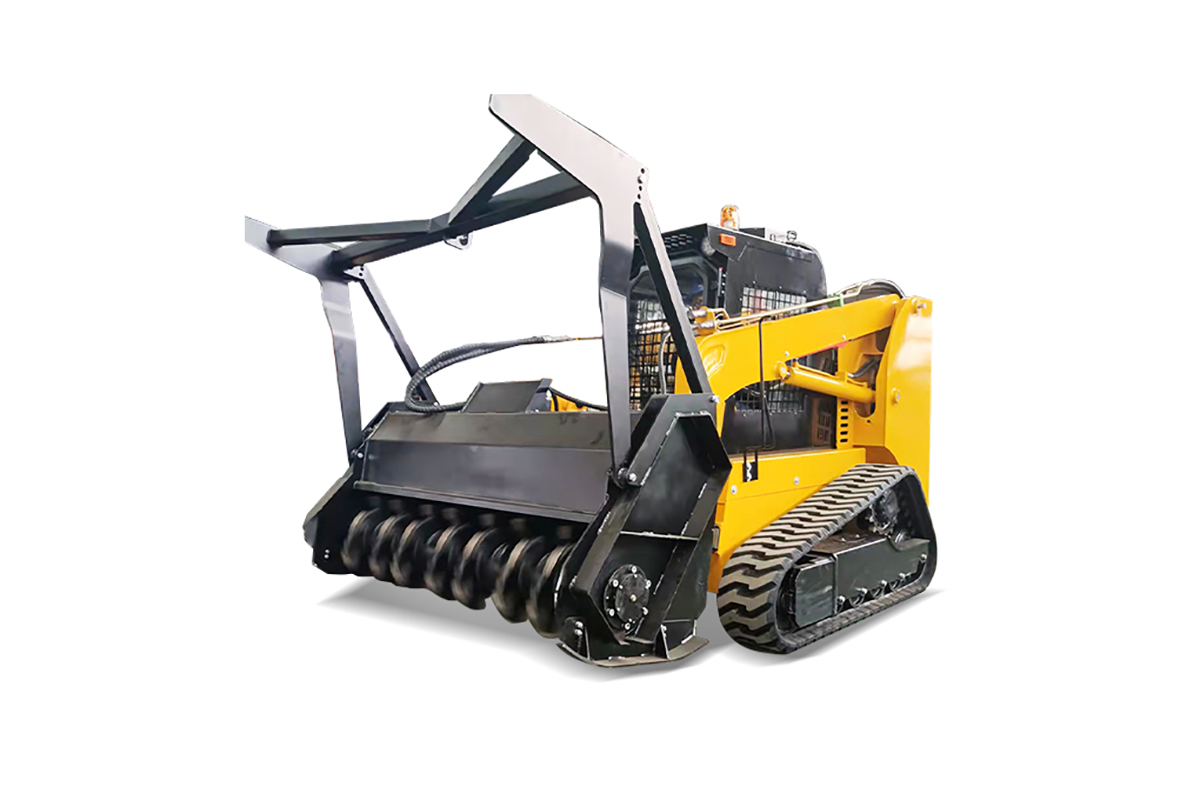

TS100 Crawler skid steer loader
description1
01

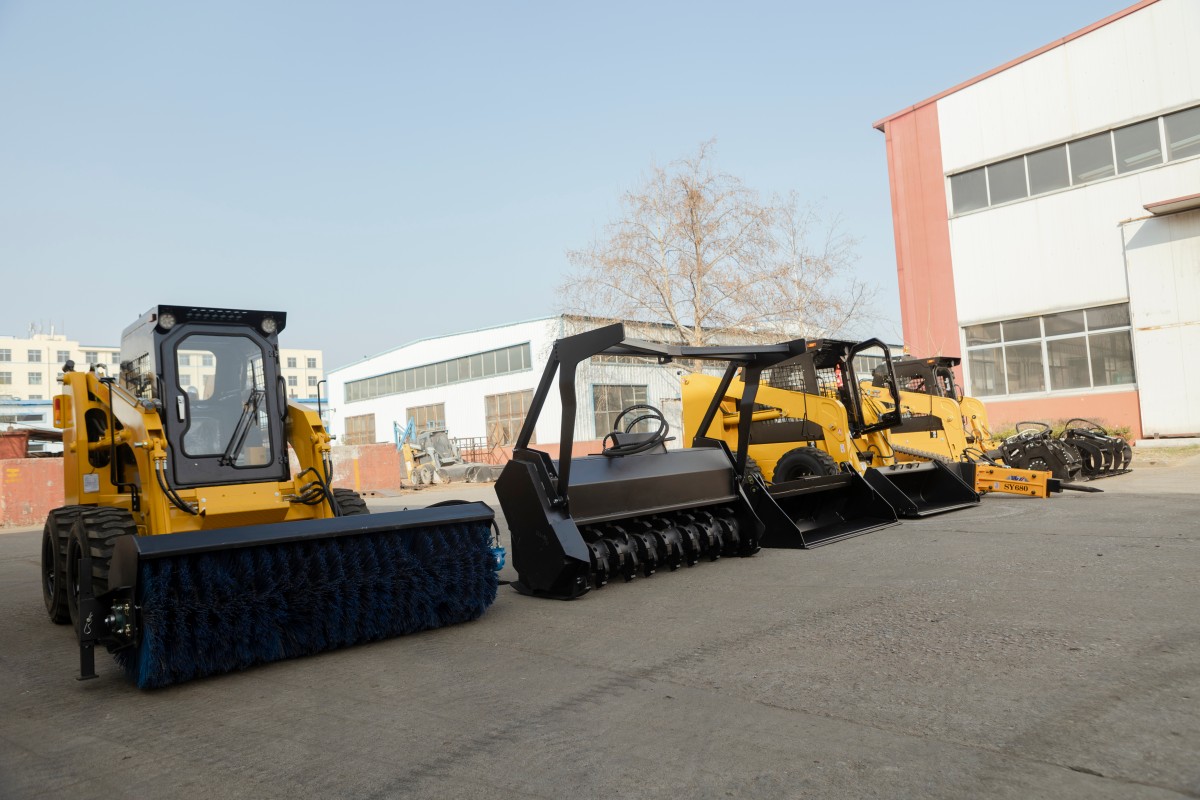

Integrates a standard quick-attach system with auxiliary hydraulic circuits
The machine integrates a standard quick-attach system with auxiliary hydraulic circuits, enabling rapid interchange of over a dozen attachments (e.g., buckets, forks, sweepers, augers), thereby achieving multi-functional versatility for dynamic task requirements. This modular design optimizes operational flexibility, allowing seamless transitions between diverse worksite demands.

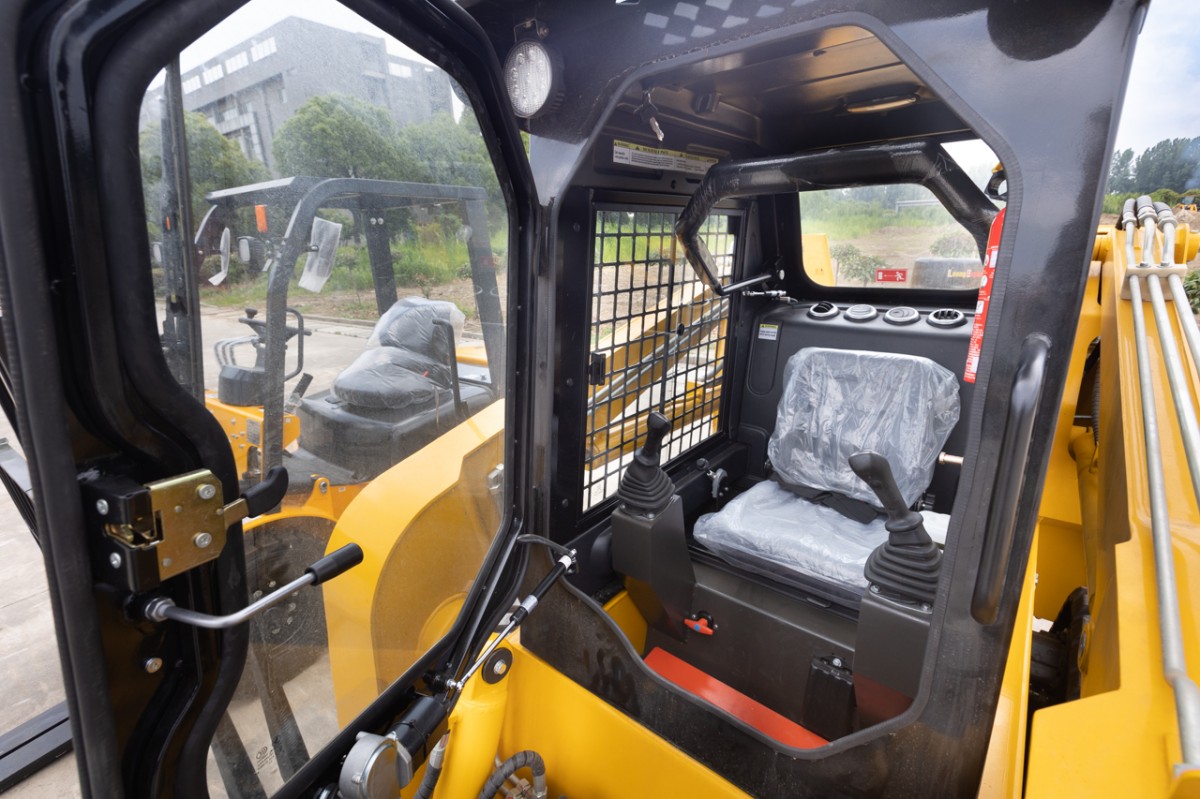

The skid steer loader cab enhances operational safety through a panoramic visibility design that minimizes blind spots, ensures year-round comfort with an integrated heating and cooling system, reduces noise via a fully sealed cabin structure, and optimizes stability by centrally positioning the cab to balance weight distribution, providing comprehensive protection for operators.
Products pecifications
| Overall Dimension | ||||
| 1 | Length(with bucket on ground) | 3700(mm) | ||
| 2 | Width(to outside of wheels) | 2030(mm) | ||
| 3 | Bucket width | 2050(mm) | ||
| 4 | Height(To the top of the cab) | 2160(mm) | ||
| 5 | Wheel base | 1500(mm) | ||
| 6 | Tread | 1654(mm) | ||
| 7 | Min. ground clearance | 205(mm) | ||
| Main Technical Specification | ||||
| 1 | Rated load | 1200(Kg) | ||
| 2 | Operating weight | 4500KG | ||
| 3 | Rated bucket capacity | 0.6(m3) | ||
| 4 | Max. breakout force | 30kN | ||
| 5 | Static tipping loads | ≥24kN | ||
| 6 | Max. dump clearance | 2550(mm) | ||
| 7 | Dump reach | 700(mm) | ||
| 8 | Dump angle at any position | ≥400 | ||
| 9 | Angle of departure | 300 | ||
| 10 | Min. turning radius | |||
| (1) Outside of bucket | 2430(mm) | |||
| (2) Outside of front wheel | 2200(mm) | |||
| (3) outside of frame tail | 1742 (mm) | |||
| 11 | Lifting time of bucket | ≤4.2(sec.) | ||
| 12 | Lowering time of bucket | ≤2.5(sec.) | ||
| 13 | Dumping time | ≤2.6(sec.) | ||
| 14 | Traveling speed(Km/h)，1 forward and 1 reverse | |||
| (1) forward gear | 0～12-18 | |||
| (2) reverse gear | 0～12-18 | |||
| Diesel engine | ||||
| 1 | Model | WeichaiWP4.1G102 E | ||
| 2 | Type | Direct injection. Turbocharged. Water cooling | ||
| 3 | Rated output | 74.9(kW) | ||
| 4 | Total exhaust of cylinder | 4.1 (L) | ||
| 5 | Rated speed | 2400(r/min) | ||
| 6 | Max. Torque | 320(N.M)/1600rpm | ||
| Power train | ||||
| Driving system | ||||
| 1 | Type | Hydraulic wheel drive | ||
| 2 | Size of tire | 320*86（optional 450*86） | ||
| 3 | System pressure | 30MPa | ||
| Working Device Hydraulic System | ||||
| 2 | System pressure | 21MPa | ||
| Brake System | ||||
| 1 | Type of traveling brake | Traveling brake depend on static hydraulic tow of close-circuit hydraulic system | ||
| 2 | Type of parking brake | Traveling motors within brake actuated via operating solenoid valve | ||
| Oil Capacity | ||||
| 1 | Fuel(diesel) | 90(L) | ||
| 2 | Engine lubricating oil | 10(L) | ||
| 3 | Oil for chain box（one side） | 5.7(L) | ||
| 4 | Oil for hydraulic system | 85(L) | ||
