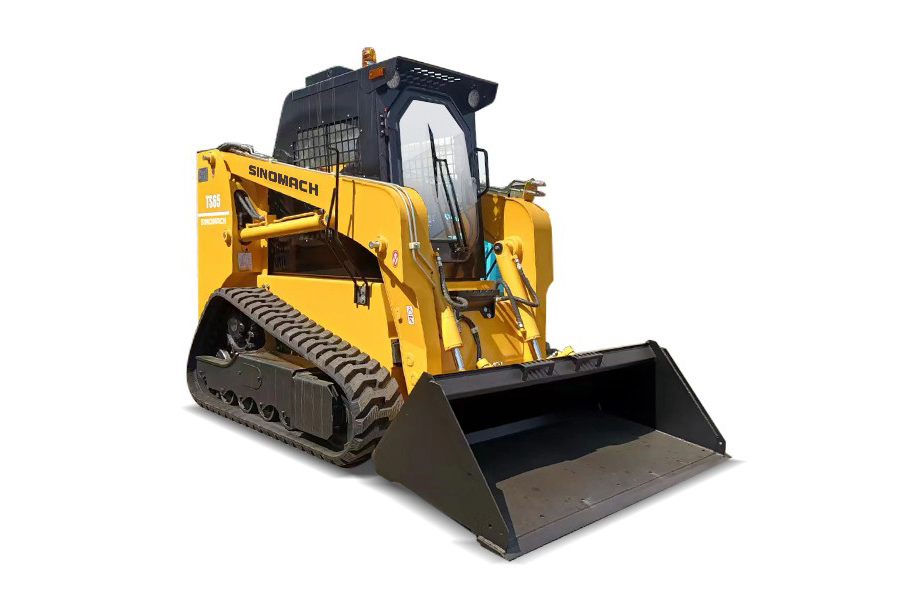

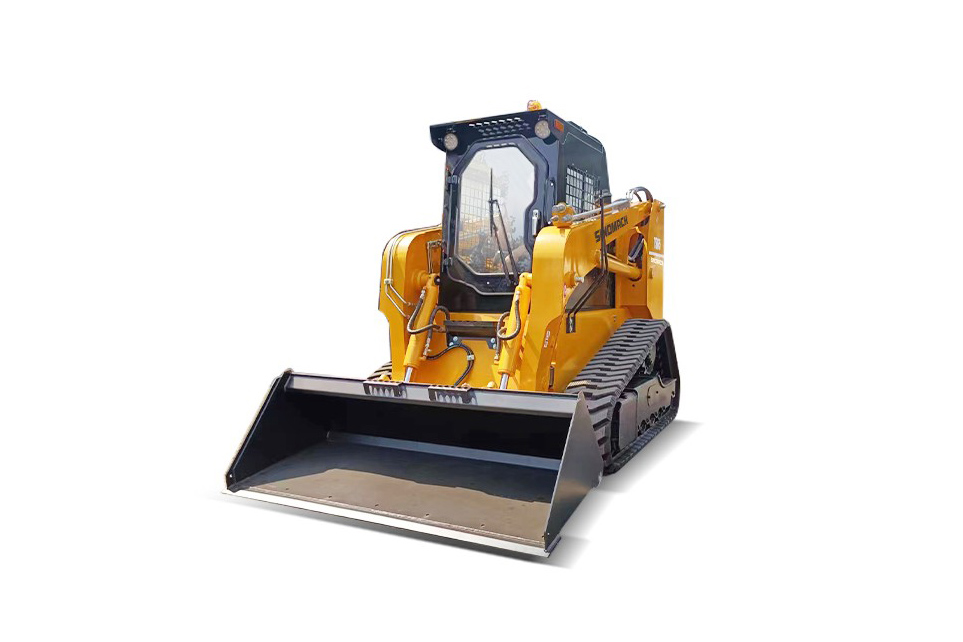

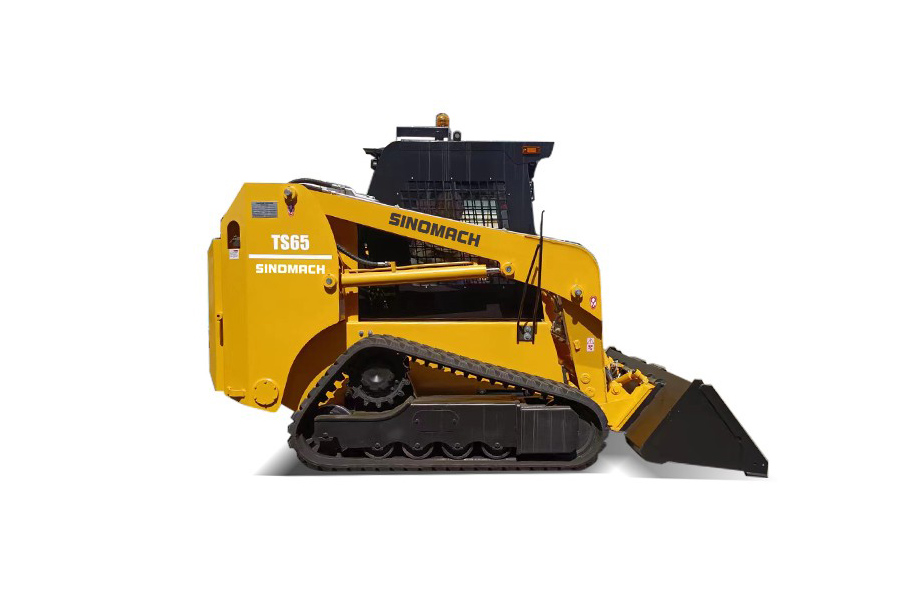

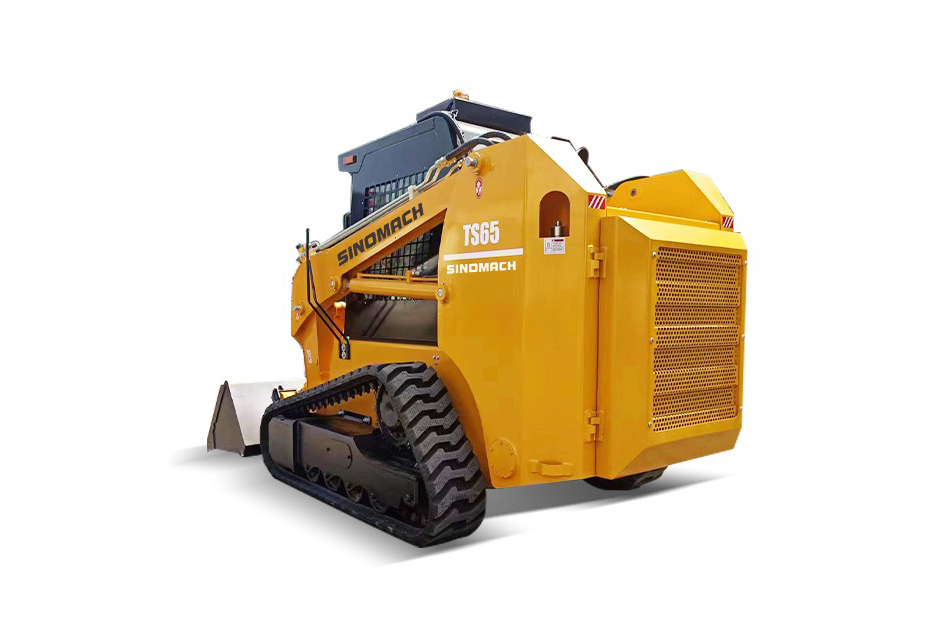

TS65 Crawler skid steer loader

This advanced tracked skid steer loader combines exceptional maneuverability with robust traction performance, featuring a low-ground-pressure track system that excels on sensitive surfaces and challenging terrain (mud/snow/inclines). The 360° zero-radius steering and rapid attachment interchange system (supporting buckets, snow blowers, augers, etc.) enable seamless transitions between material transport, site preparation, and specialized operations. Ideal for confined urban construction zones, agricultural operations, municipal winter maintenance, and heavy-duty industrial environments including mining and port facilities, it delivers unparalleled versatility without compromising power or stability.

product details

description1

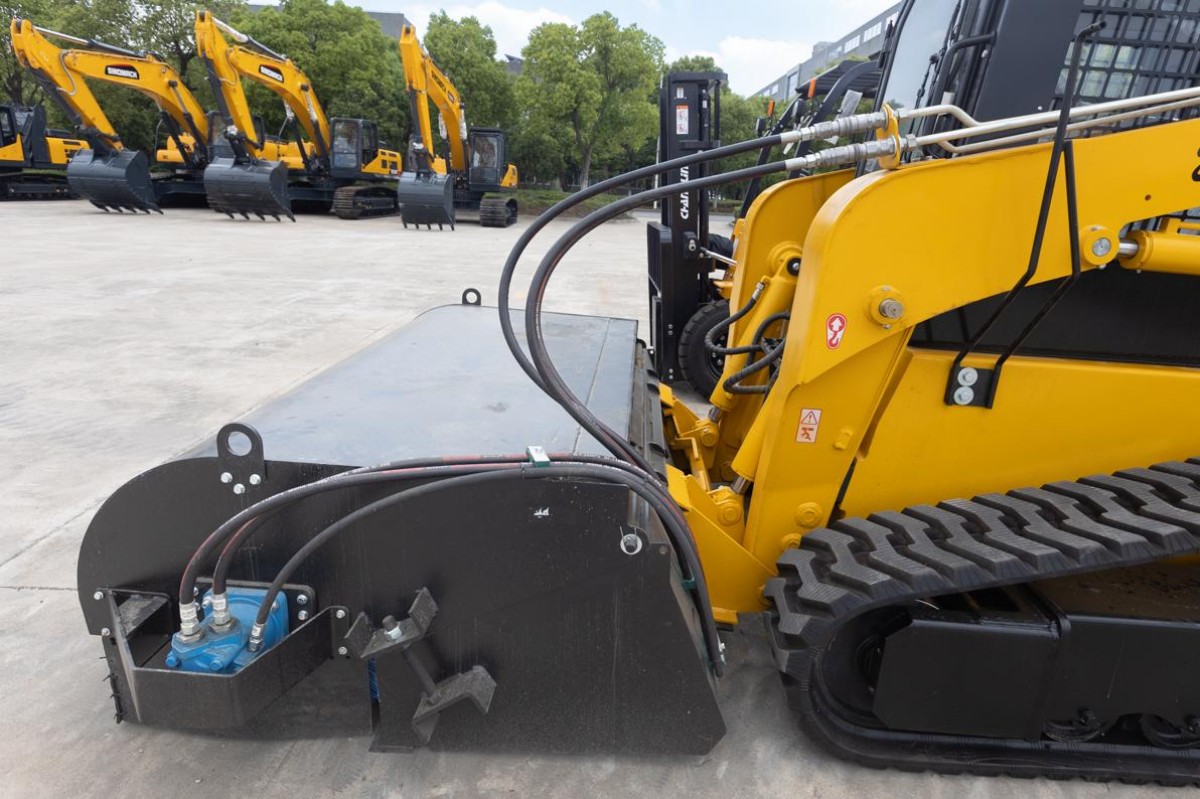

Integrates a standard quick-attach system with auxiliary hydraulic circuits

Equipped with a universal quick-coupler and auxiliary hydraulic interfaces, this machinery facilitates instant switching among 15+ specialized attachments (including loading buckets, pallet forks, road sweepers, and earth augers). The integrated modular system delivers exceptional adaptability to evolving job site needs, transforming between different operational modes within seconds to handle varied construction scenarios with maximum efficiency.

Comfortable cab with a wide-open view

The skid steer loader cab enhances operational safety through a panoramic visibility design that minimizes blind spots, ensures year-round comfort with an integrated heating and cooling system, reduces noise via a fully sealed cabin structure, and optimizes stability by centrally positioning the cab to balance weight distribution, providing comprehensive protection for operators.

Products pecifications

Overall Dimension
1	Length(with bucket on ground)	3500(mm)
2	Width(to outside of wheels)	1830(mm)
3	Bucket width	1890(mm)
4	Height(To the top of the cab)	2160(mm)
5	Wheel base	1500(mm)
6	Tread	1462(mm)
7	Min. ground clearance	205(mm)
Main Technical Specification
1	Rated load	1000(Kg)
2	Operating weight	3800KG
3	Rated bucket capacity	0.5(m³)
4	Max. breakout force	27kN
5	Static tipping loads	≥20kN
6	Max. dump clearance	2350(mm)
7	Dump reach	700(mm)
8	Dump angle at any position	≥40⁰
9	Angle of departure	30⁰
10	Min. turning radius
	(1) Outside of bucket	2230(mm)
	(2) Outside of front wheel	2010(mm)
	(3) outside of frame tail	1714 (mm)
11	Lifting time of bucket	≤4.2(sec.)
12	Lowering time of bucket	≤2.5(sec.)
13	Dumping time	≤2.6(sec.)
14	Traveling speed(Km/h)，1 forward and 1 reverse
	(1) forward gear	0～12
	(2) reverse gear	0～12
Diesel engine
1	Model	Xinchai A498BZG
2	Type	Direct injection. Turbocharged. Water cooling
3	Rated output	55 (kW)
4	Total exhaust of cylinder	3.17 (L)
5	Rated speed	2500(r/min)
6	Max. Torque	250(N.M)/1750rpm
Power train
Driving system
1	Type	Hydraulic wheel drive
2	Track size	320*86
3	System pressure	30MPa
Working Device Hydraulic System
1	System pressure	22MPa
Brake System
1	Type of traveling brake	Traveling brake depend on static hydraulic tow of close-circuit hydraulic system
2	Type of parking brake	Traveling motors within brake actuated via operating solenoid valve
Oil Capacity
1	Fuel(diesel)	90(L)
2	Engine lubricating oil	10(L)
3	Oil for chain box（one side）	5.7(L)
4	Oil for hydraulic system	65(L)
