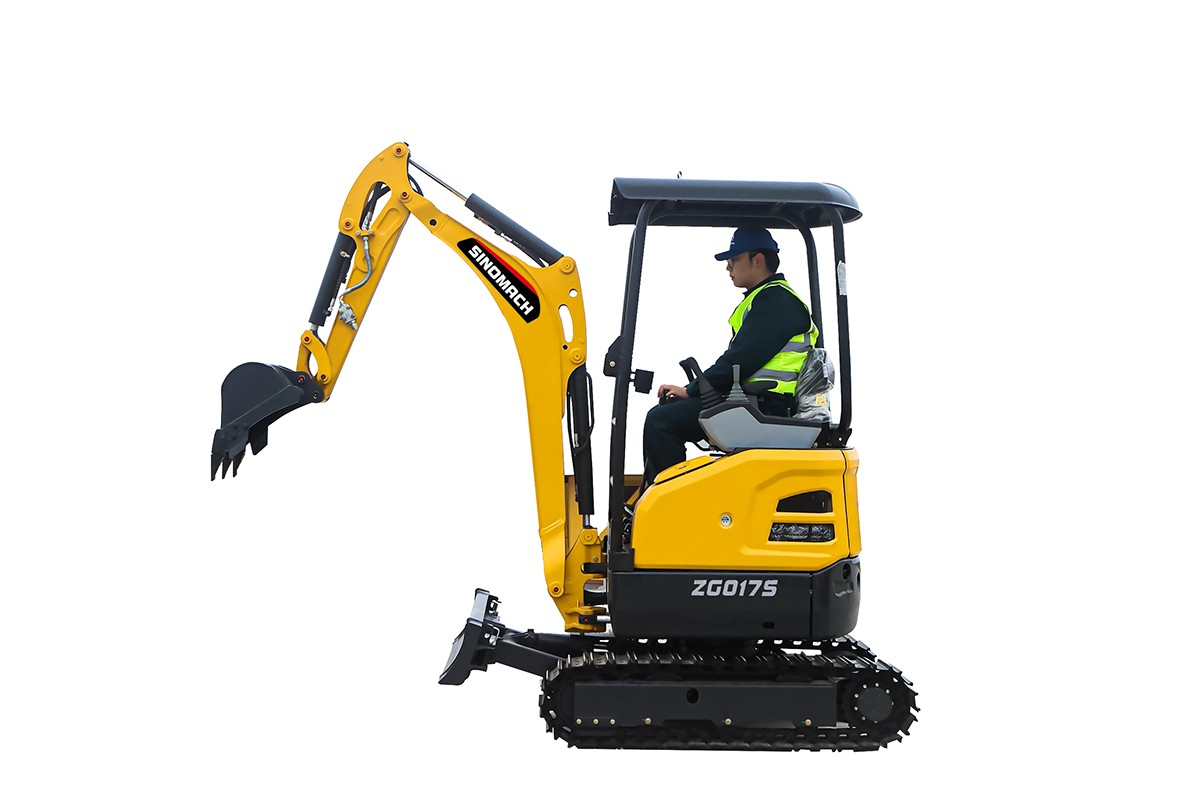

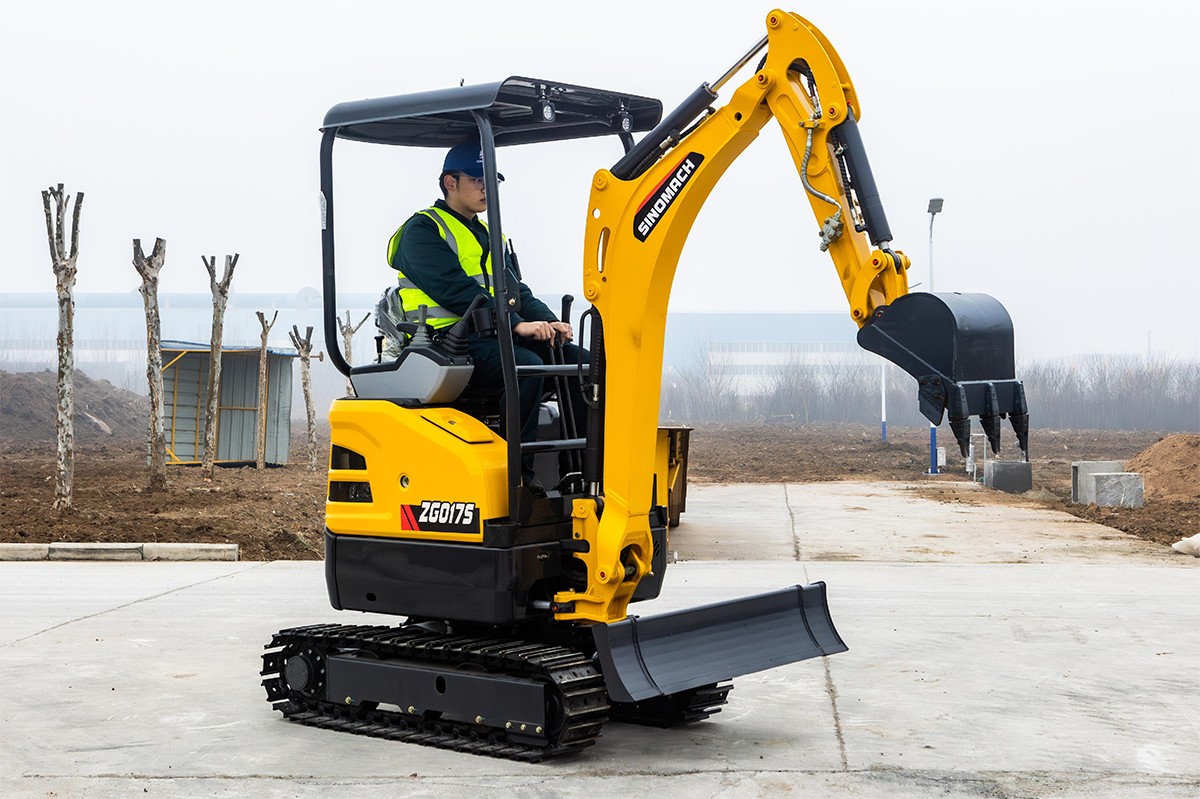

ZG017S Small Crawler Hydraulic Excavator
description1
01
product description

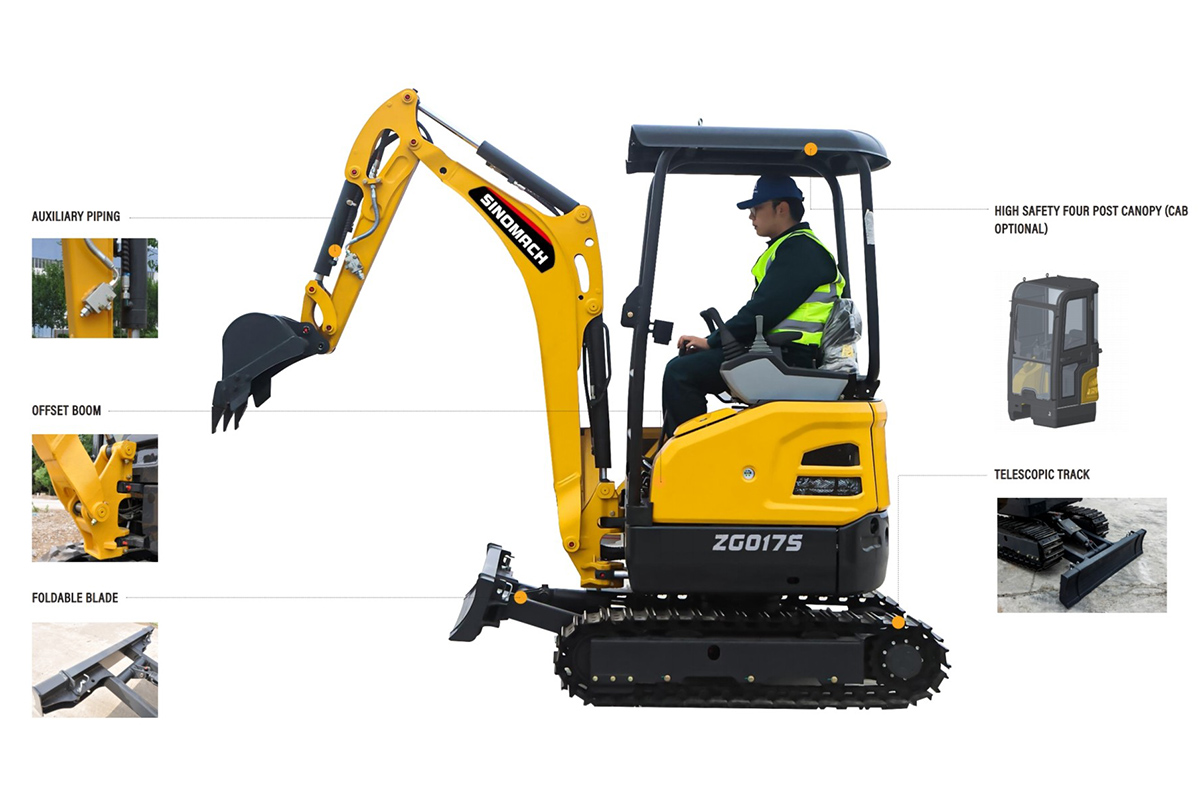

ZG017S is ready to work, offering following advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing,foldable dozer blade. Featuring high reliability,low operating cost, and superior efficiency, and you've got the ideal mini for a wide range of modern jobs.
The whole machine is equipped with auxiliary pipelines and quick-change joints, and can be installed with tools such as rotary drills and crushing hammers, adapting to a wide range of tasks such as trench digging, fertilizer application, landfill compaction, light demolition and so on.

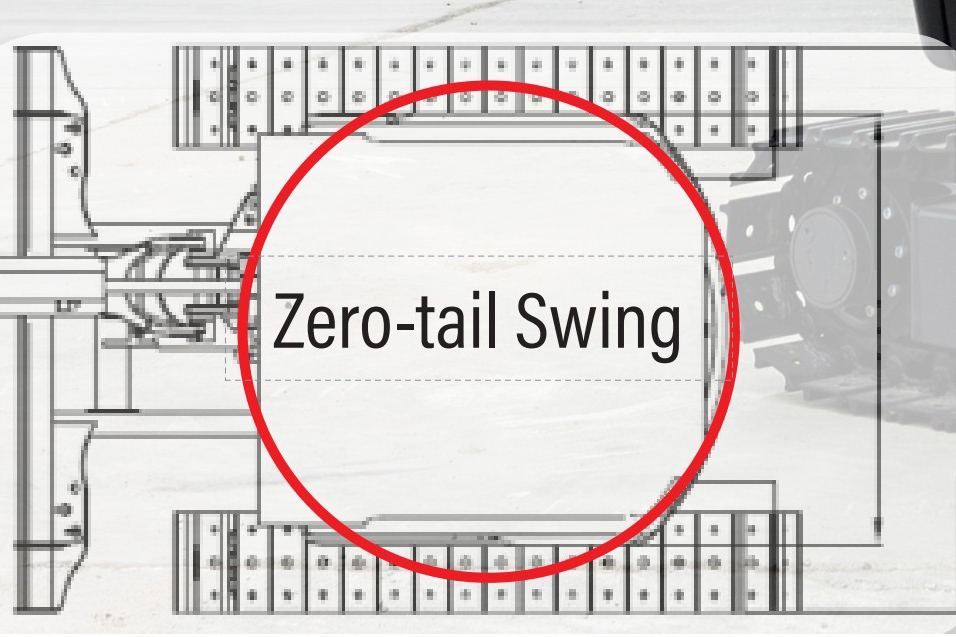

This function ensures that the upper platform of the whole machine is always within the width of the track when it is rotated 360 degrees, and it can be rotated flexibly in a narrow space.

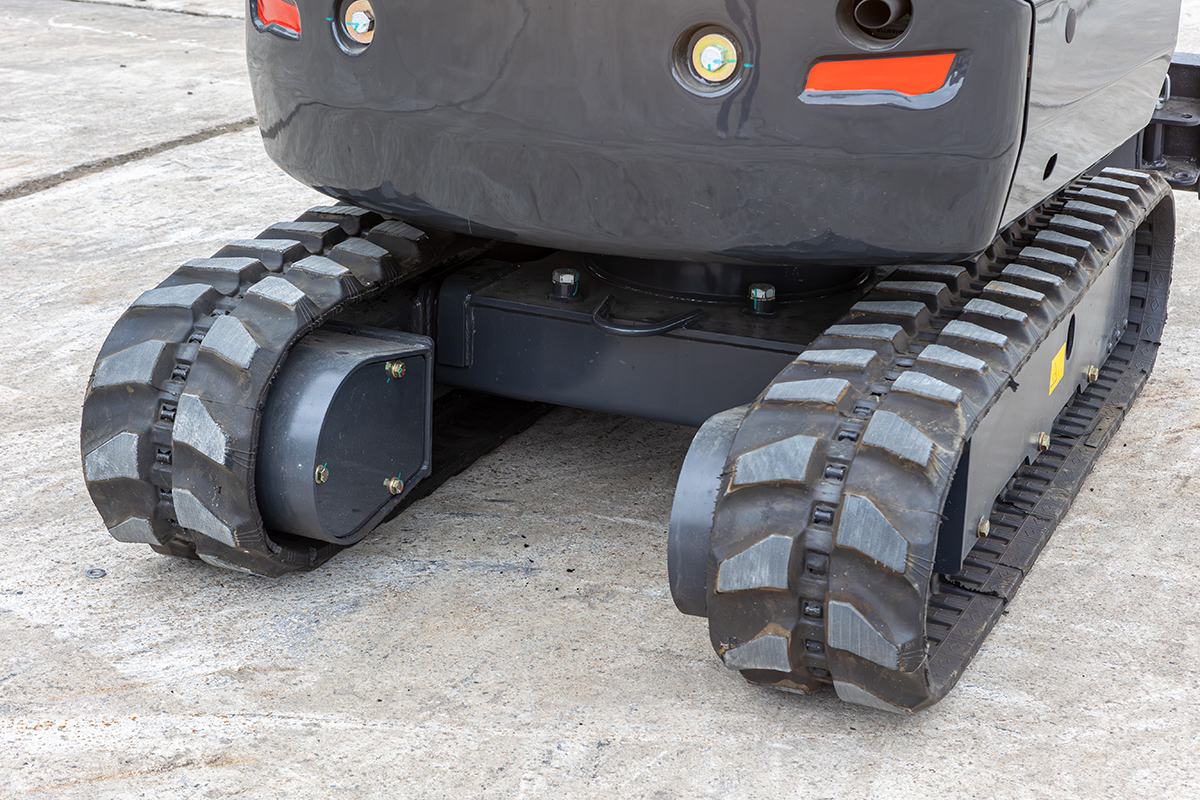

The tracks are able to expand and contract freely through the hydraulics, both to get through tight spaces and to provide more stable support.

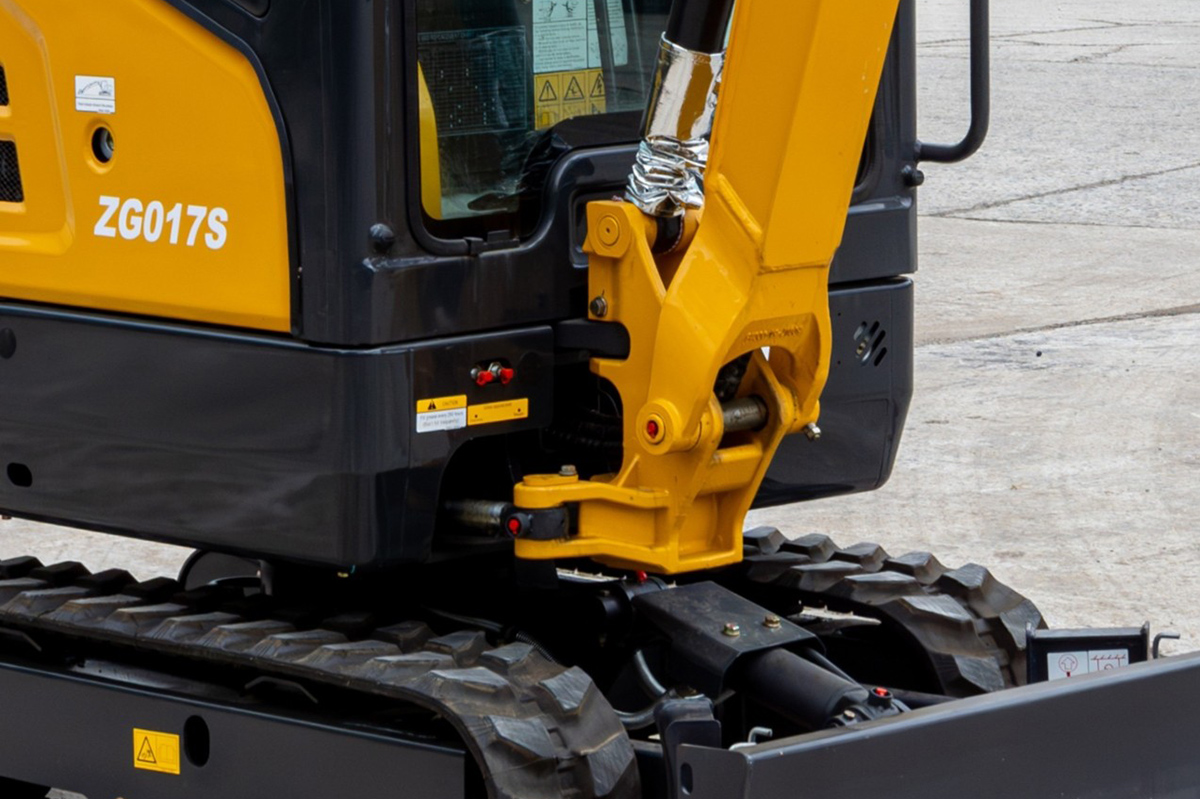

The boom can be swung from side to side for special work such as wall digging in tight spaces.

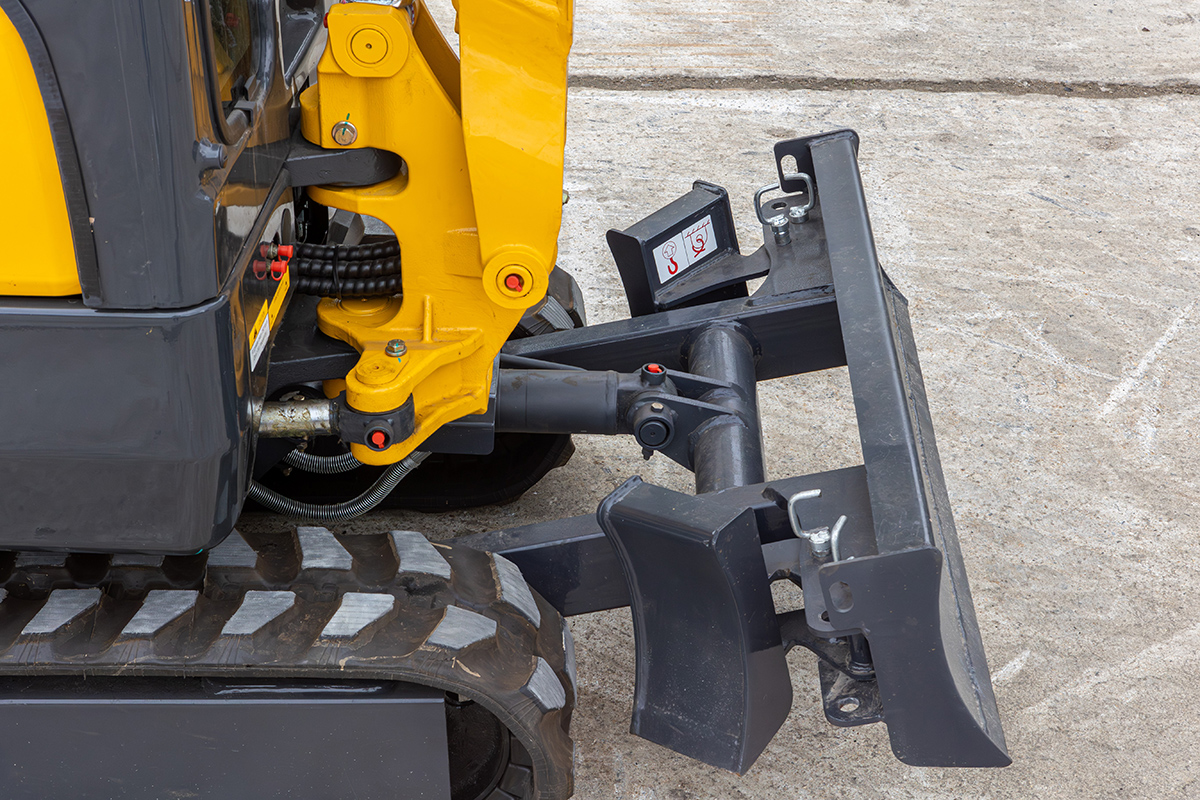

The bulldozer blade folds easily and the blade width is easily changed by two pins.
Product Specifications
Specifications |
Unit |
Parameter |
Basic parameter | ||
Machine weight |
kg |
1800 |
Rated bucket capacity |
m3 |
0.04 |
Width of bucket |
mm |
450 |
Performance parameter | ||
Engine model |
|
Kubota D902 |
Engine power |
kW/rpm |
11.8/2300 |
Emission |
|
EPA Tier 4 Final/Europe Stage V |
Max. Grade ability |
|
58% |
Max. digging force of arm |
kN |
9.5 |
Max. Digging force of bucket |
kN |
16 |
Traveling speed |
km/h |
2.2/4.3 |
Slewing speed of platform |
rpm |
9.5 |
Operating parameter | ||
Max.digging height |
mm |
3570 |
Max.digging depth |
mm |
2270 |
Max.vertical digging depth |
mm |
1910 |
Max.digging radius |
mm |
3910 |
Max.digging radius on ground level |
mm |
3840 |
Max.dumping height |
mm |
2480 |
Min.slewing radius |
mm |
1440 |
Transportation dimension | ||
Overall length |
mm |
3570 |
Overall width |
mm |
990 |
Overall height |
mm |
2405 |
Other Parameter | ||
Width of undercarriage |
mm |
990/1300 |
Length of track |
mm |
1593 |
Width of track |
mm |
230 |
Track gauge |
mm |
1230 |
Height between undercarriage and ground |
mm |
145 |
Height between platform and ground |
mm |
460 |
Platform tail turning radius |
mm |
650 |
Fuel tank capacity |
L |
19 |
Hydraulic oil tank capacity |
L |
13.7 |
Arm length |
mm |
950 |
Boom length |
mm |
1828 |
