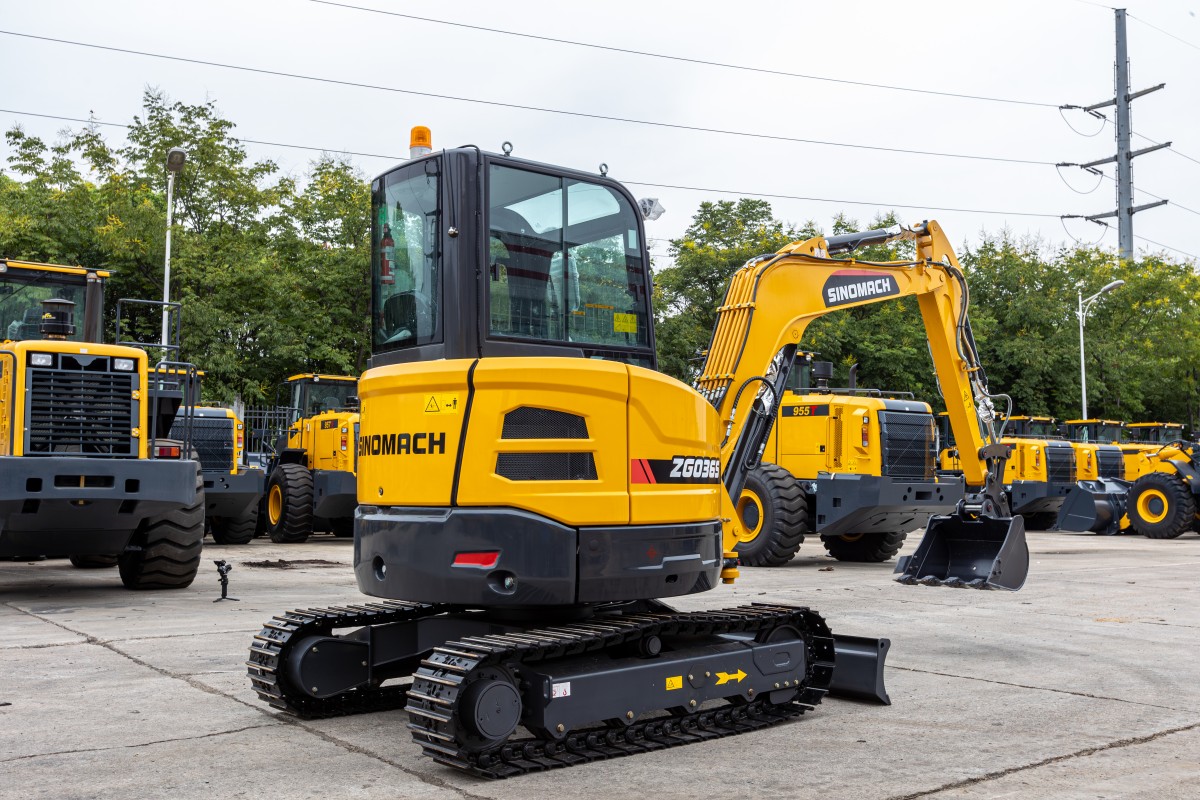

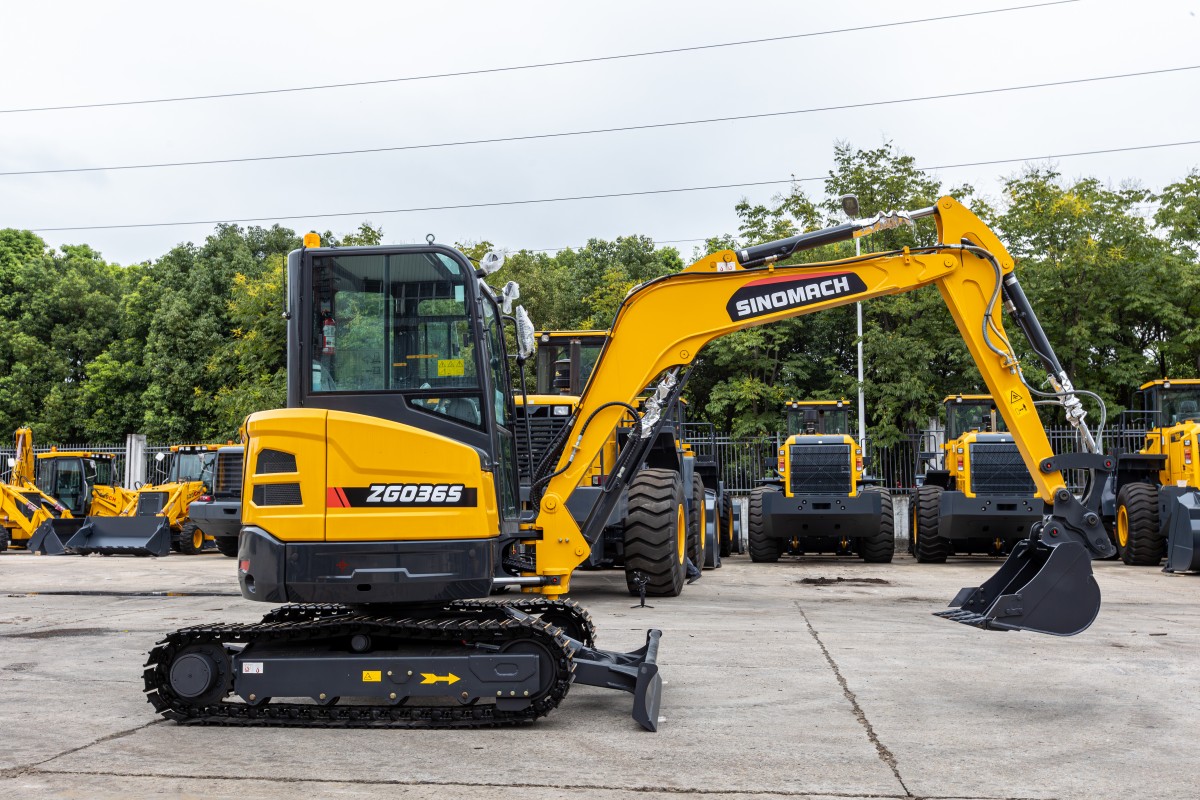

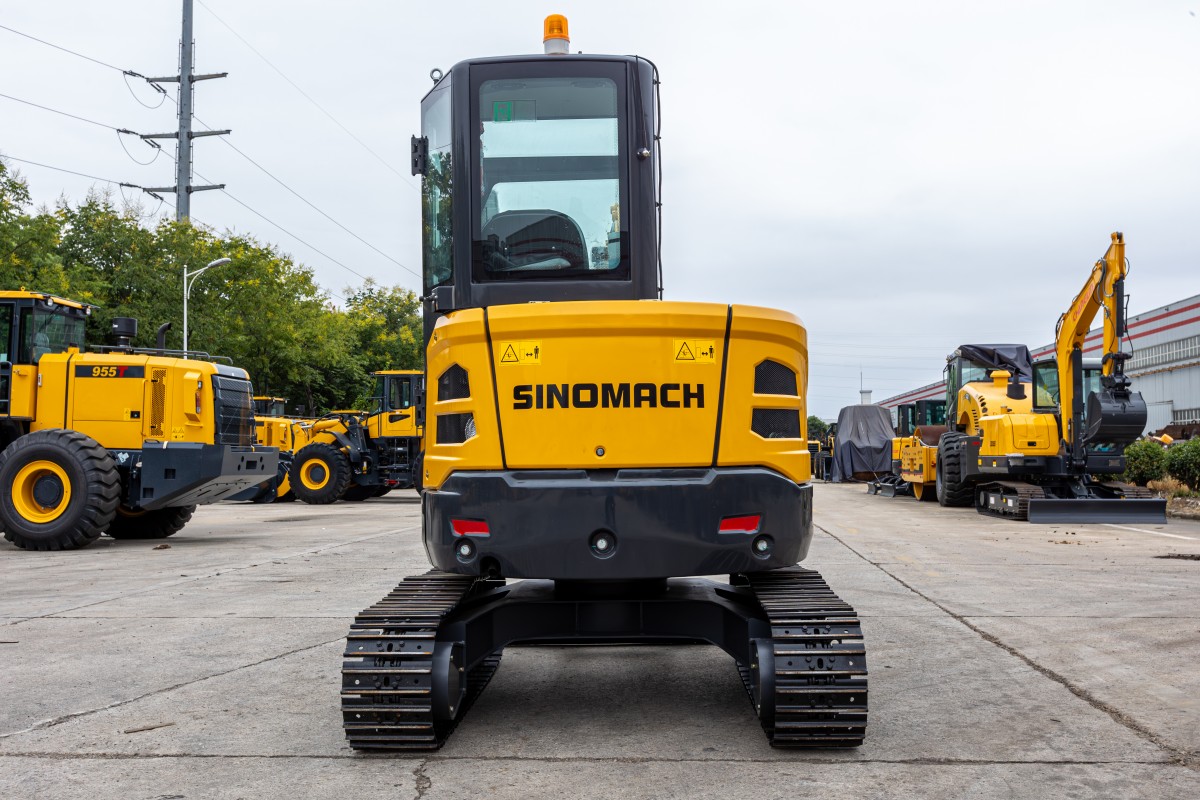

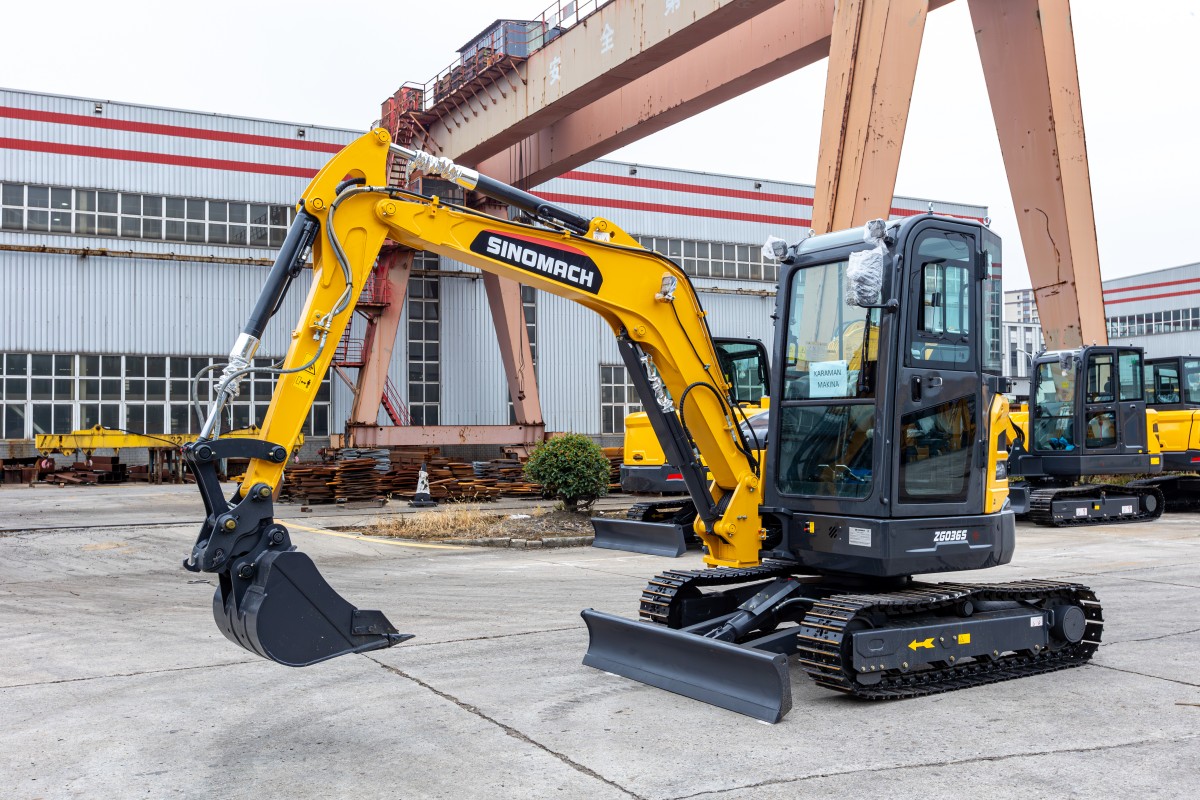

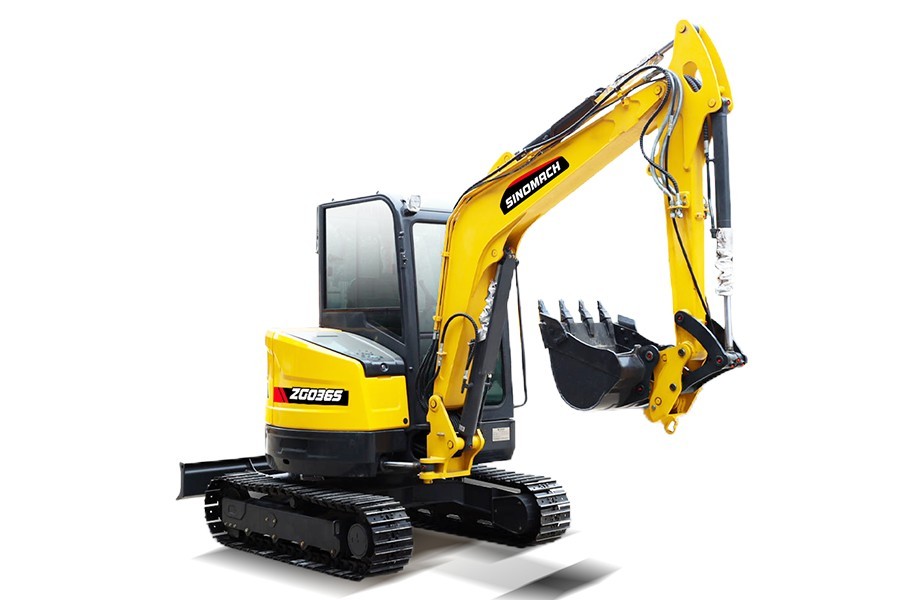

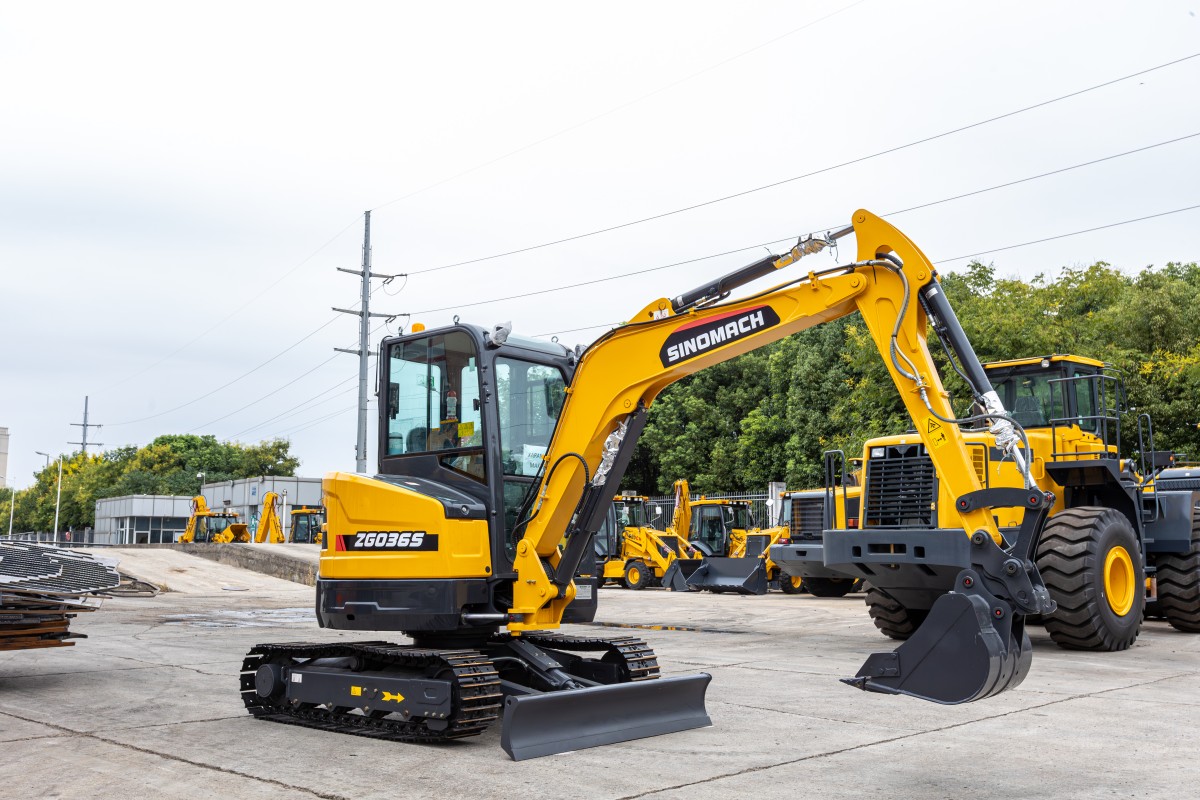

ZG036S Small Crawler Hydraulic Excavator
description1
01
product description

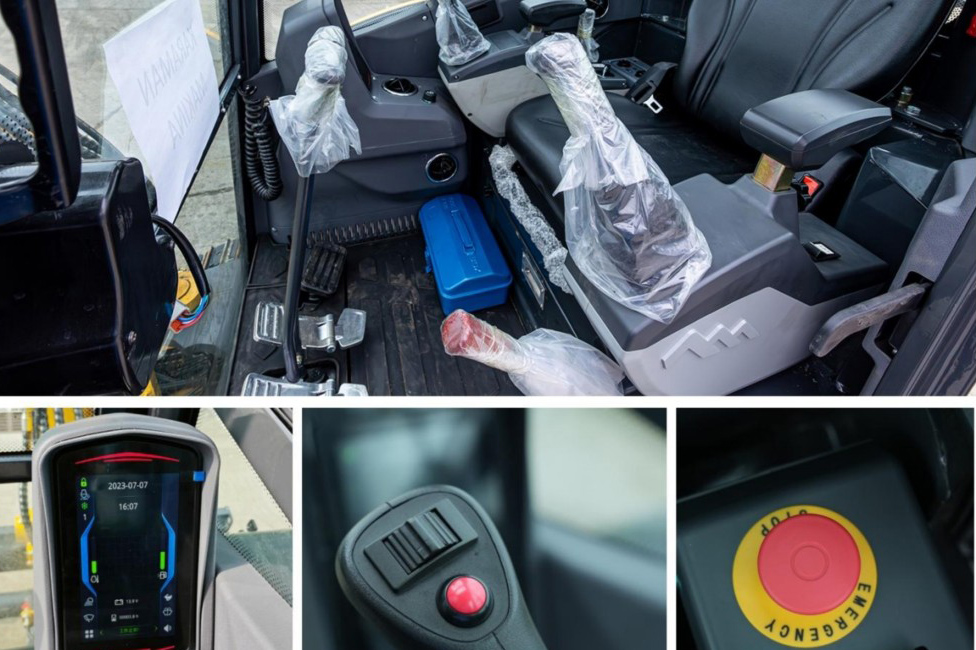

Simple operation, the operator can quickly master the operation method, suitable for agriculture, landscaping, pipeline excavation and other small-scale construction.
Purchase, use and maintenance costs are low, suitable for individual users or small projects.

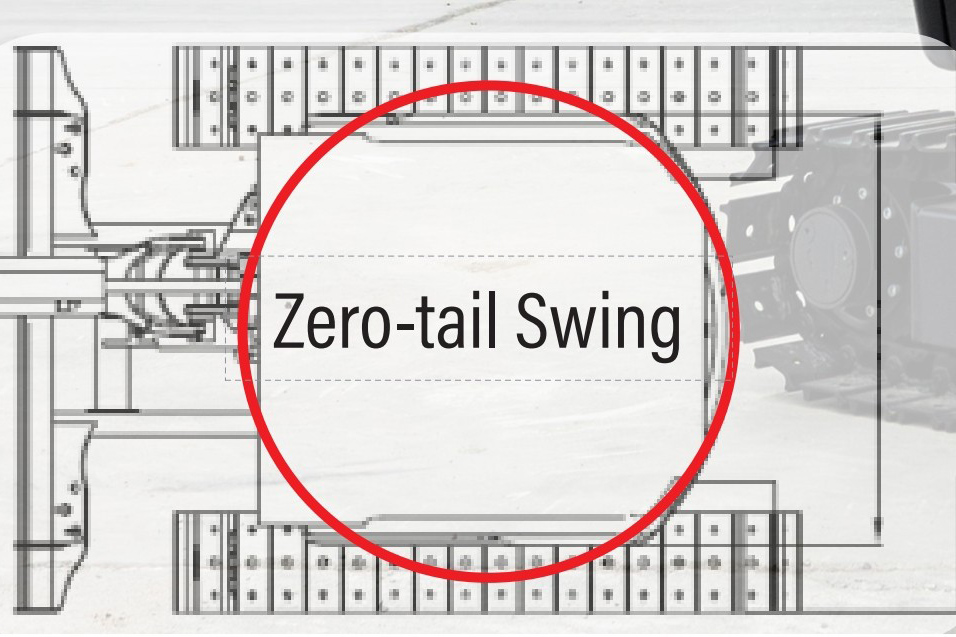

This function ensures that the upper platform of the whole machine is always within the width of the track when it is rotated 360 degrees, and it can be rotated flexibly in a narrow space.

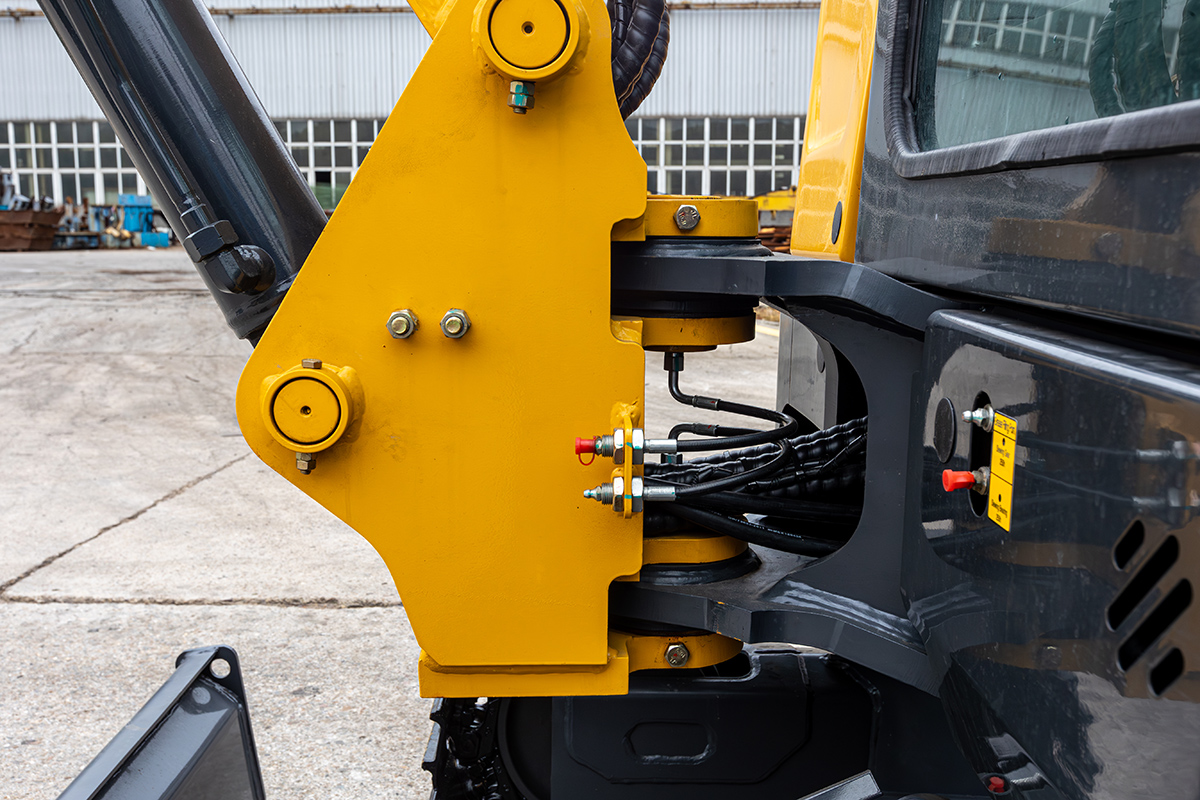

The boom can be swung from side to side for special work such as wall digging in tight spaces.
The boom can be swung from side to side for special work such as wall digging in tight spaces.
Product Specifications
Specifications |
Unit |
Parameter |
| ||
Machine weight |
kg |
3800 |
Rated bucket capacity |
m3 |
0.12 |
Width of bucket |
mm |
650 |
Performance parameter | ||
Engine model |
|
Yanmar 3TNV88F |
Engine power |
kW/rpm |
18.2/2200 |
Emission |
|
EPA Tier 4 Final/Europe Stage V |
Max. Grade ability |
|
30° |
Max. digging force of arm |
kN |
18.2 |
Max. Digging force of bucket |
kN |
30.4 |
Traveling speed |
km/h |
2.4/4.4 |
Slewing speed of platform |
rpm |
9 |
Operating parameter | ||
Max.digging height |
mm |
4910 |
Max.digging depth |
mm |
3000 |
Max.vertical digging depth |
mm |
2690 |
Max.digging radius |
mm |
5500 |
Max.digging radius on ground level |
mm |
5345 |
Max.dumping height |
mm |
3545 |
Min.slewing radius |
mm |
|
Transportation dimension | ||
Overall length |
mm |
4880 |
Overall width |
mm |
1740 |
Overall height |
mm |
2550 |
Other Parameter | ||
Width of undercarriage |
mm |
1740 |
Length of track |
mm |
2155 |
Width of track |
mm |
300 |
Track gauge |
mm |
1650 |
Height between undercarriage and ground |
mm |
295 |
Height between platform and ground |
mm |
595 |
Platform tail turning radius |
mm |
860 |
Fuel tank capacity |
L |
50 |
Hydraulic oil tank capacity |
L |
40 |
Arm length |
mm |
1400 |
Boom length |
mm |
2540 |
