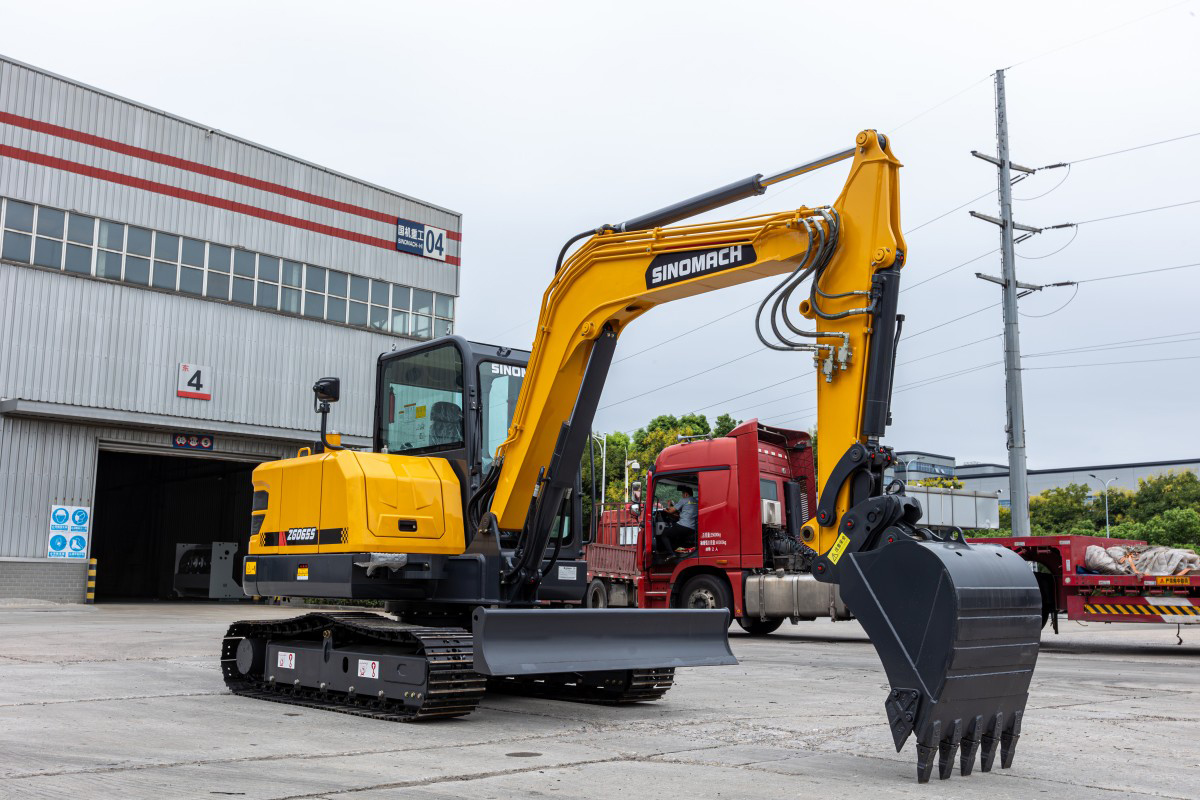

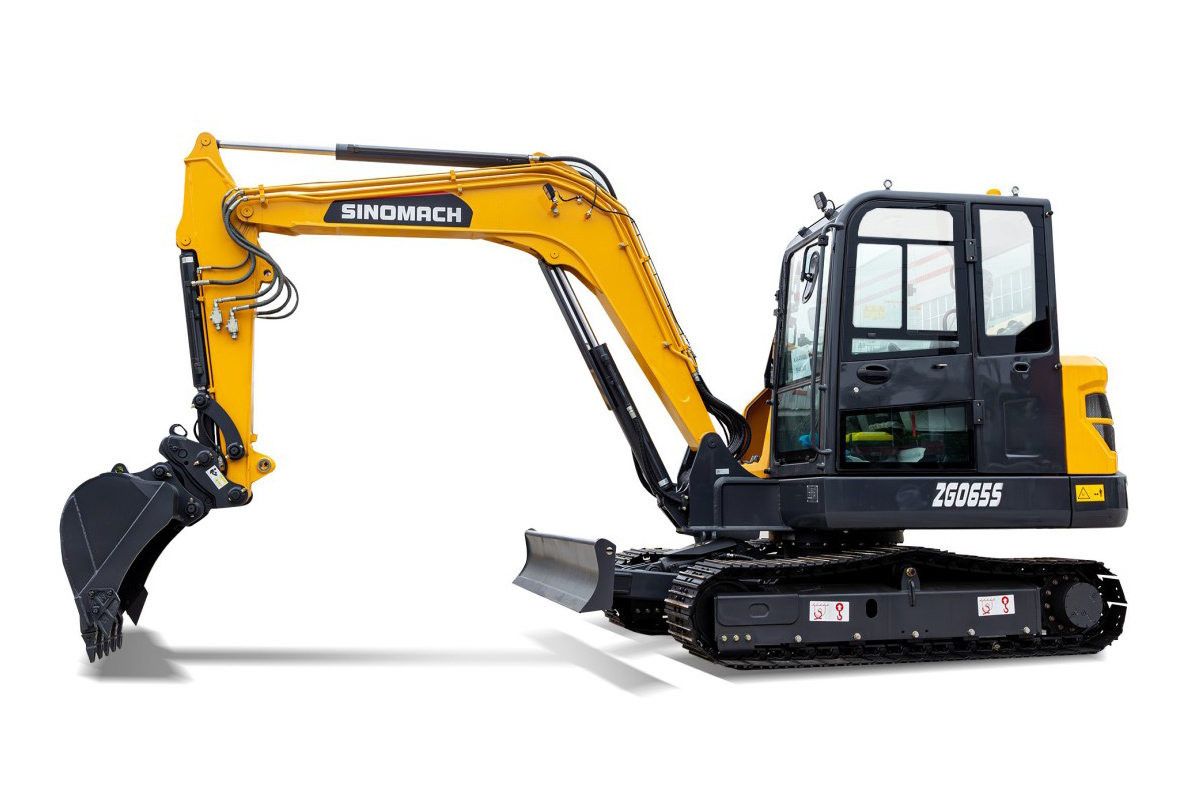

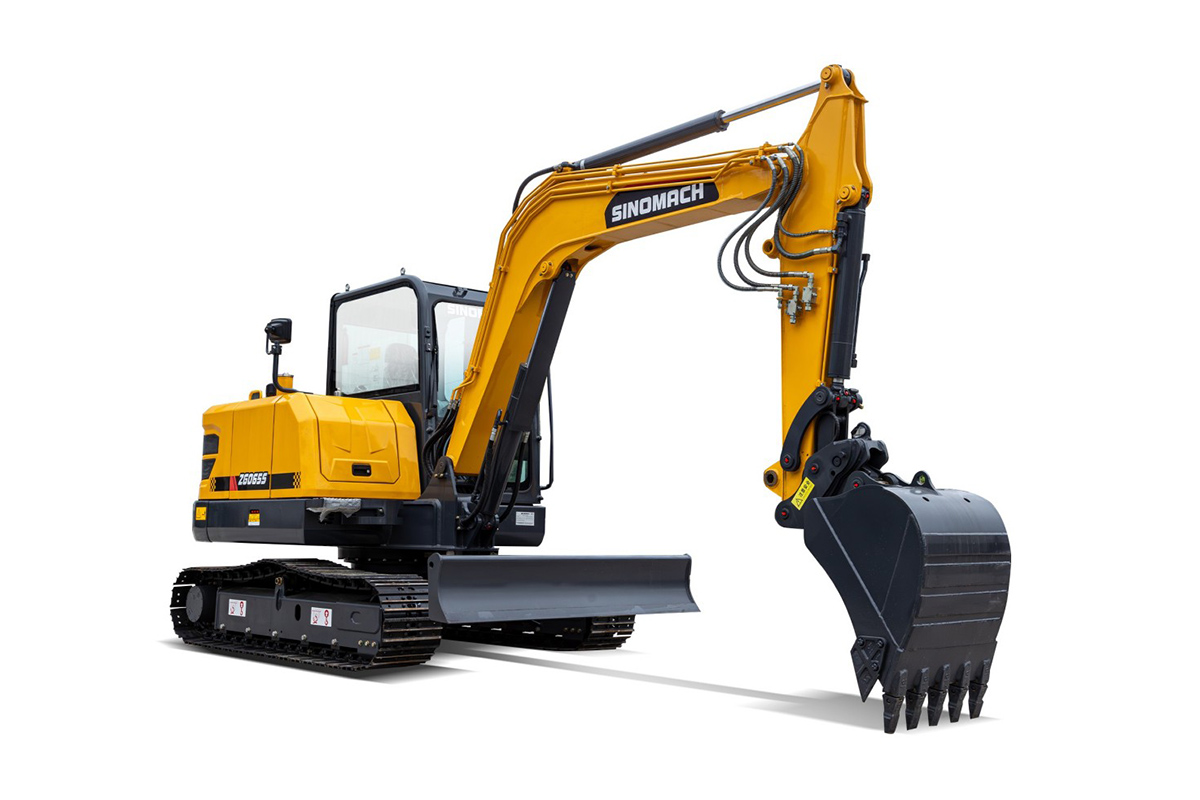

ZG065S Small Crawler Hydraulic Excavator
description1
01

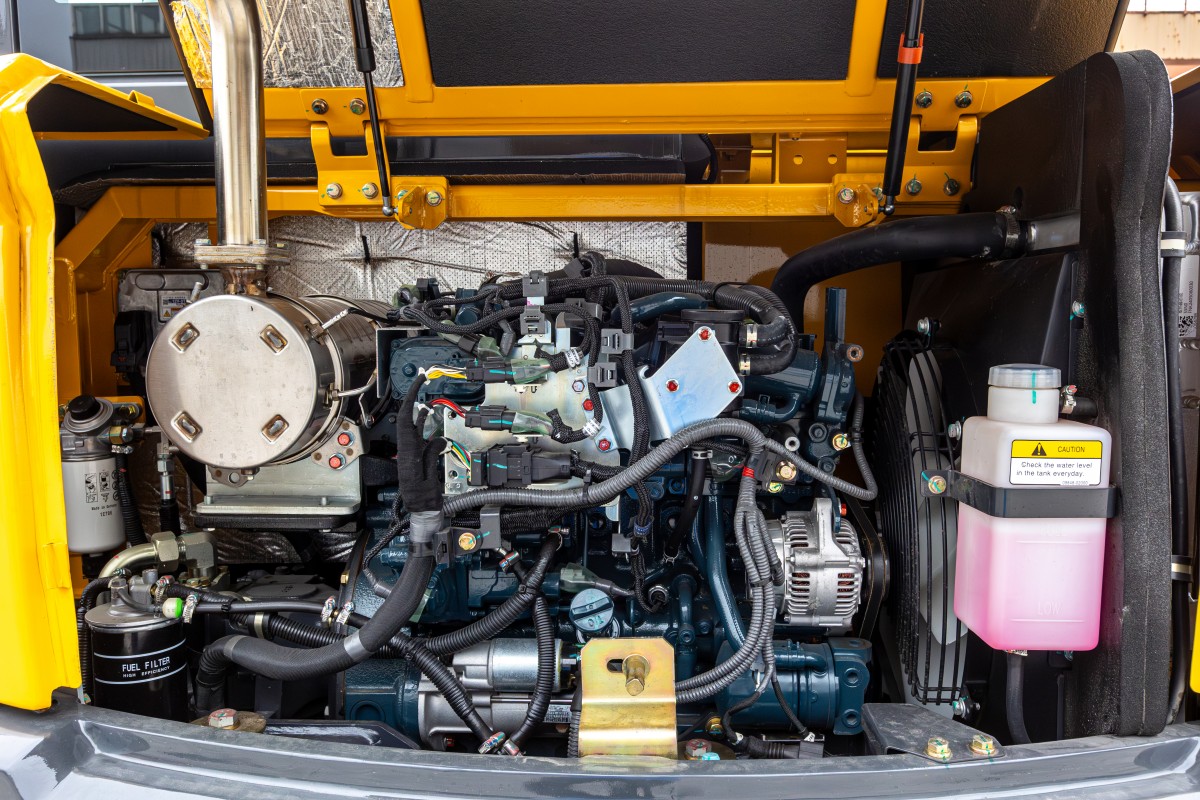

High-end power and hydraulic system configuration
The equipment offers two high-performance power configurations: an original imported turbocharged engine with robust power output, low fuel consumption, and exceptional high-altitude adaptability; or an optional Weichai engine that delivers ample power reserves while achieving a fuel efficiency improvement of over 5%. The hydraulic system integrates globally renowned hydraulic components for superior performance and reliability. Featuring an upgraded load-sensitive hydraulic system, it combines a cross-stage large-displacement constant-power variable pump with a next-generation low-pressure-loss main valve. This configuration significantly enhances system responsiveness, operational efficiency, and energy-saving performance, while ensuring precise and smooth control during operation.

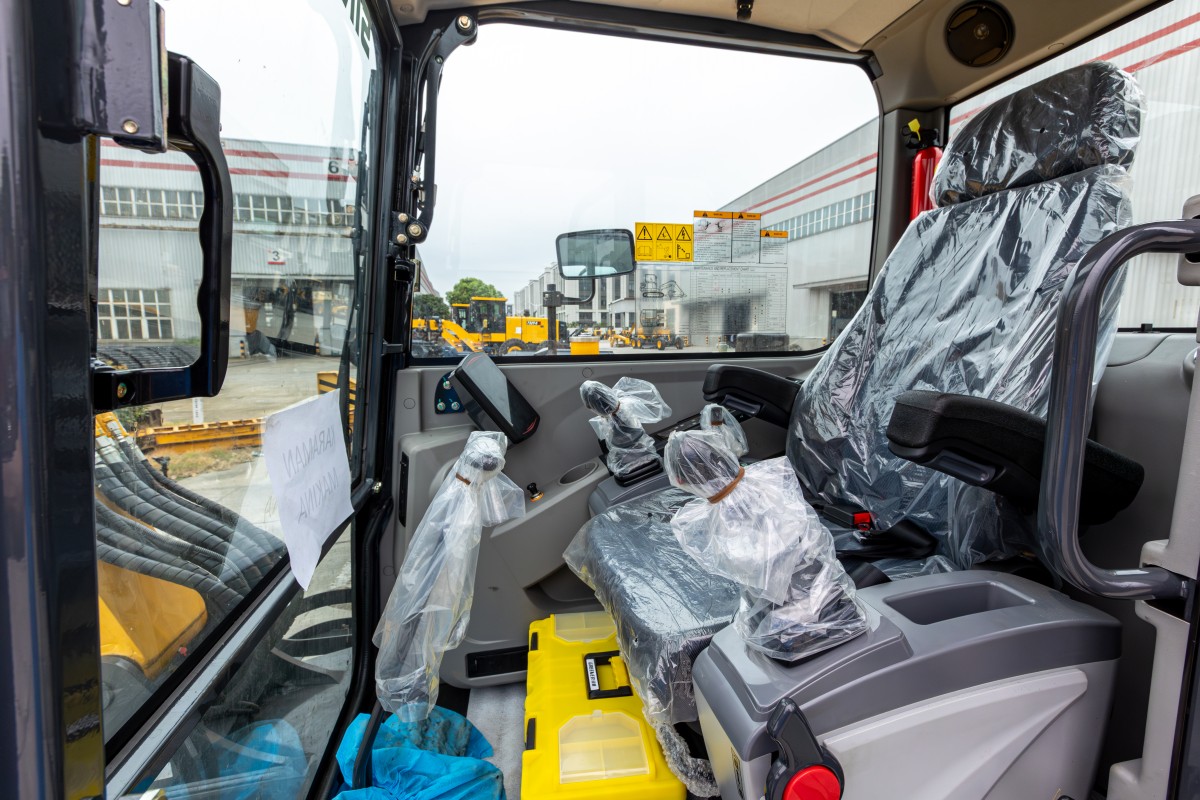

The equipment features a fully molded interior crafted with ergonomic color schemes to minimize operator visual fatigue during prolonged use. The cab utilizes a high-strength special-shaped steel tube frame structure, equipped with safety devices such as fire extinguishers, emergency escape hammers, and seat belts, complemented by a panoramic front/rear visibility design to ensure maximum operational safety. A high-capacity air conditioning system with 3D airflow distribution, paired with a suspended seat featuring two-stage sliding rail adjustment and advanced vibration damping and noise reduction technology, delivers an unparalleled comfortable driving experience.

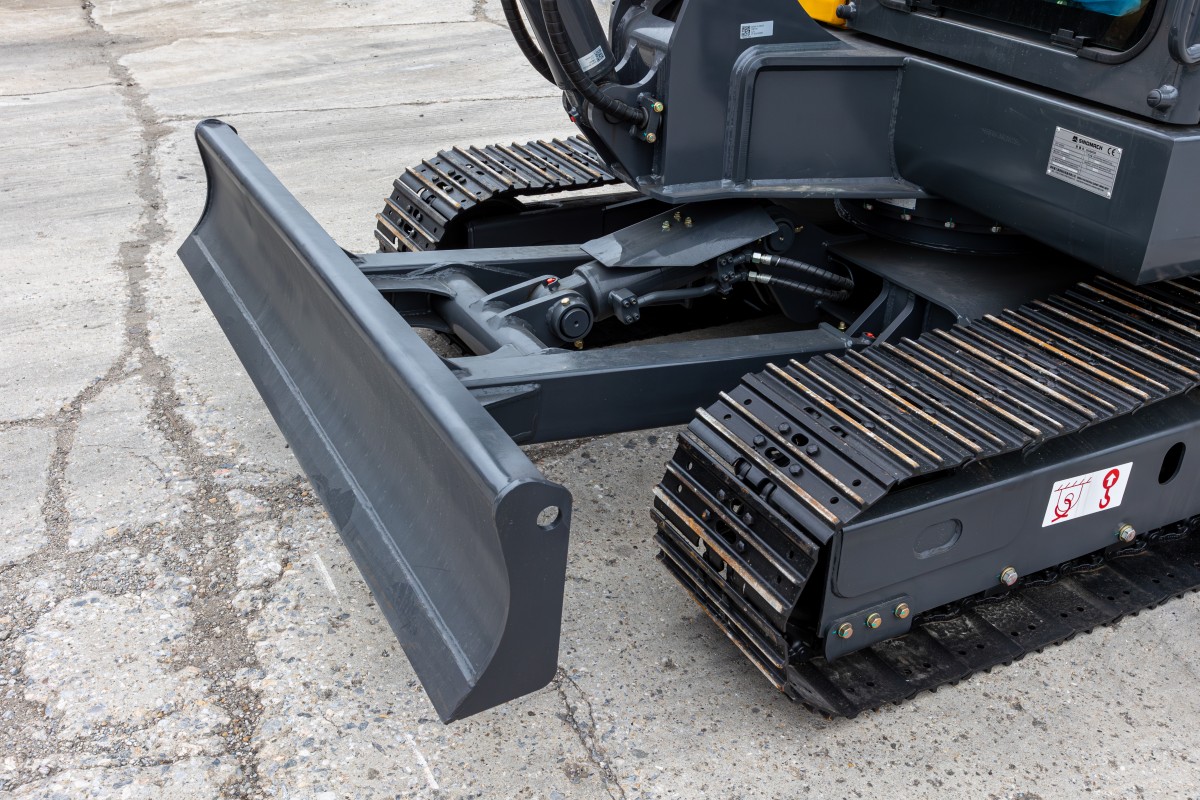

The upper frame is engineered with modal analysis technology, achieving high structural rigidity while effectively reducing vibration transmission and minimizing operational noise. The comprehensive structural component optimization includes reinforced critical load-bearing zones, ensuring durability and reliability in demanding working conditions. The bucket assembly is upgraded with high-strength wear-resistant materials for the baseplate, sidewalls, and reinforcement plates, significantly enhancing the bucket’s service life.
Product Specifications
Engine | |||||
Model |
Kubota V2607 |
Weichai WP3.2 |
|||
Power |
36KW/2000rpm |
36.8KW/2200rpm |
|||
Displacement |
2.615 L |
3.17 L |
|||
Operating weight |
Kg |
5960 |
|||
Bucket capacity |
m³ |
0.25 |
|||
Main performance |
Travel speed |
km/h |
4/2.2 |
||
Swing speed |
r/min |
11 |
|||
Gradeability |
° |
35 |
|||
Ground pressure |
kPa |
32 |
|||
Bucket digging force |
kN |
51 |
|||
Arm digging force |
kN |
30 |
|||
Maximum traction |
kN |
66 |
|||
Hydraulic system |
Rated flow of main pump |
L/min |
152 |
||
Main safety valve pressure |
MPa |
24.5 |
|||
Travel system pressure |
MPa |
24.5 |
|||
Swing system pressure |
MPa |
21.6 |
|||
Pilot system pressure |
MPa |
3.5 |
|||
Oil Capacity |
Fuel tank capacity |
L |
125 |
||
Hydraulic tank capacity |
L |
65 |
|||
Engine oil capacity |
L |
10 |
|||
Appearance size |
Overall length |
mm |
5870 |
||
Overall width |
mm |
2000 |
|||
Overall height |
mm |
2675 |
|||
Width of platform |
mm |
1880 |
|||
Overall width of chassis |
mm |
2000 |
|||
Track width |
mm |
400 |
|||
Tread |
mm |
2060 |
|||
Track gauge |
mm |
1600 |
|||
Counterweight clearance |
mm |
730 |
|||
Min. ground clearance |
mm |
370 |
|||
Dozer(width/height) |
mm |
2000×360 |
|||
Working scope |
Max. digging height |
mm |
5710 |
||
Max. dumping height |
mm |
4135 |
|||
Max. digging depth |
mm |
3780 |
|||
Max. vertical wall digging depth |
mm |
2635 |
|||
Max. digging radius |
mm |
6140 |
|||
Min. swing radius |
mm |
2435 |
|||
Min. tail turning radius |
mm |
1680 |
|||
Max. lifting height of dozer |
mm |
360 |
|||
Max. digging depth of dozer |
mm |
490 |
|||
|
Length of boom |
mm |
3000 |
||
Length of arm |
mm |
1600 |
|||
Bucket capacity |
m³ |
0.25 |
|||
