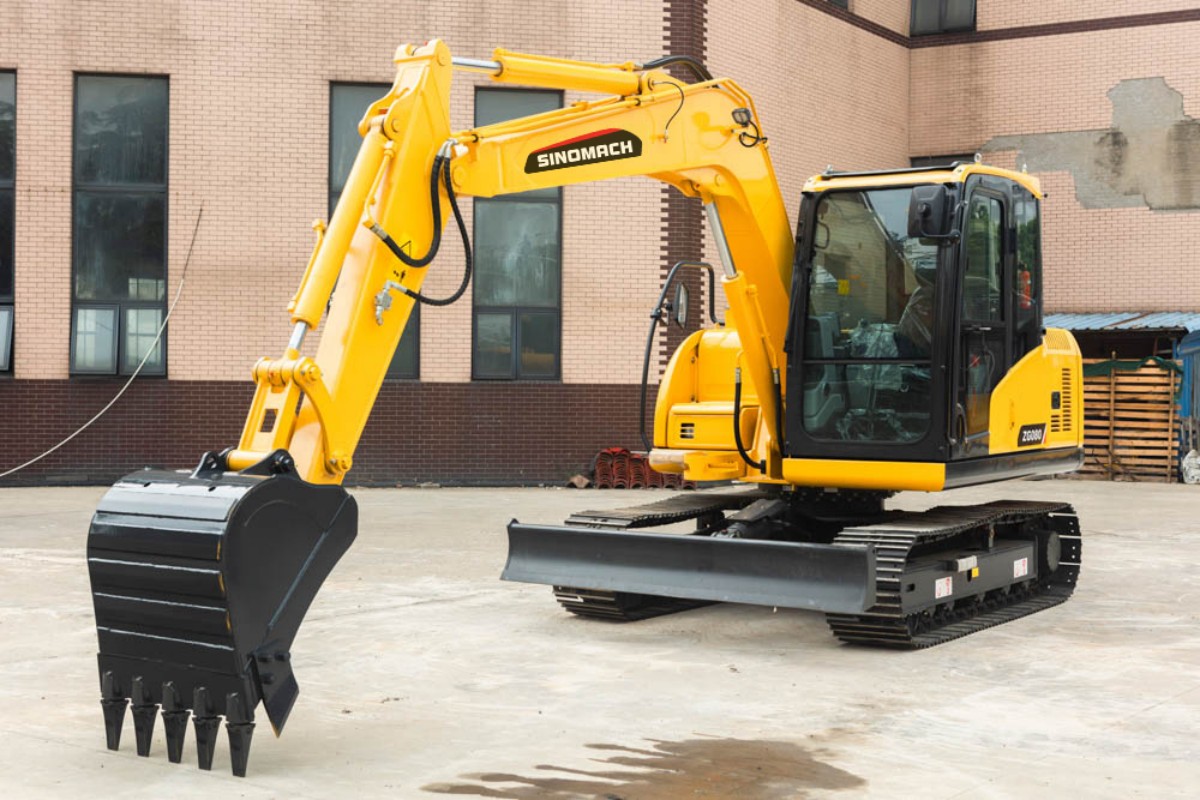

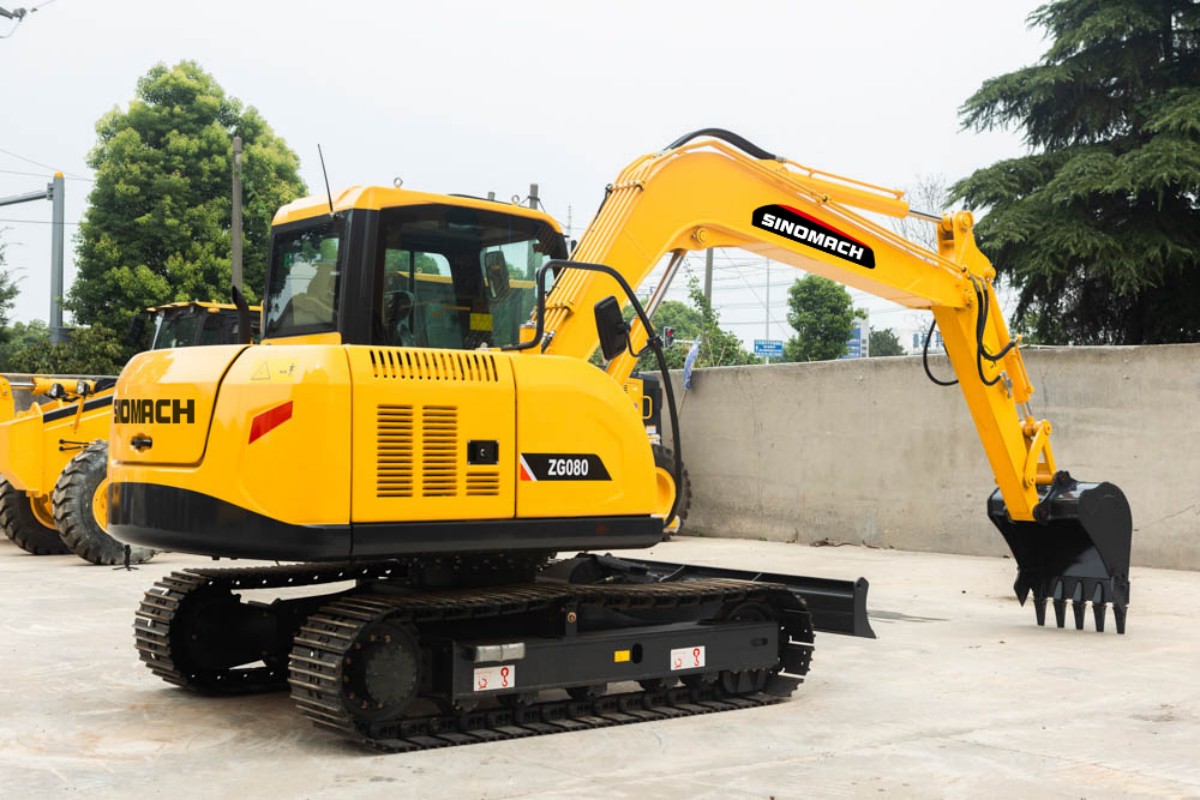

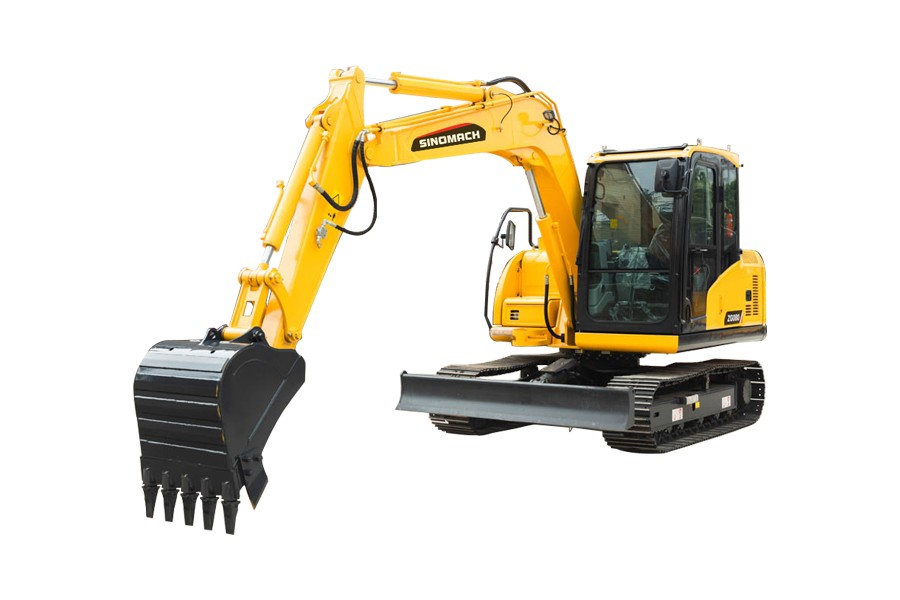

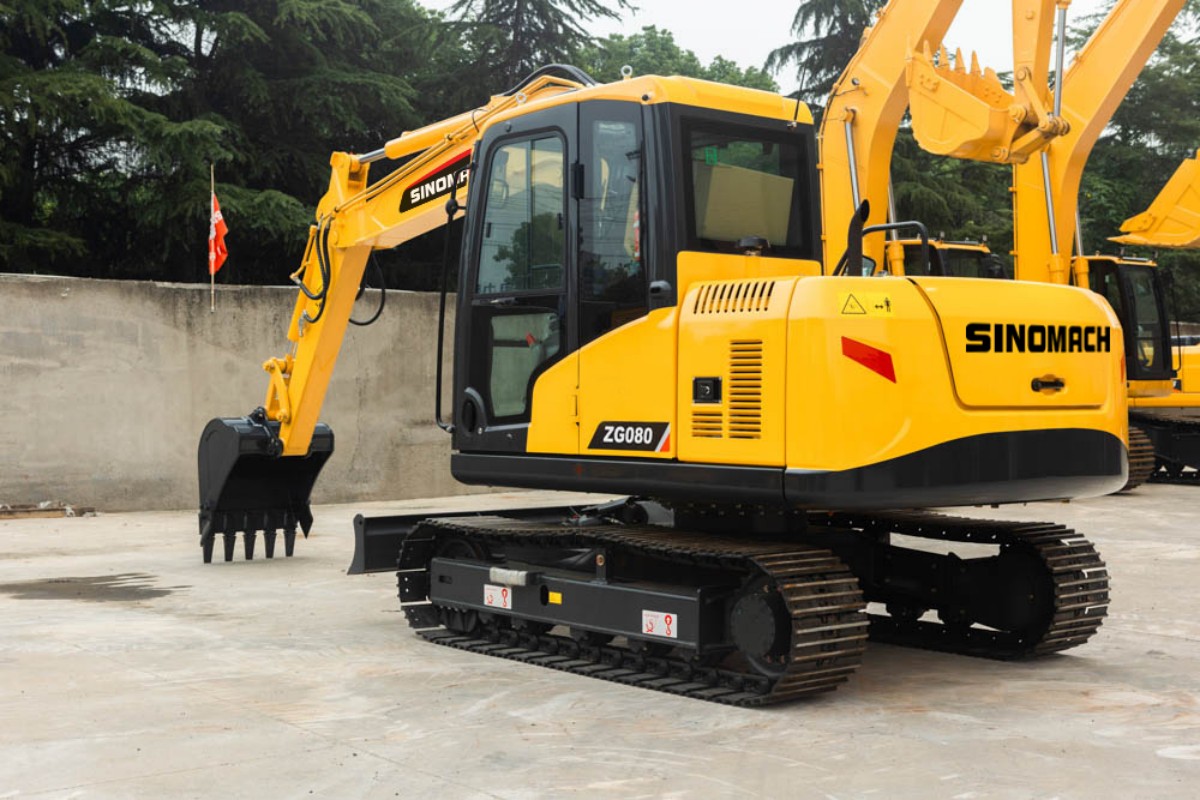

ZG080S Hydraulic crawler excavator
description1
Products pecifications
Engine |
Model |
Weichai WP3 |
|
Power |
48KW/2200rpm |
||
Displacement |
2.97 L |
||
Operating weight |
7650 |
||
Bucket capacity |
0.32 |
||
Main performance |
Travel speed |
km/h |
4.2/2.4 |
Swing speed |
r/min |
11 |
|
Gradeability |
° |
35° |
|
Ground pressure |
kPa |
34 |
|
Bucket digging force |
kN |
66 |
|
Arm digging force |
kN |
38 |
|
Maximum traction |
kN |
86.5 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
160 |
Travel system pressure |
MPa |
28 |
|
Swing system pressure |
MPa |
26.5 |
|
Pilot system pressure |
MPa |
3.5 |
|
Oil Capacity |
Fuel tank capacity |
L |
178 |
Hydraulic tank capacity |
L |
75/145 |
|
Engine oil capacity |
L |
10.6 |
|
Appearance size |
Overall length |
mm |
6240 |
Overall width |
mm |
2260 |
|
Overall height |
mm |
2680 |
|
Width of platform |
mm |
2260 |
|
Overall width of chassis |
mm |
2250 |
|
Track width |
mm |
450 |
|
Tread |
mm |
2195 |
|
Track gauge |
mm |
1800 |
|
Counterweight clearance |
mm |
825 |
|
Min. ground clearance |
mm |
385 |
|
Dozer(width/height) |
mm |
2250/342.5 |
|
Working scope |
Max. digging height |
mm |
6945 |
Max. dumping height |
mm |
4895 |
|
Max. digging depth |
mm |
4120 |
|
Max. vertical wall digging depth |
mm |
3620 |
|
Max. digging radius |
mm |
6360 |
|
Min. swing radius |
mm |
2040 |
|
Min. tail turning radius |
mm |
1850 |
|
Max. lifting height of dozer |
mm |
385 |
|
Max. digging depth of dozer |
mm |
225 |
|
Standard configuration |
Length of boom |
mm |
3710 |
Length of arm |
mm |
1650 |
|
Bucket capacity |
m³ |
0.32 |
|
