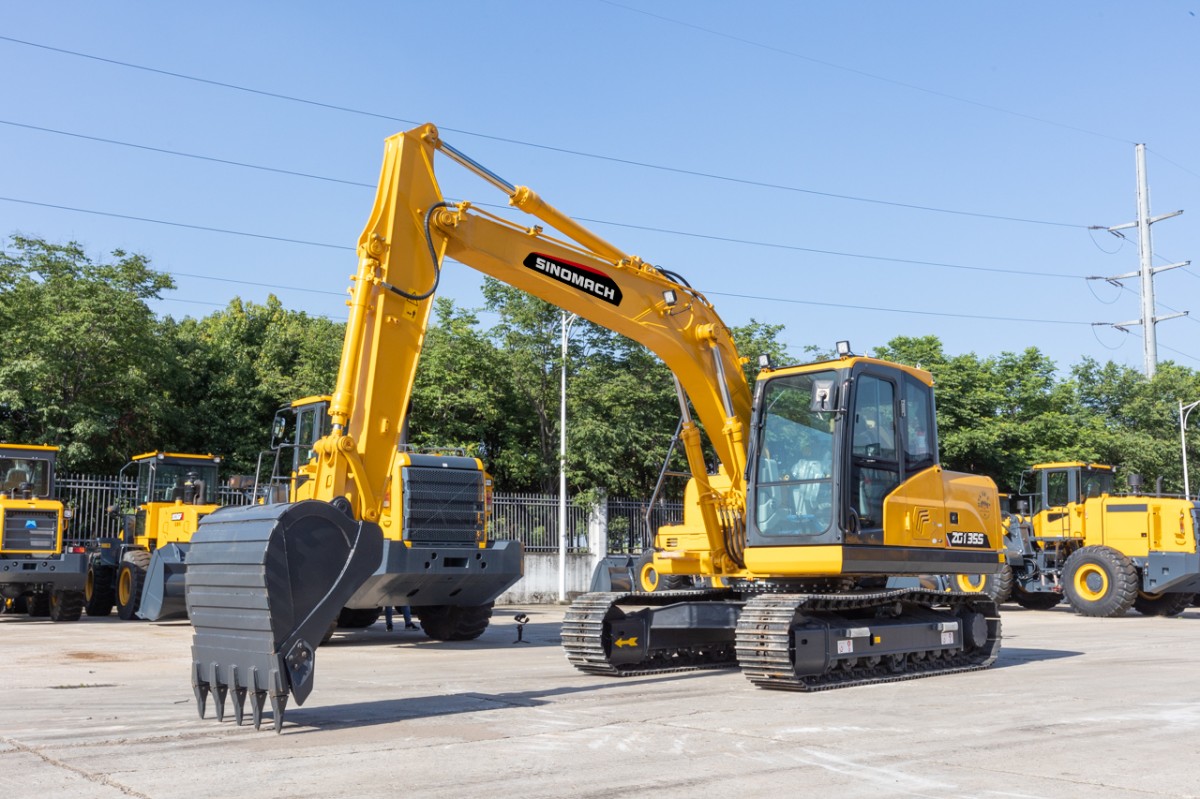

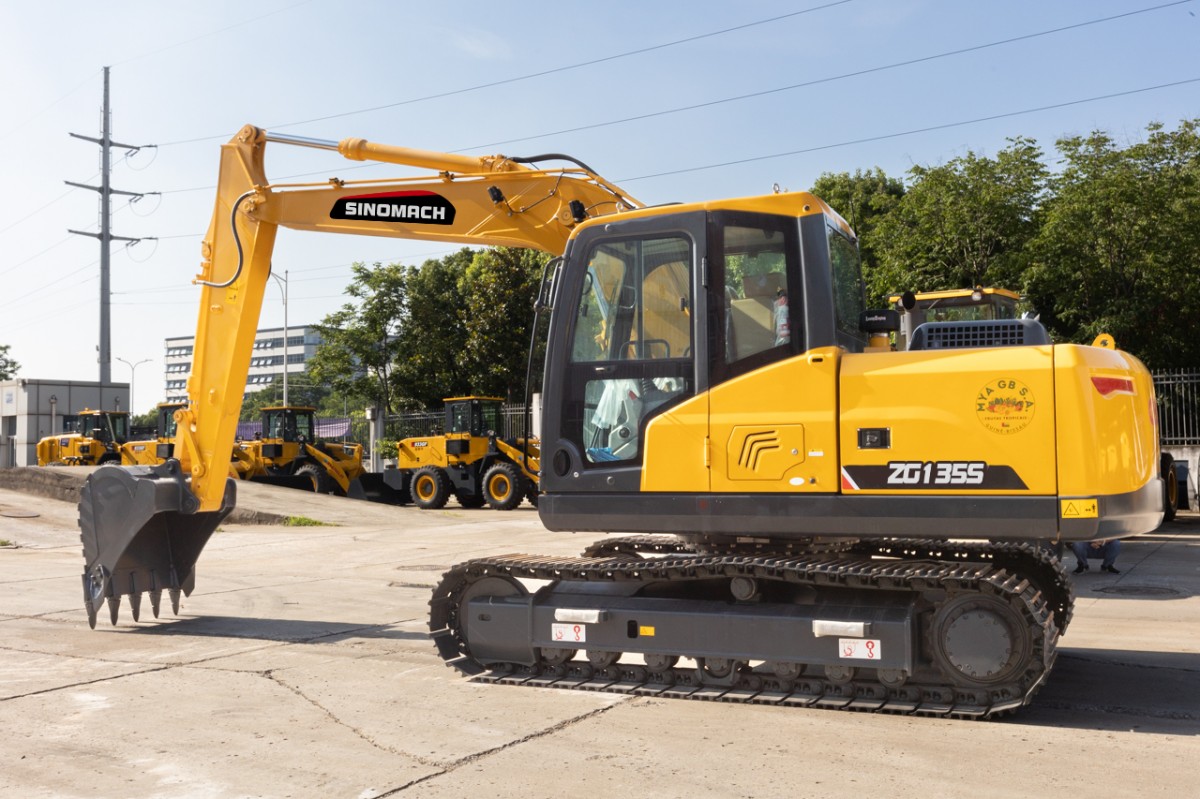

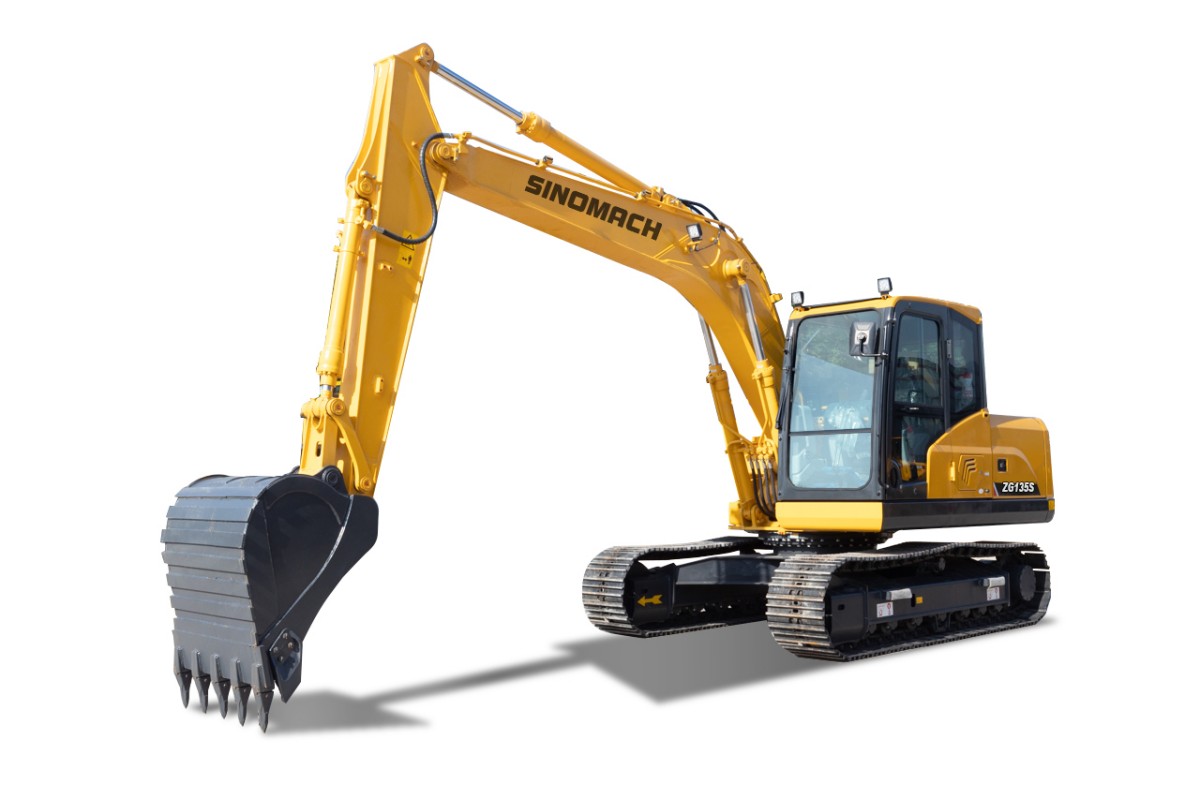

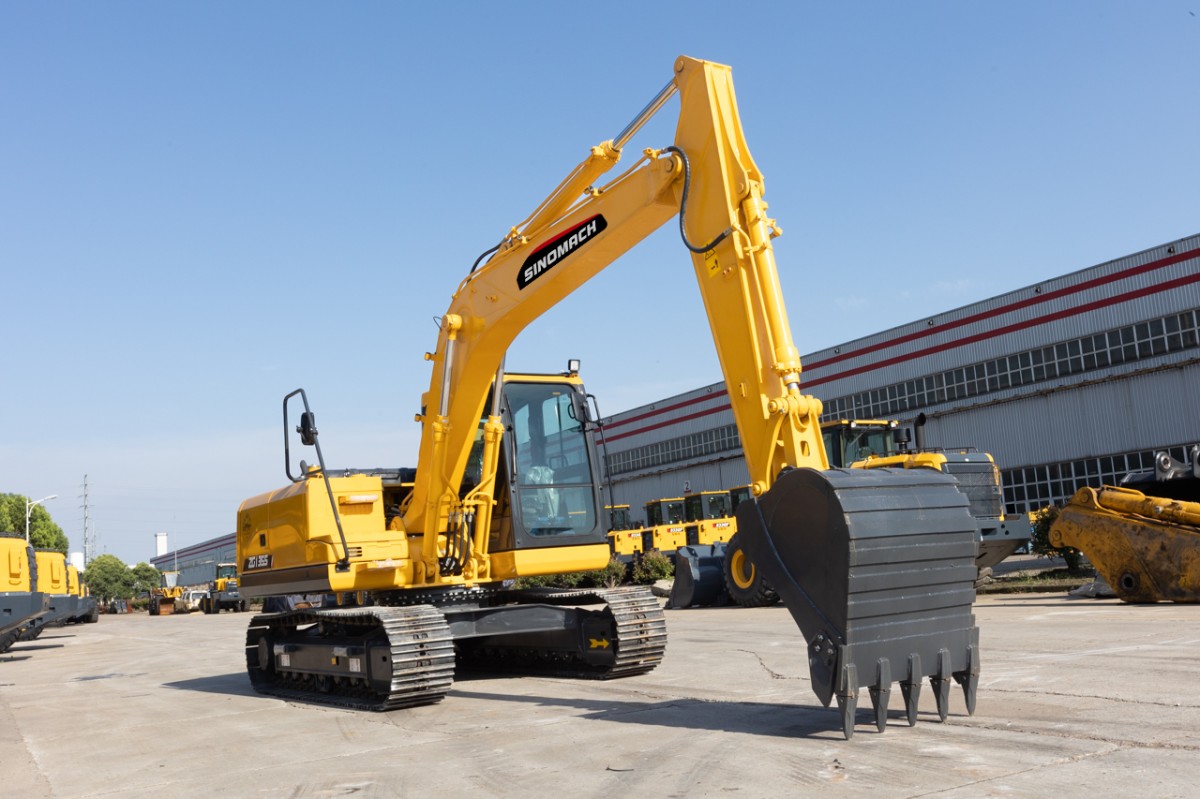

ZG135S Hydraulic crawler excavator
description1
Products pecifications
Model |
Unit |
ZG135S |
|
Operating weight |
Kg |
13500 |
|
Bucket capacity |
m³ |
0.45-0.65 |
|
Engine |
Model |
/ |
WP4.1 |
Output power |
kw/rpm |
92/2200 |
|
Maximum torque/speed |
N.m |
500/1400~1600 |
|
Displacement |
L |
4.09 |
|
Main performance |
Travel speed |
km/h |
5.2/3.25 |
Swing speed |
r/min |
10.5 |
|
Grade ability |
° |
35 |
|
Ground pressure |
kPa |
41.5 |
|
Bucket digging force |
kN |
97 |
|
Arm digging force |
kN |
70 |
|
Maximum traction |
kN |
135 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
150*2 |
Main safety valve pressure |
MPa |
35 |
|
Travel system pressure |
MPa |
33.63 |
|
Swing system pressure |
MPa |
21.5 |
|
Pilot system pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
265 |
Hydraulic tank capacity |
L |
170 |
|
Engine oil capacity |
L |
12 |
|
Appearance size |
Overall length |
mm |
7860 |
Overall width |
mm |
2500 |
|
Overall height |
mm |
2800 |
|
Width of platform |
mm |
2500 |
|
Overall width of chassis |
mm |
3645 |
|
Track width |
mm |
2500 |
|
Tread |
mm |
500 |
|
Track gauge |
mm |
2925 |
|
Counterweight clearance |
mm |
2000 |
|
Min. ground clearance |
mm |
915 |
|
Dozer(width/height) |
mm |
425 |
|
Working scope |
Max. digging height |
mm |
8495 |
Max. dumping height |
mm |
6060 |
|
Max. digging depth |
mm |
5490 |
|
Max. vertical wall digging depth |
mm |
4625 |
|
Max. digging radius |
mm |
8300 |
|
Min. swing radius |
mm |
2445 |
|
|
Length of boom |
mm |
4600 |
Length of arm |
mm |
2500 |
|
Bucket capacity |
m³ |
0.6 |
|
