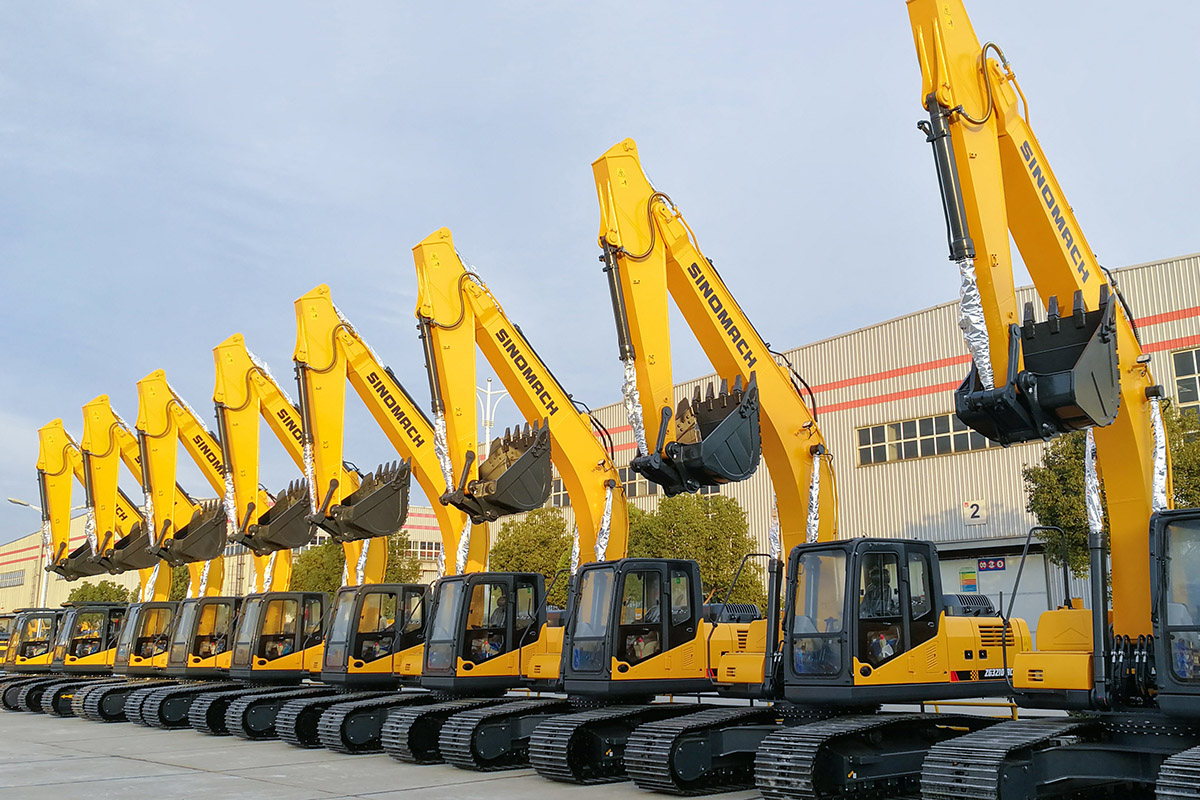

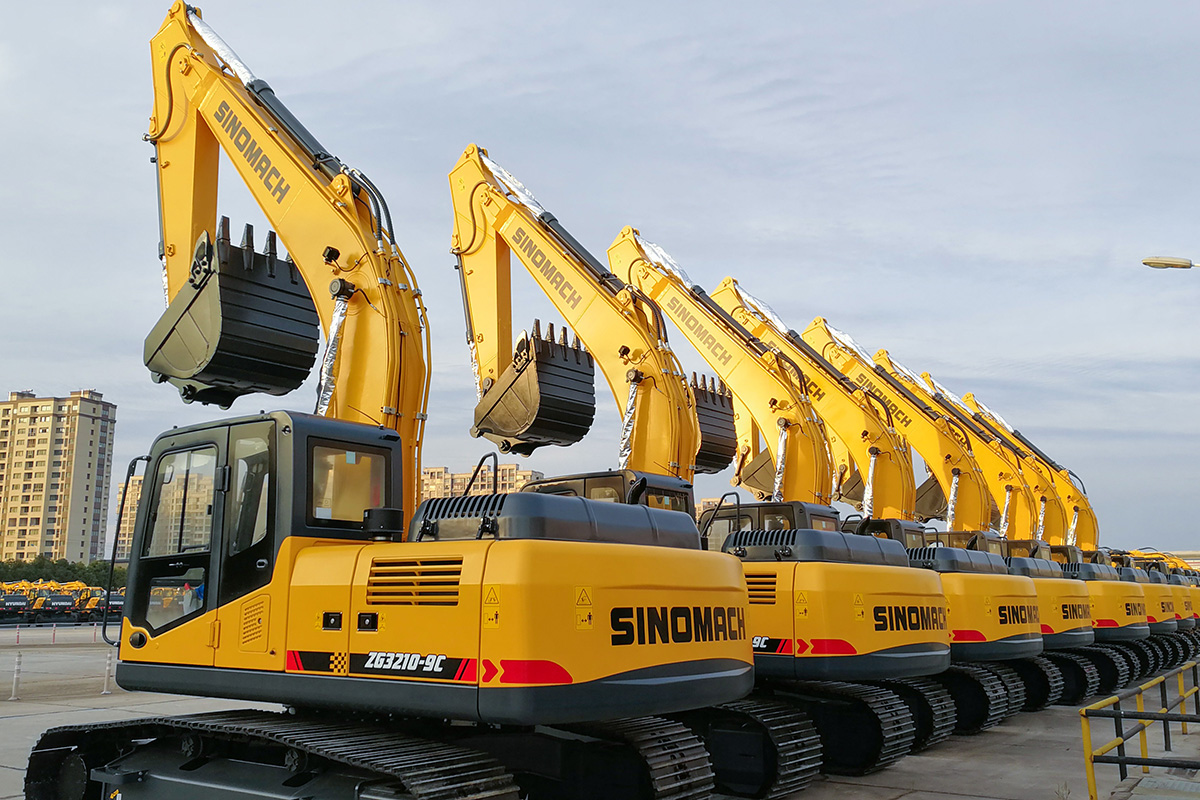

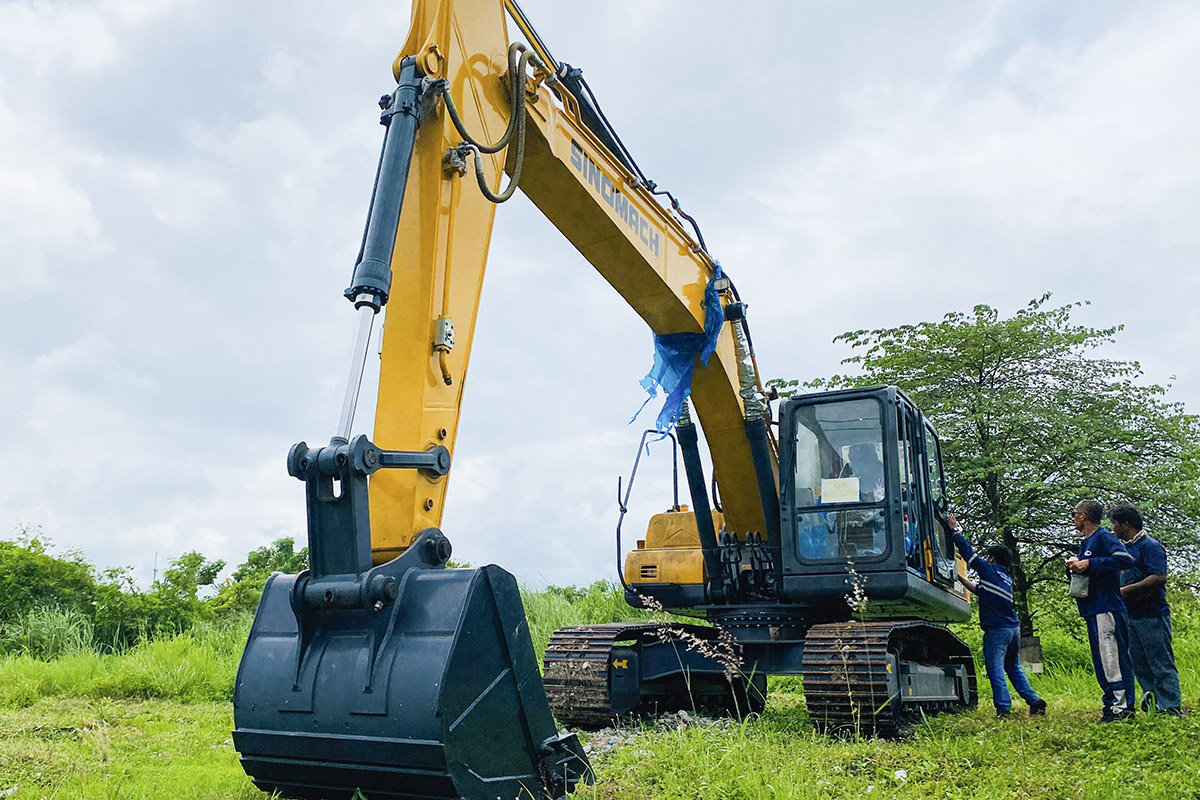

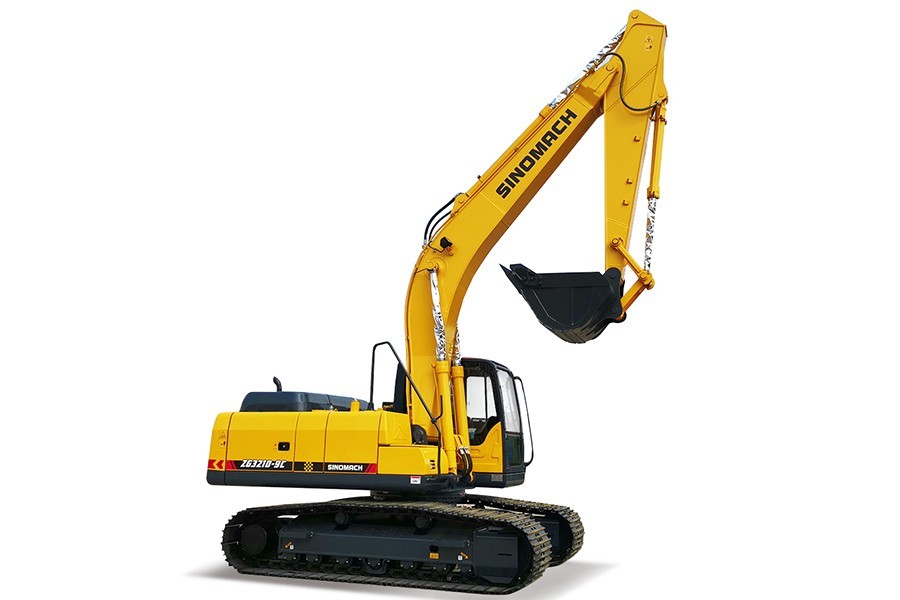

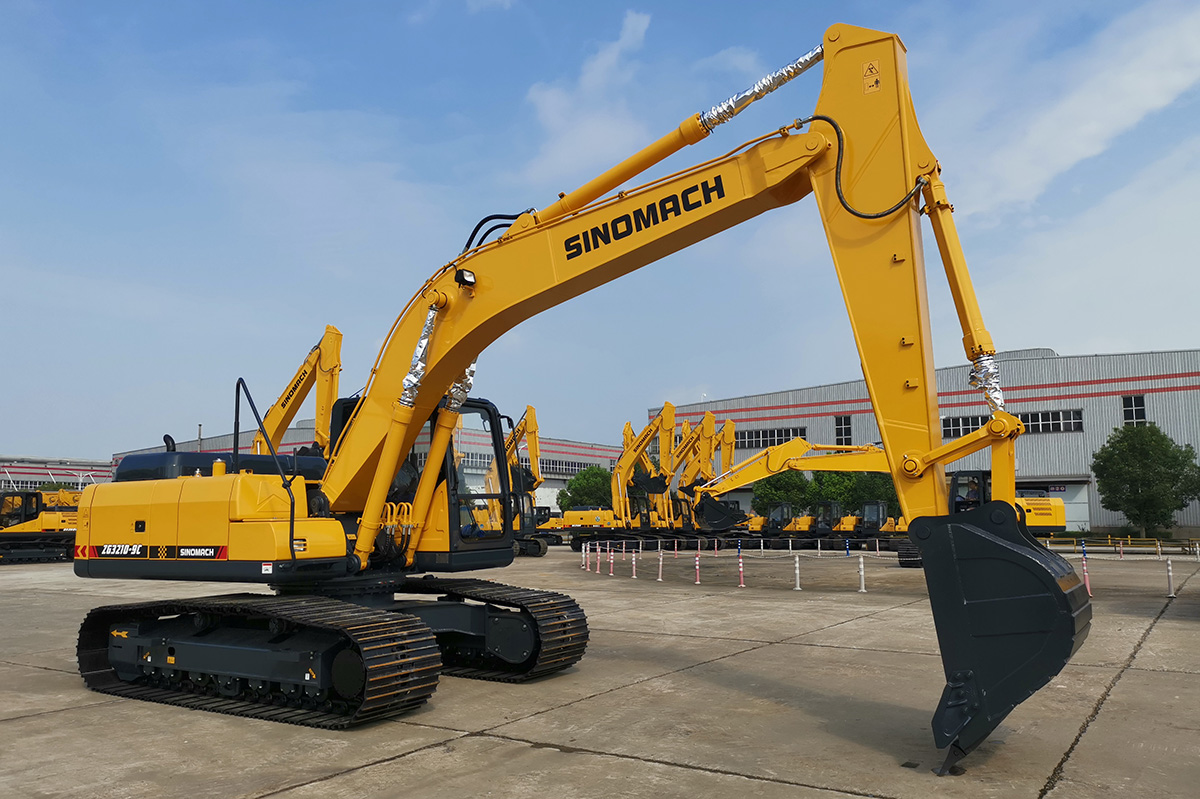

ZG3210-9C Hydraulic crawler excavator
description1
01
cummins

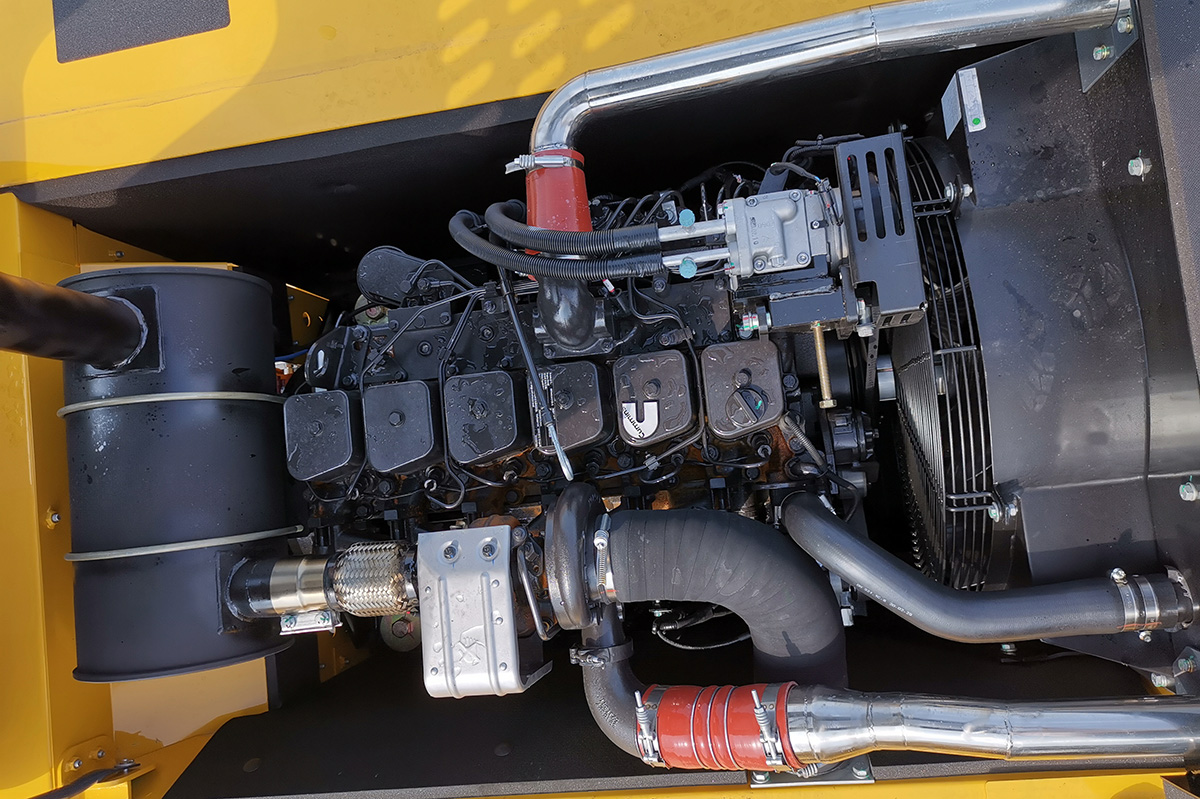

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

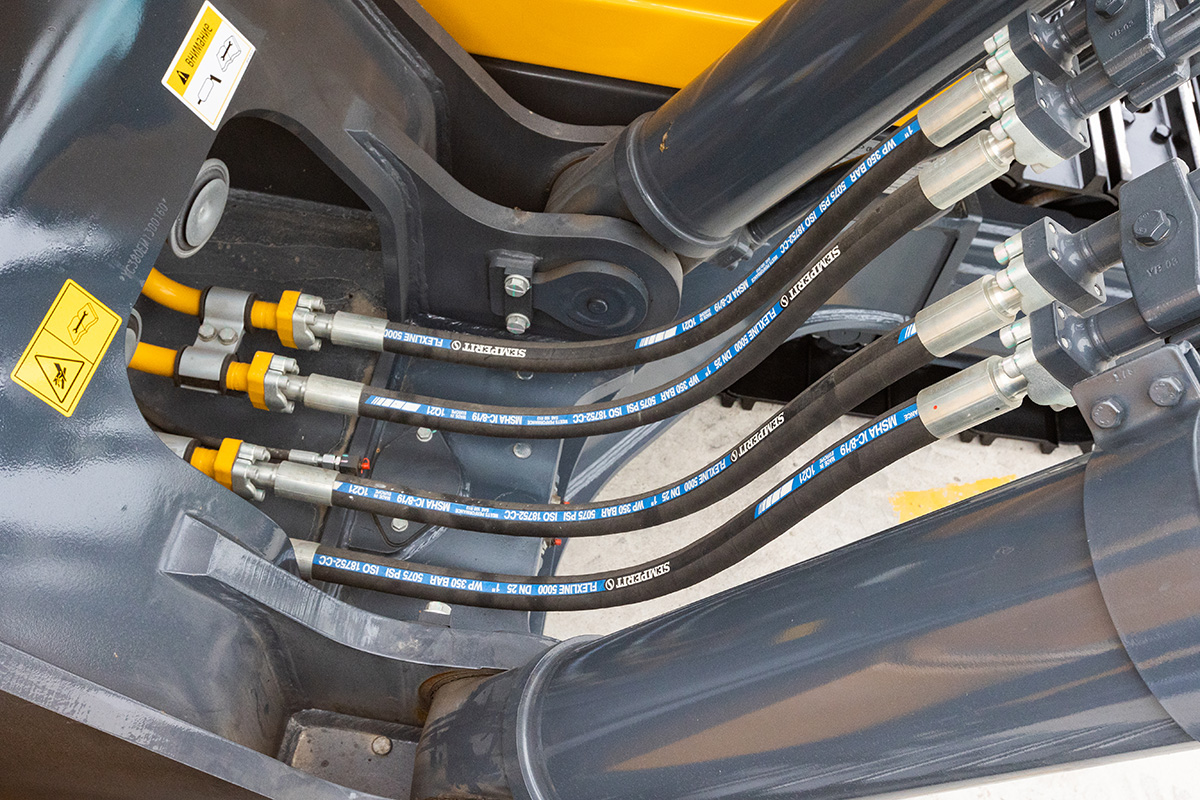

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

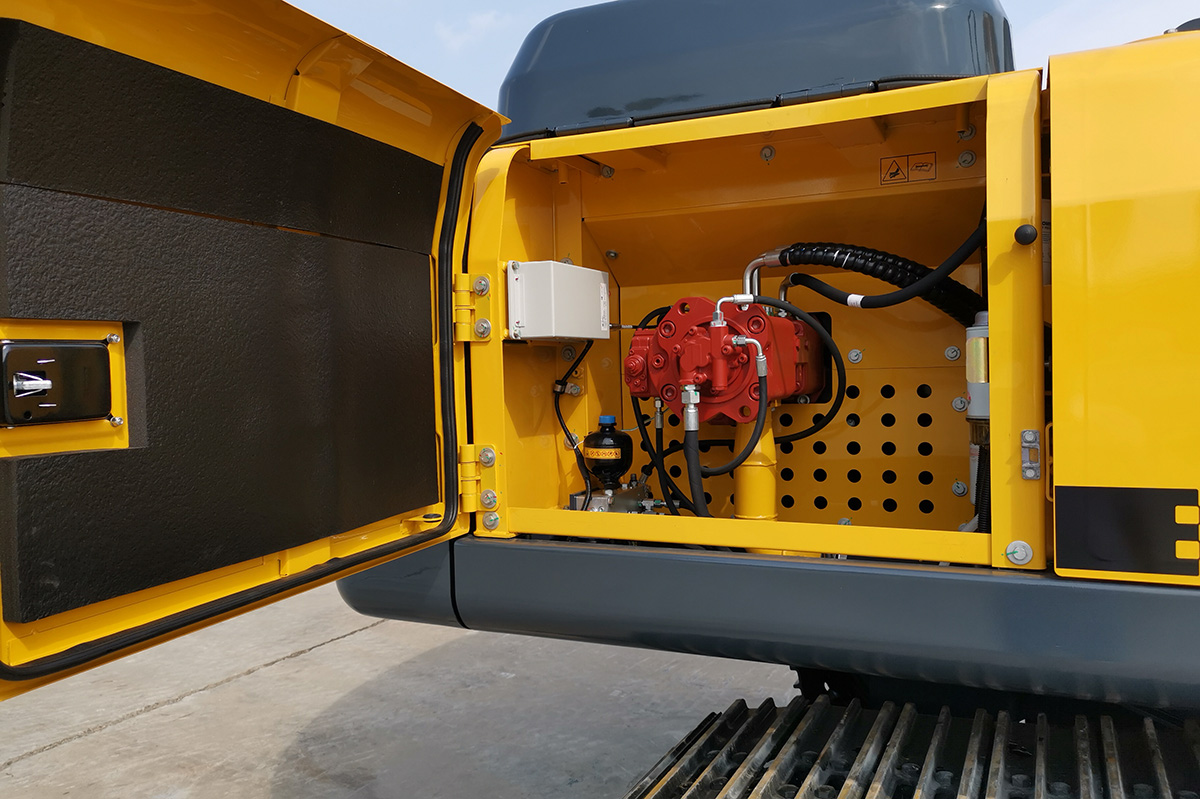

The excavator features a high-performance slewing system with large-displacement motors and speed-ratio-optimized gears, delivering exceptional starting torque and enhanced braking efficiency for precise rotation control.

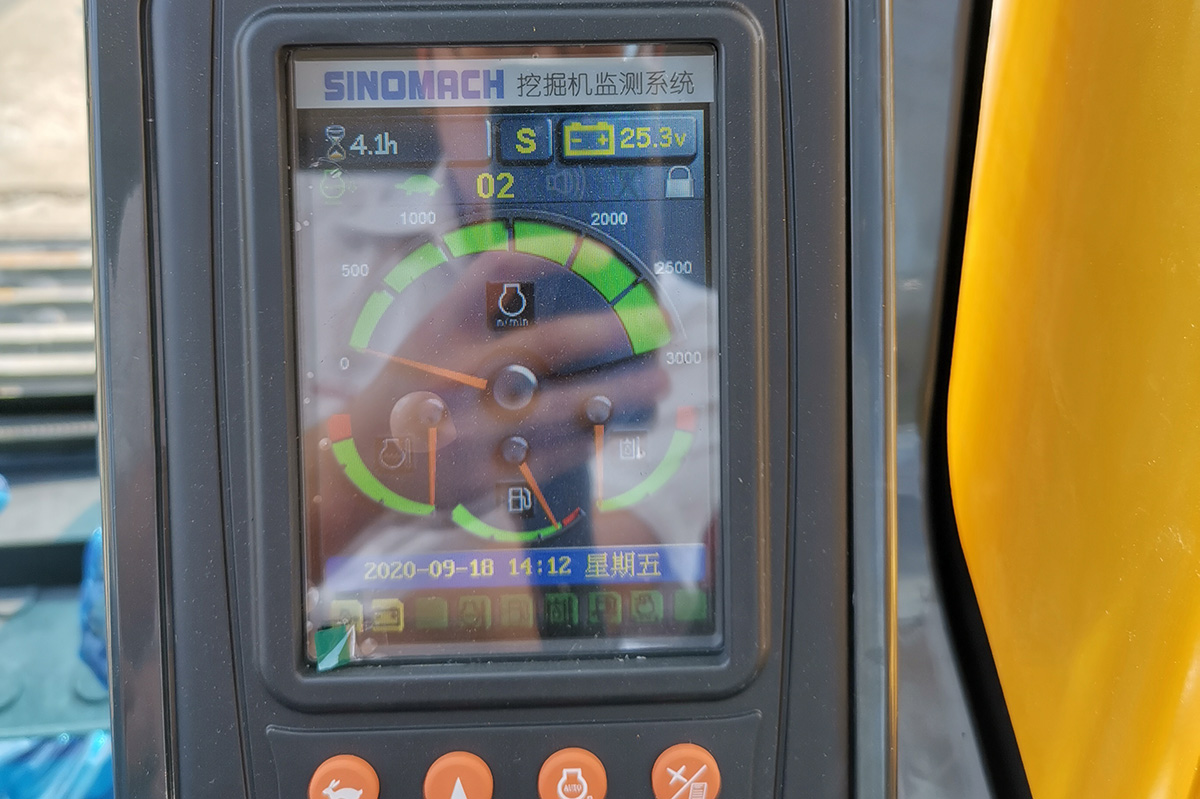

Featuring an intelligent electronic monitoring system, this solution enables real-time diagnostics with self-corrective fault alerts and proactive maintenance notifications for sustained operational efficiency.

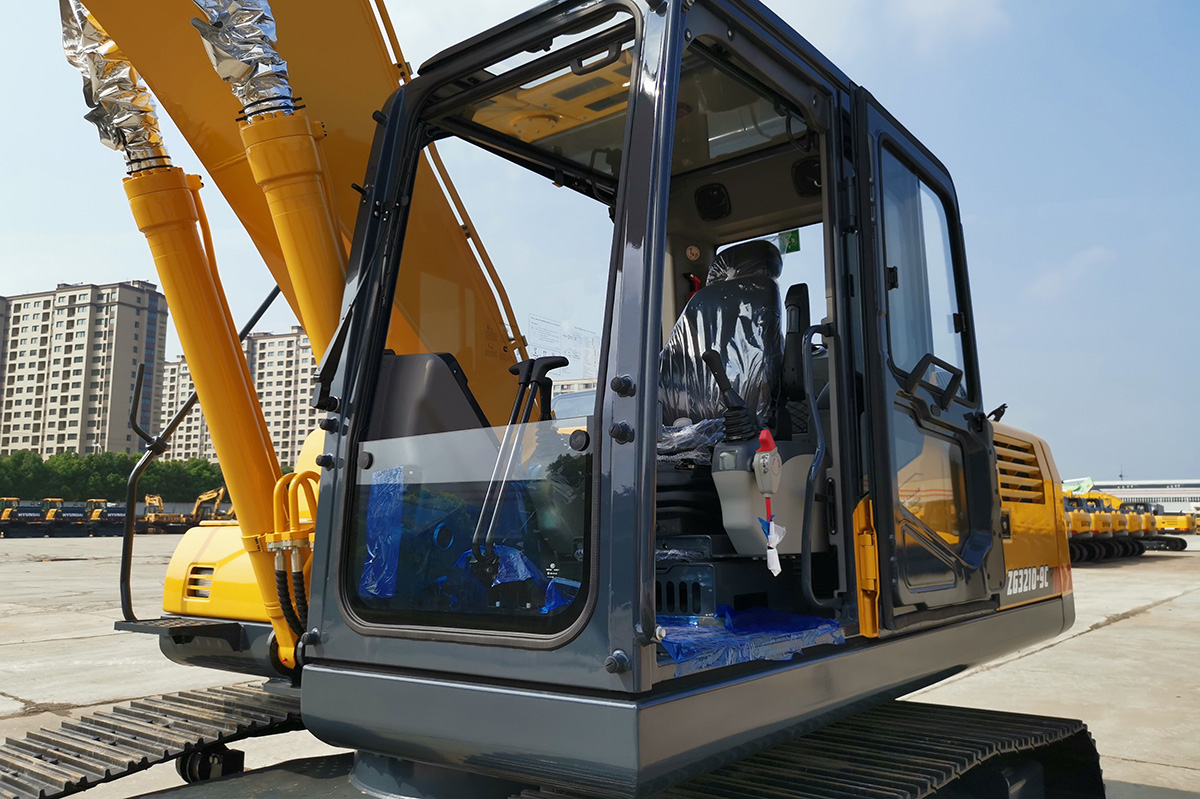

The excavator's newly designed cab combines safety and reliability with modern aesthetics, featuring injection-molded interior components for enhanced durability. Its spacious layout ensures operator comfort, complemented by a fully automatic climate control system for optimal temperature regulation in all working conditions.

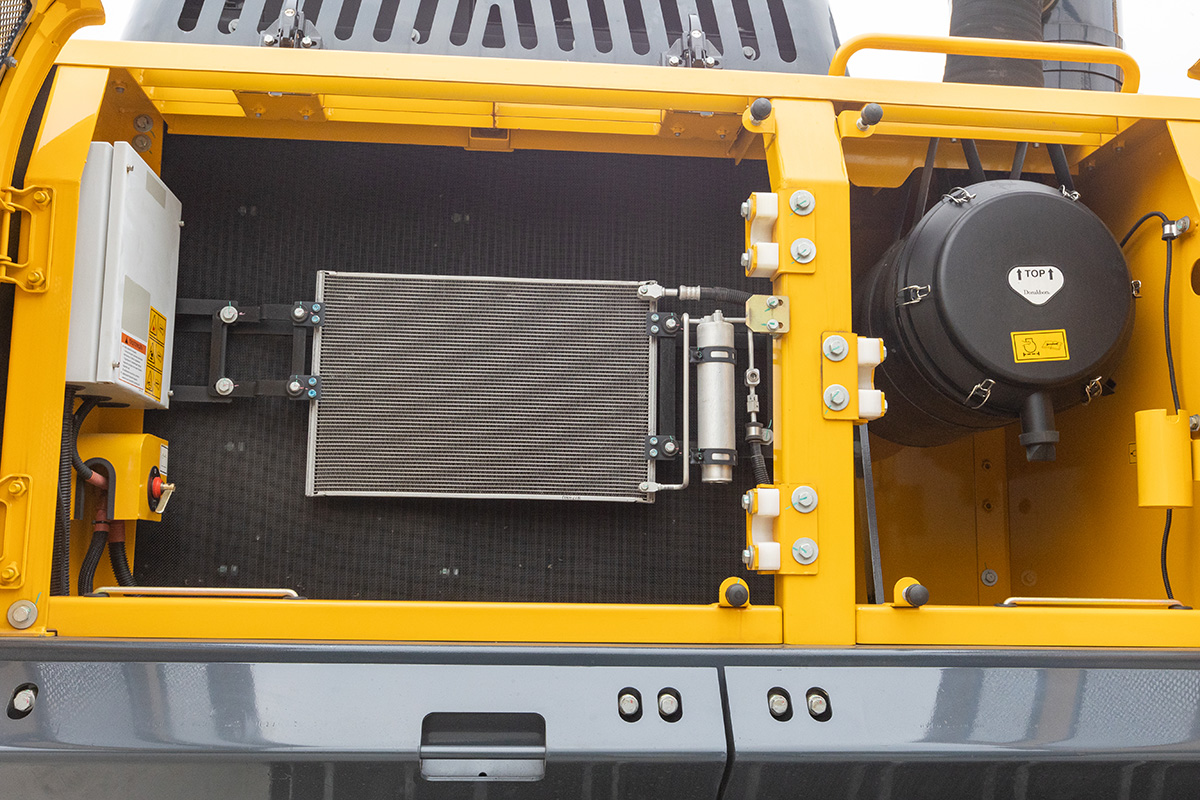

Humanized centralized and remote ground maintenance design, lighter maintenance.
Products pecifications
ITEM |
UNIT |
Specifications |
|
ZG3210-9C | |||
Operating weight |
kg |
21000 |
|
Rated bucket capacity |
|
m3 |
1.0 |
Overall length |
A |
mm |
9660 |
Overall width（600mm track shoe） |
B |
mm |
2800 |
Overall height |
C |
mm |
3030 |
Trunable width |
D |
mm |
2700 |
Cabin height |
E |
mm |
2958 |
Groundclearance of counterweight |
F |
mm |
1025 |
Engine cover height |
G |
mm |
2338 |
Min. ground clearance |
H |
mm |
470 |
Tail length |
I |
mm |
2800 |
Turning radius of turnable |
I’ |
mm |
2800 |
Wheel base of track shoe |
J |
mm |
3370 |
Chassis length |
K |
mm |
4160 |
Chassis width |
L |
mm |
2800 |
Track shoe gauge |
M |
mm |
2200 |
Standard track shoe width |
N |
mm |
600 |
Max. traction |
|
kN |
194 |
Travelling speed (H/L) |
|
km/hr |
5.5/3.6 |
Swing speed |
|
rpm |
12 |
Gradeability |
|
Degree(%) |
35（70%） |
Ground pressure |
|
kgf/cm2 |
0.47 |
ITEM |
5.68m Boom 2.91m Stick 1.0m³ Bucket |
|
ZG3210-9C | ||
Maximum digging radius |
A |
9953 |
Ground maximum digging radius |
A’ |
9794 |
Maximum digging depth |
B |
6690 |
Ground maximum digging depth |
B’ |
6505 |
Maximum vertical digging depth |
C |
6104 |
Maximum digging height |
D |
9642 |
Maximum dumping height |
E |
6813 |
Min. front turning radius |
F |
3560 |
Bucket digging force |
ISO |
150 kN |
Stick digging force |
ISO |
105 kN |
