Hydraulic Crawler Excavator

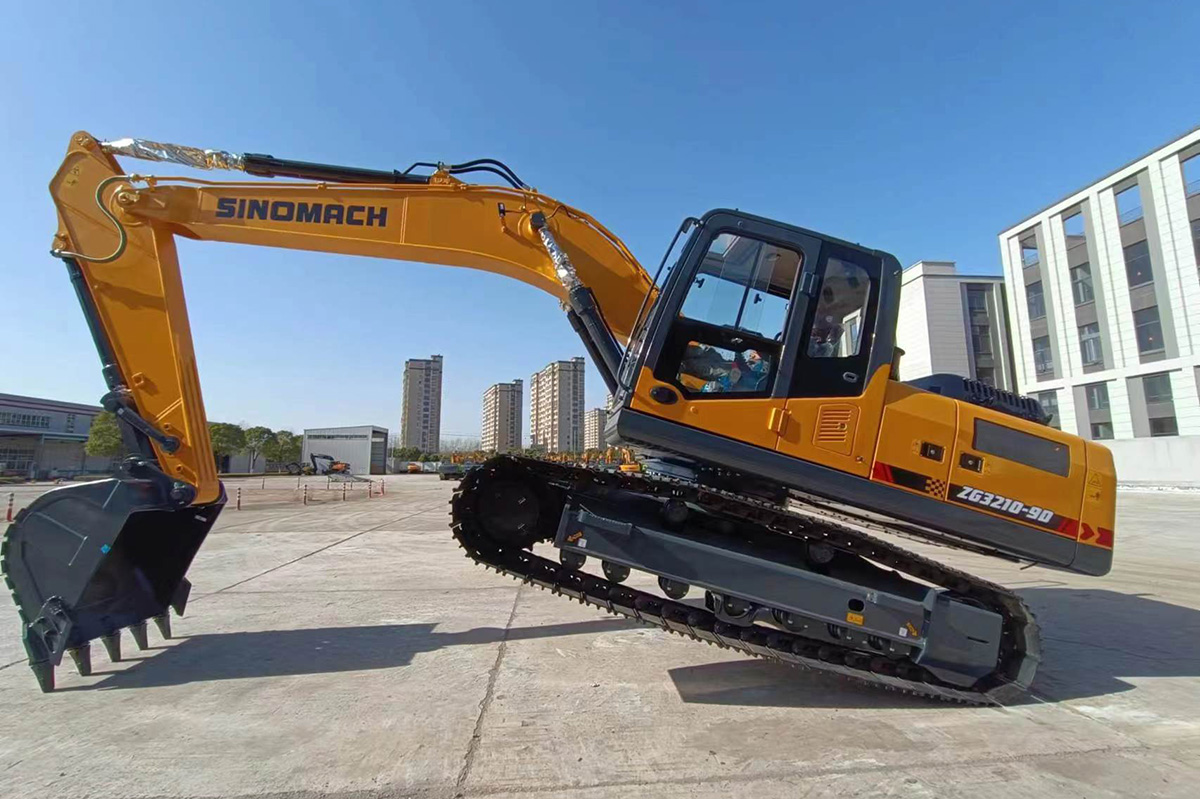

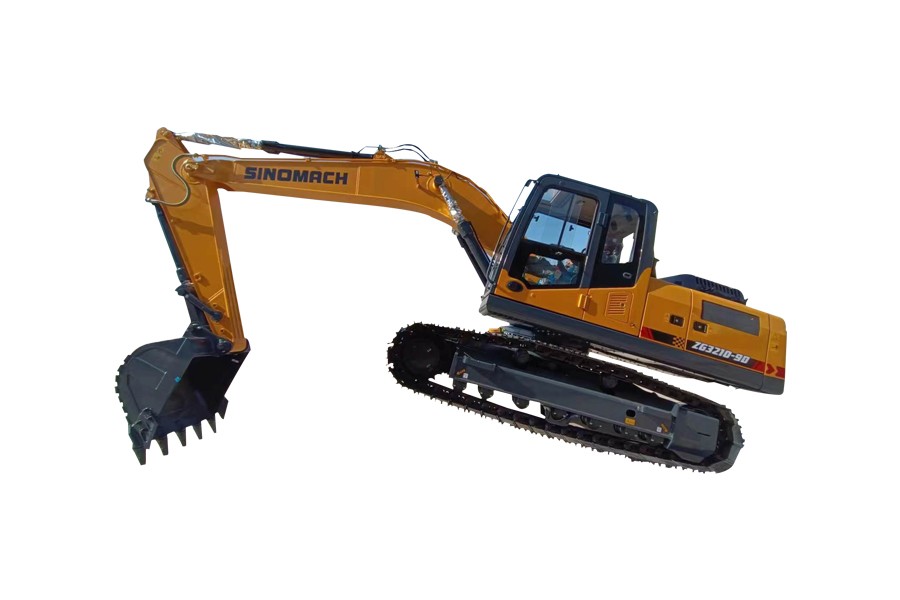

3210-9D Hydraulic crawler excavator (2).jpg

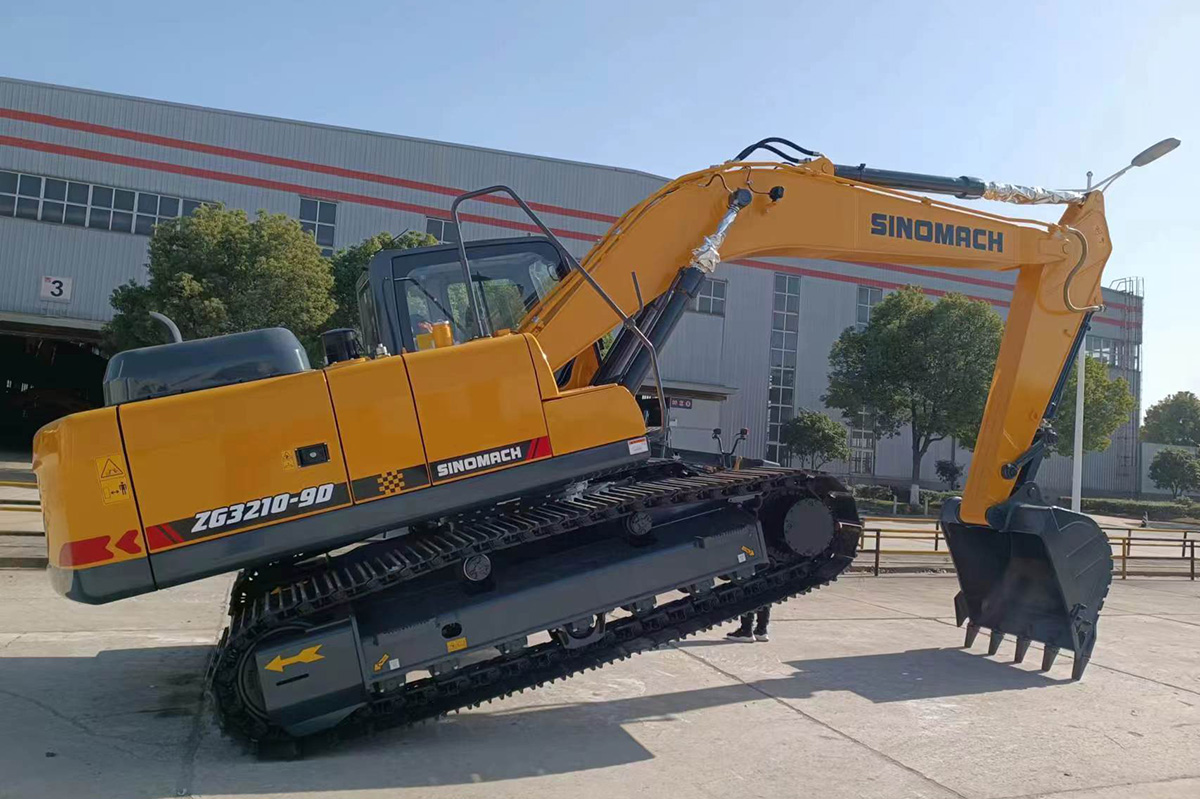

3210-9D Hydraulic crawler excavator (1).jpg

ZG3210-9D Hydraulic crawler excavator

•Engine Power：112kw/1950rpm

•Operating Weight：20750kg

This high-performance excavator is equipped with a CUMMINS engine, combining superior power output with remarkable fuel efficiency and extended service life. Its innovative hydraulic system utilizes negative-flow technology to ensure smooth operation while maximizing productivity, delivering exceptional value for money. The machine offers four selectable power modes through an intelligent control system, allowing seamless adaptation to varying job requirements. A precision-engineered fuel injection system enables real-time combustion optimization for reduced fuel consumption. Furthermore, advanced 3D simulation and finite element analysis techniques are applied during design to guarantee structural durability and operational reliability in challenging working environments.

product details

description1

cummins

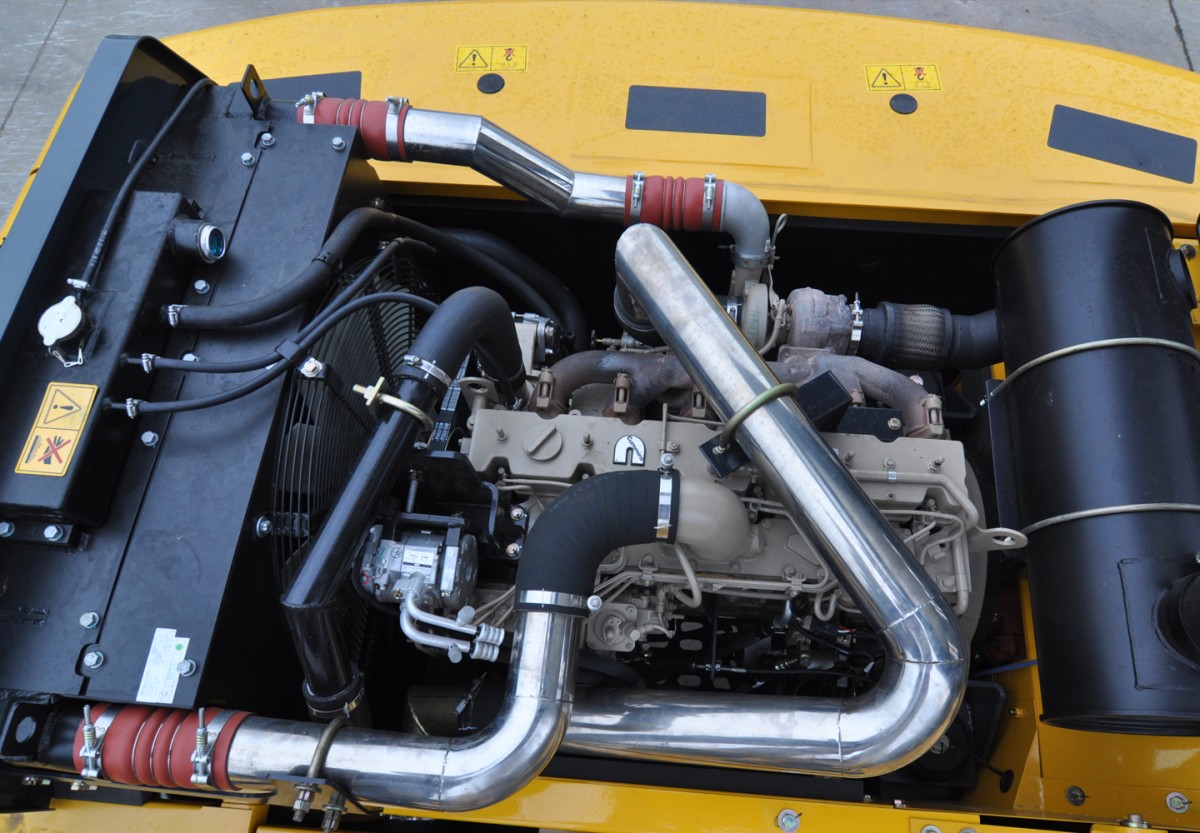

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

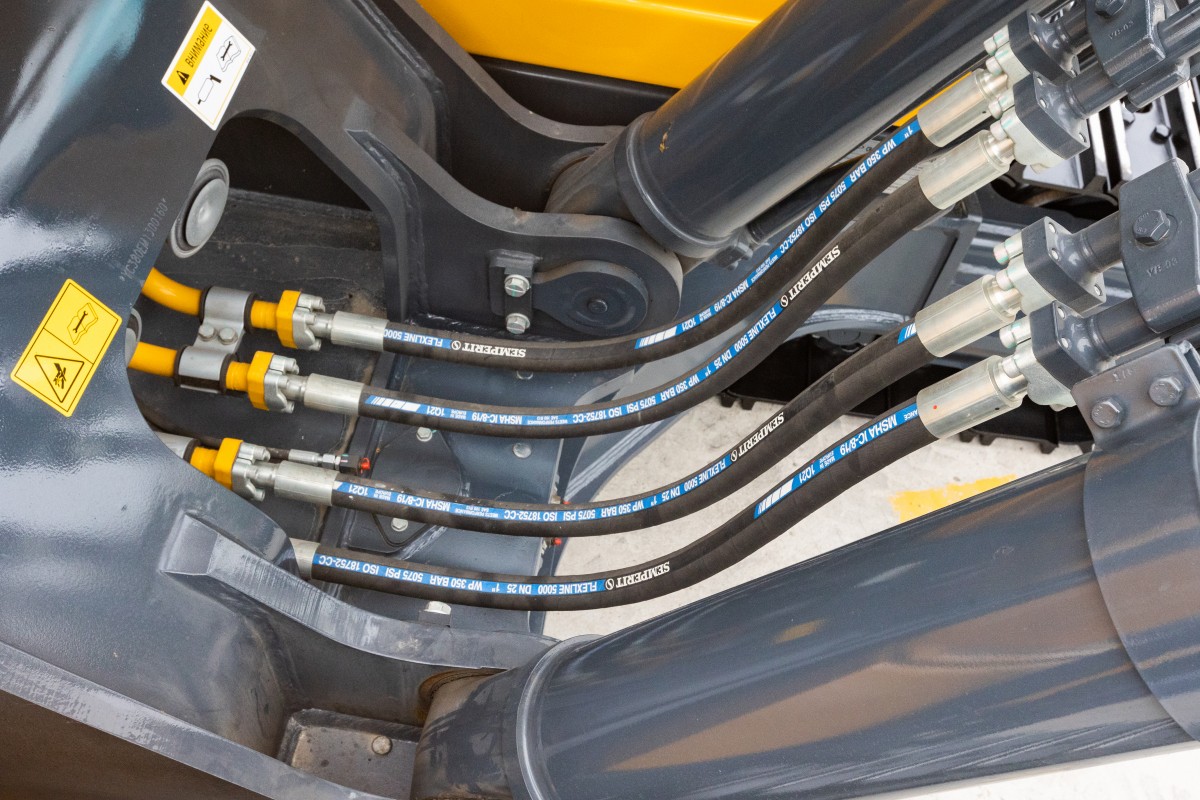

The system incorporates a large-bore hydraulic cylinder with an optimized linkage configuration, enhancing force transmission efficiency across critical joints. Its intelligent load-sensing mechanism automatically activates pressure compensation when external resistance increases, delivering progressive digging force amplification through closed-loop hydraulic regulation. This adaptive power optimization ensures consistent performance under varying operational conditions while maintaining system protection.

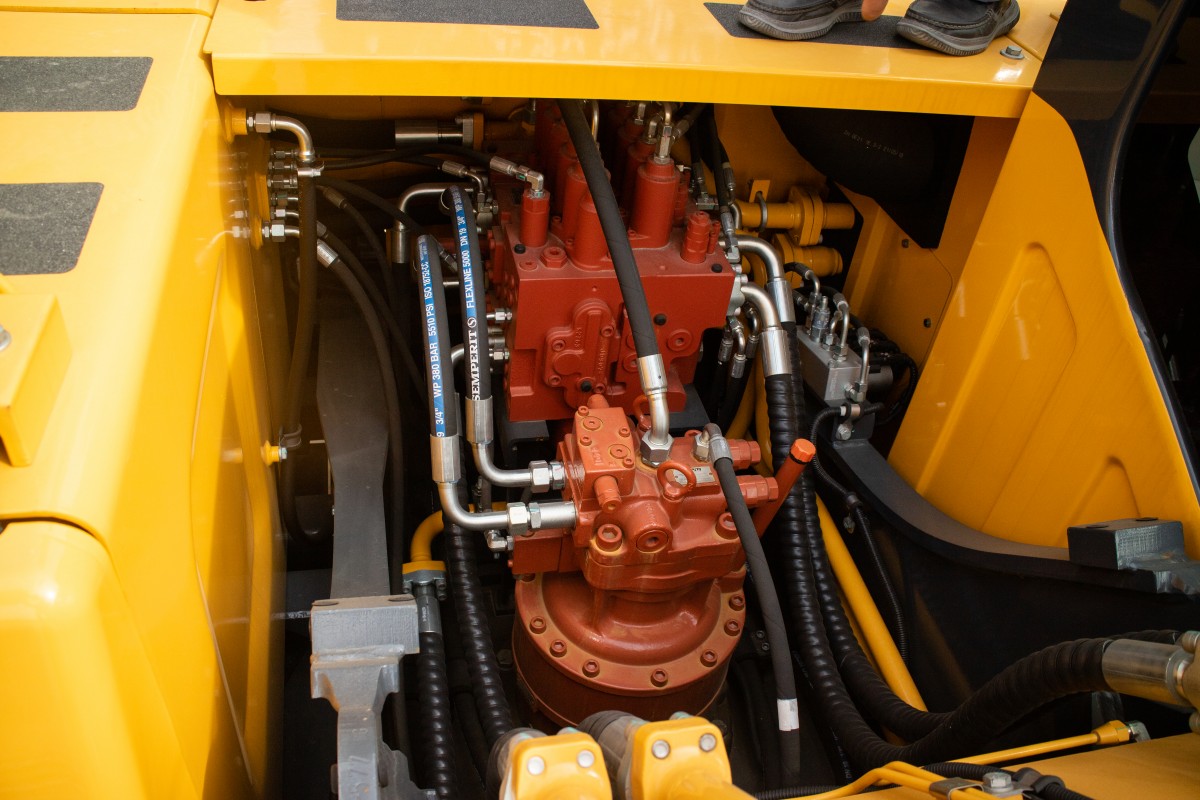

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

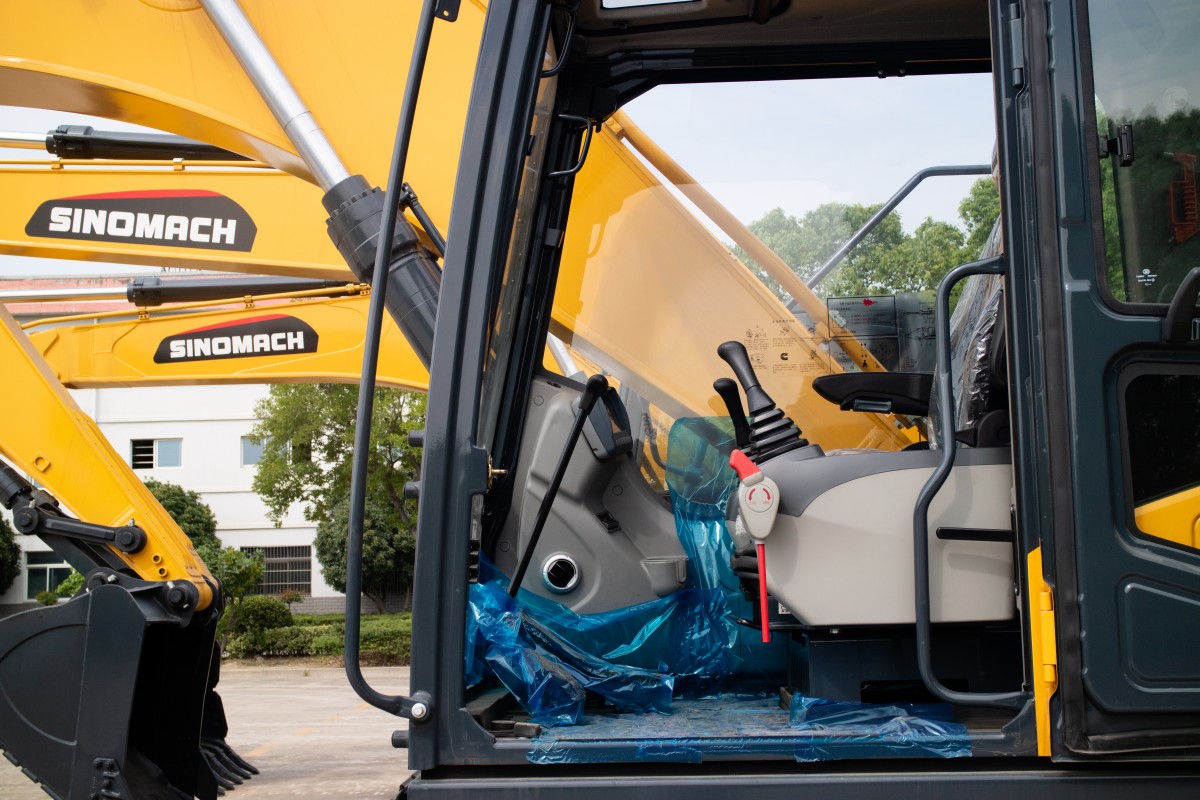

Intelligent electronic monitoring system, real-time monitoring, self-diagnostic fault alarm, maintenance information prompts.

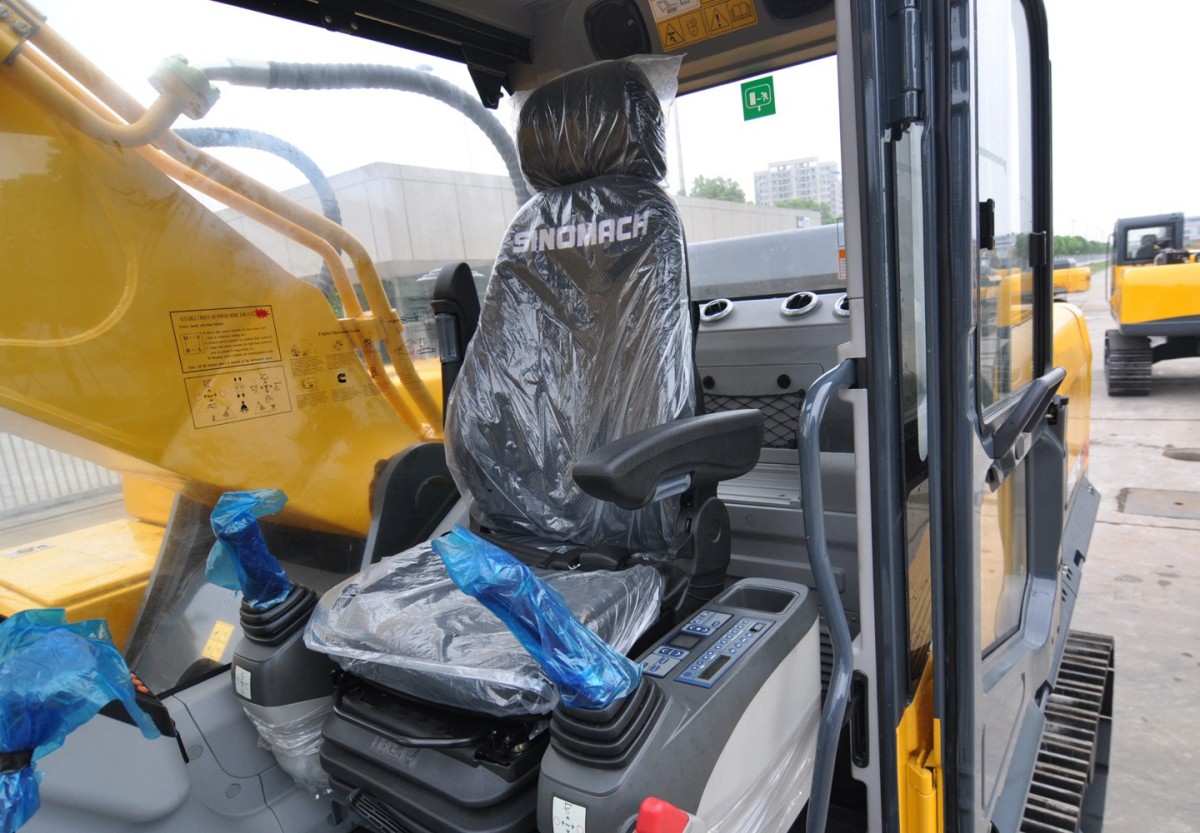

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

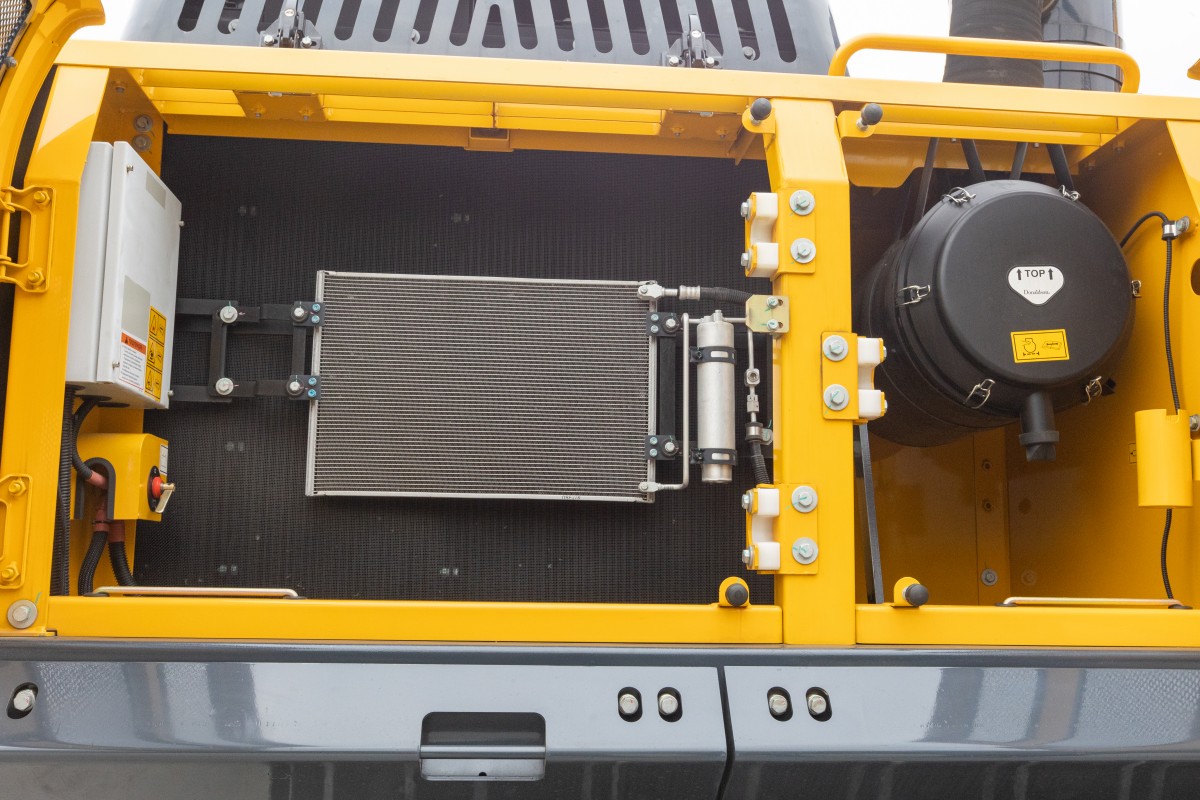

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Specifications
ITEM		UNIT	ZG3210-9D
Operating weight		kg	20750
Rated bucket capacity		m³	1.0
Overall length	A	mm	9660
Overall width（600mm track shoe）	B	mm	2800
Overall height	C	mm	3030
Trunable width	D	mm	2700
Cabin height	E	mm	2958
Groundclearance of counterweight	F	mm	1025
Engine cover height	G	mm	2338
Min. ground clearance	H	mm	465
Tail length	I	mm	2800
Turning radius of turnable	I’	mm	2800
Wheel base of track shoe	J	mm	3370
Chassis length	K	mm	4160
Chassis width	L	mm	2800
Track shoe gauge	M	mm	2200
Standard track shoe width	N	mm	600
Max. traction		kN	194
Travelling speed (H/L)		km/hr	5.7/3.1
Swing speed		rpm	11.8
Gradeability		Degree(%)	35（70%）
Ground pressure		kgf/cm²	0.47

ITEM		5.68m Boom 2.7m Stick 1.0m³ Bucket
		ZG3210-9D
Maximum digging radius	A	9770
Ground maximum digging radius	A’	9610
Maximum digging depth	B	6475
Ground maximum digging depth	B’	6305
Maximum vertical digging depth	C	5750
Maximum digging height	D	9680
Maximum dumping height	E	6845
Min. front turning radius	F	3530
Bucket digging force	ISO	150 kN
Stick digging force	ISO	105 kN
