Hydraulic Crawler Excavator

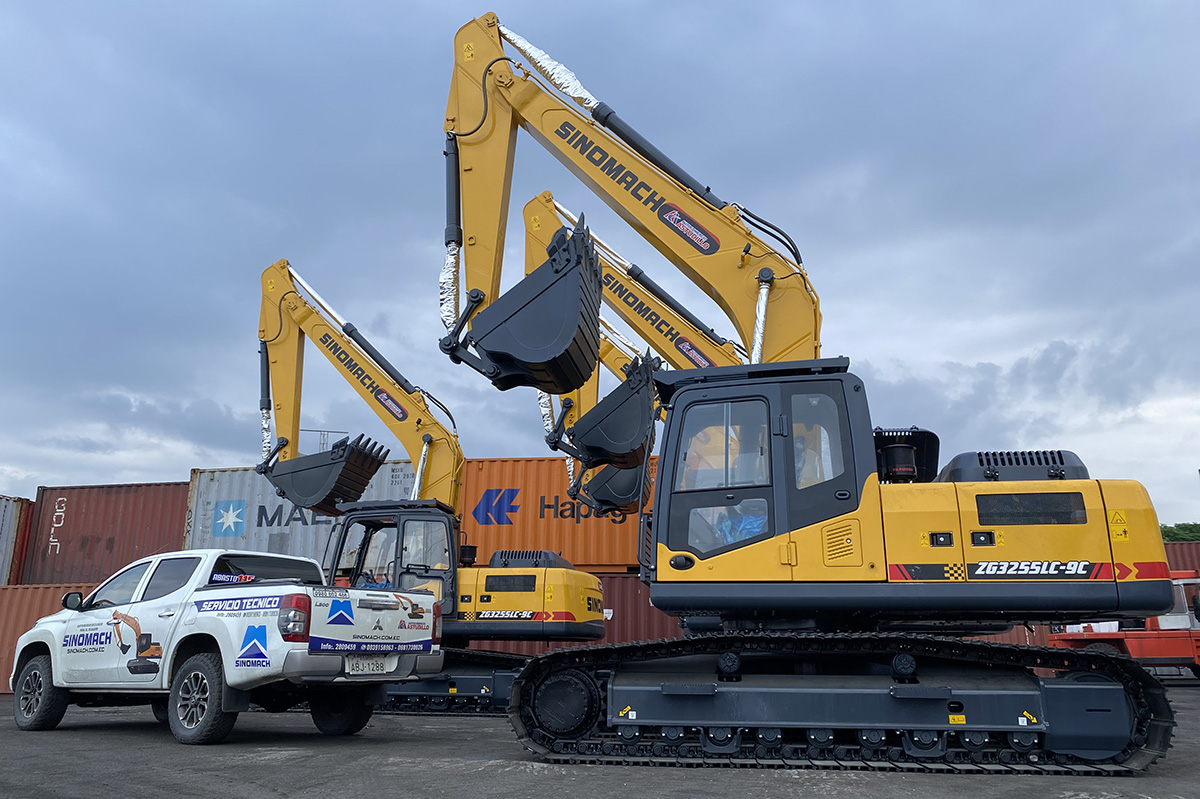

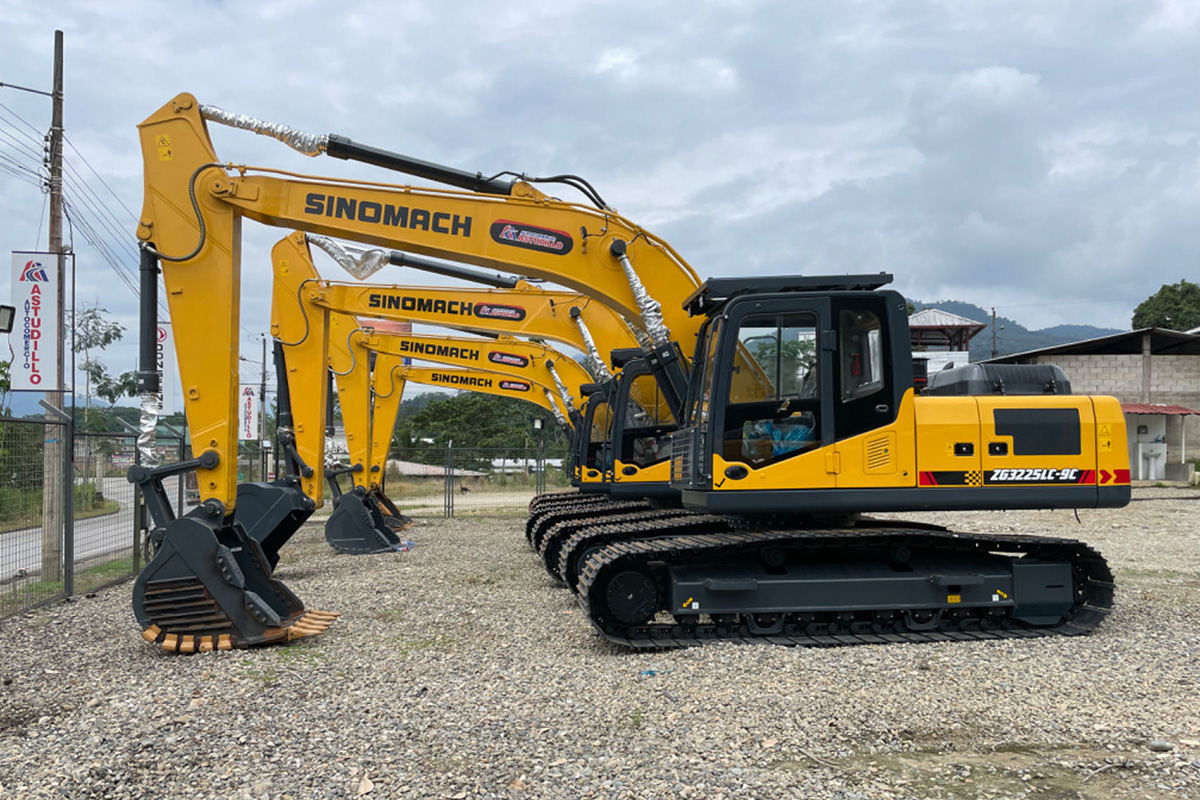

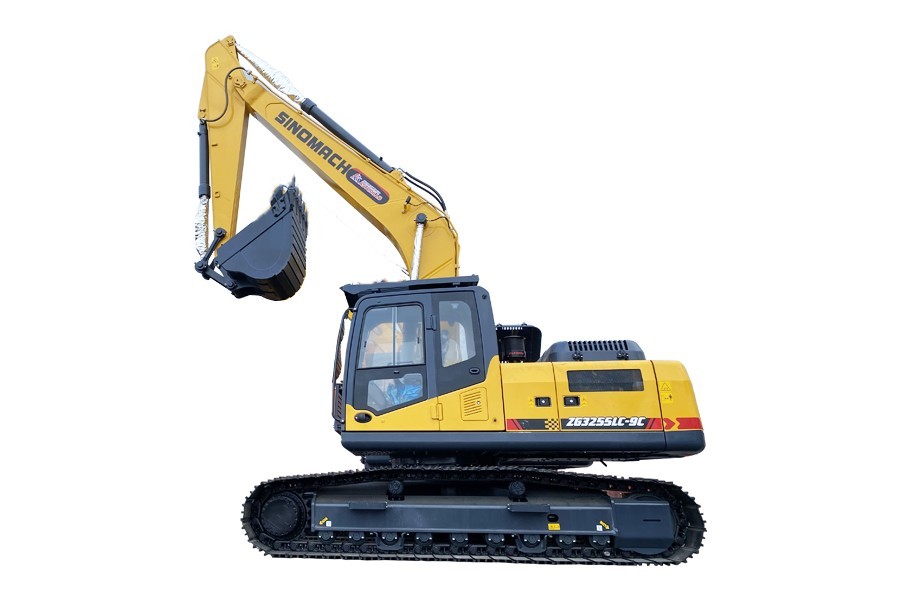

ZG3225LC-9C Hydraulic crawler excavator

•Engine Power：112kw/7950rpm

•Operating Weight：22000kg

Powered by a high-performance Cummins engine with superior load-bearing capacity and fuel efficiency, this excavator delivers reliable power output while reducing operational costs. Its advanced negative-flow hydraulic system ensures stable operation with faster combined movements for enhanced productivity. The machine offers versatile configurations with multiple bucket and breaker options, making it ideal for municipal, road, and industrial projects. Reinforced box-type side beams and an X-frame structure, along with durable track rollers, provide exceptional impact resistance. Featuring oil-impregnated resin gaskets and copper-based bushings for reduced friction, the excavator also includes an intelligent monitoring system for real-time diagnostics. The ergonomic cab ensures operator comfort with low noise and optimal visibility, while LC-type reinforced tracks guarantee stability during heavy-duty operations.

product details

description1

cummins

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases.

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

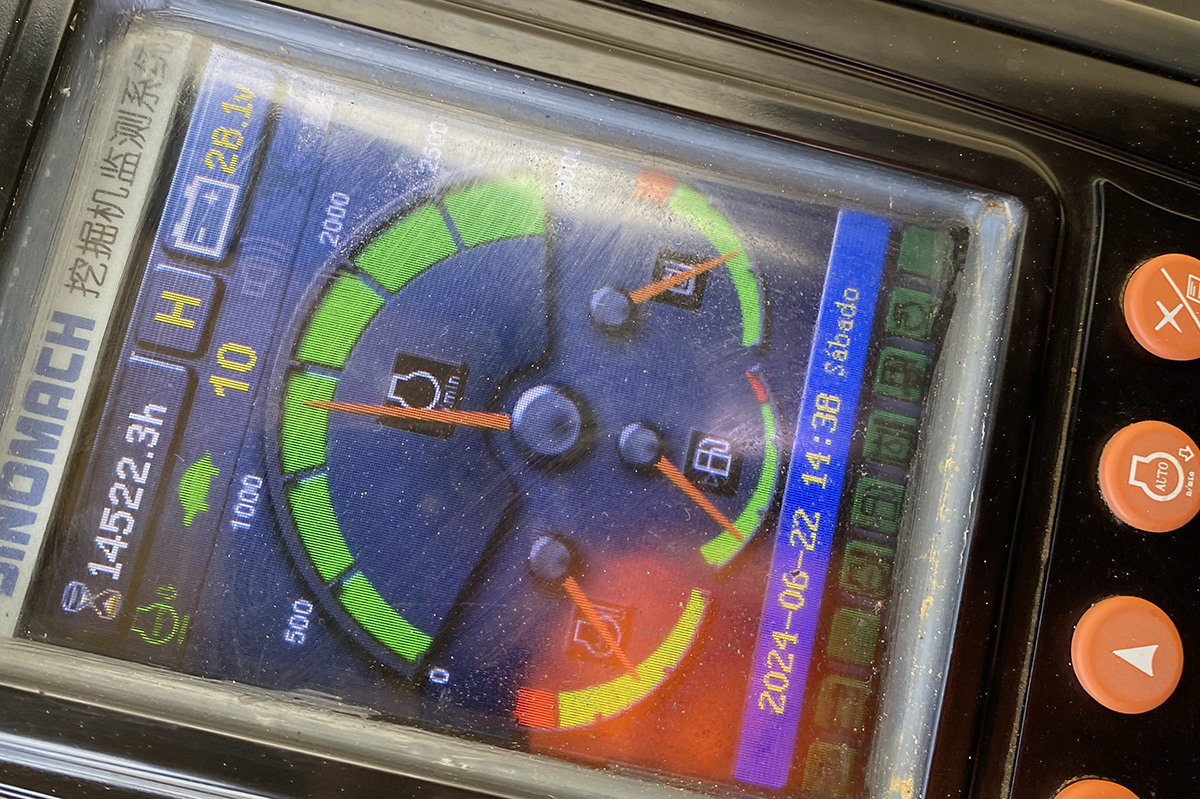

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Specifications
ITEM		UNIT	ZG3225LC-9C
Operating weight		kg	22000
Rated bucket capacity		m³	1.1
Overall length	A	mm	9660
Overall width（600mm track shoe）	B	mm	2990
Overall height	C	mm	3030
Trunable width	D	mm	2700
Cabin height	E	mm	2958
Groundclearance of counterweight	F	mm	1025
Engine cover height	G	mm	2338
Min. ground clearance	H	mm	470
Tail length	I	mm	2800
Turning radius of turnable	I’	mm	2800
Wheel base of track shoe	J	mm	3650
Chassis length	K	mm	4440
Chassis width	L	mm	2990
Track shoe gauge	M	mm	2390
Standard track shoe width	N	mm	600
Max. traction		kN	194
Travelling speed (H/L)		km/hr	5.5/3.6
Swing speed		rpm	12
Gradeability		Degree(%)	35（70%）
Ground pressure		kgf/cm²	0.46

ITEM		2.91m Stick 5.68m Boom 1.1m³ Bucket
ITEM		ZG3225LC-9C
Maximum digging radius	A	9970
Ground maximum digging radius	A’	9812
Maximum digging depth	B	6707
Ground maximum digging depth	B’	6523
Maximum vertical digging depth	C	6107
Maximum digging height	D	9665
Maximum dumping height	E	6803
Min. front turning radius	F	3560
Bucket digging force	ISO	150 kN
Stick digging force	ISO	100 kN
