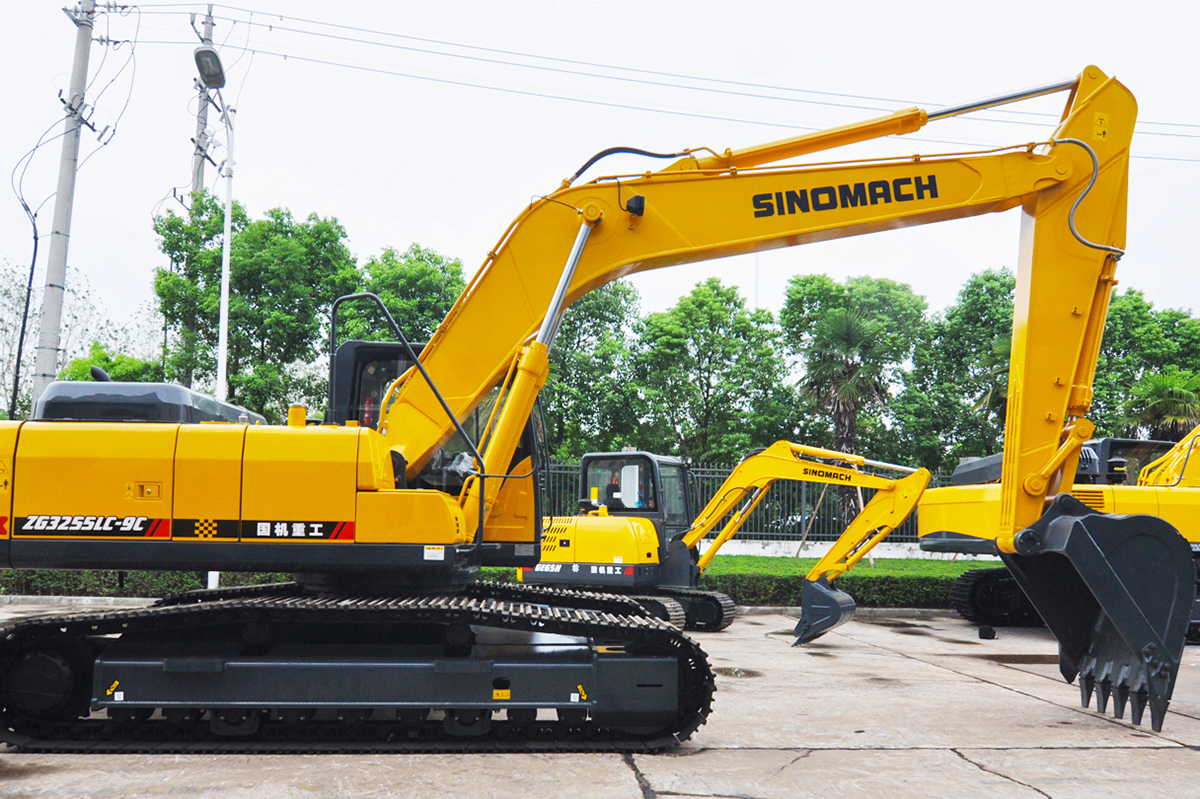

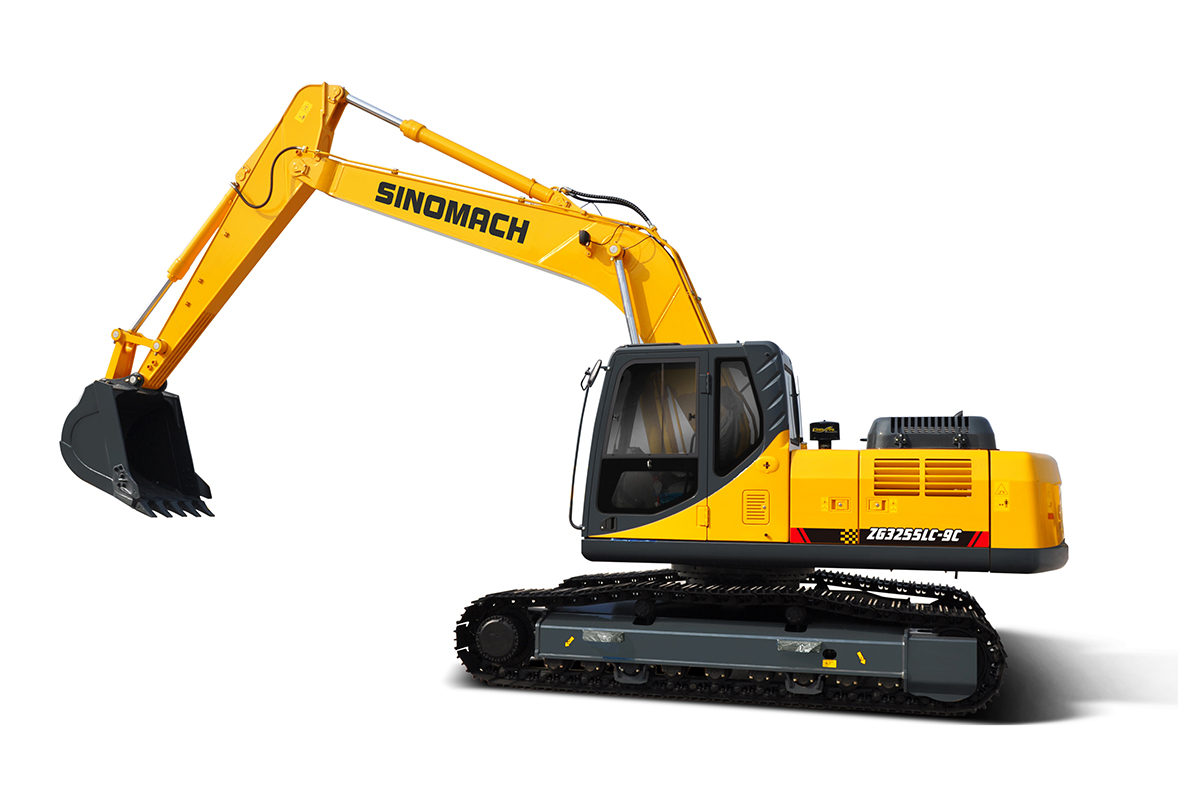

ZG3255LC-9C Hydraulic crawler excavator

•Engine Power：133kw/2000rpm

•Operating Weight：25000kg

This excavator features a heavy-duty Cummins engine delivering high power output with reduced fuel consumption, effectively lowering operational costs. The advanced negative flow hydraulic system ensures smooth compound movements and superior efficiency. Reinforced box-side beams and X-frame structure provide exceptional impact resistance under extreme loads. Equipped with intelligent electronic monitoring for real-time diagnostics and maintenance alerts, it combines ergonomic cab design with LC reinforced tracks for safe and comfortable operation across municipal, mining, and industrial applications. Quick-change attachments (buckets/breakers) enhance its multifunctional capabilities.

product details

description1

cummins

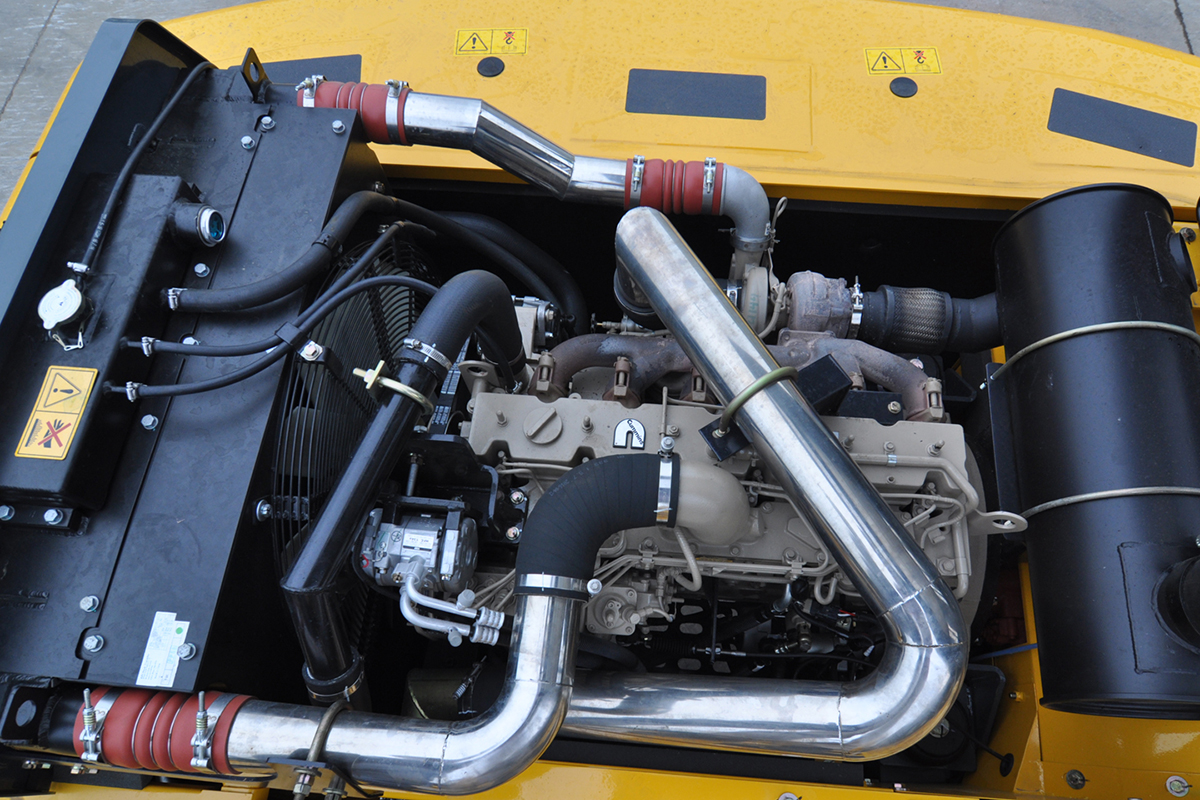

CUMMINS high-power engine with strong power, low fuel consumption and high reliability.

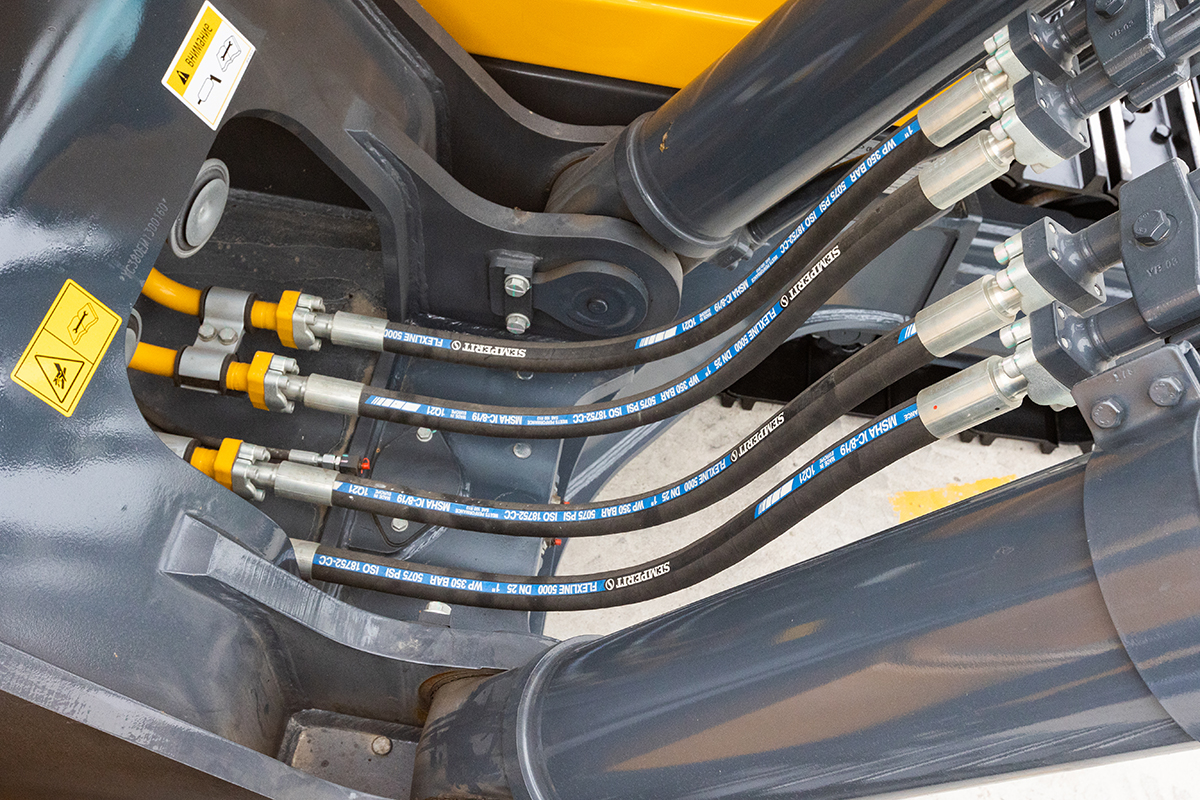

This system integrates a large-bore hydraulic cylinder with optimized hinge point configuration, significantly enhancing the machine's digging force. An intelligent automatic supercharging function dynamically boosts excavation power in response to increasing load demands, ensuring consistent high-performance operation.

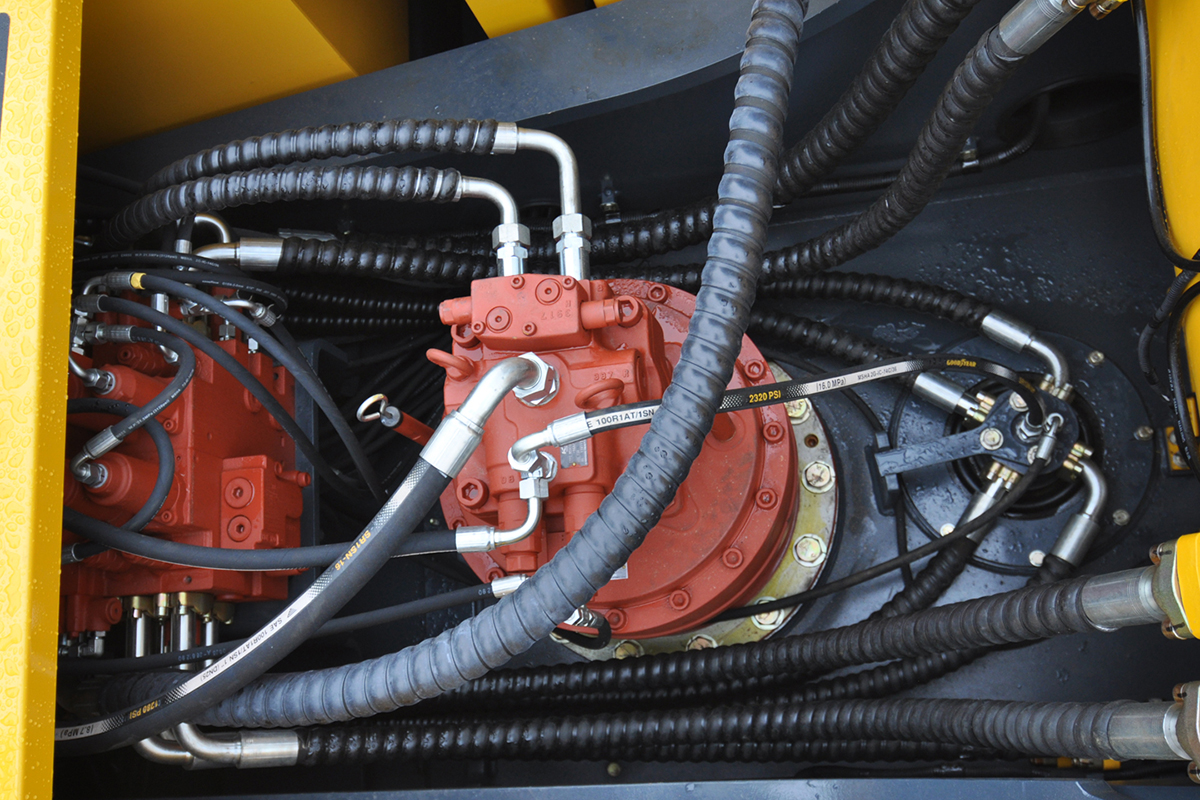

Large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect.

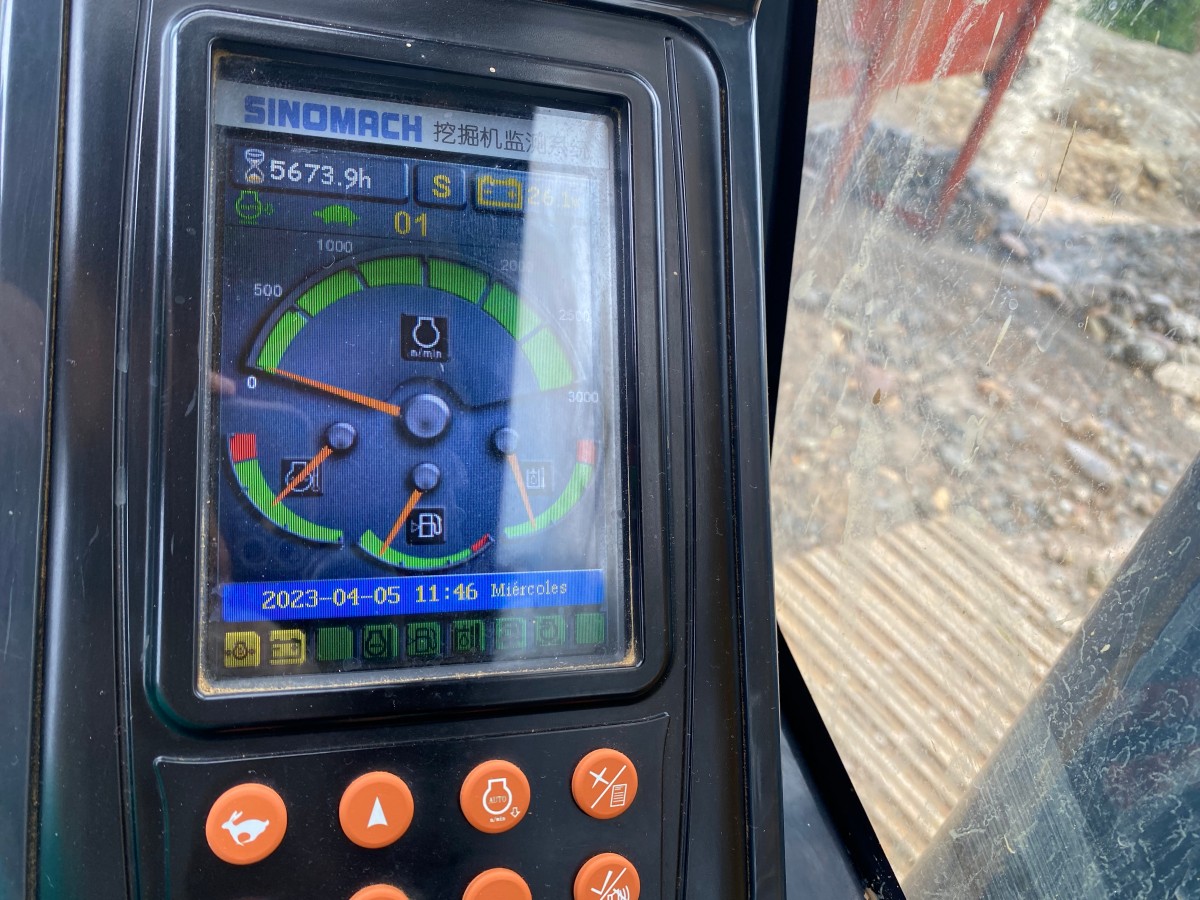

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions.

Adopting safe and reliable new cab, brand-new injection molding interior parts, beautiful and generous, spacious and comfortable, equipped with full-automatic cold and warm air-conditioning.

Humanized centralized and remote ground maintenance design, lighter maintenance.

Products pecifications

ITEM		UNIT	Specifications
ITEM		UNIT	ZG3255LC-9C
Operating weight		Kg	25000
Rated bucket capacity		m³	1.2
Overall length	A	mm	9930
Overall width （600mm trackshoe）	B	mm	3180
Overall height	C	mm	3180
Trunable width	D	mm	2700
Cabin height	E	mm	2996
Ground clearance of counterweight	F	mm	1062
Engine cover height	G	mm	2375
Min. ground clearance	H	mm	480
Tail length	I	mm	2910
Turning radius of turnable	I’	mm	2940
Wheel base of track shoe	J	mm	3830
Chassis length	K	mm	4640
Chassis width	L	mm	3180
Track shoe gauge	M	mm	2580
Standard track shoe width	N	mm	600
Max. traction		kN	204
Travelling speed (H/L)		km/hr	5.8/3.2
Swing speed		rpm	10.5
Gradeability		Degree(%)	35（70%）
Ground pressure		kgf/cm²	0.5

ITEM		5.85m Boom 3.05m Stick 1.2m³ Bucket
		ZG3255LC-9C
Maximum digging radius	A	10258
Ground maximum digging radius	A’	10086
Max. digging depth	B	6995
Ground maximum digging depth	B’	6813
Maximum vertical digging depth	C	6090
Maximum digging height	D	9612
Maximum dumping height	E	6690
Min. front turning radius	F	3740
Bucket digging force	ISO	162 kN
Stick digging force	ISO	123 kN
